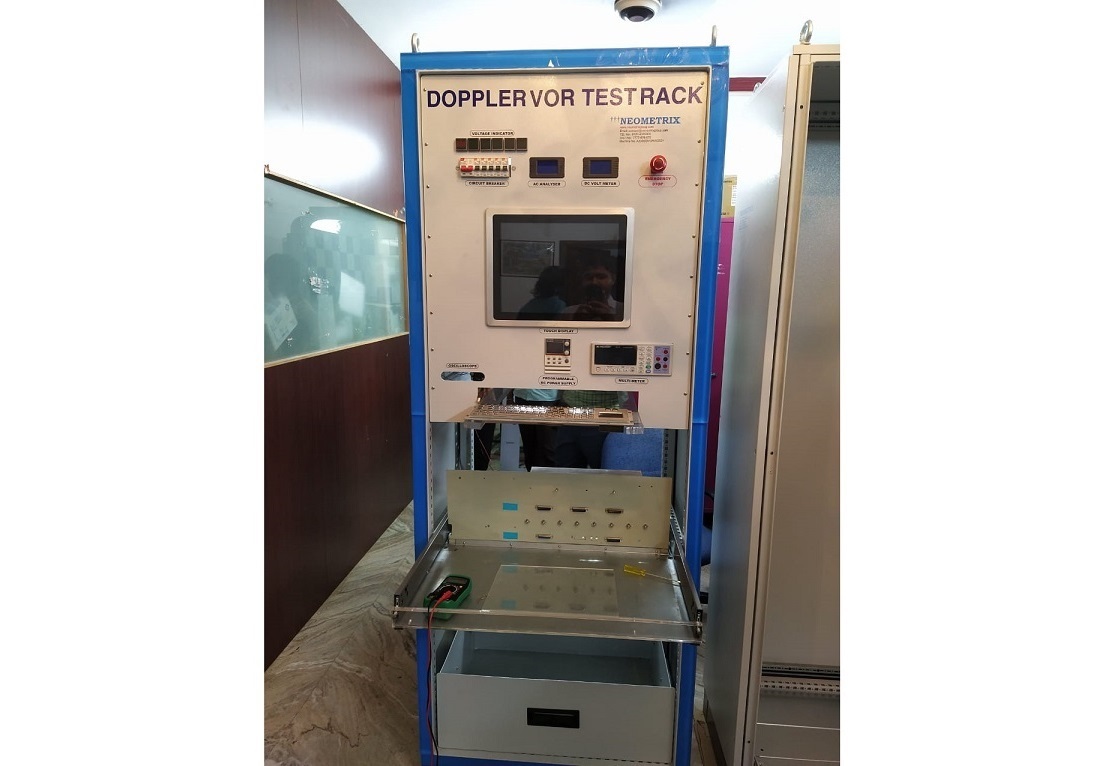

DOPPLER VOR TEST RACK

About

'I’ Level Facility For Testing Of DVOR LRU. This Is A State Or Art For Automatic Testing For Fault Detection And Replacement Components Of Modules Of DVOR MAFI System Up To Component Level As An Aid To Repair.It Should Also Be Capable Of Undertaking Functional Testing Of All Modules And Sub-Modules Of DVOR With An Option To Generate Diagnostic Test Report.

Image Gallery

Technical Details

  • Universal Test Racks, along with associated interfaces (jigs/fixtures Card Extenders, interface cables, edge connectors, GPIB, accessories test software etc) which is compatible and capable of undertaking diagnosis of all the modules and sub-modules / shop replaceable unit (SRU)
  • Testing and Fault diagnosis / rectification of following modules / spares of DVOR
  • Following modules/LRU’s can be tested in DOPPLER VOR Test Rack
    • Control Unit
    • Change Over Unit
    • Input/ Output Unit
    • Field Monitor Unit
    • Distributor Drive Unit
    • Pin Unit Diode Switch
    • Impedance Matching Unit
    • DC Unit (For Controller)
    • Central Processing Unit
    • Car Unit
    • Side Band Amp Unit
    • Test Signal Generator Unit (SG)
    • Transmitter DC DC Unit
    • LCD Display Unit
    • Cooling Fan Unit For Controller
    • DVOR Signal Generator Unit
    • Transmitter Fan Unit

Test Rack along with associated jigs/fixtures, Card Extenders, interface cables for JTAG components, edge connectors, GPIB etc., accessories and test software should be capable of undertaking diagnosis of all the modules and sub-modules / shop replaceable unit (SRU).The test rack/ bench system should also possess an inbuilt self diagnostic procedure in terms of start-up BITE to identify faults and generate remedial actions by user.

Key Features

  • Universal Test Racks, along with associated interfaces (jigs/fixtures Card Extenders, interface cables, edge connectors, GPIB, accessories test software etc) which is compatible and capable of undertaking diagnosis of all the modules and sub-modules / shop replaceable unit (SRU)
  • Testing and Fault diagnosis / rectification of following modules / spares of DVOR
  • Following modules/LRU’s can be tested in DOPPLER VOR Test Rack
    • Control Unit
    • Change Over Unit
    • Input/ Output Unit
    • Field Monitor Unit
    • Distributor Drive Unit
    • Pin Unit Diode Switch
    • Impedance Matching Unit
    • DC Unit (For Controller)
    • Central Processing Unit
    • Car Unit
    • Side Band Amp Unit
    • Test Signal Generator Unit (SG)
    • Transmitter DC DC Unit
    • LCD Display Unit
    • Cooling Fan Unit For Controller
    • DVOR Signal Generator Unit
    • Transmitter Fan Unit
