NMX‑RGR‑30 / Rev 00 / naval deck equipment / hold · release · retract 2026 · Product Page
NMX-RGR-30 · ENGINEERED TO ORDER — AIRCRAFT CARRIER RESTRAINING GEAR

It has to be immovable. Then it has to let go.

That contradiction is the whole machine. It must hold an aircraft absolutely still while the engines run up to maximum thrust with reheat — and then release completely, cleanly, at a commanded instant. Most restraints only ever have to hold, and holding is a strength problem with a known answer. Releasing while fully loaded is a mechanism problem, and it is the hard one — harder still because the release must be predictable in time, since everyone else in the launch sequence is already committed. Two things follow. It sits in a deck that pitches, rolls and gets driven over, so it must retract flush and work when nothing is level. And it is one interlock inside a choreography, so it must be positively confirmed engaged before power is applied. Equipment of this class has been quoted against an aircraft carrier restraining gear requirement for a navy; no delivered restraining gear is claimed — the class is engineered to order.

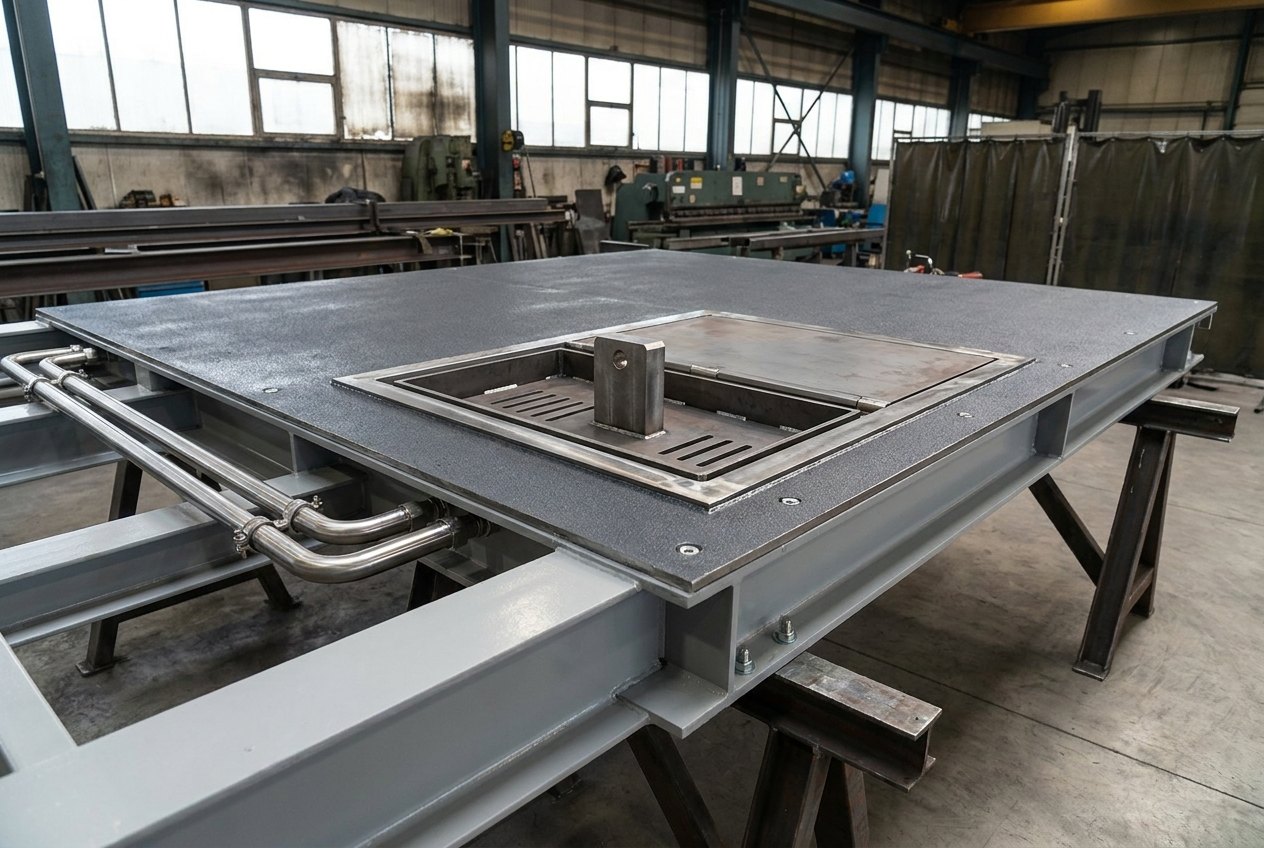

Illustrative of the class — a heavy steel deck section on trestles in a fabrication workshop, its upper face finished in dark-grey non-slip deck paint, with a restraining gear unit set flush into the middle: a long recessed steel housing with bare machined edges, a heavy hinged cover plate lying flush with the deck surface, a stout bare machined steel holding element upright in the centre of the recess, drainage slots along the recess edges, welded steel framing beneath and stainless hydraulic pipework to one end, no people, no aircraft and no readable markings
Fig · 01 Flush in the deck — because within seconds of the launch, something else rolls across it
Holds
full thrustwith reheat
Then
releases on commandcleanly, repeatably
Sits in
a moving deckflush, walked on, washed
Proved by
full-load cyclingrig, then deck trials
Status
engineered to orderquoted class
ISO 9001 / 14001 Engineered to order Naval deck equipment Qualification rigs Noida · India
01
Overview

Anything can hold. The difficulty is stopping.

A restraint that only has to hold is a sizing exercise. A restraint that has to release, on command, with a fighter's thrust already applied, is a different discipline entirely.

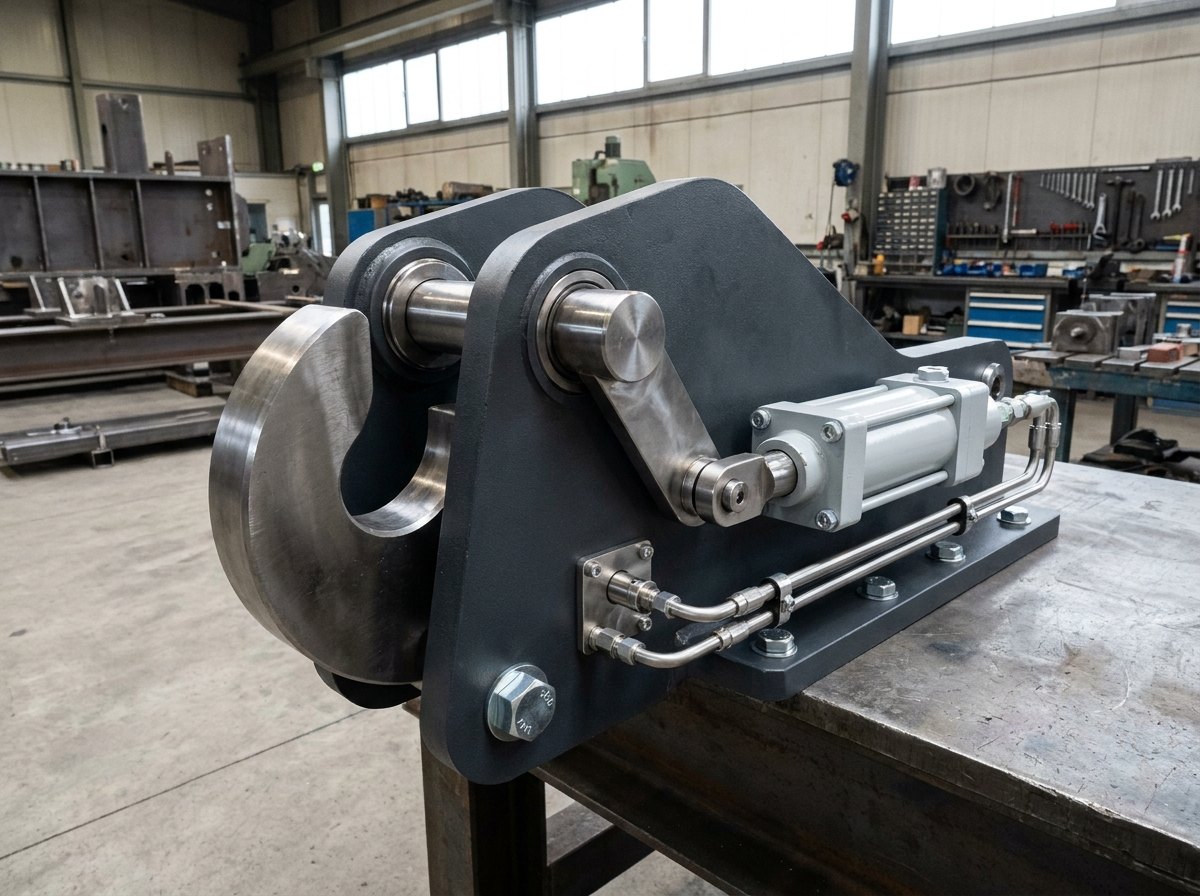

Illustrative of the class — close view of a heavy restraint and release mechanism on a workshop bench: a massive bare machined steel body with a stout pivoting hook-like holding element in the centre, a heavy cross pin through polished bearing bores, a compact light-grey painted hydraulic actuator bolted to the side driving the release linkage, two stainless high-pressure hydraulic lines with clean fittings, a stainless position sensor on a machined bracket and heavy high-tensile bolts around a mounting flange, no people, no aircraft and no readable markings
Fig · 02 The mechanism — every feature on it exists to make the release behave the same way every time

Holding is the easy half. Work out the thrust, apply a factor, choose the section, check the load path into the deck structure, and the holding element is a solved problem. It is also the half everyone specifies, because it produces a number that can be written into a requirement. But nothing about that number describes the behaviour that actually matters, which is what happens in the fraction of a second when the gear stops holding. At that moment the mechanism is carrying its maximum load, the aircraft is at maximum power, and the release must be complete — no partial engagement, no snatch, no residual contact as the aircraft accelerates away.

And it must happen when it is supposed to. The launch is a timed sequence involving people who cannot see each other well, on a deck that is loud enough that nobody is talking. Everyone commits before the release: the pilot has taken the engines up and completed checks, the deck crew have cleared, the officer has signalled. If the gear releases early, it releases into a condition nobody has confirmed. If it releases late, or releases inconsistently from one launch to the next, the entire choreography loses its reference point. So consistency of release timing — across temperature, across wear, across hydraulic state, across hundreds of cycles — is a harder and more important requirement than the peak load the thing can hold.

Then it has to disappear. Within moments of the launch the deck is working again: aircraft taxi over that spot, tractors and handling equipment cross it, crew walk it. So the gear retracts flush and carries deck loads while stowed, drains rather than traps salt water, and presents nothing that could be caught, tripped over or ingested. On a flight deck a loose or protruding component is not an inconvenience — it is a hazard to the next aircraft.

Equipment of this class has been quoted against an aircraft carrier restraining gear requirement for a navy. No delivered restraining gear is claimed: the class is engineered to order, and the record is stated as it stands.
Releases

Cleanly, under full load

Judged on release behaviour, not on holding capacity.

Repeatable

The same time, every time

Across temperature, wear and hydraulic state — because the sequence depends on it.

Flush

Gone before the next one

Retracted, load-bearing, draining — nothing left to catch or ingest.

02
Architecture

Engage, hold, release, and be flat again.

The schematic follows the launch rather than the hardware — engaged and confirmed, held at power, released on command, retracted — then the four blocks behind it: mechanism, deck integration, hydraulic power, and the interlock and indication layer.

FIG · 03RESTRAINING GEAR ARCHITECTURE · RESTRAINT + RELEASE / DECK INTEGRATION + RETRACTION / HYDRAULIC POWER / CONTROL, INTERLOCK + INDICATION
ENGAGE AND CONFIRM → HOLD AT FULL POWER → RELEASE ON COMMAND → RETRACT FLUSH HOLDING IS THE EASY HALF - STRENGTH IS A PROBLEM WITH A KNOWN ANSWER. RELEASING CLEANLY WHILE FULLY LOADED, AT A COMMANDED INSTANT, IS THE MECHANISM PROBLEM. JUDGED ON RELEASE BEHAVIOUR, NOT HOLDING CAPACITY AND ON BEING FLAT AGAIN THE MOMENT IT IS DONE ENGAGE + CONFIRM POSITIVELY, BEFORE ANY POWER IS APPLIED HOLD AT FULL POWER IMMOVABLE, WHILE THE CHECKS ARE COMPLETED RELEASE ON COMMAND CLEANLY, COMPLETELY - AND AT A PREDICTABLE TIME RETRACT FLUSH THE DECK IS WALKED ON AND DRIVEN OVER AGAIN A RELEASE THAT DRIFTS WITH TEMPERATURE, WEAR OR HYDRAULIC STATE DESYNCHRONISES A SEQUENCE IN WHICH EVERYONE ELSE IS ALREADY COMMITTED RESTRAINT + RELEASE HOLDING ELEMENT, RELEASE, LOAD PATH INTO THE DECK DECK INTEGRATION FLUSH STOWAGE, DECK LOADS, DRAINAGE, NO LOOSE OBJECTS HYDRAULIC POWER MARINISED PACK, ACTUATION, ACCUMULATORS, FAIL-SAFE INTERLOCK + INDICATION NO RELEASE WITHOUT THE COMMANDED CONDITION OUR ROLE: MECHANISM + RELEASE BEHAVIOUR, LOAD PATH + DECK INTERFACE, RETRACTION, MARINISED HYDRAULIC POWER + ACTUATION, CONTROL + INTERLOCKS + INDICATION, THE QUALIFICATION RIG AND TEST PROGRAMME, COMMISSIONING, DECK TRIALS SUPPORT, TRAINING, AMC DETAIL · WHY PROVING IT COSTS MORE THAN BUILDING IT A RAM ON A BENCH PROVES LITTLE IT SHOWS THAT IT HOLDS, ONCE THE QUESTION IS RELEASE REPEATEDLY, UNDER FULL LOAD SO BUILD THE RIG FIRST BEYOND SERVICE LOAD, CYCLED, EXPOSED THEN PROVE IT ON A DECK THE RIG IS PART OF THE SCOPE, NOT AN EXTRA AND IT MUST WORK WHEN THE DECK IS NOT LEVEL - THE RESTRAINT LOAD IS THEN NOT PURELY ALONG THE DECK AXIS, WHICH IS THE CASE A LEVEL-FLOOR TEST NEVER SEES. IMMOVABLE WHILE THE ENGINES RUN UP THEN GONE CLEANLY, AND ON TIME FLUSH BEFORE THE NEXT ONE ROLLS OVER IT
Fig · 03 Qualified by repeated release under full load — then proved on a deck
Arc · 01

Restraint & Release Mechanism

Holding element, release, load path — and the geometry that makes the release behave identically every cycle.

Arc · 02

Deck Integration & Retraction

Flush stowage carrying deck loads — drainage rather than traps, and nothing left proud of the surface.

Arc · 03

Hydraulic Power & Actuation

Marinised pack, accumulators, actuation — with defined fail-safe behaviour on loss of power or pressure.

Arc · 04

Control, Interlock & Indication

No release without the commanded condition — engagement positively confirmed, and state shown rather than inferred.

Specifying restraining gear, a retrofit, or the rig to qualify one? Send the aircraft thrust and interface data, the deck structure, the launch procedure and the qualification standard required — a clause-by-clause compliance matrix within two working days · [email protected]
Send tender spec
03
Specifications

Specified on the release, proved on a rig.

The parameters below describe the engineering approach. Mechanism sizing, release behaviour, retraction, hydraulic capacity and the qualification programme all follow from four givens: the aircraft thrust and its interface, the deck structure available, the launch procedure the gear must fit inside, and the qualification standard it has to satisfy.

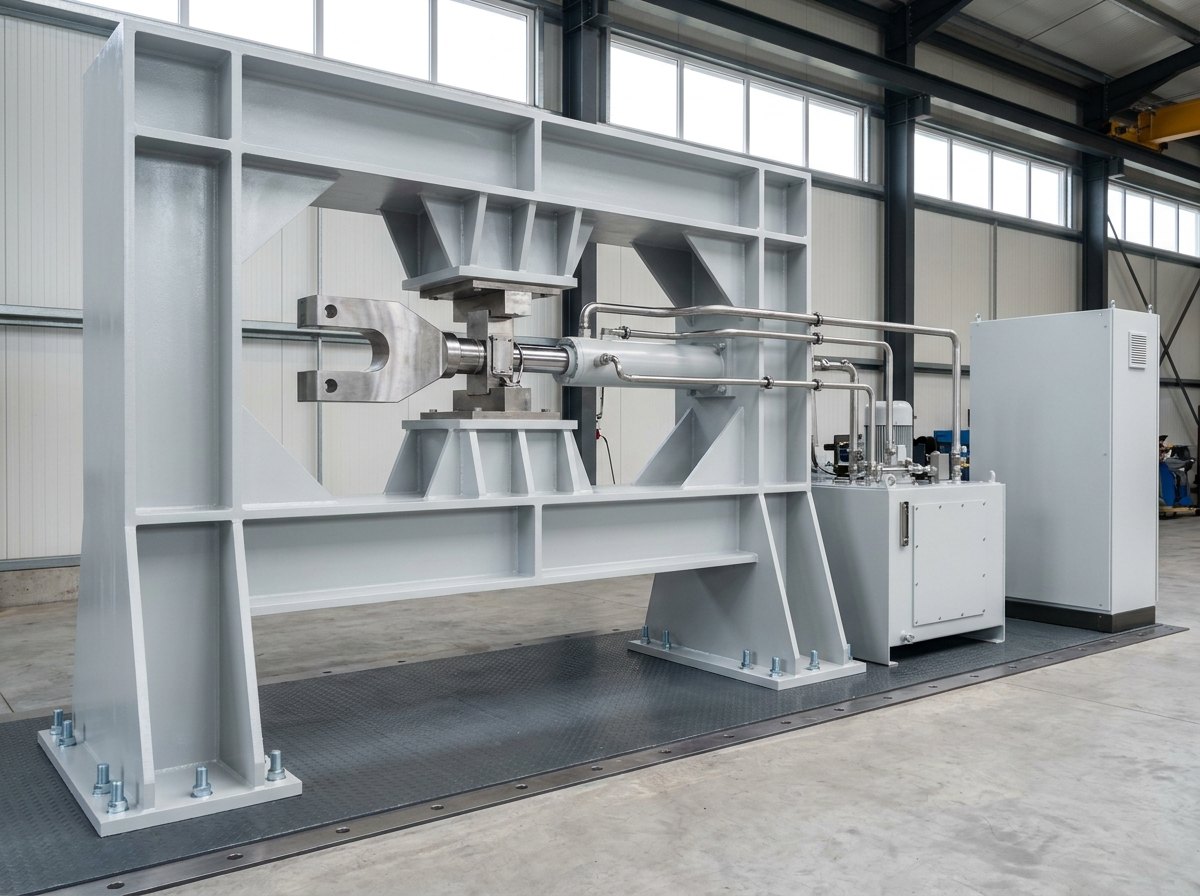

Illustrative of the class — a heavy full-load test rig in a fabrication workshop: a stout light-grey painted steel load frame of thick welded box sections and heavy gussets bolted to a machined steel floor plate, a large horizontal hydraulic cylinder acting through a bare machined steel clevis onto a test specimen at the centre, a stainless load cell in the load path, heavy tie rods, thick stainless hydraulic pipework running to a light-grey hydraulic power pack beside the frame and a plain unmarked instrumentation cabinet with blank panels behind, no people, no aircraft and no readable markings
Fig · 04 The qualification rig — the part of the scope that is usually discovered late

Where these systems go wrong

Specified on holding load alone — a number that is straightforward to meet, while the requirement that decides service behaviour goes unstated. Release timing that drifts with temperature, wear or hydraulic state, so the gear works perfectly on acceptance and inconsistently a year later. Protrusions or drainage traps — a stowed profile that is not quite flush, or a recess that holds salt water and corrodes the mechanism from inside. A mechanism designed for a level deck, then asked to work on one that is pitching, where the restraint load is no longer purely along the deck axis. State inferred rather than indicated, so the crew rely on the position of a lever instead of a confirmed condition. And qualification planned as a bench test, with the full-load rig, the cycling programme and the deck trials discovered after the price was fixed.

So the discipline runs the other way. The release is the first specification — completeness, repeatability, and consistency of timing across the service envelope — and the holding element is sized around a mechanism that can do that. The stowed condition is designed with the loaded one, so flushness, deck loading and drainage are not left to detailing. Behaviour on a non-level deck is analysed explicitly. Engagement is positively confirmed and interlocked into the launch sequence, with state indication the crew can rely on. And the qualification rig is scoped at the start — a load frame that goes well beyond service thrust, a cycling programme that repeats the release hundreds of times under load, environmental exposure, and then deck trials.

Full specification — expand
SystemAircraft carrier restraining gear — restraint & release mechanism, deck integration & retraction, hydraulic power & actuation, control, interlock & indication
Governing ContradictionAbsolutely immovable at full thrust with reheat — then completely released, cleanly, on command
The Hard RequirementRelease under full load, not holding capacity. Holding is a strength problem with a known answer; releasing while loaded is a mechanism problem
TimingRelease must be consistent across temperature, wear, hydraulic state and hundreds of cycles — the launch sequence has no other reference point, and everyone in it commits before the release
Stowed ConditionRetracts flush and carries deck loads; drains rather than traps salt water; presents nothing that can be caught, tripped over or ingested
Not A Level FloorAnalysed on a pitching and rolling deck, where the restraint load is no longer purely along the deck axis — the case a level-floor test never sees
InterlockingNo release without the commanded condition; engagement positively confirmed before power is applied; state indicated to the crew rather than inferred; defined fail-safe on loss of power or pressure
QualificationProving it costs more than building it. Load testing beyond service thrust, repeated release cycles under full load, environmental exposure, then deck trials. The rig and the programme are part of the scope
Not To Be Confused WithThis holds an aircraft that is about to move deliberately. An arrester barrier stops one that must not keep moving. And shipboard helicopter traversing and handling also uses restraint — but to secure and move a helicopter from touchdown to stowage, not to hold a fighter at power. Same word, three different machines
FamilyBelongs with marine and naval hydraulic deck equipment — the marinised deck hydraulics, actuation and control that have to survive at sea
Scope BoundaryOurs: mechanism design & release behaviour, load path & deck-structure interface, retraction & flush stowage, marinised hydraulic power & actuation, control, interlocks & state indication, the qualification rig and test programme, installation, commissioning, harbour & deck trials support, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: hydraulic pumps and valves, seals, sensors and control hardware, certified fasteners and forgings. The customer's: the aircraft and its thrust and interface data, the deck and its structure, and the launch procedure
StatusEngineered to order — equipment of this class quoted against an aircraft carrier restraining gear requirement for a navy; no delivered restraining gear is claimed
04
Variants

One mechanism, four scopes.

What changes is the deck it goes into, whether that deck already exists, and whether the job is the gear or the rig that proves it.

Var · 01

Deck Restraining Gear, New Build

Designed into the deck structure — load path, recess and drainage worked with the naval architect rather than around them.

Var · 02

Retrofit Into an Existing Deck

Into structure that is already there — the recess, the load path and the access all constrained by what can be cut.

Var · 03

Shore-Based Restraining Point

For engine runs and training — the same holding and release duty on a fixed foundation ashore.

Var · 04

Qualification Rig & Load Frame

The equipment that proves the equipment — beyond-service load, instrumented, and built to cycle the release hundreds of times.

05
Applications

Wherever an aircraft is held at power on purpose.

The places where holding, and then releasing, is a scheduled operation.

A · 01Carrier flight decks
A · 02Shore-based naval air stations
A · 03Engine run-up & test areas
A · 04Deck-handler & aircrew training
A · 05Aircraft & deck qualification trials
A · 06Deck equipment refit programmes
06
FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 How is this different from arresting gear?
They are opposite machines that happen to share vocabulary, and the confusion is common enough to be worth stating plainly. Arresting gear deals with an aircraft that is already moving and must be stopped: it absorbs a very large amount of kinetic energy over a short distance, and its central problem is controlled deceleration — taking the energy out smoothly enough not to damage the airframe or injure the crew. Restraining gear deals with an aircraft that is stationary and about to move deliberately: it holds against a steady thrust while the engines are run up, then releases. It absorbs almost no energy at all. Its central problem is not deceleration but the release — letting go completely, cleanly and at a predictable moment while carrying its maximum load. The two also differ in how they fail. An arresting system that under-performs produces an overrun; a restraining system that releases early produces a launch nobody has authorised, and one that releases late or unevenly disrupts a sequence that several people have already committed to. There is a third machine in the same vocabulary, which is worth separating too: shipboard helicopter traversing and handling equipment also “restrains”, but it does so to secure and move a helicopter across a moving deck from touchdown to stowage — a custody problem, not a launch one.
Q · 02 Why is releasing harder than holding?
Because holding is a static problem with a well-trodden method, and releasing is a dynamic one at the worst possible moment. To hold, you establish the thrust, apply a factor, size the holding element and its pins and bearings, and verify the load path into the deck structure. It is demanding work, but it is arithmetic with known rules. Releasing is different in kind. At the instant of release the mechanism is at maximum load, so every contacting surface is under maximum friction, every clearance has been taken up, and every component is deflected. The release must nonetheless be complete — if any part of the holding element remains in contact for even a moment as the aircraft accelerates, it is loaded in a direction and at a rate it was never designed for. It must also be symmetric, so nothing is dragged sideways. And it must be repeatable in a way that survives wear: mechanisms release differently when their surfaces have polished, when a bearing has developed clearance, or when the hydraulic fluid is cold and thick. This is why the geometry matters more than the strength — the mechanism is arranged so the release path is short, positively driven, and as insensitive as possible to friction, so that the same command produces the same result on the thousandth cycle as on the first.
Q · 03 Why does it have to retract completely flush?
Because the deck goes straight back to work, and a flight deck is unusually intolerant of anything left standing. Within moments of a launch the same square metres are being taxied across, driven over by handling tractors, and walked on by crew moving quickly in poor light and high noise. Three separate problems follow from a component that does not stow completely. First, foreign object damage: anything that can be caught, worn loose or shed becomes debris, and debris on a deck ends up in an engine intake. Second, physical hazard: a proud edge is a trip hazard for people who are concentrating on other things, and a strike hazard for equipment being towed across it. Third, the gear itself: an exposed mechanism is repeatedly loaded by wheels and impacts it was not designed to take, and left open to salt water. So the stowed condition is a design case in its own right, not a detailing exercise. The cover has to carry deck loads as a piece of deck, the recess has to drain rather than collect — because a recess that holds salt water corrodes the mechanism from the inside, invisibly — and the whole assembly has to tolerate being walked and driven over for years between uses while remaining ready to work perfectly on demand.
Q · 04 What does it mean that the gear is “interlocked”?
It means the gear is a participant in the launch sequence rather than a device somebody operates within it. A launch involves several people who cannot easily see or hear one another, each of whom commits to an irreversible step in a fixed order: the aircraft is positioned and engaged, the blast deflector is raised behind it, the engines are run up, checks are completed, the deck ahead is confirmed clear, and the signal is given. Every one of those steps assumes the state of the others. So the gear must not be able to release without the commanded condition — the release path is not simply a lever that works whenever it is pulled. Equally important, and easier to overlook, is the other direction: engagement must be positively confirmed before power is applied, because an aircraft going to full thrust against a gear that is not properly engaged is the worst outcome the system exists to prevent. That confirmation has to be a measured condition, not an assumption drawn from the fact that a control was operated. And the state has to be indicated where the people who need it can see it, unambiguously, in conditions where reading anything small is impossible. Finally the failure behaviour has to be defined: on loss of power or hydraulic pressure the gear must go to a known state, so that a failure produces a predictable situation rather than an unknown one.
Q · 05 Why is the qualification rig such a large part of the scope?
Because the requirement that matters cannot be demonstrated any other way. You can prove holding capacity with a single pull to load. But the real questions are whether the release is complete and consistent when repeated hundreds of times under full load, whether its timing holds as surfaces wear and clearances open, whether it behaves the same cold and hot, and whether it still works after a period of salt exposure and disuse. None of that is answerable from a calculation or a one-off test, and none of it can safely be discovered in service. So the qualification programme needs a load frame that goes well beyond service thrust, instrumented so that release timing and completeness are measured rather than observed; a cycling programme that repeats the release enough times to expose wear-driven drift; environmental exposure; and finally trials on an actual deck, where the structure flexes and nothing is level. The rig is often comparable in engineering effort to the gear itself, and the commonest commercial mistake in this class is to treat it as an afterthought — the qualification is scoped after the price is fixed, and then someone has to build a major test facility inside a budget that assumed a bench. We scope the rig at the start, and it is offered as a variant in its own right, because for some customers the rig is the requirement.
Q · 06 What do you build, what is bought in — and what is claimed?
Divided honestly. What Neometrix provides: the mechanism design and its release behaviour — the geometry that makes the release complete, symmetric and repeatable under full load, which is the heart of the machine; the load path and the deck-structure interface, worked with the structure rather than imposed on it; retraction and flush stowage, including the cover as a load-bearing piece of deck and a recess that drains; marinised hydraulic power and actuation with accumulators and defined fail-safe behaviour; the control, interlock and indication layer, so engagement is positively confirmed and release cannot occur outside the commanded condition; the qualification rig and the test programme — load frame, instrumentation, cycling and environmental exposure; and installation, commissioning, harbour and deck trials support, documentation, training, spares and AMC, including build to the customer's own specification. What is bought-in certified: hydraulic pumps and valves, seals, sensors and control hardware, and certified fasteners and forgings — proprietary products of established makers, integrated rather than imitated. What is the customer's: the aircraft and its thrust and interface data, the deck and its structure, and the launch procedure the gear has to fit inside. And the record, stated plainly: equipment of this class has been quoted against an aircraft carrier restraining gear requirement for a navy, and no delivered restraining gear is claimed. The class is engineered to order, around the deck and the aircraft it has to hold.
Related

Hold it, stop it, or walk it home.

Three deck systems that all use the word restraint, doing three different jobs.

Browse all Neometrix product lines.

Get a quotation

Send the thrust, the deck
and how it has to be proved.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — restraining gear Capability sheet (PDF) +91 7777 876 876
ISO 9001 / 14001 ENGINEERED TO ORDER — AIRCRAFT CARRIER RESTRAINING GEAR JUDGED ON THE RELEASE · FLUSH BEFORE THE NEXT ONE · PROVED ON A RIG, THEN A DECK ENGINEERED IN NOIDA · INDIA
RESTRAINING GEAR · NEW BUILD, RETROFIT, SHORE POINT & QUALIFICATION RIG · RELEASE UNDER FULL LOAD, PROVED BY CYCLING · ENGINEERED TO ORDER +91 7777 876 876 Enquire
