Neometrix / Simulation & Training / Flight Simulator Upgrades / NMX-FSU-05

NMX-FSU-05 · ENGINEERED TO ORDER — HAWK MK 132 CLASS · XR · NETWORKED TRAINING

A simulator ages in its computers. Not in its cockpit.

Name: Trainer Flight Simulator Upgrades — Hawk Mk 132 Class
Brand: Neometrix

The cockpit shell, the controls and the motion cues still match the aircraft. The computers, the image generator, the projectors and the software do not. So we keep the cockpit and replace the brains and the eyes.

Then we add what the old simulator never had. XR headsets with a full 360-degree view — look up and see the synthetic world, look down and see the real cockpit. A flight model matched to flight-test behaviour, including stall and spin. And a network on the open HLA standard, so five stations fly one mission — formation, air combat, strike — against computer-generated adversaries. That is how a procedures trainer becomes a combat trainer.

Discuss an upgrade Capability note (PDF)

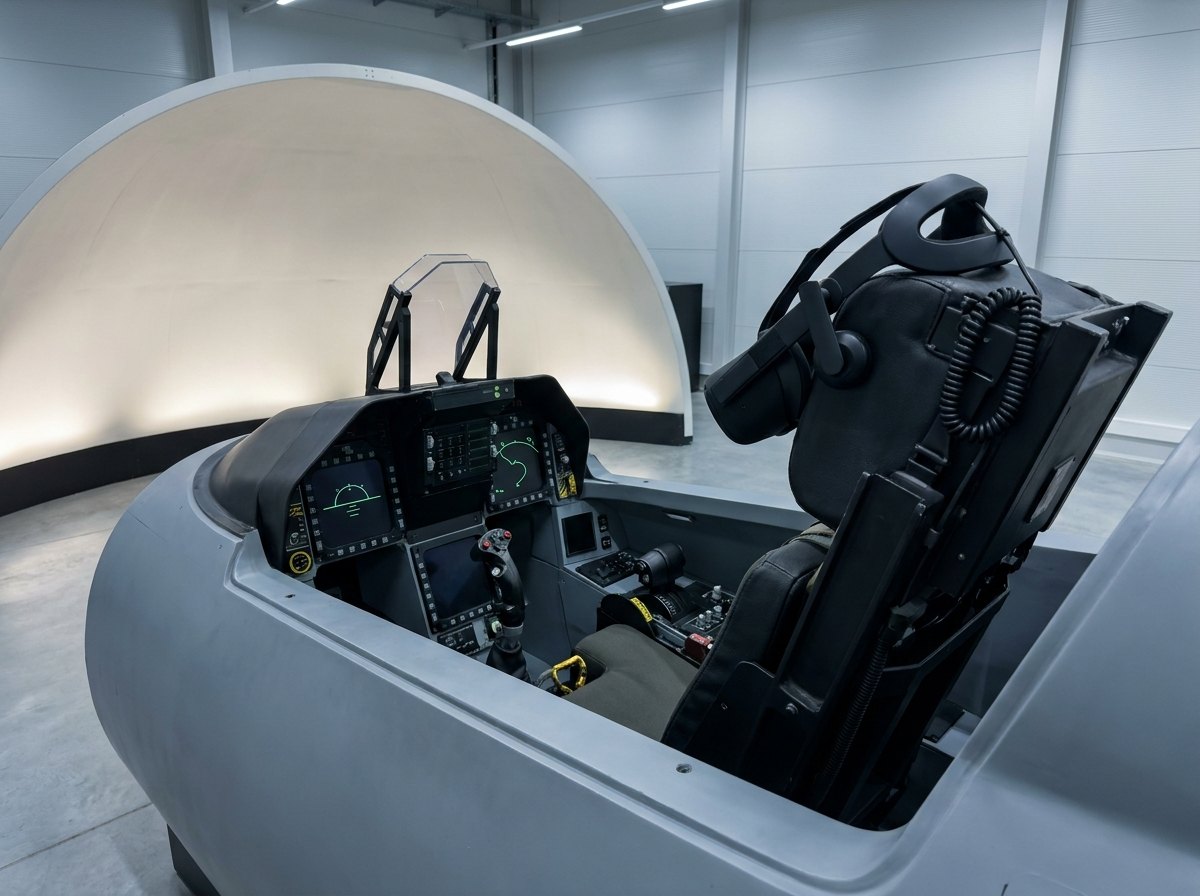

Fast-jet trainer simulator cockpit with an XR headset resting on the ejection-seat headbox, glass displays dark, projection dome behind

Fig · 01 — The cockpit is the part worth keeping. It matches the aircraft, and it is the most expensive part to rebuild.

The move

keep, replace, addcockpit / compute / network

View

360° XRwith cockpit passthrough

Network

HLA · IEEE 1516five stations, one mission

Flight model

flight-test matchedincl. stall and spin

Status

engineered to orderplatform-quoted class

ISO 9001ISO 14001Clause-by-clause complianceFactory test before siteIn-house engineering

Overview

What an old simulator cannot teach, the real aircraft must.

And real flying hours cost orders of magnitude more than simulator hours. That is the whole business case, and it is worth walking through.

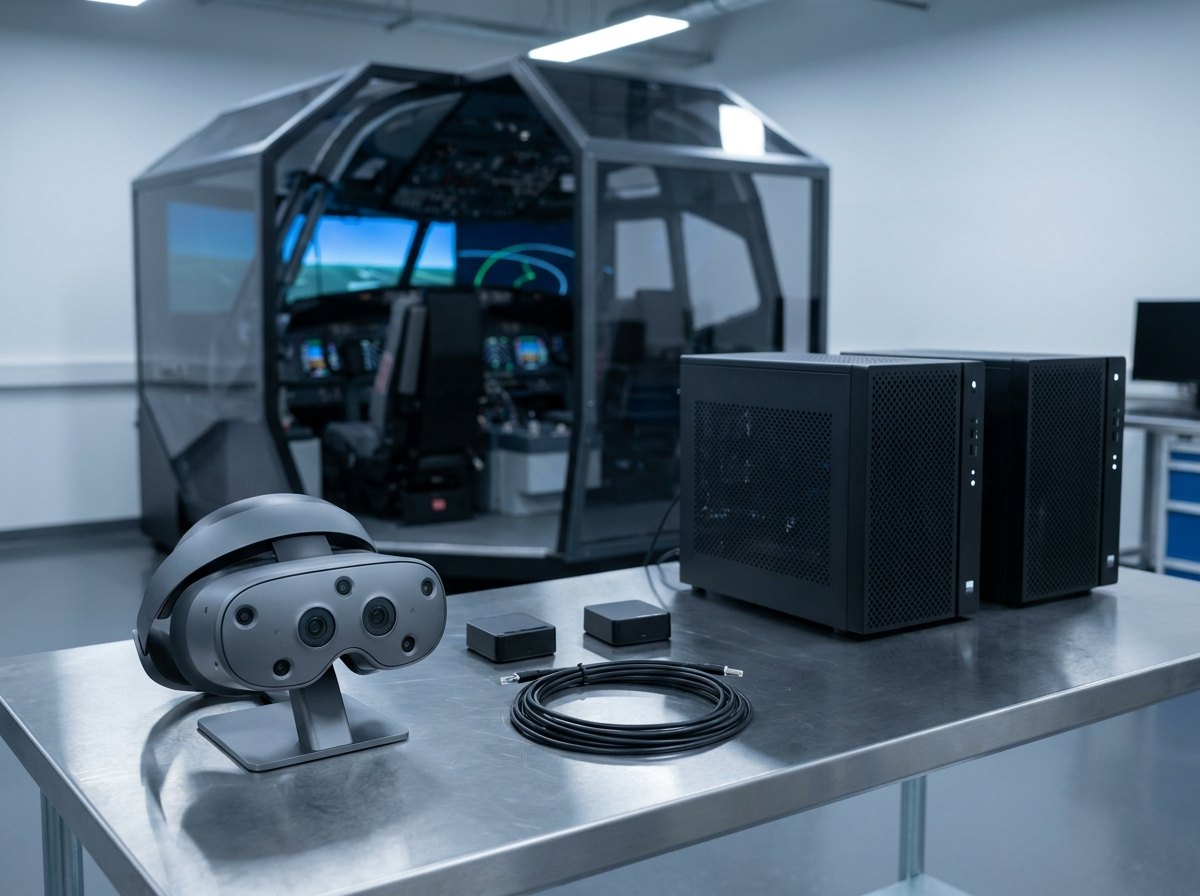

XR headset and its tracking modules laid out on a bench beside new image-generation computers, with a trainer simulator cockpit in the background

Fig · 02 — The new eyes. An XR headset replaces a projector wall that could never wrap all the way around a pilot.

Every skill the simulator cannot teach is taught in the air, at jet-fuel prices. Close that gap and the upgrade pays for itself.

Where the gap comes from

A trainer simulator built for basic flying does its first job well. Circuits, instruments, procedures, emergencies — all fine. Then the syllabus moves on to formation and combat, and the simulator stops helping.

The reasons are physical. A projector display covers a limited arc, and a pilot in combat looks everywhere — up, back over the shoulder, straight down. A single simulator has nobody to fly against or with. And a basic flight model is not trustworthy at the edge of the envelope, where combat handling lives.

So multi-aircraft handling gets taught on the real aircraft instead. Extra sorties are flown just to build what the simulator could not. In the worst case a trainee runs out of runway to prove themselves and is moved off fighters altogether. All of that is the cost of an ageing simulator, paid in flying hours.

Why upgrade instead of replace

Because the expensive half still works. The cockpit shell is a faithful copy of the aircraft. The controls have the right feel. The seat cues — motion and stick vibration at high angle of attack — are already there. None of that has aged.

What has aged is everything that computes: the host computer, the image generator, the projectors, the software, the database. Those are exactly the parts an upgrade replaces. Keep the airframe-true hardware, renew the electronics around it, and the device comes back current at a fraction of replacement cost.

The device ladder

Simulator complexes are built as a ladder. A part-task trainer teaches one system. A cockpit procedure trainer teaches drills and checks. A flying training device flies the full mission from a fixed base. An upgrade touches every rung — and then does something the ladder never did: it connects the rungs together.

Keptcockpit, controls, motion cues

Replacedcompute, visuals, software

AddedXR, network, adversaries

Provedagainst flight-test behaviour

How the work runs

Audit, keep or replace, refit, network, then prove it flies true.

The order is fixed by engineering, not preference. You cannot network stations that do not yet share a world, and you cannot prove a flight model you have not rebuilt.

FIG · 03SIMULATOR UPGRADE FLOW · AUDIT / KEEP + REPLACE / XR VISUAL PATH / FLIGHT MODEL / NETWORK + ADVERSARIES / PROVE + TRAIN

The gate at the end matters most. The upgraded simulator is proven at the factory, then again on site, clause by clause against the specification — before a single syllabus sortie is flown in it.

1 · Audit the device

Every box, cable and card is surveyed. What still serves, stays. What is unserviceable or cannot talk to the new fit is listed for replacement. The user interface the instructors already know is kept.

2 · Replace the compute

New host computers run the simulation. A new image generator draws the world. The old projector path is renewed where it stays, and the XR path is built beside it.

3 · Fit the XR view

Embedded headsets in the 4K, 90-hertz class give a full spherical view. Passthrough blends in the real cockpit: look down and your hands, stick and displays are really there. Head tracking keeps the world steady through hard manoeuvring.

4 · Rebuild the flight model

Aerodynamics and engine are remodelled and matched to flight-test behaviour across the envelope — including high angle of attack, stall, spin, and failure cases. Control feel is tuned against the aircraft at different weights.

5 · Network and populate

An HLA federation joins the stations, and any station can join or leave a running mission. Computer-generated forces supply leads, targets and opponents that fly real manoeuvres. Instructors can fly as adversaries from their own stations.

6 · Prove and train

Factory acceptance first, then installation and proof at the operator's complex against a clause-by-clause matrix. Operator and instructor training follow on the device itself. Warranty in the three-year class runs from final acceptance.

Work content

Five stations, one mission, and everything recorded.

The upgrade is best read station by station. The same world, the same flight model and the same network serve all of them.

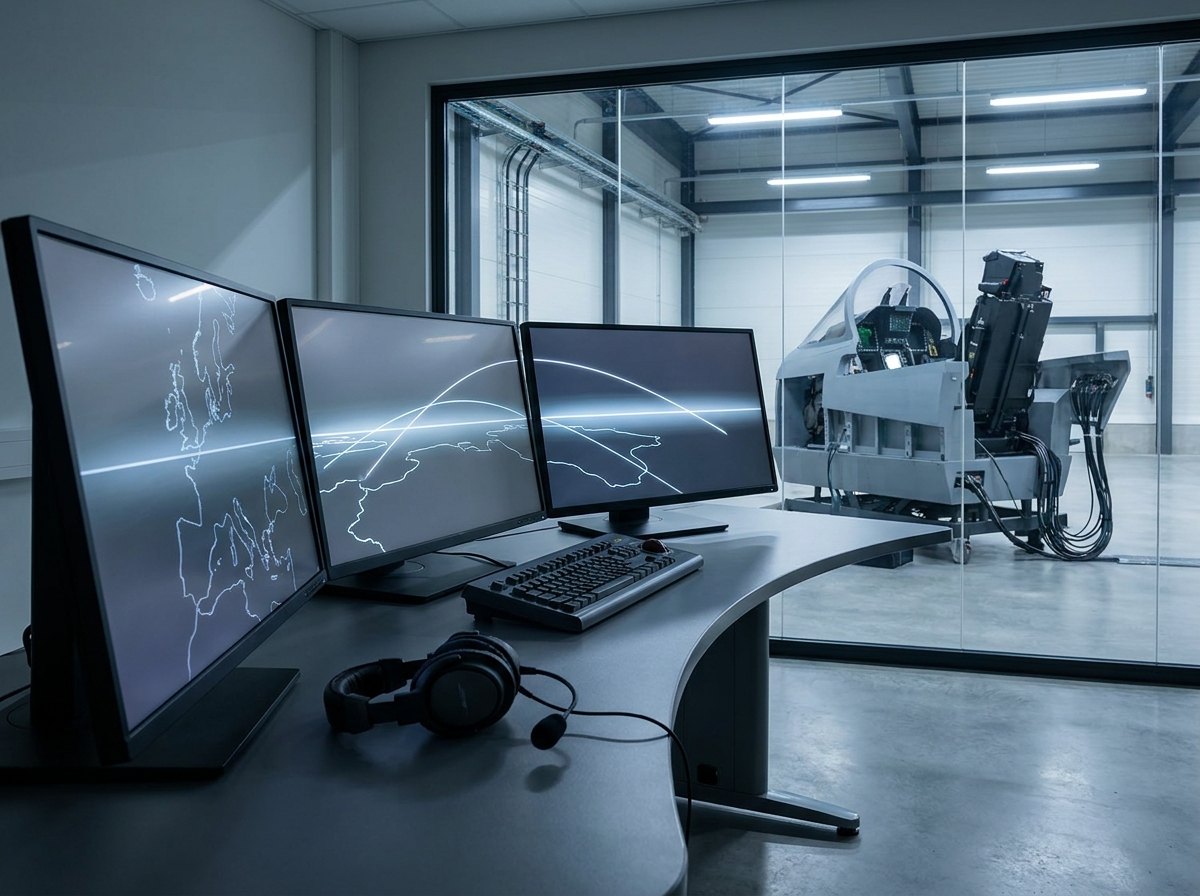

Instructor operator station with a row of consoles showing plain map and flight-path graphics, facing a simulator cockpit through a glass partition

Fig · 03 — The instructor's seat gains the most. Scenario control, a live repeater of the trainee's view, and a debrief that shows where the trainee was actually looking.

Element	What the upgrade does	Why
Flying training device	new compute, visuals, XR; cockpit and interface kept	full-mission flying
Cockpit procedure trainer	same refit as the FTD	drills join the same missions
Instructor flying stations	two new stations, XR-equipped	instructor flies as lead or adversary
Part-task trainer	upgraded and networked	systems training joins the fleet
Instructor operator station	scenario, malfunctions, freeze, reposition, repeater view	one seat controls the mission
XR headsets	4K-class, 90-hertz-class, embedded, with passthrough	360° view; real cockpit below
Flight model	rebuilt; matched to flight-test behaviour	trustworthy at the envelope's edge
Visual world	modelled airfields with approach aids and lighting; terrain	ground work, navigation, night flying
Weather	cloud layers, fog, rain, storm; layered winds and turbulence	weather decisions trained safely
Adversaries	computer-generated forces with user-defined behaviour	combat without a second crew
Recording	mission data, eye tracking, hand tracking, cockpit cameras	the debrief sees everything
Network	HLA, IEEE 1516 class; stations join and leave freely	open standard, future devices connect
Programme	18-month class; factory test, then site acceptance	proof before training starts
Support	operator training; warranty in the three-year class	the device stays serviceable

The line worth reading twice is the repeater view. The instructor sees exactly what the trainee sees, live, and the debrief replays it with eye and hand tracking. Instruction stops being guesswork about where the trainee was looking.

Full specification — expand

System	Mid-life upgrade of trainer flight simulators — audit, keep-or-replace engineering, compute and visual refit, XR integration, flight-model rebuild, networking, adversary generation, proof and training
The One Idea	A simulator ages in its computers, not its cockpit. The cockpit shell, controls and motion cues still match the aircraft. The compute, visuals and software do not. Keep the first, replace the second
Platform Class	Hawk Mk 132 advanced jet trainer simulator complexes: flying training device, cockpit procedure trainer, two instructor flying stations, part-task trainer — five stations on one network
Kept	Cockpit shells and their user interface, control feel, seat-motion and stick-vibration cues at high angle of attack — the airframe-representative hardware
Replaced	Host computers, image generation, projector and display path, all software, and any cockpit hardware that is unserviceable or incompatible with the new fit
XR View	Embedded headsets, 4K-class resolution, 90-hertz-class refresh, full 360-degree spherical view, cockpit passthrough: synthetic world looking up, the real cockpit and the pilot's own hands looking down
Flight Model	Aerodynamic and engine models rebuilt and matched to flight-test behaviour across the envelope — high angle of attack, stall, spin, engine failure states — with control feel tuned against the aircraft at different weights and configurations
Network	HLA federation (IEEE 1516 class). Any combination of stations joins one live mission and can join or leave while it runs. The standard is open, so dissimilar simulators can federate later
Adversaries	Computer-generated forces: leads, targets and opponents flying user-defined basic and advanced manoeuvres — formation, tail chase, one-versus-one to two-versus-two, and ground-attack profiles — with tools for the operator to build its own behaviours
Syllabus Coverage	Basic and conversion flying, general handling, instrument flying, navigation, close and tactical formation, air-to-air combat, air-to-ground with rockets, bombs and guns, valley flying, emergencies — day and night, solo or networked
Visual World	Modelled airfields with approach aids and airfield lighting for ground manoeuvring and night operations; terrain; weather from clear to thunderstorm; dawn, dusk, moonlight; layered winds, turbulence and wind shear
Instructor Tools	Scenario setup, malfunction insertion, freeze and reposition, live repeater of the trainee's XR view, and instructor flying stations so the instructor can fly as lead, wingman or adversary
Debrief	Full mission recording with eye tracking, hand tracking and cockpit cameras; replay and automated analysis at the debrief station, so instruction rests on what the trainee actually did and saw
Commercial Pattern	Supply, installation, testing and commissioning at the operator's own simulator complex; operator and instructor training; 18-month-class programme; warranty in the three-year class from final acceptance; clause-by-clause compliance proven from factory test to site acceptance
Scope Boundary	Ours: audit, keep-replace engineering, compute and visual fit, XR integration, flight-model rebuild and validation, networking, adversary tooling, acceptance case, documentation and training. Bought in: headsets, projectors, computers and standard hardware. The customer's: the site, the syllabus, the flight-data references it holds, and the acceptance decision
Status	Work of this class is engineered to order; Neometrix has quoted across Hawk Mk 132 ground-equipment, tooling and component-overhaul requirements, and no delivered flight-simulator upgrade is claimed.

Configurations

One device, a whole complex, or a combat network.

The same engineering serves three sizes of programme. The demand for all three is live in current defence tenders.

Single device

One simulator, refitted

New compute, visuals and software inside one flying training device or procedure trainer. The cockpit and its interface stay. The smallest honest upgrade.

Networked complex

Five stations, one mission

The full pattern: trainee cockpits, instructor flying stations and a part-task trainer federated on HLA, with XR throughout and computer-generated adversaries. A procedures room becomes a squadron.

Combat training system

Planning to debrief

The networked class extended with ground mission planning and mass debrief — the air-combat training centre pattern that air forces are tendering now, for trainer and fighter fleets alike.

The ladder matters commercially. A single-device refit proves the fit; the network is designed in from day one either way, because HLA is the open standard and a station upgraded today must join the federation built tomorrow.

Where it fits

Fleets whose simulators are older than their trainees' phones.

The pattern repeats across services: the aircraft has years left, the simulator's electronics do not.

Advanced jet trainer fleets

The Hawk class and its peers: simulators bought with the aircraft, now a generation behind in compute and display, on airframes with long lives ahead.

Air combat schools

Where multi-aircraft handling is the syllabus itself. Networked stations and computer adversaries take the first thousand mistakes out of the air and put them on the ground.

Naval aviation

Fighter and trainer simulators at naval air stations face the same ageing curve, and the same tenders are appearing for them.

Obsolescence rescue

Projector lamps, image-generator cards and host spares go out of production. An upgrade replaces the unsupportable electronics before they ground the device.

Flying-hour economics

Every skill moved from the aircraft to the simulator is bought once and reused for years, at simulator operating cost instead of jet-fuel cost.

Syllabus expansion

When training doctrine adds networked and multi-player stages, the simulator must grow to match — or the new stages land on the real fleet.

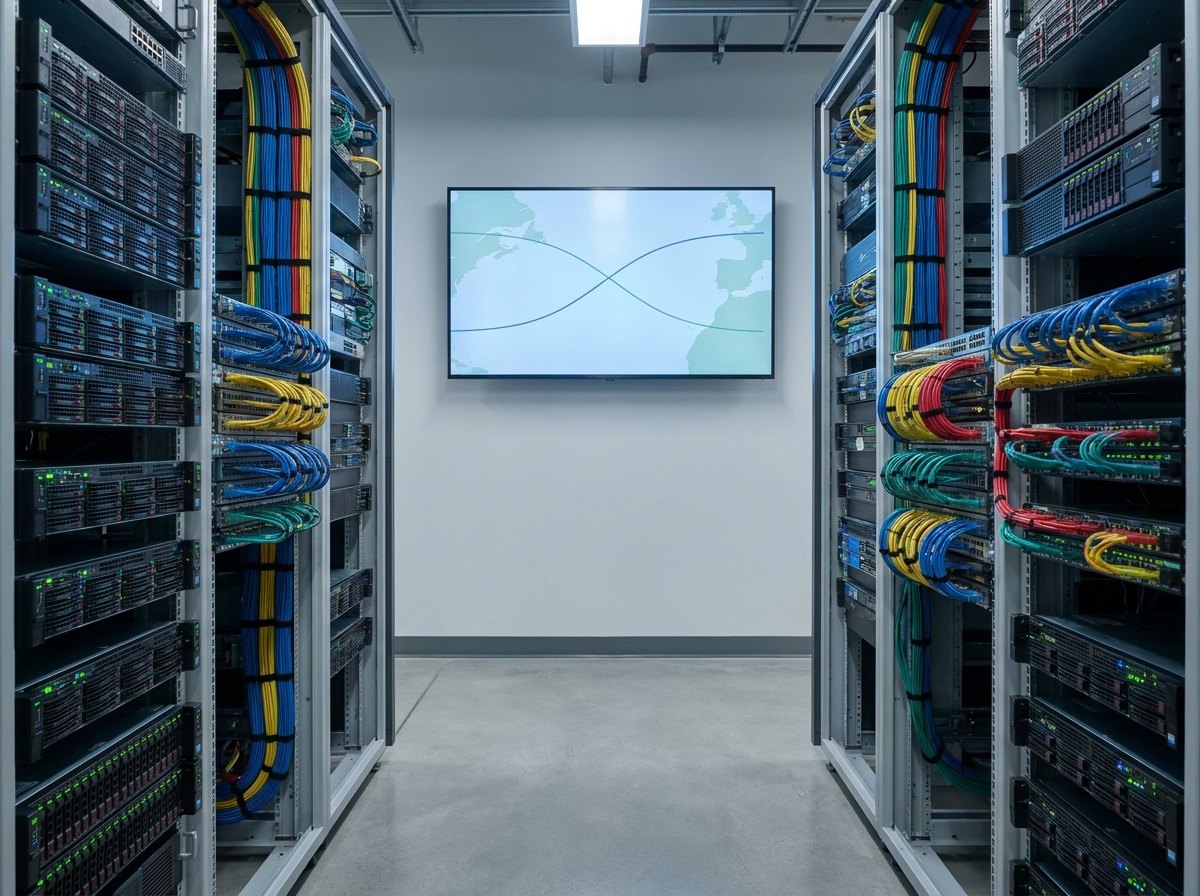

Equipment room for a networked simulator complex: new image-generation and host computer racks cabled and running beside network switches, with a debrief display showing plain flight-path traces

Fig · 04 — The new brains. Host, image generation and the network fabric — the half of the simulator that ages, renewed in one programme.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 When is an upgrade the right call, and when is replacement?

Follow the money in the device. A full-flight simulator's cost concentrates in two places: the airframe-representative cockpit with its controls and cueing, and the compute-and-visual chain around it. The cockpit does not age — the aircraft it copies is the same aircraft, the switch positions have not moved, and the control feel was engineered once and correctly. The compute chain ages fast, because it is ordinary electronics on a consumer-industry clock: host computers, image generators, projectors, storage, networking. After ten or fifteen years the electronics are unsupportable while the cockpit remains perfect. That asymmetry is the entire argument for upgrading: you renew the half that aged and keep the half that did not, at a fraction of replacement cost and without civil works. Replacement wins only when the cockpit itself is wrong — a different aircraft mark, a cockpit rebuilt beyond economic refit, or a device so old that nothing inside is worth keeping. In every other case, and in the current tenders we see, the buyer's own answer is the same: upgrade the device standing in the hall it already occupies.

Q · 02 How does the XR headset show both the world and the real cockpit?

The technique is mixed reality with passthrough, and it solves the oldest problem in simulator visuals. A projector display, however wide, is a wall in front of the pilot — it cannot wrap above, behind, or below, which is exactly where a combat pilot looks. An XR headset draws the synthetic world in every direction, so checking your six is a head movement, the same as in the air. The clever part is the boundary. The headset carries cameras that pass the real world through to the displays, and the system masks that passthrough to the cockpit's shape. Look up and out: synthetic sky, terrain, the adversary you are fighting. Look down and in: the real cockpit, your real hands, the real stick and throttle and displays, seen through the cameras. Nothing inside the cockpit has to be modelled, because it is simply there. Head tracking keeps the outside world locked to the aircraft's frame through hard manoeuvring, and current-generation headsets in the 4K, 90-hertz class hold the sharpness and smoothness that instrument flying demands. The pilot flies the real cockpit inside a synthetic sky — which is precisely what a simulator was always trying to be.

Q · 03 What does networking on HLA actually buy?

Three things, in rising order of value. First, shared missions: the flying training device, the procedure trainer, the instructor stations and the part-task trainer stop being islands and fly in one scenario — a two-ship, a four-ship, an attacker and a defender — with any station free to join or leave while the mission runs. Second, an instructor who can fly: from an instructor flying station, the instructor is no longer only a console operator but a lead to follow, a wingman to hold position on, or an adversary to fight. Third, and this is why the standard matters, a future: HLA — the High Level Architecture, standardised as IEEE 1516 — is the open interoperability standard for distributed simulation. A federation built on it is not locked to one vendor or one building. Dissimilar simulators can join later; a networked trainer complex today can federate with other devices tomorrow. That is why current tenders name the architecture explicitly rather than asking loosely for connected simulators: the buyer is purchasing the option to grow the network, not just the network.

Q · 04 How is flight-model fidelity actually proven?

By measurement against the aircraft, not by opinion. The aerodynamic and engine models are rebuilt, then flown through defined test cases — speeds, weights, configurations, manoeuvres — and their outputs are compared against how the real aircraft behaves in flight test. The envelope's edges get particular attention, because that is where an old model quietly lies: high angle of attack, the approach to the stall, the spin, and failure states such as engine surge and flameout. The trainee who will one day meet those corners in the air must have met an honest copy of them first. Control feel is proven the same way — stick and rudder forces at different weights and configurations are checked against the aircraft, because hands learn feel even when eyes are forgiving. Cockpit geometry, display pages and symbology are verified against the aircraft item by item. And the whole case is written down: a compliance matrix, clause by clause, walked through at factory acceptance and again at site acceptance before the device trains anyone. Fidelity is not an adjective in this work. It is a test report.

Q · 05 What do computer-generated forces add to training?

They remove the scheduling problem from combat training. Formation, tail chase, basic fighter manoeuvres, one-versus-one and section-versus-section fights, strike packages with escorts — every one of those needs other aircraft in the sky, and other aircraft used to mean other crewed simulators or the real fleet. Computer-generated forces supply them on demand: a lead that flies an honest formation reference, a target that turns and defends, an adversary that fights with defined skill from predictable to punishing. The instructor sets behaviour, numbers and starting geometry; the trainee gets a sky with something in it, every sortie, without waiting for a second crew. Two details separate a good implementation from a demo. The behaviours must be genuine manoeuvres — recognisable references a trainee can learn against, not scripted fly-pasts. And the operator should be able to build and refine behaviours itself, with tools handed over as part of the upgrade, because a training school's needs evolve faster than any contract. Piloted stations then stack on top: instructors fly as adversaries when judgement and unpredictability are the lesson.

Q · 06 Has Neometrix delivered one of these?

Work of this class is engineered to order; Neometrix has quoted across Hawk Mk 132 ground-equipment, tooling and component-overhaul requirements, and no delivered flight-simulator upgrade is claimed. We would rather say that plainly than dress it up. What stands behind the page is real and checkable: a delivered training-systems line — the firing-training simulators quoted across an armed-forces family, and the vehicle driving simulator — an avionics integration rig on this site, and a systems-integration house whose daily work is exactly what a simulator upgrade is made of: computers, displays, real-time software, networking, instrumentation, acceptance testing and documentation. The platform familiarity is also real: we have bid the same aircraft type's ground equipment, its project tooling, and the overhaul of its line-replaceable units. The honest shape of a first simulator-upgrade contract is the one the current tenders themselves define: clause-by-clause compliance offered up front, factory proof before site work, acceptance on the operator's own criteria, and training and warranty carried through. That is the basis we would bid on, and the page claims nothing more.

Q · 07 Does the aircraft's manufacturer have to do the upgrade?

No, and the buyers' own tender structure says so. Current simulator-upgrade tenders set the bidder's and the OEM's qualification bars equal, and place the work on open procurement portals with make-in-country preference — a structure that invites integrators, not one reserved for the airframe builder. The engineering reason it works: a simulator upgrade does not modify the aircraft, so it does not touch airworthiness approval. What it needs is an honest flight model, and that is built from what the operator holds and what the type's service history has made public — flight manuals, performance data, instructor experience — then proven against the operator's own acceptance flying, case by case, in the compliance matrix. Where the original simulator carries proprietary software, the upgrade replaces rather than modifies it, which is cleaner both legally and technically: the new software is owned, documented and supportable, with no legacy licence in the loop. The buyer's protection is not a nameplate. It is the acceptance test, flown by its own pilots, against its own aircraft's behaviour — and that test does not care who built the code that passes it.

Q · 08 What does the operator get beyond the upgraded device?

The parts that keep it useful for a decade. Training, first: operators, instructors and maintainers are trained on the upgraded device itself — how to build scenarios, run missions, insert malfunctions, drive the debrief tools, and keep the system serviceable day to day. Documentation, second: operating and maintenance manuals for the fit as delivered, not as designed — every replaced box, every interface, every software build recorded, because the mid-life device that was upgraded once will be touched again. Tools, third: the adversary-behaviour tooling and scenario editors stay with the operator, so the school can grow its own training library without coming back for every new profile. And a support tail: warranty in the three-year class from final acceptance, with the spares picture and service arrangements settled while the programme is live rather than after it closes. An upgrade bought without these is a device that works on handover day and decays privately afterwards. The tenders we see ask for all of it explicitly — training, documentation, statutory clearances, support — and they are right to.
