Hydro-Gas Suspension (HSU) Validation System, driving struts to 400 Bar jounce & rebound.

Introduction: mastering the "iron legs" of armoured warfare

In the unforgiving theatre of modern warfare, a Main Battle Tank's (MBT) survivability is defined by three pillars: firepower, protection and mobility. While armour deflects shells and cannons engage targets, it is the suspension system that allows a 45-to-60-tonne behemoth to traverse cross-country terrain at tactical speeds while keeping its main gun stabilized.

The Neometrix Hydro-Gas Suspension Test Rig is the definitive ground-support solution designed to ensure that this critical mobility never fails. Engineered specifically for the complex Hydro-Pneumatic Suspension Units (HSU) found on platforms like the T-72, T-90, BMP-II, K9 Vajra and Arjun MBT, it bridges the gap between brute force and surgical precision. By delivering high-pressure hydraulic actuation up to 400 Bar and monitoring response curves with digital accuracy, the rig guarantees that every suspension strut leaving the workshop is ready to absorb the shock of the battlefield, protecting both the vehicle's sensitive electronics and its crew from debilitating fatigue.

System architecture & engineering specifications

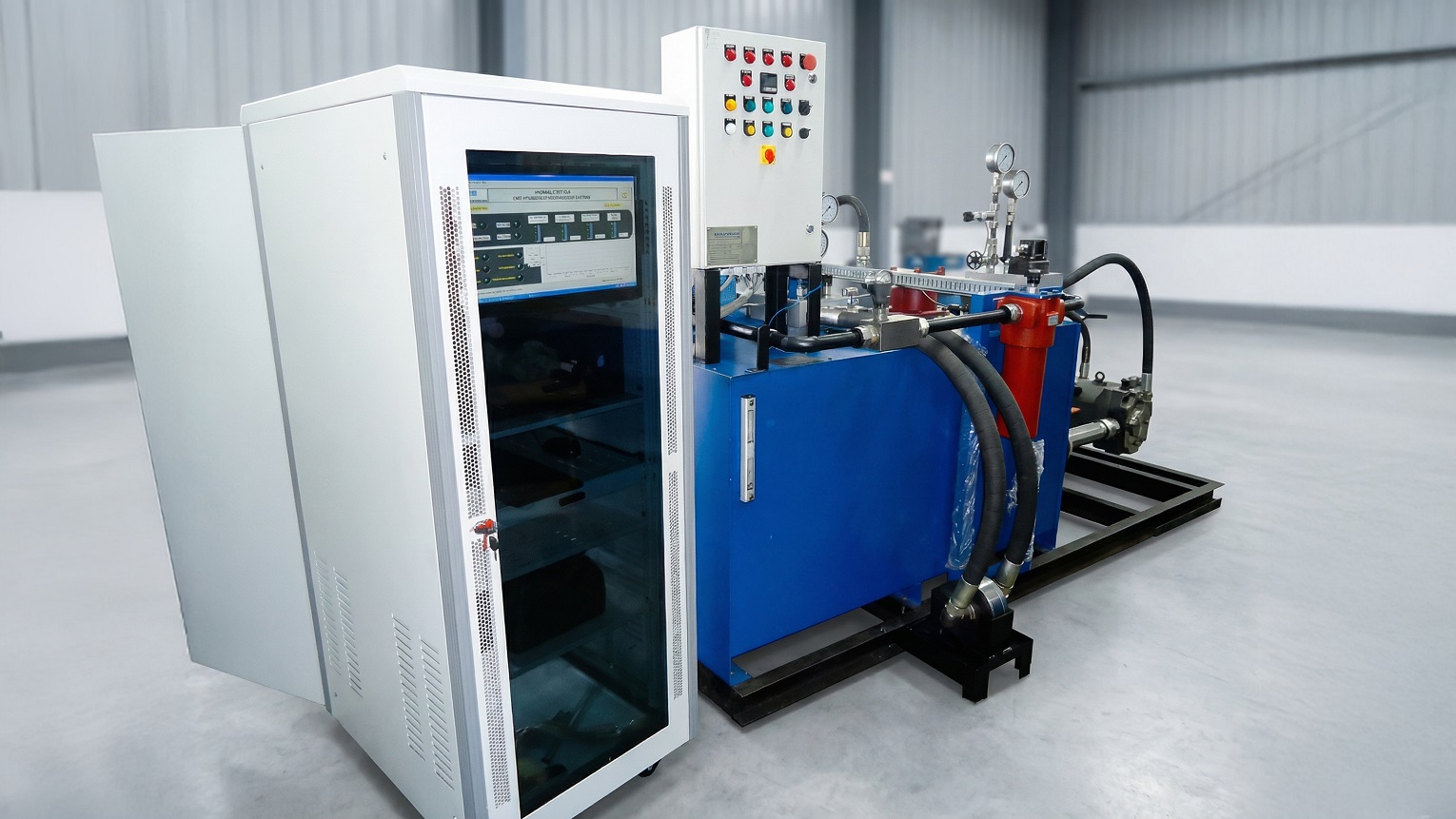

The test facility is a modular, skid-mounted system comprising two primary subsystems: the Hydraulic Power Generation Unit (HPU) and the Command & Control Station.

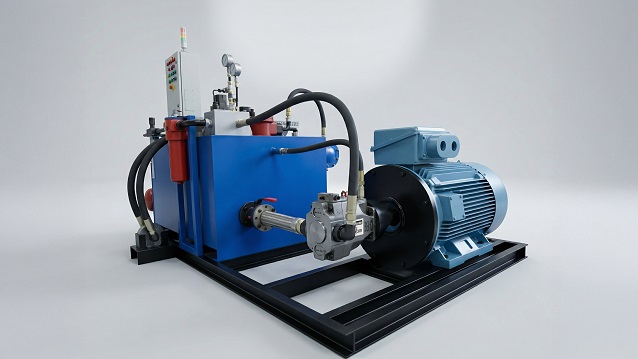

Hydraulic Power Unit (HPU) — the kinetic source

• Reservoir construction: SS-304 or heavy-gauge mild steel, approximately 400–600 L capacity (configurable up to 1000 L), with internal baffling for laminar flow and de-aeration, magnetic suction separators and desiccant breathers.
• Prime mover: 3-Phase AC induction motor (industrial grade, IE3 efficiency), typically 30kW–45kW, operating at 1440 RPM.
• Pumping group: variable-displacement axial piston pump (e.g. Parker PV Plus series or equivalent) with load-sensing (LS) and pressure-compensator (P-Comp) controls, plus external gear pumps for cooling loops and pilot pressure.
• Filtration architecture (NAS 1638 Class 6 compliance): 3-micron absolute pressure-line filters, 10-micron return-line filters, and electronic differential-pressure clog indicators linked to the PLC.
• Thermal management: an active Shell & Tube or Air-Blast heat exchanger sized to dissipate up to 30% of input power, holding oil temperature between 40°C and 55°C during endurance cycling.

Instrumentation & control — the digital core

• Software environment: custom-developed National Instruments LabVIEW™ application running on an Industrial PC (IPC), housed in an IP54-rated Rittal-style cabinet.
• Data acquisition: high-speed sampling (up to 1 kS/s) for capturing transient pressure spikes during rapid valve actuation.
• Telemetry & sensors: strain-gauge pressure transducers with 0.25% F.S. accuracy (0–400 Bar), a high-response turbine or gear-type flow meter (0–300 LPM), and optional LVDT linear position sensors for force-displacement loops.

Comprehensive operational capabilities

The Neometrix HSU Test Rig is engineered to validate the full performance spectrum of hydro-pneumatic units.

Mode 1: static proof & seal integrity test

Verifies the structural strength of the cylinder body and the holding capability of the rod seals. The system pressurizes the HSU to 1.5× operating pressure (typically up to 350 Bar, or 1000 Bar for specific proof tests) via leak-free poppet valves. The software monitors pressure decay over a fixed duration (e.g. 180 seconds); any drop exceeding tolerance (e.g. >2 Bar) triggers a "FAIL" status, indicating internal bypass or external leakage.

Mode 2: dynamic damping characterization (jounce/rebound)

Validates the HSU's ability to dissipate kinetic energy. In jounce, high-flow solenoid valves direct fluid to the piston side, simulating the rapid upward movement of the road wheel during terrain impact, measuring the pressure rise required to achieve a specific flow rate. In rebound, the valves reverse, forcing fluid out of the unit to simulate the wheel returning to position and measuring the flow restriction (damping force) provided by the HSU's internal orifices. The system generates a hysteresis loop (force vs. velocity) or pressure-vs-flow graph, overlaid against the OEM "gold standard" envelope to certify the component.

Mode 3: fluid conditioning & charge/purge

An automated maintenance cycle that circulates clean oil through the HSU to flush out degraded fluid and particulate matter (metal shavings, seal debris), then recharges the unit with fresh MIL-H-5606 or OM-15 hydraulic fluid to the precise volumetric level required for the nitrogen gas spring to function correctly.

Safety & protection systems

• Hydraulic safety block: a dedicated manifold block with a direct-acting pressure relief valve set at +10% of max system pressure to prevent over-pressurization.
• Anti-cavitation logic: reservoir level switches prevent pump startup if oil levels are low.
• Emergency shutdown: hardwired E-Stop buttons on the control panel and HPU skid immediately de-energize the motor and dump system pressure to the tank.
• Phase failure protection: prevents motor damage from voltage fluctuations or single-phasing events.

Conclusion

The Neometrix Hydro-Gas Suspension Test Rig stands at the critical intersection of heavy armour and high-precision engineering. By driving nitrogen-charged struts through violent jounce and rebound cycles under 400 Bar of hydraulic pressure, it rigorously validates the interplay between gas springs and oil dampers, serving as the definitive return-to-service checkpoint for tank HSUs before front-line armoured vehicle deployment.
