NMX-IMT-30 · ENGINEERED TO ORDER — MATERIALS IMPACT TESTING MACHINES

One blow. The whole truth.

Name: Materials Impact Testing Machine
Brand: Neometrix

Toughness is not strength. A material that stretches calmly under a slow pull can shatter under a blow — and steel that behaves at twenty degrees can fail cold. The impact machine finds that truth in milliseconds: a calibrated pendulum through a notched specimen to ASTM E23 / ISO 148, energy read from the follow-through; an instrumented drop tower whose tup records the whole force–time story; and conditioned impact — specimens struck at temperature, down to −196 °C, because the ductile–brittle transition must be found in the laboratory, never in service. Built where two delivered Neometrix lines meet: the test-machine house and the climatic-chamber line. Frames, mechanisms, fixtures, conditioning, instrumentation, verification — engineered to order. No delivered machine is claimed.

Enquire — impact testing Capability sheet (PDF)

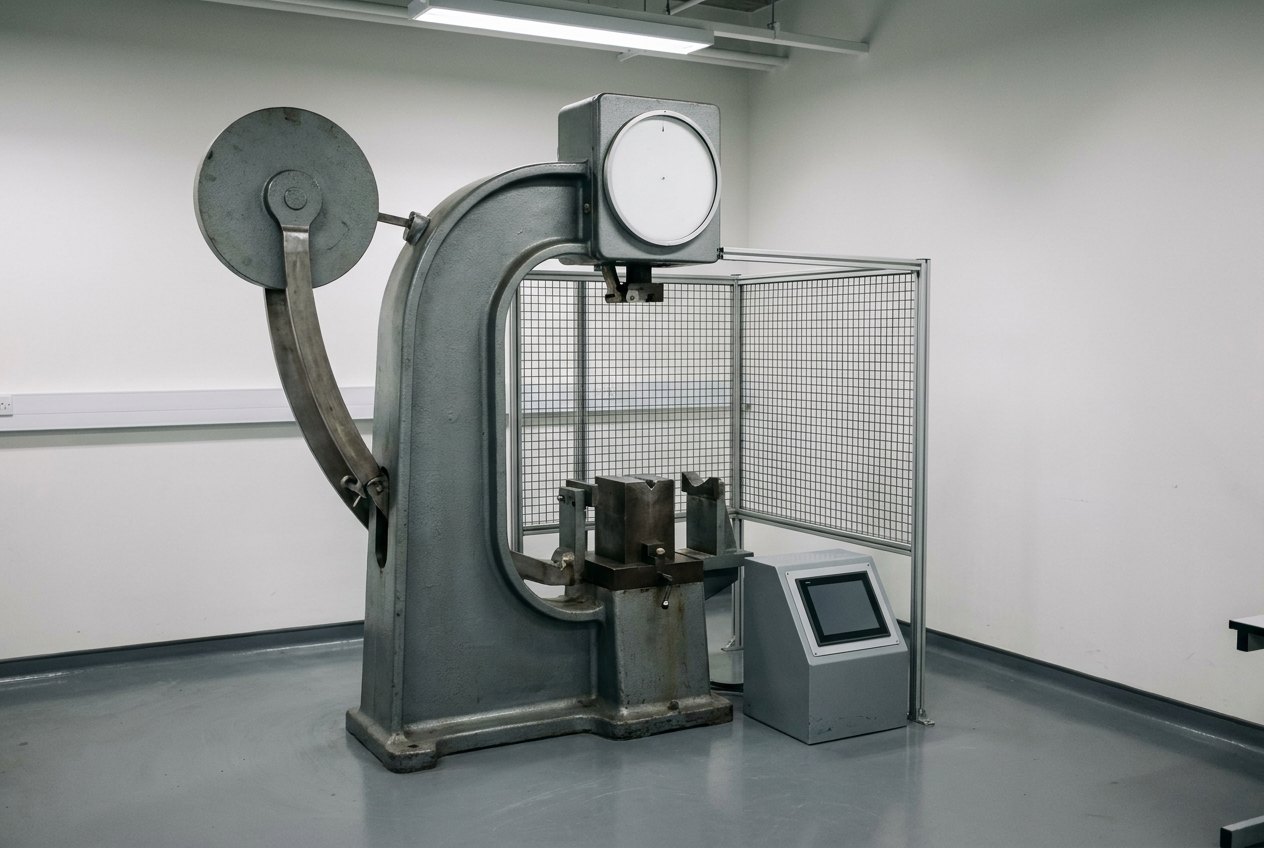

Fig · 01 The pendulum machine — a calibrated hammer, latched and waiting; the answer is in the follow-through — illustrative, not a delivered machine

Pendulum

150 – 750 J classCharpy · Izod

Towers

instrumented tupforce–time captured

Cold

to −196 °Cbaths · chamber-integrated

Codes

ASTM E23 · ISO 148reference-specimen verified

Built

to orderinstall · verify · AMC

ISO 9001 / 14001 Engineered to order Code-verified machines Materials-testing house Noida · India

Overview

Strong is not tough — and cold changes the answer.

The tensile machine asks a material how it behaves when pulled slowly. The impact machine asks a different question — what happens when you are hit — and materials answer it differently. Energy arriving in milliseconds finds the brittle path that a slow pull never takes; a sharp notch concentrates it; and temperature moves the answer wholesale: the same steel that bends and stretches on a warm day can snap like glass on a cold one. Engineering learned this the hard way, in hulls and bridges that broke in winter — which is why the codes now demand impact numbers per heat of structural plate, pipe and forging, at stated temperatures, forever.

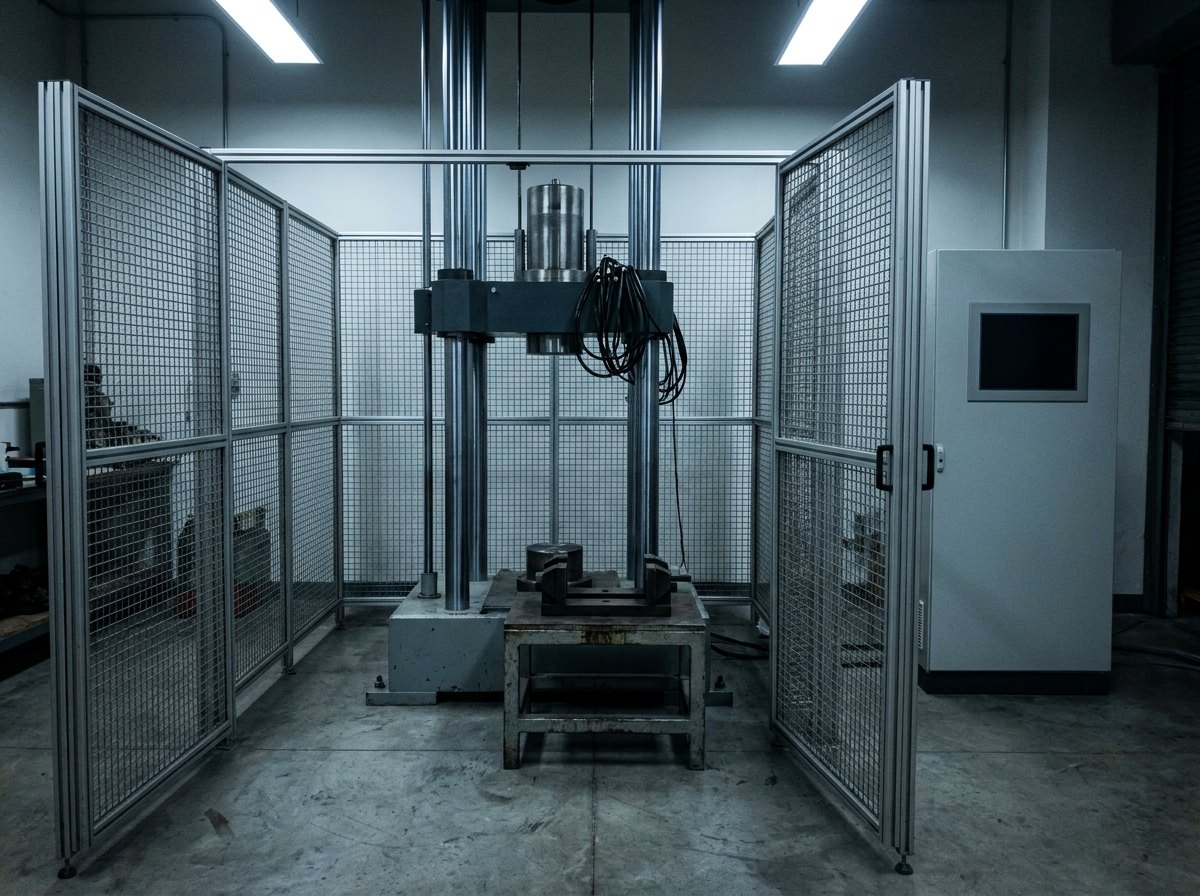

Illustrative image, not a delivered machine — an instrumented drop-weight impact tower: two vertical guide columns on a heavy base, a raised carriage with a cylindrical tup, a specimen table with clamping frame beneath, a full-height mesh guard enclosure and a grey control cabinet with a blank screen, laboratory setting, no people and no text

Fig · 02 The drop tower — guided mass, variable energy, and a tup that records the whole story of the hit — illustrative, not a delivered machine

The pendulum delivers the classic answer. A hammer of calibrated mass and geometry — the 150–750 J class for metals — is raised by motor to a latched height, then released through a notched specimen centred on precision-ground anvils. What the specimen absorbs, the swing loses: the follow-through height, read by encoder, is the energy in joules — the Charpy number the certificate quotes. The geometries and tolerances come from ASTM E23 and ISO 148; the machine proves itself by direct verification and by breaking certified reference specimens whose answer is known in advance.

The tower generalises the question. A guided mass falls on the specimen or the product; mass and drop height set the energy; and an instrumented tup records force against time through the milliseconds of the event — not just how much energy was absorbed, but how: initiation, propagation, the shape of the failure. A velocity gate proves the impact speed; an anti-rebound catch ensures no specimen is ever struck twice. The same architecture serves plastics puncture, composite drop damage, and the heavy drop-weight tear and nil-ductility patterns that qualify plate and pipeline steels.

The conditioned variant strikes at temperature. The transition lives on a curve, so specimens are tested along it: conditioned in low-temperature baths — to −196 °C with liquid nitrogen — and broken within the codes’ transfer seconds; or, in the cleanest form, the tower is integrated with a climate chamber so the blow lands at temperature with no transfer at all — the pattern our delivered climatic-chamber line makes natural. Plot energy against temperature, and the curve shows where ductile turns brittle — found in the laboratory, never in service.

The test lasts milliseconds and is prepared for hours — the notch machined to the code, the temperature held to the degree, the hammer calibrated to the joule — because one blow only tells the truth if everything around it was exact.

The Transition

Cold changes the answer

The same steel, warm and cold, gives different answers to the same blow. The machine plots the flip — so the transition is found on a bench, never in a hull or a pipeline.

One Blow, Never Two

A calibrated event

Latched release, proven velocity, anti-rebound catch — each specimen is struck exactly once, by exactly the energy the certificate will claim.

Two Lines, One Machine

Test-machine house × chamber line

The frames and mechanisms of our materials-testing machines, the conditioning of our delivered climatic chambers — met in one instrument that strikes at temperature.

Architecture

Condition, strike, read.

The schematic follows the test — notch and condition, load and latch, release, read the energy — and shows the machine that runs it: the pendulum and its release, the anvils and fixtures, the tower and its tup, and the conditioning and guards around them.

FIG · 03IMT ARCHITECTURE · PENDULUM + RELEASE / ANVILS + FIXTURES / TOWER + TUP · CONDITIONING & GUARDS

Fig · 03 One calibrated blow, prepared exactly — and read in joules, force and fracture

Arc · 01

Pendulum & Release

Calibrated hammers, motorised raise, safe latch and release, braked follow-through — energy from the encoder-read swing, to the pendulum codes.

Arc · 02

Anvils & Fixtures

Precision-ground, wear-monitored anvils and supports; centring tongs and gauges; verification by direct methods and certified reference specimens.

Arc · 03

Tower & Tup

Guided mass, variable energy, instrumented tup with velocity gate — and the anti-rebound catch that guarantees one blow, never two.

Arc · 04

Conditioning & Guards

Low-temperature baths and chamber integration from the delivered climatic line — inside the cage and interlocks a swinging hammer demands.

Have an impact-testing, conditioned-impact or laboratory requirement? Send the materials, the standards and the temperatures — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference machine, built to the standard.

The parameters below describe a reference system. The hammer energies, tower envelope, conditioning range and fixtures all follow from three givens: the materials, the standards they certify to, and the temperatures the application must survive.

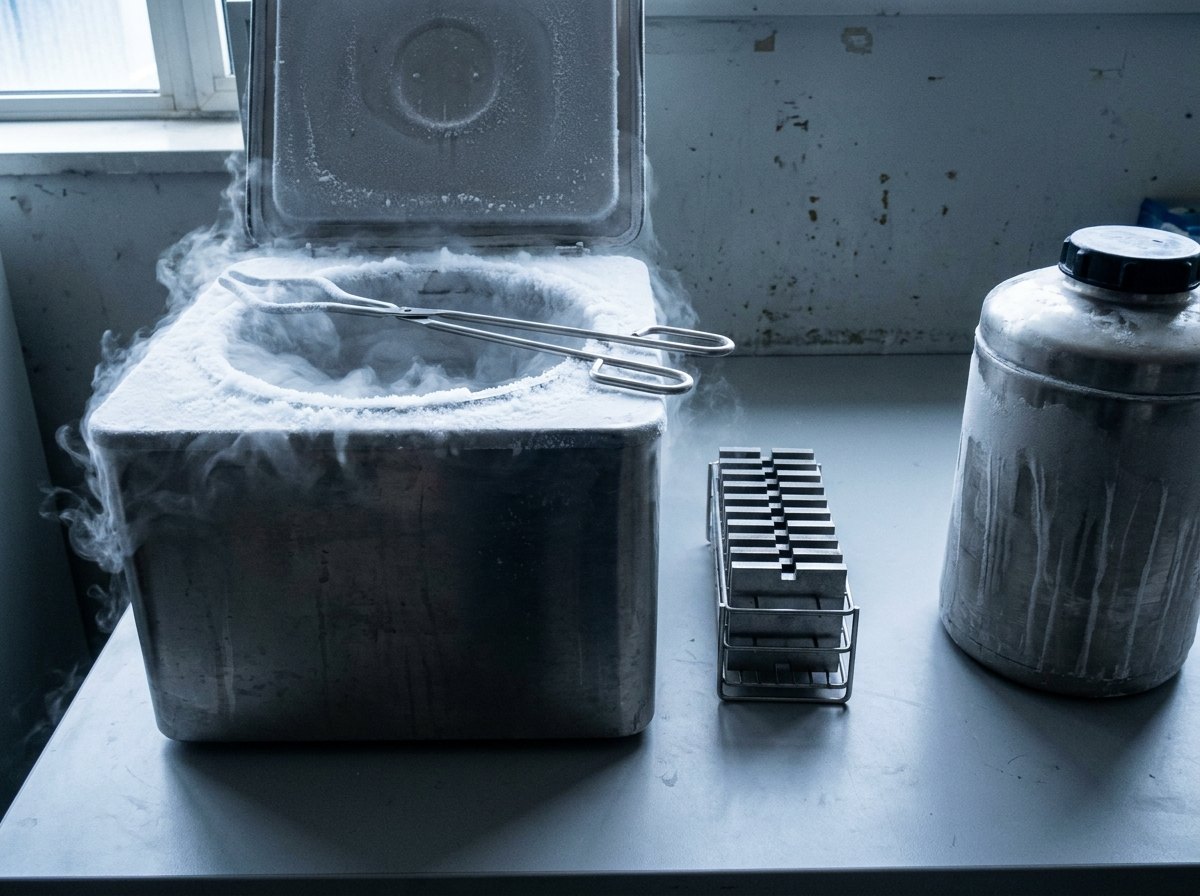

Illustrative image, not a delivered machine — a low-temperature specimen conditioning station: an insulated stainless bath heavily frosted at the rim with vapour above it, long-handled specimen tongs resting across it, a small rack of square notched metal specimens, an insulated transfer dewar beside it, plain laboratory bench, no people and no text

Fig · 04 The cold end — specimens held to the degree, transferred in seconds, or struck inside the chamber itself — illustrative, not a delivered machine

Where impact machines go wrong

In the exactness, not the violence. Loose anvils or a worn striker scatter the numbers until the certificate means nothing; friction in the bearings steals energy the specimen is then credited with; a transfer that dawdles lets a cold specimen warm past the code’s seconds; a tower without an anti-rebound catch strikes twice and calls it one; and an unverified machine produces joules no auditor should accept — because in this discipline the machine itself is on trial with every specimen it breaks.

So the anvils and strikers are ground, gauged and wear-monitored; the swing runs on bearings whose losses are measured and within the code’s allowance; conditioning and transfer are engineered as one motion — or eliminated by striking inside the chamber; the catch guarantees one blow; and the machine proves itself the way the codes demand — direct verification of geometry, friction and velocity, then certified reference specimens broken and matched — at installation, and on the calibration calendar for life.

Full specification — expand

System	Materials impact testing machine — pendulum impact testers, instrumented drop-weight towers, conditioned / low-temperature impact systems; engineered, built, installed, verified & supported
Function	Measures toughness — energy absorbed in fracture under one calibrated blow — and locates the ductile–brittle transition across temperature
Pendulum Machines	150 – 750 J class calibrated hammers; Charpy & Izod geometries to ASTM E23 / ISO 148; motorised raise, safe latch & release, braked follow-through; energy by encoder
Anvils & Fixtures	Precision-ground, wear-monitored anvils, supports & strikers; centring tongs & gauges; low-loss bearings within the codes’ friction allowance
Drop-Weight Towers	Guided mass, variable mass × height; instrumented tup (force–time, peak force, energy); velocity gate; anti-rebound catch — one blow, never two
Test Patterns	Metals Charpy / Izod; plastics puncture; composite drop impact; drop-weight tear & nil-ductility patterns for plate & pipeline steels — public standards named plainly
Conditioning	Low-temperature baths to −196 °C (liquid nitrogen) with the codes’ transfer-seconds discipline — or climate-chamber integration: the blow lands at temperature, no transfer at all
Safety	Cage & interlocks around the swing; guarded latch & release; carriage locks on the tower; braked follow-through — a machine that strikes specimens, never people
Verification	Direct verification (geometry, friction, velocity) + indirect verification by certified reference specimens — at installation and on the calibration calendar through life
Data & Records	Encoder energies, tup force–time traces, per-specimen records & certificates — the laboratory’s evidence, kept by the machine
Service	Calibration, anvil / striker wear parts, reference-specimen checks & AMC — because the machine is on trial with every specimen it breaks
Sourcing	Reference specimens, encoders & proprietary sensors are bought-in certified items; Neometrix engineers the frames, mechanisms, fixtures, conditioning integration, instrumentation & controls
Status	Engineered to order · quoted across pendulum & conditioned drop-weight impact-testing requirements · built where the delivered test-machine & climatic-chamber lines meet · no specific delivered machine is claimed on this page

PDF · 1 page

Materials Impact Testing — Capability Sheet

Tender Response

Send materials, standards & temperatures — compliance matrix in two working days

Variants

One discipline, the machine the standard needs.

Requirements call it a Charpy machine, an impact tester, a drop tower, or a conditioned-impact facility. The discipline — one exact blow, read honestly — is common; the machine follows the standard and the temperature.

Var · 01

Pendulum Impact Testers

Charpy & Izod machines to ASTM E23 / ISO 148 — motorised, encoder-read, caged — from laboratory bench classes to the full 750 J metals frame.

Var · 02

Instrumented Drop Towers

Guided-mass towers with force–time tups — plastics, composites and product impact, up to the heavy tear and nil-ductility patterns.

Var · 03

Conditioned-Impact Systems

Bath-conditioned testing to −196 °C with transfer discipline — or chamber-integrated machines that strike at temperature: the transition, plotted.

Var · 04

Verification, Fixtures & AMC

Calibration programmes, reference-specimen checks, anvil & striker wear parts, fixtures for new geometries — keeping the laboratory’s numbers defensible.

Applications

Where the blow gets measured.

Wherever a certificate must say how a material behaves when it is hit — and at what temperature it stops behaving.

A · 01Steel mills, forges & foundries — per-heat QC

A · 02Pipeline & pressure-vessel qualification

A · 03Aerospace & composite laboratories

A · 04Defence QA & R&D establishments

A · 05Polymer, packaging & product testing

A · 06Institutes, test houses & training labs

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why impact-test at all, if tensile strength is already known?

Because strength and toughness are different properties, and the difference has sunk ships. The tensile test loads a smooth specimen slowly; the material has time to flow, and the number it returns describes graceful behaviour. Service is not always graceful: loads arrive as blows, at welds and corners that act as notches, on days that are cold. Under those three conditions together — speed, notch, temperature — a material can abandon its ductile habits and fracture with almost no warning and almost no energy absorbed, even though its tensile certificate is impeccable. Engineering learned this from winter failures of hulls, bridges and tanks built of steel that was, by every slow test, excellent. The impact test recreates the unforgiving case on purpose — a machined notch, a hammer, a stated temperature — and reports the energy the material absorbed before breaking. High joules mean the material fought back; low joules mean it shattered. That is why the fabrication codes require impact numbers alongside tensile numbers — per heat, at the design’s coldest credible temperature — and why the machine on this page stands in every serious materials laboratory.

Q · 02 How does the pendulum machine produce its number?

By accounting for energy with almost nothing left out. The hammer’s mass and its latched height fix the energy it carries at the bottom of the swing — a calibrated quantity, in the 150–750 J class for metals machines. The notched specimen waits at exactly that lowest point, centred on precision-ground anvils by tongs and gauges, because millimetres of misplacement change the answer. The hammer breaks the specimen and swings on; and the height of that follow-through, read by encoder, declares what the fracture consumed: carry 300 joules in, swing out with 210, and the specimen absorbed 90 — the number on the certificate. The machine’s honesty lives in the details the codes regulate: striker and anvil geometry to the drawing, bearing friction measured and within allowance (energy lost to the machine would otherwise be credited to the specimen), the release clean, the specimen’s notch cut to the standard’s geometry. ASTM E23 and ISO 148 define all of it — and the broken halves are read too, their fracture surfaces recording how much of the failure was fibrous fight and how much crystalline surrender.

Q · 03 Why test cold — and how is the temperature made honest?

Because for the body-centred steels that build most of the world, temperature is the plot twist. Test the same steel across a range of temperatures and the absorbed energy does not drift gently — it falls off a cliff. Above the cliff the steel tears fibrously and eats energy; below it, the same steel cleaves crystalline and absorbs almost none. That cliff is the ductile–brittle transition, and the design question is brutally simple: is the coldest day of service above it or below it? So the codes demand testing at temperature, and the machine must make that temperature true. The classical path is the conditioning bath — specimens soaked at the target, down to −196 °C in liquid nitrogen, then transferred and broken within the few seconds the standards allow, before the specimen’s small mass warms; tongs, timing and drill are part of the method. The cleaner path removes the race entirely: the chamber-integrated machine, where the tower strikes inside the conditioned envelope and the blow lands at temperature — the configuration our delivered climatic-chamber line makes natural, and the pattern current defence-laboratory requirements ask for.

Q · 04 What does an instrumented drop tower add over the pendulum’s single number?

The story, not just the total. A pendulum reports one integrated quantity — energy absorbed — which is exactly what the metals codes ask. But many questions need the inside of the event: composites care when damage initiates and how it grows; plastics care about peak force and puncture behaviour; product tests care what actually failed first. The instrumented tower answers by measuring through the impact itself: a force-sensing tup on a guided carriage records force against time at high rate through the milliseconds of contact, a velocity gate just above the specimen proves the true impact speed, and from the trace fall the derived quantities — energy to peak, energy to failure, stiffness, the signature of each damage mechanism. Mass and drop height make energy a dialled quantity across a wide envelope, serving everything from thin-film puncture to the heavy plate patterns. And one mechanism matters more than any sensor: the anti-rebound catch. A falling mass bounces; a second strike on a damaged specimen corrupts everything after it. The catch takes the carriage on the rebound, guaranteeing the datum every standard silently assumes — one blow, never two.

Q · 05 How is the machine itself kept honest — and safe?

By treating the machine as permanently on trial. Every certificate the laboratory issues rests on the machine’s own numbers, so the codes prescribe its examination in two layers. Direct verification measures the machine as a machine: striker and anvil geometry against the drawings, wear within limits, the pendulum’s effective mass and centre of percussion, bearing friction by free-swing loss, release behaviour, impact velocity. Indirect verification then asks the only question that finally matters: break certified reference specimens — specimens manufactured and certified so their answer is known — and the machine must return that answer within tolerance. Both run at installation and repeat on the calibration calendar, with anvils and strikers replaced as wear parts — the quiet aftermarket this product line carries. Safety is engineered with the same seriousness, because a released pendulum is a quarter of a tonne moving at several metres per second and a tower carriage is a guided free fall: full cages with interlocked doors (no raise, no release with a door open), guarded two-hand release logic, braked follow-through so the hammer never swings unattended, carriage locks and the anti-rebound catch on the tower, and conditioning-side protections for the liquid-nitrogen end. The machine strikes specimens — never people.

Q · 06 What do you build, and what is bought-in?

We build the machine as an instrument, from franchises we have delivered. What Neometrix does: the frames and foundations — the stiffness that keeps the blow’s energy in the specimen rather than in the structure; the mechanisms — pendulum, motorised raise, latch and release, braking, tower carriage and guides, anti-rebound catch; the precision fixtures — anvils, supports, strikers, tongs and gauges to the codes’ drawings; the conditioning integration — low-temperature baths, transfer tooling, and the chamber-integrated configurations built on our delivered climatic-and-environmental-chamber line; the instrumentation and controls — encoders, tup channels, velocity gates, high-rate acquisition, per-specimen records and certificates; and the installation, code verification, calibration programmes and AMC, with anvil and striker wear parts through life. What is bought-in certified: reference specimens with their certificates, encoders and load-cell / tup sensing elements, data-acquisition hardware, and the liquid-nitrogen supply the laboratory arranges. Engineered to order; quoted across pendulum and conditioned drop-weight impact-testing requirements; built where the delivered test-machine and climatic-chamber lines meet; no specific delivered machine is claimed on this page.

↗

The materials-testing line from Neometrix.

The fatigue machine that asks slowly what this machine asks in milliseconds, the chamber line the conditioned variant is built on, and the inspection house that reads what the blow leaves behind.

↗ Materials Testing

Servo-Hydraulic Fatigue Testing Machine

Millions of gentle cycles or one hard blow — the two ways a material is asked the truth.

↗ Conditioning

Climatic & Environmental Test Chambers

The delivered chamber line the conditioned-impact configuration is built on.

↗ Quality & Inspection

Non-Destructive Testing & Inspection System

The inspection house that reads materials without breaking them — and fracture surfaces after we do.

Browse all Neometrix product lines.

Get a quotation

Send the standards
and the temperatures.

The defence programmes desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — impact testing Capability sheet (PDF) +91 7777 876 876
