    Instrumented Measuring Wheel System / 0–200 kN vertical · 0–100 kN lateral / 16-channel telemetry · ±0.5% FS / India
    TMRS PROJECT · IIT KANPUR / RDSO / NEOMETRIX

    Instrumented Measuring Wheel System, measuring 0–200 kN vertical / 0–100 kN lateral wheel-rail forces.

    Developed under the Technology Mission on Railway Safety by IIT Kanpur, RDSO Lucknow, and Neometrix Defence Limited, the IMW turns an ordinary rail wheel into a live sensor platform. Precision strain gauges, contactless inductive telemetry, and a 16-channel data acquisition suite record vertical and lateral wheel-rail forces, vibration, and speed in real time as the wheel rolls, calibrated on a dedicated hydraulic rig to ±0.5% FS.

    Instrumented measuring wheel system - precision railway wheel-rail force measurement test frame with wheelset mounted for calibration by Neometrix
    Fig · 01 Instrumented wheelset mounted in the hydraulic calibration rig · factory floor
    Vertical Force (Q)
    0–200kN
    Lateral Force (Y)
    0–100kN
    Sampling Rate
    5kHz
    Telemetry Channels
    16ch
    Calibration Accuracy
    ±0.5% FS
    01
    Overview

    A wheel that can feel the track.

    In the early 2000s, Indian Railways needed a direct answer to a question theoretical models could only estimate: what does a train wheel actually experience as it rolls over the network?

    Instrumented measuring wheel system product view - encoder-based track length and geometry measurement wheel for railway inspection by Neometrix

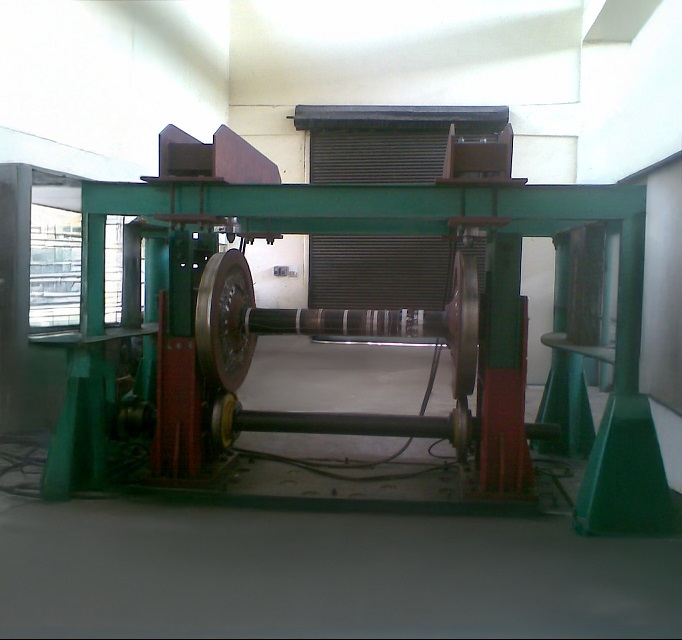

    Fig · 02 Field-installed instrumented wheelset — steel test frame holding the strain-gauged railway wheel pair

    The Measuring Wheel Technology Project, under the Technology Mission on Railway Safety (TMRS), was born to close that gap. Led by IIT Kanpur and RDSO Lucknow, with Neometrix Defence Limited as the industrial partner responsible for mechanical system design, hydraulic calibration infrastructure, and instrumentation integration, the project developed a fully indigenous instrumented wheelset capable of measuring real-time dynamic wheel-rail interaction forces under actual field conditions.

    Equipped with precision strain gauges, wireless inductive telemetry, and a sophisticated data acquisition suite, the IMW records vertical and lateral wheel-rail forces, vibration, and speed in real time as the train moves. Every rotation of the wheel generates insights — revealing track irregularities, alignment faults, stiffness variations, and bogie dynamics that would otherwise remain invisible.

    The first time an Indian wheel could feel and report the forces it endured.

    Supported by a custom-built hydraulic calibration rig for laboratory validation, the IMW bridges the gap between simulation and reality, giving engineers the data to build a smarter, safer, and more resilient railway network.

    02
    Architecture

    Six systems, one instrumented wheel.

    The IMW is a multidisciplinary integration of precision mechanics, strain-gauge instrumentation, telemetry, and hydraulic simulation — both a research tool and a diagnostic platform for railway engineers.

    Sub · 01

    Instrumented Wheelset Assembly

    FEM-positioned, 350 Ω temperature-compensated strain gauges in full-bridge configurations resolve vertical (Q), lateral (Y), and, if configured, torsional/creep components. Vibration-resistant mounting and dynamic balancing keep the wheelset safe to 160 km/h.

    Sub · 02

    Inductive Telemetry System

    Slip rings can’t survive sustained railway speeds, so a wheel-mounted transmitter and bogie-mounted receiver exchange power and data contactlessly across a ≈0.1 m air gap. MT32-IND-TX/RX, MT32-STG and MT32-DEC16 modules multiplex, encode and decode 16 parallel channels.

    Sub · 03

    Signal Conditioning & DAQ

    A ruggedized DAQ suite conditions multi-channel strain input (±10 V range) through 16-bit A/D converters sampling at ≥1 kHz per channel, with encoder interfacing for rotational reference and GPS/odometer synchronization.

    Sub · 04

    Hydraulic Calibration Rig

    Two independent servo-hydraulic actuators apply combined vertical and lateral loading — FEM-validated to 250 kN vertical / 100 kN lateral — at rotational drive up to 1000 RPM, verifying linearity, cross-talk and hysteresis to ±0.5% FS.

    Sub · 05

    Software & Analytics

    Real-time load visualization, temperature compensation and drift correction, FFT-based vibration signature detection, and GPS-linked force mapping, with export to MATLAB / LabVIEW / CSV for further modelling.

    Sub · 06

    Field Deployment

    The calibrated wheelset is mounted on a dedicated test coach or bogie and run over selected Indian Railways sections, with position, speed and force logged simultaneously and validated in RDSO Lucknow field trials.

    Fig · 03–06 Engineering CAD renders — not photographs — illustrating the gantry frame, labeled subsystems, column detail and drive layout

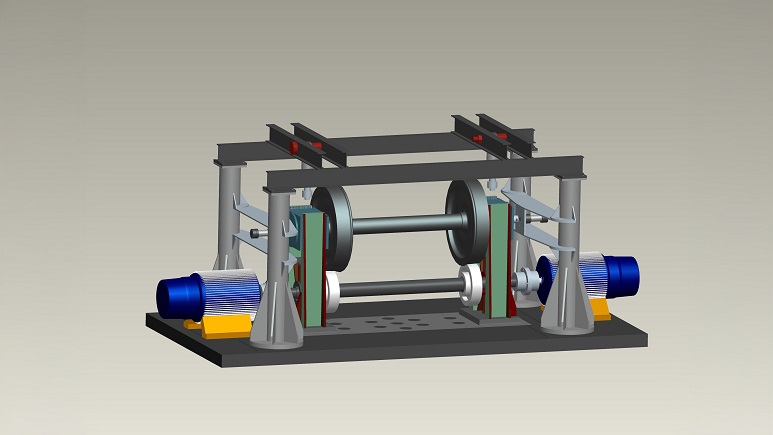

    Instrumented measuring wheel system CAD render - isometric assembly view of gantry frame and dual wheelset mounting by Neometrix
    Instrumented measuring wheel technology labeled diagram - CAD render identifying load cells, wheel set, I-beams, hydraulic cylinders, columns, coupling, motor and base by Neometrix
    Instrumented measuring wheel system column cutaway CAD render - outer column bore, load-cell pocket and base gusseting detail by Neometrix

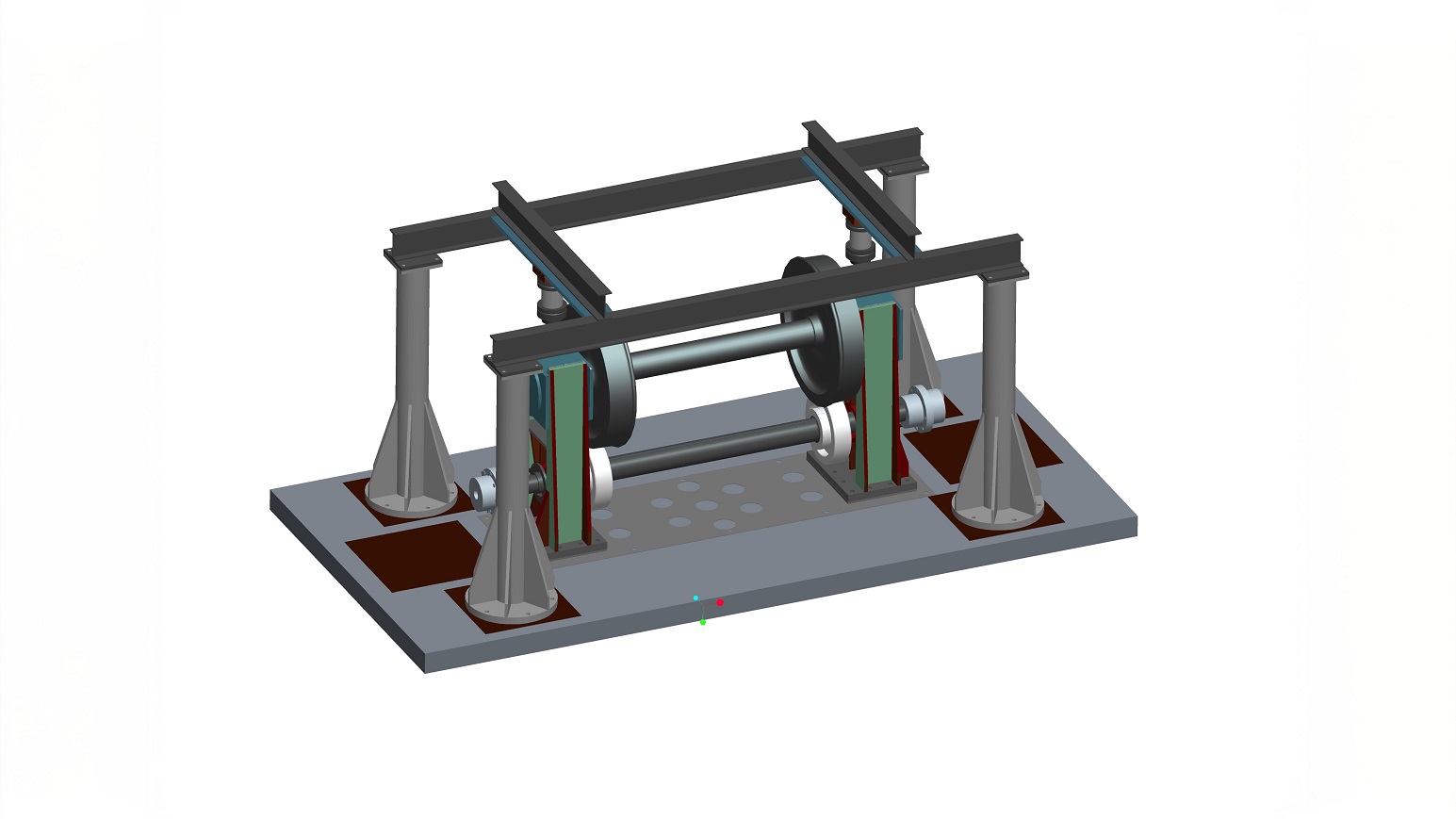

    Instrumented measuring wheel system CAD render - full rig assembly with dual servo drive motors coupled to wheelset shafts by Neometrix
    Assembly overview
    Labeled subsystem diagram
    Column / load-cell cutaway
    Assembly with drive motors
    04
    Downloads

    General arrangement.

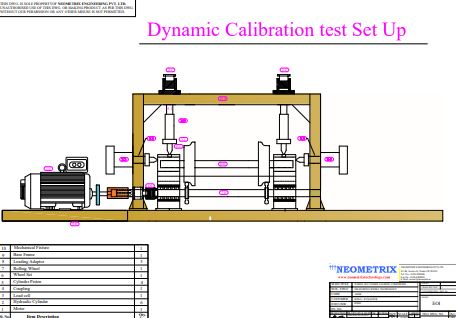

    GA drawing for the Instrumented Measuring Wheel System, available as PDF for procurement and technical review.

    05
    Specifications

    Full technical parameters.

    Key system parameters for the standard Neometrix Instrumented Measuring Wheel System configuration.

    Vertical Force (Q)0–200 kN — simulated and measured
    Lateral Force (Y)0–100 kN — for curve negotiation studies
    Sampling RateUp to 5 kHz — high-frequency transients captured
    Telemetry Channels16 simultaneous strain / auxiliary inputs
    Telemetry Gap0.1 m inductive coupling distance
    Wheel Speed (Lab / Field)1000 RPM / 160 km h⁻¹ — balanced instrumentation wheelset
    Calibration Accuracy±0.5% FS, verified on hydraulic rig
    Strain Gauges350 Ω temperature-compensated, hermetically sealed, FEM-positioned
    Telemetry ModulesMT32-IND-TX/RX, MT32-STG, MT32-DEC16
    DAQ Input Range±10 V, 16-bit A/D, ≥1 kHz per channel
    Calibration Rig Capacity250 kN vertical + 100 kN lateral, FEM-validated load frame
    Calibration Rig DriveTwo independent servo-hydraulic actuators, rotational drive to 1000 RPM
    Software OutputsReal-time visualization, FFT frequency analysis, GPS-linked force mapping, MATLAB / LabVIEW / CSV export
    Positional ReferenceEncoder interface with GPS or odometer synchronization
    06
    Applications

    Where it measures.

    From track diagnostics to derailment research, the IMW serves any application requiring real-world wheel-rail force data.

    A · 01Track condition monitoring — stiffness variation, settlement, gauge widening, alignment faults
    A · 02Vehicle dynamics research — validation of suspension and bogie models
    A · 03Ride comfort & safety assessment — force spectra correlated with ride quality indices
    A · 04Derailment prediction & model verification — empirical data for NUCARS / SIMPACK and RDSO models
    A · 05Maintenance planning — a measuring wheel assembly for railway maintenance, giving predictive intervention from force-map analytics
    A · 06Educational & research platform — postgraduate instrumentation work at IIT Kanpur and RDSO
    07
    In Depth

    The complete technical read.

    Engineering narrative for railway R&D teams, RDSO/IR engineers, and procurement staff who want the full picture before deployment.

    Project background & purpose

    In the early 2000s, Indian Railways was expanding its network faster than ever — but a fundamental technical question remained unanswered: what exactly does a train’s wheel experience as it rolls over India’s rail network? Every kilometer of track presents a different story — gradients, welds, curves, ballast stiffness, and track irregularities. For decades engineers relied on theoretical models and indirect estimations to predict the dynamic forces acting between the steel wheel and steel rail; without direct data, safety margins and maintenance schedules could only ever be approximations.

    The Measuring Wheel Technology Project under the Technology Mission on Railway Safety (TMRS) was born to change that. Led by IIT Kanpur and RDSO Lucknow, with Neometrix Defence Limited as the industrial partner responsible for mechanical system design, hydraulic calibration infrastructure, and instrumentation integration, the project developed a fully indigenous instrumented wheelset capable of measuring real-time dynamic wheel-rail interaction forces under actual field conditions — the first time the wheel itself could “feel” and “report” the physical forces it endured on every rotation.

    System architecture & engineering overview

    The IMW integrates precision mechanics, strain-gauge instrumentation, telemetry, and hydraulic simulation, functioning as both a research tool and a diagnostic platform.

    Instrumented wheelset assembly

    The central component is a high-precision railway wheel instrumented with strain gauges arranged in full-bridge configurations to independently resolve:

    • Vertical forces (Q) — due to static and dynamic axle loading
    • Lateral forces (Y) — due to curving, hunting, and alignment errors
    • Torsional and creep components, if enabled by configuration

    Key technical features:

    • FEM-based gauge positioning to isolate stress directions
    • 350 Ω temperature-compensated strain gauges with hermetic sealing
    • Vibration-resistant mounting and dynamic balancing (safe to 160 km/h)
    • Stainless-steel cabling and epoxy protection for environmental robustness

    Inductive telemetry system

    Because slip rings are unsuitable for sustained railway speeds, the IMW uses a contactless inductive telemetry system for both power and data transmission. A wheel-mounted transmitter receives inductive power and transmits conditioned sensor signals; a bogie-mounted receiver provides stable excitation and captures wireless data across an air gap of ≈0.1 m. MT32-IND-TX/RX, MT32-STG, and MT32-DEC16 modules handle multiplexing, encoding, and decoding of 16 parallel channels with minimal signal noise, and high-frequency carrier modulation ensures signal integrity under vibration, moisture, and EMI from traction motors.

    Signal conditioning & data acquisition

    Signals from the receiver are fed into a ruggedized DAQ suite integrating:

    • Multi-channel strain input conditioners (±10 V input range)
    • 16-bit A/D converters with ≥1 kHz sampling rate per channel
    • Encoder interface for rotational reference and positional tagging
    • Synchronization with GPS or odometer inputs for track mapping

    All data is logged in real time and correlated with vehicle speed and distance, generating continuous force profiles along the route.

    Hydraulic calibration & test rig

    Designed and built by Neometrix Defence Limited, the hydraulic calibration rig is a fully-instrumented test system capable of simulating the combined vertical and lateral loading experienced by a railway wheel in service.

    Core capabilities:

    • Two independent servo-hydraulic actuators (vertical / lateral)
    • Rotational drive up to 1000 RPM for dynamic calibration
    • Load frame FEM-validated for 250 kN vertical + 100 kN lateral capacity
    • Integrated load cells, displacement sensors, and control software
    • Calibration accuracy within ±0.5% FS

    The rig allows precise determination of calibration coefficients linking measured strain to applied force, verifying linearity, cross-talk, and hysteresis before field deployment.

    Software & analytical framework

    The custom software environment provides real-time visualization of vertical and lateral loads, temperature compensation and drift correction algorithms, FFT-based frequency analysis for detecting vibration signatures, GPS-linked force mapping for geographic correlation, and export of datasets to MATLAB / LabVIEW / CSV for advanced modelling — enabling track stiffness estimation, hunting stability analysis, and wheel-rail contact evaluation from a single integrated dataset.

    Operational deployment

    Once calibrated, the instrumented wheelset is mounted on a dedicated test coach or bogie and operated over selected Indian Railways sections. During motion, the wheel measures real-time forces while position and speed are simultaneously recorded. Field trials at RDSO Lucknow validated system performance under multiple operating scenarios — varying load, curvature, and track geometry — showing high repeatability, low drift, and clear identification of track anomalies, confirming the system’s suitability for dynamic route diagnostics.

    Engineering significance & legacy

    The Measuring Wheel Project was a pioneering milestone in India’s pursuit of indigenous high-precision railway instrumentation. For the first time, an entirely Indian consortium — IIT Kanpur, RDSO, and Neometrix Defence Limited — delivered an instrumented wheelset and calibration ecosystem that could rival imported European systems in accuracy, robustness, and analytical depth.

    This innovation transformed railway dynamics research from theoretical modelling to evidence-based engineering, enabling:

    • Development of safety standards grounded in real measurements
    • Early frameworks for condition-based maintenance and smart wheelsets
    • A foundation for later work on on-board diagnostic systems and digital rail infrastructure

    By literally allowing the wheel to “speak,” the project turned the once-abstract rail-wheel interface into measurable, actionable engineering knowledge — a testament to Indian innovation, academic rigour, and Neometrix Defence Limited’s engineering excellence.

    08
    Watch

    See it in operation.

    Video from Neometrix Defence Limited: Measuring Wheel Testing.

    09
    FAQ

    Common questions.

    Plain-language answers from the engineering team.

    Q · 01 What is the Instrumented Measuring Wheel System?
    The Instrumented Measuring Wheel System (IMW) is a strain-gauged, telemetry-instrumented railway wheelset that measures real-time vertical and lateral wheel-rail interaction forces as a train moves over the track, turning an ordinary rail wheel into a live sensor platform for track diagnostics and vehicle dynamics research.
    Q · 02 Who developed the Instrumented Measuring Wheel System?
    The IMW was developed under the Technology Mission on Railway Safety (TMRS), led by IIT Kanpur and RDSO Lucknow, with Neometrix Defence Limited as the industrial partner responsible for mechanical system design, hydraulic calibration infrastructure, and instrumentation integration.
    Q · 03 What forces does the Instrumented Measuring Wheel System measure?
    The system independently resolves vertical wheel forces (Q) from 0–200 kN and lateral forces (Y) from 0–100 kN using full-bridge strain-gauge configurations, with torsional and creep components available if enabled by configuration.
    Q · 04 How does the wheel transmit data without slip rings?
    Because slip rings are unsuitable for sustained railway speeds, the IMW uses a contactless inductive telemetry system: a wheel-mounted transmitter receives inductive power and sends conditioned sensor signals to a bogie-mounted receiver across an air gap of approximately 0.1 m, with MT32-IND-TX/RX, MT32-STG and MT32-DEC16 modules handling multiplexing, encoding and decoding of 16 parallel channels.
    Q · 05 How is the Instrumented Measuring Wheel System calibrated?
    A dedicated hydraulic calibration rig, designed and built by Neometrix Defence Limited, applies combined vertical and lateral loads up to 250 kN and 100 kN respectively through two independent servo-hydraulic actuators, at rotational speeds up to 1000 RPM, verifying linearity, cross-talk and hysteresis to a calibration accuracy of ±0.5% FS before field deployment.
    Q · 06 At what speed can the instrumented wheelset operate?
    The wheelset is dynamically balanced and vibration-resistant mounted for operation up to 160 km/h in the field, and can be driven up to 1000 RPM on the hydraulic calibration rig for laboratory validation.
    Q · 07 What applications does the Instrumented Measuring Wheel System support?
    It supports track condition monitoring, vehicle dynamics research, ride comfort and safety assessment, derailment prediction and model verification against NUCARS/SIMPACK and in-house RDSO models, maintenance planning, and postgraduate instrumentation research at IIT Kanpur and RDSO.
    Q · 08 Can the Instrumented Measuring Wheel System be configured for different wheelsets?
    Yes, Neometrix Defence Limited configures the strain-gauge positioning, telemetry channel count, and calibration rig loading to match a given wheel diameter, axle type and rolling-stock test program, building on the FEM-based gauge placement methodology validated under the TMRS project.
    Q · 09 How can I get a quotation for the Instrumented Measuring Wheel System?
    You can request a quotation for the Instrumented Measuring Wheel System by contacting Neometrix Engineering Pvt Ltd through https://neometrixgroup.com/products/measuring-wheel-project or by phone at +91-7777-876-876.
    Get a proposal

    Tell us your wheelset
    and test program requirements.

    We configure gauge positioning, telemetry channels and calibration rig loading to your wheel diameter, axle type and field-test program before you commit.

    Request proposal +91 7777 876 876
