NMX‑RCL‑30 / Rev 00 / heavy-duty hydraulics / buffer · recuperator · curve 2026 · Product Page
NMX-RCL-30 · ENGINEERED TO ORDER — RECOIL SYSTEM TEST RIG

Absorb it. Return it. Prove it.

A recoil system is defined by a curve, not a number — force against stroke and force against velocity, across the whole travel, where resistance must rise, hold and taper in a controlled way. So the rig imposes a controlled displacement and velocity profile and measures continuously. The buffer absorbs by throttling fluid through orifices whose area varies along the stroke — that varying area is the curve. The recuperator is a gas spring that returns the recoiling mass on run-out, which is half the characteristic in its own right. One rule governs the design: the rig must survive what it measures — and its own compliance is a measurement error before it is a strength problem, because a reaction structure that deflects means the stroke measured is not the stroke delivered. Conditioned across temperature, because viscosity and charge pressure both move the curve. Engineered to order — no delivered system is claimed.

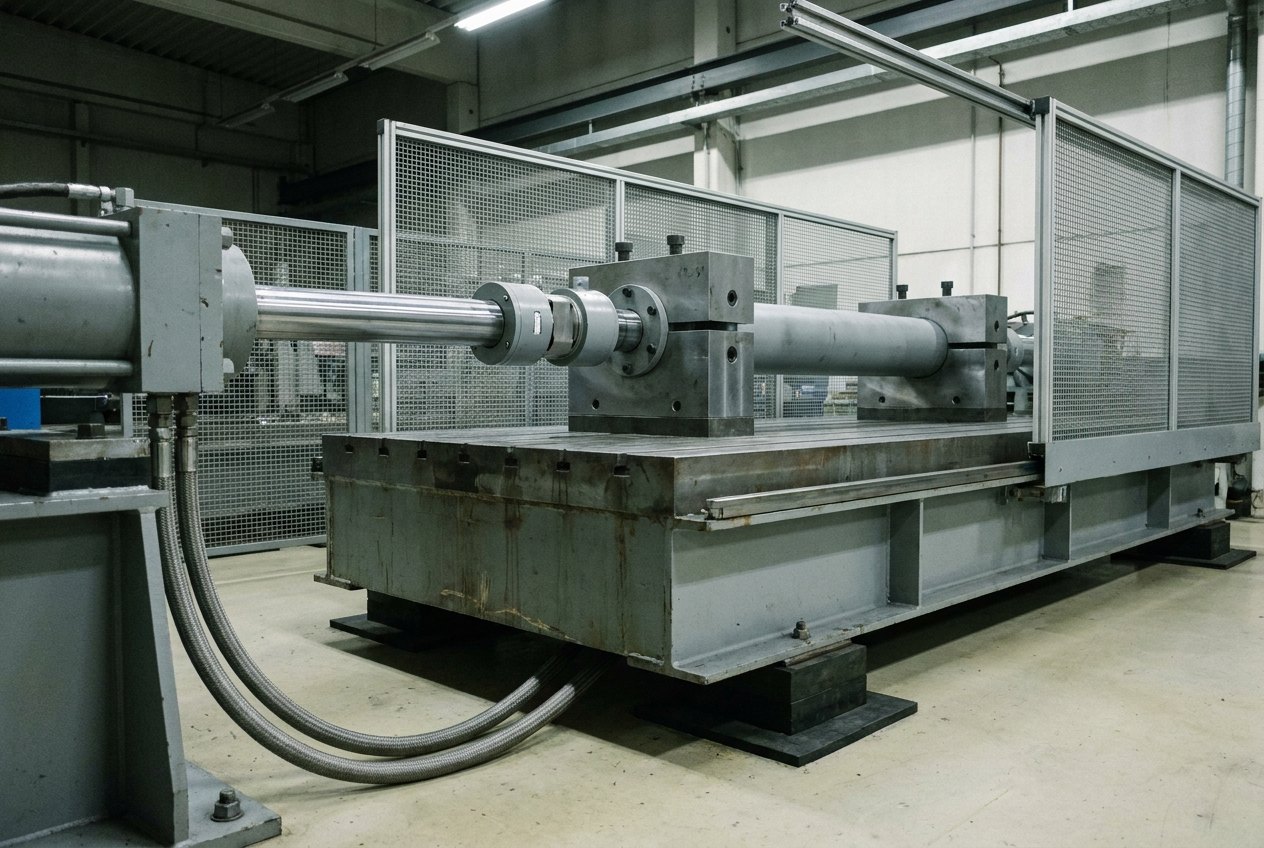

Illustrative image, not a delivered system — a large horizontal hydraulic test rig in an industrial hall: a heavy welded steel bed on isolator pads with a big hydraulic actuator and thick polished rod at one end, a plain smooth steel cylinder about two metres long clamped along the centre in machined fixtures, an inline load cell between actuator and cylinder, mesh guarding partly slid back, braided hoses looping to the floor, no people and no text
Fig · 01 The rig — actuator, inline load cell, assembly and a bed stiff enough that the measurement is the assembly’s, not the structure’s — illustrative, not a delivered system
Measures
a curveforce vs stroke & velocity
Drives
a profilenot a dropped weight
Both halves
buffer & recuperatorabsorb · return
Conditioned
across temperatureviscosity · charge
Output
an envelopecurve · pass/fail · cert
ISO 9001 / 14001 Engineered to order Servo-hydraulic franchise Calibrated & traceable Noida · India
01
Overview

A curve, not a number.

A recoil system is a throttling device and a gas spring working against each other in one assembly. Neither is described by a single figure: what matters is how resistance develops through the stroke and how it changes with velocity, because that shape is what keeps the deceleration inside its limits and the return controlled. So the test is not a proof load applied once. It is a characterisation — and everything about the rig follows from having to record a shape faithfully at large stroke energy.

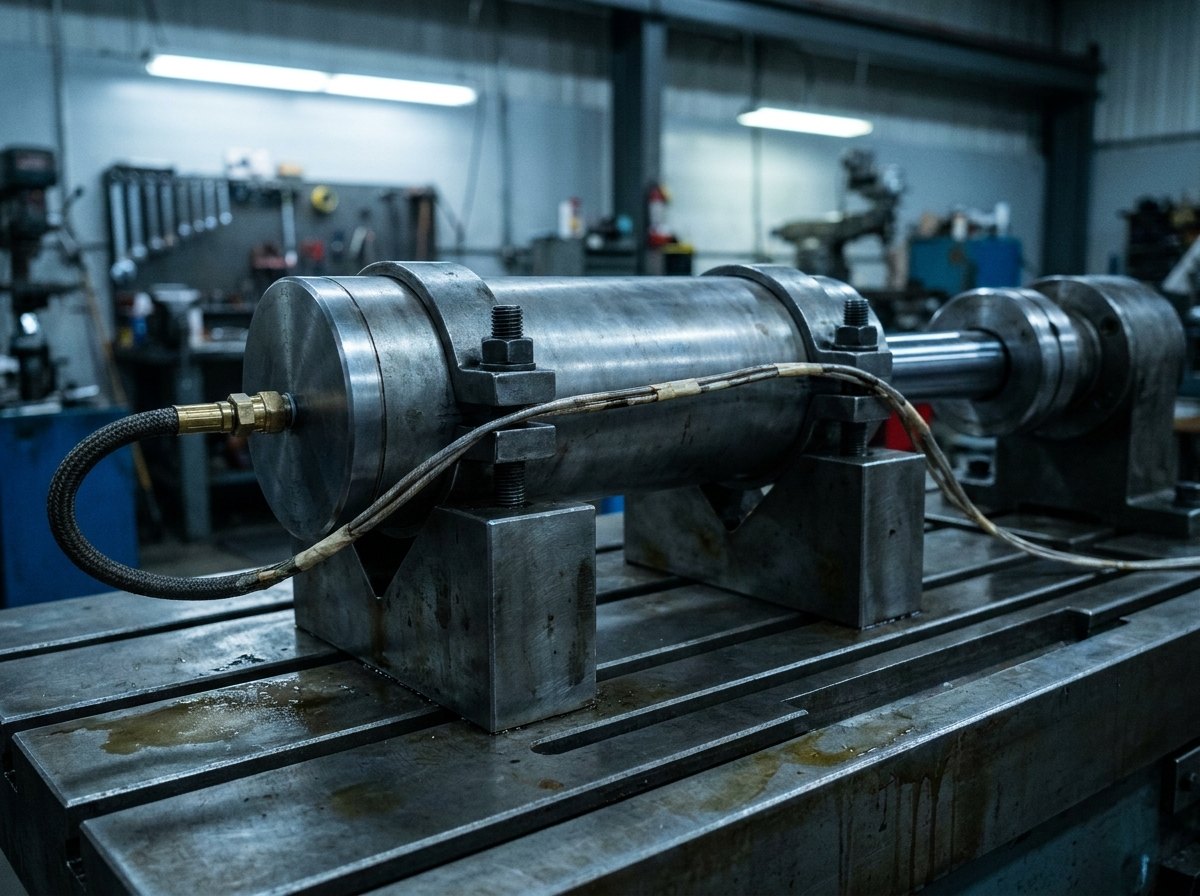

Illustrative image, not a delivered system — close view of a plain heavy steel cylinder clamped in a test fixture: the smooth body sits in two machined vee-block fixtures with heavy hold-down straps, a polished piston rod emerges into a coupling, a small pressure fitting with a short braided hose at the closed end, thin instrumentation cables taped along the body, machined steel bed beneath, no people and no text
Fig · 02 The assembly in its fixture — located, restrained and instrumented before a single stroke — illustrative, not a delivered system

Two halves, opposite jobs. The buffer takes the energy out. It does so by forcing fluid through orifices whose effective area varies along the stroke — wide early to catch the mass gently, closing progressively to hold the deceleration, easing at the end so nothing arrives hard. That varying area is the design, and reading it back is what the rig exists for. The recuperator does the opposite: charged to a working pressure, it stores energy during the stroke and pushes the recoiling mass back on run-out. Both must be characterised, and so must their interaction — an assembly can absorb correctly and still return badly, and only a test that measures the whole cycle will show it.

The rig must survive what it measures — and, less obviously, must not lie while doing it. The energy arrives in a fraction of a second, so the bed, fixtures and reaction structure take everything the assembly was built to absorb; stiffness, restraint and the rig’s own fatigue life are first-order problems rather than detailing. But stiffness matters twice, because the rig’s compliance is a measurement error: if the reaction structure deflects under load, the stroke recorded is not the stroke the assembly saw, and the curve is quietly wrong in exactly the region where it matters most.

Temperature moves the curve. Fluid viscosity falls as it warms and the gas charge pressure rises, so the same assembly gives a different characteristic cold and hot. A rig that tests only at ambient has measured one point of an envelope. Conditioned testing across the service range is what makes the data mean something — and because endurance running heats the assembly itself, holding fluid temperature during a cycling run is part of the test rather than a convenience.

This is a damper characterisation rig at a heavier energy class. The vehicle and rail damper bench on this site covers the class below it — same discipline, different order of energy.
The Shape

Resolved, not inferred

Displacement, velocity, force and pressures on one calibrated time base, fast enough to record the curve rather than its endpoints.

The Structure

Stiff, or the data is wrong

A deflecting reaction structure means the stroke measured is not the stroke delivered — compliance is an error term first.

The Envelope

Proven back after overhaul

Curves kept per assembly, so one returning from overhaul is compared with the envelope it left with instead of merely passing.

02
Architecture

Drive it, throttle it, store it, return it.

The schematic follows one stroke — the recoiling mass driven to a profile, the buffer throttling against it, the recuperator storing, and the run-out measured on the way back — and shows the machine behind it: actuator and reaction bed, fixtures and restraint, fast acquisition, and the conditioning and record.

FIG · 03RCL ARCHITECTURE · ACTUATOR + BED / FIXTURES + RESTRAINT / FAST ACQUISITION · CONDITIONING & RECORD
DRIVE THE MASS → THE BUFFER THROTTLES → THE RECUPERATOR STORES → RUN-OUT, MEASURED THE CHARACTERISTIC IS A CURVE, NOT A NUMBER - RESISTANCE MUST RISE, HOLD AND TAPER ACROSS THE WHOLE STROKE, AND A HEADLINE RATING SAYS NOTHING ABOUT WHETHER IT WILL. MEASURES FORCE VS STROKE, FORCE VS VELOCITY RULE THE RIG MUST SURVIVE WHAT IT MEASURES DRIVE THE MASS A CONTROLLED PROFILE, NOT A DROPPED WEIGHT THE BUFFER THROTTLES ORIFICE AREA VARIES ALONG THE STROKE RECUPERATOR STORES A GAS SPRING AT ITS WORKING PRESSURE RUN-OUT, MEASURED THE RETURN IS HALF THE CHARACTERISTIC IF THE REACTION STRUCTURE DEFLECTS, THE STROKE MEASURED IS NOT THE STROKE DELIVERED - THE RIG'S OWN COMPLIANCE IS A MEASUREMENT ERROR BEFORE IT IS A STRENGTH PROBLEM ACTUATOR + BED A REACTION STRUCTURE STIFF ENOUGH NOT TO LIE FIXTURES + RESTRAINT THE RIG TAKES THE SAME ENERGY FAST ACQUISITION THE SHAPE, NOT THE ENDPOINTS CONDITION + RECORD ACROSS TEMPERATURE, TO A CERTIFICATE OUR ROLE: BED + REACTION STRUCTURE, ACTUATION + HYDRAULIC POWER, FIXTURES + RESTRAINT, INSTRUMENTATION + ACQUISITION, CONDITIONING, SOFTWARE + CERTIFICATES, INSTALLATION + AMC DETAIL · WHAT MOVES THE CURVE TEMPERATURE VISCOSITY AND CHARGE BOTH SHIFT VELOCITY A THROTTLE IS RATE-DEPENDENT WEAR AND SEALS WHY OVERHAUL IS RE-PROVEN GOAL: THE ENVELOPE IT LEFT WITH WHEN NEW, AND AFTER EVERY OVERHAUL A DAMPER CHARACTERISATION RIG AT A HEAVIER ENERGY CLASS - THE VEHICLE AND RAIL DAMPER BENCH ON THIS SITE COVERS THE CLASS BELOW IT. DRIVE A PROFILE, NOT A DROP RESOLVE THE SHAPE OF THE CURVE CERTIFY AGAINST THE ENVELOPE
Fig · 03 The whole stroke, both directions, across temperature — and the curve kept
Arc · 01

Actuator & Reaction Bed

A controlled displacement and velocity profile into a bed stiff enough that its own deflection does not enter the measurement.

Arc · 02

Fixtures & Restraint

Machined location and hold-down taking the same energy the assembly absorbs — the rig’s fatigue life is designed, not assumed.

Arc · 03

Fast Acquisition

Stroke, velocity, force and pressures on one time base — fast enough to resolve the shape of a stroke lasting a fraction of a second.

Arc · 04

Conditioning & Record

Across the service temperature range, with curves against the acceptance envelope, automatic pass/fail and a certificate.

Have a recoil-system, buffer or recuperator test requirement? Send the energy, the stroke and the acceptance envelope — a clause-by-clause compliance matrix within two working days · [email protected]
Send tender spec
03
Specifications

Reference rig, built to the energy.

The parameters below describe a reference installation. The actuator capacity, bed and reaction structure, stroke, fixture design, conditioning range and acquisition rate all follow from three givens: the energy and stroke of the assembly, the acceptance envelope it is judged against, and the programme — characterisation, acceptance or overhaul proving.

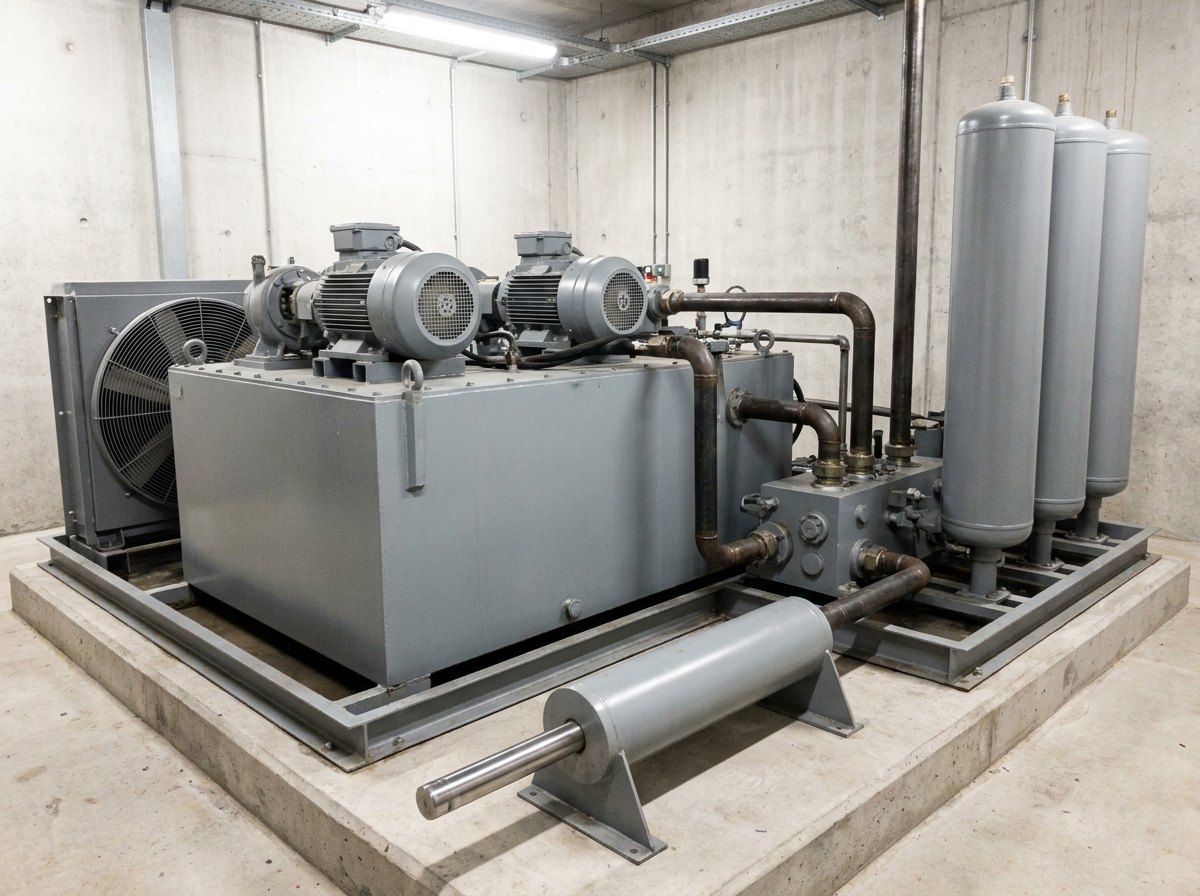

Illustrative image, not a delivered system — a hydraulic power unit in a plant room: a large rectangular steel reservoir with two motor and pump sets on its top deck, a vertical bank of four tall cylindrical accumulators alongside, a manifold block with thick pressure piping between them, a finned cooler with a fan at one end, all plain grey on a concrete plinth with a drip tray, no people and no text
Fig · 04 The power end — pumps, accumulators and cooling: what makes a repeatable profile possible, and what holds temperature through an endurance run — illustrative, not a delivered system

Where recoil test rigs go wrong

The assembly is characterised at one velocity, when velocity dependence is the entire point of a throttling device. Testing is ambient-only, giving one point of an envelope that moves with temperature. The rig’s own compliance pollutes the result — the structure deflects and the stroke recorded is not the stroke delivered, so the curve is wrong exactly where the design is most sensitive. Acquisition is too slow to resolve a stroke that lasts a fraction of a second, so the shape is inferred from its endpoints. Endurance is run without thermal management, and the assembly’s own heating changes the answer mid-test. Guarding is designed for an ordinary hydraulic bench rather than for a charged gas assembly with a rod on it. And results are stored as pass or fail with no curve retained, so an overhauled assembly can never be compared with itself when new.

So the discipline runs the other way. The assembly is characterised across a range of velocities and temperatures. The reaction structure is designed for stiffness as a measurement requirement first, and its deflection is measured and accounted for rather than assumed negligible. Acquisition is specified against the event duration, on one calibrated time base. Endurance runs hold fluid temperature. Guarding and interlocks are specified for a stored-energy assembly. And every run keeps its curve, against the envelope, on a certificate.

Full specification — expand
SystemRecoil system test rig — heavy-duty hydraulic characterisation of buffers & hydro-pneumatic recuperators; engineered, built, installed, commissioned & supported
FunctionForce against stroke & force against velocity across the whole travel, in both directions, against an acceptance envelope
DriveA controlled displacement & velocity profile from a servo-hydraulic actuator — not a dropped weight; profile repeatable run to run
The BufferAbsorption by throttling through orifices of varying effective area along the stroke — the varying area is the design, and reading it back is the measurement
The RecuperatorGas spring at working pressure — energy stored through the stroke, recoiling mass returned on run-out; characterised in its own right
Reaction StructureHeavy welded bed on isolators, machined fixtures & restraint absorbing the assembly's full energy — stiffness & fatigue life designed, not assumed
ComplianceTreated as a measurement error term — structural deflection measured & accounted for, because a deflecting bed misreports the stroke
InstrumentationDisplacement, velocity, force & pressures on one calibrated time base, sampled fast enough to resolve the shape of a sub-second stroke; traceable calibration
ConditioningAcross the service temperature range — fluid viscosity & charge pressure both move the curve; fluid temperature held during endurance runs
ProgrammeProof pressure, static & dynamic leak, seal performance across the stroke, endurance cycling at rate, and full characterisation
SafetyGuarding & interlocks specified for a charged stored-energy assembly — not for an ordinary hydraulic bench; controlled discharge & restraint
RecordsCurves retained per assembly against the envelope, automatic pass/fail, certificate — enabling overhaul acceptance against the as-new envelope
The FamilyBeside the hydraulic damper test bench (vehicle & rail class), the servo-hydraulic fatigue machine & the vibration and shock franchise
SourcingServo valves, actuators, load cells, transducers & acquisition hardware are bought-in certified items; Neometrix engineers the rig, structure, fixtures, hydraulics, conditioning, software & records
StatusEngineered to order · quoted against a recoil-system test-rig requirement · grounded in the delivered servo-hydraulic, damper-testing & hydraulic power franchises · no delivered system is claimed on this page
04
Variants

One discipline, four scopes.

Requirements arrive as a full characterisation rig, a bench for one half of the assembly, a proof-and-endurance rig, or the conditioning and acceptance package around an existing installation.

Var · 01

Characterisation Rigs

The full assembly, both directions — force against stroke and velocity across the range, curves against the acceptance envelope.

Var · 02

Buffer & Recuperator Benches

One half at a time — throttling characteristic or gas-spring behaviour, for development work and component acceptance.

Var · 03

Proof, Leak & Endurance Rigs

Proof pressure, static and dynamic leak, seal performance and cycling at rate, with fluid temperature held through the run.

Var · 04

Conditioning, Overhaul Acceptance & AMC

Temperature conditioning, acceptance software and certificates — including retrofit to an existing rig, with calibration, spares and AMC.

05
Applications

Wherever a stroke must be proven.

Development laboratories, acceptance bays and overhaul workshops working at large stroke energies.

A · 01Defence research & development laboratories
A · 02Production acceptance bays
A · 03Overhaul & refurbishment workshops
A · 04Heavy hydraulic damper development
A · 05Energy-absorption & arrestor engineering
A · 06Quality directorates & inspectorates
06
FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why characterise a curve instead of testing to a rating?
Because a single rating cannot describe what the assembly is for. Its job is to bring a moving mass to rest inside a limited distance without exceeding a deceleration limit at any point — and that is a statement about the whole stroke, not about a peak. A device that produces the right peak force but produces it too early arrests the mass harshly at the start; one that develops resistance too late runs out of travel. So what is specified, and what must be verified, is the shape: how resistance rises as the stroke begins, how it is held through the middle, and how it tapers so nothing arrives hard at the end. There is a second dimension. A throttling device is velocity-dependent by construction — force through an orifice varies with the square of flow velocity — so the same assembly gives a different curve at a different input speed. A characterisation therefore sweeps a range of velocities and produces a family of curves, which is what an acceptance envelope is drawn around. Testing at one velocity and reporting one number describes a single point inside a surface, and tells you nothing about whether the rest of the surface is where it should be.
Q · 02 Why is the rig’s own stiffness a measurement problem?
Because the rig and the assembly are in series, and anything that moves in the rig is movement that did not happen in the assembly. The instrument measures the actuator’s displacement; the number that matters is the assembly’s stroke. If the bed flexes, the fixtures settle or the restraint takes up clearance under load, part of the measured travel is structure and not assembly — and the error is not constant. It is largest exactly where load is highest, which is the region of the curve the design is most sensitive to. The result is a curve that looks plausible, is repeatable, and is wrong — the worst combination available, because nothing about the data announces the problem. So stiffness is specified as a measurement requirement before a strength one: the reaction path is designed with a deflection budget in the same way a mount is given a share of a pointing budget, fixtures locate positively rather than by friction, and residual deflection is measured and corrected for rather than assumed negligible. The check is straightforward — run a known stiff reference in place of the assembly and see what the rig reports; whatever it reports is the rig.
Q · 03 What does temperature actually change?
Both halves of the assembly, in opposite directions, which is why ambient-only testing is misleading rather than merely incomplete. On the buffer side the working fluid’s viscosity falls as it warms: the same orifice passes flow more easily, resistance drops, and the assembly becomes softer — so a unit that meets its envelope on a cold morning can fall below it after a period of use. On the recuperator side the gas charge follows the gas laws: pressure rises with temperature, so the return force increases and run-out behaviour changes. The two effects do not cancel and they do not track each other. There is a third effect that only appears in a cycling test: the assembly heats itself, because absorbing energy is exactly what it does and that energy becomes heat in the fluid. An endurance run started at ambient may finish substantially warmer, so results drift through the run and the last cycles are not comparable with the first. That is why conditioning is specified across the service range, and why fluid temperature is held during endurance rather than allowed to find its own level.
Q · 04 How fast does the acquisition need to be?
Fast enough that the shape is recorded rather than reconstructed. The whole event lasts a fraction of a second, and the features that matter — the initial rise, any spike as the orifice profile changes, the plateau, the taper — occupy small parts of that. Sampling that resolves only the beginning and end of the stroke will produce a smooth, believable and entirely fictional curve. Three requirements follow. The rate is set against the event, with margin, so the sharpest real feature is described by many samples rather than a few. The channels — displacement, velocity, force and the pressures — must be on one time base, because a curve is a relationship between channels, and a few milliseconds of skew between force and displacement distorts the shape even when each channel is individually accurate. And the chain must be calibrated and traceable, including its dynamic behaviour, since a transducer that is accurate statically can lag under a fast transient. The practical test of an acquisition specification is simple: run the same assembly twice and overlay the curves. If the fine features repeat, the system is resolving them; if they wander, it is inventing them.
Q · 05 What does the rig do for overhaul, as opposed to new manufacture?
It answers the question overhaul actually poses, which is not “does this pass?” but “is this the same assembly it was?” In practice most rigs of this class spend the bulk of their working lives on returning units rather than new ones. A unit comes back after years of service, is stripped, has seals and worn parts replaced, and is rebuilt — and the thing the workshop needs to establish is whether its characteristic has come back to where it started. A pass/fail against a wide acceptance band will not show a unit that has drifted to the edge of the envelope but is still technically inside it; comparing this run’s curve against that unit’s own as-new curve will. That is why the records side of the rig matters as much as the mechanics: curves are retained per assembly, identified to the unit, so a comparison is possible years later. It also makes wear visible as a trend across successive overhauls, which is genuinely useful information about the fleet rather than just about the unit — and it is the difference between a test rig and a filing cabinet with a hydraulic actuator attached.
Q · 06 What do you build, and what is bought-in?
What Neometrix does: the rig — heavy welded bed and reaction structure on isolators, designed to a deflection budget as well as a strength case; the fixtures and restraint — machined location, hold-down and hard stops sized for the full energy; the hydraulic system — power unit, accumulators, manifolds, cooling and the control that makes a displacement and velocity profile repeatable run to run; the conditioning — temperature control across the service range and fluid-temperature holding through endurance; the instrumentation and acquisition — transducer installation, single time base, calibration; the software and records — profiles, curve capture, envelope comparison, pass/fail, certificates and per-assembly history; the guarding and interlocks for a charged stored-energy assembly; and installation, commissioning, training, spares and AMC. What is bought-in certified: servo valves, actuators, load cells, transducers, acquisition hardware and calibration services. Engineered to order; quoted against a recoil-system test-rig requirement; grounded in the delivered servo-hydraulic, damper-testing and hydraulic power franchises; no delivered system is claimed on this page.
