NMX‑UTB‑30 / Rev 00 / UAS ground test / thrust · 3-DOF · readiness 2026 · Product Page
NMX-UTB-30 · ENGINEERED TO ORDER — UAS PROPULSION & FLIGHT-READINESS TEST BENCH

Prove it before it flies.

A drone earns its flight time on the ground. The propulsion thrust stand characterises motor, propeller and ESC together — thrust, torque, RPM, electrical power — and turns them into the numbers that decide a design: efficiency in grams per watt, the thrust map, the motor–propeller match, endurance. The 3-DOF attitude rig frees roll, pitch and yaw while holding position, so the flight controller is tuned and provoked without free flight — it wobbles on the gimbal instead of crashing. And the integration and readiness bench runs the whole aircraft, restrained, through the pre-flight gate: run-up, actuation, sensor alignment, endurance soak — recorded as evidence. All caged, interlocked and calibrated. The aircraft is yours — customer-furnished; the benches are the engine-dyno franchise, sized for UAS. Engineered to order — no delivered bench is claimed.

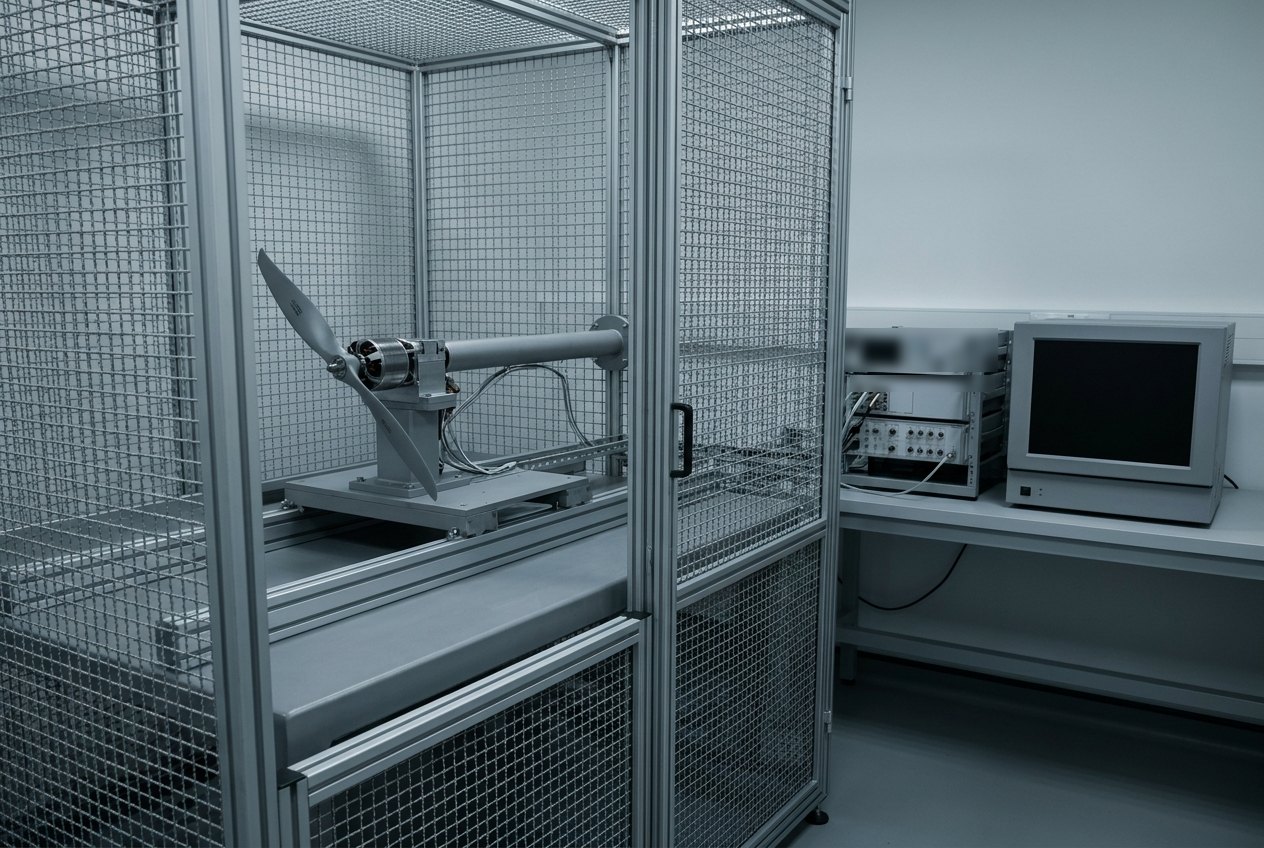

Illustrative image, not a delivered bench — a UAS propulsion thrust stand inside a mesh safety cage: a pylon on a rigid bed carrying an electric motor with a two-blade propeller on a load-cell sled, instrument cabling to a bench with a DAQ rack and power analyser with blank screens, no text and no people
Fig · 01 The thrust stand — motor, propeller and ESC characterised together on calibrated load, torque, speed and power channels, inside the cage — illustrative, not a delivered bench
Measures
thrust + torqueRPM, power, efficiency
Tunes
the controller3-DOF, no free flight
Proves
the aircraftreadiness as a gate
Aircraft
the customer’scustomer-furnished
Built
to ordercaged + calibrated
ISO 9001 / 14001 Engineered to order Test benches & DAQ Caged & interlocked Noida · India
01
Overview

Flight time is won on the bench.

Every gram and every watt on a small aircraft is contested, and the arithmetic is unforgiving: the powertrain turns electrical watts into grams of thrust, and its efficiency sets the flight time. A few percent lost in a bad motor–propeller match is minutes lost in the air — and you cannot see those percent by flying; you see them on a calibrated thrust stand. The same logic runs through the whole aircraft: the controller gains you guessed, the integration you hoped was right, the endurance you extrapolated — all of it is knowable on the ground, before the first flight risks the airframe.

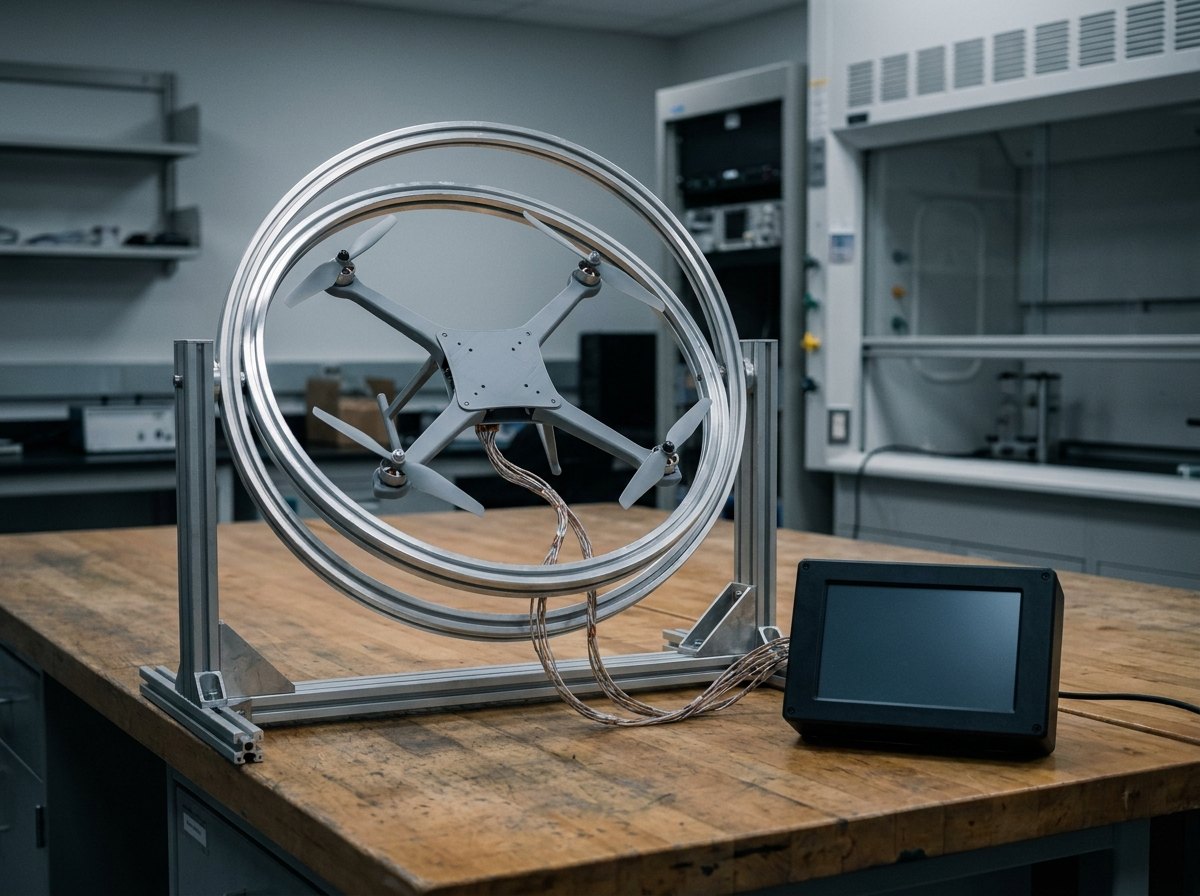

Illustrative image, not a delivered bench — a plain generic light-grey quadcopter frame with bare arms, motors and propellers and no payload, mounted at the centre of a three-axis gimballed test fixture of nested rings on a heavy bench, with cables to a console with a blank screen, no text and no people
Fig · 02 The 3-DOF attitude rig — roll, pitch and yaw freed, position held: the flight controller tuned and provoked with the aircraft going nowhere — illustrative, not a delivered bench

Characterise the powertrain. On the thrust stand, the motor, propeller and ESC run as the set they will fly as. A load cell reads thrust, a reaction transducer reads torque, RPM and electrical power are captured through a power analyser, temperatures and vibration alongside. Sweeps produce the thrust-versus-throttle map and the efficiency curve in grams per watt; sustained runs produce endurance and thermal behaviour. This is where propellers are chosen, motors are matched, and datasheet claims meet a calibrated instrument.

Tune the controller — without crashing. On the 3-DOF rig, the aircraft sits at the centre of a gimballed fixture: roll, pitch and yaw are free, position is held. The flight controller can be brought up from first power-on, its gains tuned, its responses provoked — oscillation, saturation, recovery — and every misbehaviour ends as a wobble on the rig rather than a crash. What normally costs airframes costs bench time instead.

Prove the aircraft, then fly it. The integration and readiness bench restrains the complete aircraft on a hold-down cradle and runs the pre-flight gate as a procedure: powertrain run-up, actuation and control checks, navigation-sensor alignment, electrical load, endurance soak — every step instrumented and recorded as evidence. First flight then confirms what the bench already proved, which is exactly what a first flight should do.

The cheapest place to find a problem is on a bench with the aircraft bolted down. Every discipline in this bench set exists to move discoveries from the air — where they cost airframes — to the ground, where they cost an afternoon.
Grams Per Watt

The number that sets flight time

The thrust stand turns motor, propeller and ESC into calibrated efficiency curves — the motor–prop match, the thrust map, the endurance — the numbers a design stands on.

The Rig Takes the Wobble

Tuning without wreckage

On the 3-DOF gimbal the controller is tuned, provoked and made to fail safely — the learning that normally costs airframes happens restrained, on the bench.

The Aircraft Is Yours

Machine-only, customer-furnished

The benches measure the customer’s aircraft — its motors, propellers and controller — exactly as our mast elevates the customer’s payload. We build the test machine; the aircraft is yours.

02
Architecture

Characterise, tune, prove.

The schematic follows the path from parts to flight-ready — characterise the powertrain, tune the controller, prove the system — and shows the three benches that carry it, with the DAQ and safety discipline they share.

FIG · 03UTB ARCHITECTURE · THRUST STAND / 3-DOF RIG / READINESS BENCH · CAGED, INTERLOCKED, CALIBRATED
CHARACTERISE THE POWERTRAIN → TUNE THE CONTROLLER → PROVE THE SYSTEM → READY TO FLY FLIGHT TIME IS WON ON THE BENCH: A FEW PERCENT OF POWERTRAIN EFFICIENCY IS MINUTES IN THE AIR - AND A CONTROLLER TUNED ON A RIG WOBBLES ON THE GIMBAL INSTEAD OF CRASHING INTO THE GROUND. MEASURES THRUST, TORQUE, RPM, POWER EFFICIENCY + ENDURANCE AIRCRAFT THE CUSTOMER'S OWN TESTED ON THE GROUND CHARACTERISE MOTOR + PROP + ESC ON THE THRUST STAND TUNE THE CONTROLLER, ON THE 3-DOF RIG PROVE THE WHOLE AIRCRAFT, RESTRAINED + RECORDED READY TO FLY MEASURED, TUNED, PROVEN THREE BENCHES, ONE DISCIPLINE: EVERY NUMBER CALIBRATED, EVERY RUN CAGED AND INTERLOCKED, EVERY RESULT RECORDED AS EVIDENCE THRUST STAND THRUST, TORQUE, RPM, POWER, EFFICIENCY 3-DOF ATTITUDE RIG ROLL + PITCH + YAW, POSITION HELD READINESS BENCH HOLD-DOWN RUN-UP, CHECKS + SOAK DAQ + SAFETY CAGE + INTERLOCKS, CALIBRATED CAPTURE OUR ROLE: BENCH + RIG STRUCTURES, GIMBAL MECHANICS, SAFETY CAGES + INTERLOCKS, FIXTURING, ELECTRICAL + DAQ INTEGRATION, CALIBRATION; LOAD CELLS, TORQUE TRANSDUCERS, POWER ANALYSERS + INSTRUMENTS BOUGHT-IN DETAIL · WHY BENCH FIRST FLIGHT TIME IS WON HERE GRAMS PER WATT TUNE WITHOUT CRASHING THE RIG TAKES THE WOBBLE READINESS IS A GATE PROCEDURE + EVIDENCE GOAL: PROVE IT BEFORE IT FLIES FIRST FLIGHT WITHOUT SURPRISES A GROUND-TEST BENCH SET FOR THE CUSTOMER'S AIRCRAFT - BENCHES, CAGE, GIMBAL, FIXTURING + DAQ OURS; INSTRUMENTS BOUGHT-IN; THE AIRCRAFT CUSTOMER-FURNISHED. NO DELIVERED BENCH CLAIMED. CHARACTERISE THRUST STAND TUNE 3-DOF RIG PROVE READINESS BENCH
Fig · 03 Three benches, one discipline — the powertrain characterised, the controller tuned restrained, the whole aircraft proved at the readiness gate, every number calibrated and recorded
Arc · 01

The Thrust Stand

Load cell, torque transducer, RPM and power analyser on one synchronised capture — the powertrain’s truth: thrust map, g/W efficiency, match and endurance.

Arc · 02

The 3-DOF Attitude Rig

A gimballed fixture — roll, pitch and yaw freed, position held — for controller bring-up, tuning and provocation with the aircraft going nowhere.

Arc · 03

The Integration & Readiness Bench

The full aircraft on a hold-down cradle: run-up, actuation and control checks, sensor alignment, electrical load and endurance soak — the gate, recorded.

Arc · 04

DAQ, Safety & Calibration

Safety cages and interlocks on every bench — the spinning propeller is the managed energy — with calibrated, synchronised data capture end to end.

Have a UAS test-bench, thrust-stand or attitude-rig requirement? Send the aircraft class, the envelope and the tests — a clause-by-clause compliance matrix within two working days · [email protected]
Send tender spec
03
Specifications

Reference bench set, sized to the aircraft.

The parameters below describe a reference bench set. The thrust range, the rig capacity, the fixture fit and the channel count all follow from the aircraft class — a small multirotor, a heavy-lift platform or a fixed-wing UAS — and the tests the programme runs.

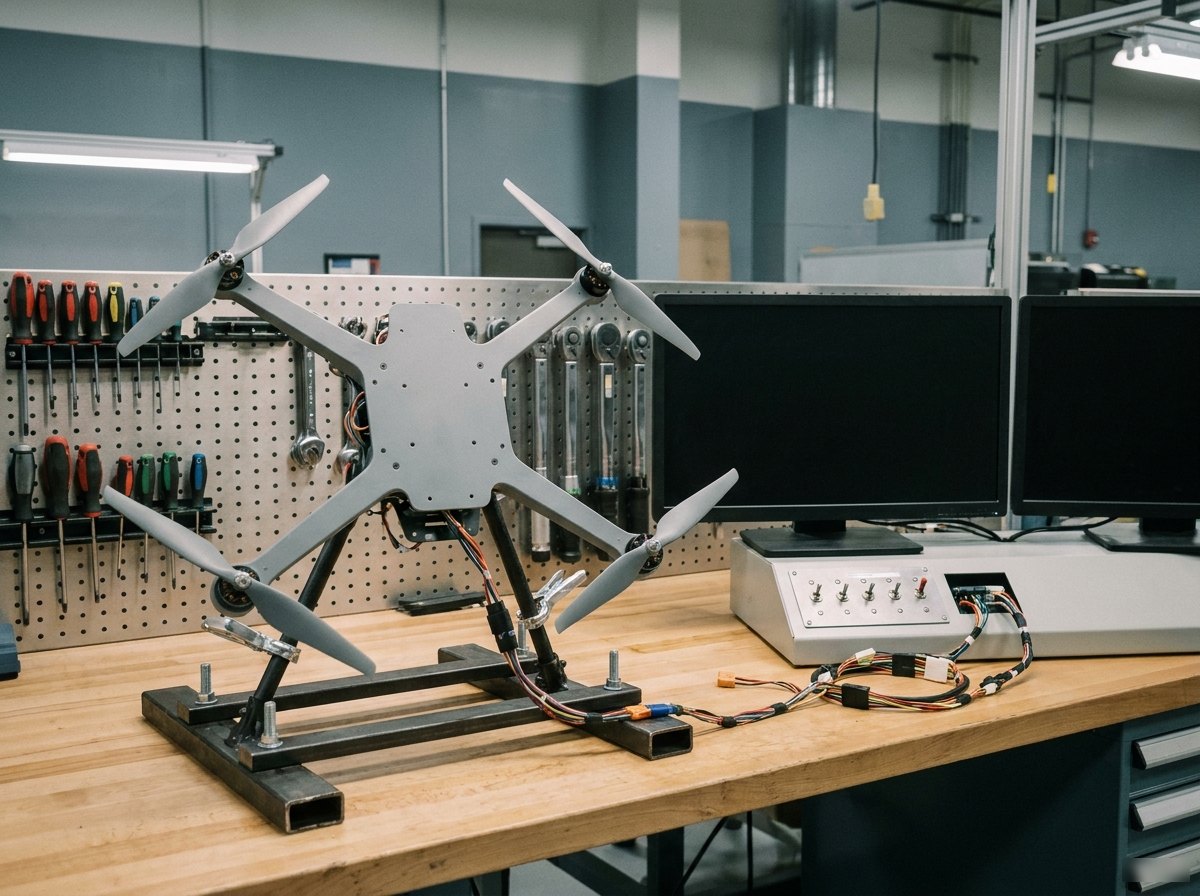

Illustrative image, not a delivered bench — a plain generic grey multirotor frame with no payload secured on a hold-down cradle on a workbench, an instrumented harness running to a test console with two blank screens and a small panel, tools racked nearby, no text and no people
Fig · 04 The readiness bench — the aircraft restrained, harnessed and run through the gate: run-up, checks, soak, evidence — illustrative, not a delivered bench

Where UAS testing goes wrong

In the shortcuts, almost always. A powertrain chosen from datasheets instead of a calibrated stand gives away flight time silently; controller gains tuned in free flight pay for every mistake with an airframe; a first flight used as the integration test discovers wiring, alignment and interference problems at the worst possible moment; and uncaged bench running treats a spinning propeller as if it were harmless.

The bench set replaces each shortcut with a discipline: measured powertrains on calibrated channels, restrained tuning on the gimbal, a procedural readiness gate with recorded evidence, and caged, interlocked runs throughout. The measure of the bench set is a first flight with no surprises in it — because everything it could have revealed was already revealed on the ground.

Full specification — expand
SystemUAS propulsion & flight-readiness test bench set — propulsion thrust stand, 3-DOF attitude rig and system-integration / readiness bench; engineered, built, integrated & calibrated
Thrust StandMotor + propeller + ESC characterised together: thrust (load cell), torque (reaction transducer), RPM, electrical power (power analyser), temperatures & vibration
Derived ResultsEfficiency (g/W), thrust-vs-throttle map, motor–propeller match, endurance & thermal behaviour under sustained load
Attitude Rig3-DOF gimballed fixture — roll, pitch & yaw freed, position held — for flight-controller bring-up, tuning and provocation without free flight
Readiness BenchFull aircraft on a hold-down cradle: run-up, actuation & control checks, navigation-sensor alignment, electrical load, endurance soak — the recorded pre-flight gate
DAQSynchronised, calibrated capture across load, torque, speed, electrical & thermal channels; sequenced tests; results as evidence
SafetyCages and interlocks on every bench — the spinning propeller is the managed energy; supervised, sequenced runs
AircraftThe customer’s — the aircraft, motors, propellers, ESCs and flight controller are customer-furnished; the benches measure them
ScopePropulsion, control & integration testing; environmental qualification (climatic, vibration, EMC) is served by our laboratory systems
SourcingLoad cells, torque transducers, power analysers & precision instruments are bought-in; Neometrix builds the structures, gimbal mechanics, cages, fixturing & DAQ integration, and calibrates the chains
StatusEngineered to order · sized to the aircraft class & test envelope · quoted across UAS integration-test & attitude-rig requirements · no specific delivered bench is claimed on this page
04
Variants

One discipline, the bench you need.

Requirements call it a thrust stand, a UAV test instrument with three degrees of freedom, or a system-integration test setup. The discipline — measure, tune, prove, on calibrated channels inside a cage — is common; the bench follows the aircraft and the tests.

Var · 01

Single-Motor Propulsion Stand

One motor + propeller + ESC at a time — characterisation, matching and acceptance, from small props up.

Var · 02

Multirotor / Full-Aircraft Thrust Bench

The whole aircraft on a restrained thrust and endurance bench — combined lift, electrical load and thermal soak.

Var · 03

3-DOF Attitude / Controller Rig

The gimballed fixture for flight-controller bring-up, tuning and stability work — without free flight.

Var · 04

Integration & Readiness Test Setup

Built to the customer’s aircraft and procedure — cradle, harnessing, console and the recorded gate.

05
Applications

Where it earns the flight.

Wherever a drone has to be measured, tuned and proved before it is trusted with the air.

A · 01Motor + propeller + ESC characterisation
A · 02Powertrain efficiency & endurance
A · 03Flight-controller tuning & stability work
A · 04Production acceptance of powertrains
A · 05Pre-flight integration & readiness checks
A · 06UAS R&D and academic laboratories
06
FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why bench-test a drone at all — why not just fly it?
Because flight is the most expensive, least instrumented and least repeatable place to learn anything. On a bench the aircraft is bolted down, instrumented on calibrated channels, and repeatable — the same throttle step gives the same answer twice, which is what engineering needs. In the air, every lesson risks the airframe, the data is whatever the aircraft happened to log, and conditions never repeat. The economics are lopsided: a bench discovery costs an afternoon; the same discovery in flight can cost the aircraft. And some numbers simply cannot be obtained in flight at all — true powertrain efficiency in grams per watt needs a load cell and a power analyser, not a flight log. So the bench-first discipline is not caution for its own sake: it is how flight time is maximised (efficiency found and kept), how controllers are tuned without wreckage, and how a first flight becomes what it should be — a confirmation of things already proved, not an experiment.
Q · 02 What does the thrust stand measure, and why does it decide the design?
It measures the powertrain as the set it will fly as — motor, propeller and ESC together — because the interactions are the point: the same motor is efficient with one propeller and wasteful with another, and the ESC’s behaviour shapes both. The directly measured channels are thrust (a calibrated load cell), torque (a reaction transducer), RPM, electrical voltage and current (a power analyser), plus temperatures and vibration. From sweeps and sustained runs come the derived results that actually decide a design: the thrust-versus-throttle map (what the controller has to work with), efficiency in grams of thrust per watt across the operating range (what sets flight time), the motor–propeller match (where the efficiency peak sits relative to hover and cruise), and endurance behaviour — how thrust, current and temperature drift over a long run. This is where propeller choices are made, where datasheet optimism meets a calibrated instrument, and where a few percent of efficiency — invisible in flight, obvious on the stand — are found and kept.
Q · 03 What does the 3-DOF attitude rig actually do?
It lets the aircraft behave without letting it go anywhere. The aircraft mounts at the centre of a gimballed fixture — nested rings or a yoke — that leaves roll, pitch and yaw free while holding position, with the rig’s bearings and balance made light and free enough that the aircraft’s own dynamics dominate. On it, the flight controller goes through everything that is dangerous to do in free flight: first power-on of an untested control stack, gain tuning from conservative to crisp, provocation — step inputs, disturbances, deliberate saturation — and failure injection, watching how the controller degrades and recovers. Every misbehaviour that would end in wreckage ends as a wobble on the gimbal: the oscillation is seen, logged, and tuned out, and the next iteration is minutes away rather than a rebuild away. By the time the aircraft first flies free, its controller has already flown — restrained — through its worst moments.
Q · 04 What does the integration and readiness bench cover?
Everything between “assembled” and “cleared to fly”, run as a procedure with evidence instead of a walk-around and a hope. The aircraft is restrained on a hold-down cradle and harnessed to the console, and the gate runs in order: power-up and electrical checks (loads, buses, behaviour under full draw), powertrain run-up (all motors, correct rotation, vibration signatures), actuation and control checks (every control surface and channel moving the right way, end to end), navigation-sensor alignment (the aircraft’s sense of level and heading verified against the bench), and an endurance soak — a sustained run that shakes out the thermal and electrical problems that only time reveals. Each step is instrumented and recorded, so “ready” is a documented state, not an opinion. Programmes that run this gate stop discovering wiring mistakes, reversed channels and interference at the moment of first flight — because the bench already discovered them, bolted down.
Q · 05 How is safety handled on the benches?
By treating the spinning propeller as what it is — the energy being managed. Every running bench sits inside a safety cage: mesh enclosures around thrust stands and restrained-run positions, sized and built so that a shed blade or a thrown fastener stays inside. Interlocks tie the cage to the run permissives — a bench cannot spin up with a door open, and opening one stops it. Runs are sequenced and supervised from the console rather than hand-held: spin-up, sweep and shutdown follow the procedure, with an emergency stop that removes power in one action. Restraints and fixtures are engineered with margin over the loads the aircraft can produce — a hold-down that is merely “probably strong enough” is not a fixture. And the discipline is procedural as much as physical: propellers checked and torqued before every run, the cage cleared and confirmed, the data channels live before power is applied — so the bench’s habits are the same ones the flight line needs.
Q · 06 What do you build, what is bought-in — and whose drone is it?
The aircraft is yours — that is the honest heart of this page. The drone, its motors, propellers, ESCs and flight controller are customer-furnished; the benches exist to measure, tune and prove them, exactly as our telescopic mast elevates the customer’s payload without being it. What Neometrix builds is the test machine: the bench and rig structures (stands, pylons, cradles), the 3-axis gimbal mechanics, the safety cages and interlocks, the fixturing (motor mounts, airframe adapters), the electrical and DAQ integration — sensor wiring, power distribution, synchronised capture, test sequencing — and the calibration of every measurement chain. What is bought-in specialist is the precision instrumentation: load cells, torque transducers, power analysers, RPM and vibration instruments — selected and integrated by us. It is the same test-bench franchise as our engine dynamometers and fuel rigs, sized for UAS; and it is the opposite side of the house from our counter-drone system, which deals with drones that are not yours. Engineered to order; quoted across UAS integration-test and attitude-rig requirements; no specific delivered bench is claimed on this page.
