NMX-ANF-30 · ENGINEERED TO ORDER — ANTENNA TEST FACILITY MECHANICS

The antenna is electrical. The range is mechanical.

Name: Antenna Test Facility — Positioners, Scanners & Range Structures
Brand: Neometrix

True far field begins at roughly 2D²/λ — hundreds of metres for a large antenna — so a modern range measures close and computes far: amplitude and phase over a plane or a sphere, transformed mathematically to the far field. And the transform trusts the geometry absolutely. Phase is position: at 40 GHz a hundredth of a wavelength is 75 microns, held over metres of travel, for hours. That makes the range a machine tool wearing an RF costume — positioners whose axes intersect in tenths of a millimetre, scanners mapped flat by laser tracker, cable wraps that flex identically every rotation, and a shielded, absorber-lined room around all of it. We build that mechanical layer; the RF instrumentation is partnered; the antenna is yours. No delivered range is claimed.

Enquire — antenna test facility Capability sheet (PDF)

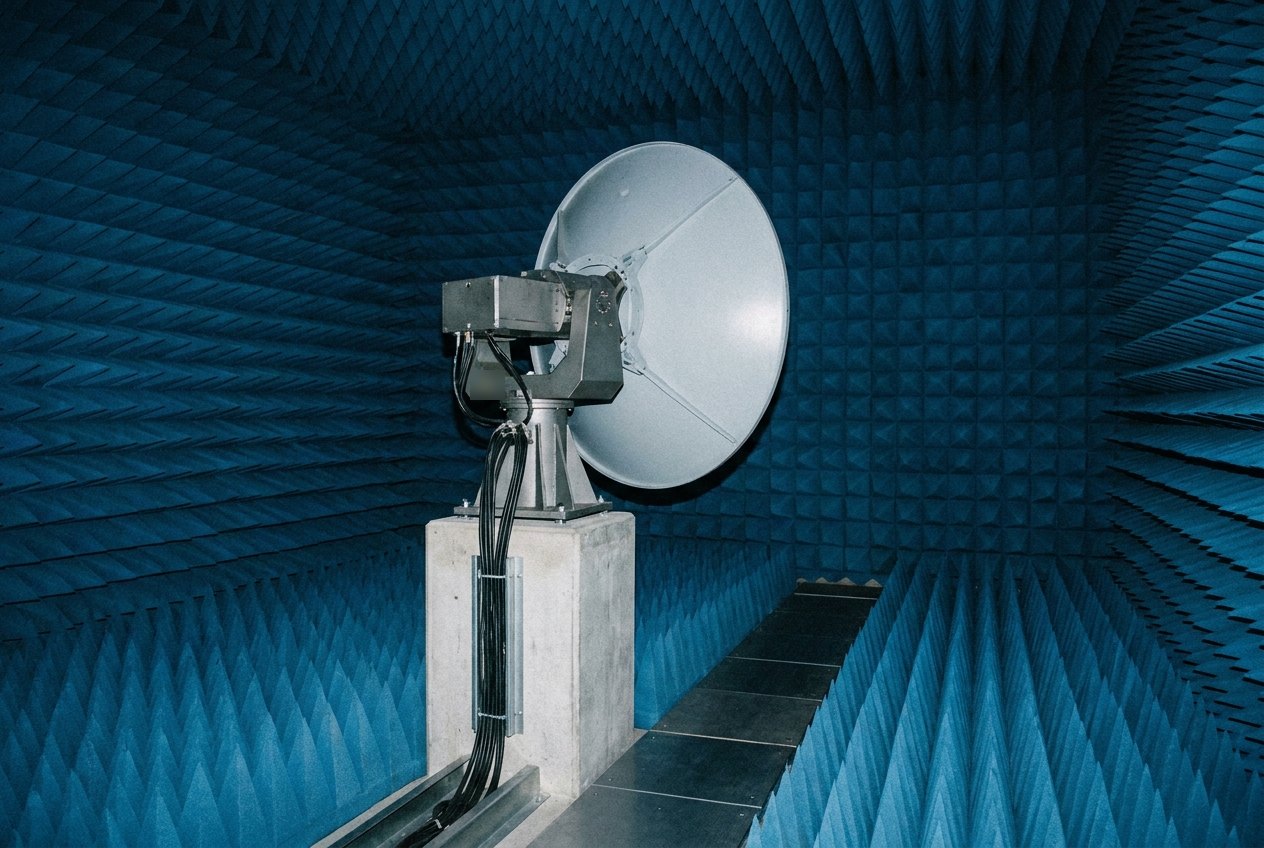

Illustrative image, not a delivered system — a heavy two-axis antenna positioner inside an anechoic chamber lined floor to ceiling with deep blue pyramidal foam absorber: a dark steel drive head on a plain concrete pedestal holding a pale grey parabolic dish antenna about two metres across, its cables dressed neatly down the pedestal face into a floor duct, a narrow walkway of flat dark floor panels crossing the absorber floor toward the door, dim even lighting with the absorber swallowing the light, no people and no markings

Fig · 01 Two axes under the article — the intersection, the stiffness and the wrap do the measuring — illustrative, not a delivered system

Budget

λ/50–λ/100microns, over metres

Axes

intersect in tenthsroll over azimuth

Chamber

shielded + linedthe room around it

Proof

laser trackergeometry on paper

Article

yourshandled as irreplaceable

ISO 9001 / 14001 Engineered to order IEEE 149 / IEEE 1720 practice Metrology-proven Noida · India

Overview

Measure close. Compute far.

Everything unusual about an antenna range follows from one constraint: the measurement you want happens hundreds of metres away, and the room you have is twenty metres long. The mathematics closes that gap — on the strict condition that the machine holding the probe and the article never lies about where they are.

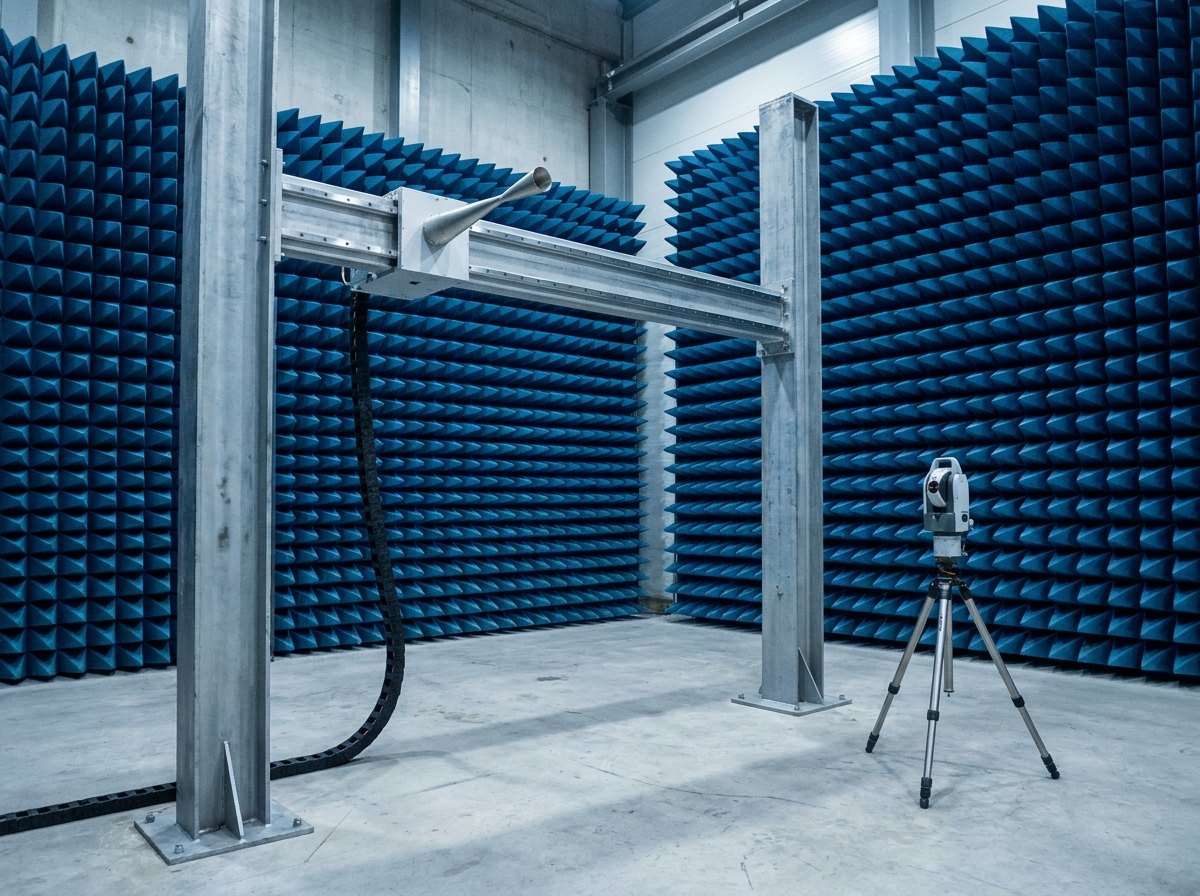

Illustrative image, not a delivered system — a planar near-field scanner in an absorber-lined hall: two tall vertical steel columns joined by a horizontal crossbeam forming a rigid gantry, a small probe carriage on precision rails along the crossbeam carrying a slim conical probe horn, flexible cable chain looping down one column, deep blue pyramidal absorber on the wall behind, a laser tracker on a plain tripod to one side, cool even light, no people and no markings

Fig · 02 The planar scanner — metres of travel, mapped by the tracker beside it, because no fabricated structure is flat to a hundredth of a wavelength unaided — illustrative, not a delivered system

Phase is position. A near-field measurement records amplitude and phase across the scan surface, and phase at tens of gigahertz turns positional error directly into pattern error. The working budget of λ/50 to λ/100 means 150 down to 75 microns at 40 GHz — machine-tool numbers, held not over a machine tool's half-metre but over a gantry's metres of travel, through an hours-long scan, in a hall whose temperature is quietly moving. That is the whole trade: the range buys a small room with mechanical precision.

The positioner is the instrument. In spherical scanning the article rotates — roll over azimuth — under a fixed probe, so the geometry lives in the positioner: the two axes must intersect within tenths of a millimetre; the structure must be stiff enough that a heavy article does not drag the axis with it as it swings; drives are preloaded because backlash smears phase at every reversal; and encoders read at the axis, not at the motor, so the record says what the article did rather than what was commanded.

And what rotates may be irreplaceable. A flight-standard antenna — sometimes a whole spacecraft — sits on that positioner, so the ground-support discipline applies unchanged: slow, reversible, self-locking motion, generous factors, proven load paths, and a fixture that neither blocks nor reflects, because a bad fixture becomes part of the antenna.

We build the mechanical layer — positioners, scanners, reflector structures, fixtures, chamber, shielding and absorber integration, alignment and metrology — including to your specification and drawings. Network analysers, receivers, probes, feeds, absorber media and measurement software are partnered or bought-in certified. The antenna under test is yours.

True

Mapped, then corrected

Scan planes and axes measured by laser tracker and error-corrected — never assumed from fabrication.

Stiff

The axis stays put

Positioners sized for stiffness before torque, so the heaviest article cannot move the geometry.

Repeatable

The wrap flexes identically

Controlled bend radii and phase-stable routing — wrap ripple never reads as antenna ripple.

Architecture

Mount it, sweep it, hold it, transform it.

The schematic follows the measurement — the article mounted, the surface swept, the geometry held, the far field computed — and shows the machine underneath: positioners and drives, scanners and their metrology, the chamber and its absorber, and the fixtures, cable wrap and record that close the error budget.

FIG · 03RANGE ARCHITECTURE · POSITIONERS + DRIVES / SCANNERS + METROLOGY / CHAMBER + ABSORBER / FIXTURES, WRAP & RECORD

Fig · 03 Phase is position — an error budget that closes, and stays closed

Arc · 01

Positioners & Drives

Roll-over-azimuth and azimuth-over-elevation — axes intersecting in tenths, preloaded against backlash, encoders at the axis.

Arc · 02

Scanners & Metrology

Planar gantries mapped by laser tracker and error-corrected, with thermal drift carried in the budget rather than discovered after it.

Arc · 03

Chamber & Absorber

Shielded panels, RF-tight doors, cutoff penetrations, filtered power — and absorber mounted fire-consciously, walkable where people work.

Arc · 04

Fixtures, Wrap & Record

Fixtures that neither block nor reflect, wraps that flex identically, and geometry reports at handover and on schedule for life.

Establishing, upgrading or re-aligning an antenna test range? Send the frequency band, the largest article and the range type — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference range, built to the article.

The parameters below describe a reference facility. Range type, scan geometry, positioner capacity, chamber size and shielding class all follow from three givens: the frequency band, the largest and heaviest article the range must take, and whether the requirement is a new facility, an upgrade, or the re-alignment of a range that already exists.

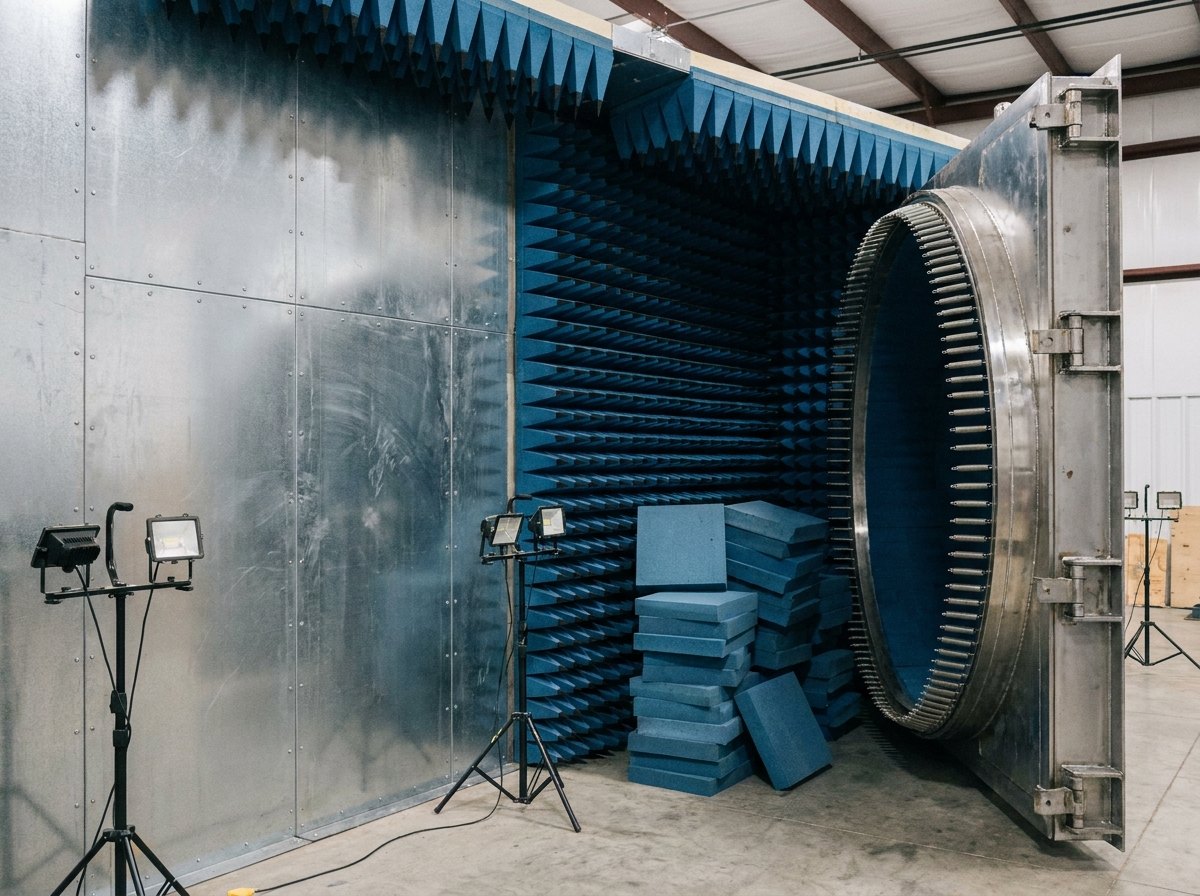

Illustrative image, not a delivered system — a radio-frequency test chamber under construction: one wall still bare galvanised steel shielding panels with neat bolted seams, the adjacent wall already covered in deep blue pyramidal foam absorber, a stack of loose absorber blocks on the concrete floor beside a heavy steel chamber door standing ajar on massive hinges with a ring of spring contact fingers visible around its edge, work lamps on stands, no people and no markings

Fig · 04 The room around the machine — shielding first, absorber over it, and a door that seals RF-tight on spring fingers — illustrative, not a delivered system

Where antenna ranges go wrong

Scanner planarity assumed from fabrication and never mapped, so the correction table corrects nothing. Positioners sized for torque but not stiffness, so the axis intersection moves with the article's weight and the error changes with every load. Backlash accepted at reversal, smearing phase precisely where the scan changes direction. Cable wrap improvised, so flex ripple appears in every pattern and gets blamed on the antenna. Absorber gaps at doors, corners and camera ports — reflections that masquerade as sidelobes. Leaky penetrations that quietly raise the noise floor. Thermal drift ignored across a scan that takes hours in a hall that breathes. Fixtures that reflect, becoming part of every measurement made on them. Absorber fire risk ignored in mounting and detection. And geometry records that stop at handover, when re-verification is what keeps a range believable for twenty years.

So the discipline runs the other way. Scan planes and axes are measured by laser tracker, corrected, and measured again. Positioners are specified by stiffness and intersection error before torque and speed. Drives are preloaded; encoders sit at the axis. Wraps are engineered with controlled radii and repeatable flex. The chamber is treated as an instrument enclosure — shielding continuity, door seals, cutoff penetrations, filtered power — and the absorber is mounted with fire-conscious fixing and detection. Every geometry the mathematics depends on is delivered on paper at handover, with a re-verification schedule the customer can actually run.

Full specification — expand

System	Antenna test facility mechanics — positioners & drives, near-field scanners, compact-range structures, fixtures, chamber & absorber integration, alignment & metrology
Governing Idea	The antenna is electrical; the range is mechanical — the near-field transform trusts the geometry absolutely
Why Near-Field	True far field begins at ~2D²/λ — hundreds of metres for a large antenna — so the range measures close and computes far
Accuracy Budget	Phase is position — λ/50 to λ/100 positional truth: 150 down to 75 microns at 40 GHz, over metres, for hours
Spherical Systems	Roll-over-azimuth article positioners — axes intersecting within tenths of a millimetre, stiffness before torque, preloaded drives, encoders at the axis
Planar Scanners	X-Y gantries over metres of travel at λ/100-class planarity — laser-tracker mapped, error-corrected, thermal drift budgeted
Compact Range	Collimating reflector with a support that does not distort it and edge treatment that controls diffraction into the quiet zone
Article Handling	The ground-support inversion — slow, reversible, self-locking motion, proven load paths, for articles that cannot be replaced
Fixtures	Mountings that neither block nor reflect — a bad fixture becomes part of the antenna
Cable Wrap	A phase problem, not a tidiness problem — controlled bend radii, torsion sections, identical flex every rotation
Chamber	Shielded panel structure, RF-tight doors on spring-finger seals, waveguide-below-cutoff penetrations, filtered power, honeycomb ventilation
Absorber	Pyramidal absorber mounted fire-consciously — fixing, detection and walkable floor protection where people work
Metrology	Laser-tracker geometry reports at handover and on a re-verification schedule — nobody can see RF, so geometry is the only proof
Standards	Measurement practice aligned with IEEE 149 / IEEE 1720 · ISO 9001 / 14001
Scope Boundary	Ours: positioners & drives, scanner structures, reflector supports, fixtures, chamber structure, shielding & absorber integration, cable wrap, alignment, metrology, installation, testing, documentation, training, spares & AMC — including build to your specification and drawings. Partnered / bought-in certified: network analysers, receivers, probes, feeds, absorber media, measurement software. The customer's: the antenna under test
The Family	The site's precision-alignment, ground-support handling and shielded-chamber franchises, pointed at antenna measurement
Status	Engineered to order · quoted across compact-range, planar and spherical near-field range, and antenna positioning-and-drive requirements · no delivered range is claimed on this page

PDF · 1 page

Antenna Test Facility — Capability Sheet

Tender Response

Send band, article size & range type — compliance matrix in two working days

Variants

One geometry problem, four builds.

What changes is whether the probe moves or the article does, whether the far field is computed or collimated, and whether the room already exists.

Var · 01

Spherical Near-Field Systems

Roll-over-azimuth positioners with probe towers — the article rotates, so axis intersection, stiffness and wrap carry the measurement.

Var · 02

Planar Near-Field Scanners

Precision X-Y gantries with probe carriages — for high-gain antennas measured face-on, mapped and corrected to λ/100 class.

Var · 03

Compact-Range Structures

Reflector supports, feed positioners and quiet-zone alignment — far-field conditions built into a short room.

Var · 04

Chambers, Retrofit & AMC

Shielding and absorber integration, range upgradation, re-alignment and support — including positioning-system AMC on existing ranges.

Applications

Wherever a pattern must be proven.

Space programmes, ground stations, laboratories and production lines.

A · 01Satellite & spacecraft antenna testing

A · 02Telemetry & ground-station terminals

A · 03Airborne & vehicular antenna qualification

A · 04Research institutes & academic ranges

A · 05Upgradation & re-alignment of existing ranges

A · 06Production acceptance of antennas

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why measure the near field and compute, rather than just measuring far away?

Because “far away” is farther than any honest building. An antenna's radiated pattern only settles into its final form beyond the far-field distance, conventionally taken as 2D²/λ — twice the antenna's largest dimension squared, divided by the wavelength. Run the numbers for a two-metre dish at 30 GHz and the answer is the better part of a kilometre. Outdoor ranges at that scale exist, but they trade everything else away: weather, interference, security, ground reflections, and the simple impossibility of putting a kilometre indoors. The near-field method solves it with mathematics. Measure the field close to the antenna — both amplitude and phase, over a known surface such as a plane in front of it or a sphere around it — and the far-field pattern can be computed exactly by a well-established transform. The entire bargain rests on one condition: the mathematics assumes the probe was exactly where the scan said it was, at every single sample. The room got smaller; the mechanical truth-telling got harder. That is why a near-field range is best understood not as an RF installation with some steelwork, but as a precision machine with an RF payload.

Q · 02 Where do the micron numbers come from?

From phase. A near-field measurement is only useful because it captures the phase of the field at every sample point, and phase is nothing more than distance expressed in wavelengths. If the probe is positioned 1 mm away from where the transform believes it is, the measurement carries a phase error of 1 mm's worth of wavelength — negligible at 1 GHz, where the wavelength is 300 mm, and ruinous at 40 GHz, where it is 7.5 mm and that millimetre is nearly half a wavelength of error. Practical error budgets therefore hold position to a fiftieth to a hundredth of a wavelength: at 40 GHz, 150 down to 75 microns. Those are coordinate-measuring-machine numbers, demanded not from a granite bed half a metre long but from a gantry spanning metres, a positioner carrying hundreds of kilograms, and a scan that runs for hours while the hall's temperature moves. No fabricated structure meets that unaided — which is why the method is always map, then correct: the as-built geometry is measured by laser tracker, the systematic error is corrected in software or adjustment, and the residual is what enters the error budget. The budget then has to close — positioner, wrap, thermal, fixture — and stay closed, which is what the re-verification schedule is for.

Q · 03 Spherical, planar or compact range — which one do we need?

The article decides. A planar scanner measures a flat surface in front of the antenna, so it suits high-gain antennas that radiate forward — dishes, planar arrays, terminals — where nearly all the energy passes through that plane. It is the natural choice when the article is large, heavy or awkward to rotate, because the article sits still and the probe does the moving. A spherical system measures the whole sphere around the article by rotating it in roll over azimuth under a fixed probe — the right answer for broader-beam and lower-gain antennas, telemetry and communication antennas whose pattern matters in many directions, and for full-spacecraft measurements where everything the vehicle radiates must be captured. Its burden falls on the positioner, which is why axis intersection, stiffness and cable wrap dominate that design. A compact range takes a third route: a precision reflector collimates the beam so genuine far-field conditions exist inside a short chamber — suited to real-time far-field work and electrically large articles, at the price of a reflector whose surface and edges must be near-perfect and a support that must not let gravity or temperature bend it. Many serious facilities end up with more than one, sharing the chamber, the metrology and the discipline.

Q · 04 Why does the positioner deserve so much attention?

Because in a spherical range the positioner is the scan surface. The mathematics assumes the article rotated about two perfect axes that intersect at a known point; every way the real machine deviates from that becomes measurement error that no amount of RF quality can remove. Four mechanical properties dominate. Axis intersection: the roll and azimuth axes must meet within tenths of a millimetre, and stay met as the machine warms and wears. Stiffness: a positioner sized by torque alone will carry the article but let it sag, and sag moves the axis by an amount that changes with the article's weight and attitude — an error that shifts with every test campaign. Backlash: scanning reverses direction constantly, and any lost motion at reversal appears as a phase discontinuity stitched right through the data, which is why drives are preloaded against it. Feedback placement: encoders belong at the axis, not at the motor, so gearbox compliance and drive-train wear stay inside the loop instead of invisibly outside it — the same rule this site applies to governor servomotors and load-holding fixtures. Add the handling reality — the article may be a flight-standard antenna or a complete spacecraft — and the positioner inherits the ground-support rules too: slow, reversible, self-locking, and proven under load before anything irreplaceable is bolted to it.

Q · 05 What makes the chamber more than a lined room?

Three jobs, each invisible when done well. Isolation: the chamber is a continuous shielded enclosure — panel seams that conduct, doors that seal on spring-finger contacts, penetrations made through waveguide-below-cutoff openings and filtered power — so the range hears the antenna and nothing else. One careless hole raises the noise floor for every measurement afterwards, usually without anyone knowing why. Reflection control: the pyramidal absorber lining exists to make the walls vanish at radio frequencies; gaps at doors, corners, lights and camera ports reflect energy that appears in the data as sidelobes the antenna does not have. Coverage is designed, not draped. Safety and practicality: absorber is a combustible foam hung on every surface of a room containing valuable hardware and occasional people — so it is mounted with fire-conscious fixing, protected where it can be touched, floored over where people walk, and covered by detection — and the ventilation that keeps the room habitable enters through honeycomb vents that pass air but not RF. It is worth saying plainly: this page is about ranges that measure antenna patterns. The separate discipline of proving that a product's electronics do not misbehave belongs to the EMI-EMC test laboratory on this site, and the two should not be conflated in a tender.

Q · 06 What do you build, and what is not yours?

Divided honestly, because a range spans two disciplines and the tender usually buys them together. What Neometrix provides is the mechanical layer: the positioners and their drives, specified by stiffness, intersection error and backlash before torque; scanner structures — columns, crossbeams, rails and carriages — with their laser-tracker mapping and correction; compact-range reflector supports and feed positioning; article fixtures that neither block nor reflect; the chamber structure, shielding and absorber integration, doors, penetrations and ventilation; cable-wrap management; alignment and metrology with geometry reports at handover and a re-verification schedule; and installation, commissioning support, documentation, training, spares and AMC — including build to your specification and drawings, which is how this equipment is often bought. What is partnered or bought-in certified: network analysers and receivers, probes and feeds, absorber media, and the measurement and transform software — proprietary products of established makers, integrated rather than imitated. What is the customer's: the antenna under test. Engineered to order; quoted across compact-range, planar and spherical near-field range, and antenna positioning-and-drive requirements; no delivered range is claimed on this page.

↗

The precision family from Neometrix.

The RF sibling, the handling discipline, and the alignment franchise — engineered at our Noida facility.

↗ RF Sibling

EMI-EMC Test Laboratory

Whether equipment misbehaves — this range asks what the antenna radiates.

↗ Handling

Mechanical Ground Support Equipment

The same inversion — the machine is worth less than what it carries.

↗ Alignment

EO/IR Payload Mounts & Boresight Equipment

The precision-alignment franchise — geometry proven, not assumed.
