NMX-ATR-30 · ENGINEERED TO ORDER — AUTOMATIC TRAY RETRIEVAL SYSTEMS

The scanner is not the bottleneck. An empty tray at the front of the lane is.

Name: Automatic Tray Retrieval System
Brand: Neometrix

Every checkpoint is measured by its screening machine, and that is the wrong measurement. A lane stops the moment there is no empty tray waiting where passengers divest — and trays never stay where they are needed, because they pile up at the far end where people collect their belongings and walk off. The constraint is circulation, not inspection. So this machine has exactly one job: make sure a tray is always ready at the front. Two things make that harder than it sounds. It runs at waist height in a public queue, used by people who have never seen it before and who reach into it, which makes guarding and fail-safe stopping the design rather than an accessory. And trays will jam — so what determines the throughput a terminal actually sees is how fast a jam clears and whether clearing it stops the whole lane. Equipment of this class has been quoted against an automatic tray retrieval system requirement for an airport authority; no delivered automatic tray retrieval system is claimed — the class is engineered to order.

Enquire — tray retrieval Capability sheet (PDF)

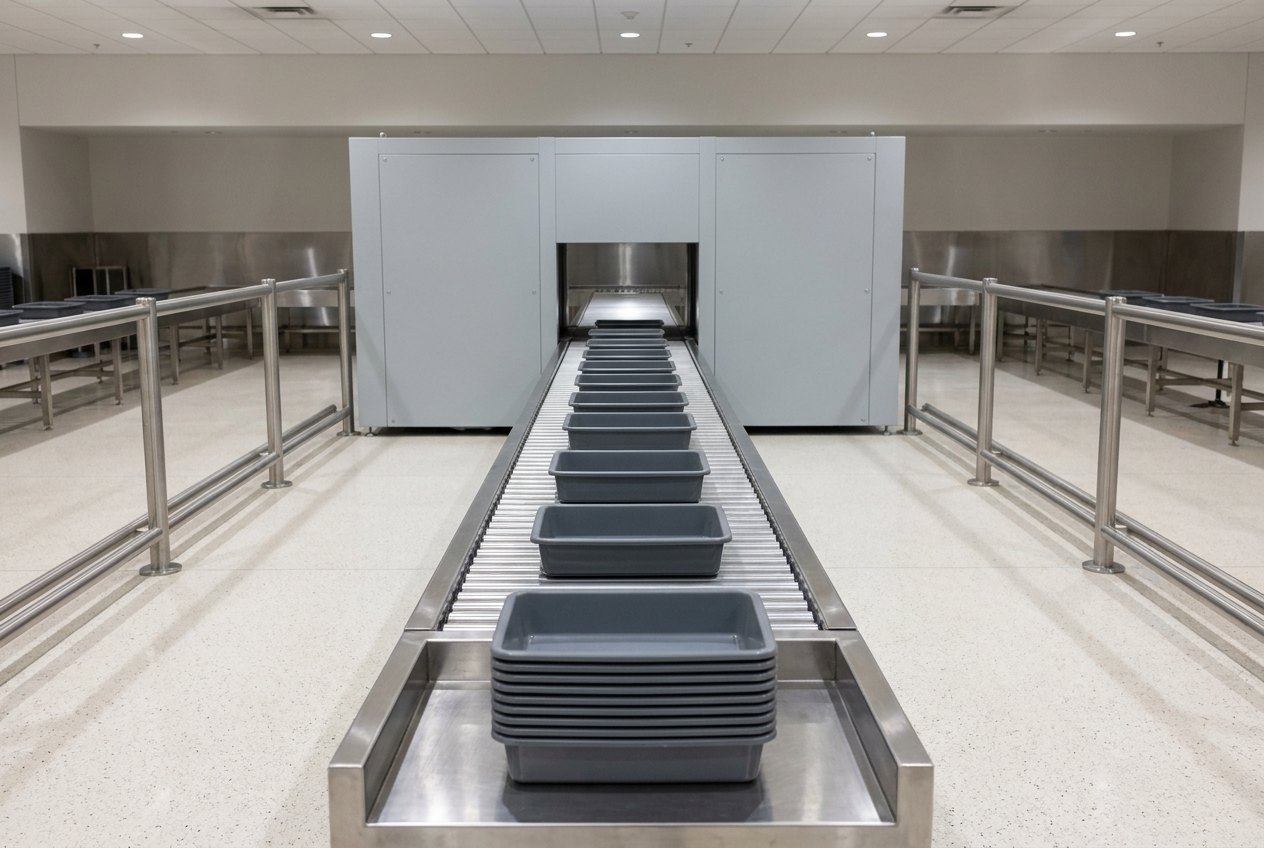

Illustrative of the class — a security checkpoint screening lane in an empty terminal: a long straight brushed stainless steel roller conveyor at waist height carrying a row of empty plain dark-grey moulded plastic trays lying flat and evenly spaced, a stainless divest counter at the near end with a neat stack of identical blank trays, a plain light-grey rectangular equipment tunnel spanning the conveyor in the middle distance with completely blank panels, low stainless guide rails along both sides and a clean pale polished terminal floor, no people and no readable markings

Fig · 01 The lane — and the only number that matters is whether a tray is waiting at the end you cannot see from here

Constraint

tray availabilitynot scan speed

Judged on

jams clearedlane still running

Runs beside

untrained handsa public queue

Fits

a terminal that existsno closure window

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Checkpoint handling Retrofit surveys Noida · India

Overview

Trays only travel one way on their own.

Passengers move them from the front of the lane to the back. Nothing moves them forward again — and every checkpoint that has ever queued has queued because of that, not because the scanner was slow.

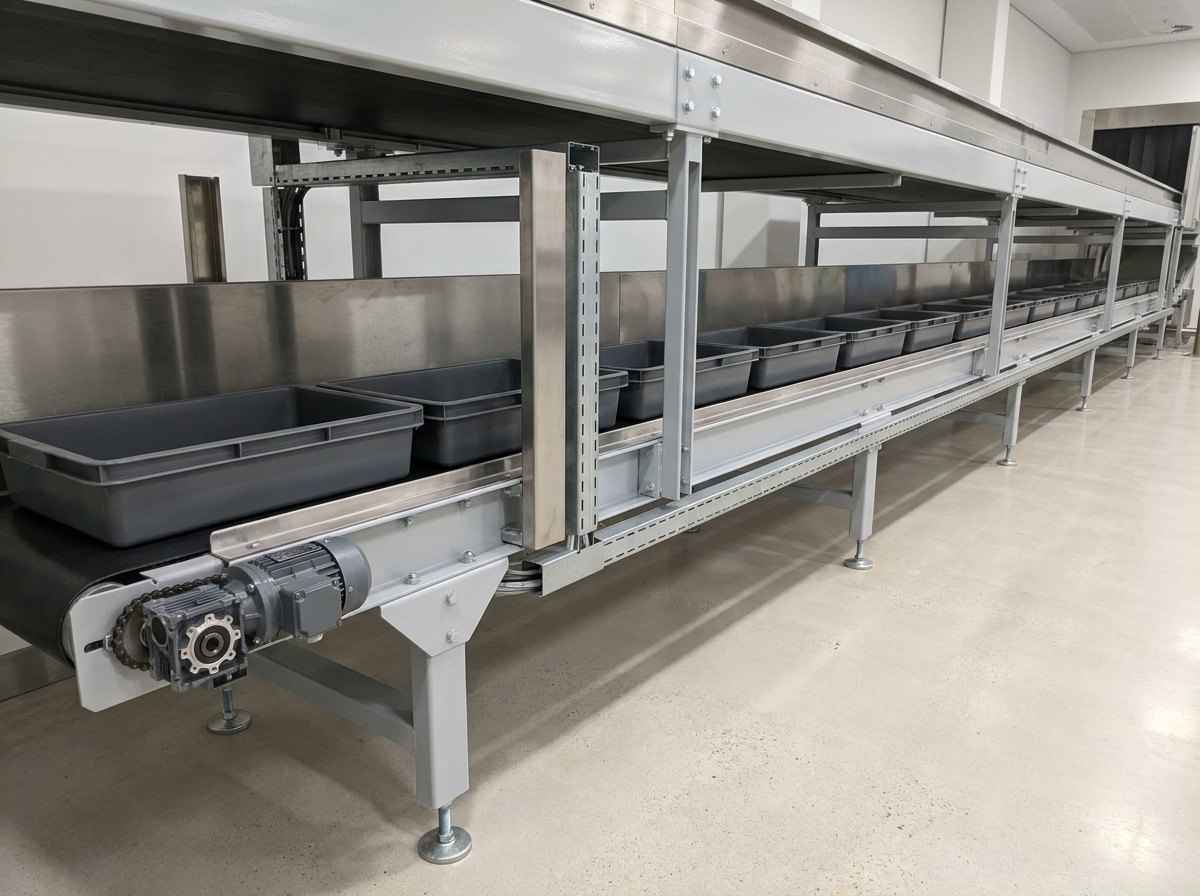

Illustrative of the class — close view of the return loop beneath a checkpoint lane in an empty terminal: a lower level belt conveyor running back under the main lane carrying empty plain dark-grey moulded plastic trays in a neat row, supported on a light-grey painted steel frame with cross members and levelling feet, a compact grey gear motor at the near end driving the belt through a chain and sprocket, a vertical stainless side guide and tidy cable trunking along the frame, no people and no readable markings

Fig · 02 The loop — the half of a checkpoint nobody photographs, and the half that sets its capacity

The queue forms at the divest counter, not at the scanner. Watch a busy lane and the pattern is always the same: a passenger arrives ready to unload, and waits — not for the machine, but for a tray. Meanwhile a stack of them is sitting at the re-compose end, because that is where the previous hundred passengers left them. Someone then carries an armful back, which is manual work in exactly the place where staff should be watching people rather than moving furniture. A retrieval system removes that entirely, and in doing so it converts a lane's theoretical rate into its actual one.

The number of trays in the loop is a designed quantity. It is not "enough to look full". Too few and the divest end starves at peak, which is the failure everyone notices. Too many and they back up at the re-compose end, blocking passengers who are trying to unload and filling the return path so nothing circulates — which produces the same queue by the opposite route. So the loop population is calculated against the lane's peak rate and the time a tray spends out of circulation while somebody is packing a bag, and there is provision for trays that are damaged, missing, or carried away, because both of those happen daily.

And every surface of it is within reach of the public. This is the part that separates it from ordinary conveying. A plant conveyor sits behind a fence and is operated by someone trained on it. This one is used by people who have never seen it, who are hurrying, often distracted, frequently holding a child or a passport, and who will put their hands into it. So nip points are designed out rather than guarded over, edges are radiused and covered, stopping is fail-safe and sectional, and the force and speed of every moving part is assessed against what an untrained hand can reach and how quickly it can be withdrawn.

Equipment of this class has been quoted against an automatic tray retrieval system requirement for an airport authority. No delivered automatic tray retrieval system is claimed: the class is engineered to order, and the record is stated as it stands.

Circulating

A tray always waiting

Loop population calculated against peak rate — not estimated by eye.

Public-safe

Designed for untrained hands

Nip points removed rather than guarded over, with fail-safe sectional stopping.

Recoverable

Jams cleared, lane running

Tool-free access and self-clearing geometry — because the alternative is stopping everyone.

Architecture

Present, screen, collect, return.

The schematic follows a tray around the loop — presented at the divest end, through the machine, emptied at the far end, and brought back — then the equipment that does it: the two passenger-facing ends, the return path, the tray handling and the safety layer.

FIG · 03TRAY RETRIEVAL ARCHITECTURE · DIVEST + RE-COMPOSE ENDS / RETURN CONVEYOR + LIFTS / STACKING + SINGULATION / CONTROL, SAFETY + INTEGRATION

Fig · 03 The number the terminal actually sees, rather than the number on the datasheet

Arc · 01

Divest & Re-Compose Ends

The two points a passenger actually touches — tray presentation at the front, collection at the back, and the ergonomics of both.

Arc · 02

Return Conveyor & Lifts

The loop beneath or behind the lane — carrying empty trays forward and changing level on the way.

Arc · 03

Stacking & Singulation

One tray at a time, the right way up — with provision for trays that are damaged, missing or carried off.

Arc · 04

Control, Safety & Integration

Sectional stop, guarding, fail-safe edges — and a clean interface to the screening equipment and lane controls.

Queues at the divest counter rather than the machine? Send the lane layout, the peak throughput required, the counter heights and what is under the floor — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference lanes, built to the terminal.

The parameters below describe reference installations. Loop length and level change, tray population, stacking capacity, drive sizing and control architecture all follow from three givens: the lane layout as built, the peak throughput the checkpoint has to sustain, and what the terminal will physically allow — counter heights, floor loading and what is already under the floor.

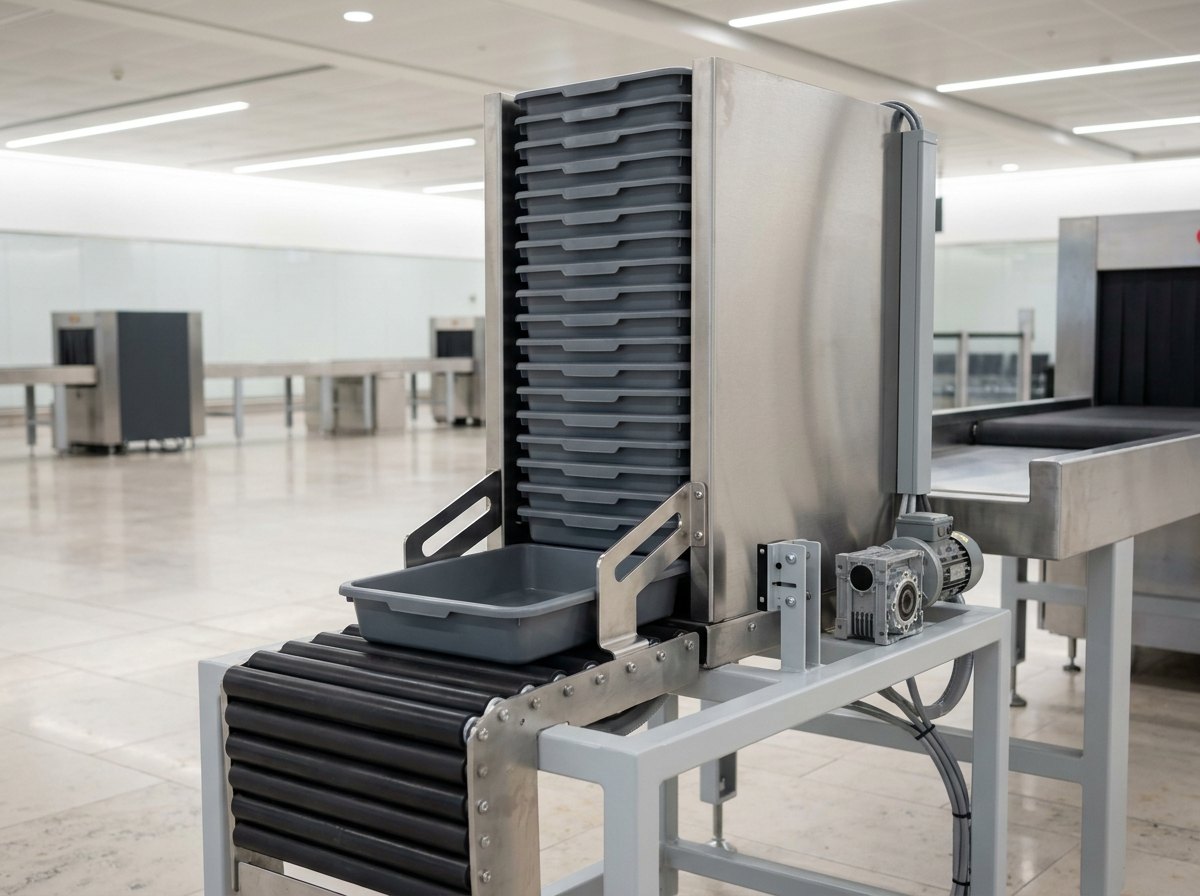

Illustrative of the class — close view of a tray stacking and destacking unit at the end of a checkpoint lane in an empty terminal: a compact brushed stainless steel frame holding a vertical magazine of about fifteen identical plain dark-grey moulded plastic trays stacked neatly one inside another, a pair of bright machined stainless fingers at the base positioned to release a single tray at a time onto a short roller section, a small grey gear motor and a simple sensor bracket beside the magazine, no people and no readable markings

Fig · 04 Singulation — a stack is easy, releasing exactly one tray the right way up is the mechanism

Where tray systems go wrong

Specified on conveyor speed — when the binding constraint is whether a tray is present at the divest end, so a faster belt changes nothing. Jam clearance needs a full lane stop — and because jams are certain, the lane stops repeatedly all day and the measured throughput never approaches the quoted one. Guarding designed for a factory — adequate for trained staff behind a fence, wrong for a queue of hurried strangers at waist height. Tray population never calculated — the loop starves at peak or floods the re-compose end, and both produce the same queue. Retrofit dimensions taken from a drawing — rather than from a survey of the terminal as it actually is, which is never quite the drawing. And noise ignored — on a checkpoint where staff have to give spoken instructions and be understood.

So the discipline runs the other way. Throughput is specified as trays present at the divest end per hour, which is the thing passengers actually experience. Jam behaviour is designed for first: sectional stop so only the affected zone halts, tool-free hand access, and geometry that lets a tilted tray right itself rather than wedge. Safety is assessed for untrained hands — nip points removed, edges covered, forces and speeds limited, and stopping that fails safe. The loop population is calculated from peak rate and tray dwell time, with spare trays and a defined replacement route. The retrofit begins with a survey, not a drawing. And noise is treated as a specification because a checkpoint is a place where people must hear.

Full specification — expand

System	Automatic tray retrieval system — divest & re-compose ends, return conveyor & lifts, stacking & singulation, control, safety & integration
Governing Idea	The return loop sets the throughput — a lane stops when no empty tray is waiting at the divest end; the constraint is circulation rather than inspection
The Real Metric	Specified as trays present at the divest end per hour, not conveyor speed — because that is what a passenger experiences as a queue
Jam Recovery	Sectional stop so only the affected zone halts, tool-free hand access, and self-clearing geometry — jams are a certainty, and a full-lane stop costs more than any headline rate wins
Public Safety	Nip points designed out rather than guarded over, radiused and covered edges, limited force and speed, fail-safe stopping — assessed for untrained hands in a hurry
Loop Population	Tray quantity calculated from peak rate and tray dwell time — too few starves the front, too many floods the back; spares and a replacement route defined
Tray Handling	Stacking, destacking and singulation — one tray at a time, the right way up, with damaged and missing trays accounted for
Retrofit	Begins with a survey of the terminal as built — counter heights, floor loading, cable and duct routes — and is installed without closing the checkpoint
Noise	Treated as a specification, because a checkpoint is a place where spoken instructions must be heard
Integration	A clean mechanical and control interface to the screening equipment and the lane's own controls, without taking responsibility for either
Scope Boundary	Stated plainly: this is the tray return loop. It is not a full baggage handling system, and is not offered as one — a buyer should know exactly where the supply ends
The Split	The site's mobile chain conveyor moves material inside a plant, behind guarding, operated by trained staff — the same mechanism with an entirely different safety case. Surveillance and sensors are the detection half of an entrance, and crash-rated bollards are the vehicle side of the same problem this handles on the pedestrian side
Scope Boundary (supply)	Ours: divest & re-compose ends, return conveyor & lifts, tray stacking & singulation, guarding & sectional stop, controls & the screening-equipment interface, terminal survey, installation, commissioning, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: drives, sensors, control hardware. The customer's: the terminal, its lane layout and its throughput requirement
Status	Engineered to order — equipment of this class quoted against an automatic tray retrieval system requirement for an airport authority; no delivered automatic tray retrieval system is claimed

PDF · 1 page

Automatic Tray Retrieval System — Capability Sheet

Tender Response

Send lane layout, peak throughput & counter heights — compliance matrix in two working days

Variants

One loop, four arrangements.

What changes is how many lanes share the return path, and how much of the checkpoint already exists.

Var · 01

Single-Lane Tray Return

One lane, one loop — the simplest arrangement, and the easiest to keep running when one section is being cleared.

Var · 02

Multi-Lane Centralised Return

Several lanes sharing a return path — better tray utilisation, and a harder problem when one lane is busier than the rest.

Var · 03

Retrofit into Existing Checkpoints

Into a terminal that cannot close — survey first, phased installation, and a lane back in service each morning.

Var · 04

Tray Management & Storage

Stacking, buffering and overnight storage — plus the replacement route for trays that are damaged or walk away.

Applications

Wherever people queue to be screened.

The entrances where throughput is measured in people per hour and felt in minutes waiting.

A · 01Airport security checkpoints

A · 02Government & courthouse entrances

A · 03Metro & rail screening

A · 04Stadium & event entry

A · 05Corporate & campus lobbies

A · 06Critical infrastructure entry control

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why is the tray loop the constraint rather than the screening machine?

Because a checkpoint is a circulating system, and circulating systems are limited by whatever is scarce at the point of entry. The screening equipment processes trays at a rate set by its own design and by the operator interpreting the images. But a passenger cannot start that process at all until they have somewhere to put their belongings. If no empty tray is present at the divest counter, the passenger waits, the belt in front of the machine runs empty, and the machine's capacity is simply unused — you have an idle scanner and a growing queue at the same time, which is the signature of a loop problem rather than an inspection problem. What makes it counter-intuitive is that trays are not consumed; they are only displaced. Every passenger moves one from the front of the lane to the back, and nothing moves it forward again unless something is designed to. In a manual checkpoint that something is a member of staff carrying armfuls of trays against the flow of people — which is slow, is done in the worst possible place, and takes an officer away from watching passengers, which is what they are actually there for. So the honest way to specify this equipment is not conveyor speed but trays presented at the divest end per hour, sustained at peak. That number is what a passenger experiences as a queue, and it is the only figure that translates directly into how the terminal feels.

Q · 02 How many trays should be in the loop?

It is a calculated quantity, and both errors produce the same visible symptom — a queue — by opposite mechanisms, which is why it is worth getting right rather than estimating. The calculation starts from the peak rate the lane must sustain and the dwell time of a tray: how long it is out of circulation between a passenger picking it up and the system getting it back. That dwell is dominated not by conveyor speed but by human behaviour at the re-compose end — someone repacking a bag, putting on a belt, finding a boarding pass — and it is far longer than people expect, often several minutes. Multiply peak rate by dwell and you have the minimum number of trays that must exist simply to keep one available at the front. Too few and the divest end starves exactly when the terminal is busiest, which is the failure everybody notices. Too many is not harmless: surplus trays accumulate at the re-compose end where passengers are trying to unload, block the collection area, fill the return path so circulation slows, and eventually someone starts stacking them on the floor. On top of the calculated figure there has to be an allowance for reality: trays get damaged, get carried out of the sterile area by mistake, and get taken out of service for cleaning. So a defined spare population and a replacement route are part of the design rather than an operational afterthought.

Q · 03 Why does jam recovery matter more than peak speed?

Because jams are certain, and the arithmetic of an outage is brutal compared with the arithmetic of speed. Trays are handled by the public, so they arrive at the return path tilted, stacked two-deep, upside down, with a strap hanging over the edge or a forgotten phone inside. Some proportion of those will catch. If clearing that requires stopping the whole lane, then every jam costs the full throughput of the lane for as long as it takes someone to notice, walk over, find the access panel, clear it and restart — realistically a few minutes. A handful of those per hour removes far more capacity than any plausible increase in belt speed adds; a system running ten percent faster but stopping four times an hour is slower in practice than a slower one that never stops. So jam behaviour is designed first rather than accepted afterwards. Sectional stop means only the affected zone halts while the rest keeps circulating, so a jam in the return path does not stop passengers divesting. Tool-free access means an officer can clear it without fetching a key or a maintenance technician. And self-clearing geometry — guides that right a tilted tray, transitions that do not allow one tray to climb another, and generous radii — means many potential jams never form. The specification that follows from this is not a top speed but a sustained rate including interruptions, which is what the terminal will actually measure.

Q · 04 What changes because the public can touch it?

Nearly all of the safety engineering, and a good deal of the mechanical design with it. Industrial conveying assumes a trained operator, a controlled area and guarding that keeps people out; the residual risk is managed by procedure and training. None of those assumptions hold at a checkpoint. The users are untrained by definition — most are there once a year — they are hurrying, frequently distracted, often managing luggage and children simultaneously, and they will reach into the machine to retrieve something they dropped without any hesitation at all. So risk cannot be managed by telling people what not to do. It has to be designed out. In practice that means eliminating nip points rather than guarding them, because a guard in a public space will be leaned on, pushed and eventually removed; covering and radiusing every edge that a hand can contact; limiting the force and speed of moving parts so that contact is survivable rather than merely unlikely; and making stopping fail-safe, so that any fault, power loss or detected obstruction results in a stop rather than continued motion. It also means thinking about what falls in — coats, laptops, passports, loose straps — and making sure the mechanism tolerates them without either destroying the object or requiring the lane to stop. The result is usually a slower, heavier, more open machine than a factory equivalent of the same capacity, and that is the correct trade.

Q · 05 Do you supply the whole baggage handling system?

No — and it is worth saying so plainly rather than leaving it to be discovered during a tender clarification. This page is scoped to the tray return loop at a screening checkpoint: the divest and re-compose ends, the return conveyor and its lifts, tray stacking and singulation, the guarding and controls around them, and a clean interface to the screening equipment. A full baggage handling system is a different scale of undertaking — hold baggage routing across a terminal, sortation to make-up carousels, tracking and reconciliation, integration with departure control, and the inspection equipment itself — and it is not what is offered here. Nor do we supply the screening equipment: that is a specialist product from its manufacturers, and our responsibility stops at a defined mechanical and control interface to it. Being explicit about that boundary is deliberate. A buyer comparing offers should be able to see exactly where each supplier's responsibility ends, because the expensive failures in checkpoint projects are almost always at the boundaries between scopes rather than inside them. What we do take responsibility for is that the loop keeps a tray at the front of the lane, clears its own jams without stopping the queue, and is safe for the people using it — and that it fits the terminal you already have.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the divest and re-compose ends, which are the two points a passenger actually touches and therefore the two that decide whether the lane feels fast; the return conveyor and its lifts, routed beneath or behind the lane to bring empty trays forward and change level on the way; the tray stacking, destacking and singulation that releases one tray at a time the right way up, with provision for trays that are damaged, missing or carried off; the guarding, sectional stop and fail-safe controls, designed for untrained hands in a hurry rather than for a trained operator behind a fence; the terminal survey that establishes counter heights, floor loading and what is genuinely under the floor, because a retrofit designed from a drawing does not fit; a clean mechanical and control interface to the screening equipment; and installation without closing the checkpoint, commissioning, documentation, training, spares and AMC — including build to the customer's own specification, which is how requirements of this class are framed. What is bought-in certified: drives, sensors and control hardware — proprietary products of established makers, integrated rather than imitated. What is the customer's: the terminal, its lane layout, its throughput requirement, and the screening equipment itself. And the record, stated plainly: equipment of this class has been quoted against an automatic tray retrieval system requirement for an airport authority. No delivered automatic tray retrieval system is claimed; the class is engineered to order, around the checkpoint it has to keep moving.

↗

The entrance family from Neometrix.

People, vehicles and what they carry — three different problems at the same door.

↗ Vehicles

Crash-Rated Bollards & Vehicle Barriers

The vehicle side of the same entrance this handles on the pedestrian side.

↗ Detect

CCTV & Sensor Surveillance

The detection half — what is seen, rather than what is moved.

↗ Convey

Mobile Chain Conveyor

The same mechanism inside a plant — and an entirely different safety case.

Browse all Neometrix product lines.

Get a quotation

Send the lane layout
and the peak you must sustain.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.
