NMX-BOL-30 · ENGINEERED TO ORDER — CRASH-RATED BOLLARDS & VEHICLE BARRIERS

The bollard does not stop the truck. The foundation does.

Name: Crash-Rated Bollards and Vehicle Barriers
Brand: Neometrix

A rising bollard is a lever. The impact lands near the top of the post and travels down through its sleeve into a reinforced concrete slab under the road — the post bends, the slab absorbs. Which is why almost every disappointing installation is a foundation problem rather than a post problem, and why the rebar drawing matters more than the brochure. It is also why a crash rating belongs to a configuration and not to a part number: the certificate covers one post, one foundation, one spacing and one reinforcement arrangement, proven by driving a real vehicle into a real installation. Widen the spacing on site and the rating stays behind. And because the impact happens approximately never while the raising and lowering happens thousands of times, the specification that actually decides service life is drainage, seals, cycles and what happens when the power fails. Equipment of this class has been quoted across crash-rated bollard and vehicle barrier requirements for airport, defence and industrial sites; no delivered crash-rated bollard or vehicle barrier is claimed — the class is engineered to order.

Enquire — bollards & barriers Capability sheet (PDF)

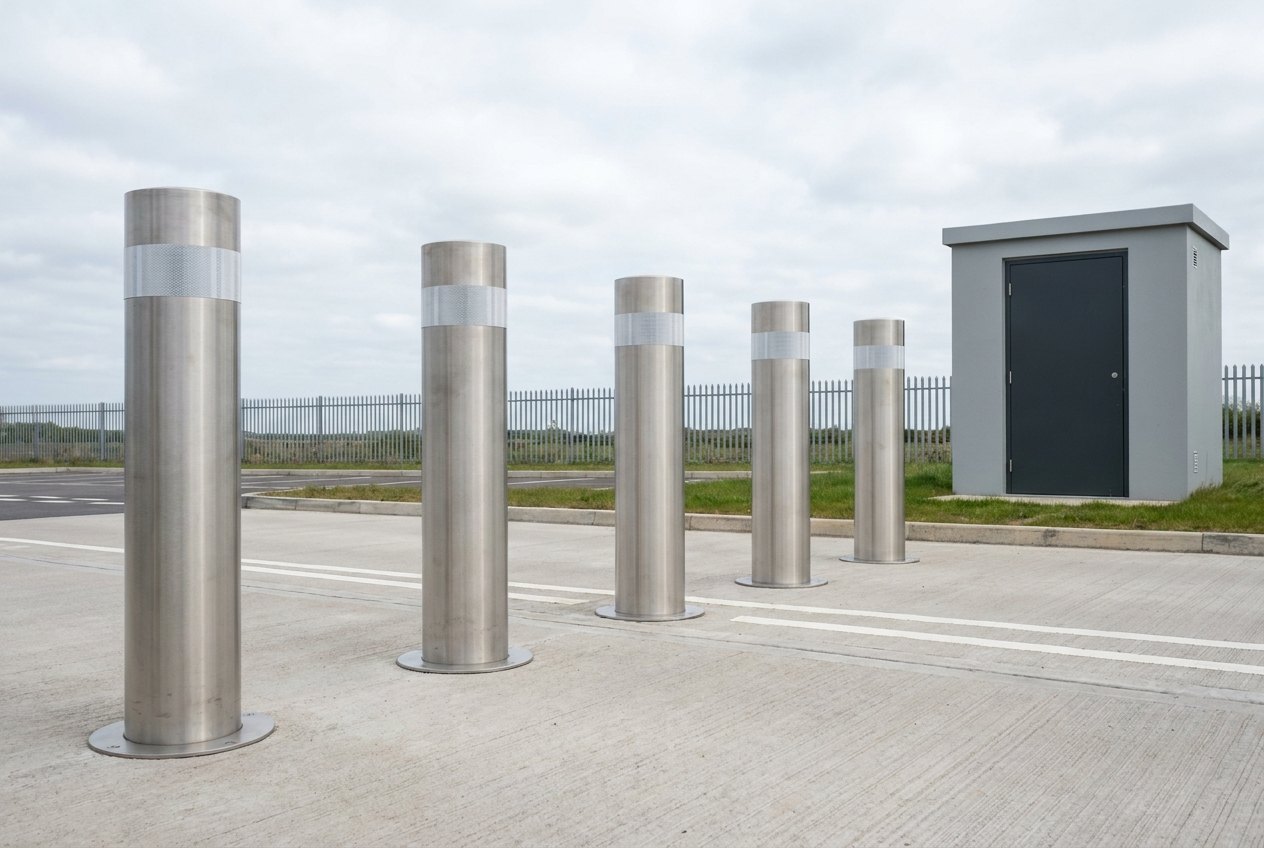

Illustrative of the class — a row of five tall cylindrical brushed stainless steel rising bollards standing fully raised in a straight line across a completely empty two-lane site entrance road, each with a broad horizontal reflective band near its top and a low circular stainless collar plate flush with the road surface at its base, evenly spaced, a plain grey control cabinet with a blank dark door on the verge to one side, fresh white road markings on clean brushed concrete and low boundary fencing behind, no vehicles, no people and no readable markings

Fig · 01 The line — spacing is part of the rating, and the visible posts are the smaller half of the engineering

Stops with

the foundationnot the post

Rated as

a configurationnot a part number

Cycles

thousandsthe real duty

Fails

to a decided statenever an accidental one

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Perimeter protection Foundation & civil design Noida · India

Overview

You are buying a slab with a post on top of it.

That is not a joke about civil works. It is the correct way to specify, procure and inspect this equipment — and getting it backwards is the commonest and most expensive error in the category.

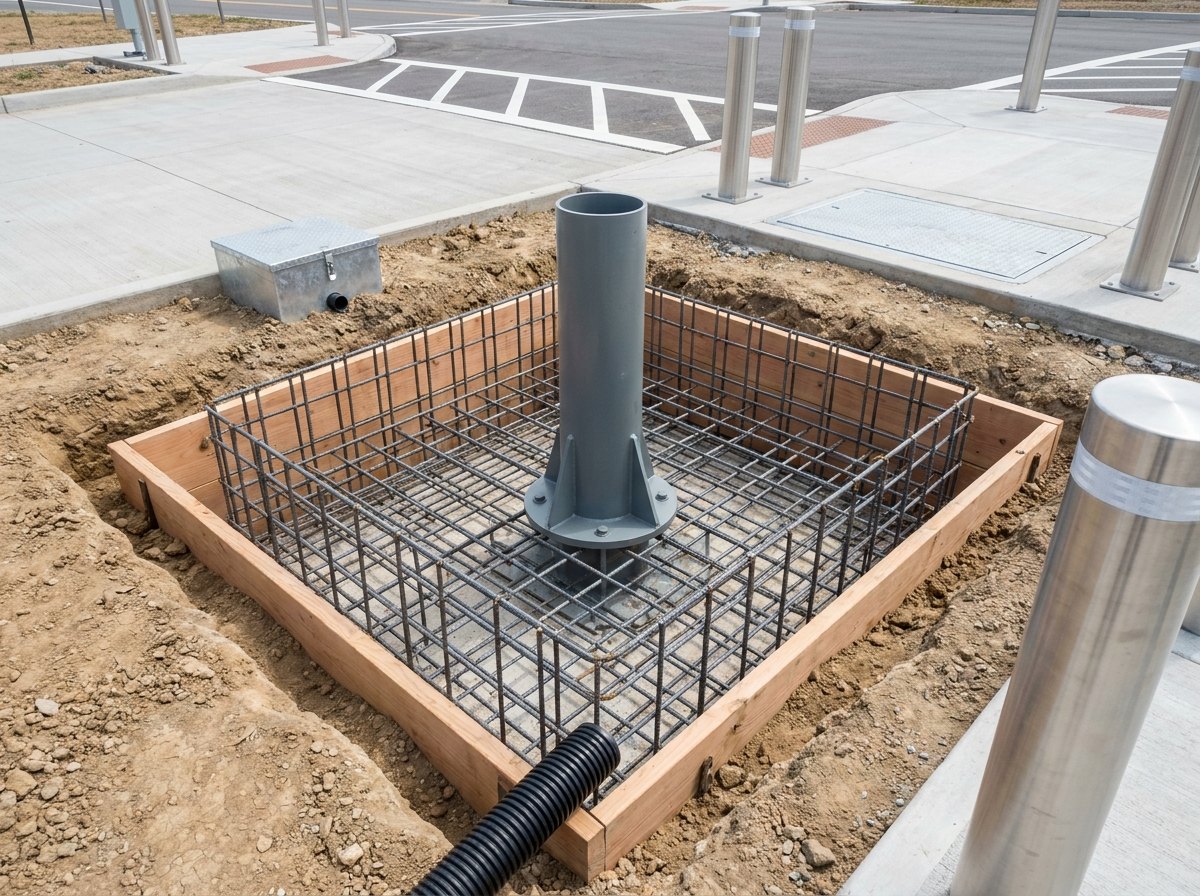

Illustrative of the class — a rectangular reinforced concrete foundation pit open at a site entrance during installation: a dense orthogonal cage of bright steel reinforcing bar filling the excavation, a heavy cylindrical steel bollard sleeve standing vertically in the centre of the cage with a flanged base plate and welded stiffening gussets, clean timber formwork lining the pit walls, a black corrugated drainage pipe entering low at one corner and finished bollards visible on the completed roadway beyond, no vehicles, no people and no readable markings

Fig · 02 The part that does the work — rebar cage, sleeve and drainage, all of it invisible once the concrete goes in

Where the energy actually goes. A vehicle striking a raised bollard applies a very large force near the top of the post. The post is stiff, so it does not absorb much itself — it acts as a lever, multiplying that force into an overturning moment at its base and delivering it into the sleeve, and from the sleeve into the surrounding reinforced slab. The slab spreads the load across enough ground to arrest the vehicle within the permitted penetration. Which means the things that determine whether the installation performs are slab depth and plan area, rebar size, spacing and lap lengths, and concrete grade — every one of them a civil item, and every one of them invisible the day after commissioning.

So the rating is a statement about an assembly. Crash ratings are not calculated; they are earned by driving a vehicle of stated mass at stated speed into a real installation and measuring how far it gets past the line. What passes that test is the whole thing together — a particular post, in a particular foundation, at a particular spacing, with a particular reinforcement arrangement. Change any of them and the evidence no longer applies. The two changes that happen most often on site are exactly the two that matter: spacing widened because the gate is narrower than the drawing assumed, and slab depth reduced because a service duct appeared where the excavation was meant to go.

And then it has to work every day for years. The impact case is the reason the equipment exists and almost certainly will never occur. What will occur is thousands of raise-and-lower cycles, a pit that fills with water every monsoon, grit finding its way past the seals, and power cuts. A barrier that is slow, or that damages a vehicle occasionally, or that traps someone, gets left down — and a bollard left down has no rating at all. So drainage, corrosion protection, seal life, cycle rating and the safety detection are not the boring part of the specification. They are the part that decides whether the protection exists.

Equipment of this class has been quoted across crash-rated bollard and vehicle barrier requirements for airport, defence and industrial sites. No delivered crash-rated bollard or vehicle barrier is claimed: the class is engineered to order, and the record is stated as it stands.

Civil-led

The slab is the machine

Depth, rebar and concrete grade decide performance — the post is the visible half.

Configured

Rated as installed

Spacing and foundation are part of the certificate — change them and the evidence stops applying.

Maintained

Still working in year five

Drainage, seals and cycle life — because a bollard left down protects nothing.

Architecture

Survey, found, raise, prove.

The schematic follows the energy — a loaded vehicle at speed, a post acting as a lever, a slab taking the load, and a certificate that covers the whole configuration — then the installation: foundation, post, hydraulics and the safety layer.

FIG · 03BOLLARD & BARRIER ARCHITECTURE · FOUNDATION + PIT / BOLLARD + IMPACT PATH / HYDRAULICS + CONTROL / SAFETY, DETECTION + INTEGRATION

Fig · 03 The installed configuration matching the one that was tested

Arc · 01

Foundation & Pit

Slab, rebar, drainage and a buried-services survey — the drawings that decide performance, and whether deep-mount is possible at all.

Arc · 02

Bollard & Impact Path

Post, sleeve and the route the load takes to the slab — carrying impact into concrete rather than into the mechanism.

Arc · 03

Hydraulics & Control

Normal and emergency raise times, manual override — and a decided state on loss of power rather than an accidental one.

Arc · 04

Safety, Detection & Integration

Loops and sensors that prevent trapping, lights, interlocks — and integration with barriers and access control.

Specifying an entrance, or checking one you inherited? Send the gate geometry, the rating required, the buried services and the expected daily cycles — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference installations, built to the gate.

The parameters below describe reference installations. Rating class, bollard count and spacing, foundation depth and plan area, raise time and cycle rating all follow from three givens: the gate geometry and approach, the rating the site has to defend, and what is buried under the entrance.

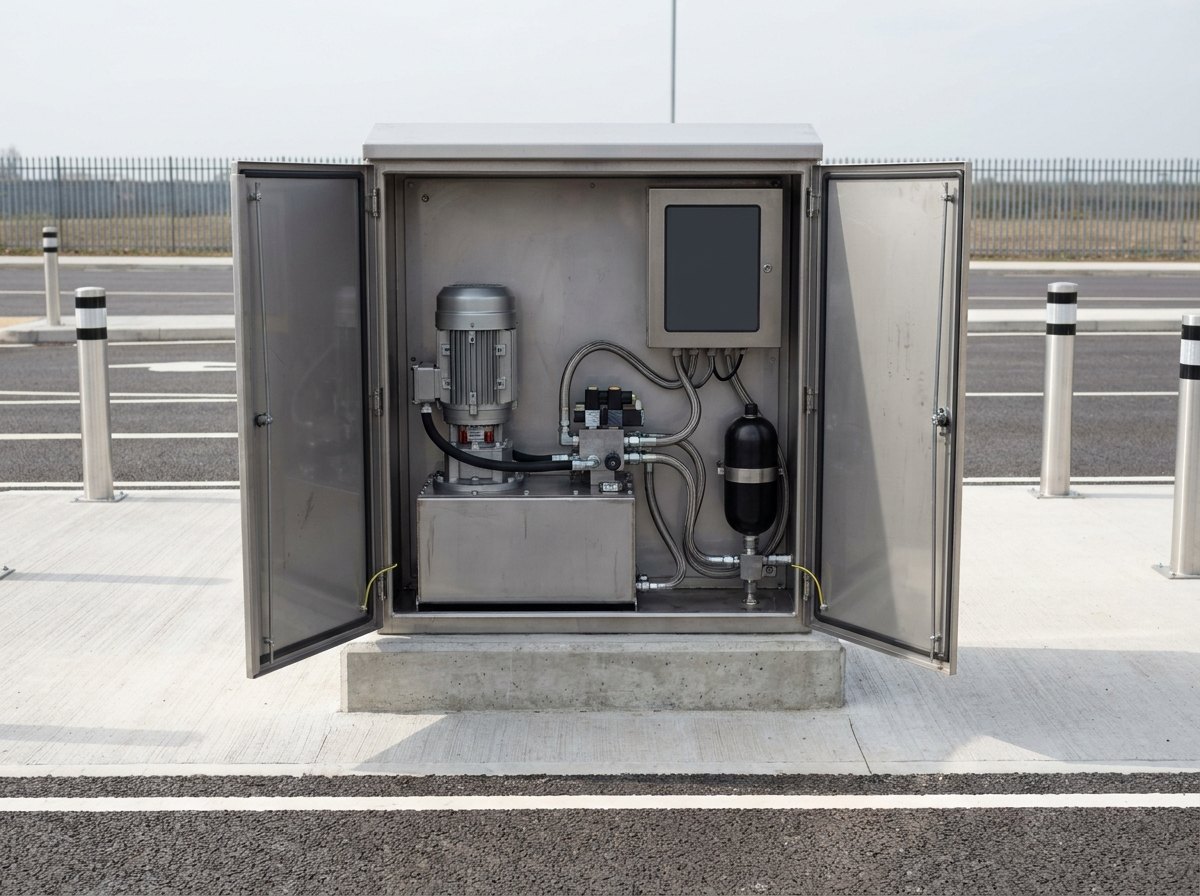

Illustrative of the class — a compact weatherproof equipment cabinet on a low concrete plinth with its hinged door standing open, revealing a hydraulic power pack inside: a vertical electric motor on a rectangular steel reservoir tank, a compact manifold block with several solenoid valves, bright braided hydraulic hoses running in tidy parallel runs to bulkhead fittings at the base, a small pressure accumulator cylinder clamped to the frame, and a plain grey control panel with a blank dark face mounted inside the door, no vehicles, no people and no readable markings

Fig · 04 The power pack — raise time, override and the accumulator that decides how fast the line can close

Where vehicle barriers go wrong

The rating is quoted for the post while the foundation is value-engineered — the classic failure, because the slab is the expensive, invisible part and the easiest thing to trim. Spacing widened on site — a gate proves narrower than drawn, the line is stretched to fit, and the gap is now wide enough to drive between rated posts. Drainage as an afterthought — the pit is a sump by construction, it fills, and the mechanism corrodes from the inside. Loss-of-power behaviour undefined — nobody decided whether a cut leaves the entrance open or closed, so the site discovers the answer during one. Safety detection absent or bypassed — the barrier damages a vehicle every few weeks and is quietly left down. And cycle life ignored — specified for an impact that will never happen and for nothing else, then worn out inside a year.

So the discipline runs the other way. The foundation is designed and detailed first, with slab section and rebar arrangement treated as the primary drawings and the concrete verified. Spacing is fixed by the tested configuration and any site change is re-engineered rather than absorbed. The pit is drained and protected on the assumption it will flood. The loss-of-power state is decided, specified and demonstrated. Safety detection is designed so that the safe behaviour is also the convenient one, because anything else gets defeated. Cycle rating is stated against the site's real daily traffic. And where buried services forbid a deep pit, shallow-mount is used deliberately — trading depth for slab area — rather than digging blindly and finding out.

Full specification — expand

System	Crash-rated bollards & vehicle barriers — foundation & pit, bollard & impact path, hydraulics & control, safety detection & integration
Governing Idea	The foundation stops the vehicle — the bollard is a lever delivering impact energy into a reinforced slab; most under-performance is foundation under-performance, not post failure
The Rating Rule	A rating belongs to a configuration — one post, one foundation, one spacing, one reinforcement arrangement, proven by full-scale impact test; it does not travel with a part number
The Real Duty	Thousands of cycles, not one impact — a flooding pit, grit in the seals, power cuts, and an absolute requirement never to trap a vehicle or a person
Reference Figure	A K12 class impact is about 6,800 kg at 80 km/h — roughly 1.7 megajoules arrested within about a metre of penetration; K4 is the same mass at a lower speed
Foundation	Reinforced slab and pit — slab depth and plan area, rebar size, spacing and lap lengths, concrete grade, treated as the primary drawings and verified on site
Deep vs Shallow	Shallow-mount trades depth for slab area where buried services, water table or existing pavement make a deep pit impossible — chosen deliberately from a services survey, never discovered mid-excavation
Drainage	The pit is a sump by construction — drainage, pumping where needed and corrosion protection specified on the assumption that it will fill
Hydraulics	Power pack, cylinders, normal and emergency raise times, accumulator where fast closure is required, and manual override for maintenance and failure
Loss of Power	A decided state — specified, justified against the site's operating needs, and demonstrated at acceptance rather than discovered during an outage
Safety	Detection loops and sensors preventing trapping, warning lights and audible warning, interlocks — designed so the safe behaviour is also the convenient one, because anything else is defeated
Cycle Rating	Stated against the entrance's real daily traffic, with seal and wear items identified and their replacement intervals given
Integration	Interfacing with boom barriers, access control, tyre bursters and site surveillance as one entrance rather than as separate purchases
The Split	The site's ballistic protection system defeats a projectile — grams at very high speed, over in microseconds. This defeats a vehicle — tonnes at road speed, over in a fraction of a second. Both are energy problems on completely different scales. The aircraft arrester barrier is the engineered energy-absorption sibling, arresting rather than denying. And surveillance detects and records while this denies — the same gate, opposite jobs
Scope Boundary	Ours: site & services survey, foundation & pit design, bollard & sleeve, hydraulic power pack & control, safety detection & interlocks, drainage & corrosion protection, installation, commissioning, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: hydraulic components, sensors, control hardware. The customer's: the site, its assessment and the rating required
Status	Engineered to order — equipment of this class quoted across crash-rated bollard and vehicle barrier requirements for airport, defence and industrial sites; no delivered crash-rated bollard or vehicle barrier is claimed

PDF · 1 page

Crash-Rated Bollards & Vehicle Barriers — Capability Sheet

Tender Response

Send gate geometry, rating & buried services — compliance matrix in two working days

Variants

One entrance, four answers.

What changes is how much you can dig, how often it must move, and whether the line has to stop a vehicle or merely control one.

Var · 01

Deep-Mount Rising Bollards

The full foundation, the highest ratings — where the ground is clear and the entrance justifies excavation.

Var · 02

Shallow-Mount Rising Bollards

Depth traded for slab area — when buried services, the water table or existing pavement rule out a deep pit.

Var · 03

Static & Removable Bollards

No mechanism, no cycles — for the lengths of a frontage that never need to open, protecting the parts that do.

Var · 04

Road Blockers, Tyre Bursters & Boom Barriers

The rest of the entrance — from a full-width blocker to controlling traffic that is not being denied.

Applications

Wherever an entrance has to mean something.

The gates and frontages where access control has to be physical as well as procedural.

A · 01Airport terminals & landside frontages

A · 02Naval & air station main gates

A · 03Defence works & cantonment entries

A · 04Oil, gas & LPG terminals

A · 05Government & critical infrastructure

A · 06Industrial & mining site entries

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What does a rating like K4 or K12 actually mean?

It describes a test that was performed, not a property the product carries around. The rating families in common use all work the same way: a vehicle of specified mass is driven into the installation at a specified speed, and the measurement taken afterwards is how far the vehicle's structure travelled past the barrier line — the penetration. A K12 class impact is approximately 6,800 kg at 80 km/h, which is roughly 1.7 megajoules of kinetic energy that has to be arrested within about a metre; K4 is the same mass at a substantially lower speed, and therefore far less energy, because energy rises with the square of velocity. Two consequences follow that people routinely miss. First, the difference between rating classes is much larger than the numbers suggest — doubling the speed quadruples the energy, so a K12 foundation is not a slightly bigger K4 foundation. Second, and more importantly, the certificate documents the whole installed assembly: that post, that foundation, that spacing, that reinforcement. It is evidence about a configuration that was destroyed once, on a test site, in front of witnesses. It is not a rating that attaches to a part number and survives being installed differently. When a specification says K12, the honest question back is: K12 in what foundation, at what spacing, and can we build that here?

Q · 02 Why do you keep insisting the foundation is the product?

Because that is where the energy goes, and because it is the part most likely to be quietly reduced. Think about what actually happens in an impact. The vehicle strikes the post near the top. The post is deliberately stiff, so it deflects relatively little and absorbs relatively little — it behaves as a lever, converting that force into a large overturning moment at its base. That moment passes into the sleeve, and the sleeve passes it into the surrounding concrete, which must be massive enough and reinforced well enough to resist rotating and to spread the load into the ground beneath. The energy is dissipated by the concrete and soil working together, and by the plastic deformation of the vehicle. So the variables that decide the outcome are slab depth and plan area, reinforcement size, spacing and lap lengths, and concrete grade — not the wall thickness of the visible post, which is what a brochure photograph invites you to judge. This matters commercially because the foundation is the expensive, invisible, civil-contractor part of the scope, and it is therefore the easiest place for cost to be taken out between award and pour. A post installed in a foundation smaller than the tested one is not a slightly weaker barrier; it is a barrier with no established rating at all, and nobody will discover that until the day it is needed. Which is why we treat the rebar drawing and the slab section as the primary deliverables and verify the concrete rather than assuming it.

Q · 03 When should we use shallow-mount instead of deep-mount?

When the ground will not let you dig, which is far more often than people expect at a gate that has been in use for decades. A conventional deep-mount rising bollard needs a pit deep enough to house the retracted post plus the foundation below it, and at a typical entrance that depth runs into buried services — power, water, drainage, communications, fuel lines — or into a high water table, or into an existing pavement structure nobody wants to break up. Shallow-mount designs exist precisely for that case: they reduce the excavation depth substantially and compensate by spreading the foundation outwards, taking the same overturning moment through a wider, shallower slab instead of a narrower, deeper one. The physics is unchanged — the moment still has to be resisted — so nothing is free: a shallow-mount installation occupies more plan area, and its performance is even more sensitive to the quality and continuity of the slab, because it has less depth to work with. The decision should come out of a services survey done before design, not out of an excavation that hits a duct on the second morning. That survey is genuinely part of the engineering: it determines which variant is possible, which in turn determines the achievable rating, the civil programme and a large part of the cost. Discovering it late is how entrances end up with a lower rating than the specification asked for, agreed under time pressure.

Q · 04 What should happen when the power fails?

Whatever the site has decided should happen — and the failure here is almost never the mechanism, it is that nobody made the decision. There is no universally correct answer, because the two candidate behaviours protect against different things. Fail-raised keeps the barrier up when power is lost, preserving physical security, and is usually right where denial is the dominant concern; the cost is that a power cut can block the entrance entirely, which matters if emergency vehicles need to get in or a queue needs to clear. Fail-lowered keeps the entrance passable, which suits sites where continuity of access is the greater risk; the cost is obvious. Many installations sensibly do neither automatically and instead hold position with stored hydraulic energy plus a clearly marked manual override that lets a person raise or lower the line without power, together with alarms so the condition is known rather than discovered. What matters is that the choice is made explicitly at design, written into the specification, justified against the site's operating needs, and then demonstrated at acceptance by actually cutting the power and watching what happens. That test takes ten minutes and is skipped remarkably often. The related discipline is the safety side: whatever the power-failure behaviour, the barrier must not trap a vehicle or a person, so detection and manual release are part of the same conversation rather than a separate one.

Q · 05 How does this relate to your ballistic protection and surveillance products?

They sit at the same gate and do genuinely different jobs, and confusing them produces gaps. Ballistic protection defeats a projectile: a small mass at extremely high velocity, delivering its energy into a very small area in microseconds, defeated by material science — layered composites and steels that break up and absorb something moving far faster than any structure can respond to. This equipment defeats a vehicle: tonnes at road speed, delivering enormous energy over a much longer event, defeated by mass, geometry and reinforced concrete. Both are energy problems, but they are separated by orders of magnitude in mass, velocity and time, and nothing about one qualifies the other. Surveillance is different again and complementary: it detects, identifies and records, which is what lets an operator decide to raise the line in the first place, and what provides the evidence afterwards — but a camera has never stopped a vehicle. Detection without denial is a recording of an incident; denial without detection is a barrier raised by guesswork. The aircraft arrester barrier is the closest engineering cousin on the site, since it is also about arresting a large moving mass within a controlled distance — but it exists to save what it catches, which makes it an energy-absorption problem rather than a denial one.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the site and buried-services survey that decides whether deep-mount or shallow-mount is possible and therefore what rating is achievable; the foundation and pit design — slab section, reinforcement arrangement, lap lengths, concrete specification and drainage — treated as the primary engineering deliverable rather than as civil works to be handed off; the bollard and sleeve with the load path that carries impact into the slab instead of into the mechanism; the hydraulic power pack and control, with normal and emergency raise times, accumulator where fast closure is required, manual override, and a decided loss-of-power state demonstrated at acceptance; the safety detection and interlocks designed so the safe behaviour is also the convenient one; drainage and corrosion protection specified on the assumption the pit will flood; integration with boom barriers, tyre bursters and access control so the entrance is engineered as one thing; and installation, commissioning, documentation, training, spares and AMC — including build to the customer's own specification, which is how requirements of this class are framed. What is bought-in certified: hydraulic components, sensors and control hardware — proprietary products of established makers, integrated rather than imitated. What is the customer's: the site, its assessment, and the rating the entrance is required to achieve. And the record, stated plainly: equipment of this class has been quoted across crash-rated bollard and vehicle barrier requirements for airport, defence and industrial sites. No delivered crash-rated bollard or vehicle barrier is claimed; the class is engineered to order, around the entrance it has to protect.

↗
