NMX-AXL-30 · ENGINEERED TO ORDER — AXLE TEST RIGS WITH ACOUSTIC ENCLOSURES

Every axle sings. This rig decides whether the driver will hear it.

Name: Axle Test Rig with Acoustic Enclosure
Brand: Neometrix

A drive axle is a gearbox that carries the vehicle, and it is judged by ear — axle whine is one of the commonest reasons a vehicle comes back under warranty. The sound is made by the same mesh that carries the torque, so it cannot be muffled out afterwards: it is designed and assembled out, which means it has to be measured. So the axle is clamped at its true mounting points and aligned (a pulled housing sings on its own), driven at the input while both hubs absorb, and swept through the map in drive and on the overrun — because a gear set that is quiet pulling can howl on the coast. All of it inside a room built for listening: absorptive lining, sealed door, isolation under the feet, the drive machinery isolated so the rig never contaminates what it measures. And the verdict is read in orders, not decibels. Equipment of this class has been quoted against successive axle test rig requirements for a defence heavy-vehicle manufacturer; no delivered axle test rig is claimed — the class is engineered to order.

Enquire — axle test rigs Capability sheet (PDF)

Illustrative of the class — a heavy vehicle axle assembly mounted on a test rig in a clean test cell: a large cast steel differential housing at the centre with a tubular axle beam running out each side to a machined hub flange, the assembly clamped on heavy fresh-grey steel fixture pedestals bolted to a machined bedplate, a large electric machine on a baseplate at each end coupled to the hub flanges through guarded shafts, tall perforated acoustic lining panels forming the cell walls behind, a thick hinged acoustic door standing open at one side, clean light floor with a yellow line, no people and no readable markings

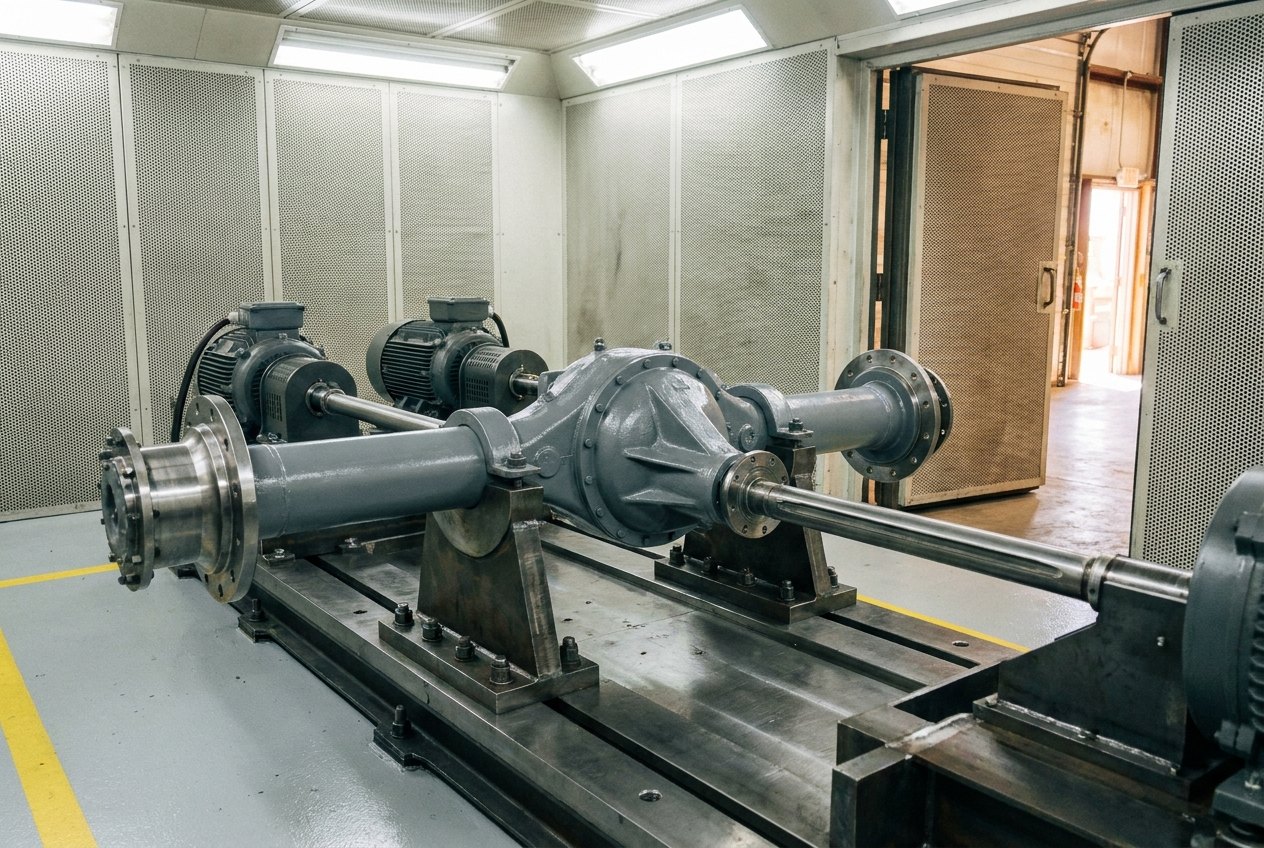

Fig · 01 The cell — axle clamped at its own mounting points, a machine at each hub, and walls that do not answer back

Judged on

noisethe warranty defect

Read in

ordersteeth × shaft speed

Swept

drive & overruncoast differs from pull

Room

floor provenlined, sealed, isolated

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Driveline test franchise NVH & order analysis Noida · India

Overview

The customer's instrument is an ear.

An axle can meet every dimensional and strength requirement on the drawing and still be rejected, because the person who bought the vehicle can hear it. That makes noise a product characteristic — and anything that is a characteristic has to be measured on a machine.

Illustrative of the class — interior of an acoustic test enclosure in a clean facility: walls and ceiling lined with pale perforated metal acoustic panels over mineral-wool absorber, a slim measurement microphone on a thin tripod stand aimed at a bare cast steel gear housing on a low machined fixture in the middle of the floor, a thin black cable running to a small connector plate on the wall, heavy anti-vibration isolation mounts under the fixture feet, a thick acoustic door with its sealing gasket visible at the edge of frame, no people and no readable markings

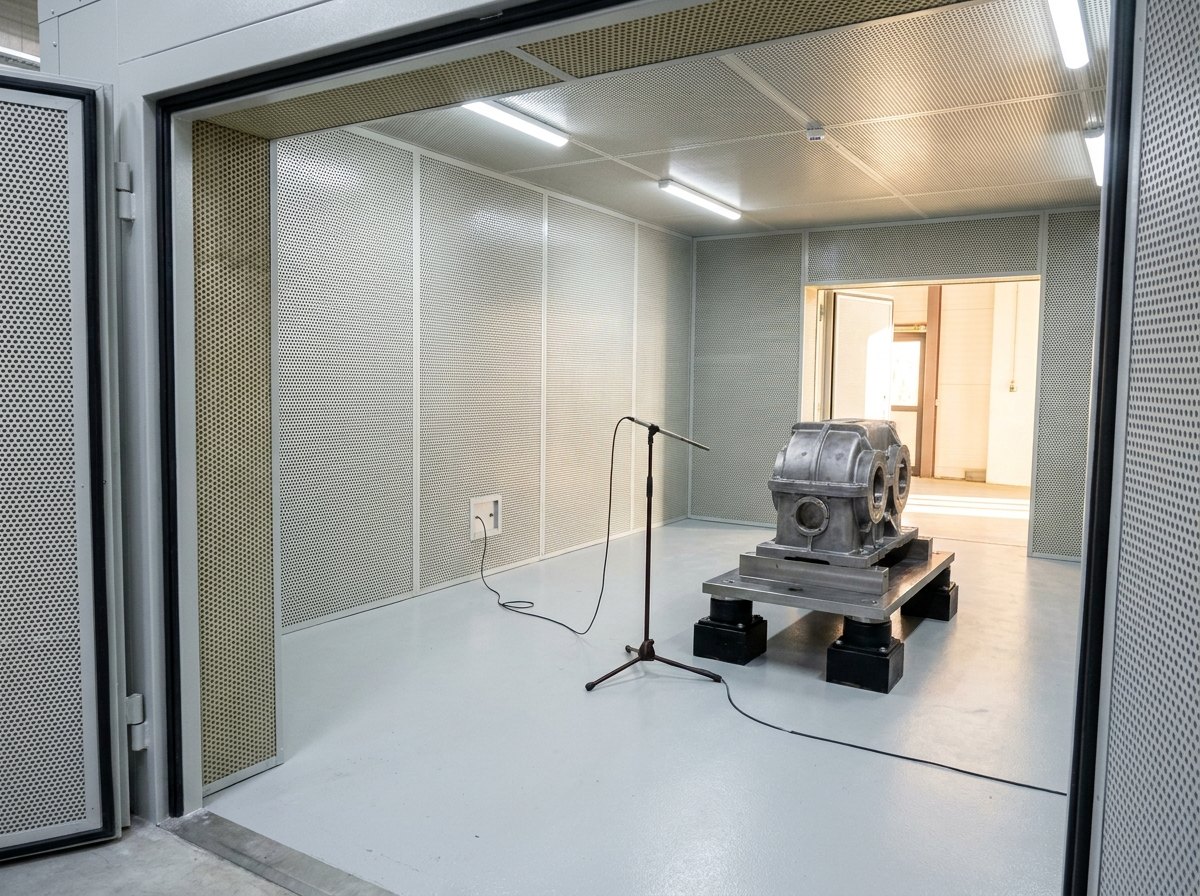

Fig · 02 The quiet room — lining that removes the reflections, isolation that removes the floor, and one microphone that only hears the axle

Whine comes from the mesh that does the work. A drive axle turns the driveline through ninety degrees and multiplies its torque with a hypoid gear set, whose teeth slide as well as roll. Every meshing pair transmits a slightly varying stiffness as teeth engage and disengage, and that variation is a forcing function — it excites the housing, which radiates it as sound, and excites the mountings, which carry it into the body as structure-borne noise. You cannot remove it by adding insulation later, because it is generated by the load path itself. It is reduced by tooth geometry, contact pattern, mounting stiffness and assembly precision — and each of those is a decision that has to be checked against a measurement.

So the rig is built to make the measurement honest. The axle is clamped at its true mounting points on a stiff bedplate, and the shaft line is aligned and shimmed before anything turns — a fixture that pulls the housing out of line generates its own noise and its own bearing loads, then blames the article. The input is driven and both hubs are absorbed, so torque and speed can be swept across the operating map in drive and on the overrun: a set that is quiet pulling can howl on the coast, and the customer will meet both.

And the room has to be quieter than the question. Absorptive lining takes the reflections out so the microphone hears the source rather than the walls; isolation mounts stop structure-borne energy running into the floor and coming back; the drive machinery is isolated or placed outside, because a rig that sings louder than the axle has measured only itself. Before any result is believed, the background floor is measured and proven.

Equipment of this class has been quoted against successive axle test rig requirements for a defence heavy-vehicle manufacturer. No delivered axle test rig is claimed: the class is engineered to order, and the record is stated as it stands.

Aligned

True points, or nothing

Clamped where the vehicle clamps it, shaft line shimmed — so the fixture never joins in.

Quiet

A room that does not answer

Lined, sealed, isolated, drive machinery kept out — and the background floor proven before the first run.

Diagnostic

Orders, not decibels

Mesh line tracked through the sweep, sidebands read for runout and assembly error — a cause, not just a level.

Architecture

Align, sweep, listen, endure.

The schematic follows the test — the axle mounted true, the orders run up in drive and on the overrun, the sound taken in a room built for it, then the hours that noise cannot predict — and the rig underneath: fixture, drive and absorbers, enclosure, instruments.

FIG · 03AXLE TEST CELL ARCHITECTURE · FIXTURE + ALIGNMENT / DRIVE + ABSORBERS / ENCLOSURE + ISOLATION / MICROPHONES + DAQ

Fig · 03 A batch compared honestly against the reference axle

Arc · 01

Fixture & Alignment

Stiff bedplate, true mounting points, shimmed shaft line — the alignment that keeps the fixture out of the answer.

Arc · 02

Drive & Absorbers

Input driven, both hubs absorbed, inline torque measured — the operating map swept in drive and on the overrun.

Arc · 03

Enclosure & Isolation

Absorptive lining, sealed acoustic door, isolation under the feet — and drive machinery kept out of the room.

Arc · 04

Microphones & DAQ

Tacho reference, order analysis, batch comparison — a sound turned into a number a production line can act on.

Chasing whine on a production line? Send the axle range, the torque and speed envelope and the noise limits — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference cells, built to the axle range.

The parameters below describe reference cells. Bedplate size, machine ratings, enclosure volume, isolation and channel counts all follow from three givens: the axle range and its mounting geometry, the torque and speed envelope to be swept, and the noise limits the programme has to defend.

Illustrative of the class — close view of the drive end of a test rig in a clean cell: a large fresh-grey electric machine on a machined steel pedestal, a bright polished inline torque-measuring flange between the machine and a short guarded coupling shaft, a yellow perforated safety guard swung open beside the coupling, heavy hold-down bolts and machined shim packs at the pedestal feet, a thin instrumentation cable clipped along the base, no people and no readable markings

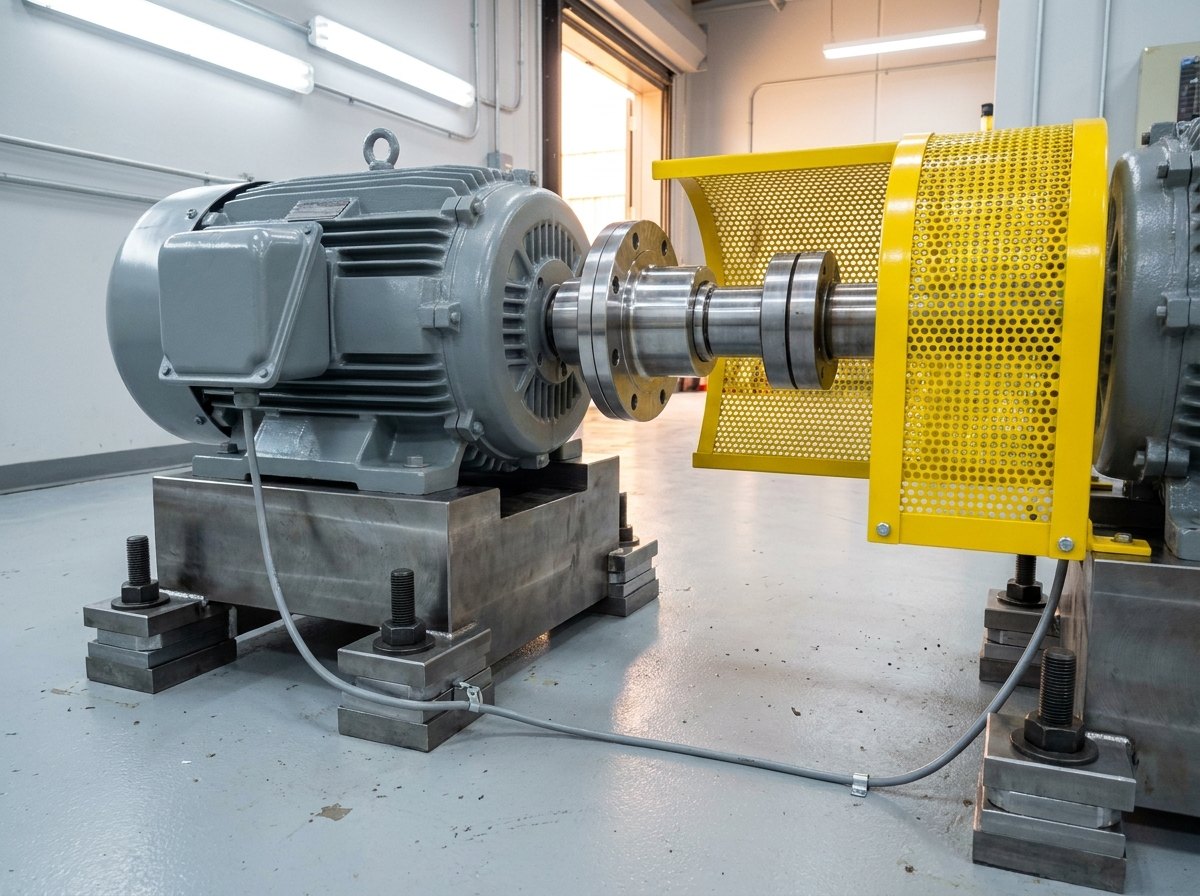

Fig · 04 The drive end — torque measured inline, shims under the feet, and a guard that comes off for alignment

Where axle testing goes wrong

A fixture that distorts the housing — clamped somewhere convenient instead of at the vehicle's mounting points, so the bearings see loads they never see in service and the noise belongs to the rig. Misalignment left in the shaft line — a coupling that generates its own orders. Drive machinery in the room — a motor and its cooling fan louder than the article. No background survey — results reported against an unknown floor, and comparisons across shifts that mean nothing. Overall level only — a single decibel number that says something is wrong but never what. Sweeps in drive only — the coast condition, where many axles are worst, never visited. Oil and temperature uncontrolled — viscosity changing the sound between the first run and the last. Backlash and preload not recorded — the assembly variables that explain the result missing from it. And no reference axle, so drift in the rig is indistinguishable from drift in the product.

So the discipline runs the other way. The axle is held as the vehicle holds it; the shaft line is aligned and the alignment recorded. The room is proven — lining, sealing, isolation, and a measured background floor with the rig running empty. Sweeps cover drive and overrun across the map. The analysis is order-based, with the mesh line tracked and sidebands examined, so a result points at a cause. Oil grade and temperature are held; backlash, preload and contact pattern are recorded with the run. And a reference axle is run on a schedule, because a production comparison is only as good as the proof that the cell has not moved.

Full specification — expand

System	Axle test rig with acoustic enclosure — fixture & bedplate, drive & absorbers, enclosure & isolation, instrumentation & order analysis
Governing Idea	Noise is the defect — whine is made by the same mesh that carries the torque; it is designed and assembled out, never muffled out
The Room Rule	Hear the axle, not the workshop — absorptive lining, sealed door, isolation mounts, drive machinery isolated, background floor measured and proven
The Analysis	Orders, not decibels — mesh order = tooth count × shaft speed, tracked through the sweep; sidebands expose runout, eccentric mounting and pinion position
Mounting	Clamped at the vehicle's true mounting points on a stiff bedplate; shaft line aligned, shimmed and the alignment recorded
Loading	Input driven, both hubs absorbed; torque and speed swept across the map in drive and on the overrun
Metrology	Inline torque at the drive, speed at every shaft, tachometer reference for order tracking, microphones and accelerometers
Set-up Variables	Backlash, pinion preload and contact pattern set and recorded with every run — the variables that explain the result
Conditioning	Oil grade, fill and temperature controlled — viscosity changes what a mesh sounds like
Endurance	Duty cycles, thermal soaks and endurance hours — the failures noise alone cannot predict
Repeatability	A reference axle run on schedule, so drift in the cell is never mistaken for drift in the product
The Split	The site's e-motor test bench measures electric drive units for efficiency on a circulating power loop; this cell measures a mechanical axle for noise and endurance. The power-shuttle transmission rig is the gearbox cousin, and the dynamic balancing machine removes unbalance — another noise source — at its root
Scope Boundary	Ours: bedplate & fixtures, drive & absorber integration, torque & speed metrology, acoustic enclosure with lining, doors & vibration isolation, lubrication & thermal conditioning, guarding & safety systems, instrumentation & acquisition with order-analysis software, installation, commissioning, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: drive machines, torque flanges, microphones, acquisition hardware. The customer's: the axles, their acceptance limits and their reference samples
Status	Engineered to order — equipment of this class quoted against successive axle test rig requirements for a defence heavy-vehicle manufacturer; no delivered axle test rig is claimed

PDF · 1 page

Axle Test Rig with Acoustic Enclosure — Capability Sheet

Tender Response

Send axle range, envelope & noise limits — compliance matrix in two working days

Variants

One cell, four duties.

What changes is the question — why does it whine, will it last, is this one good, or can the cell you already own be made honest.

Var · 01

Axle Noise & NVH Cells

Enclosure, isolation and order analysis — the development cell that answers why, not just how loud.

Var · 02

Endurance & Durability Rigs

Duty cycles, thermal soaks and long hours — loading that finds what a noise sweep never will.

Var · 03

End-of-Line Audit Stations

Short, repeatable pass-fail runs against a reference axle — production tempo without losing the discipline.

Var · 04

Enclosure, Isolation & DAQ Retrofit

Making an existing rig honest — lining, sealing, isolation, order-analysis instrumentation and background proving.

Applications

Wherever a gear set has to stay quiet.

The plants that build drivelines, and the programmes that must defend them.

A · 01Defence & heavy vehicle manufacturers

A · 02Axle & final-drive plants

A · 03Commercial vehicle & bus builders

A · 04Off-highway & agricultural drivelines

A · 05Gear & transmission manufacturers

A · 06Development & NVH laboratories

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why do axles whine, and why can’t it just be insulated away?

Because the noise is a by-product of the load path itself. A drive axle takes the propeller shaft's torque, turns it through ninety degrees and multiplies it, using a hypoid gear set whose teeth slide across each other as well as roll. As each pair of teeth comes into and out of contact, the stiffness of the mesh varies slightly through the cycle — and a varying stiffness under load is a varying force. That force excites two paths at once: it shakes the housing, which radiates airborne noise, and it pushes through the mountings into the vehicle body, which radiates structure-borne noise right beside the occupants. Insulating afterwards attacks only the first path, and only at high frequency, which is why a car with a whining axle stays a car with a whining axle. What actually reduces it is upstream: tooth geometry and flank corrections, the contact pattern where the teeth touch under load, pinion position and preload, housing and mounting stiffness, and assembly precision — every one of them a design or process decision. Since each decision is judged by its effect on the noise, the noise has to be measurable, repeatable and comparable between one build and the next. That is the whole justification for a cell like this: it turns a subjective complaint into an engineering variable.

Q · 02 What does “orders, not decibels” mean in practice?

It means measuring against shaft rotation instead of against time, which turns a noise into a diagnosis. A single overall decibel figure tells you an axle is loud but nothing about why. Order analysis starts from a simple fact: the mesh excites the structure once per tooth engagement, so its frequency is tooth count × shaft speed. Express the measurement in orders — events per revolution — and that excitation stops moving: sweep the axle up through its speed range and the gear-mesh order stays on the same line while unrelated noise smears across the map. The mesh line is the headline result. What surrounds it is the diagnosis: sidebands spaced at the pinion or crown-wheel rotational order mean the mesh is being modulated once per revolution, which is the signature of runout, an eccentric mounting or a component assembled off-centre — the sideband spacing tells you which shaft to look at. Bearing tones appear at their own non-integer orders derived from the bearing's internal geometry, so a rolling-element defect separates cleanly from a gear problem. And harmonics of the mesh order indicate how sharp the excitation is. The output is therefore a map, tracked through a sweep in both drive and overrun — and an engineer can point at a line and say what to change.

Q · 03 What does the acoustic enclosure actually have to achieve?

It has to make the axle the loudest and cleanest thing in the room, which is harder than it sounds because the rig itself is a machine. Three jobs. First, remove the reflections: bare hard walls send sound back at the microphone with delays and colouring, so a measurement in an untreated bay describes the bay as much as the article. Absorptive lining — mineral wool behind perforated facing, thickness chosen for the frequencies that matter — makes the field near the microphone dominated by what radiates from the housing. Second, keep the rig's own noise out: the drive machine, its cooling fan, the absorbers and the hydraulic and electrical plant all make noise, so they are isolated behind the enclosure wall or placed outside entirely, with the shafts passing through sealed penetrations. Third, and most often neglected, break the structure-borne path: energy travelling from the fixture into the floor, across the slab and back up into the enclosure or the microphone stand arrives as noise that no amount of lining will stop, so isolation mounts under the fixture and the machines, and attention to how the enclosure itself is supported, matter as much as the acoustic panels. Finally, the whole thing has to be proven: the background noise floor is measured with the cell running unloaded, and any result within a few decibels of that floor is not a result at all — it is the room.

Q · 04 Why does the fixture matter so much — it only holds the axle?

Because how you hold a structure changes how it behaves, and an axle is unusually sensitive to it. In the vehicle, the housing is located at specific points — spring seats, mounting pads, torque reaction — and it deflects under load in a way the design accounts for. Clamp it somewhere else on a rig, or clamp it more rigidly than the vehicle does, and two things go wrong at once. The load path changes: the housing bends differently, which moves the contact pattern on the gear teeth — and contact pattern is precisely what determines mesh excitation, so you have altered the thing you came to measure. And the structural response changes: the housing's resonances shift, so a peak that appears in the rig data may not exist in the vehicle, or one that matters in service may be missing here. Add a misaligned shaft line and the coupling begins generating orders of its own, which land in the same analysis and get blamed on the axle. So the fixture is engineered rather than fabricated: mounting at the vehicle's true points with representative stiffness, a bedplate stiff enough not to participate, alignment measured and shimmed and the result recorded, and isolation chosen deliberately. It is the same principle the site's iron bird page argues at aircraft scale: the structure that holds the article is part of the instrument.

Q · 05 How is this different from your e-motor bench and transmission rig?

Different articles, different questions, deliberately separate machines. The site's e-motor test bench is built around electric drive units — traction motors, inverters and electric drive assemblies — and its central question is efficiency: two machines on one shaft in a circulating power loop, so the grid pays only the losses, producing efficiency maps and islands across the torque-speed plane. Its metrology is electrical and mechanical power, and its cell is built for thermal and electrical work rather than for listening. This cell asks a mechanical noise and durability question about a geared axle assembly: what does the hypoid mesh radiate, at which orders, under which load and in which direction of drive — and will it survive the duty cycle. That drives a different room (absorptive, isolated, background-proven), different instrumentation (microphones, accelerometers, tacho reference, order analysis) and a different fixture philosophy. The power-shuttle transmission rig is the nearest cousin — a gearbox exercised through its ratios — and the dynamic balancing machine sits upstream of all of them, removing unbalance, which is simply another periodic force that ends up as noise. Four machines, one franchise: whatever rotates, we make it prove itself.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the bedplate and fixtures with their alignment and shimming provisions, engineered to hold the axle at its vehicle mounting points without joining the measurement; the drive and absorber integration with inline torque and speed metrology; the acoustic enclosure — absorptive lining, sealed doors, penetrations, and the vibration isolation that breaks the structure-borne path; lubrication and thermal conditioning so oil grade and temperature are controlled rather than assumed; guarding, interlocks and safety systems around machinery that spins with real energy in it; the instrumentation and acquisition with tachometer reference and order-analysis software, including reference-axle scheduling and batch comparison; and installation, commissioning, background-noise proving, documentation, training, spares and AMC — including build to the customer's own specification, which is how requirements of this class are framed. What is bought-in certified: drive machines and their drives, torque flanges, microphones and accelerometers, and acquisition hardware — proprietary instruments of established makers, integrated rather than imitated. What is the customer's: the axles themselves, their acceptance limits and the reference samples those limits are anchored to. And the record, stated plainly: equipment of this class has been quoted against successive axle test rig requirements for a defence heavy-vehicle manufacturer. No delivered axle test rig is claimed; the class is engineered to order, cell by cell, around the axles it must judge.

↗

The rotating-machinery family from Neometrix.

Balance it, drive it, gear it — and make it prove itself quietly.

↗ Electric

E-Motor Test Bench

Electric drive units measured for efficiency — a different question, a different room.

↗ Gearbox

Power Shuttle Transmission Test Rig

The gearbox cousin — ratios exercised under real load.

↗ Balance

Dynamic Balancing Machine

Unbalance removed at its root — the other periodic force that becomes noise.

Browse all Neometrix product lines.

Get a quotation

Send the axle range
and the noise limits.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — axle test rigs Capability sheet (PDF) +91 7777 876 876
