Bring it to temperature. Hold it to the degree.

No — a billet that is hot on the outside and cooler in the core is the classic way to crack a forging and stall a press. Steel forged with a temperature gradient flows unevenly: the hot skin moves while the cold core resists, opening internal tears and distorting the grain flow the part depends on for strength. “Soaked through” means the billet has been held at temperature long enough for the core to reach the same heat as the surface, so the whole section forges as one. That soak time — not just the peak temperature — is what the furnace is really selling, and it is why residence in the soak zone is designed to the billet’s size and thermal mass rather than guessed. A bigger burner heats the surface faster; only time and uniform firing get the middle there too.

A temperature-uniformity survey (TUS) is a witnessed test that proves the furnace actually holds the temperature it claims, everywhere in its working zone. A grid of calibrated thermocouples is placed through the volume and logged while the furnace runs at setpoint, and the spread between the hottest and coldest point must sit inside the specified band — here ±10 °C — which is the discipline codified in standards like AMS 2750 for heat treatment. It matters because a single control thermocouple can read a perfect number while a corner of the load is fifty degrees cold; only a survey catches that. Paired with a system-accuracy test on the instruments, the TUS is the document that lets a forge or a heat-treat shop certify parts against a real, mapped temperature rather than a hopeful one. We treat it as a deliverable, witnessed at commissioning and repeatable on a schedule.

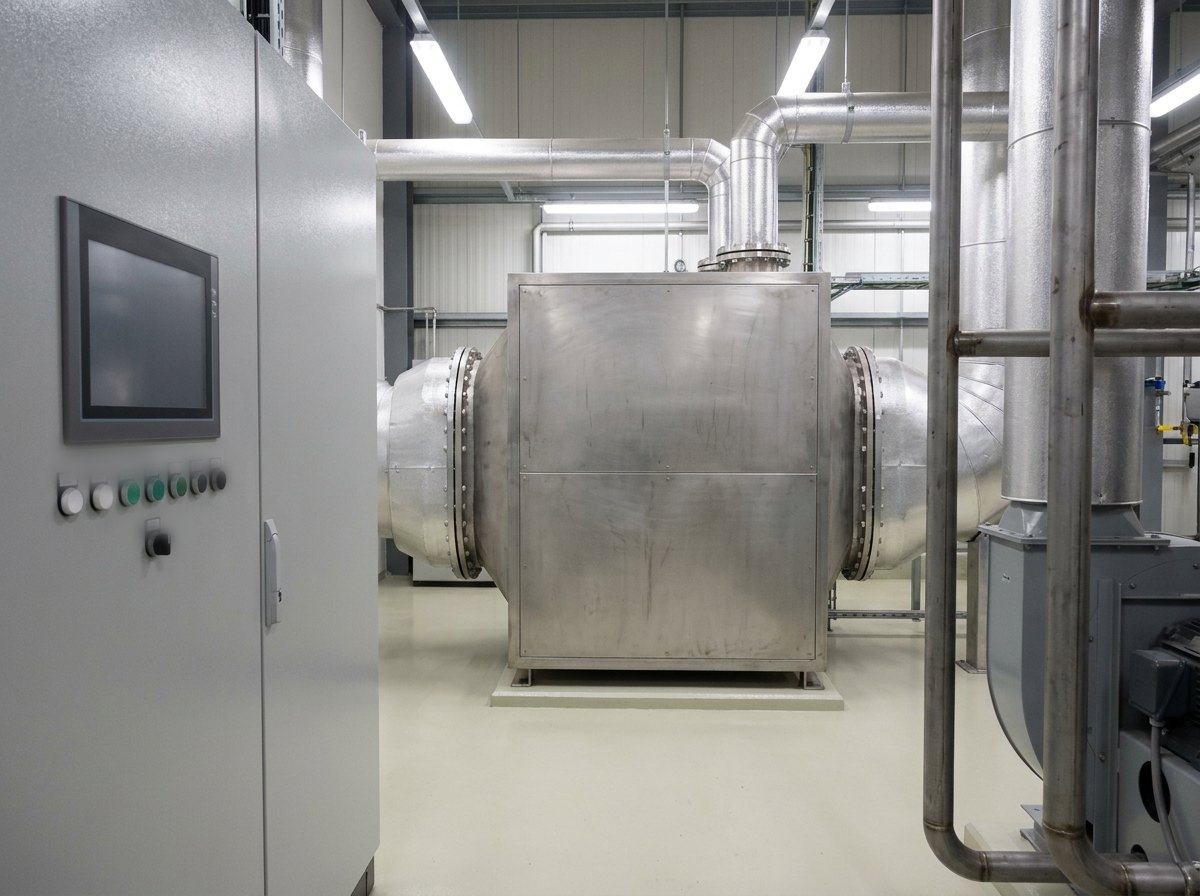

A furnace running at 1250 °C sends an enormous amount of energy out of the flue as hot waste gas — if you do nothing with it, you pay for it twice: once to make it, once to lose it. A recuperator is a heat exchanger in the flue that captures that waste heat and uses it to preheat the incoming combustion air, so the burners need materially less fuel to reach the same temperature. Skipping the recuperator saves a little on the capital cost and then loses far more, year after year, at the gas or oil meter — it is usually the worst false economy in a furnace budget. On a high-temperature furnace it is not an optional extra but the single biggest lever on running cost, which is why it is engineered in from the start and why we will retrofit it to an existing furnace as a standalone upgrade.

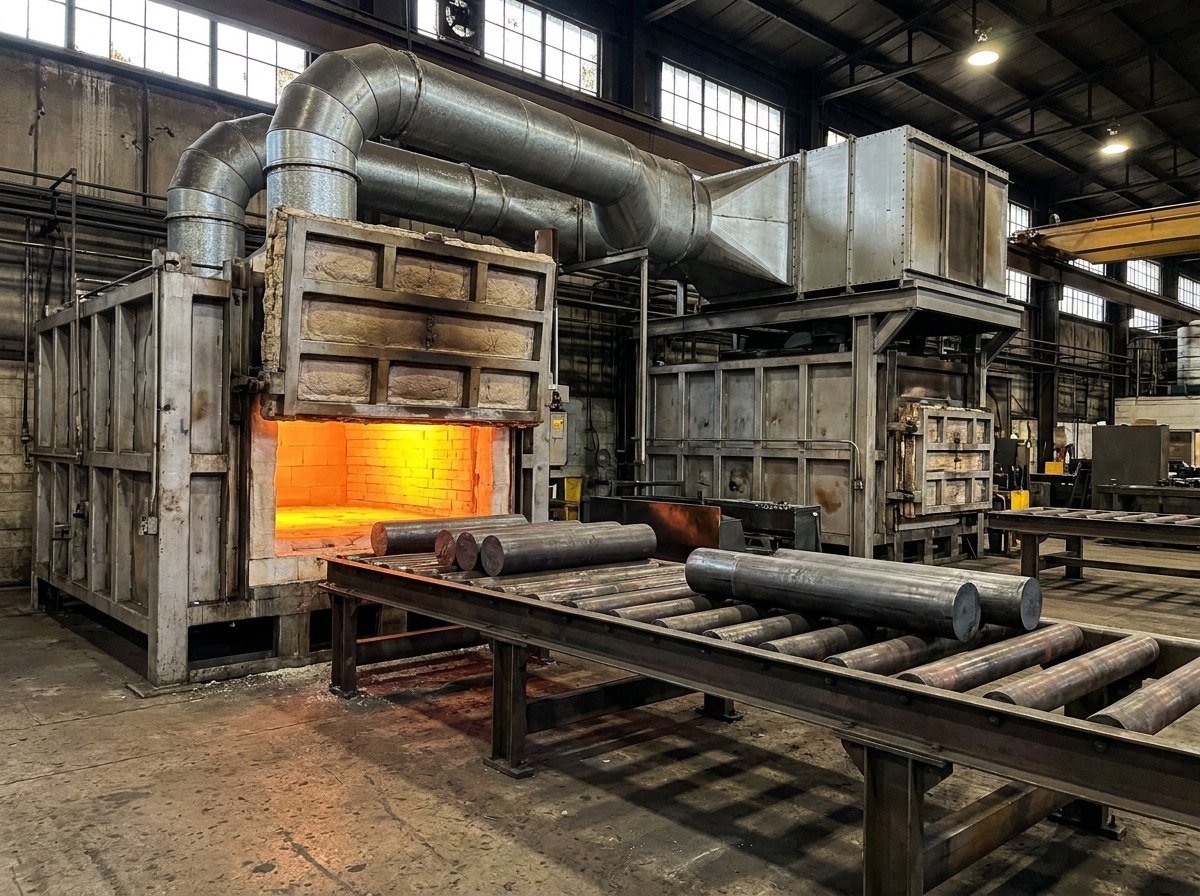

It follows from throughput and how the work moves. A rotary-hearth furnace carries billets on a turning ring hearth past fixed burners — ideal for continuous, high-cadence billet re-heating where every piece needs the same journey. A walking-beam furnace lifts and steps the work forward, suiting long or heavy billets and very high throughput. A chamber or box furnace is a batch furnace — load, run a ramp-soak-cool recipe, unload — which suits heat treatment and mixed or lower-volume work. The choice sets the whole design: hearth mechanism, zone count, door and seal engineering, and how you charge and discharge. We size it to the billet, the temperature, the uniformity class and the pieces-per-hour rather than starting from a favourite type, and we will say plainly when a simpler furnace is the right answer.

No — different job, different machine. A plasma nitriding furnace is a surface-hardening process: it diffuses nitrogen into the skin of a finished part under vacuum and a glow discharge to make it harder and more wear-resistant, at relatively low temperature. A fired furnace of the kind on this page does the opposite end of the work — it uses gas or oil combustion to bring the whole billet or component up to a high, uniform temperature for forging or bulk heat treatment. One changes the surface chemistry; the other changes the temperature of the bulk metal so it can be formed or its structure altered. They sit in the same heat-treatment world and a plant may have both, but they are not substitutes, and this page is about the fired combustion furnace.

Both, honestly stated. The burners and burner-management systems, recuperators, refractory materials and instrumentation are proprietary items from established makers, and specifying and integrating the right ones is part of the engineering — and for the largest continuous lines a furnace-technology OEM partner is engaged where a prior reference is required, exactly as on our extrusion press. What Neometrix engineers is the furnace as a working whole: the thermal and combustion design, the steel and refractory fabrication, the recuperative firing system, the charge and discharge handling, the multi-zone controls and safety, and the installation, commissioning and temperature-uniformity survey that prove it. To be plain about status: this capability is offered turnkey and has been quoted across forging and heat-treatment requirements; no specific delivered furnace is claimed on this page.
