You cannot form a steel nose cold.

No, and not for want of force. Nosing means squeezing a thick-walled steel body inward into a tapered nose, which asks the metal to flow a long way. Cold, steel simply will not flow that far — it work-hardens, cracks, and either tears the component or stalls the press, and the residual stresses left behind would be dangerous even if the shape survived. Above its forging temperature the same steel becomes plastic and flows into the die cleanly, at a fraction of the force and with sound grain flow following the new shape. So the heat is not an accessory to the press; it is a precondition for the process. That is also why the press and the induction heater are specified and commissioned as a single machine with one control system, rather than a press that happens to sit next to a furnace — the forming force, the die and the blank temperature all have to agree, cycle after cycle.

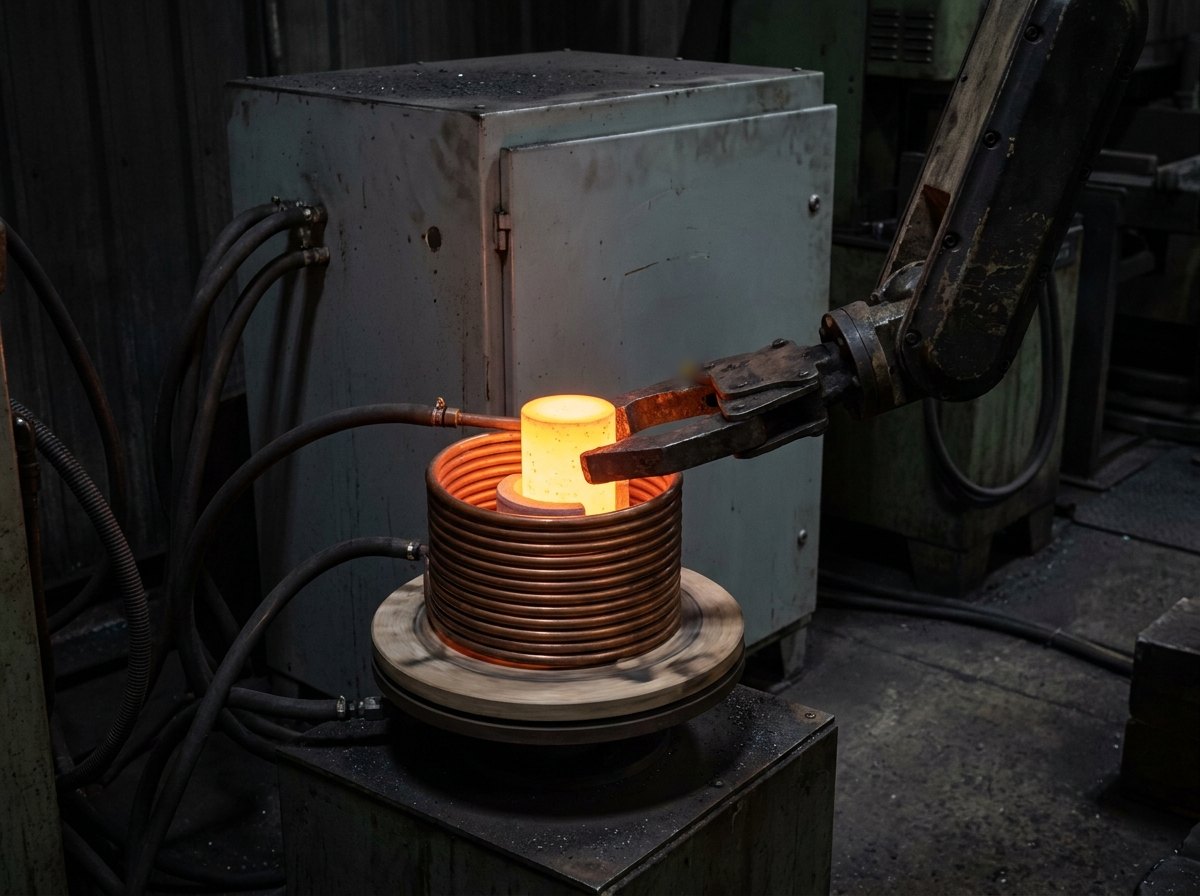

Because the cell needs one blank, now, at exactly the right temperature — not a batch, eventually, roughly. Induction heats the workpiece directly by driving eddy currents in the steel itself, so a blank reaches forging temperature in seconds rather than the long soak a furnace needs, and the working zone can be targeted rather than heating the whole part. That gives three things an automated forging cadence depends on: speed, so the robot always has a hot blank ready; repeatability, so every blank arrives at the ram at the same temperature and forms with the same force to the same shape; and cleanliness, because a short, controlled heat forms far less scale than a long furnace soak, which means less die wear and a better surface. A gas furnace still has its place for bulk pre-heating, but for the precise, per-blank heat a nosing cell wants, induction is what makes the automation honest.

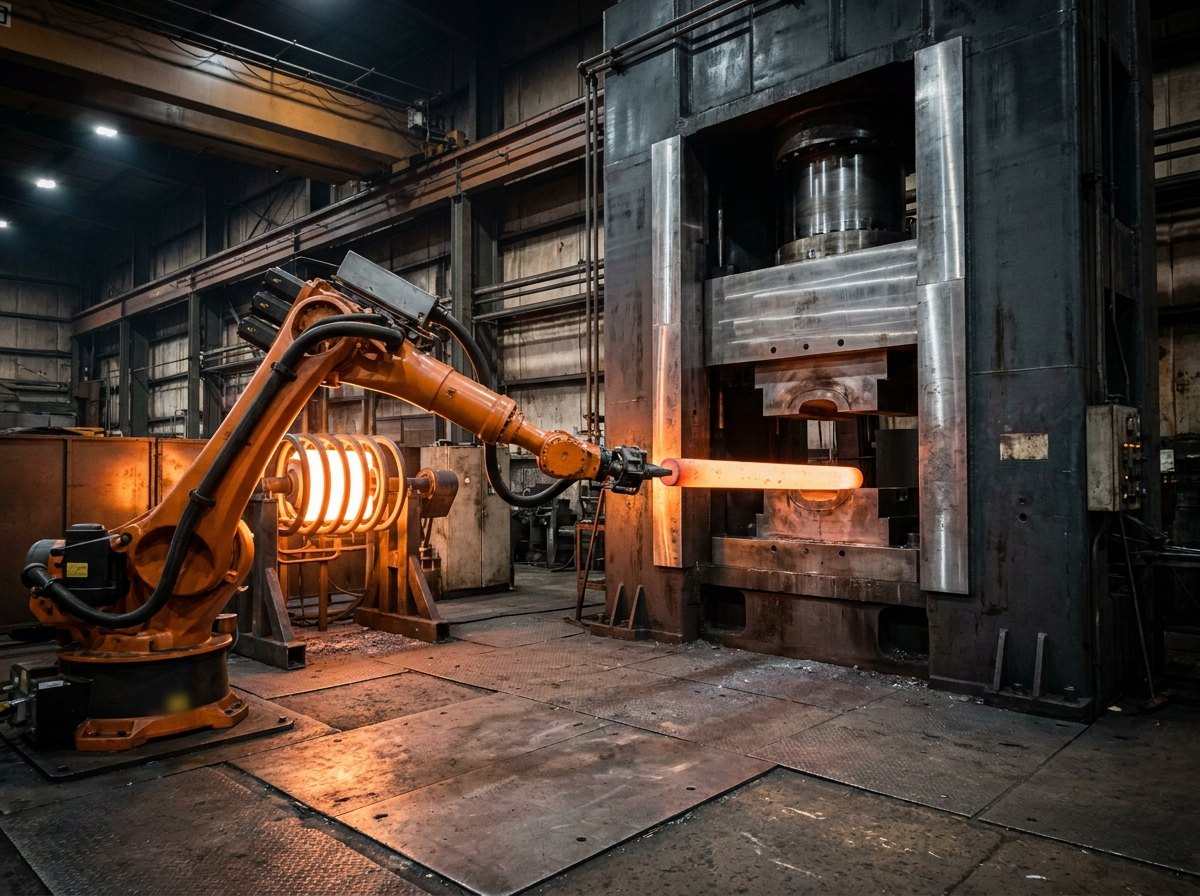

Two reasons, geometry and handling. Geometry first: forming a deep nose needs a long ram stroke — the die has to travel far enough to shape the full length of the taper in one press — so a stroke of 1200 mm or more is normal, and a frame tall enough to carry that stroke plus the component and the tooling ends up around eight metres. Handling second: with the press vertical, a robot can drop a hot blank straight down onto the die and lift the formed part straight back out, with gravity helping rather than fighting the transfer, and with the hot zone kept clear of the floor and the operators. A horizontal press would complicate both the long stroke and the robot access. The height looks dramatic, but every metre of it is doing something — carrying the stroke, or keeping the load path straight so the frame does not flex.

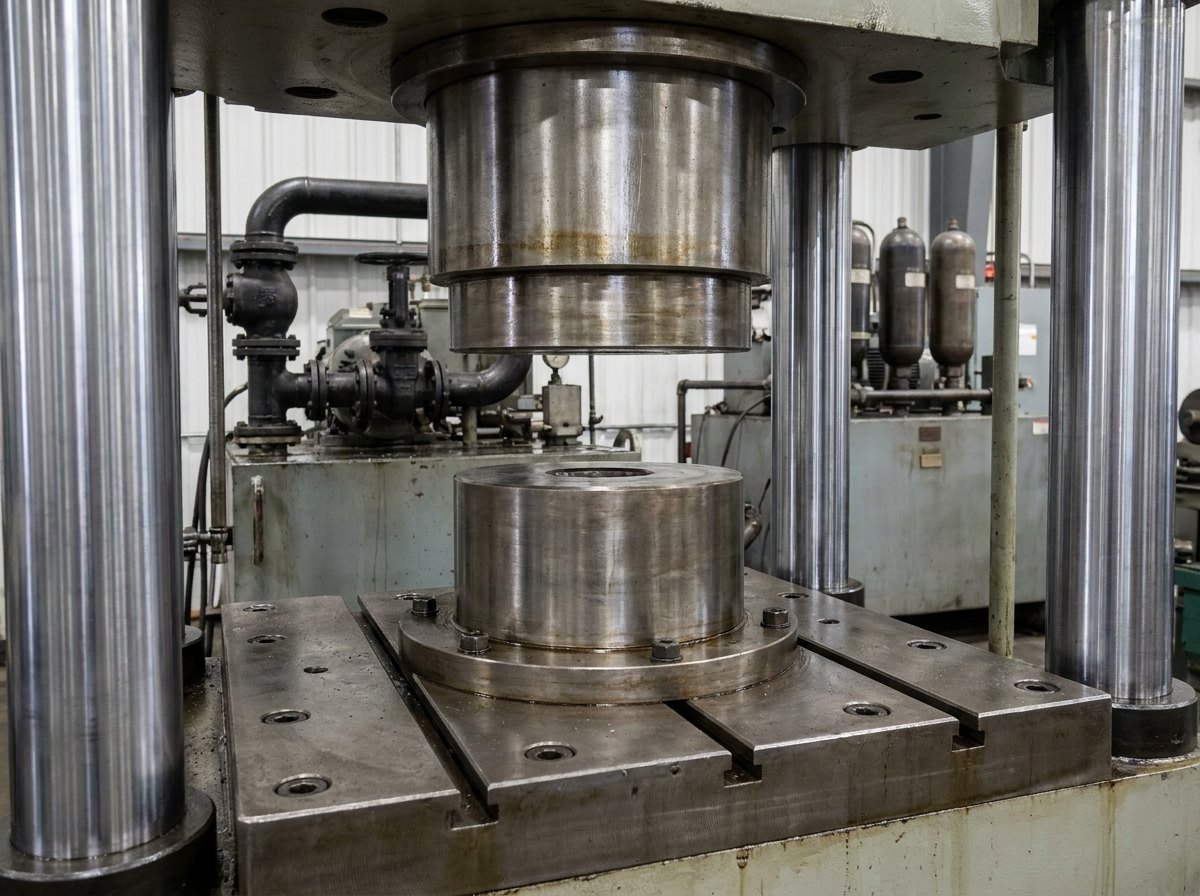

Concentricity, mostly — whether the formed nose sits true on the axis of the body. And the thing that threatens it is not the downward force but the sideways one. Pushing a taper into a die pushes the workpiece out to the side as well as down, and if the frame flexes or the ram wanders under that off-axis load, the nose forms crooked. So the machine is really a stiffness problem dressed as a force problem: the tall frame is engineered to resist bending, the ram is guided so it cannot wander, and the die is aligned to the frame — and it is that trio, not the tonnage, that holds the nose concentric part after part. It is the same principle as our blanking and cupping press, where frame stiffness holds punch-to-die concentricity so the drawn wall stays even; the load is different, but the lesson — geometry is won in the frame — is the same.

Because the blank is at forging temperature, and because the cell only earns its keep at cadence. A glowing billet cannot be handled by a person — not safely, not repeatably, and not fast enough — so foundry-grade robots, built to work near radiant heat and to grip a hot part reliably, run the loop: lift a cold blank from the conveyor, load the induction furnace, transfer the hot blank to the press, and carry the formed part to cooling and out. Their timing is the cell’s heartbeat: a blank has a short window between leaving the heater at the right temperature and cooling too far to form well, and the robots exist to hit that window every cycle. Take them out and you have a press and a heater that a crew could feed by hand — slowly, dangerously, and with a temperature that drifts with every human pause. The robots are what turn three machines into one production cell.

Honestly divided, and worth stating plainly. The induction heating plant, the foundry-grade robots, the PLC and HMI and the largest hydraulic components are proprietary items from established makers — and a buyer of a press of this scale usually requires the builder to have a proven track record of large forging presses. Where that is the case, the press engineering is delivered with an authorised original-equipment manufacturer or a collaborator, the same principal-and-partner route common to heavy-press and turnkey defence work — and it is the route this configuration is engineered around. What Neometrix brings is the integration that makes the cell one machine: the frame and hydraulic press engineering, the marrying of heater, robots, press and cooling into one control system, the tooling and die-change, and the installation, commissioning and training. To be plain about status: this configuration is quoted against a live requirement, and no delivered press is claimed on this page.
