NMX-HAC-30 · ENGINEERED TO ORDER — HYPOBARIC (HIGH-ALTITUDE) AIRCREW CHAMBER

Altitude, on the ground.

Name: Hypobaric (High-Altitude) Aircrew Chamber
Brand: Neometrix

The most dangerous thing about hypoxia is that the victim is the last to know — as oxygen falls, judgment fails first. So air forces put every aircrew member through it once, safely, on the ground: a hypobaric chamber is a human-rated vessel pumped down in pressure to simulated altitude, where crews learn their own early symptoms, practise pressure-breathing and the rapid-decompression mask-on drill — with an oxygen console at every seat, an attendant inside, medical supervision throughout, and ground-level air seconds away at any moment. Unmanned, the same chamber tests oxygen and aeromedical equipment at altitude. We engineer the vessel and lock, the vacuum plant, the oxygen consoles and the controls and interlocks — the same disciplines as our diving chambers, in the opposite direction. Engineered to order — no specific delivered chamber is claimed.

Enquire — hypobaric chamber Capability sheet (PDF)

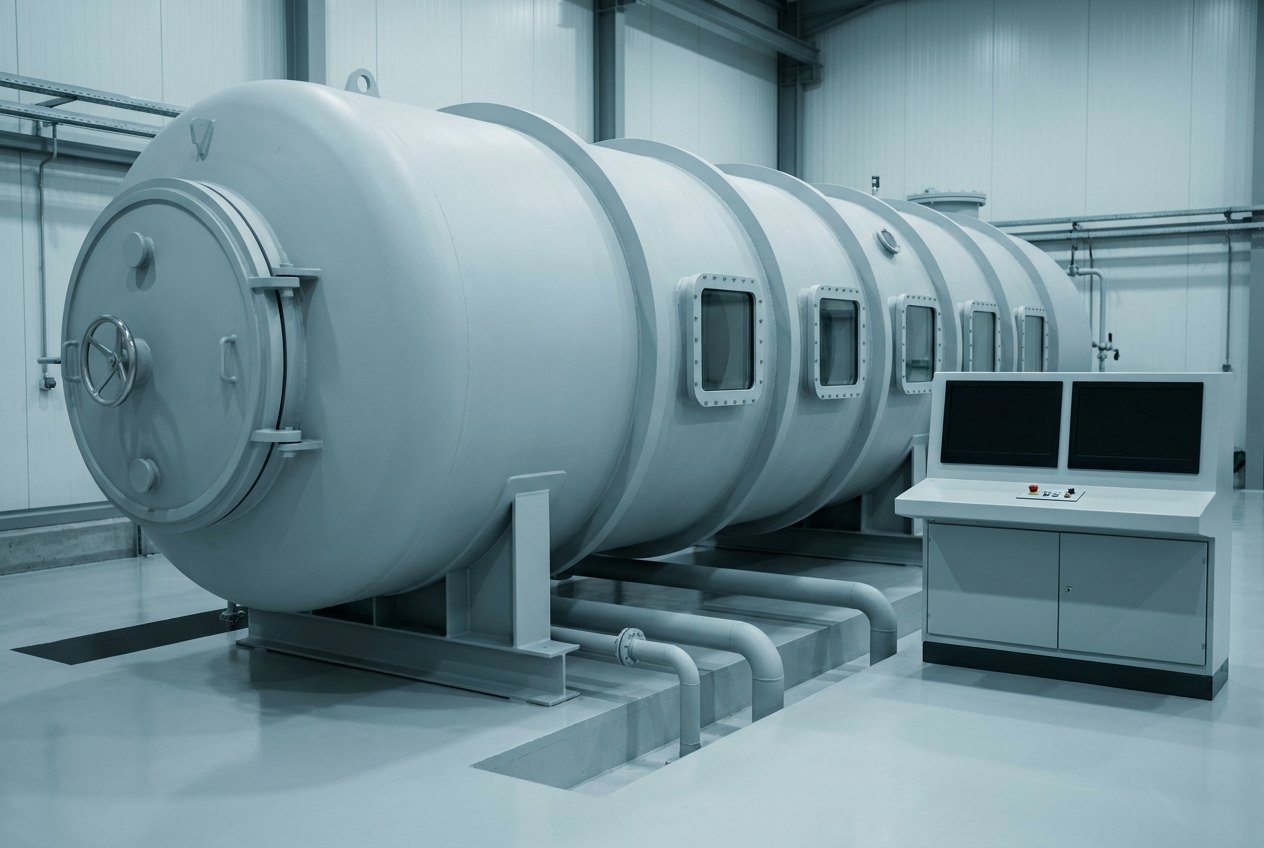

Illustrative image, not a delivered chamber — a multi-seat hypobaric training chamber: a long pale-grey horizontal cylindrical steel vessel on saddle supports with stiffening rings, a row of rectangular viewports, a heavy end door and external pipework, with an instructor control console beside it, no text and no people

Fig · 01 A multi-seat hypobaric chamber — a human-rated vessel built for vacuum duty, with viewports, lock and instructor console — illustrative, not a delivered chamber

Simulates

altitudeon the ground, by vacuum

Rated

humanmulti-seat + attendant

Trains

hypoxia + RDrecognise, mask on, recover

Emergency

secondsrepressurise to ground level

Built

to ordervessel + vacuum + life support

ISO 9001 / 14001 Engineered to order Human-rated chambers Vacuum & life support Noida · India

Overview

The victim is the last to know.

Above roughly 10,000 feet the partial pressure of oxygen is low enough that an unprotected human begins to degrade — and the cruelty of hypoxia is its order of failure. The first things to go are judgment, calculation and self-assessment: the very faculties needed to notice something is wrong. Vision dims, fingertips tingle, euphoria or confusion creep in — and the aircrew member feels, if anything, fine. That is why the world’s air forces do not teach hypoxia from a slide. They put every aircrew member into a chamber, take the pressure down, and let each one meet their own early symptoms — once, safely, supervised — so that in the air, the signs are an alarm they recognise.

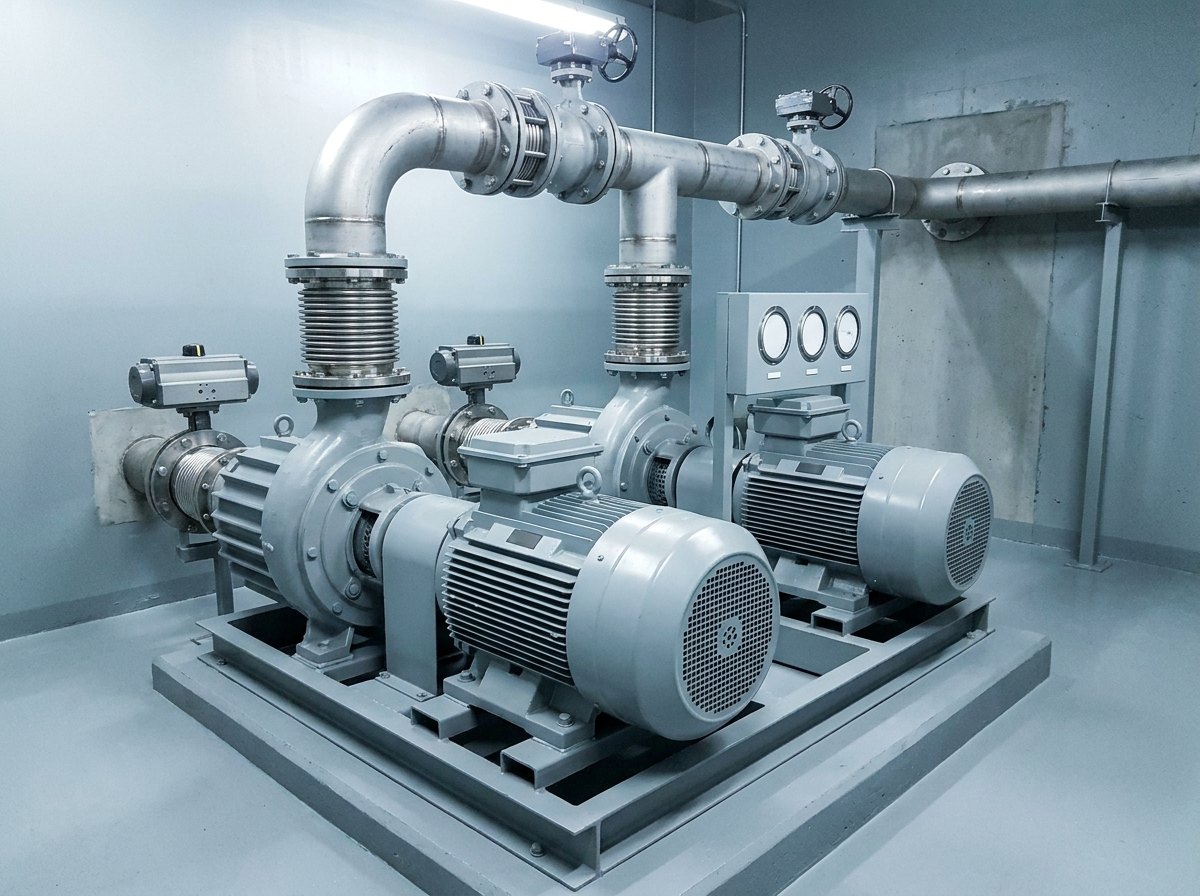

Illustrative image, not a delivered chamber — the vacuum plant of a hypobaric chamber: two large industrial vacuum pump sets with motors on a common base, large-bore steel suction piping with bellows and control valves running to the vessel, gauges with blank dials, no text and no people

Fig · 02 The vacuum plant — redundant pump sets and rate-controlled valves: the chamber climbs and descends at the rates the profile demands — illustrative, not a delivered chamber

A flight profile, without leaving the ground. The crew are briefed, seated, checked and put on comms; the vacuum plant then takes the chamber up at a controlled rate of climb. At altitude the exercises run — hypoxia recognition off oxygen for a controlled interval, pressure-breathing practice, night-vision demonstrations — and the descent is flown back down with ears and sinuses equalising, exactly as in an aircraft. Every minute of it is supervised from the instructor console, with medical monitoring and an attendant inside the chamber.

The drill that saves lives. A pressurised cabin can fail suddenly. In the chamber’s rapid-decompression exercise, a separate evacuated reservoir is connected through a fast-acting valve — and the chamber snaps to higher altitude in seconds, with the fog, the pressure surge and the urgency of the real event. The crew’s task is the one that matters: mask on, oxygen flowing, in seconds — practised until it is reflex.

And when nobody is inside — it is a test facility. The same vessel, unmanned, proves oxygen regulators, masks and aeromedical equipment, avionics and components at altitude — the low-pressure method of the environmental-test standards — and supports physiological research programmes. One chamber, two duties: train the crew, and qualify what keeps them alive.

Every rating on the machine points the same way: the chamber may take people to altitude only because it can hand them back ground-level air in seconds — at any moment, from any profile, without asking anything of the person inside.

Hypoxia Is Insidious

Judgment fails first

The faculties that would notice the problem are the first to degrade — so every aircrew member meets their own symptoms once, on the ground, supervised, and learns the alarm they will recognise in the air.

Human-Rated, Both Directions

The chamber discipline

The same engineering as our diving chambers — vessel, lock, oxygen at every seat, medical supervision, interlocks — applied to vacuum instead of pressure. Ground-level air is seconds away throughout.

Training And Test

One chamber, two duties

Manned, it trains hypoxia recognition and rapid-decompression drills. Unmanned, it proves oxygen and aeromedical equipment at altitude by the low-pressure method — the test side of the same physics.

Architecture

Chamber, vacuum, life support.

The schematic follows a training session — brief, ascend, train, and down safe in seconds whenever needed — and shows the machine that runs it: the vessel and lock, the vacuum plant, the oxygen consoles and the control and medical side. The detail panel covers why the chamber exists at all.

FIG · 03HAC ARCHITECTURE · CHAMBER & LOCK / VACUUM PLANT / OXYGEN & COMMS · CONTROL, MONITORING & INTERLOCKS

Fig · 03 Take the crew to altitude on the ground — a human-rated vessel on a rate-controlled vacuum plant, with oxygen at every seat, supervision throughout and ground-level air seconds away

Arc · 01

The Chamber & Lock

A multi-seat vessel engineered for external-pressure vacuum duty — viewports, comms and an airlock / medical lock so a person can enter or leave at altitude without disturbing the run.

Arc · 02

The Vacuum Plant

Redundant pump sets, large-bore piping and control valves — the chamber climbs and descends at controlled rates, and dump valves return it to ground level in seconds.

Arc · 03

Oxygen & Comms at Every Seat

A console per seat — regulator, mask and emergency supply — plus per-seat communications, so each trainee is individually supplied, heard and watched.

Arc · 04

Control, Medical & Rapid Decompression

The instructor console with altitude and rate display, medical monitoring and CCTV; safety interlocks throughout; and the reservoir + fast valve that runs the decompression drill.

Have a hypobaric-chamber, altitude-test or chamber-upgrade requirement? Send the seats, the profiles and the duty — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference chamber, built to the duty.

The parameters below describe a reference training chamber. The number of seats, the altitude and rate profiles, the lock arrangement, the oxygen fit and the monitoring all follow from the establishment — how many trainees per session, which drills are flown, and the standards the facility works to.

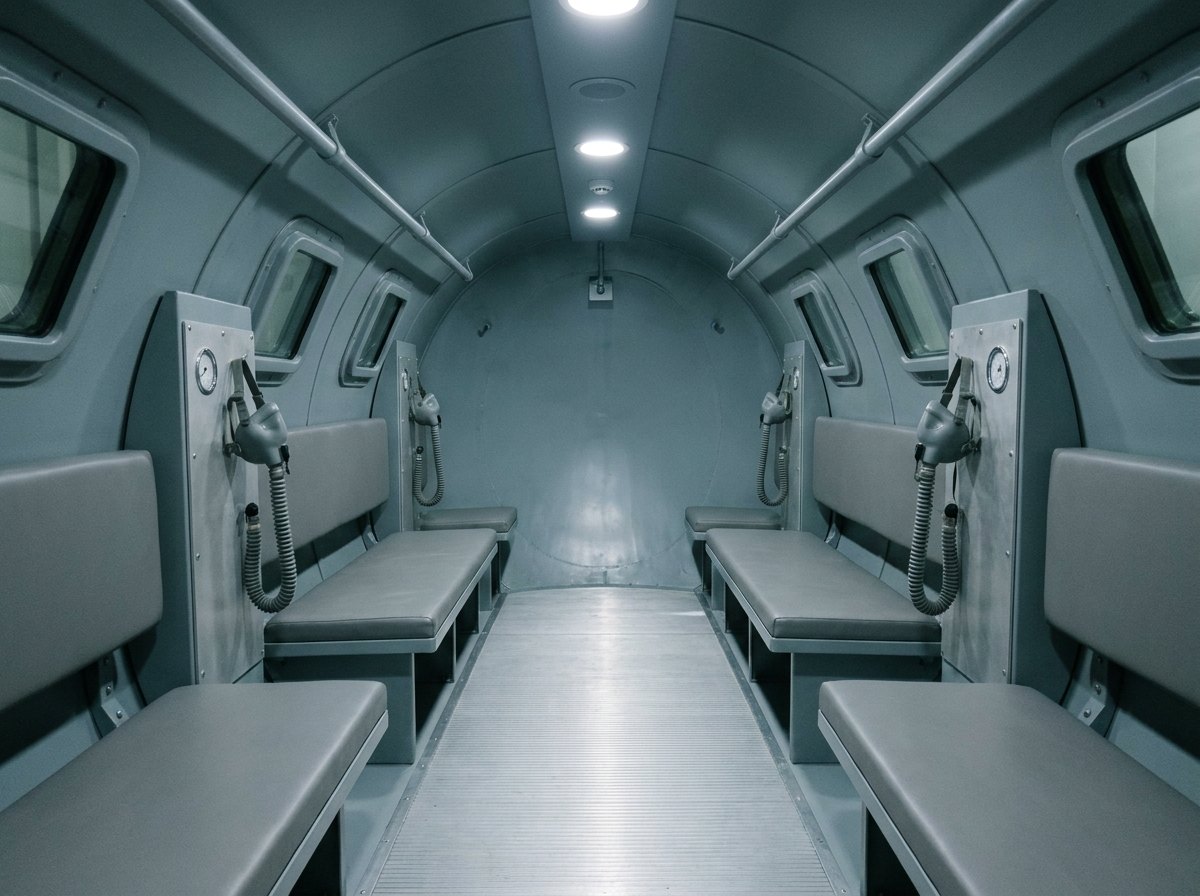

Illustrative image, not a delivered chamber — the interior of a hypobaric chamber: two facing rows of padded seats along the walls, at each seat a small panel with a hanging generic grey aviator-style oxygen mask on a hose and a blank round gauge, viewports and recessed lighting, empty with no people and no text

Fig · 04 Inside the chamber — a seat, a mask and a console for every trainee, an attendant’s station among them, and viewports to the instructors outside — illustrative, not a delivered chamber

Where altitude chambers go wrong

In the safety case and the controllability, not the vacuum. A chamber that cannot repressurise fast enough has no answer to an emergency at altitude; a single-string vacuum plant makes every profile hostage to one pump; a lock that cannot admit a medical attendant at altitude turns an incident into an abort; oxygen that is not individually supplied and monitored leaves the instructor blind; and rate control that is coarse makes ear and sinus injuries out of a routine descent.

So the machine is engineered from the safety case backwards: dump valves sized for seconds, redundant pumps, a lock worked at altitude, an oxygen console and comms per seat, medical monitoring on the instructor’s desk, and climb and descent rates controlled to the profile. The measure of a hypobaric chamber is the same as our diving chambers’: the people inside are always one action away from safe air.

Full specification — expand

System	Hypobaric (high-altitude) aircrew chamber — a human-rated vessel pumped down in pressure for aircrew physiological training and altitude testing of equipment; engineered, built, integrated, tested & certified
Function	Simulates altitude on the ground — hypoxia-recognition, pressure-breathing and rapid-decompression training; unmanned altitude testing of oxygen, aeromedical and avionic equipment
Chamber	Multi-seat main chamber engineered for external-pressure (vacuum) duty — viewports, comms, lighting; airlock / medical lock for entry and exit at altitude
Vacuum Plant	Redundant pump sets, large-bore piping, rate-control and dump valves; typical training profiles to roughly 25,000–43,000 ft simulated, higher for unmanned test
Rates	Controlled climb and descent to the profile (a few thousand ft/min typical for training), with fine control on descent for ear and sinus equalisation
Life Support	An oxygen console at every seat — demand / pressure-demand regulator, mask, emergency supply — attendant station inside, medical supervision outside
Rapid Decompression	A separate evacuated reservoir and fast-acting large-bore valve snap the chamber to altitude in seconds for the mask-on drill
Control & Monitoring	Instructor console with altitude / rate display, per-seat comms, medical monitoring feed, CCTV, DAQ and event logging
Safety	Interlocks and alarms throughout; emergency repressurisation to ground level in seconds, available at any time from any profile
Equipment Test	Unmanned runs prove oxygen regulators, masks and aeromedical equipment, avionics and components at altitude — the MIL-STD-810 low-pressure / altitude method
Sourcing	The vacuum pumps, medical monitoring equipment and aircrew oxygen equipment are bought-in or customer-furnished specialist items; Neometrix engineers the vessel & lock, integrates the vacuum plant, and builds the rapid-decompression system, oxygen consoles, controls, monitoring & interlocks, then tests & certifies the chamber
Status	Engineered to order · sized to the seats, profiles & duty · grounded in delivered human-rated pressure-chamber, vacuum-chamber & oxygen-system franchises · no specific delivered hypobaric chamber is claimed on this page

PDF · 1 page

Hypobaric Altitude Chamber — Capability Sheet

Tender Response

Send your seats, profiles & duty — compliance matrix in two working days

Variants

One discipline, the chamber you need.

Requirements call it a hypobaric chamber, an altitude chamber, a decompression training facility or an altitude test chamber. The discipline — a human-rated vessel, a controlled vacuum, life support and a safety case — is common; the build follows the duty.

Var · 01

Multi-Seat Training Chamber

The aircrew classroom — seats, oxygen consoles, lock and instructor console, flying hypoxia, pressure-breathing and descent profiles daily.

Var · 02

Rapid-Decompression System

The evacuated reservoir and fast-acting valve that snap the chamber to altitude in seconds — added to a training chamber or built as its own drill station.

Var · 03

Unmanned Altitude Test Chamber

A dedicated equipment chamber — regulators, masks, aeromedical equipment, avionics proved at altitude by the low-pressure method, instrumented and logged.

Var · 04

Refurbishment & Upgrade

An existing chamber given a new vacuum plant, controls, monitoring or oxygen fit — re-tested and re-certified against its duty.

Applications

Where it earns its keep.

Wherever aircrew must know thin air — and equipment must be proved against it.

A · 01Aircrew hypoxia-awareness training

A · 02Rapid-decompression & pressure-breathing drills

A · 03Altitude testing of oxygen & aeromedical equipment

A · 04Avionics & component low-pressure testing

A · 05Physiological research support

A · 06Chamber refurbishment, controls & monitoring upgrades

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What is a hypobaric chamber, and why train aircrew in one?

A hypobaric chamber is a human-rated vessel that is pumped down in pressure, so the people inside experience genuine altitude while standing — or sitting — safely on the ground. The reason for training in one is the nature of hypoxia. As altitude rises, the partial pressure of oxygen falls, and the human brain — the organ most dependent on oxygen — degrades first and quietly: judgment, calculation and self-criticism fade before anything feels wrong, which is precisely why victims so rarely save themselves. Lectures cannot fix that, because the early symptoms differ from person to person — tingling for one, tunnel vision or warmth or wooziness for another. So air forces worldwide run every aircrew member through a controlled hypoxia exposure once: in the chamber, off oxygen for a supervised interval at altitude, each trainee meets their own personal warning signs and then recovers immediately on 100% oxygen. From then on, those symptoms are an alarm bell they recognise in flight. Alongside it the chamber teaches pressure-breathing at high altitude, ear and sinus equalisation on descent, and the rapid-decompression drill — the reflex of getting a mask on in seconds.

Q · 02 How is a human-rated chamber kept safe?

By building the whole machine backwards from one requirement: the people inside must always be one action away from safe air. The decisive feature is emergency repressurisation — dump valves sized so the chamber returns from any altitude to ground-level pressure in seconds, at any time, on one command. Around that sit the layers: an oxygen console at every seat with a demand or pressure-demand regulator, mask and emergency supply, so each trainee is individually supplied; a trained attendant inside the chamber with the trainees; medical supervision outside with a monitoring feed (pulse oximetry and more where specified) on the instructor’s desk; per-seat communications and closed-circuit viewing so every face is watched; an airlock / medical lock so a person can be taken out — or a medic sent in — at altitude without aborting the run for everyone; a redundant vacuum plant so no single pump failure decides anything; and interlocks and alarms across doors, valves and profiles. It is the same safety philosophy as our diving chambers — the direction of the pressure changes, the discipline does not.

Q · 03 How does the rapid-decompression exercise work?

By doing suddenly, and safely, what a failed cabin does dangerously. A second vessel — the reservoir chamber — is pumped down ahead of time to a much higher simulated altitude than the occupied chamber, and the two are separated by a fast-acting large-bore valve. When the instructor triggers the drill, the valve opens and the pressures equalise almost instantly: the occupied chamber jumps to altitude in seconds, with the sudden pressure change, the momentary fog as moisture condenses, and the drop in oxygen that a real decompression delivers. The trainees’ task is the one that matters in the aircraft: mask on, oxygen flowing, confirm the crew beside you — within seconds, before hypoxia begins its quiet work. Because the event is pre-planned, bounded by the reservoir’s volume and pressure, and flown under full supervision with emergency repressurisation armed, the drill delivers the realism without the risk — and it turns the correct response from a briefed procedure into a reflex.

Q · 04 How is this different from your hyperbaric chambers and your thermal vacuum chamber?

Three chambers, three duties — and the differences are exactly the point. Our hyperbaric and saturation diving systems take pressure up: denser air, for divers and recompression, engineered as internal-pressure vessels with life support for people under compression. This hypobaric chamber takes pressure down: thinner air, for aircrew and altitude testing, engineered as an external-pressure (vacuum) vessel — the same human-rated discipline of locks, oxygen, supervision and interlocks, pointed in the opposite direction; we build both. Our thermal vacuum chamber is different again: an unmanned test chamber that pulls a hard vacuum and imposes temperature extremes on hardware to simulate space — as its own page puts it, an altitude chamber only reduces the air pressure, with air still present and people breathing it, while a thermal vacuum chamber removes the air entirely. Human-rated modest vacuum for training and equipment test, versus unmanned hard vacuum for space simulation. One family of vessel, vacuum and control engineering — three distinct machines, and this page is the human-rated altitude member.

Q · 05 Can it test equipment as well as train people?

Yes — that is the second duty of the same physics. Unmanned, a hypobaric chamber is an altitude test facility: the pressure is taken down to the equivalent altitude the specification names, held and profiled, and the equipment inside is operated and measured. The classic subjects are exactly the ones this chamber exists to protect people with: aircrew oxygen regulators, masks and demand systems, portable and emergency oxygen sets, and aeromedical equipment that must work in an unpressurised or decompressed cabin. Beyond life support it serves avionics and components — the low-pressure / altitude method of the environmental-test standards (the MIL-STD-810 family and its Indian equivalents), where hardware must operate, or at least survive, at altitude. A dedicated test chamber can be built smaller, reach higher simulated altitudes than a manned profile ever would, and carry feed-throughs, instrumentation and data logging for the specimen. Training chambers and test chambers are engineered from the same discipline — and a facility can hold both, sharing the vacuum plant.

Q · 06 What do you build, and what is bought-in?

We engineer the chamber as a system, and we are precise about the split. What Neometrix builds is the vessel and lock — designed for external-pressure vacuum duty, fabricated, stiffened, with viewports, doors and seals; the vacuum plant integration — pump sets, large-bore piping, rate-control and dump valves, sized so climb, descent and emergency repressurisation meet the profile; the rapid-decompression system — reservoir vessel and fast-acting valve; the oxygen distribution and per-seat consoles, built to the same oxygen-clean discipline as our medical- and aircraft-oxygen lines; the instructor console, controls, communications, CCTV, DAQ and medical-monitoring integration; the interlocks and alarms; and the testing and certification of the finished chamber — plus refurbishment and upgrade of chambers already in service. What is bought-in or customer-furnished is the specialist equipment inside that scope: the vacuum pumps themselves, the medical monitoring instruments, and the aircrew oxygen regulators, masks and helmets — aircrew equipment, exactly as on our aircraft-oxygen page. The capability rests on franchises we have delivered — human-rated pressure chambers, vacuum chambers and oxygen systems — and it is offered engineered to order: no specific delivered hypobaric chamber is claimed on this page.

↗
