    T-PED-A9163-CRU / Rev 00 / MIL-PRF-27415 · DGAQA-aligned · Make-in-India / Noida · India 2026 · Product Page
    T-PED-A9163-CRU

    MANPADS coolant. Rechargeable in five minutes.

    Indigenous Coolant Recharging Unit for shoulder-fired air-defence missile systems. Boosts source argon to 6,000 psig at 99.998 % purity per MIL-PRF-27415 — the operating gas for the seeker-coolant reservoir of a deployed MANPADS round. Self-contained, field-deployable, single-phase 230 V.

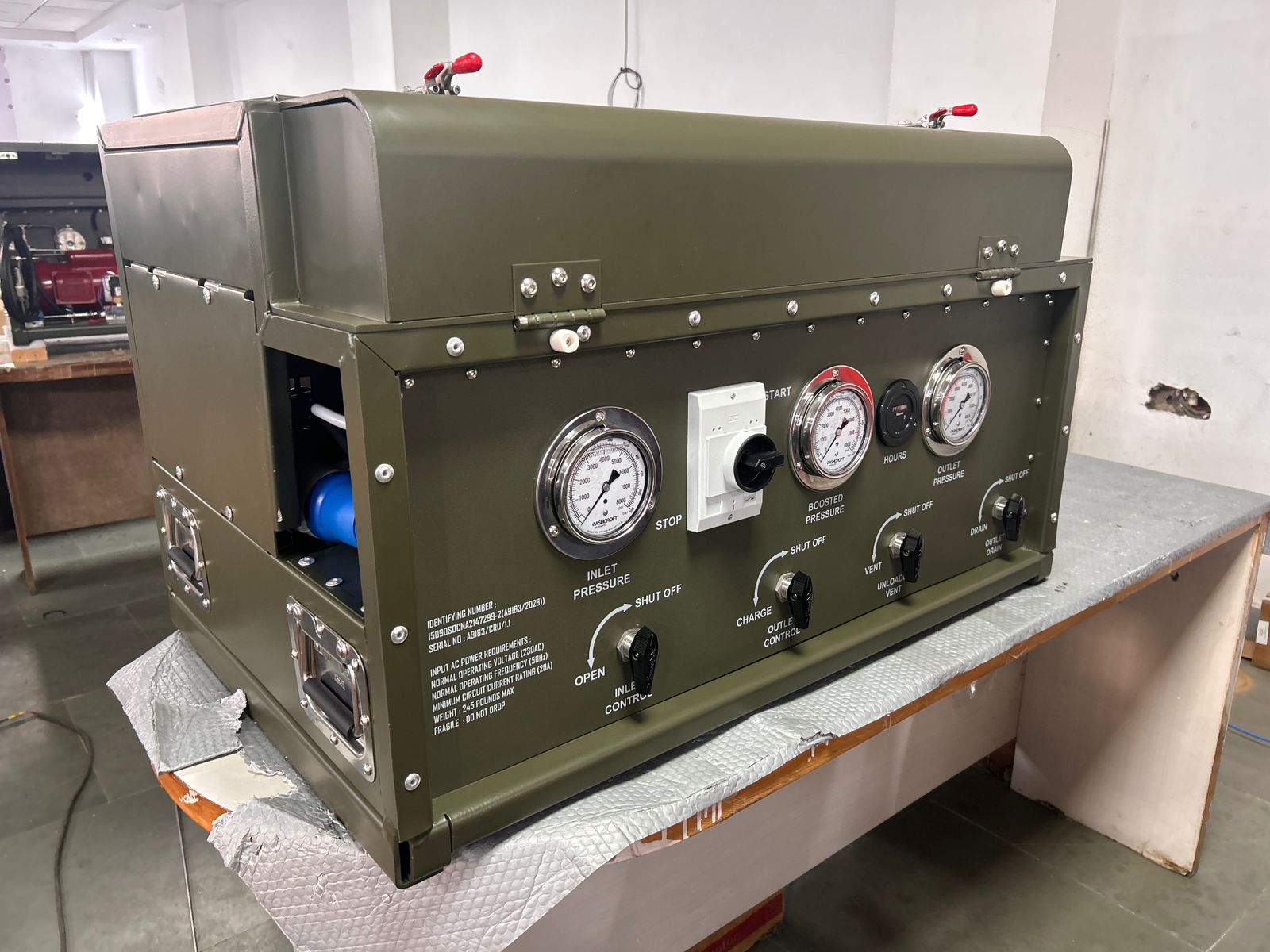

    MANPADS Coolant Recharging Unit — front control panel showing inlet, boosted, and outlet pressure gauges, hour meter, start/stop and four shut-off valves
    Fig · 01 Front control panel — Inlet · Boosted · Outlet pressure stack with cycle-hour meter
    Charge Pres.
    6000psig
    Argon Purity
    99.998%
    Cycle Time
    ~5min
    Weight
    111kg
    Op.Temp
    −10 to 49°C
    00
    Walk-Around

    Eight views. Every panel, every port.

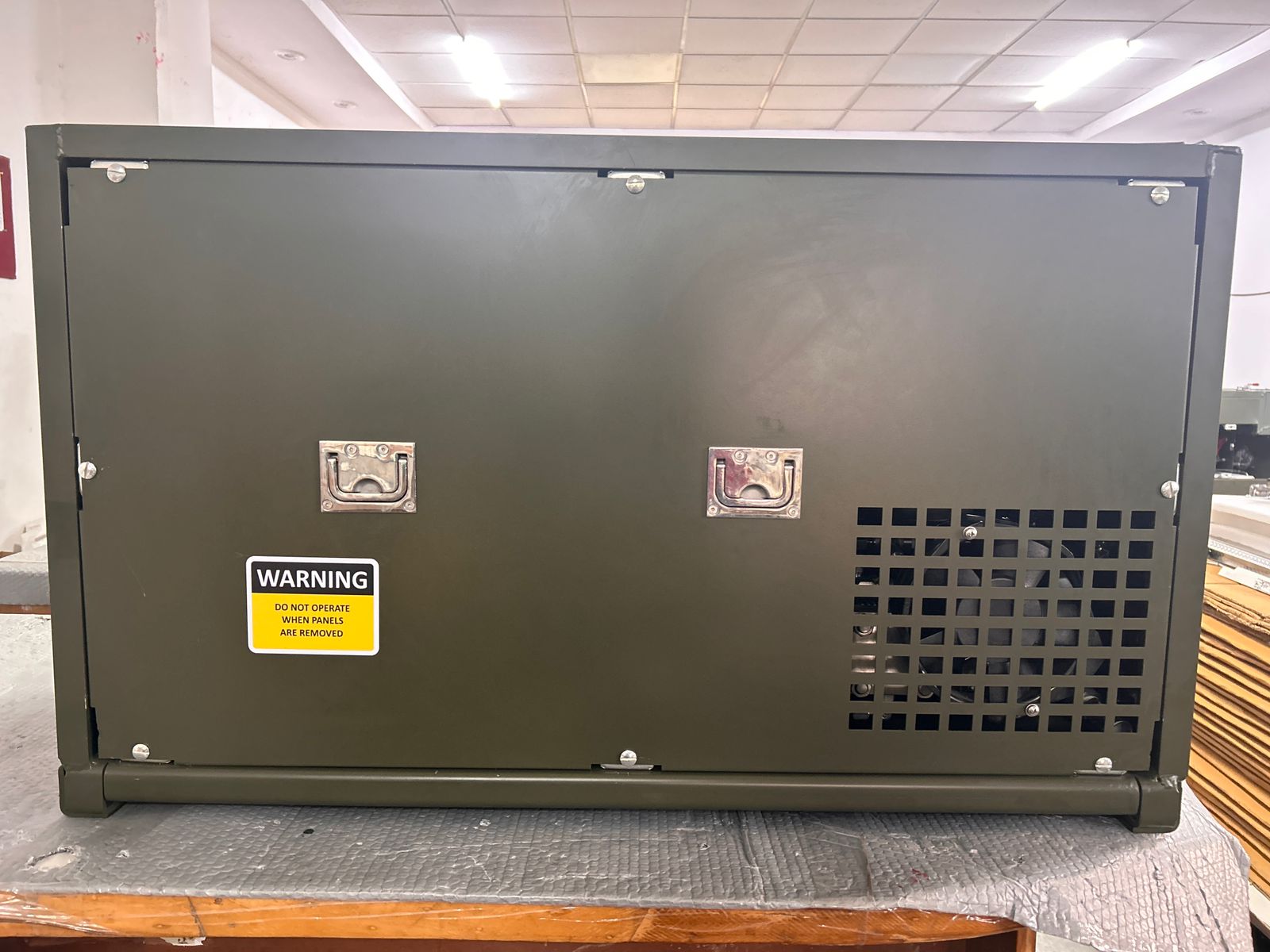

    Front control panel, side power inlet, rear cooling cutouts, top access door with toggle clamps, identifier nameplate, and storage compartment. Navigate with the arrows, jump with the thumbnails, or grab the full GA drawing below.

    01
    Overview

    The cold heart of an IR seeker.

    A shoulder-fired air-defence missile only sees its target through a cooled infrared seeker. The seeker is cooled by argon stored at 6,000 psig in a Coolant Reservoir Assembly (CRA) bolted to the launcher grip. Without a serviceable CRA, the round cannot acquire heat — and the launcher is an inert tube.

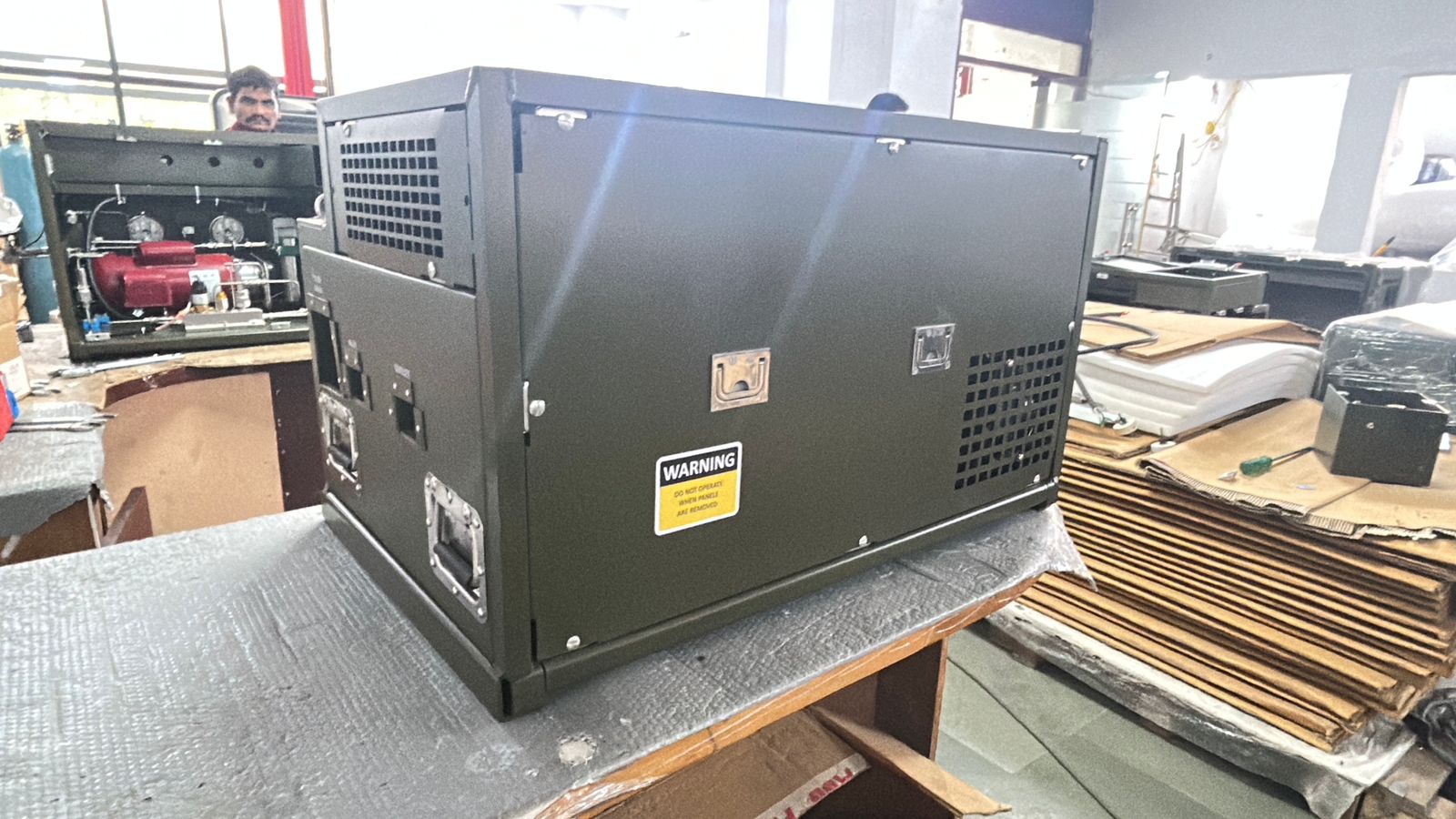

    MANPADS Coolant Recharging Unit — 3/4 angle showing rear cooling vents, side handles, and access panel
    Fig · 02 Three-quarter view — rear cooling cutouts, recessed side handles

    A serviceable Coolant Reservoir Assembly is not "just a bottle." It must hold high-purity argon at 6,000 psig within a tight tolerance window, release it cleanly under JTOL tap-off when the round is fired, and survive magazine storage and field handling without leakage. A CRA that drifts even a few hundred psig in storage is a missile that will not lock on.

    Neometrix's Coolant Recharging Unit is the maintenance-bay tool that puts argon back into a CRA on-spec. It draws from a standard source bottle (CGA-677 at 7,500 psig or BS3-341 at 3,300 psig), filters and boosts the gas through a twin-piston reciprocating pump, and delivers it through a fill-and-bleed Schrader valve into the CRA — with auto-shutoff, relief valve, and rupture disk standing by in case of pressure-switch failure.

    A self-contained argon booster station that takes a depleted CRA back to 6,000 ± 200 psig in roughly five minutes — without any software.

    Built to the operating envelope of TM FMS-CRU-MAINT-13 and qualified for the Indian operating environment (−10 to +49 °C), the platform is fully indigenous under the Make-in-India programme. Field-deployable, single operator, no PLC, no SCADA, no network — the right design for forward deployment, depot maintenance, and training schools.

    02
    Architecture

    Booster, chamber, gauge stack, three layers of safety.

    Welded-square-tube frame with four quarter-turn Southco housing panels. Inside: a twin-piston reciprocating booster on V-belt drive, a vented diffusion chamber that holds the CRA on rotary-draw saddles, a five-instrument gauge panel, and a triple-redundant overpressure stack — switch, relief valve, rupture disk — that guarantees the unit cannot exceed its design pressure even with a single-fault failure.

    MANPADS Coolant Recharging Unit — front elevation with rated nameplate and gauge panel
    Fig · 03 Front elevation · nameplate, three pressure gauges, hour meter, four shut-off levers
    Sub · 01

    Diffusion Chamber

    Welded aluminium plate with two saddle latches and internal vent holes. Holds the CRA fixed during charging; vents safely if the bottle ruptures.

    Sub · 02

    Pneumatic Booster

    Twin opposed reciprocating pistons on V-belt drive from a Leeson 230 V single-phase motor. Boosts source argon to 6,200 psig.

    Sub · 03

    Filtration & Routing

    Two Swagelok 2-µm inline filters — one inlet, one pre-outlet. Trunnion-style ball valves throughout. Stainless check valves prevent backflow.

    Sub · 04

    Triple Safety Stack

    Barksdale switch auto-cuts at 6,000 psig. Aqua Environment relief valve opens at 6,500 psig. Zook rupture disk bursts at 7,200 psig. Three independent layers.

    03
    Interfaces

    Source bottle, CRA, power — all standard.

    Designed to use the gas, fluid, electrical, and mechanical interfaces an armed-forces depot or forward maintenance bay already stocks. Two adapters cover the global source-bottle base; one fill-and-bleed valve mates with the Schrader port on the CRA; one universal pigtail handles the local mains.

    Every interface is a published, off-the-shelf standard — no proprietary couplings, no factory-only adapters. The unit ships with both source-bottle adapters in the storage compartment, the fill-and-bleed valve in its dedicated cradle, and a power pigtail with one moulded NEMA L6-20 socket and an unfinished tail the user terminates to the local plug standard.

    SRC · CGA-677

    High-Pressure Source Bottle

    Compressed Gas Association 677 adapter for source bottles rated to 7,500 psig (519 bar). Standard NATO depot stock.

    Argon · 519 bar bottle
    SRC · BS3-341

    Standard-Pressure Source Bottle

    British Standard 3-341 adapter for source bottles rated to 3,300 psig (230 bar). Common in Indian Defence stock.

    Argon · 230 bar bottle
    GAS · MIL-PRF-27415

    Type 1 Grade A Argon

    99.998% pure argon. Matches the original-equipment specification for shoulder-fired air-defence missile coolant systems.

    Type 1 · Grade A
    UUT · CRA Schrader

    Coolant Reservoir Assembly

    Mates the Schrader fill-and-bleed valve to the CRA fill port. Torque-spec covers (36 ± 12 in-lb) and vent screws (7 ± 1 in-lb).

    Schrader · 122 cu in CRA
    PWR · NEMA L6-20

    Single-Phase Mains

    230 ± 10% VAC, 50 Hz, 15 A min. Power adapter cord supplied with unfinished tail for local termination.

    230 V · 50 Hz · 15 A
    ENV · MIL handling

    Field & Depot Use

    Operating −10 to +49 °C, storage −34 to +68 °C. Reusable shipping/storage container included for transit.

    Operating · Storage
    04
    Operating Sequence

    Six phases. One cycle. From source bottle to charged CRA.

    The recharge cycle from start to end — purge, charge, auto-shutoff, cool-down, top-off, drain. Each phase carries a defined gauge profile and set-point. The schematic curves are indicative, not measured data; the procedure follows TM FMS-CRU-MAINT-13 and the on-board nameplate.

    P · 01 Pre-charge

    Purge the source line.

    Open the source-bottle valve briefly to vent any air or moisture trapped in the inlet hose. The HP outlet hose is purged in the same sweep. Three seconds, point upward into a clean area, then shut off.

    • INLET CONTROL → OPEN, OUTLET CONTROL → CHARGE for ~3 seconds
    • Argon flow through both ports clears entrained air without warming the booster
    • Both valves returned to SHUTOFF before the CRA is loaded
    80006000400020000 0s3s10s30s TIME psig ~1500 psig (source)
    Inlet hose purge profile · brief vent through source-bottle pressure
    P · 02 Active

    Booster charges the CRA.

    CRA seated in the diffusion chamber on its saddle latches; door clamped. Source bottle open, outlet to CHARGE, START switched. The Leeson motor drives the twin-piston booster on V-belt; argon climbs the boosted-pressure gauge against a smooth ramp.

    • OUTLET CONTROL → CHARGE, START/STOP → START
    • Twin opposed reciprocating pistons compress source argon to 6,200 psig
    • Boosted-pressure gauge climbs steadily; outlet gauge tracks CRA fill
    80006000400020000 012345 min TIME · MINUTES psig 6000 psig set-point
    Outlet pressure ramp · booster active, CRA filling
    P · 03 Set-point

    Pressure switch trips at 6,000 psig.

    The Barksdale switch on the boosted line auto-cuts the motor at 6,000 ± 120 psig with a 10% deadband. If the switch fails closed and the booster runs through, the relief valve opens at 6,500 ± 325 psig and vents to atmosphere. If both fail, the rupture disk bursts at 7,200 +6%/−3% psig.

    • Primary cut-off: Barksdale pressure switch · 6,000 psig · ±2% FS
    • Secondary: Aqua Environment relief valve · 6,500 psig open · ~8,500 psig blow-out
    • Tertiary: Zook rupture disk · 7,200 psig · single-use, replaced after burst
    • If auto-shutoff misses, manual STOP at 6,200 psig per SOP
    80006000400020000 psig 7200 disk 6500 relief 6000 switch cut-off
    Three-tier overpressure stack · switch · relief · rupture disk
    P · 04 Hold

    Five minutes for thermal equalisation.

    Compressed argon is hot. As the CRA cools to ambient, internal pressure falls — expected, not a leak. SOP requires a five-minute hold before any judgement on charge state, after which the CRA may be topped off if pressure has decreased.

    • CRA stays in the diffusion chamber, door clamped, no operator intervention
    • Outlet pressure gauge typically settles slightly below set-point as gas cools
    • Operator removes the round only after the temperature window confirms ambient
    80006000400020000 012345 min COOL-DOWN · MINUTES psig 6000 set-pt ~5400 psig (cool)
    Outlet pressure droop during thermal equalisation · 5-minute mandatory hold
    P · 05 Optional

    Top-off after thermal contraction.

    If the cooled CRA reads under set-point, top off in a short cycle. The unloader-vent valve releases pre-existing pressure between booster and molecular sieve filter so the booster restarts under nominal load — protecting the V-belt drive train.

    • UNLOADER VENT → VENT until boosted gauge reads <3,500 psig, then SHUTOFF
    • START the booster again; it picks up where it stopped without a hard load spike
    • Auto-shutoff fires again at 6,000 psig as in Phase 02
    80006000400020000 psig cooled CRA vent → restart
    Unloader-vent dip then short top-off ramp · protects V-belt drive on restart
    P · 06 Shutdown

    Drain and safe-state.

    CRA removed, fill-port cover torqued (36 ± 12 in-lb), vent-screw tightened (7 ± 1 in-lb). The system is depressurised section-by-section: source bottle closed first, then unloader vent drops the booster line to 1,500–2,000 psig, then outlet drain bleeds the fill hose. The unit ends in a known dry, non-pressurised state.

    • Source bottle valve closed first — isolate before vent
    • UNLOADER VENT → VENT to bleed booster section to 1,500–2,000 psig
    • OUTLET DRAIN → DRAIN to bleed fill hose to atmosphere
    • All four levers ↑ SHUTOFF, motor OFF, power cord disconnected
    80006000400020000 close srcventdrainsafe psig
    Three-step depressurisation · source ▸ booster vent ▸ outlet drain
    05
    Field-Ready

    Five gauges. Four levers. No software.

    Every control on a single front panel. Three pressure gauges read the line states, an hour meter tracks service intervals, a single rotary switch starts and stops the booster, and four shut-off levers pin every flow path to a known state. No PLC. No HMI. No firmware to ship updates to.

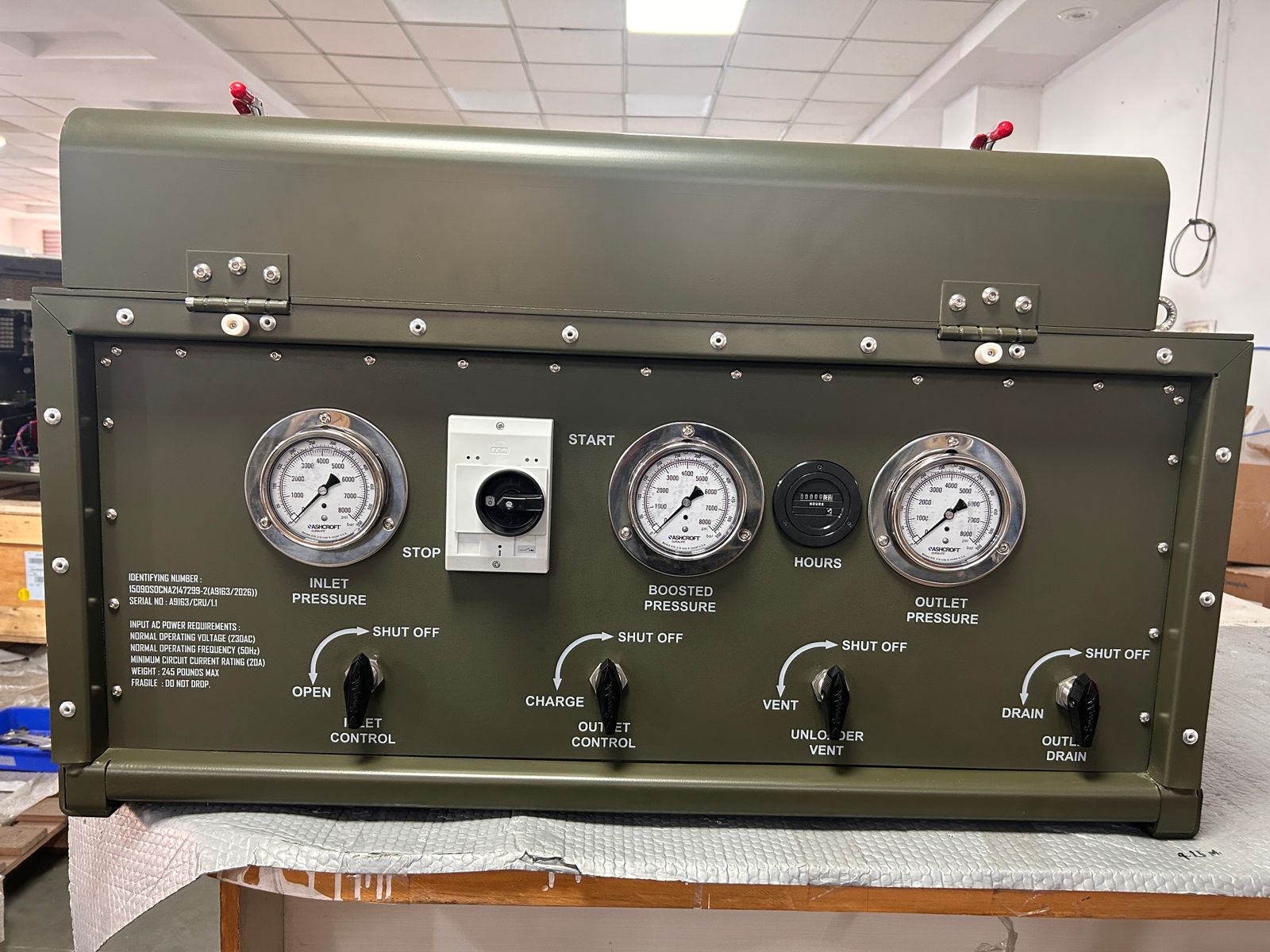

    MANPADS CRU front panel — three 3D-Instruments pressure gauges, hour meter, START/STOP rotary switch, and four shut-off levers (INLET CONTROL, OUTLET CONTROL, UNLOADER VENT, OUTLET DRAIN)
    Fig · 04 Control panel detail · Inlet · Boosted · Outlet pressure gauges, hour meter, START/STOP, and four shut-off levers

    Three 3D-Instruments pressure gauges sit across the panel, each 0–8,000 psig and accurate to ±1% of full scale: Inlet Pressure, Boosted Pressure, Outlet Pressure. With those three readings an experienced operator can diagnose the system — a low boosted reading means filter or booster trouble; a creeping outlet means a stuck check valve.

    An hour meter logs running time for service intervals (filter change, V-belt inspection, pressure-switch verification). A rotary START/STOP switch drives the motor through its built-in circuit breaker. Each of the four lever valves — INLET CONTROL, OUTLET CONTROL, UNLOADER VENT, OUTLET DRAIN — clicks into a labelled position with no ambiguity about state.

    • Three pressure gauges · 0–8,000 psig · ±1% FS · 3D Instruments
    • Hour meter · service-interval scheduling for booster, V-belt, filters
    • Single rotary START/STOP · built-in circuit breaker, manual reset
    • Four 1/4-turn ball valves · Swagelok, two-position, hard-stop labels
    • No firmware, no PLC, no SCADA, no network — nothing to update or patch
    • 12-month standard warranty, AMC available for long-term depot support
    06
    Watch

    The unit on the bench.

    Walk-around video from the Noida facility — finished unit with olive-drab finish, side handles, hinged top access door, and the full front control panel under inspection lighting. Factory-acceptance demonstration available on request.

    MANPADS CRU detail — top access door with toggle clamps and warning decal
    07
    General Arrangement

    The build, drawn out.

    Two drawings define the unit on the manufacturing floor: T-PED-A9163-CRU GA (the assembled-product general arrangement, A3, with overall dimensions and control-panel mimic) and T-PED-CRU-FRAME (the welded 25 × 25 mm square-pipe frame that anchors every subsystem). Below: the GA hero, the frame elevation trio, and the bill of overall dimensions.

    DWG No. T-PED-A9163-CRU
    Revision REV 00
    Charge Pressure 6,000 psig
    Sheet Size A3 · NTS
    General arrangement drawing of the MANPADS Coolant Recharging Unit showing diffusion chamber, pneumatic booster, control panel mimic, and storage compartment
    Frame top view (plan) — 952.5 × 421.5 mm welded 25×25 mm square-pipe weldment with internal cross-bracing
    Plan (Top view)

    952.5 × 421.5 mm footprint. Welded 25 × 25 mm square pipe. Internal cross-bracing carries the diffusion chamber, the booster sub-frame, and the gauge-panel sub-frame.

    FIG · 07bPlan · NTS
    Frame front elevation — 952.5 × 571.5 mm overall, control panel cutout 460 × 175 mm, recessed-handle locations on side
    Front elevation

    952.5 × 571.5 mm. Control-panel cutout 460 × 175 mm at upper centre. Recessed side-handle locations frame the access-panel zone for two-person carry.

    FIG · 07cElev · NTS

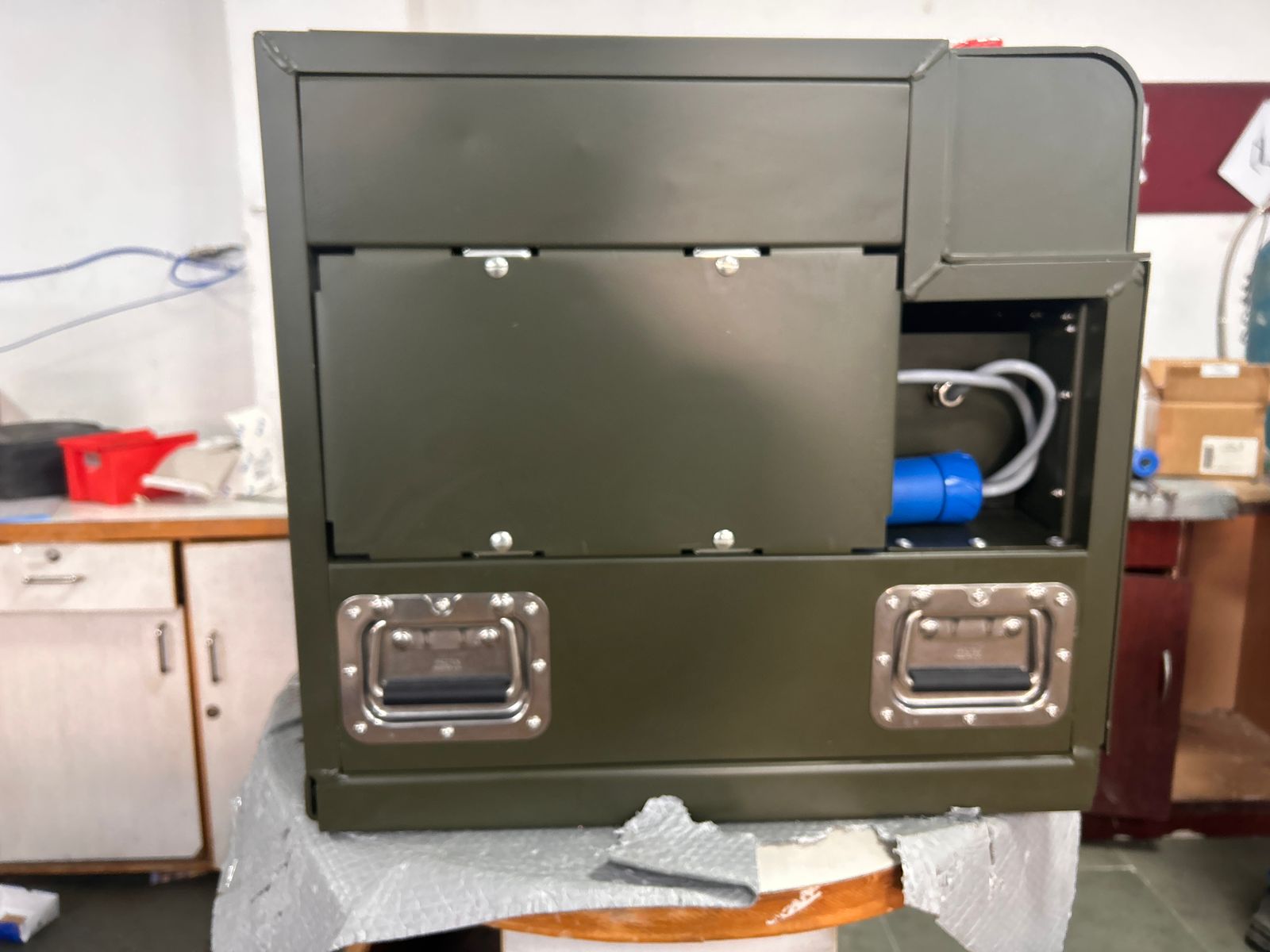

    Frame side elevation — 421.5 × 571.5 mm with diffusion-chamber subframe and bottom storage-compartment volume marked
    Side elevation

    421.5 × 571.5 mm profile. Diffusion-chamber sub-frame mounts in the upper half; the bottom volume contains the booster, motor, and storage compartment.

    FIG · 07dElev · NTS
    952.5 mm
    Length
    421.5 mm
    Depth
    571.5 mm
    Height
    25 mm
    Frame square pipe
    111 kg
    Dry weight
    08
    Downloads

    Drawings, datasheet, & the full SOP.

    General arrangement, frame weldment, and the operating SOP referenced as TM FMS-CRU-MAINT-13. Each is suitable for procurement review, depot training, and technical pre-screening.

    09
    Specifications

    Reference data.

    Reference values for a typical unit. Customer-specific options — nameplate markings, source-bottle adapter mix, depot-spares package, language-localised SOP, AMC scope — are confirmed during the design-review stage before manufacturing begins.

    System TypeArgon-boost Coolant Recharging Unit (CRU)
    DesignationT-PED-A9163-CRU
    Operating GasArgon · MIL-PRF-27415 type 1 grade A · 99.998% pure
    Charge Pressure6,000 ± 200 psig (41,368 ± 1,379 kPa)
    Input Pressure Range1,000 – 6,000 ± 200 psig
    Source-Bottle AdaptersCGA-677 (7,500 psig / 519 bar) · BS3-341 (3,300 psig / 230 bar)
    Pressure Switch Cut-off6,000 ± 120 psig (Barksdale, ±2% FS, 10% deadband)
    Relief ValveOpens 6,500 ± 325 psig · blow-out poppet ~8,500 psig (Aqua Environment)
    Rupture DiskBursts 7,200 +6%/-3% psig (Zook, single-use)
    Filtration2 × Swagelok 2-µm inline (inlet + pre-outlet) · molecular sieve filter
    Pump3D Instruments twin opposed reciprocating piston booster, V-belt drive
    MotorLeeson 230 VAC single-phase, with built-in resettable circuit breaker
    Electrical Supply230 ± 10% VAC, 50 Hz, single-phase, 15 A min
    Power PlugNEMA L6-20 socket on factory cord; user adapter cord with unfinished tail
    Pressure Gauges3 × 3D Instruments 0–8,000 psig, ±1% FS (Inlet, Boosted, Outlet)
    Control Valves4 × Swagelok 2-way trunnion ball, 1/4-turn (INLET, OUTLET, UNLOADER VENT, OUTLET DRAIN)
    Hour MeterFront-panel mechanical hour counter for service intervals
    Diffusion ChamberWelded aluminium plate with rotary draw latches and internal vent holes
    Door Latches2 × over-centre pull clamps (GN 851.3-160-T6-A4 stainless)
    Housing Panels4 × aluminium access panels (top, rear, L, R) with Southco quarter-turn fasteners
    FrameWelded 25 × 25 mm square aluminium tubing
    Operating Temperature+14 °F to +120 °F (-10 °C to +49 °C)
    Storage Temperature-29 °F to +155 °F (-34 °C to +68 °C)
    Dimensions (L × D × H)952.5 × 421.5 × 571.5 mm (37.5 × 24 × 22.5 in)
    Dry Weight111 kg (245 lb) max, fully assembled with accessories
    Cycle Time~5 minutes from purge to charged + cool
    Shipping ContainerReusable, 127 × 102 × 102 cm, 62.6 kg empty
    ComplianceMIL-PRF-27415 alignment · DGAQA-aligned · Make-in-India
    10
    Applications

    Where it runs.

    Air-defence units holding shoulder-fired missiles, depot-level maintenance bays, training schools, ammunition workshops, and field-deployable maintenance teams. Wherever a Coolant Reservoir Assembly needs to come back to a known charge state.

    A · 01Routine recharge of MANPADS Coolant Reservoir Assemblies in unit armouries
    A · 02Pre-firing CRA top-up at deployed launcher positions and forward sites
    A · 03Depot-level periodic maintenance and shelf-life pressure checks
    A · 04Air-defence training schools — recharge consumed CRAs after live exercises
    A · 05Ammunition workshops servicing missile coolant subsystems and IR seekers
    A · 06Naval ship-board armouries holding short-range air-defence rounds
    A · 07Coast-guard and special-forces maintenance bays with limited footprint
    A · 08Static and mobile maintenance bays under extreme-temperature deployment
    A · 09Functional Test Set (FTS) integration at depot-level test cells
    A · 10Indigenous IR-seeker development & coolant-subsystem qualification
    A · 11Adjacent argon-charge applications (laser systems, instrument-grade purge)
    A · 12Foreign-military-sales replacements where original-equipment CRUs are unavailable
    11
    In Depth

    The complete technical read.

    Full prose from the engineering team — for buyers and engineers who want the complete picture before the design-review meeting. Roughly a 12-minute read.

    Introduction

    A shoulder-fired air-defence missile only sees its target through a cooled infrared seeker. The seeker stares at a hot target against a cool background; for that contrast to be detectable, the seeker's detector element must itself be held cold. In the operational round, that cooling is provided by a small, high-pressure argon Coolant Reservoir Assembly (CRA) bolted to the launcher grip stock. The CRA is a finite resource: each launch consumes one charge, and stored CRAs can drift below the acceptable charge window over months in magazine.

    The Coolant Recharging Unit (CRU) is the maintenance-bay tool that puts argon back into a CRA on-spec. Neometrix's CRU is an indigenous build under the Make-in-India programme, designed to the operating envelope of the canonical TM FMS-CRU-MAINT-13 reference and qualified for the Indian operating environment. It is a self-contained argon booster station: source bottle in, filtered + boosted argon out, with three independent layers of overpressure protection and a single-operator front panel.

    What this machine is designed to recharge

    The Coolant Reservoir Assembly (CRA)

    • 30-inch length, 3-inch diameter, 122 cubic-inch internal volume
    • Filled charge weight ~ 4.8 kg; empty ~ 3.9 kg
    • Working charge: 6,000 ± 200 psig argon at 99.998% purity
    • Blow-out plug setting: 9,000 ± 1,000 psig at 21–24 °C

    The CRA presents a Schrader-style fill-and-bleed port at one end. The CRU's fill-and-bleed valve mates to that port through the diffusion-chamber access hole; the bleed action allows operators to relieve residual pressure before removing the cover. Cover-torque (36 ± 12 in-lb) and vent-screw torque (7 ± 1 in-lb) are both specified by the SOP — under or over-tightening either is a known cause of seal failure in service.

    Source-bottle compatibility

    The CRU works from any clean, dry argon source within the 1,000–6,000 psig input range. Two adapters ship in the storage compartment to cover the global base of source bottles: a CGA-677 adapter for high-pressure bottles rated to 7,500 psig (519 bar) per Compressed Gas Association practice, and a BS3-341 adapter for standard-pressure bottles rated to 3,300 psig (230 bar) per the British Standard most common in Indian-defence stock. Either adapter mates source-side with no thread-sealant and no field-fitting.

    Core operating capability

    The unit is not a multi-mode test stand — it is a single-purpose argon booster. The recharge cycle is six phases: purge (briefly vent the inlet hose), charge (boosted ramp to 6,000 psig with auto-shutoff), cool (mandatory five-minute hold for thermal equalisation), top-off if needed, drain (controlled section-by-section depressurisation), and shutdown. A trained operator completes a full cycle in roughly five minutes per CRA — the rate-limiter is the cool-down hold, not the booster.

    System architecture

    1. Pneumatic booster & fluid path

    At the heart of the unit is a 3D Instruments twin-piston reciprocating booster, V-belt driven from a Leeson 230 V single-phase motor. Two opposed pistons compress the inlet argon up to 6,200 psig with smooth, balanced reciprocation; stainless steel check valves in the upper and lower cylinder heads prevent backflow. Two Swagelok 2-µm inline filters bracket the flow path — one immediately after the inlet check valve, one before the outlet port — with a molecular sieve in series for moisture and hydrocarbon polish.

    2. Diffusion chamber & CRA fixturing

    The diffusion chamber is welded aluminium plate. The CRA sits on two saddles and is locked by rotary draw latches in the chamber base; two over-centre pull clamps secure the chamber door during operation. Vent holes in the internal-facing wall allow rapid dissipation of any sudden gas release inside the chamber, isolating the operator from a pressure event.

    3. Three-tier overpressure stack

    The system never operates above its design pressure even with a single failure in the primary cut-off chain. A Barksdale pressure switch is the primary cut-off: it auto-cuts power to the motor at 6,000 psig, with an adjustable sleeve and a roughly 10% deadband — so once cut-off occurs, the switch will not reset until pressure drops about 10% below set-point. If that switch fails closed, an Aqua Environment relief valve opens and vents to atmosphere at 6,500 ± 325 psig, with a poppet that blows fully open at approximately 8,500 psig as a backstop. If both fail, a Zook rupture disk bursts within a 7,200 +6%/-3% psig window — a single-use element that must be replaced before next operation.

    4. Operator interface

    Five gauges and four levers across one front panel. Three pressure gauges read Inlet, Boosted, and Outlet line states. An hour meter logs run-time for the filter, V-belt, and pressure-switch service intervals. A rotary START/STOP switch drives the motor through the integrated circuit breaker. Four ball valves — INLET CONTROL, OUTLET CONTROL, UNLOADER VENT, OUTLET DRAIN — click into labelled hard-stop positions with no ambiguity about state. No software, no SCADA, no firmware updates — nothing to patch.

    Depot, school, and forward-bay use

    Ideal where simple, robust, single-operator operation matters more than throughput. A depot-level workshop can recharge a steady stream of returned CRAs against archived inspection cards. A training school can recharge after live exercises so the next intake works with on-spec rounds. A forward maintenance bay can position a single unit and a source bottle inside a 20-foot ISO container for mobile deployment. The unit's reusable shipping & storage container (62.6 kg empty) is sized for transit on a standard aviation pallet.

    Target users

    UserUse case
    Indian Army · Air-Defence unitsRoutine recharge of stocked CRAs at unit armouries; pre-firing top-up at deployed launcher positions
    Indian Air Force · Air-Defence SquadronsForward-base maintenance bays for shoulder-fired air-defence rounds
    Indian Navy · Ship-board armouriesOnboard recharge of MANPADS rounds carried by VBSS / boarding parties
    Coast Guard · Patrol basesRecharge of short-range air-defence rounds at coastal and offshore stations
    Special-Forces unitsCompact, single-operator, low-signature recharge in field maintenance bays
    Training SchoolsPost-exercise recharge of training CRAs in air-defence schools
    Defence PSUs & OFBFunctional Test Set integration at depot-level test cells
    DRDO & ToT partnersIndigenous IR-seeker development & coolant-subsystem qualification
    Foreign Military Sales (friendly countries)Drop-in recharge unit where original-equipment CRUs are unavailable or out-of-life

    Competitive advantages

    • Indigenous — complete Make-in-India build; no ITAR or end-use-certificate exposure
    • Field-deployable — 111 kg dry, single-phase 230 V, no SCADA, no network
    • Triple safety stack — pressure switch + relief valve + rupture disk, three independent layers
    • Standard interfaces — CGA-677 + BS3-341 cover the global source-bottle base
    • Five-minute cycle time — cool-down hold is the rate-limiter, not the booster
    • Aligned to MIL-PRF-27415 — 99.998% argon purity, 6,000 ± 200 psig charge window
    • Built to TM FMS-CRU-MAINT-13 envelope — reverse-engineered, indigenous, qualified for Indian climate
    • 20+ years defence domain expertise — DGAQA-aligned design, manufacturing, and acceptance
    • Turnkey — design, manufacture, FAT, commissioning, operator training, AMC under one vendor
    12
    FAQ

    Questions, answered plainly.

    Q · 01 What charge pressure and gas does the unit deliver?
    6,000 ± 200 psig of argon at 99.998% purity, per MIL-PRF-27415, type 1, grade A. The pressure switch auto-cuts the motor at set-point; manual cut-off backup is at 6,200 psig per SOP.
    Q · 02 Which Coolant Reservoir Assemblies (CRAs) does it work with?
    Designed for the canonical 122-cubic-inch CRA used by shoulder-fired air-defence missile coolant subsystems — 30-inch length, 3-inch diameter, Schrader fill-and-bleed port, 6,000 psig working charge. Fixture and chamber tooling can be adapted for adjacent CRA geometries on request.
    Q · 03 What source bottles does it accept?
    Two adapters ship with the unit: CGA-677 for 7,500-psig (519-bar) high-pressure bottles, and BS3-341 for 3,300-psig (230-bar) standard-pressure bottles. Inlet pressure range is 1,000–6,000 psig.
    Q · 04 How long does one CRA recharge take?
    Roughly five minutes per cycle. The rate-limiter is the mandatory five-minute thermal-equalisation hold after charge — not the booster's compression speed. A trained single operator can sustain that cadence indefinitely.
    Q · 05 What are the safety mechanisms?
    Three independent overpressure layers. Primary: Barksdale pressure switch auto-cuts the motor at 6,000 psig. Secondary: Aqua Environment relief valve opens at 6,500 ± 325 psig. Tertiary: Zook rupture disk bursts at 7,200 psig. The diffusion chamber also vents internally if the CRA itself ruptures, isolating the operator.
    Q · 06 What's the electrical requirement?
    230 ± 10% VAC, 50 Hz, single-phase, 15 A min. The factory cord ends in a NEMA L6-20 socket; an adapter cord with one end already mated to L6-20 and an unfinished tail is included so the user can terminate the local plug standard.
    Q · 07 Is it field-deployable?
    Yes. 111 kg dry, with two recessed stainless side handles for two-person carry. Operating range −10 to +49 °C, storage −34 to +68 °C. A reusable shipping & storage container (127 × 102 × 102 cm, 62.6 kg empty) is supplied for transit, and the unit fits inside a standard 20-foot ISO container with the source bottle.
    Q · 08 Does it need PLC, SCADA, or any software?
    No. The unit is purely electromechanical — rotary switch, lever valves, gauges, hour meter. No PLC, no firmware, no network connection, nothing to update or patch. This is a deliberate design choice for forward-deployment robustness.
    Q · 09 What certifications does it carry?
    Built under DGAQA-aligned quality systems with full Make-in-India indigenous content. Aligned to MIL-PRF-27415 for the operating gas. Acceptance test, factory inspection, and documentation pack are supplied per customer requirement.
    Q · 10 What about installation, commissioning, and training?
    Turnkey. Factory Acceptance Test at our Noida facility, on-site commissioning, single-operator training, spares package, and AMC available for long-term depot support.
    Q · 11 Lead time and pricing?
    Lead time and price are project-specific, driven by quantity, customised marking, end-use documentation, and AMC scope. We provide a detailed project timeline and quotation after understanding your deployment plan.
    Get in touch

    Tell us the deployment. We deliver the unit.

    Share quantity, deployment mix (depot vs forward-bay), end-use country, and documentation requirements. Our engineering team returns a technical proposal within five working days, with a fixed delivery date, FAT plan, and DGAQA-aligned documentation package.

    Factory
    E-148, Sector-63
    Noida, Delhi-NCR 201301, India
    Sales
    +91 7777 876 876
    Alt
    +91 (0120) 4500-800
    Email
    [email protected]
    Hours
    Mon–Sat · 08:30–17:30 IST
    T-PED-A9163-CRU · Product Page · Rev 00 © Neometrix Defence Ltd · Noida IN Make-in-India · MIL-PRF-27415 aligned · DGAQA-aligned

    Similar Products

    Share This Page

    Engineered To Standards Used In UK, NATO & U.S. Defence Procurement
    DEF STAN (UK MoD)
    NATO STANAG
    RTCA/EUROCAE DO-160
    MIL-SPEC / MIL-STD
    Address
    E-148, Sector-63, Noida, Delhi-NCR, India
    Phone
    Email
    Working Hours
    8:30 AM – 5:30 PM  ·  Mon – Sat
    move to top arrow
