Six Clamp Perfect Binding Machine, throughput proven to 2,500 books/hr.

Product overview

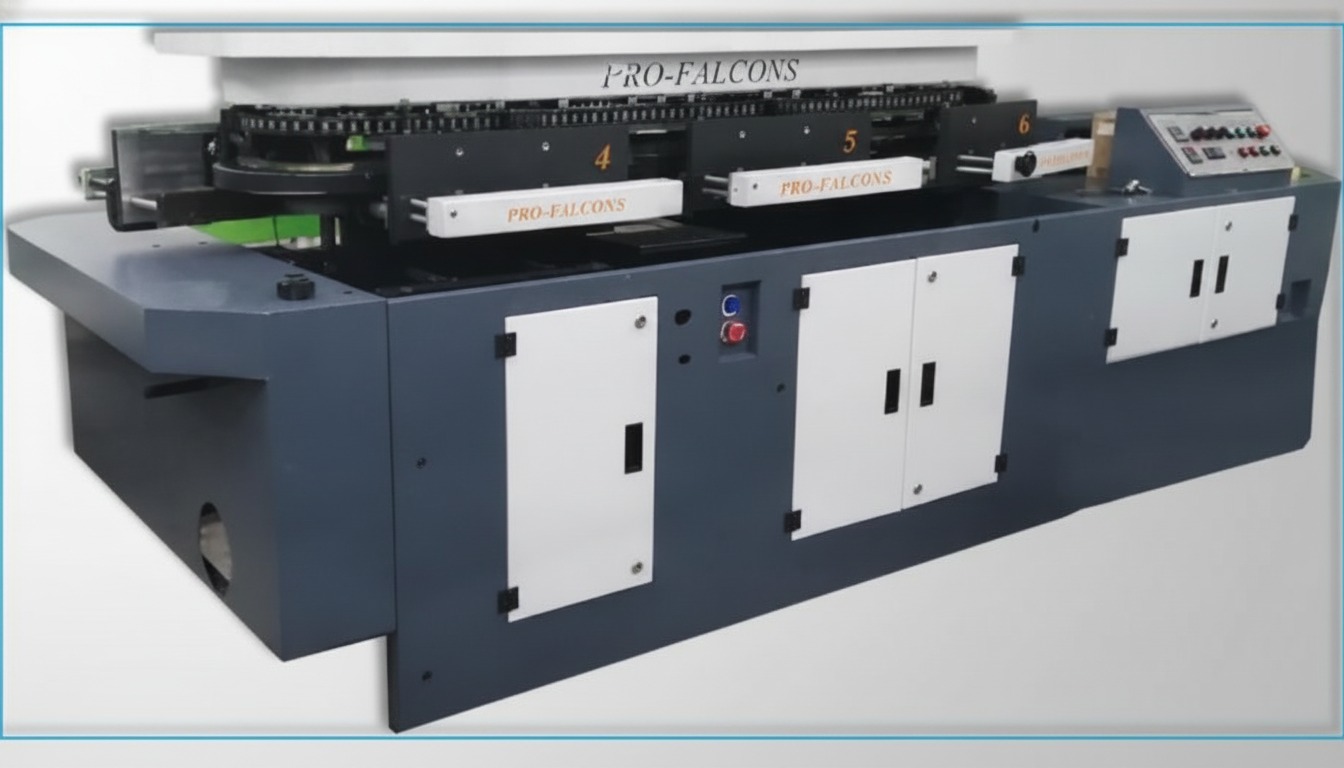

The Neometrix Six Clamp Perfect Binding Machine is a continuous-cycle book-finishing system in which six book clamps travel an oval-shaped path, carrying each book block through milling, hot-melt gluing, cover feeding, creasing and nipping stations in a single pass. The spine stays in line with every binding station throughout the cycle, which is what gives the line its "perfect binding" name — consistent spine preparation and gluing from the first book to the last.

Line stations

• Milling Station: A strip-type milling cutter roughens the spine for adhesive keying, with a separate waste exhaust system to keep milling debris clear of the line.
• Gluing Station: A hot-melt gluing system with two forward rollers and one heated reverse roller applies consistent, high-quality adhesive coverage across the spine.
• Cut-Off Station: Calibrated head-and-tail cut-offs trim glue application precisely to avoid adhesive squeeze-out onto the book block.
• Cover Feed & Creasing: An online creasing attachment with auto cover feed applies covers and creases them in line with the binding cycle; an optional feeder tray supports manual feeding of gate-folded covers.
• Nipping & Delivery: A moving-type cam nipping system ensures accurate cover registration before a chute delivery system, with built-in safety interlocks, discharges the finished book.

Technical specifications

• Clamp Count: 6 clamps travelling a continuous oval path
• Book Size Range: 150 × 100 mm to 440 × 270 mm
• Cover Size Range: 150 × 250 mm to 440 × 650 mm
• Spine Thickness: 3–50 mm; Milling Depth: 0.1–3.0 mm
• Stock Range: Paper 48–170 GSM, Wrapper/cover 90–300 GSM
• Mechanical Speed: Up to 2,500 cycles/hr; Max. pile height 100 mm
• Drive: 9.5 kW motor, 3-Phase, 415 V
• Footprint & Weight: 10.5 Ft × 4.6 Ft × 4.1 Ft; 2.5 Tons

Operation & workflow

• Clamping: Book blocks are loaded into clamps as they enter the oval path; the 'no book–no cover' interlock keeps flow continuous and error-free.
• Spine Preparation: Each block passes the milling station, then the hot-melt gluing station with calibrated cut-offs.
• Cover Application: Covers are auto-fed and creased online, or manually fed via the optional gate-fold tray, then wrapped and nipped.
• Delivery: Finished books discharge via the chute delivery system with built-in safety interlocks.

Applications

• Book Publishing: Perfect binding of paperbacks, novels and trade books at production volume.
• Textbook & Educational Publishing: Consistent spine quality across large print runs of course books.
• Commercial Print Finishing: Job-work binding for third-party print orders and catalogs.
• On-Demand & Short-Run Printing: Quick changeover between book and cover sizes within the rated range.
• Magazine & Catalog Binding: Hot-melt spine binding for thicker periodicals and directories.
• Document & Manual Binding: Perfect-bound operating manuals, reports and bound documentation sets.

Build & safety

Construction: Height- and pressure-adjustable ram accommodates varying book-block thickness; robust frame supports continuous multi-shift operation.

Safety Interlocks: The 'no book–no cover' clamp-flow interlock and the chute delivery system's built-in safety interlocks protect operators and product quality during continuous running.

Perfect binding in print finishing practice

Perfect binding remains the standard finishing method for paperbacks, textbooks, catalogs and manuals wherever a flat, printable spine is required. A six-clamp oval-path perfect binding machine brings milling, hot-melt gluing, cover feeding, creasing and nipping into one continuous line, removing the handoffs and queue time that a multi-machine finishing room otherwise carries between stations.

Book binding machine manufacturers increasingly integrate online creasing and calibrated cut-off systems directly into the clamp line, so that cover registration and adhesive control stay consistent from the first book of a shift to the last — a key requirement for publishers and commercial print finishing houses running multi-shift production.

Conclusion

By combining six continuously travelling clamps, a hot-melt gluing station, online creasing and cam-based nipping in a single oval-path line, the Neometrix Six Clamp Perfect Binding Machine removes manual handoffs from the perfect binding process and holds spine and cover registration quality steady across long production runs — making it a practical choice for publishers, textbook producers and commercial print finishing houses.
