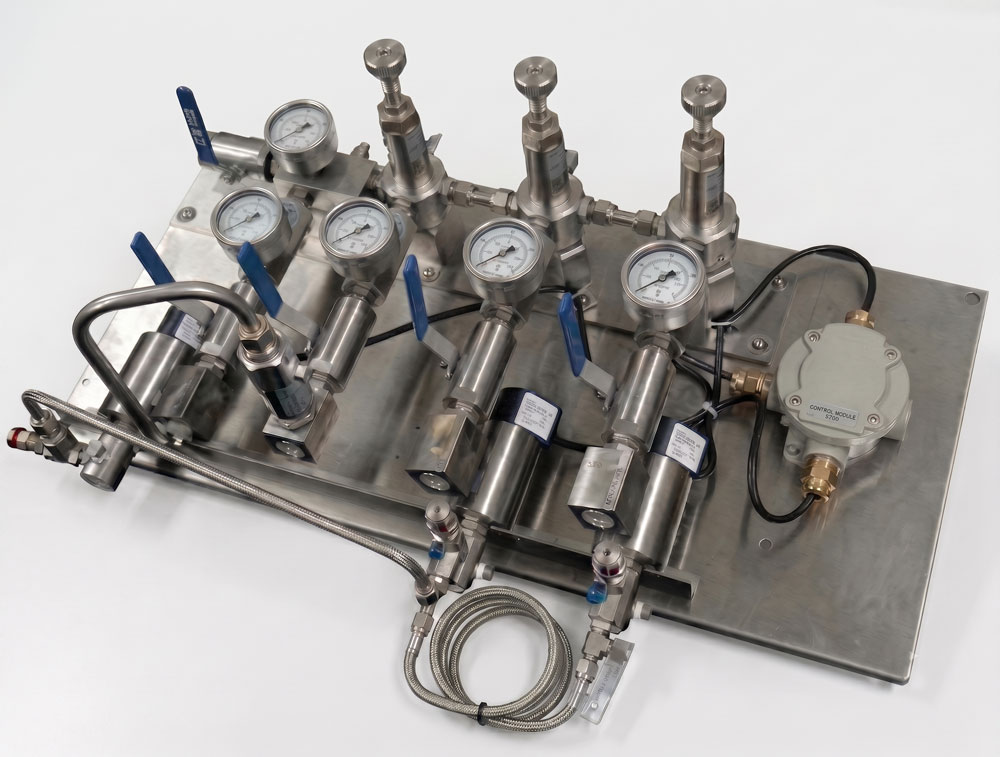

The clear benefits gained when you install a Priority Panel are:

• Ultra High Flow Rates – The panels are designed for compressor flow rates in excess of 3,000 m3/hr.
• No Reverse Flow – The check valves on each line prevent reverse flow through the priority panel.
• Large Flow Range – The KG80 meter is accurate over the range 1 – 80kg/min and has been approved to the latest OIML standard:
  “Compressed Gaseous Fuel Measuring Systems for Vehicles”. Easy Maintenance - The station can be kept running while the manual isolation valves are shut for maintenance work. Pipe work does not need to be removed for servicing the panels.
• Simple Operation – The Priority Valves only open the inlet pressure reaches 230 BAR. Gas is then allowed to flow to the common outlets on the bottom and right hand side of the valves. When all banks reach 230 BAR, they fill up together until the compressor shuts off.

Solenoid Shut-Off Option:

• With the addition of solenoid valves each of the forecourt lines can be shut-off. The solenoid comes pre-wired into a flameproof box and when power supply is removed the solenoids close instantly.
• This additional safety feature provides increase control of the gas flow through your priority panel.
