NMX-APR-30 · ENGINEERED TO ORDER — ACCIDENT-PREVENTION (ADAS) FLEET RETROFITS

The fleet already exists. Safety has to be fitted to it.

Name: Vehicle Accident-Prevention System Retrofit (ADAS)
Brand: Neometrix

Factory driver-assistance is designed with the vehicle — sensors engineered into the body, a clean data bus, a known electrical system. A retrofit meets the vehicle as it is: a cab never shaped for sensors, an old electrical architecture with real transients, vibration that makes a badly mounted sensor lie. So the integration is the product — rigid jigged mounting, conditioned power, EMC discipline, and a non-invasive fit that preserves the vehicle's approvals. The duty is not civilian — convoys, dust, night moves — and the false alarm is the real enemy: a system that cries wolf gets switched off in a month. And at fleet scale the kit is the small half: every installation ends in a per-vehicle calibration, proven on a track, checked on every truck. Delivered with the perception subsystem of a specialist UK driver-safety systems developer. Equipment of this class has been quoted against successive accident-prevention system retrofit requirements for a military logistics vehicle fleet; no delivered accident-prevention retrofit is claimed — the class is engineered to order.

Enquire — fleet ADAS retrofit Capability sheet (PDF)

Illustrative of the class — the front three-quarter view of a plain matte mid-grey heavy fleet truck with a flat-fronted forward-control cab and an empty flat cargo bed, parked on empty concrete hardstanding: a small dark sensor pod mounted behind the top centre of the windscreen, a compact blank radar housing integrated low in the front bumper, and a slim black conduit running from the A-pillar toward the chassis, plain unmarked grille and an empty number-plate recess, no people, nothing running and no readable markings

Fig · 01 The retrofit done right is almost invisible — two small housings, one conduit, and no cut into anything that was approved

Fitted to

the fleet as it isnot a new vehicle

Tuned for

the actual dutyfalse alarms are the enemy

Installed

at depot throughputreversible, non-invasive

Proven

on track, per vehiclenever by datasheet

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Fleet retrofit programmes UK technology partnership Noida · India

Overview

New trucks come with this. Fleets have to earn it.

Most of a working fleet will serve for another decade or two — and the case for not waiting a decade for safety is the whole reason this class exists.

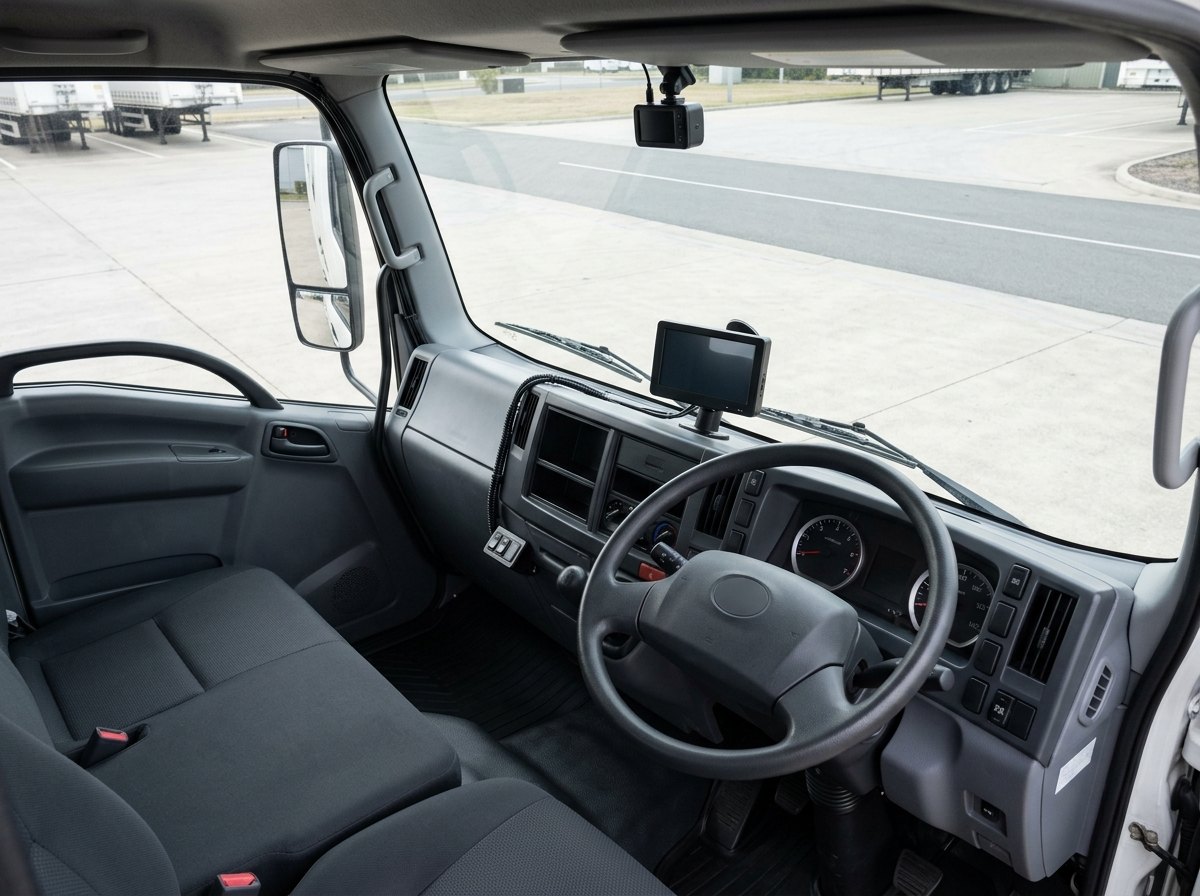

Illustrative of the class — inside the spotless utilitarian cab of a right-hand-drive heavy fleet truck, seen from the passenger side across the empty seats: a plain grey plastic dashboard and instrument cluster, a thin-rimmed steering wheel with a blank unmarked hub, the retrofit clearly fitted - a small rectangular display on a bracket at the dash centre with its screen completely dark, a compact camera unit at the top centre of the windscreen facing the road, a small added switch panel beside the instrument binnacle and tidy black cabling along the A-pillar - a quiet truck depot visible through the glass, no people, nothing running and no readable markings

Fig · 02 The whole interface — one display, one camera, two buttons: a rotating driver has minutes to understand it, so there is nothing else

Start with what a retrofit inherits. The vehicle was designed long before anyone imagined it would carry a camera and a radar. There is no prepared mounting face, so one must be engineered — rigid enough that vibration cannot turn a good sensor into a confident liar, jigged so the alignment is repeatable across a thousand installations. There is no clean digital bus to plug into, so the system must sense what it needs directly. And the electrical system is decades old, with voltage transients that will reset unprotected electronics at exactly the wrong moment — so power is conditioned, not merely connected. Above all, the installation must be non-invasive: reversible, inspectable, and clear of anything covered by the vehicle's existing approvals, because a retrofit that voids the fleet's own certification has subtracted more than it added.

Then respect the duty. A civilian forward-collision system assumes civilian traffic. This fleet drives in deliberate close order, through dust, at night, sometimes on dimmed lights — conditions where an untuned system would alarm continuously. And here is the uncomfortable truth of the whole field: the false alarm is more dangerous than the missed one, because a system that cries wolf gets switched off within a month, and the fleet afterwards believes safety equipment is noise. Thresholds are therefore tuned to the duty and validated on the fleet's own roads, so that every alert that sounds has earned the driver's attention.

Then multiply by the fleet. Years of service make every vehicle slightly different — springs settle, cabs shift on their mounts. A sensor aimed wrong by a single degree watches the verge instead of the road. So every installation ends in a per-vehicle calibration against a target, recorded — and the programme is engineered for depot throughput, driver training and long-term support, because at this scale the kit is the small half of the contract.

Equipment of this class has been quoted against successive accident-prevention system retrofit requirements for a military logistics vehicle fleet. No delivered accident-prevention retrofit is claimed: the class is engineered to order, and the record is stated as it stands.

Integration

Fitted without harm

Rigid jigged mounts, conditioned power — approvals preserved.

Trust

Alerts that earn their place

Tuned to convoys, dust and night — because false alarms kill systems.

Scale

Calibrated per vehicle

Jigged, measured, recorded — at depot throughput.

Architecture

Fit it, tune it, install it at scale — then prove it on a track.

The schematic follows the problem first — why retrofit is the hard version — then the four blocks: sensing, the driver's interface, the vehicle integration, and the fleet programme that the tender is actually buying.

FIG · 03FLEET ADAS RETROFIT ARCHITECTURE · SENSING + PERCEPTION / DRIVER INTERFACE / VEHICLE INTEGRATION / FLEET PROGRAMME

Fig · 03 The detail worth reading twice — why every installation ends in a calibration

Arc · 01

Sensing & Perception

A certified subsystem from a specialist UK partner — mounted rigidly, jigged, aligned, repeatable.

Arc · 02

Driver Interface & Alerts

Understood in minutes — one display, unambiguous alerts, day, night and blackout-drive modes.

Arc · 03

Vehicle Integration

Power conditioned, EMC engineered — a non-invasive, reversible fit that preserves existing approvals.

Arc · 04

Fleet Programme

The bigger half — depot installation line, per-vehicle calibration and checks, training, spares, AMC.

Specifying an accident-prevention retrofit, or scaling one across a fleet? Send the vehicle types and fleet size band, the duty and environment, the functions required and the applicable standard — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized on the fleet, judged on whether drivers still trust it in a year.

The parameters below describe the engineering approach. Sensor set and functions, interface design, integration method, calibration procedure and programme plan all follow from four givens: the vehicle types and their condition, the duty and environment, the functions and fleet size required, and the applicable standard.

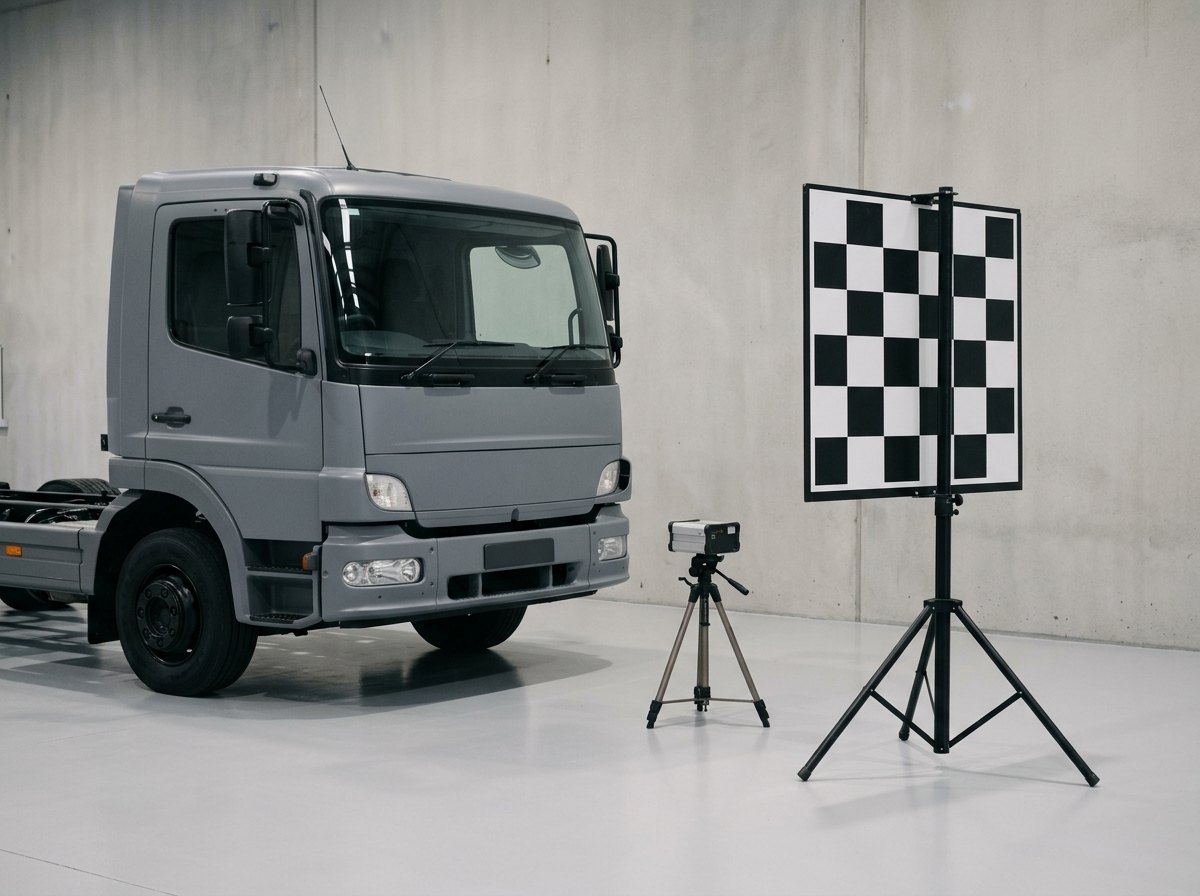

Illustrative of the class — inside an empty clean workshop bay: the plain grey nose of a heavy fleet truck parked facing a large square calibration target board on a bare steel floor stand a few metres ahead, the board carrying only a plain black-and-white geometric chequer pattern, a small laser alignment unit on a low tripod between truck and board switched off, clean pale epoxy floor and plain walls, no people, nothing running and no readable markings

Fig · 04 The calibration bay — the least glamorous station on the installation line, and the one that decides whether the system works

Where these retrofits go wrong

Civilian thresholds shipped to a hard duty — convoy spacing keeps the warning sounding until someone pulls the fuse, and the programme dies of its own alerts. Sensor mounting treated as bracketry — a mount that flexes turns a good sensor into a confident liar, and no software can correct a foundation that moves. Power taken straight from a dirty bus — transients on an old architecture reset the system at exactly the moments it exists for. An invasive install — cutting into existing systems voids approvals and turns every vehicle into a one-off. Calibration skipped at scale — every vehicle is slightly different after years of service, and an uncalibrated system is a placebo with a screen. And acceptance by datasheet — a collision warning is proven on a track against targets, then checked on every vehicle, or it is not proven at all.

So the discipline runs the other way. Thresholds are tuned to the duty and validated on the fleet's own roads, with the false-alarm rate treated as a specification in its own right. Mounting is jigged and repeatable with defined alignment. Power is conditioned and the installation is non-invasive, reversible and inspectable, so the fleet's approvals survive contact with the programme. Every installation ends in a recorded per-vehicle calibration against a target. The installation line is designed for depot throughput, so vehicles are not pulled from duty. And acceptance is demonstrated — on a track, to the applicable standard — before the fleet is asked to trust it.

Full specification — expand

System	Vehicle accident-prevention system (ADAS) retrofit — sensing & perception, driver interface & alerts, vehicle integration, fleet programme
Governing Idea	Retrofit is the hard version — the vehicle was never designed for sensors, so the integration is the product, not the sensor
Mounting	Rigid, jigged, repeatable, with defined alignment — vibration makes a badly mounted sensor lie, and no software corrects a moving foundation
Electrical Reality	A decades-old architecture with real transients and no data bus — power conditioned, sensing direct, EMC engineered
Non-Invasive Fit	Reversible, inspectable, depot-fittable — nothing cut into systems covered by the vehicle's existing approvals
The Real Enemy	The false alarm. A system that cries wolf is switched off in a month — worse than no system, because the fleet then believes safety equipment is noise
Duty Tuning	Convoy spacing, dust, night moves on dimmed lights, rotating drivers — thresholds tuned to the duty, validated on the fleet's own roads, false-alarm rate treated as a specification
Driver Interface	Understood in minutes — one display, unambiguous audible alerts, day / night / blackout-drive modes, no menus a tired driver must navigate
Calibration	Per vehicle, against a target, recorded. Years of service make every vehicle different; a sensor aimed wrong by a degree watches the verge. An uncalibrated system is a placebo with a screen
Fleet Scale	Depot installation line at throughput — vehicles not pulled from duty; end-of-line check per vehicle; driver and maintainer training; spares and AMC wherever the fleet goes
Acceptance	Demonstrated, never asserted — test-track validation against target objects to the applicable standard, then per-vehicle checks at installation
Partnership	Perception and warning subsystem from a specialist UK driver-safety systems developer, integrated as a certified subsystem — the vehicle integration and fleet programme are Neometrix engineering
The Split	The light strike vehicle modification & upgrade programme is the modification precedent on a different vehicle class and scope — mobility and role equipment rather than safety systems. The vehicle driving simulator trains the driver; this assists the drive on the day the driver is tired. And crash-rated bollards & vehicle barriers are the other end of the same problem — they stop a vehicle after prevention has failed; this page is the prevention
Scope Boundary	Ours: the retrofit engineering and integration — sensor mounting & alignment design, power conditioning & harnessing, EMC, driver interface fit, non-invasive installation preserving existing approvals — and the fleet programme: depot installation line, per-vehicle calibration & end-of-line checks, test-track validation to the applicable standard, documentation, driver & maintainer training, spares & AMC — including build to the customer's specification. Bought-in certified: the perception and warning subsystem from a specialist UK driver-safety systems developer; displays, sensors, cabling and hardware of established makers. The customer's: the fleet, the duty, the applicable standard and the acceptance programme
Status	Engineered to order — equipment of this class quoted against successive accident-prevention system retrofit requirements for a military logistics vehicle fleet; no delivered accident-prevention retrofit is claimed

PDF · 1 page

Vehicle Accident-Prevention Retrofit — Capability Sheet

Tender Response

Send vehicle types, duty, functions & fleet band — compliance matrix in two working days

Variants

One integration discipline, four retrofits.

What changes is the function fitted — each can be specified alone or as a combined suite on the same installation programme.

Var · 01

Forward-Collision Warning & Braking Assist

The core function — seconds of warning before the impact a tired driver has not seen coming.

Var · 02

Driver Monitoring & Fatigue Alert

Watching the watcher — distraction and fatigue detection for long night moves and long routes.

Var · 03

Vision & Blind-Spot Suite

Seeing what mirrors cannot — reversing, near-side and manoeuvring coverage for depots and towns.

Var · 04

Fleet Incident Recording & Analysis

Learning from every event — recorded alerts and incidents, analysed across the fleet to fix routes, training and thresholds.

Applications

Wherever a fleet drives hard duty with people and cargo behind the cab.

The fleets whose accidents are expensive in every sense.

A · 01Military logistics fleets

A · 02Convoy operations

A · 03Troop & staff carriage

A · 04Fuel & hazardous-cargo vehicles

A · 05Depot & base traffic safety

A · 06Mining & industrial fleets

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why is retrofitting harder than fitting the same system in a factory?

Because the factory gets to change the vehicle, and a retrofit does not. When driver-assistance is designed in, the windscreen gets an optically specified zone for the camera, the bumper gets a moulded radar aperture at the right height, the electrical system provides clean regulated power and a digital bus already carrying speed and brake status. A retrofit inherits none of that. The camera must find a position with the right view of the road that is also rigid — on a cab that flexes — and reachable by a repeatable mounting jig, because the thousandth installation must aim exactly like the first. The radar must sit at a workable height in a bumper never shaped for it, protected from stone strike and wash-down. Vehicle speed and brake state must be sensed directly, because there is no bus to ask. And the power that feeds it all comes from an old architecture whose voltage dips on cranking and spikes on load dump — so the system gets its own conditioning stage rather than a hopeful direct connection. None of this is exotic; all of it is engineering that simply does not exist until someone does it — which is why the honest description of this product is the integration, not the sensor.

Q · 02 Why do you treat false alarms as more dangerous than missed detections?

Because of what false alarms do to the humans. A missed detection is a failure of one moment; a false-alarm habit is a failure of the whole programme. Drivers are quick, rational judges of their equipment: if the collision warning sounds every time the convoy closes up — which is deliberate, trained close order, not an emergency — they conclude within days that the box does not understand their job. Within weeks it is muted, taped over, or unplugged, and now the fleet is carrying dead weight that cost real money — while every future safety initiative arrives to an audience that has already learned to ignore one. That is why the false-alarm rate is treated as a specification in its own right, not a tuning afterthought. The thresholds that decide when an alert sounds are set against the duty the fleet actually drives — convoy spacing, depot manoeuvring, the roads and speeds of real routes — and validated there before rollout. The aim is a system whose every alert means something, because a warning the driver believes is the only kind that prevents anything.

Q · 03 What does "non-invasive" mean in practice, and why does it matter so much?

It means the retrofit adds to the vehicle without cutting into what the vehicle already is. Practically: mounting that clamps or bolts to existing structure rather than drilling load-bearing members; power taken from a defined, fused point with its own conditioning rather than spliced wherever convenient; harnessing routed and clipped alongside existing looms, identifiable and removable; and absolutely no intrusion into braking, steering or other systems covered by the vehicle's original approvals. The reasons are practical, not ceremonial. First, approvals: an in-service military vehicle carries certifications that were expensive to obtain, and an installation that modifies approved systems can void them — a retrofit that subtracts certification while adding safety is a bad trade nobody signed up for. Second, reversibility: fleets change role, vehicles are cast off and cascaded, and an installation that can be removed cleanly keeps every option open. Third, fleet sanity: a thousand invasive installations are a thousand one-off modifications, unmaintainable by definition; a thousand identical bolt-on kits with a defined interface are a fleet standard. The discipline costs some ingenuity at design time and repays it for the life of the programme.

Q · 04 Why does every single vehicle need its own calibration?

Because the fleet is uniform on paper and individual in the metal. Vehicles that left the factory identical have spent years diverging: springs settle by different amounts, cab mounts age, chassis carry the memory of loads and repairs. The differences are invisible to a person and enormous to a sensor — a forward camera or radar aimed just one degree off watches the verge or the sky instead of the lane, and it does so confidently, with no error message, because nothing is broken; it is simply looking at the wrong world. Software cannot deduce what a sensor cannot see, so the correction is physical and per-vehicle: after installation, each truck faces a calibration target at a measured position, the system is aligned against it, and the result is recorded against the vehicle's number in the programme's documentation. The same station doubles as the end-of-line check — a functional test that this installation, on this vehicle, sees and warns correctly — so what rolls out of the depot is not "a kit was fitted" but "the system was proven on this truck". At fleet scale that calibration bay, its jigs and its record-keeping are as much a part of the product as the sensors are.

Q · 05 How is a programme like this actually rolled out across a large fleet?

As a production line, not a series of favours. The constraint that shapes everything is that the fleet cannot stop working: vehicles must flow through installation at a rate the depots can host, and each must be back on duty on schedule. So the installation itself is engineered for throughput — kitted per vehicle type, jigged so that mounting and alignment do not depend on individual skill, sequenced so a bay turns a vehicle around in a defined time, and finished with the calibration and end-of-line check of Q04. Around the line sit the parts of the programme that decide its long-term fate. Training, in two distinct kinds: drivers need minutes — what the alerts mean and what to do — because the interface was designed to need no more; maintainers need real depth on inspection, fault-finding and replacement. Documentation per vehicle and for the fleet standard. Spares and AMC positioned where the fleet actually operates, because a safety system that is down is a placebo bolted to a truck. And a feedback path — recorded alerts and incidents reviewed across the fleet — so thresholds, routes and training improve from evidence rather than anecdote. That whole apparatus is what a fleet tender is really buying; the boxes on the vehicle are its visible tip.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the retrofit engineering and integration — sensor mounting and alignment design jigged for repeatability, power conditioning and harnessing for an old electrical architecture, EMC, the driver interface fit, and the non-invasive installation design that preserves the vehicle's existing approvals; and the fleet programme — the depot installation line and its throughput engineering, per-vehicle calibration and recorded end-of-line checks, test-track validation to the applicable standard, documentation, driver and maintainer training, spares and AMC — including build to the customer's own specification. What is bought-in certified: the perception and warning subsystem — from a specialist UK driver-safety systems developer with whom Neometrix partners for this class in India — together with displays, sensors, cabling and hardware of established makers: proprietary products integrated rather than imitated. What is the customer's: the fleet, the duty, the applicable standard and the acceptance programme. And the record, stated plainly: equipment of this class has been quoted against successive accident-prevention system retrofit requirements for a military logistics vehicle fleet, and no delivered accident-prevention retrofit is claimed. The class is engineered to order, around the fleet it has to protect.

↗

Upgrading the vehicle, training the driver, and stopping what got through.

Three neighbours around the same risk — before, during and after.

↗ Modification

Light Strike Vehicle Modification & Upgrade

The vehicle-modification precedent — a different class, a different scope.

↗ The driver

Vehicle Driving Simulator

Trains the driver — this page assists the drive on the day they are tired.

↗ After

Crash-Rated Bollards & Vehicle Barriers

Stops a vehicle after prevention has failed — this page is the prevention.

Browse all Neometrix product lines.

Get a quotation

Send the fleet
and the duty it drives.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.
