Weapon Loading Trolley

Advanced Weapon Loading Trolleys and Scissor Lift Solutions for Military Ground Support Efficient and safe ordnance handling is critical in modern military aviation operations. Weapon loading trolleys and scissor lift trolleys have become indispensable for rapid and secure transfer of munitions from storage to aircraft. Designed for high reliability, these aircraft weapon loaders and hydraulic weapon trolleys streamline operations while minimizing manual handling risks. Equipped to manage a range of payloads, including bombs and missiles, bomb loading trolleys and missile loading carts are central to any airbase’s ground support equipment fleet. Military loading trolleys with armament handling capabilities ensure that heavy ordnance can be transported and positioned with precision. Features like heavy load scissor lifts, vertical lift trolleys, and low-profile lift trolleys allow versatile lifting and alignment for aircraft weapon bays. Modern systems incorporate hydraulic scissor lifts, weapon lift platforms, and manual backup pump trolleys, often mounted on solid rubber wheel trolleys for smooth mobility across tarmac surfaces. These ordnance handling trolleys and aircraft bomb loaders are engineered for durability, safety, and operational efficiency, forming a cornerstone of advanced defense loading equipment solutions. Investing in high-quality munitions handling equipment not only enhances operational readiness but also safeguards personnel and assets, making these trolleys an essential component of contemporary military aviation logistics.

About

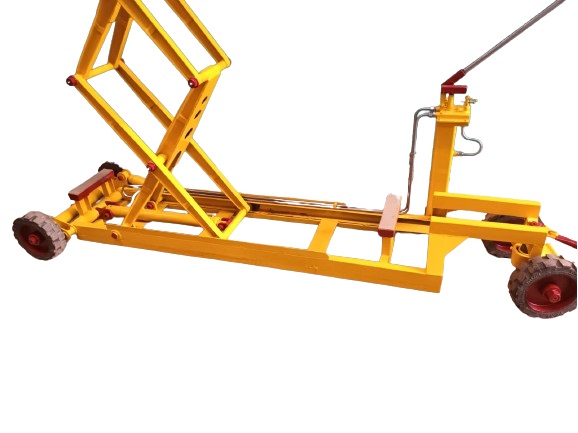

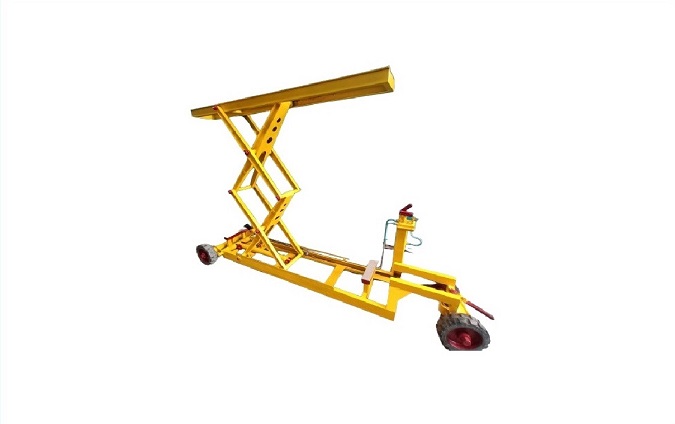

The Neometrix Weapon Loading Trolley is a rugged, hydraulically operated scissor lift designed to simplify and accelerate the handling of heavy munitions for military aircraft. Its true vertical-lift mechanism, powered by a dual-position hand pump and four single-acting hydraulic cylinders with integrated relief and flow-control valves, ensures precise, drift-free elevation of up to 750 kg. With a low 600 mm stowed profile, solid-rubber wheels, and a compact footprint, it maneuvers easily in hangars and confined airbase environments. Built from high-strength steel and requiring minimal preventive maintenance, the trolley reduces crew fatigue, enhances safety, and maintains operational readiness in both garrison and field deployments.

Image Gallery

Technical Details

Specifications




      Parameter
      Specification




      Lifting Capacity
      750 kgf (1,653 lbf)


      Lift Height (Min–Max)
      310 mm–1,970 mm (extendable to 2,340 mm)


      Overall Dimensions (L×W×H)
      3,080 mm × 980 mm × 600 mm


      Base Length
      2,650 mm


      Wheel Track
      Front: 570 mm; Rear: 830–1,420 mm


      Ground Clearance
      90 mm


      Hydraulic Fluid
      AMZ-10, purity class 9


      Hydraulic Reservoir Capacity
      2.9 L


      Pump & Valve
      HP01 hand pump; 629600B valve


      Wheel Type
      Solid rubber, 300 × 70 mm


      Net Weight
      300 kg

Parameter	Specification
Lifting Capacity	750 kgf (1,653 lbf)
Lift Height (Min–Max)	310 mm–1,970 mm (extendable to 2,340 mm)
Overall Dimensions (L×W×H)	3,080 mm × 980 mm × 600 mm
Base Length	2,650 mm
Wheel Track	Front: 570 mm; Rear: 830–1,420 mm
Ground Clearance	90 mm
Hydraulic Fluid	AMZ-10, purity class 9
Hydraulic Reservoir Capacity	2.9 L
Pump & Valve	HP01 hand pump; 629600B valve
Wheel Type	Solid rubber, 300 × 70 mm
Net Weight	300 kg

Applications

1. Aircraft Armament Loading: Precisely elevates bombs and missiles to the correct pylon interface height, eliminating manual hoisting and reducing crew fatigue.
2. Ordnance Maintenance & Servicing: Locks securely at any height for inspections, fuze replacements, and sighting checks; quick-release fittings enable rapid testing.
3. Ammunition Depot Handling: Transfers heavy rounds between storage racks and transport dollies; operates in confined aisles due to compact design.
4. Field & Expeditionary Operations: Manual backup pump ensures function without external power; sealed bearings and durable finish withstand harsh environments.

FAQ

Details

Introduction
The Neometrix Defence Limited Weapon Loading Trolley is engineered to streamline the handling of heavy armament stores—such as bombs, missiles, and training rounds—by ground crews of modern air forces. Its single-stage, dual-scissor lift mechanism provides true vertical elevation from a near-ground profile, allowing ordnance to be engaged with aircraft hardpoints without the need for ramps or shims. Built entirely from plate-sectioned, high-strength steel and equipped with heavy-duty bushes, flow controls, relief valves and a dual-position hand pump, this trolley ensures smooth, reliable operation even under arduous field conditions. Minimal preventive maintenance requirements and a compact footprint make it a cost-effective, mission-ready solution for the Indian Air Force and allied defense operators.

Key Features

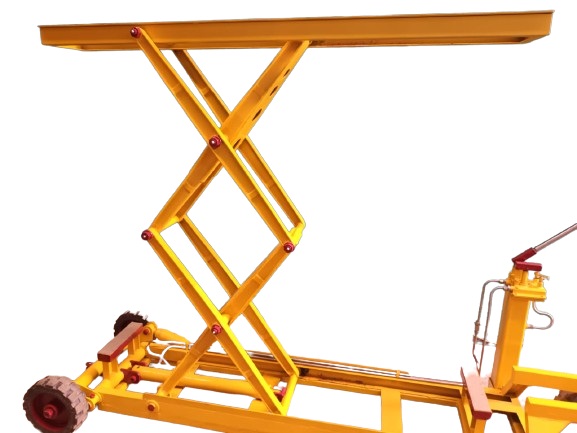

▹ True Vertical Lift: The stacked scissors operate in perfect vertical alignment, eliminating horizontal drift and ensuring precise positioning.

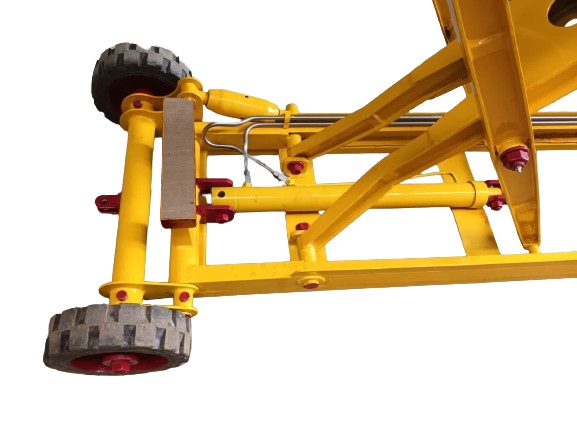

▹ Heavy-Duty Hydraulic Actuation: Four single-acting hydraulic cylinders with pilot-operated check valves and flow-control valves for safe, precise lift.

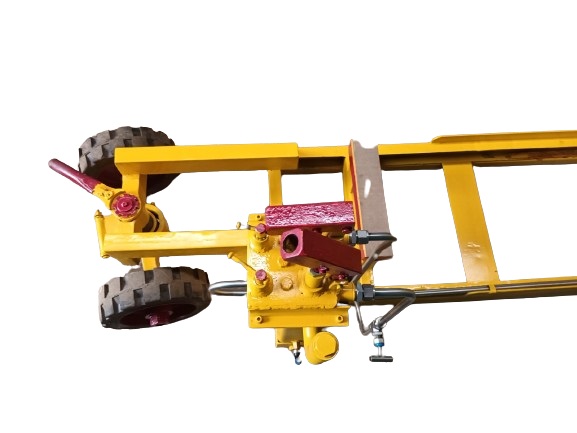

▹ Dual-Position Hand Pump: Allows manual lift and descent as a backup when auxiliary power is unavailable.
▹ Robust Mobility & Stability: Four solid-rubber wheels (300 × 70 mm) on heavy-duty bushes with 90 mm ground clearance for confined spaces.
▹ Compact Footprint & Low Profile: Stows at 600 mm height; base dimensions of 2,650 × 980 mm fit standard service bays.
▹ Minimal Preventive Maintenance: Simplified hydraulics and accessible grease points reduce upkeep and downtime.

Technical Specification

Parameter
Specification

Lifting Capacity
750 kgf (1,653 lbf)

Lift Height (Min–Max)
310 mm–1,970 mm (extendable to 2,340 mm)

Overall Dimensions (L×W×H)
3,080 mm × 980 mm × 600 mm

Base Length
2,650 mm

Wheel Track
Front: 570 mm; Rear: 830–1,420 mm

Ground Clearance
90 mm

Hydraulic Fluid
AMZ-10, purity class 9

Hydraulic Reservoir Capacity
2.9 L

Pump & Valve
HP01 hand pump; 629600B valve

Wheel Type
Solid rubber, 300 × 70 mm

Net Weight
300 kg

Applications
1. Aircraft Armament Loading: Precisely elevates bombs and missiles to the correct pylon interface height, eliminating manual hoisting and reducing crew fatigue.
2. Ordnance Maintenance & Servicing: Locks securely at any height for inspections, fuze replacements, and sighting checks; quick-release fittings enable rapid testing.
3. Ammunition Depot Handling: Transfers heavy rounds between storage racks and transport dollies; operates in confined aisles due to compact design.
4. Field & Expeditionary Operations: Manual backup pump ensures function without external power; sealed bearings and durable finish withstand harsh environments.

Conclusion
The Neometrix Weapon Loading Trolley offers defense units a versatile, dependable platform for all heavy-duty ordnance handling tasks. Its combination of true vertical lift, robust hydraulic actuation, and ergonomic design dramatically improves loading speed, crew safety, and operational readiness. Backed by minimal maintenance demands and built to ISO-compliant standards, this trolley is an indispensable asset in any modern airbase or field deployment scenario.
