A bench can be perfect and still prove nothing. What decides is whose approved data it tests against.

Name: Aircraft Component Overhaul Test Benches
Brand: Neometrix

Airworthiness rules are explicit. An article may not be described as overhauled unless it was tested against approved standards and technical data, or data the authority accepts, developed by a design approval holder.

Holding the maintenance manual does not settle that. Component maintenance manuals are generally not approved data, and in Europe one becomes Instructions for Continued Airworthiness only when the design approval holder identifies it as such.

So the first question is not whether a component can be tested. It is whose approved data the test will stand on. The route is settled before the bench is specified.

Missing manufacturer data is the expected starting point of an established pathway, not the obstacle. The authority itself names reverse engineering as the normal method where no original design data is held. What the bench supplies is the test half of test and computation.

Equipment of this class has been the subject of capability offered against successive indigenisation enquiries for aircraft component overhaul test facilities, with aircrew oxygen-mask and portable-cylinder overhaul lines recorded on this site's dedicated overhaul-facility page; no delivered facility of this class is claimed — the class is engineered to order.

Enquire — component overhaul test bench Capability sheet (PDF)

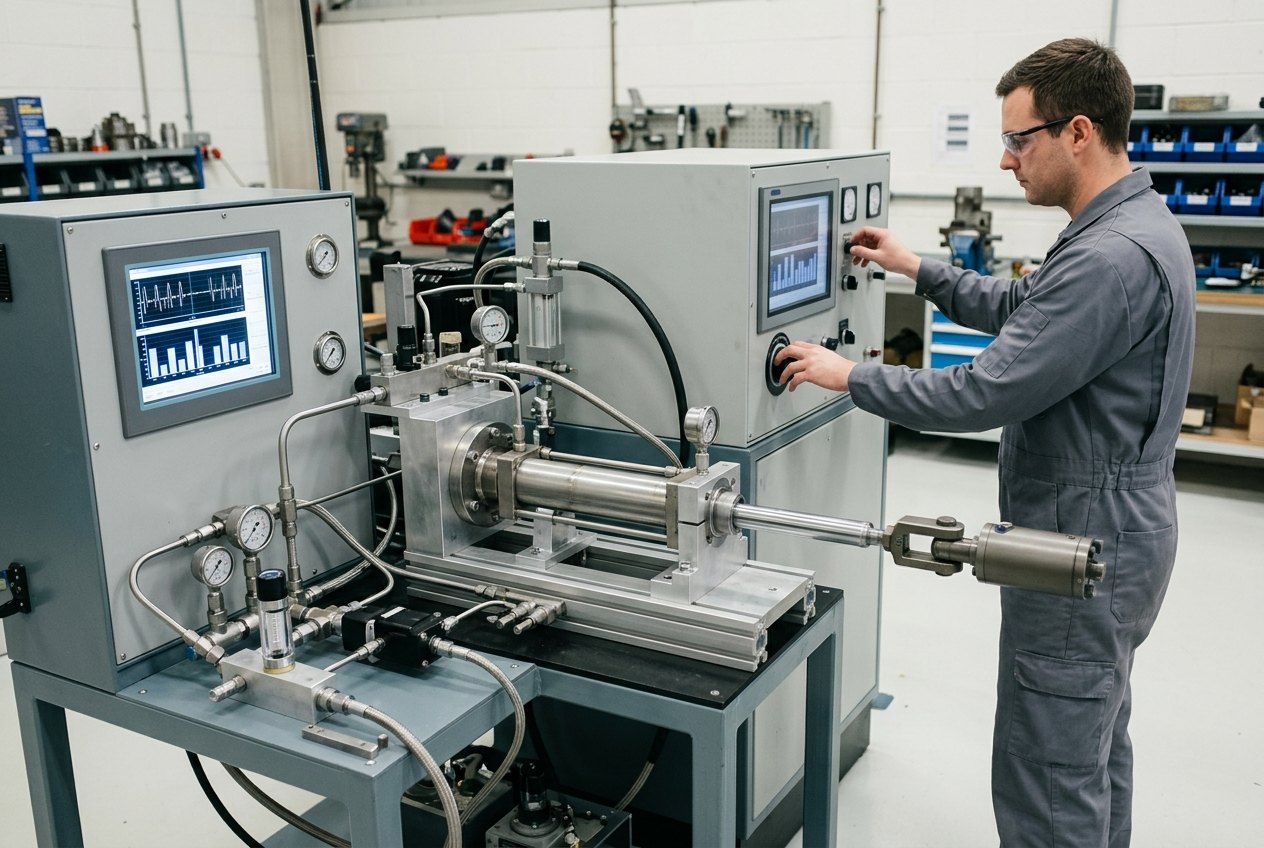

Illustrative of the class — an aerospace component overhaul test bench in use: a waist-height fabricated steel bench with a thick machined mounting plate carrying a single cylindrical hydro-mechanical actuator clamped horizontally in a bright machined aluminium cradle fixture, a compact grey manifold block with stainless tubing and three small pressure transducers, and a short hydraulic load cylinder pressing on the actuator's polished output rod through a clevis, with a technician standing at the adjacent instrument cabinet, one hand on a control, watching a live trace on its screen while the gauge needles sit off zero, no readable markings anywhere

Fig · 01 The bench produces evidence; what makes the evidence count is the route chosen before it was built

Decided first

the approval routenot the rig

Produces

substantiating evidencethe test half of the case

Accuracy from

traceable calibrationunbroken chain

Reference article

correlation onlynot the calibration basis

Status

engineered to ordercapability offered

ISO 9001 / 14001 Engineered to order Component overhaul test Correlation & traceability Noida · India

Overview

The gate is the data's status, not whether the manual exists.

Which is why a programme that starts by procuring equipment tends to finish with results nobody is able to sign.

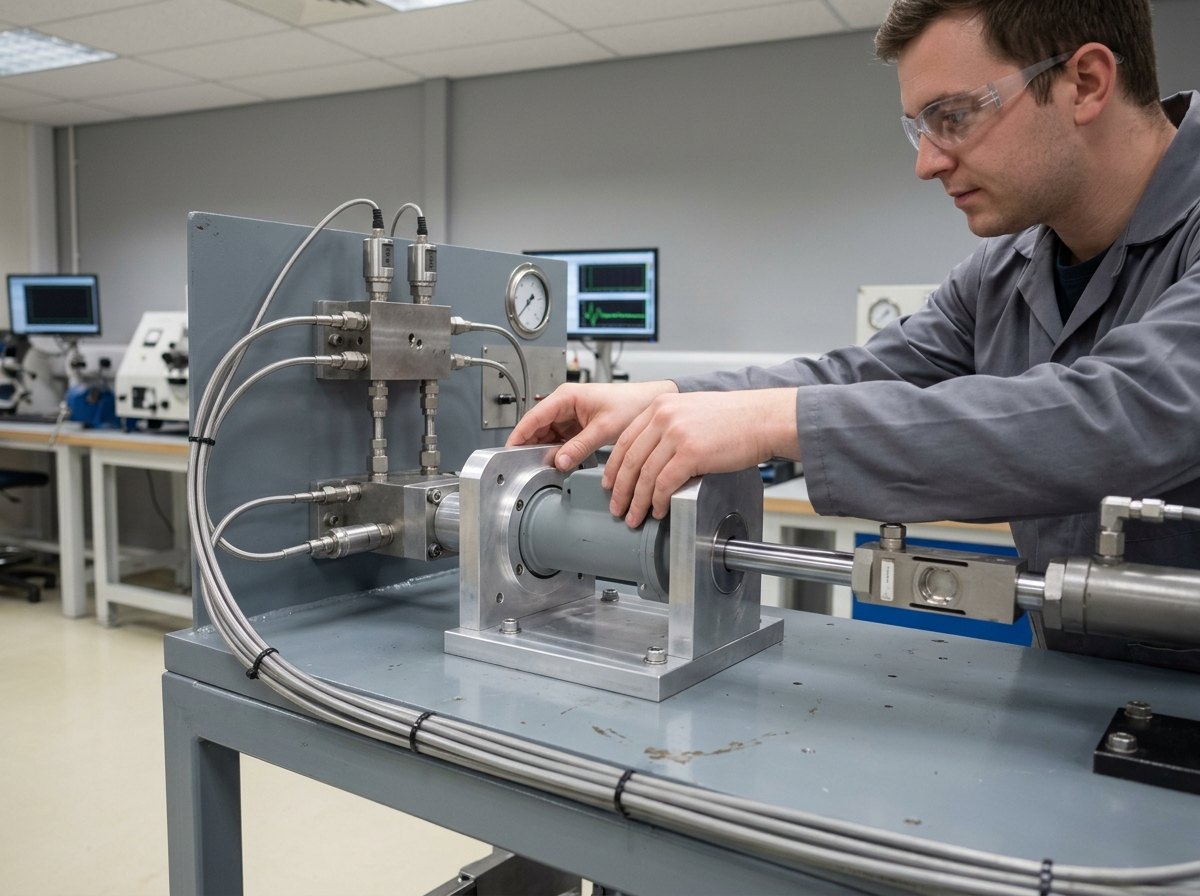

Illustrative of the class — a close working view of the article interface on a component test bench: a thick bright machined aluminium adapter plate bolted to a mid-grey steel bench top with a bespoke bored fixture holding the flanged end of a small unmarked grey component, a compact machined manifold block alongside with stainless supply and return tubes and three small pressure transducers threaded into it, thin instrument cables in a neat loom, and a short hydraulic load cylinder acting on the component's polished output rod through a clevis and an in-line load cell, with a technician leaning in and seating the component into its fixture by hand, no readable markings anywhere

Fig · 02 Fixturing and instrumentation carry more of the measurement error than most specifications admit

What the rules actually say. An article may not be described as overhauled unless it has been tested against approved standards and technical data. The alternative is standards and data the authority accepts, developed by the holder of a type certificate, a supplemental type certificate or a parts approval.

So the acceptance standard is itself gated on design-approval status. That is a question of paperwork authority, not engineering difficulty. It is why capable organisations with capable equipment still find they cannot release a component.

Holding the manual does not settle it. Component maintenance manuals are generally not a source of approved data, and very few contain any.

Europe works the same way. A maintenance manual becomes Instructions for Continued Airworthiness only when the design approval holder identifies it as such, through a list the holder manages. An organisation can hold the document and still not know its release status — which is why the regulator publishes guidance on the question.

Possession is still necessary, because a repair station must hold current maintenance data. It is just not sufficient.

There is a route that expects you to start with nothing. Repair data can be approved by an engineering delegate or an organisational delegation unit member, and documented on the authority's own forms. In Europe, by a repair design approval letter or under a design organisation approval.

For a replacement article the route is parts manufacturer approval on the test and computation basis. The authority formally names reverse engineering as the process applicants use when they hold no original design data, and prescribes what it must produce.

Missing data is the expected starting point of that pathway. It is not the barrier.

Equipment of this class has been the subject of capability offered against successive indigenisation enquiries for aircraft component overhaul test facilities. No delivered facility of this class is claimed: the class is engineered to order, and the record is stated as it stands.

Sequence

Route first, bench second

The route decides what evidence the bench must produce.

Output

The test half of the case

Substantiation a delegate can sign — not just data.

Basis

Traceable calibration

An unbroken chain — a golden unit is not a substitute.

Architecture

Settle the route, build the evidence, make it traceable, then correlate.

The schematic sets out the approval problem first, because it determines everything the equipment afterwards has to do.

FIG · 03OVERHAUL TEST FACILITY · APPROVAL ROUTE / TEST REQUIREMENTS + BOUNDARY CONDITIONS / TRACEABILITY / EVIDENCE PACK

Fig · 03 The detail worth reading twice — what a reference article is for, and what it cannot replace

Arc · 01

Approval Route

Settled before anything is specified — delegate-approved repair data, a design organisation approval, or parts approval on the test and computation basis.

Arc · 02

Test Requirements & Boundary Conditions

Equipment-independent first — performance, conditions and diagnostics; then a bench that reproduces real supply, return pressure, load and power behaviour.

Arc · 03

Measurement & Traceability

Calibrated to an accepted standard — unbroken chain, standards kept apart from working tools, a stated uncertainty budget, an accuracy ratio, guard-banding near limits.

Arc · 04

Correlation & Evidence Pack

What a delegate can actually sign — reference-article correlation, demonstrated repeatability and transportability, and the documentation behind them.

Holding components that can be repaired but not released? Send the component list, the data held and its status, the approval route intended, and the throughput required — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Specified from the approval route, judged on evidence a delegate will sign.

Five things decide the bench: the components and what they do, the data actually held and its approval status, the route intended, the rights position where the programme is a defence one, and the throughput required. Everything else follows — boundary-condition ranges, instrumentation and its uncertainty, fixturing, throughput and the documentation pack.

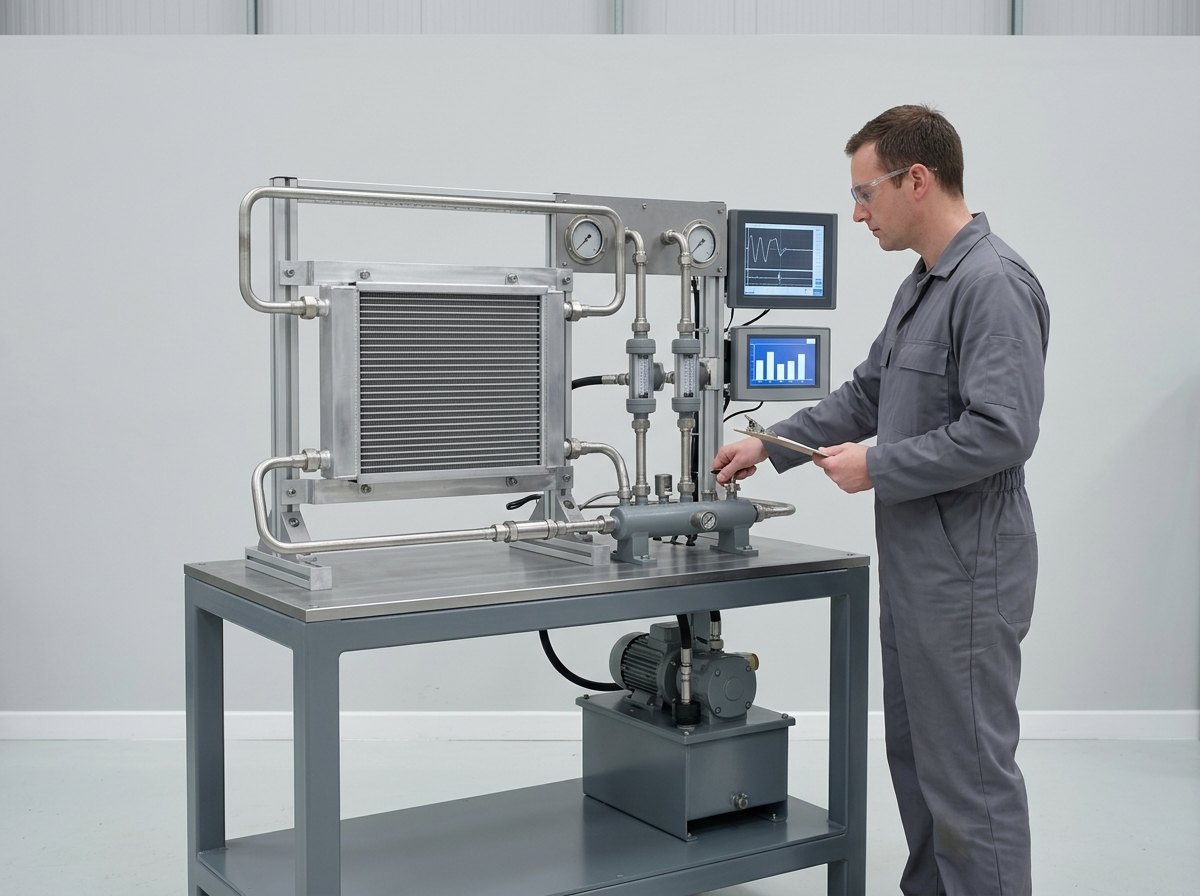

Illustrative of the class — a fluid-system component test stand under flow: a rectangular aluminium oil cooler matrix, plain and completely unmarked, mounted upright in a bright machined frame on a mid-grey fabricated stand, with stainless pipework running to its inlet and outlet through two in-line cylindrical flow meters and a grey manifold carrying small pressure and temperature transducers, a compact grey pump and reservoir unit on the lower shelf, light condensation on the cold pipework, and a technician at the stand with one hand on a stainless hand valve reading the flow meters, no readable markings anywhere

Fig · 04 A fluid-system component asks different questions — flow, pressure drop, heat rejection, leakage

Where these programmes go wrong

Bench first, approval route later. Capable equipment is commissioned. Then someone asks which approved data the results rest on, and the answer is none.

Assuming the manual is enough. Most maintenance manuals are not approved data, and in Europe one carries the right status only when the design approval holder says so.

Treating a golden unit as the calibration basis. A known-good article carries no traceability chain, and test equipment used for airworthiness determinations must be calibrated to an accepted standard regardless.

No uncertainty budget. With no accuracy ratio and no guard-band, a reading near a limit cannot be defended in either direction.

Ignoring data rights on defence programmes, where shortfalls and disputes over what data was actually delivered are a documented, recurring problem. And correlating against a single article, so neither repeatability nor transportability across benches is ever demonstrated.

The right sequence is the reverse. Choose the approval route first. It decides what the evidence has to look like.

Write the test requirements equipment-independent — performance, conditions, diagnostics. Only then design a bench to satisfy them.

Reproduce the boundary conditions rather than idealising them. A component that meets its numbers against a stiff laboratory supply and a dead weight can still fail against real supply behaviour and a real elastic load.

Choose instrumentation by comparing uncertainty against the acceptance band, and write the budget down. Scope the correlation programme, the traceability plan and the documentation pack from the start. They are what the approval is actually made of.

Full specification — expand

System	Aircraft component overhaul test facility — approval-route definition, test requirements & boundary conditions, measurement & traceability, correlation & evidence pack
The Governing Idea	A bench can be perfect and still prove nothing. What decides the outcome is the approval status of the data it tested against
The Rule	An article may not be described as overhauled unless tested in accordance with approved standards and technical data, or standards and technical data acceptable to the authority and developed by a design approval holder
Why The Manual Is Not Enough	Component maintenance manuals are generally not approved data. In Europe one becomes Instructions for Continued Airworthiness only when the design approval holder positively identifies it as such. Possession is necessary — a repair station must hold current data — but not sufficient
The Established Routes	Repair data approved by an engineering delegate or delegation unit member on the authority's own forms; in Europe a repair design approval letter or approval under a design organisation approval. For a replacement article, parts manufacturer approval on the test and computation basis
Reverse Engineering	Formally named by the authority as the process applicants holding no original design data typically use — the expected starting condition of the route, not a workaround. Applications resting on identicality alone are redirected to test and computation
What That Route Demands	Dimensions; material properties including microstructure and chemical composition; special processes — welds, heat treatment, coatings; continued-airworthiness requirements; and characterised variability across lots, billets and supply vendors, using appropriate sample sizes
The Bench's Role	It produces the test half of test and computation — the substantiating evidence the approval is built on
Accuracy Basis	Traceable calibration to an accepted standard, with an unbroken documented chain and the calibration standard kept separate from working tools. Plus a stated measurement uncertainty budget, a test accuracy ratio — military practice sets a minimum of 4:1 for measurement — and guard-banding where a reading sits near a limit
The Reference Article	A real but bounded role: end-to-end correlation, station verification, and confirming that a test programme transports across benches and serial numbers. On top of calibration, never in place of it
Terminology	A test requirements document is equipment-independent — test performance, conditions, diagnostic requirements. A test program set is the ATE-targeted deliverable of hardware, software and documentation. The first is the input; the second is the output; they are not interchangeable
Defence Qualification	Technical data rights are a further, separately documented barrier on defence programmes — shortfalls and disputes over what data was actually delivered are recurring. The civil framing of status rather than possession does not transfer unchanged
Boundary Conditions	Reproduced rather than idealised — real supply behaviour including ripple, return-line back pressure, electrical supply quality, and the correct mechanical load and inertia. A component that passes against a stiff laboratory supply and a dead weight can still fail in service
The Split	The landing gear test facility handles the same kinds of component where the approval status of the schedule is already settled; here settling it is the first task. The test equipment for aircraft fuel pump is one component, one bench. And the main rotor actuator test rig is an actuator bench built to a specification supplied with it
Scope Boundary	Ours: test-requirement definition against the chosen approval route, bench design & integration, boundary-condition simulation, fixturing & adapters, instrumentation & the uncertainty budget, control & data capture, the correlation programme, calibration & traceability planning, the documentation pack, installation, commissioning, training, spares & AMC — including build to the customer's specification. Bought-in certified: transducers, flow meters, pressure and temperature instruments, data acquisition and control hardware, hydraulic power units, pumps, valves and electrical supplies. The customer's: the components, the data and its rights, the design-approval route and the delegate or design organisation that signs it, the authority interface, and the final acceptance decision
Status	Engineered to order — capability offered against successive indigenisation enquiries for aircraft component overhaul test facilities, with aircrew oxygen-mask and portable-cylinder overhaul lines recorded on this site's dedicated overhaul-facility page; no delivered facility of this class is claimed

PDF · 1 page

Aircraft Component Overhaul Test Benches — Capability Sheet

Tender Response

Send components, data status, approval route & throughput — compliance matrix in two working days

Variants

One method, four kinds of component.

What changes is the physics at the ports — and therefore what the test requirements have to pin down.

Var · 01

Hydro-Mechanical Actuation

Actuators, selector valves, locks — stroke, rate, internal leakage, null shift, endurance under representative supply.

Var · 02

Fluid-System Components

Pumps, valves, flow dividers, coolers — flow, pressure drop, division accuracy, heat rejection, leakage.

Var · 03

Pneumatic & Life-Support

The mask overhaul line itself — strip, oxygen-clean, rebuild and certify — has its own page.

Regulators, masks, breathing components — delivery, resistance and leak-tightness at realistic demand.

Var · 04

Electro-Mechanical & Instrument

Indicators, reference units, control units — excitation, scaling, drift and repeatability against a traceable input.

Applications

Wherever a fleet outlives the support that came with it.

Overhaul, indigenisation, life extension and second-source establishment.

A · 01Out-of-support fleets

A · 02Depot & intermediate-level overhaul

A · 03Indigenisation programmes

A · 04Fleet life extension

A · 05Repair-agency qualification

A · 06Second-source establishment

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 If the maintenance manual is available, what is the actual problem?

The problem is the manual's status rather than its existence. Airworthiness rules do not permit an article to be described as overhauled unless it has been tested in accordance with approved standards and technical data, or standards and technical data acceptable to the authority and developed by the holder of a type certificate, supplemental type certificate or parts approval. That makes the acceptance standard itself a design-approval question. Component maintenance manuals are generally not a source of approved data, and very few contain any — a point the industry's own guidance makes explicitly. In Europe the structure is the same: a maintenance manual acquires the status of Instructions for Continued Airworthiness only when the design approval holder positively identifies it as such, through a list the holder manages, which is why a maintenance organisation can hold the document and still not know whether it may be relied on. Possession still matters, because a repair station is separately required to have current maintenance data, but possession alone settles nothing. The practical consequence is that the first question on an unsupported-component programme is not whether a test can be devised. It is whose approved or acceptable data the test will stand on — and that answer has to exist before equipment is specified, because it determines what the equipment must be able to demonstrate.

Q · 02 What are the legitimate routes when the manufacturer no longer supports a component?

There are established pathways, and they are well documented rather than improvised. For a repair, data can be approved by an engineering delegate or by an organisational delegation unit member, and is documented on the authority's own forms. In Europe the equivalent is a repair design approval letter, or approval issued under a design organisation approval; note that Europe requires approved data for both major and minor repairs, whereas the other system allows acceptable data — documented standard industry practice — for minor repairs only. For a replacement article, the route is a parts manufacturer approval, and where the applicant holds no original design data the basis is test and computation. That is not a loophole: the authority's own order names reverse engineering as the process such applicants typically use, and prescribes what it must produce — dimensions, material properties including microstructure and chemical composition, special processes such as welds, heat treatment and coatings, continued-airworthiness requirements, and characterised variability across lots, billets and supply vendors using appropriate sample sizes. An application resting on claimed identicality alone is in fact redirected to test and computation. The role of a test bench in all of this is specific: it produces the test half of test and computation, which is to say the substantiating evidence the approval is built on.

Q · 03 Is a known-good article enough to calibrate a component test bench?

No, and treating it as sufficient is a common and expensive error. Test and inspection equipment used to make airworthiness determinations must be calibrated to a standard acceptable to the authority; the obligation is mandatory and applies to a component acceptance bench directly. The supporting guidance requires an unbroken documented chain from the measuring equipment through each intermediate standard, and it structurally separates the calibration standard from working equipment — maintenance may not be performed with the same tools or test equipment used as the standard for performing calibrations. A known-good component carries no such chain: nobody can state its uncertainty, nothing traces it upward, and its own condition drifts. The same position holds in European maintenance rules. Military metrology practice is equally clear about where accuracy comes from, anchoring it in a test accuracy ratio — a minimum of four to one for measurement — computed from the known error of the measuring device. In that same specification a known-good unit appears exactly once, in one narrow role: confirming that a test programme transports correctly across different serial numbers of test equipment and of units under test. That is the honest scope of a reference article: end-to-end correlation and station verification, layered on top of traceable calibration rather than substituted for it.

Q · 04 How does measurement uncertainty change an accept-or-reject decision?

It decides how much of the acceptance band is actually usable. Every reading carries an uncertainty, so a component reading just inside a limit may truly be outside it, and one reading just outside may truly be inside. If the bench's uncertainty is a small fraction of the band — which is what a test accuracy ratio expresses, and why military practice sets a floor of four to one for measurement — those ambiguous cases are rare and narrow. If it is comparable with the band, a large share of every batch falls into a zone where the bench cannot honestly decide, and the damage runs both ways: serviceable components are scrapped, which is expensive and quietly depletes the spares pool, and marginal components are released, which is worse and much harder to detect because the failure appears later and in service. Neither shows up in the data as an error. This is why the uncertainty budget belongs in the specification rather than the commissioning report — each instrument's contribution, the fixture's contribution, and the repeatability established during correlation, combined and compared against the tightest band in use. Where the margin is insufficient the answer is better instrumentation or better fixturing, or an explicit guard-band that tightens the accept limit to keep the risk of a wrong release within a stated bound. It is never a quietly widened tolerance.

Q · 05 Why do boundary conditions matter — isn't a clean, stable supply better?

A cleaner supply gives tidier data and a less representative answer. A component was designed to work inside a particular system, and much of its behaviour is a conversation with that system rather than a property of the component alone. A hydraulic component sees a supply with a specific stiffness and ripple, and a return line with real back pressure; give it a large accumulator-smoothed laboratory supply instead and a valve whose response has become sluggish can look perfectly acceptable, because the bench is doing work the aircraft would not do for it. The same applies mechanically: real loads are usually elastic and change as an actuator moves, so replacing them with a dead weight removes exactly the interaction that reveals a worn or sticking mechanism. It applies electrically too, since supply quality and transients are part of what an electro-mechanical component must tolerate. So a bench is designed outward from the system it came from rather than inward from the component's ports, and each boundary condition is reproduced deliberately, including the inconvenient ones. The measure of a good bench is not that components pass on it. It is that components which pass on it also pass in service, and those that fail in service also fail on it — which is a property that has to be demonstrated by correlation, not assumed.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: test-requirement definition against the chosen approval route — written equipment-independent, as a requirements document should be, before any bench is designed; bench design and integration built to satisfy those requirements rather than a catalogue; boundary-condition simulation across hydraulic, pneumatic, electrical and mechanical loading, reproducing what the component sees in service; fixturing and adapters, which carry more measurement error than most specifications admit; instrumentation with a written uncertainty budget, chosen against the acceptance band, with an accuracy ratio and guard-banding where limits are tight; control, data capture and reporting; the correlation programme using reference articles, run repeatedly, with separation, repeatability and transportability demonstrated; calibration and traceability planning with an unbroken chain and standards held separate from working tools; the documentation pack designed alongside the hardware; and installation, commissioning, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: transducers, flow meters, pressure and temperature instruments, data acquisition and control hardware, hydraulic power units, pumps, valves and electrical supplies — integrated rather than imitated. What is the customer's: the components; the data and its rights, which on a defence programme is a documented barrier in its own right; the design-approval route and the delegate or design organisation that signs it; the authority interface; and the final acceptance decision. And the record, stated plainly: equipment of this class has been the subject of capability offered against successive indigenisation enquiries for aircraft component overhaul test facilities, with aircrew oxygen-mask and portable-cylinder overhaul lines recorded on this site's dedicated overhaul-facility page, and no delivered facility of this class is claimed. The class is engineered to order.

↗
