NMX-MGPS-400 · ENGINEERED TO ORDER — MEDICAL & INDUSTRIAL GAS PIPELINE SYSTEMS

The right gas at every outlet, every time.

Name: Medical & Industrial Gas Pipeline Systems (MGPS)
Brand: Neometrix

A turnkey medical & industrial gas pipeline system to ISO 7396-1 — a triple-source supply with automatic changeover, feeding nitrogen-purged copper distribution through zone isolation and continuous alarms to gas-specific, non-interchangeable outlets at every bed-head and theatre. Seven piped services, designed, installed, tested and commissioned before a single outlet is handed over. Engineered to order — no specific delivered installation is claimed on this page.

Enquire — gas pipeline systems Capability sheet (PDF)

Illustrative image, not a delivered installation — the source of a medical gas pipeline system: a manifold room with two banks of high-pressure gas cylinders on a common header, an automatic changeover control panel and pressure regulators on the wall, and a copper riser leaving toward the ceiling in a clean plant room

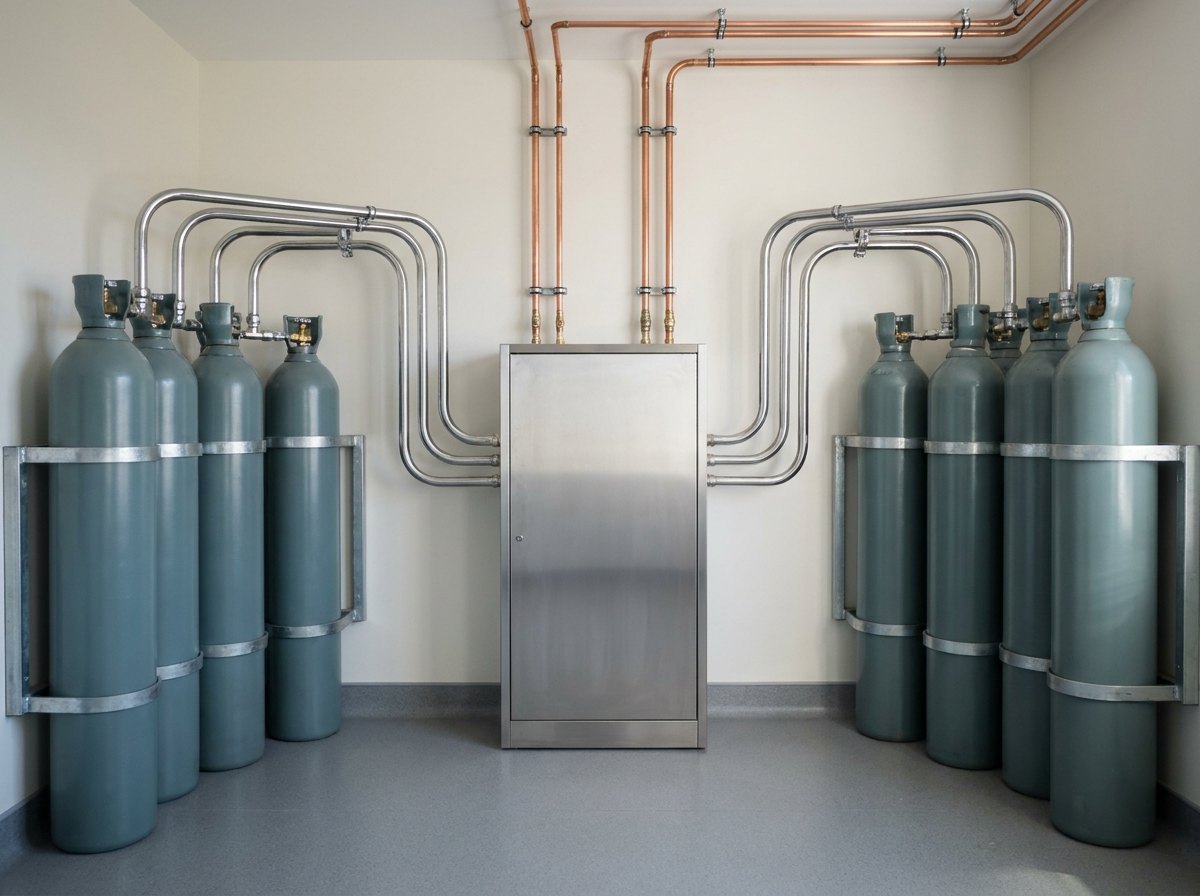

Fig · 01 The source — duty and standby banks with automatic changeover — illustrative, not a delivered installation

Gas services

7piped

Pipeline

4bar · 400 kPa

Sources

3primary·sec·reserve

Brazing

N₂purged

Built to

ISO7396-1

ISO 9001 / 14001 Engineered to order Nitrogen-purged brazing Tested & commissioned to ISO 7396-1 Noida · India

Overview

A network, not a pipe.

A medical gas pipeline has exactly two ways to cause harm: it can deliver the wrong gas — an oxygen outlet that gives something else — or it can stop delivering during a procedure. Almost every rule in ISO 7396-1 exists to make one of those two things impossible. That is why this is engineered as a monitored network with three sources, not run as a length of pipe.

Illustrative image, not a delivered installation — brazed medical-grade copper gas pipelines running along a service corridor ceiling on brackets, with a wall-mounted area valve service unit: a glazed box of gas shut-off valves and pressure gauges with plain faces for isolating one zone

Fig · 02 Degreased copper distribution and an area valve service unit — zone isolation — illustrative, not a delivered installation

Identity. Every terminal outlet is gas-specific and non-interchangeable — gas-indexed or NIST connectors that make it physically impossible to plug an oxygen device into a vacuum or nitrous outlet. Cross-connection is designed out, then proven out at commissioning.

Continuity. ISO 7396-1 demands three supplies — primary, secondary and reserve — with automatic changeover and escalating alarms, so no single failure interrupts a gas. The source can be manifold banks, an on-site oxygen plant or a liquid oxygen tank; the reserve always stands ready.

Purity. The gas is only as clean as the pipe. Copper is degreased and brazed under a continuous nitrogen purge, so no oxide scale forms inside to shed later.

You cannot inspect a pipeline into safety after the fact. You braze it clean, you design the wrong gas out, and you prove both before a single outlet is used.

Engineered to Order

Turnkey, across hospital and industry

Designed, supplied, installed, tested and commissioned as one scope — quoted across hospital and industrial gas-pipeline requirements. The gas schedule, diversity flow and layout follow from the building and its clinical or process load. No specific delivered installation is claimed on this page.

Proven Before Handover

The ISO 7396-1 test battery

Before any outlet is used, the pipeline passes pressure, leak, cross-connection, obstruction, particulate, purge and purity/identity tests. The commissioning battery — not the pipe itself — is the deliverable that lets a clinician trust the wall.

Source to Outlet

The distribution layer of a gas franchise

The sources that feed the pipeline — PSA oxygen generation, liquid-oxygen storage and vaporisation, gas compression — are Neometrix product lines in their own right. MGPS is the network that carries that gas to the bedside, engineered by the same team.

Architecture

Source, distribution, and the proof.

The schematic traces a gas from a triple-redundant source, through zone isolation and monitoring, to a non-interchangeable outlet — and the detail panel shows why the braze, not the pipe, is the real product.

FIG · 03SYSTEM ARCHITECTURE · THREE SOURCES · AUTOMATIC CHANGEOVER · ZONE ISOLATION · ALARMS · GAS-SPECIFIC OUTLETS

Fig · 03 The two failure modes — wrong gas and no gas — engineered out at every stage, then verified before handover

Arc · 01

Three Sources

Primary, secondary and reserve per ISO 7396-1 — manifold banks with automatic changeover, or fed from an on-site PSA oxygen plant or a liquid oxygen tank and vaporiser. Duty switches to standby as pressure falls; the reserve always stands ready; line regulation holds a nominal 4 bar / 400 kPa.

Arc · 02

Distribution & Zone Isolation

Degreased medical copper, nitrogen-purge brazed, sized by an ISO 7396-1 diversity and simultaneous-demand calculation. Area valve service units isolate each zone for maintenance or fire — you can work on one wing without shutting the gas to the rest of the building.

Arc · 03

Alarms & Monitoring

Master and zone alarm panels watch pressure and vacuum in every zone; source-plant alarms report low, high, changeover and reserve-in-use. The network tells its keepers the moment a supply drifts — long before a wall outlet ever would.

Arc · 04

Vacuum & AGSS

Medical vacuum — duplex or triplex pumps, receiver and bacterial filtration — and anaesthetic gas scavenging are their own piped services, engineered and monitored to the same standard as the pressure gases they work alongside.

Have a medical gas, vacuum or industrial gas pipeline requirement? Send the gas schedule and floor plans — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference system, sized to your building.

The parameters below describe a reference medical gas pipeline system to ISO 7396-1. The gas schedule, pressures, diversity flow, zoning and source capacity follow from the department layout, bed count and clinical or process load.

Illustrative image, not a delivered installation — a wall-mounted gas alarm and zone monitoring panel with a row of indicator lights and blank displays, beside gas-specific terminal outlets with colour-coded fronts on a plain wall panel, no text and no people

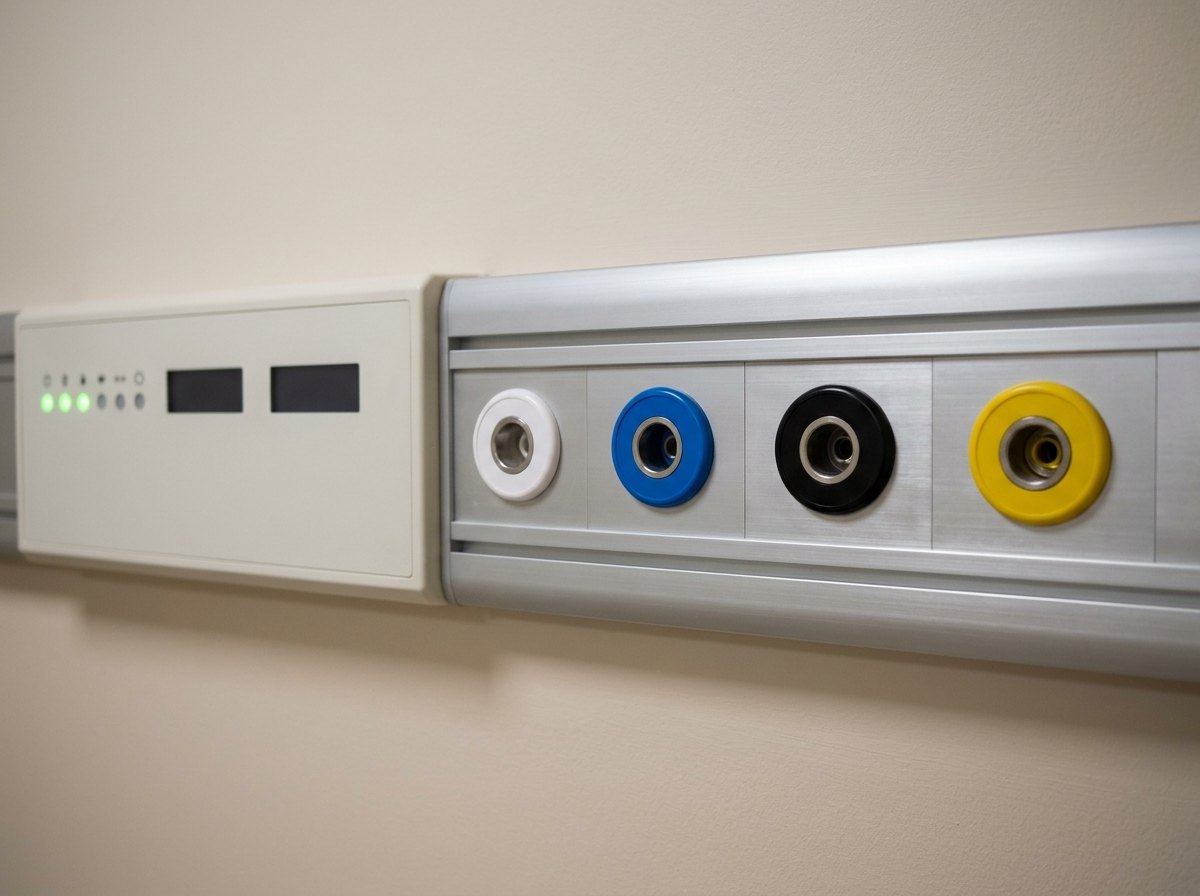

Fig · 04 Zone alarm panel and gas-specific outlets — where identity and continuity meet the wall — illustrative, not a delivered installation

Where gas pipelines actually fail

Not at the pretty manifold room — at the last metre and the worst moment. A cross-connection that survived a rushed commissioning; a zone valve nobody could find when a fire started; a reserve bank that was never actually piped in; scale shed from a pipe that was brazed without a purge, arriving at a ventilator years later.

That is why the standard makes testing and commissioning the product, not the pipework: cross-connection and identity proven at every outlet, particulate and purge checked, the reserve demonstrated, the alarms exercised. A gas pipeline is a promise about the outlet a clinician will trust without thinking — everything here is arranged to keep it.

Full specification — expand

System	Medical & industrial gas pipeline system (MGPS) — turnkey: design, engineering, supply, pipeline fabrication, installation, testing and commissioning to ISO 7396-1 (HTM 02-01 / NFPA 99 practice), documentation and training
Gas Services	Typically 7 piped services — oxygen, nitrous oxide, medical air 400 kPa (4 bar), surgical air 700–800 kPa (7–8 bar), medical vacuum, anaesthetic gas scavenging (AGSS), and carbon dioxide or nitrogen where required
Source (3 supplies)	Primary + secondary + reserve per ISO 7396-1 · manifold banks with automatic changeover, or fed from an on-site PSA oxygen plant or a liquid oxygen tank and vaporiser · reserve always available · line regulation to a nominal 4 bar / 400 kPa
Distribution	Degreased medical-grade copper to EN 13348, brazed under a continuous nitrogen purge (no internal oxide scale) · sized by an ISO 7396-1 diversity and simultaneous-demand flow calculation, not a nameplate
Zone Isolation	Area valve service units (AVSU) — glazed valve boxes isolating each zone for maintenance or fire without interrupting the rest of the network · line valves and non-return valves per the zoning scheme
Alarms & Monitoring	Master + zone/area alarm panels monitoring pressure and vacuum per zone · source-plant alarms: low pressure, high pressure, changeover, reserve-in-use · volt-free contacts for the building management system
Terminal Units	Gas-specific, non-interchangeable (gas-indexed / NIST) outlets at theatre, ICU and ward · bed-head, pendant and wall configurations · physically impossible to connect the wrong gas
Vacuum & AGSS	Medical vacuum plant — duplex/triplex pumps, receiver, bacterial filtration, control — and anaesthetic gas scavenging, each a monitored piped service
Test & Commissioning	ISO 7396-1 battery before handover — pressure, leak, cross-connection, obstruction, anti-confusion/identity, particulate and purge, gas purity verification — results documented per outlet and per zone
Industrial Variant	Process & industrial gas distribution — nitrogen, oxygen, argon, compressed air, and blast-furnace or process gas mixing · flow, pressure, leak integrity and hazardous-area engineering as required
Sourcing	Terminal outlets, AVSUs, alarms, changeover manifolds, vacuum pumps and degreased copper are proprietary items from established makers · Neometrix engineers and delivers the system: ISO 7396-1 design, pipeline fabrication and purged brazing, source interface, installation, testing, commissioning and training
Status	Engineered to order and delivered turnkey · quoted across hospital and industrial gas-pipeline requirements · no specific delivered hospital installation is claimed on this page

PDF · 1 page

Medical & Industrial Gas Pipeline Systems — Capability Sheet

Tender Response

Send your gas schedule — compliance matrix in two working days

Variants

One discipline, four systems.

Tenders call it a medical gas pipeline system, an MGPS, an MGPS on turnkey basis, or an industrial gas distribution scheme. The discipline — the right gas, without interruption, proven at the outlet — is common to all of them.

Var · 01

Medical Gas Pipeline System

The reference configuration — triple-source supply, copper distribution, AVSUs, zone alarms and gas-specific outlets to ISO 7396-1, tested and commissioned across theatre, ICU and ward.

Var · 02

Medical Vacuum & AGSS

Vacuum plants with receiver and bacterial filtration, and anaesthetic gas scavenging — supplied with a pipeline scheme or added to an existing network as monitored piped services.

Var · 03

Manifold Rooms & Source Plants

Automatic changeover manifold rooms, and the interface to a PSA oxygen plant or a liquid oxygen tank and vaporiser — the triple-source front end, built to feed a new or existing pipeline.

Var · 04

Industrial & Process Gas Distribution

Nitrogen, oxygen, argon, compressed air and process or blow-down gas mixing for plants and laboratories — the same integrity discipline applied to industrial gases, with hazardous-area engineering where required.

Applications

Where it applies.

Wherever a gas has to arrive correctly identified, uninterrupted, and clean.

A · 01Hospitals & medical colleges — whole-building gas pipeline systems

A · 02Operating theatre complexes & ICUs — high-dependency zoning

A · 03District hospitals & field / military hospitals — turnkey MGPS

A · 04Oxygen-plant tie-in — PSA / liquid-oxygen source to bedside distribution

A · 05Pharma & laboratories — clean process-gas and vacuum reticulation

A · 06Steel & process plants — industrial gas distribution and mixing

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why does a gas pipeline need three sources — why not just a big cylinder bank?

Because continuity is a safety requirement, not a convenience. ISO 7396-1 requires a primary, a secondary and a reserve supply so that no single event — an empty bank, a failed regulator, a maintenance isolation — can interrupt a gas that a patient may depend on. A single bank, however large, has a single point of failure; the moment it is isolated for a cylinder change, the gas is gone. The three-source arrangement with automatic changeover means the duty bank hands over to standby as it empties, the reserve stands ready behind both, and the alarms announce each transition long before anyone at a bedside would notice. It is the same “store the redundancy, not the heroics” discipline that runs through every critical utility — the network is designed around its worst five minutes, not its ordinary day.

Q · 02 How do you guarantee an oxygen outlet can never give the wrong gas?

In two layers: design and proof. By design, every terminal outlet is gas-specific and non-interchangeable — gas-indexed or NIST connectors whose geometry physically refuses a device meant for another gas, so an oxygen probe will not enter a nitrous or vacuum outlet. But geometry alone is not trusted: at commissioning the whole network is subjected to a cross-connection (anti-confusion) test, where each gas is pressurised in turn and every outlet in the building is checked to deliver only its own gas and nothing else, and an identity/purity test confirms the correct gas is actually present at the point of use. Only when both the geometry and the tests agree, outlet by outlet, is the system handed over. Designing cross-connection out is necessary; proving it out is what makes it safe.

Q · 03 Why braze the copper under a nitrogen purge?

Because the inside of the pipe is where the gas lives, and heat is where contamination is born. When medical copper is brazed in air, the hot inner wall oxidises and forms a black, brittle oxide scale that later flakes off and travels downstream with the gas — toward filters, regulators and, ultimately, a patient’s outlet. Flowing a continuous nitrogen purge through the pipe during brazing displaces the oxygen at the joint, so the inner surface stays clean and no scale forms in the first place. Combined with degreased, oxygen-clean copper to EN 13348 and capped handling on site, it means the pipeline is born clean rather than cleaned afterwards — which matters, because you cannot reach inside a commissioned network to scrub it. The purge is invisible on the finished job and absolutely central to it.

Q · 04 What does “tested and commissioned to ISO 7396-1” actually involve?

A defined battery, run before a single outlet is put into use, that turns a pipe into a certified system. It includes pressure and leakage tests on every section; cross-connection and anti-confusion checks across the whole building; obstruction and flow verification so each outlet delivers its rated flow at pressure; particulate and purge tests to prove the pipe is clean inside; and gas identity and purity at the point of use to prove the right gas is present. The reserve supply is demonstrated, the changeover is exercised, and every alarm condition is triggered and witnessed. The results are recorded outlet by outlet and zone by zone. The pipe is the easy part; this documented proof is the deliverable that lets a hospital connect the first patient with confidence.

Q · 05 Do medical vacuum and gas scavenging come as part of the same system?

Yes — they are piped services engineered to the same standard, just working in the other direction. Medical vacuum is generated by a duplex or triplex pump plant with a receiver and bacterial filtration, distributed and monitored exactly like a pressure gas, because suction that fails mid-procedure is as serious as pressure that fails. Anaesthetic gas scavenging (AGSS) carries waste anaesthetic away from theatre to protect staff. Both are zoned, alarmed and commissioned alongside the pressure gases, so a single MGPS scope typically covers oxygen, nitrous oxide, medical and surgical air, vacuum and AGSS — the seven services — as one integrated, monitored network rather than a set of unrelated installations.

Q · 06 Do you make the outlets and manifolds, or engineer the system?

The system. Terminal outlets, area valve service units, alarm panels, automatic changeover manifolds, medical vacuum pumps and degreased copper tube are proprietary items from established makers, and specifying the right ones is part of the engineering. What Neometrix delivers is everything that turns those components into a certified network: the ISO 7396-1 flow, diversity and pressure design; the pipeline fabrication and nitrogen-purged brazing; the interface to the source — whether a manifold room, a PSA oxygen plant or a liquid oxygen tank, all Neometrix lines in their own right; the AVSU, alarm and terminal installation; and the full testing, commissioning, purity verification, documentation and training. To be plain about status: this capability is offered turnkey and has been quoted across hospital and industrial requirements; no specific delivered hospital installation is claimed on this page.

↗

Gas & cryogenic systems from Neometrix.

The sources that feed a pipeline — generation, storage and compression — engineered at our Noida facility.

↗ Bulk Source

Liquid Oxygen Storage Tank & Dewar

Cryogenic bulk oxygen — the liquid source and vaporiser that feeds the pipeline.

↗ Gas Handling

Mobile Gas Compression Unit

Compression and boosting — gas moved and pressurised where the pipeline needs it.

↗ Bulk Logistics

Liquid Oxygen Tanker Vehicle

Cryogenic road transport — bulk oxygen delivered to the source tank.

Browse all Neometrix product lines.

Get a quotation

Send your gas schedule
and floor plans.

The Projects desk replies within two working days with a clause-by-clause compliance matrix to ISO 7396-1 and a budgetary quotation. Write to [email protected] or use the form.

Enquire — gas pipeline systems Capability sheet (PDF) +91 7777 876 876
