Rudder & Tailplane Test Equipment, rated to 0–350 bar / 60 L/min.

Introduction

The rudder and tailplane are fundamental control surfaces that govern the stability and maneuverability of an aircraft. The rudder, mounted on the vertical stabilizer, provides yaw control — critical for crosswind landings, coordinated turns, and directional stability. The tailplane, also known as the horizontal stabilizer, manages pitch balance and trim, ensuring smooth climbs, descents, and level flight. Failure in either system can severely compromise safety, handling, and mission performance, so the actuators and hydraulic subsystems controlling these surfaces must undergo comprehensive functional, endurance, and performance testing before being certified for flight.

Why this testing is critical

• Safety: control surfaces directly affect aircraft maneuverability and stability — a malfunctioning rudder or tailplane actuator could result in loss of directional or pitch control.
• Certification compliance: aviation authorities demand exhaustive testing of flight control systems to meet international standards (FAA, EASA, DGCA, MIL/Aero).
• Operational reliability: repeated cycles under real operating conditions ensure actuators can endure thousands of flights without failure.
• Maintenance assurance: post-overhaul testing detects hidden leakage, sluggish response, or contamination issues before components return to service.
• Cost reduction: identifying defects on the test rig rather than in the aircraft avoids expensive flight test rejections or in-service failures.

Key features

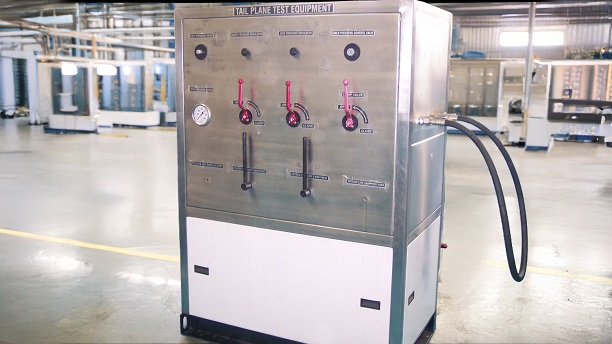

• Independent test benches: separate rigs for rudder and tailplane actuators, allowing simultaneous or stand-alone operation with a modular design for easy lab or hangar integration.
• Dual-circuit hydraulic architecture: a Servo Pressure Regulator for precise, dynamic control of actuator response, and a Test Pressure Regulator for static proof and leakage testing.
• Comprehensive safety systems: dedicated dump valve for rapid depressurization, System-1 and System-2 return valves, and over-pressure relief with emergency shutdown.
• Instrumentation and sampling: main analog pressure gauge, pressure and return-line sampling ports for contamination monitoring (ISO 4406 / NAS 1638), and an expandable sensor suite of pressure transducers, load cells, displacement sensors, flow meters and temperature probes.

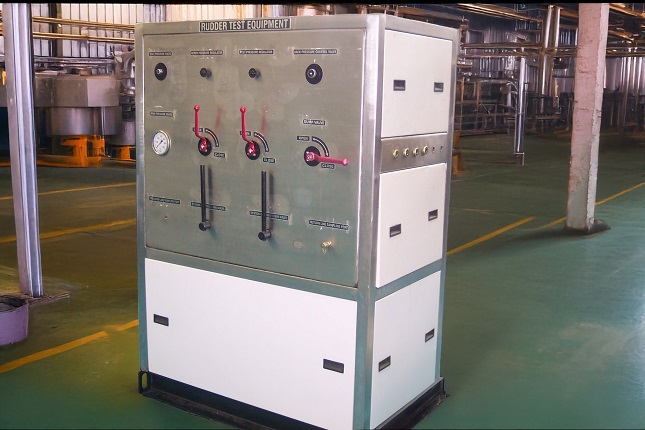

• Operator-friendly control panel: intuitive valve handles with OPEN/CLOSE markings and clear separation of test, return, and dump controls to avoid cross-connection risks.
• Upgrade options: PLC/SCADA integration for automated testing, interlocks and programmable sequences; digital DAQ for logging, trending and report generation; inline particle contamination monitors for continuous fluid health checks.

Typical test capabilities

• Proof pressure testing: apply maximum rated hydraulic pressure to verify mechanical strength and sealing.
• Leakage tests: hold pressure for extended durations to detect micro-leaks at seals and fittings.
• Functional stroke testing: measure actuator displacement, extension/retraction rates, and uniformity of response.
• Dynamic performance evaluation: assess hysteresis, deadband, and responsiveness under servo control.
• Endurance / fatigue testing: cycle actuators through thousands of simulated operations to validate service life.
• Contamination monitoring: draw fluid samples from pressure and return lines to assess hydraulic fluid health.
• Emergency depressurization: use the dump valve to rapidly reduce pressure in case of abnormal conditions.

Advantages

• Authentic simulation of rudder and tailplane operating conditions.
• Dual-circuit design enables static and dynamic testing without reconfiguration.
• Operator safety ensured by dump valves, interlocks, and intuitive controls.
• Flexible instrumentation expandable to meet diverse test requirements.
• Configurable design to support different aircraft platforms and actuator families.
• Proven track record in aerospace manufacturing and defence laboratories.

Support & services

• Turnkey delivery: installation and commissioning at customer facilities.
• Training programs: operator and maintenance training for aerospace engineers.
• Documentation: complete P&IDs, calibration certificates, and O&M manuals.
• Lifecycle support: preventive maintenance, spares, and field service assistance.
• Retrofits & upgrades: modernization packages for digital controls, contamination monitoring, and automation.

Conclusion

The Rudder & Tailplane Test Equipment is a mission-critical testing solution for two of the most vital flight control surfaces in aviation. By faithfully replicating real-world hydraulic pressures, flows, and cyclic conditions, these rigs ensure actuators and subsystems deliver flawless performance throughout their service life — from OEM production to certification labs and MRO workshops, forming an indispensable safeguard against control surface failures.
