What pump does this test rig test?

The rig is designed to test the 130 LPM hydraulic pump of the LCA (Light Combat Aircraft). It covers all performance test requirements of the pump.

What are the pump's rated specifications?

Rated pressure: 270 bar. Rated flow: 130 LPM at 270 bar. Rated speed: 6000 RPM. LVDT with magnetic contact provided for displacement measurement.

What drive system does the rig use?

A 160 kW squirrel-cage induction motor (M2BA315MLC2) driven by an ABB ACS800 AC drive rated at 250 Hz, 160 kW. A gearbox brings output speed up to 10,000 RPM maximum.

What hydraulic fluid does the rig use?

MIL-H-5606E hydraulic oil or equivalent. Three SS 304 reservoirs of 90L, 225L, and 50L are provided with all fittings.

What is the maximum operating temperature?

The rig is designed to operate up to 120°C. Three heat exchangers using water as the cooling medium are provided.

NMX‑TR‑130LPM‑LCA / Rev 01 / 270 bar · 130 LPM · 6000 RPM · 160 kW · MIL‑H‑5606E / LCA Hydraulic Pump Noida · India · 2026

NMX-TR-130LPM-LCA

130 LPM pump test rig.

Self-contained Electro-Hydraulic Test Rig for complete performance testing of the 130 LPM pump of the Light Combat Aircraft (LCA) — 270 bar rated pressure, 6000 RPM, 160 kW drive, Moog servo valves, and MIL‑H‑5606E hydraulic oil circuit.

Request proposal Specifications

Test Rig for 130LPM Pump of LCA — Neometrix, Noida

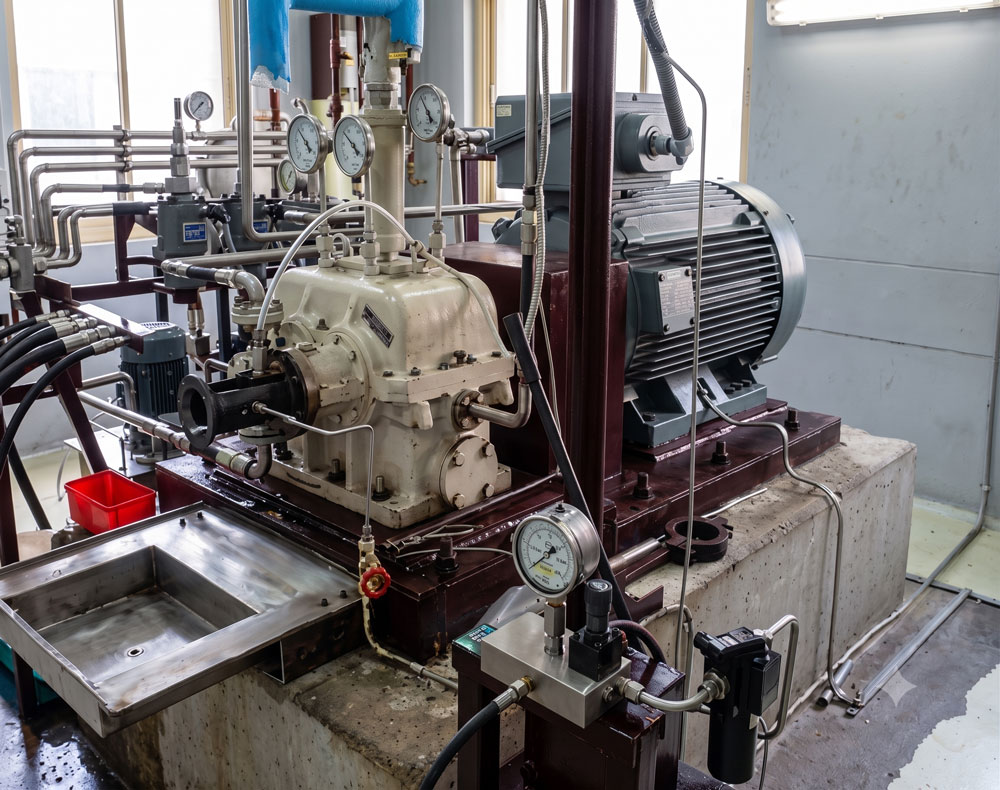

Fig · 01 Electro-hydraulic rig — drive system, high-pressure circuit, control panel

Rated Pressure

270bar

Rated Flow

130LPM

Rated Speed

6000RPM

Motor Power

160kW

Max Temp

120°C

Overview

Electro-hydraulic rig for LCA pump testing.

Self-contained test system addressing all performance and pressure proof requirements of the 130 LPM hydraulic pump of the Light Combat Aircraft.

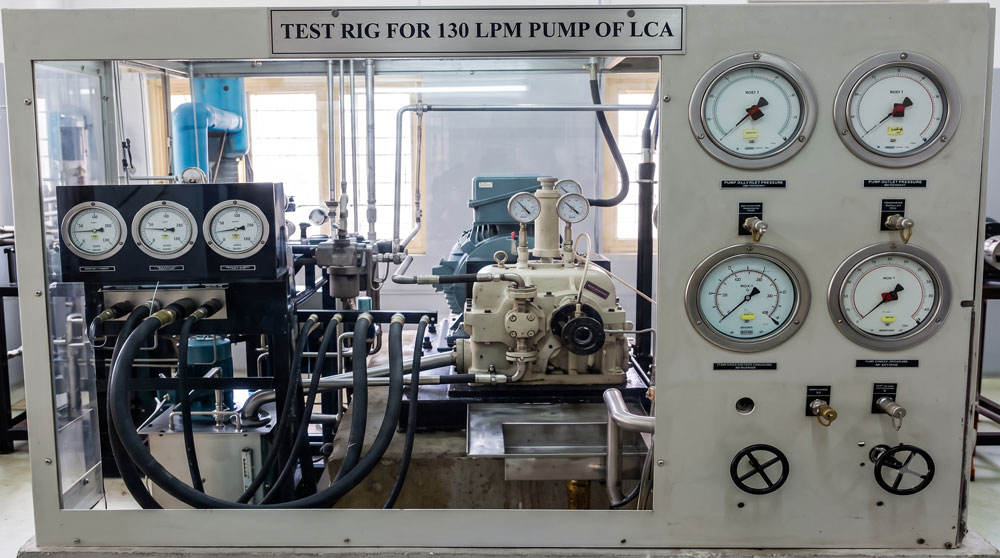

130 LPM LCA Pump Test Rig — hydraulic circuit detail

Fig · 02 High-pressure hydraulic circuit with Moog servo valves and SS304 reservoirs

The Test Rig for 130 LPM Pump of LCA is a self-contained Electro-Hydraulic Test Rig engineered to address all requirements for testing the hydraulic pump used in the Light Combat Aircraft. Safety and user-friendliness are the defining design principles.

The pump under test (UUT) has a rated pressure of 270 bar, rated flow of 130 LPM at 270 bar, and rated speed of 6000 RPM. An LVDT with magnetic contact is provided for displacement measurement. The rig covers high-pressure proof testing, functional testing at rated conditions, and cyclic testing using Moog servo valves.

270 bar · 130 LPM · 6000 RPM — complete LCA pump test envelope in one rig.

A 160 kW squirrel-cage induction motor driven by an ABB ACS800 AC drive delivers power through a gearbox capable of 10,000 RPM output. Three SS304 reservoirs (90L, 225L, 50L) and three heat exchangers using water cooling maintain MIL-H-5606E oil within the operating temperature envelope up to 120°C.

Key Features

Nine system capabilities.

The complete engineering feature set of the NMX-TR-130LPM-LCA.

Feature · 01

Drive System with Gearbox Lube Oil System

160 kW squirrel-cage induction motor (M2BA315MLC2) driven by ABB ACS800 AC drive (250 Hz, 160 kW). Gearbox steps speed up to 10,000 RPM max. Dedicated lube oil system for the gearbox.

160 kW · ACS800 · 10,000 RPM Gearbox

Feature · 02

High-Pressure System — Pressure Proof Testing

Hydraulic circuit rated for pressure proof testing at above-rated pressure. Flexible disc coupling with shear pin between gearbox and torque sensor protects the UUT from overload events.

270 bar Rated · Shear Pin Protection · Proof Test

Feature · 03

Low-Pressure System — Functional Test

Separate low-pressure circuit for functional performance testing at rated flow and pressure. Covers the full operating envelope of the LCA pump at 130 LPM and 270 bar.

Functional Test · 130 LPM · 270 bar

Feature · 04

Moog Servo Valves for Cyclic Testing

Two Moog-make servo valves are provided for cyclic test routines — enabling pressure and flow cycling to simulate operational duty cycles and perform fatigue and endurance characterisation.

2× Moog Servo Valve · Cyclic Test · Endurance

Feature · 05

Torque Measurement

Lebow 1703 torque sensor (0–200 N·m range) is installed between the gearbox and the UUT coupling, providing direct torque and power measurement throughout the test cycle.

Lebow 1703 · 0–200 N·m · Direct Power Measurement

Feature · 06

Water Cooling via Heat Exchangers

Three heat exchangers using water as the cooling medium maintain MIL-H-5606E oil temperature within the operating envelope up to 120°C — critical for sustained high-load test runs.

3× Heat Exchanger · Water Cooling · 120°C Design

Feature · 07

Hydraulic Filtration with Clog Indicators

Filtration at appropriate points in the circuit. All filters are equipped with electronic clogging indicators that alert the operator when a filter element requires replacement — preventing contaminated oil reaching the UUT.

Electronic Clog Indicators · MIL-H-5606E Circuit

Feature · 08

SS304 Reservoirs

Three SS304 stainless steel reservoirs of 90L, 225L, and 50L are provided with all required fittings — sized for high-pressure, functional, and drain/return circuits respectively.

90L · 225L · 50L · SS304 · All Fittings

Feature · 09

Control, Indicator Panel & DAQ

Centralised control and indicator panel with Data Acquisition System for real-time monitoring of pressure, flow, torque, speed, and temperature. All test data logged for analysis and report generation.

Control Panel · DAQ · Real-Time Monitoring

Image Gallery

The rig, two views.

Drive system, hydraulic circuit, and control panel views.

Fig · 03 2-view photo documentation · 130 LPM LCA Pump Test Rig · Neometrix Noida

Specifications

Full system parameters.

Pump UUT specifications and drive system component list for the NMX-TR-130LPM-LCA.

System Reference	Test Rig for 130 LPM Pump of LCA · NMX-TR-130LPM-LCA
UUT Rated Pressure	270 bar
UUT Rated Flow	130 LPM at 270 bar
UUT Rated Speed	6000 RPM
Displacement Measurement	LVDT with magnetic contact
Drive Motor	Squirrel cage induction motor · 160 kW · 2980 RPM · 2-pole · 415V, 50 Hz, 3φ · Frame M2BA315MLC2
AC Drive	ABB ACS800 · 250 Hz · 160 kW · with Control Panel
Gearbox	Max output speed 10,000 RPM · with lube oil system
UUT Mounting	Flange and spline shaft
Coupling (Gearbox to Torque Sensor)	Flexible disc coupling with shear pin (UUT overload protection)
Torque Sensor	Lebow 1703 · Range: 0–200 N·m
Servo Valves (Cyclic Test)	2 × Moog-make servo valves
Hydraulic Fluid	MIL-H-5606E or equivalent
Reservoirs	SS304 · 90L, 225L, and 50L with all fittings
Cooling System	3 × heat exchangers · water cooling medium
Max Operating Temperature	120°C
Filtration	Electronic clogging indicators on all filter elements

Applications

Where it is used.

A · 01Performance testing of LCA 130 LPM hydraulic pump at rated pressure and flow

A · 02High-pressure proof testing above rated pressure for qualification and acceptance

A · 03Cyclic endurance testing using Moog servo valves to simulate operational duty cycles

A · 04MRO acceptance testing of overhauled LCA hydraulic pumps before re-installation

FAQ

Common questions.

Q · 01What pump does this rig test?

The rig is designed for the 130 LPM hydraulic pump of the LCA (Light Combat Aircraft). Rated: 270 bar, 130 LPM at 270 bar, 6000 RPM.

Q · 02What tests can the rig perform?

High-pressure proof testing, rated performance (flow and pressure) testing, functional testing at varied speed, and cyclic endurance testing using the two Moog servo valves.

Q · 03What hydraulic fluid is used?

MIL-H-5606E hydraulic oil or equivalent. Three SS304 stainless steel reservoirs (90L, 225L, 50L) with all fittings are provided.

Q · 04How is the UUT protected from overload?

A flexible disc coupling with a shear pin is installed between the gearbox output and the torque sensor. The shear pin breaks at a preset overload torque, protecting the pump from mechanical damage.

Q · 05What after-sales support does Neometrix provide?

Installation, commissioning, operator training, preventive maintenance, and on-site service. Standard 12-month warranty with optional annual maintenance contracts.

Downloads

Technical documents.

PDF · Catalogue

Product Datasheet & Catalogue

Test Rig for 130 LPM LCA Pump →

PDF · Engineering Drawing

Engineering Design Document

System Layout & P&ID →

Presentation

Product overview deck.

Seven-slide summary of the NMX-TR-130LPM-LCA — pump specs, rig architecture, drive system, features, and applications.

NMX‑TR‑130LPM‑LCA · Rev 01

Test Rig for
130 LPM Pump
of LCA

Electro‑Hydraulic · 270 bar · 6000 RPM · MIL‑H‑5606E

Neometrix Engineering Pvt Ltd · Noida, India

02 / 07

The Pump Under Test

130 LPM hydraulic pump of the LCA — critical flight control and hydraulic system component requiring precision performance qualification.

Rated Pressure

270 bar

Rated Flow

130 LPM at 270 bar

Rated Speed

6000 RPM · LVDT displacement measurement

03 / 07

Drive System Architecture

Motor

160 kW squirrel-cage induction motor · 2980 RPM · 415V 3φ · M2BA315MLC2

AC Drive

ABB ACS800 · 250 Hz · 160 kW · with Control Panel

Gearbox

10,000 RPM max output · with lube oil system

Flexible disc coupling with shear pin between gearbox and torque sensor protects UUT from overload · Lebow 1703 torque sensor: 0–200 N·m

04 / 07

Hydraulic System

Fluid

MIL-H-5606E or equivalent · SS304 reservoirs: 90L, 225L, 50L

Servo Valves

2 × Moog-make servo valves for cyclic test routines

Cooling

3 × heat exchangers · water medium · 120°C design

Filtration

Electronic clogging indicators on all filter elements

05 / 07

Key Specifications

270bar

Rated Pressure

130LPM

Rated Flow

6000RPM

Rated Speed

160kW

Motor Power

10kRPM

Gearbox Max

120°C

Max Temp

06 / 07

Key Features

Drive system with gearbox lube oil system
High-pressure system for proof testing
Low-pressure system for functional test
2× Moog servo valves for cyclic testing
Torque sensor: Lebow 1703 (0–200 N·m)
3× heat exchangers, water cooling
Electronic filter clog indicators
Control panel + DAQ system

Applications

LCA pump performance testing at 270 bar / 130 LPM
High-pressure proof test for qualification
Cyclic endurance testing (Moog servo valves)
MRO acceptance testing after overhaul

07 / 07

Ready to specify?

Tell us your pump model, rated conditions, and test requirements. We design the rig, specify instrumentation, and commission at your facility.

Request proposal → +91 7777 876 876

Neometrix Engineering Pvt Ltd · Noida, India · neometrixgroup.com

1 / 7

↗

Other test systems from Neometrix.

↗ Pump Testing

Tell us your pump specifications
and test requirements.

We design the electro-hydraulic circuit, specify drive and instrumentation, and commission the rig at your facility.

Request proposal +91 7777 876 876

130 LPM pump test rig.

Electro-hydraulic rig for LCA pump testing.

Nine system capabilities.

Drive System with Gearbox Lube Oil System

High-Pressure System — Pressure Proof Testing

Low-Pressure System — Functional Test

Moog Servo Valves for Cyclic Testing

Torque Measurement

Water Cooling via Heat Exchangers

Hydraulic Filtration with Clog Indicators

SS304 Reservoirs

Control, Indicator Panel & DAQ

The rig, two views.

Full system parameters.

Where it is used.

Common questions.

Technical documents.

Product overview deck.

Test Rig for130 LPM Pumpof LCA

The Pump Under Test

Drive System Architecture

Hydraulic System

Key Specifications

Key Features

Applications

Ready to specify?

Other test systems from Neometrix.

ATF Fuel Pump Test Rig DTSN-82

CV & Control Valve Test Rig

DAQ System For Filter

Tell us your pump specificationsand test requirements.
