Water Leak Testing System / 25 m · 252 Nozzles · 3 bar / Standard & Broad Gauge / India

RAIN-SIMULATION CHAMBER · STANDARD & BROAD GAUGE

Water Leak Testing System for Standard and Broad-Gauge Rolling Stock, 252 nozzles at 3 bar.

A 25 m × 5 m × 6 m SS-304 rain-simulation chamber that envelops a full-length coach in 360° spray at 15.3 m/s velocity, replicating rainfall above 150 mm/hour to expose micro-leaks in roof seams, window frames, vestibule doors and underframe seals before every rail vehicle leaves the line.

Request proposal Specifications

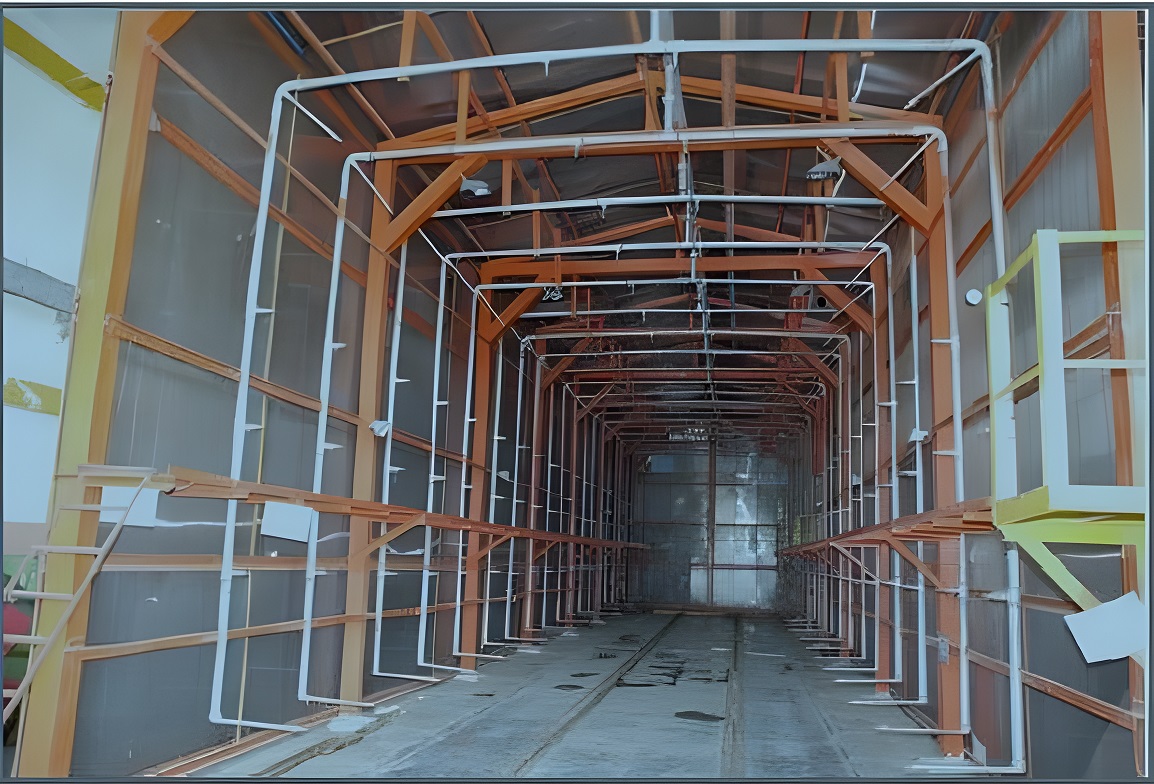

Water leak testing system interior view - orange structural steel test tunnel with overhead spray pipe network and rail track for railway coach watertightness validation by Neometrix

Fig · 01 Interior view of the installed 25 m test tunnel · overhead spray-pipe gantry · rail track floor

Designed to:

ASME B31.3 ISO 12100

Chamber Size

25×5×6m

Spray Nozzles

252total

Spray Velocity

15.3m/s

Operating Pressure

3bar

Pump Capacity

2×20HP

Overview

Full-scale rain, on every coach.

The Water Leak Testing System is a closed-loop, stainless-steel chamber that houses full-length rail coaches and validates their watertightness under simulated tropical-storm conditions.

Water leak testing system spray gantry and rail track inside the SS-304 rain simulation chamber for standard and broad gauge rolling stock by Neometrix

Fig · 02 Overhead spray-pipe network and polycarbonate side enclosure inside the test bay

Measuring approximately 25 m in length, 5 m in width and 6 m in height, the test bay accommodates both Standard-Gauge (1,435 mm) and Broad-Gauge (1,676 mm) rolling stock with ample clearance for unhindered water circulation and operator access. Inside, a modular spray gantry comprising 21 downtake rows, each fitted with 12 precision nozzles, delivers a total of 252 high-performance spray outlets covering the roof, sides and under-chassis for uniform 360° rain exposure across every structural contour.

The test sequence is powered by a dual-pump water-circulation system maintaining 3 bar operating pressure and flow delivery exceeding 980 L/min per pump, generating a rainfall velocity of approximately 15.3 m/s — equivalent to precipitation intensity above 150 mm/hour, enough to expose even minute defects in weld seams or sealing gaskets.

Twenty-five metres of chamber. Two hundred fifty-two nozzles. Every seam exposed.

Ambient performance remains stable between 5°C and 50°C at up to 98% relative humidity, allowing testing across a wide range of climatic conditions. All control functions — pump activation, flow-rate adjustment, safety interlocks and real-time monitoring — are centralized through an IP-rated electrical control panel.

Architecture

Six systems, one test bay.

Every subsystem of the Water Leak Testing System is engineered around uniform, repeatable rain coverage and low-maintenance, closed-loop operation.

Sub · 01

Chamber & Frame

SS-304 rectangular pipe (100×50×3 mm) and angle (50×50×3 mm) skeleton with 4 mm translucent polycarbonate enclosure panels and 20 mm SS base plates.

Sub · 02

Spray Nozzle Network

21 downtake rows × 12 nozzles = 252 total; ¼ HH 316 SS nozzles, 3.2 mm orifice, 60° angle, delivering 15.3 m/s spray velocity.

Sub · 03

Pump & Power

Two 20 HP (15 kW) self-priming monoblock centrifugal pumps, each delivering ~980 L/min at 3 bar, on vibration-damped stands with splash covers.

Sub · 04

Filtration & Recycling

Closed-loop sump collection with 40-mesh primary and 100-mesh secondary Y-strainers, cutting water consumption by over 80%.

Sub · 05

Control Panel

IP 55/65 powder-coated enclosure with dual pump ON/OFF interlocks, flow-through indicator, VAF meter and emergency stop/isolation switch.

Sub · 06

Lighting & Safety

10 × 50 W LED IP66 floodlights, anti-slip ladders, stainless handrails, earthing plates and dual-side 1 m inspection walkways.

Facility Layout

The full GA drawing.

General-arrangement drawings of the 25 m gantry structure and its 252-nozzle spray grid layout, shown here as engineering reference alongside the installed-facility photograph above.

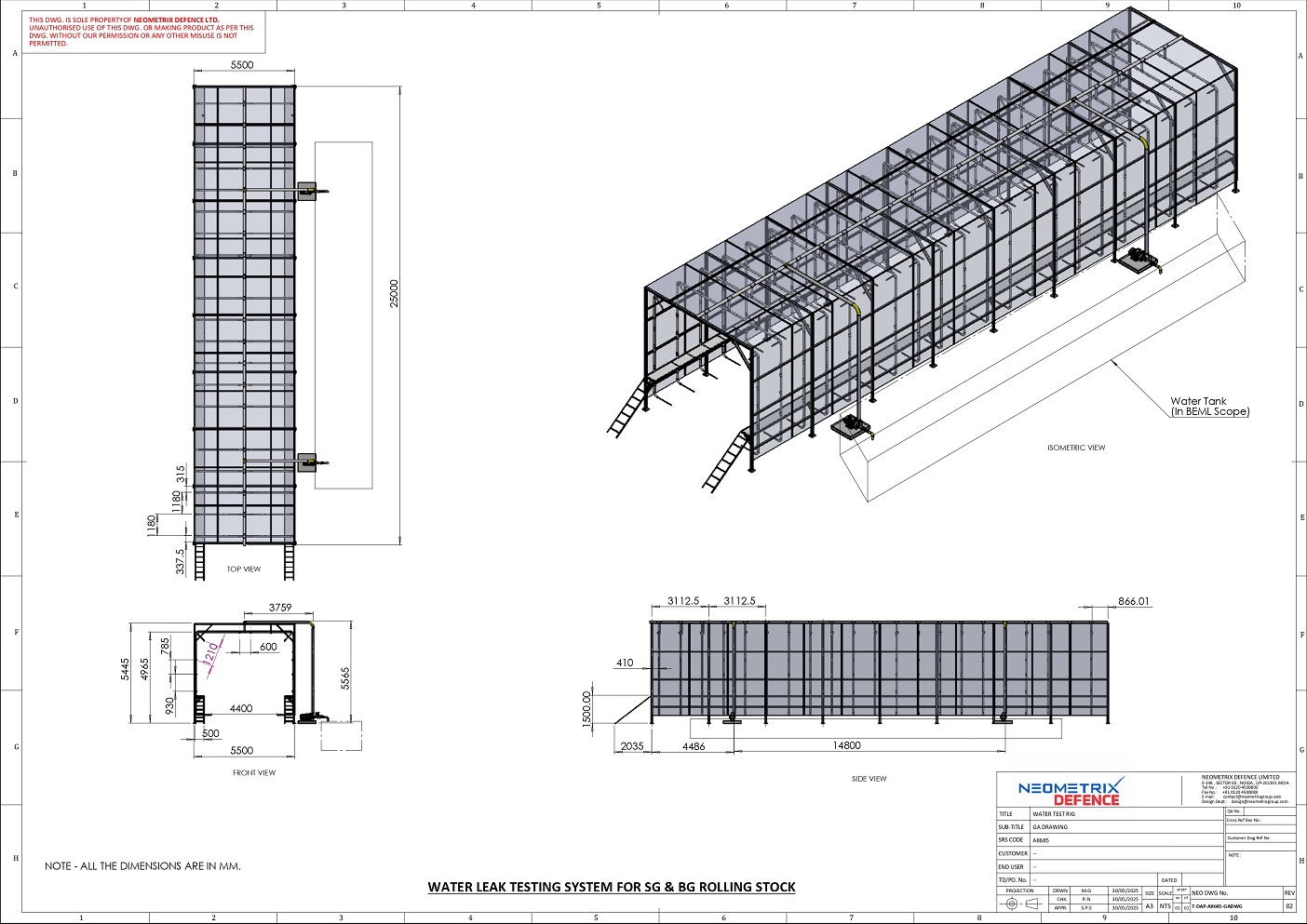

Water leak testing system general arrangement drawing - top, front, side and isometric views of the 25 metre spray gantry structure by Neometrix

Fig · 03 GA drawing · top / front / side / isometric views of the full gantry structure

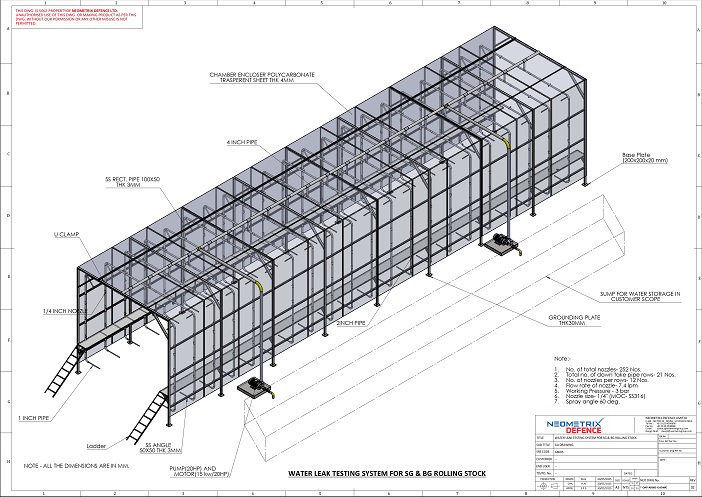

Water leak testing system technical drawing - labeled spray nozzle grid, polycarbonate enclosure and pump specifications by Neometrix

Fig · 04 Technical reference · nozzle grid, enclosure and pump/motor callouts

Downloads

Design drawing.

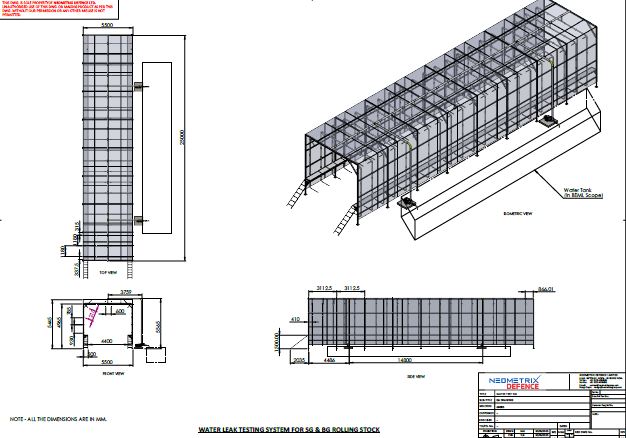

Design drawing for the Water Leak Testing System for Standard and Broad-Gauge Rolling Stock, available as PDF for procurement and technical review.

Drawing · Design 1

Water Leak Testing System — Design Drawing

PDF

Specifications

Full technical parameters.

Key system parameters for the standard Neometrix Water Leak Testing System configuration.

Overall Dimensions (Chamber)	25 m (L) × 5 m (W) × 6 m (H)
Material of Construction	Stainless Steel 304 structure; polycarbonate enclosure
Spray Network	21 downtake rows × 12 nozzles = 252 nozzles total
Nozzle Type	¼ HH 316 SS – 12.5 mm square pattern – 3.2 mm orifice – 60° angle
Spray Velocity	15.3 m/s
Flow Rate (per nozzle)	7.4 L/min
Total Water Flow	~1,865 L/min (approx.)
Operating Pressure	3 bar (300 kPa)
Pump Capacity	20 HP / 15 kW each × 2 nos
Filtration Stages	40 mesh + 100 mesh stainless Y-strainers
Working Temperature Range	5°C – 50°C
Relative Humidity Range	50% – 98%
Power Supply	415 V ±10%, 3Φ AC, 50 Hz
Control Panel Protection	IP 55 / IP 65 enclosure, powder-coated steel
Illumination	10 × 50 W LED floodlights (IP66)
Platform Width	1 m on both sides of chamber
Safety Devices	Pressure gauge, flow meter, emergency stop, grounding system
Noise Level	<75 dB(A) at 1 m distance
Warranty	24 months from commissioning date

Applications

Where it tests.

From coach manufacturing lines to depot QA facilities, the Water Leak Testing System validates watertightness across rolling-stock platforms.

A · 01Validation of rail coach shells, metro cars, and EMU/DMU bodies for water ingress

A · 02Testing of roof seams, side panels, door and window assemblies, HVAC ducts, and underframe seals

A · 03Quality-assurance facilities at coach manufacturing plants, maintenance depots, and R&D centers

A · 04Applicable to steel, aluminium, or composite coach designs

A · 05Adaptable for aerospace, defence-vehicle, or automotive body testing where rain simulation is required

A · 06Standard-Gauge (1,435 mm) and Broad-Gauge (1,676 mm) rolling stock in one chamber

In Depth

The complete technical read.

Engineering narrative for railway QA engineers, procurement teams and depot managers who want the full picture before committing to a facility.

Introduction

The Water Leak Testing System designed and manufactured by Neometrix Defence Limited is a state-of-the-art, full-scale facility developed to rigorously evaluate the watertightness of railway coaches and rolling-stock car bodies under simulated heavy-rainfall conditions. Modern rail vehicles are built for diverse climates — from arid zones to monsoon-prone regions — and are exposed to driving rain, crosswinds, temperature variation, and prolonged humidity. Even a small leak can compromise passenger safety, electrical systems, and interior furnishings.

Constructed from marine-grade stainless steel and engineered for precision, the facility reproduces the impact, flow distribution, and kinetic energy of natural rainfall through a calibrated network of high-velocity nozzles. The result is a scientifically repeatable, industrial-scale rain simulation, enabling manufacturers to identify micro-leakages, structural weaknesses, or improper sealing in roof joints, window frames, vestibule doors, and HVAC ducts.

Construction and materials

Frame assembly: heavy-duty SS-304 rectangular pipes (100 × 50 × 3 mm) and SS angles (50 × 50 × 3 mm) form the load-bearing skeleton of the test bay.
Base plates: 20 mm-thick stainless-steel mounting plates secure the chamber and gantry to the foundation, absorbing vibration and hydraulic impulses.
Enclosure panels: 4 mm translucent polycarbonate sheets enclose the test chamber, offering high impact strength, UV protection, and visibility for observers.
Platform walkway: dual-side inspection platforms (25 m × 1 m each) made of 5 mm galvanized chequered plate for safe technician access.
Drainage floor: a 1% gradient slope channels water efficiently toward the collection sump, preventing stagnation or splash-back.
Surface protection: all metallic items exposed to moisture are pickled and passivated; auxiliary fixtures are coated with industrial-grade epoxy paint.

Hydraulic and pumping system

The system distributes water evenly across all 21 downtake rows through an integrated network of headers, branch lines, and flexible connectors. At the heart of the system are two 20 HP (15 kW) self-priming monoblock centrifugal pumps operating singly or in tandem, each delivering approximately 980 L/min at 3 bar, ensuring consistent pressure even under partial nozzle blockage or simultaneous multi-zone operation. Power input is standard 415 V AC, 50 Hz, 3-phase, protected through MCBs, overload relays, and contactors within a water-proof control panel that includes dual pump ON/OFF selectors with interlocks, a flow-through indicator and VAF meter, emergency stop and isolation switch, LED status lamps, and provision for future PLC or automated test-sequencing integration.

Water recycling and environmental design

The rig operates as a closed-loop system, dramatically reducing water consumption. All sprayed water drains through the sloped floor into a collection sump, where it is filtered through 40-mesh primary and 100-mesh secondary filtration stages and recirculated. Level sensors monitor water availability and trigger pump-protection cut-offs during low levels, and an optional auxiliary reservoir can be added for extended testing duration. This eco-friendly configuration eliminates wastage and supports continuous test cycles without downtime for refilling.

Operational process

Preparation: the coach is positioned centrally on the test platform; electrical power and water circuits are checked.
Pressurization: the pump(s) are started, building system pressure to 3 bar; gauges and sensors are verified.
Spray activation: valves open sequentially, allowing uniform high-velocity spray to envelop the entire coach.
Observation: operators monitor for leaks, seepage, or dripping inside the vehicle while maintaining external spray for 5–10 minutes (configurable).
Shutdown: pumps are switched off; residual water drains to the sump and the filtration cycle initiates automatically.
Post-test: data or visual observations are logged; any leakage zones are marked for corrective sealing or welding.

Lighting, safety and ergonomics

Lighting: 10 × 50 W LED IP66 floodlights provide bright, shadow-free illumination inside the chamber for inspection.
Access & safety: anti-slip ladders, stainless handrails, and earthing plates guarantee safe operator movement.
Emergency systems: emergency stop button, overpressure valve, and electrical isolation ensure operator and equipment protection.
Inspection comfort: the polycarbonate enclosure offers visibility from all sides without exposure to water spray.

Conclusion

The Neometrix Water Leak Testing System represents controlled environmental testing for the railway sector, combining stainless-steel robustness, intelligent hydraulic design, and sustainable water management to provide a precise, repeatable, and eco-efficient means of verifying the waterproofing performance of rolling-stock vehicles — ensuring every coach subjected to its test cycle emerges completely watertight and ready for service.

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What is a Water Leak Testing System for railway rolling stock?

It is a full-scale rain simulation chamber engineered to test the waterproof integrity of railway coaches, metro cars, and EMU/DMU bodies. Using high-velocity spray nozzles, the system replicates heavy monsoon rainfall to detect water ingress in roofs, doors, windows, seams, and underframe areas.

Q · 02 How does the rain simulation chamber replicate real environmental conditions?

The system uses 252 precision nozzles delivering 15.3 m/s spray velocity at 3 bar pressure, simulating rainfall above 150 mm/hour. This ensures uniform 360° coverage across the entire coach, exposing even micro-leaks under real-world storm conditions.

Q · 03 Which types of coaches can be tested?

The chamber accommodates both Standard-Gauge (1,435 mm) and Broad-Gauge (1,676 mm) rail vehicles. It is suitable for metro coaches, EMU/DMU bodies, mainline coaches, and shells made from steel, aluminium, or composite structures.

Q · 04 What components of the coach are typically inspected for leakage?

The system enables precise testing of roof joints, side-wall panels, vestibule doors, window frames, cab interfaces, HVAC ducts, equipment hatches, and underframe sealing points to ensure complete waterproofing before deployment.

Q · 05 How does the closed-loop water recycling system work?

All water sprayed inside the chamber collects in a sump, passes through 40-mesh and 100-mesh filtration stages, and is recirculated back to the pumps. This reduces water consumption by over 80% while maintaining consistent flow and preventing nozzle clogging.

Q · 06 What are the main advantages of using this automated leak test facility?

It eliminates manual and subjective leak testing, improves accuracy, increases production throughput, reduces warranty issues, and enables standardized testing. The stainless-steel chamber ensures long service life with low maintenance requirements.

Q · 07 Can the system be integrated with PLC/SCADA automation?

Yes. The electrical panel includes provisions for future PLC or SCADA integration, enabling automated sequencing, data logging, and repeatable test cycles for advanced QA workflows.

Q · 08 What safety features are included in the test rig?

The setup incorporates electrical isolation, emergency stop switches, overpressure protection, LED lighting, grounded handrails, anti-slip walkways, and IP-rated control enclosures to ensure operator safety during testing.

Q · 09 How long does a typical water leak test cycle take?

Standard testing lasts 5–10 minutes, depending on customer protocol. Including preparation and drainage, an entire cycle usually completes within 10–15 minutes, enabling high throughput in manufacturing and depot environments.

Q · 10 Can this system be used for applications beyond the railway sector?

Yes. The chamber is adaptable for aerospace fuselage leak testing, defence-vehicle rain trials, automotive body waterproof tests, and any application requiring high-intensity rainfall simulation in a controlled environment.
