SKID-MOUNTED SS316 FUEL CONDITIONING · TO 500 LPM / 10 BAR

Aerospace Fuel Supply System, rated to 500 LPM at 0–10 bar, with 18.65 kW dual-pump redundancy and 45 kg N₂ emergency backup.

A skid-mounted, SS316/SS304 aviation fuel conditioning and delivery platform for aero-engine and APU test cells. Dual centrifugal pumps, a Hale Hamilton dome-type pressure regulator, FAUDI dual-stage filtration and KRAL positive-displacement metering deliver aviation-grade fuel at stable pressure, controlled flow and uncompromising cleanliness — with a 1,500 L nitrogen-pressurised emergency vessel standing by for uninterrupted engine fuel feed.

Request proposal Full specifications

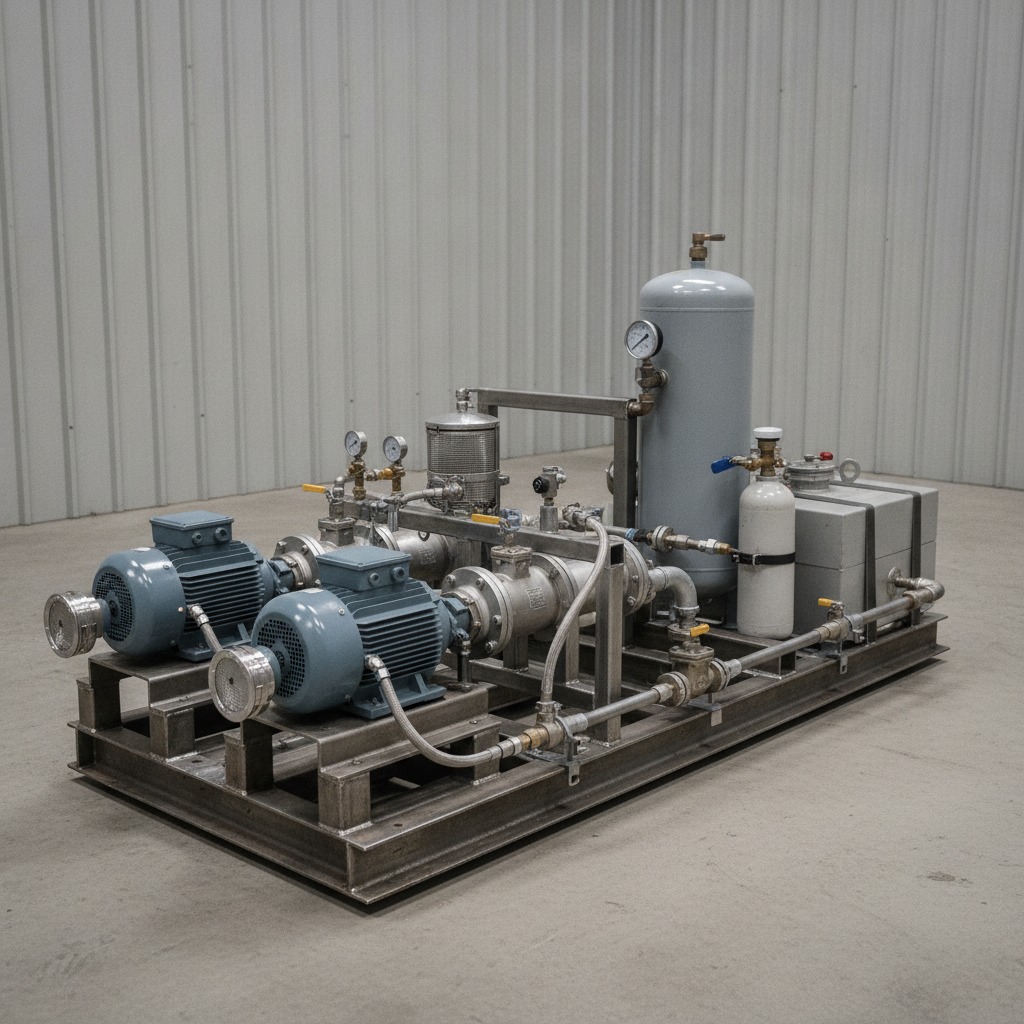

Aerospace Fuel Supply System installed skid - dual centrifugal pumps, N2-pressurised emergency vessel, dome pressure regulator and fuel filtration assembly by Neometrix

Fig · 01 Studio visualization · pumping module, emergency vessel, regulation and filtration skid

Engineered and tested to:

ASME B16.5 ASTM A351 IEC 60079 ISO 9001 ISO 4406

Flow Rate

500LPM max

Motor Rating

18.65kW × 2

Working Pressure

0–10bar

Emergency Tank

1,500L SS316

N₂ Cylinder

45kg

Overview

Ground-test fuel delivery, flight-condition precision.

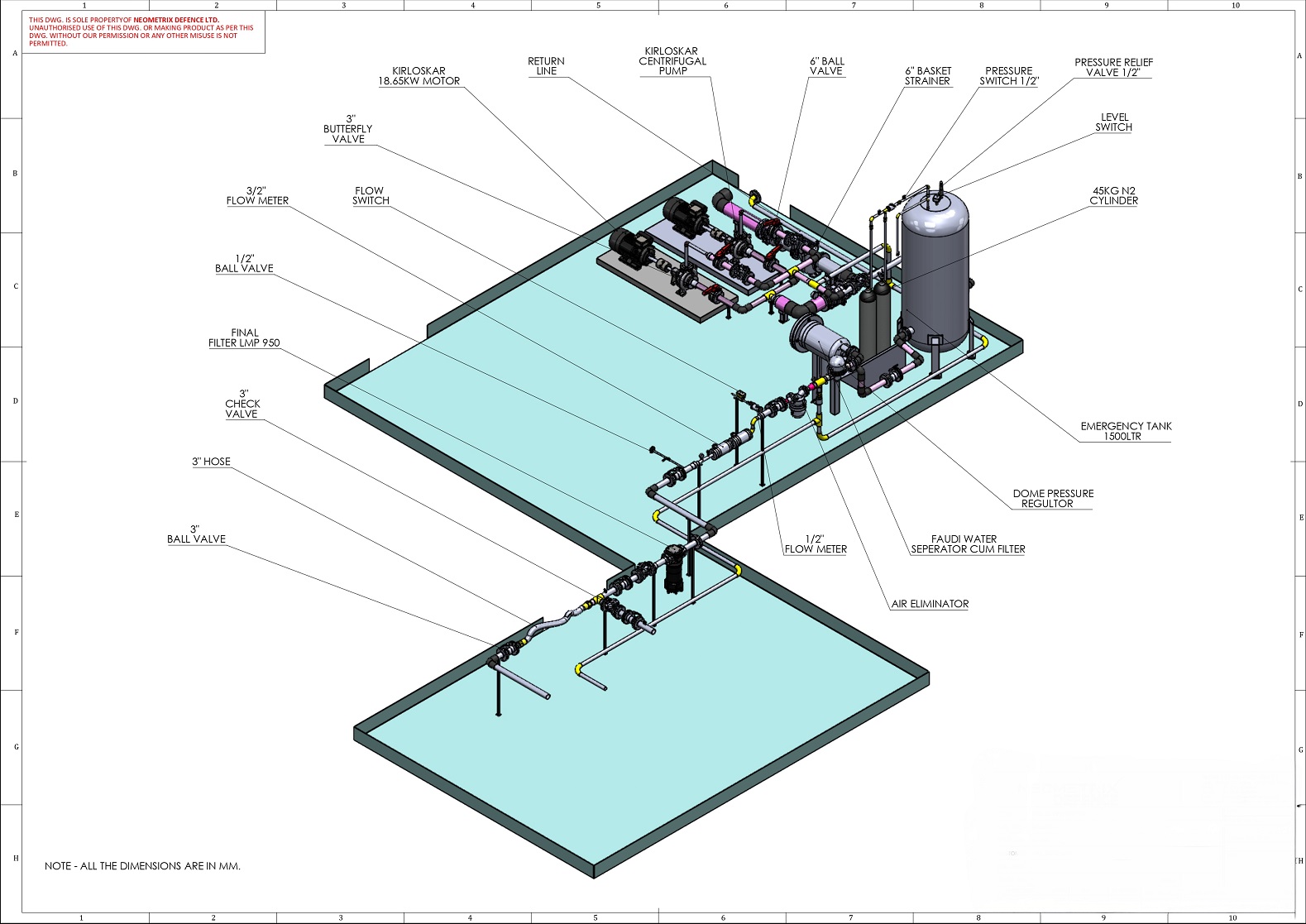

Aerospace Fuel Supply System labeled layout diagram - fuel pumping module, emergency vessel, pressure regulation, metering and filtration skid

Fig · 02Facility layout diagram · module arrangement (indication purpose only)

The Aerospace Fuel Supply System from Neometrix Defence Limited is a fully integrated, skid-mounted installation for Aviation Turbine Fuel (ATF), Jet A-1, or kerosene service. Developed for engine test cells, APU facilities, and advanced combustion research centers, it integrates hydraulic, pneumatic, electrical, and automation disciplines to ensure flawless fuel management — from dual redundant pumps and dome-type regulators to aerospace-standard filtration and flow metering.

Six subsystems make up the skid: a Fuel Pumping Module that generates and maintains flow and pressure, an Emergency Supply Module providing nitrogen-pressurised backup, a Pressure Regulating Module for stable downstream pressure, a Fuel Metering Module for high-precision flow measurement, a Final Filtration Module for absolute fuel purity, and an Interconnection Network of stainless-steel piping and flexible hoses tying it all together. Each skid is fabricated from SS316/SS304, passivated for fuel compatibility, and equipped with drip trays, lifting lugs, and earthing points for operational safety and mobility.

Core Modules

Five subsystems, one fuel skid.

Module · 01

Fuel Pumping Module

Dual centrifugal pumps (Kirloskar / Mapex type) rated for 500 LPM @ 7 bar, one duty and one standby, driven by 18.65 kW, 415 V, 50 Hz flame-proof motors (IE2). Wetted components in SS316, with a 6-inch FAUDI basket strainer (100 µm), AIRA isolation and non-return valves, and vibration-isolated skid mounting.

500 LPM @ 7 Bar · 18.65 kW IE2 FLP · 100 µm Strainer

Module · 02

Emergency Supply Module

A 1,500 L SS316 pressure vessel, designed for 8 bar working / 12 bar hydrotest, pressurised via a 45 kg N₂ cylinder and precision regulator. Pressure relief valve, dual pressure switches, level transmitters and safety interlocks activate automatically on pressure loss to maintain uninterrupted engine fuel feed.

1,500 L SS316 · 45 kg N₂ · 8/12 Bar Work/Hydrotest

Module · 03

Pressure Regulating Module

A Hale Hamilton dome-type regulator holds 0–10 bar with ±0.1 bar stability, backed by dual WIKA pressure transmitters and analog gauges for redundancy. Integrated relief and bypass valves allow maintenance without system shutdown.

Hale Hamilton Dome · 0–10 Bar · ±0.1 Bar Stability

Module · 04

Fuel Metering Module

A KRAL positive-displacement flow meter with 600 LPM capacity and ±0.2% accuracy provides analog (4–20 mA) and pulse outputs for PLC or DAQ integration. Factory calibrated and ISO/IEC 17025 traceable.

KRAL PD Meter · 600 LPM · ±0.2% Accuracy

Module · 05

Final Filtration Module

A FAUDI coalescer-separator assembly with dual-stage filtration — a 1 µm particulate coalescer plus water-separator elements (MIL 4-727 / 60.644-727DM) — equipped with a differential-pressure indicator, electrical clog alarm and drain port, producing fuel cleanliness better than ISO 4406 code 15/13/10.

FAUDI Coalescer · 1 µm · ISO 4406 15/13/10

Applications

Where the skid goes to work.

01Aero-Engine & APU Test Cells — controlled, contamination-free and precisely metered fuel flow without depending on unstable facility lines.

02Gas-Turbine & UAV Propulsion Testing — stable pressure and flow for endurance, functional and combustion trials.

03Combustion & Fuel-System R&D Labs — repeatable, traceable fuel conditions for development programs.

04High-Accuracy Fuel-Meter Calibration Benches — ISO/IEC 17025-traceable KRAL metering for calibration work.

05Aviation Fuel Conditioning & Circulation Systems — sustained, cleanliness-controlled circulation for test-cell fuel management.

Design & Construction

Built for hydrocarbon service.

Every skid is fabricated from SS316/SS304 (ASTM A351 / A276), pickled and passivated for hydrocarbon service, with PTFE/Viton ATF-compatible sealing throughout. Connections follow ASME B16.5 Class 150 flanges, and all welding is TIG, full-penetration and dye-checked for weld integrity.

Electrical hardware is rated Ex-d flame-proof, IP65, for hazardous-area operation. Skids mount modularly with drip trays, drains, and earthing points, keeping the unit both safe to operate and easy to relocate between test bays.

Materials	SS316 / SS304 (ASTM A351 / A276)
Sealing	PTFE / Viton, ATF-compatible
Connections	ASME B16.5 Class 150 flanges
Welding	TIG, full-penetration, dye-checked
Electrical Rating	Ex-d flame-proof, IP65
Mounting	Modular skids with drip tray, drains, and earthing
Surface Finish	Pickled + passivated for hydrocarbon service

Quality Assurance & Testing

Verified before it ships.

Full material traceability and certification review.
Hydrostatic tests at 1.5× design pressure for all tanks and lines.
Pneumatic leak tests and visual weld inspections.
Functional trials for flow, pressure, and automatic switching.
Electrical safety testing for insulation and earthing continuity.
Factory Acceptance Test (FAT) with complete documentation and calibration records.

Key Features

Why test cells choose this skid.

Dual centrifugal pumps at 500 LPM and 7 bar with auto standby changeover ensure uninterrupted engine fuel flow.
1,500 L nitrogen-pressurised backup vessel activates on pump failure, ensuring continuous engine fuel feed at test.
Hale Hamilton dome regulator delivers ±0.1 bar pressure stability for accurate performance data during engine runs.
KRAL positive-displacement flow meter at 600 LPM and ±0.2% accuracy gives ISO/IEC 17025-traceable fuel metering.

FAUDI dual-stage coalescer-separator (1 µm) with DP alarm delivers absolute fuel purity at the engine interface.
Flame-proof 18.65 kW motors ensure safe, adjustable fuel delivery in hazardous test environments.
SS316 wetted construction with drip trays, earthing, and lifting lugs supports safe, mobile test-cell deployment.
PLC/SCADA with redundant pressure transmitters enables precise, repeatable, traceable aero-engine test cell runs.

Studio Visualization

The skid, as configured.

The full assembly of the Aerospace Fuel Supply System — pumping module, emergency vessel, regulation, metering and filtration skid.

Aerospace Fuel Supply System studio visualization - full skid assembly

Fig · 03Studio visualization · full skid assembly (indication purpose only)

Downloads

Design drawings.

GA design drawings for the Aerospace Fuel Supply System, available for procurement review and technical pre-screening.

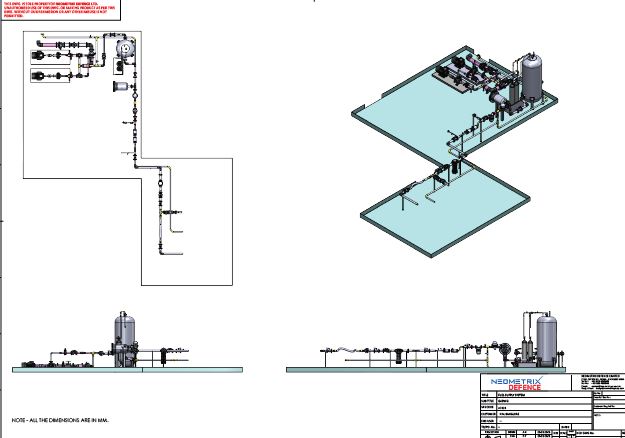

Aerospace Fuel Supply System design drawing 1 thumbnail - GA layout

Drawing · Design 1

AFSS Assembly GA Drawing

PDF

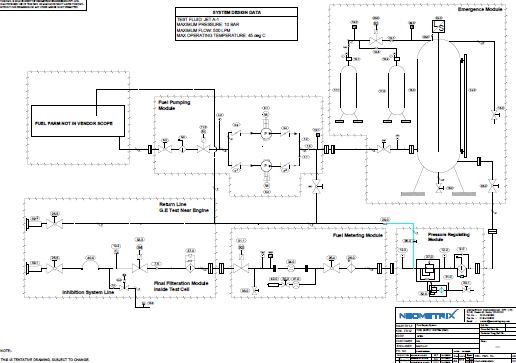

Aerospace Fuel Supply System design drawing 2 thumbnail - piping and valve detail

Drawing · Design 2

Piping & Valve Assembly Drawing

PDF

Specifications

Full technical parameters.

Key system parameters for the standard Aerospace Fuel Supply System configuration.

Working Fluid	Aviation Turbine Fuel (ATF) / Jet A-1 / Kerosene
Flow Rate (max)	500 LPM
Working Pressure	0–10 bar
Design Pressure	12 bar
Operating Temperature	Up to 45 °C
Pump Type	Centrifugal, SS316 construction
Motor Rating	18.65 kW, 415 V, 3 phase, 50 Hz, IE2 FLP
Filtration Level	100 µm (pre-filter) + 1 µm (final filter)
Filter Make	FAUDI / Equivalent Coalescer Separator
Flow Meter Type	Positive Displacement (KRAL / Equivalent)
Flow Accuracy	± 0.2% of reading
Pressure Regulation	Dome-type 0–10 bar (Hale Hamilton / Eqv.)
Emergency Tank Capacity	1,500 L SS316 vessel
Pressurisation	45 kg N₂ cylinder with regulator
Piping Material	SS316 seamless pipe and tube
Valve Types	Butterfly, Ball, Check, Solenoid (SS316)
Valve Rating	PN 10 / Class 150
Instrumentation	WIKA gauges, DP indicators, flow switches
Automation	PLC/SCADA interface (4–20 mA signals)
Power Supply	415 V AC ±10%, 50 Hz, 3 phase
Noise Level	< 75 dB(A) @ 1 m
System Protection	Over-/under-pressure, filter clog, flow failure
Compliance Standards	ASME B16.5 / ASTM A351 / IEC 60079 / ISO 9001 / ISO 4406

FAQ

Common questions.

Q · 01 What is an Aerospace Fuel Supply System?

It is a precision-engineered fuel conditioning and delivery platform that supplies aviation turbine fuel to aero-engines under test. It controls pressure, flow and cleanliness to ensure accurate measurement of engine performance and fuel system behavior under simulated flight conditions.

Q · 02 Why is a dedicated aircraft engine fuel test rig required?

A standalone fuel test rig provides controlled, contamination-free and precisely metered fuel flow without depending on unstable facility lines. It enables safe endurance, functional and combustion testing while maintaining accurate data for engine development programs.

Q · 03 What types of fuel can the system handle?

The fuel supply system supports Aviation Turbine Fuel (ATF), Jet A-1 and kerosene, making it suitable for aero-engine test cells, APU benches and combustion research setups.

Q · 04 How is pressure regulated in the system?

Pressure is controlled using a Hale Hamilton dome-type regulator capable of maintaining 0–10 bar with ±0.1 bar stability, ensuring consistent downstream conditions even during load variations.

Q · 05 What ensures fuel cleanliness during testing?

The system includes FAUDI coalescer-separator filtration with dual-stage elements (1 µm fine filter + water separator) achieving ISO 4406 code 15/13/10 fuel cleanliness for contamination-free engine operation.

Q · 06 What is the purpose of the emergency nitrogen-pressurised backup?

The 1,500-litre nitrogen-pressurised emergency tank automatically activates during pump or power failure to maintain uninterrupted fuel feed, ensuring test safety and avoiding engine flameout.

Q · 07 How is fuel flow measured accurately?

A KRAL positive-displacement flow meter provides high-accuracy flow measurement (±0.2%) with both analog (4–20 mA) and pulse outputs for integration with PLC/SCADA systems.

Q · 08 What makes this system suitable for aerospace test cells?

The system features stainless-steel construction, explosion-proof electrical hardware, multi-stage filtration, redundant pumps, precise pressure regulation and advanced automation — ensuring reliability and safety in aerospace-grade test environments.

Q · 09 Can this fuel supply system be integrated with SCADA or remote control?

Yes. The system is equipped with PLC-based automation, 4–20 mA instrumentation, safety interlocks and SCADA-ready interfaces for local or remote control and data logging.

Q · 10 What are the common applications of the Aerospace Fuel Supply System?

Typical uses include aero-engine and APU test cells, UAV propulsion testing, fuel-system R&D labs, flow meter calibration benches and aviation fuel conditioning or circulation systems.
