Portable Pneumatic Test Rig for Rudder Actuator / 0–10 bar · 10,000 cycles / MIL-STD-810 · AS9100D / India

PPTR-RA · FIELD-DEPLOYABLE PNEUMATIC TEST RIG

Portable Pneumatic Test Rig for Rudder Actuator, rated to 0–10 bar / 10,000 cycles.

A field-deployable, fully computerized pneumatic test cabinet developed for Hindustan Aeronautics Limited (HAL) that reproduces real flight loads on the ground — validating rudder actuator stroke, force, response time, leakage and endurance before aircraft integration or MRO clearance.

Request proposal Specifications

Portable pneumatic test rig for rudder actuator - two wheeled test benches with pneumatic actuator cylinders and lifting-eyebolt mounting plates by Neometrix

Fig · 01 Twin portable actuator test benches · pneumatic cylinders on lifting-eyebolt mounting plates

Designed and manufactured to:

MIL-STD-810 ISO 8573-1 AS9100D

Supply Pressure

0–10bar

Actuator Stroke

300mm / ±30°

Load Simulation

50–1,000N

Cycle Life

10,000cycles

Portable Weight

100–150kg

Overview

Flight loads, reproduced on the ground.

The rudder controls yaw motion and directional stability — essential for crosswind landings, coordinated turns, and engine-out recovery. The Portable Pneumatic Test Rig for Rudder Actuator, developed for HAL, brings its qualification testing out of the fixed lab and into the hangar.

Portable rudder actuator pneumatic test rig product view - compact air pressure supply and control unit for on-aircraft actuator testing by Neometrix

Fig · 02 Close angle on the two mounting plates and quick-connect pneumatic couplings

The rudder actuator translates pneumatic energy into controlled rudder deflection, and its reliability is fundamental — a sluggish response, leakage, or failure under load can lead to catastrophic flight instability. International regulators (DGCA, FAA, EASA, DGQA, CEMILAC) mandate periodic testing, qualification and certification of rudder actuators before installation and after every overhaul cycle.

This field-deployable, fully computerized rig reproduces operational flight conditions in a controlled ground environment, applying pneumatic loads while monitoring actuator stroke, response speed, force generation, leakage integrity and endurance under repeated cycles. Its portable cabinet design allows rapid testing at hangars or forward bases, cutting downtime compared to a centralized test facility.

Not just test equipment — a flight-safety enabler.

With computerized data acquisition, calibrated instrumentation and automated test profiles, the rig delivers repeatable, traceable results that satisfy aerospace quality protocols and keep frontline fighter jets, helicopters and transport aircraft mission-ready.

Architecture

Six systems, one field cabinet.

A modular architecture combining pneumatic power, actuator fixtures, instrumentation and computerized control inside a single portable enclosure.

Sub · 01

Pneumatic Supply Module

Shop-air or portable-compressor input with multi-stage filtration, moisture separation, precision regulators for step/ramp profiles, and relief/bleed-off valves.

Sub · 02

Actuator Mounting & Fixture

Universal frame with adjustable clamps for multiple actuator sizes, mechanical end stops against over-travel, and quick-connect couplings for fast changeover.

Sub · 03

Load Simulation Unit

Pneumatic pilot actuator or loading device applies controlled resistive loads across an adjustable range simulating real aerodynamic and control loads.

Sub · 04

Instrumentation & Sensors

Pressure transducers to ±0.5% FS, LVDT/rotary encoders to ±0.01 mm or ±0.05°, load cells to ±0.25% FS, flow meters and temperature sensors.

Sub · 05

Control & Data Acquisition

PXI/DAQ platform with LabVIEW-class GUI, automated functional/leak/endurance sequences, real-time plotting and CSV/PDF report export.

Sub · 06

Safety Systems

Dual redundant pressure relief valves, an emergency-stop button cutting supply instantly, mechanical guards, and auto-shutdown on overpressure or leakage.

Image Gallery

The rig, cabinet and console.

Product views from a delivered Portable Pneumatic Test Rig for Rudder Actuator — mounting plates, enclosure and control console.

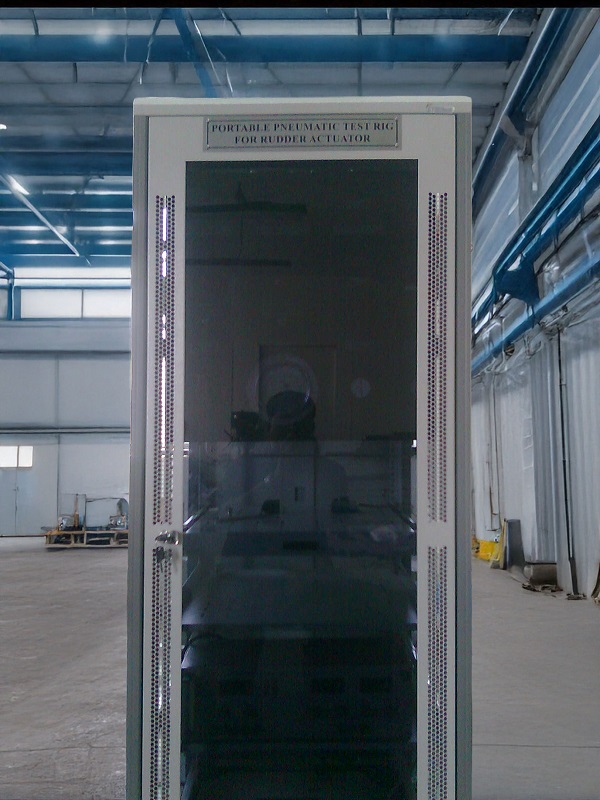

Portable pneumatic test rig enclosed field cabinet with nameplate - aircraft rudder actuator functional check equipment by Neometrix

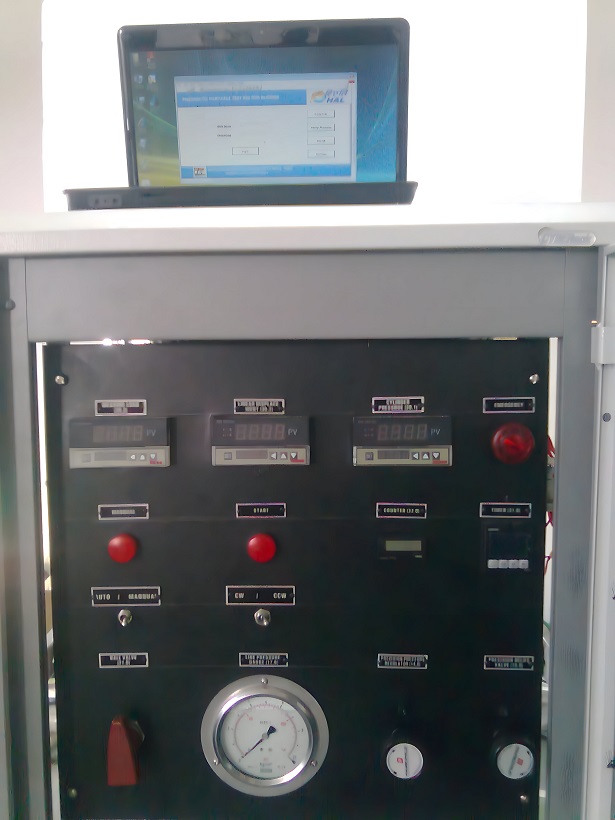

Portable pneumatic rudder actuator test rig control panel and DAQ laptop in field use - defence aviation MRO actuator performance verification tool by Neometrix

Fig · 03–05 Mounting plates and couplings (left), field cabinet enclosure (centre), control panel and DAQ console (right)

Specifications

Full technical parameters.

Key system parameters for the standard Neometrix Portable Pneumatic Test Rig for Rudder Actuator configuration.

Pneumatic Supply Pressure	0–10 bar regulated, clean & dry air
Pressure Control Accuracy	±0.1 bar
Actuator Stroke / Travel	Up to 300 mm (linear) or ±30° (rotary)
Load Simulation	50–1,000 N adjustable
Force Measurement	Load cell up to 5 kN, ±0.25% FS accuracy
Displacement Measurement	LVDT with 0.01 mm resolution
Leakage Measurement	<0.5% FS pressure decay over 5 minutes
Response Time	<0.5 s full stroke under nominal pressure
Cycle Life Test Capacity	Up to 10,000 programmable cycles
Data Sampling Rate	1 kHz continuous logging
Power Supply	230 V AC, 50 Hz, single phase
Operating Environment	0–50°C, <90% RH non-condensing
Dimensions	Portable cabinet ~1000 × 700 × 600 mm
Weight	Approx. 100–150 kg (field portable)

Applications

Where it deploys.

Engineered for versatile use across aerospace manufacturing, MRO and field maintenance.

A · 01Functional testing — full-stroke and partial-stroke verification under varying pneumatic loads

A · 02Performance characterization of actuator force, displacement and response time

A · 03Static and dynamic leakage testing under pressure-hold conditions

A · 04Endurance / fatigue testing simulating thousands of flight cycles

A · 05Calibration and acceptance testing to OEM and regulatory standards

A · 06Field deployment in hangars, MRO centres, forward air bases and assembly shops

In Depth

The complete technical read.

Engineering narrative for QA managers and MRO engineers who want the full picture before deploying the rig on-site.

Introduction

The rudder is one of the three primary flight control surfaces on any aircraft (alongside ailerons and elevators). It controls yaw motion, enabling an aircraft to maintain directional stability during normal flight and to execute safe maneuvers in critical situations such as crosswind landings, coordinated turns, or engine-out conditions. The rudder actuator is the mechanical device that translates pneumatic or hydraulic energy into controlled rudder deflection. Its reliability is fundamental: a sluggish response, leakage, or failure under load can lead to catastrophic flight instability. Because of this, international aviation regulators (DGCA, FAA, EASA, DGQA, CEMILAC) mandate periodic testing, qualification, and certification of rudder actuators before installation and after every overhaul cycle.

The Portable Pneumatic Test Rig for Rudder Actuator, developed for Hindustan Aeronautics Limited (HAL), is a field-deployable, fully computerized test system designed specifically for this mission. Compact yet powerful, it reproduces operational flight conditions in a controlled ground environment, ensuring actuators are tested, validated, and certified to withstand the most demanding conditions expected in service.

Test capabilities

Test	Purpose
Functional Test	Ensures actuator executes commanded strokes smoothly at all supply pressures.
Performance Curve Testing	Establishes actuator force vs. displacement and speed vs. load profiles.
Static Leak Test	Checks pressure decay over time at constant input.
Dynamic Leak Test	Monitors leakage during active cycling.
Endurance Test	Thousands of cycles at controlled load to simulate in-service life.
Response Time Measurement	Determines actuator lag from command signal to mechanical movement.
Fail-Safe / Emergency Behaviour	Verifies actuator response under sudden supply loss.

Key features

Field-deployable: tests actuator function, leakage, endurance and calibration directly at hangars, MRO centres and forward air bases.
Wide stroke coverage: supports 300 mm linear or ±30° rotary actuator stroke, with pneumatic load simulation from 50 to 1,000 N.
High-accuracy measurement: ±0.25% FS load cell and 0.01 mm LVDT provide precise force and displacement readings on every test run.
Automated DAQ: logs real-time test data with customizable sequences, reducing manual recording and analysis errors.
Redundant safety: dual relief valves and an emergency stop provide independent overpressure protection and instant abort capability.
Fast changeover: compact portable design deploys quickly with no lab support, and fixtures reconfigure across multiple actuator models.

Compliance & standards

QA protocols: built to DGQA / HAL QA protocols for actuator testing.
Environmental qualification: aligned to MIL-STD-810 for field operation.
Air quality: compressed-air supply meets ISO 8573-1.
Manufacturing & documentation: ISO 9001:2015 / AS9100D compliant.
Sensor calibration: carried out at ISO/IEC 17025 accredited laboratories.

Deliverables

Fully assembled Portable Pneumatic Test Rig.
Universal actuator mounting fixtures.
Pneumatic hoses, couplings, and adaptors.
Laptop/PC with DAQ & control software.
Sensor calibration certificates.
Comprehensive documentation (Operation, Maintenance, Safety, Test Procedures).
Training for operators and maintainers (optional package).

Conclusion

The Portable Pneumatic Test Rig for Rudder Actuator is not just a test system but a mission-critical assurance tool. By enabling functional, endurance, and leakage testing in a portable and automated package, it ensures that flight safety is never compromised. Designed to aerospace QA standards and proven with HAL, this rig represents a benchmark in reliability, efficiency, and field readiness for actuator testing in the aerospace domain.

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What is the Portable Pneumatic Test Rig for Rudder Actuator?

It is a field-deployable, fully computerized pneumatic test cabinet built by Neometrix Engineering Pvt Ltd, India, for functional, performance, leakage and endurance testing of aircraft rudder actuators. It was developed for Hindustan Aeronautics Limited (HAL) to bring flight-safety qualification testing to hangars and forward bases without a fixed lab facility.

Q · 02 Who manufactures the Portable Pneumatic Test Rig for Rudder Actuator?

The rig is designed and manufactured by Neometrix Engineering Pvt Ltd, a leading aerospace and defence test equipment manufacturer based in India.

Q · 03 What pressure range and actuator stroke does the rig support?

The rig supplies 0–10 bar of regulated, clean and dry air at ±0.1 bar control accuracy, and accommodates actuator strokes up to 300 mm linear or ±30° rotary, with pneumatic load simulation adjustable from 50 to 1,000 N.

Q · 04 What tests can the rig perform?

The rig runs functional stroke tests, force-versus-displacement performance curves, static and dynamic leak tests, response-time measurement, fail-safe/emergency behaviour checks, and endurance testing up to 10,000 programmable cycles, all logged automatically by the onboard DAQ.

Q · 05 How accurate are the rig's measurements?

Force is measured by a load cell rated up to 5 kN at ±0.25% full-scale accuracy, displacement by an LVDT with 0.01 mm resolution, and leakage by pressure decay below 0.5% full-scale over a 5-minute hold, with 1 kHz continuous data logging.

Q · 06 Is the rig genuinely portable?

Yes. The complete system is housed in a field cabinet of roughly 1000 x 700 x 600 mm weighing approximately 100–150 kg, runs from a single-phase 230 V AC supply, and connects to shop-air or a portable compressor, so it can be deployed to hangars, MRO centres, forward air bases and assembly shops without a fixed test stand.

Q · 07 Does the rig comply with relevant standards?

The rig is built to DGQA/HAL QA protocols for actuator testing, with environmental qualification aligned to MIL-STD-810 for field operation, compressed-air quality per ISO 8573-1, and manufacturing/documentation under ISO 9001:2015 and AS9100D. Sensors are calibrated at ISO/IEC 17025 accredited laboratories.

Q · 08 What safety systems protect the rig and the actuator under test?

Dual redundant pressure relief valves, an emergency stop that instantly cuts pneumatic supply, mechanical guards around moving components, and auto-shutdown logic on overpressure, leakage or malfunction protect both the operator and the actuator under test.

Q · 09 Is the rig customizable for other actuator types?

Yes, the universal mounting frame and quick-connect pneumatic couplings allow fast changeover between actuator variants, and Neometrix can reconfigure fixtures, load ranges and test sequences for specific client actuator models and standards.

Q · 10 How can I get a quotation for the Portable Pneumatic Test Rig for Rudder Actuator?

You can request a quotation for the Portable Pneumatic Test Rig for Rudder Actuator by contacting Neometrix Engineering Pvt Ltd through https://neometrixgroup.com/products/portable-pneumatic-test-rig-for-rudder-actuator-v1 or by phone at +91-7777-876-876.

Get a proposal

Tell us your actuator type
and test requirements.

We configure fixtures, load ranges and test sequences for your rudder actuator variant, and walk through documentation and deployment requirements with your MRO team before you commit.
