Who manufactures the Inertial Loading Test Facility, and is it customizable?

The Inertial Loading Test Facility is designed and manufactured by Neometrix Engineering Pvt Ltd, India. Inertial mass, stroke and test profiles are reconfigurable for different actuator sizes and use cases to suit specific client requirements.

Dynamic & Inertial Load Test Systems / Aerospace · Defence · Heavy Machinery · Automotive · Energy / ASME · ISO · CE · ANSI / Noida · India 2026 · Product Page

SERVO-HYDRAULIC INERTIAL RIG · TO 2,000 kg / ±160 kN

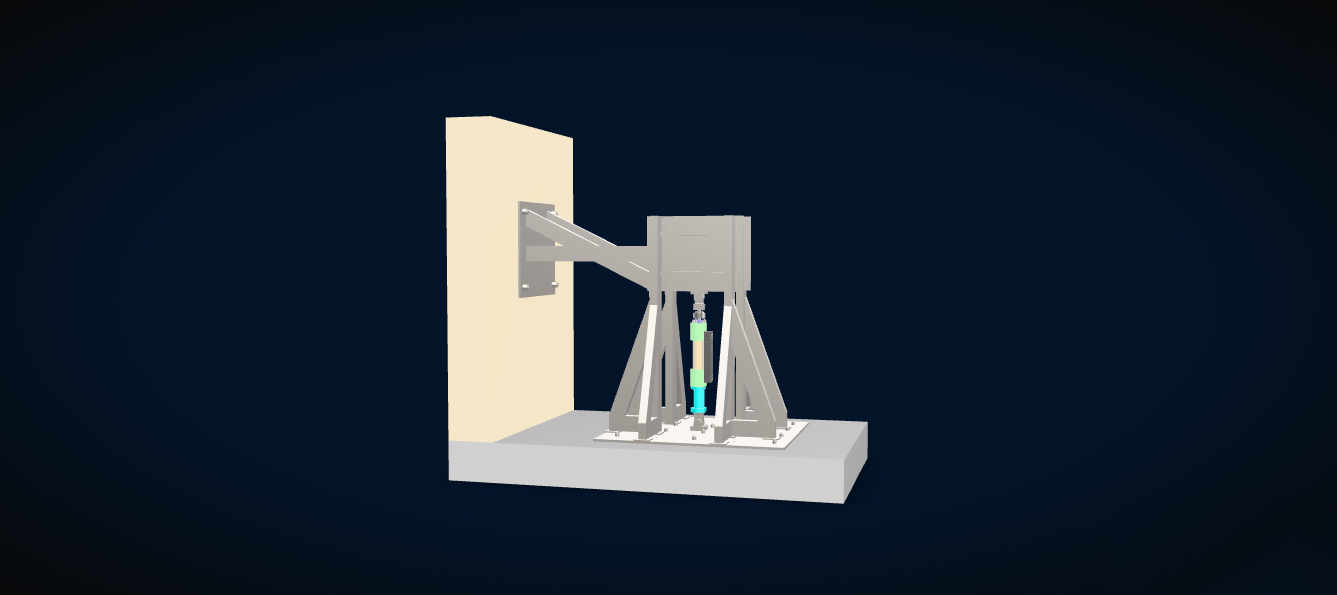

Inertial Loading Test Facility, rated to 2,000 kg mass, ±150 mm stroke and 2 g dynamic acceleration.

A fully integrated servo-hydraulic rig that subjects actuators, manifolds and power packs to precisely controlled inertial loads — not just static pressure. Modular 500 kg mass blocks stack to 2,000 kg on a rib-reinforced ±160 kN reaction frame, driven by dual three-stage servo valves and a 1 kHz PLC/EtherCAT control loop, revealing fatigue, resonance and control issues before your systems ever leave the lab.

Request proposal Full specifications

Inertial Loading Test Facility — labeled assembly diagram showing shear wall, horizontal and vertical actuators, inertial mass and strong floor by Neometrix

Fig · 01 Assembly diagram · shear wall, actuators, inertial mass and strong-floor mounting, fully labeled

Engineered and tested to:

ASME ISO CE ANSI

Reaction Force

±160kN

Inertial Mass

2,000kg

Travel Stroke

±150mm horiz.

Hydraulic Supply

350bar

Control Loop

1kHz PLC

Overview

True dynamic validation, not just static pressure.

Inertial Loading Test Facility labeled assembly diagram — shear wall, actuators, inertial mass and strong floor

Fig · 02Assembly diagram · numbered part callouts

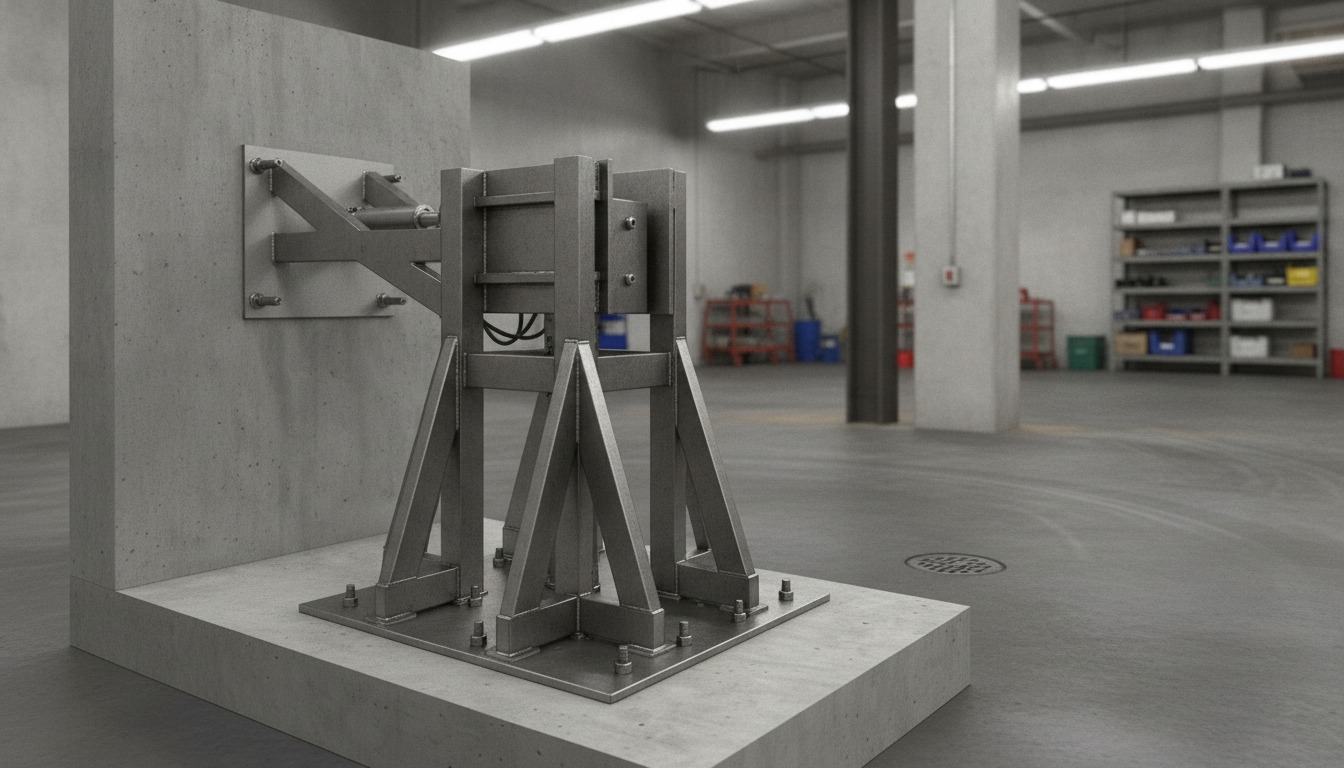

The Inertial Loading Test Facility is a fully integrated hydraulic test rig engineered to replicate the true inertial forces experienced by actuators, manifolds and power packs in service. Mounted on a rib-reinforced steel frame bolted to both floor and wall, it carries up to 2,000 kg of modular mass blocks over ±150 mm horizontal and ±100 mm vertical strokes — delivering accelerations up to 2 g with sub-micron positional repeatability.

Two high-response, three-stage servo valves and precision pressure transducers feed into a 1 kHz PLC control loop, while a 16-channel, 24-bit DAQ records position, pressure and acceleration at up to 5 kS/s. Pre-wired and pre-tested for rapid on-site commissioning, it offers turnkey dynamic validation for aerospace, automotive, heavy-machinery and energy applications, revealing fatigue, resonance and control issues before your systems ever leave the lab.

Core Components

Built around four precision subsystems.

Component · 01

Reaction Brackets

Dual reaction brackets — one horizontal, one vertical — fabricated from IS-2062 mild steel and bolted to the strong floor and shear wall. Closely spaced ribs withstand dynamic loads of ±160 kN at the actuator center line, minimizing frame deflection and eliminating spurious resonances.

IS-2062 Steel · ±160 kN · ≥100 Hz Natural Frequency

Component · 02

Antifriction Guide & Modular Mass Blocks

A precision antifriction guide carries the mass carriage ±150 mm horizontally and ±100 mm vertically, with hardened rails holding 2 µm/1,000 mm accuracy at up to 2 g and 2 m/s. Mass blocks stack in 500 kg increments to 2,000 kg total, CG maintained on the actuator axis.

500 kg Increments · 2,000 kg Total · 2 g / 2 m/s

Component · 03

Hydraulic Actuation System

Two three-stage servo valves (60 L/min at 210 bar) work with four strain-gauge pressure transmitters (0–400 bar and 0–700 bar, ±0.1% FS) in a closed loop. All piping is butt-welded and radiographed per ASME Section IX; hoses meet SAE 100R11 and 100R8.

2 × Servo Valves · ASME Sec IX Welds · SAE 100R11/100R8

Component · 04

Control & Data Acquisition

An industrial PLC runs a 1 kHz control loop over EtherCAT with a 12″ capacitive touchscreen HMI for setup, live trends and alarms. A 16-channel, 24-bit DAQ samples up to 5 kS/s per channel, capturing 1 µm position and 4–20 mA / ±10 V pressure signals.

PLC 1 kHz · EtherCAT · 16-ch 24-bit DAQ

Applications

Serving a broad array of industries.

01Aerospace & Defense — qualify flight-control actuators through repeated cyclic loading that replicates maneuvers, ensuring reliability in extreme conditions.

02Heavy Machinery — validate hydraulic cylinders and rotary actuators used in cranes, excavators and presses for long-term durability under changing inertial forces.

03Automotive — test braking and steering hydraulic assemblies under rapid acceleration/deceleration cycles to verify response time and structural integrity.

04Energy & Power Generation — fatigue-test hydraulic power units in turbines and offshore platforms, simulating load reversals common in start-stop and load-shedding scenarios.

Scope of Supply

Turnkey delivery, end to end.

Our turnkey delivery encompasses end-to-end services. We begin with detailed 3D and fabrication drawings, complete with QA/QC procedures and inspection schedules for your approval. Upon drawing sign-off, we procure all raw materials, servo valves, transducers and specialty components, followed by precision CNC machining and radiographic weld inspection.

Assembly and factory acceptance testing (FAT) include structural natural-frequency checks, deflection under dynamic loads, and full inertial-mass performance tests. Finally, our field team handles on-site installation — bolting reaction brackets, connecting hydraulic and electrical interfaces, flushing the system, and conducting site acceptance tests (SAT) with prototype actuators and manifolds.

Deliverables & Warranty

Upon completion, you receive the fully assembled Inertial Loading Test Facility, a comprehensive spare-parts kit (filters, seals, connectors), as-built drawings, calibration certificates, FAT/SAT reports, and detailed operating and maintenance manuals. We back our workmanship and all bought-out items with a 12-month warranty from dispatch, including on-site support and remote diagnostics.

Testing & Performance

Beyond static measurement.

Closed-loop position, velocity and acceleration tracking tests, ensuring deviations remain within 5% of commanded profiles under full inertial mass.
A sine-sweep test from 0.1 Hz to 50 Hz at 0.2 mm amplitude verifies –3 dB bandwidth compliance.
End-of-stroke cushioning and lateral-load tests confirm pressure rises and side forces remain within design limits.
Hydrostatic bearing leakage and high-pressure reciprocation tests validate long-term sealing and guide performance.

Key Features

Why engineers choose this rig.

±160 kN dynamic reaction brackets handle horizontal and vertical inertial loads with minimal frame deflection.
Modular 500 kg mass blocks stack to 2,000 kg total, replicating true service inertia on actuators at 2 g and 2 m/s.
Dual three-stage servo valves (60 L/min @ 210 bar) and ±0.1% FS pressure transmitters drive closed-loop control.
IS-2062 steel with ASME Sec IX full radiographic weld inspection; structural natural frequency rated at ≥100 Hz.

PLC at 1 kHz over EtherCAT and 16-channel, 24-bit DAQ at 5 kS/s record position, pressure and acceleration data.
Linear anti-friction guide achieves 2 µm/1,000 mm accuracy over ±150 mm horizontal and ±100 mm vertical stroke.
12″ capacitive touch HMI provides live trend graphs, alarm management and test sequencing for operator control.
Qualifies aerospace, heavy machinery, automotive and energy hydraulic actuators through dynamic fatigue cycles.

Assembly Diagram

The rig, labeled part by part.

Every load path and structural member of the Inertial Loading Test Facility, called out on one diagram.

Inertial Loading Test Facility — labeled assembly diagram

Fig · 03Full assembly · shear wall, actuators, inertial mass, strong floor — all 14 parts numbered

Downloads

Catalog & design drawings.

General catalog plus GA design drawings and datasheet PDFs for the Inertial Loading Test Facility, available for procurement review and technical pre-screening.

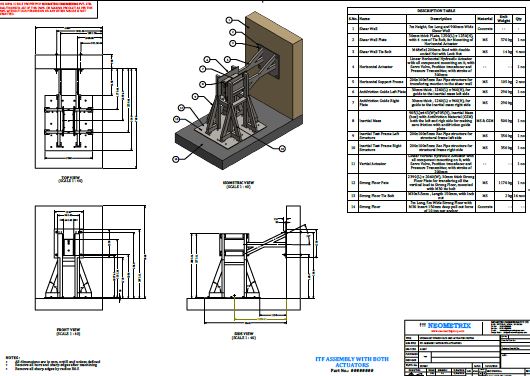

ITF Assembly GA Drawing

PDF

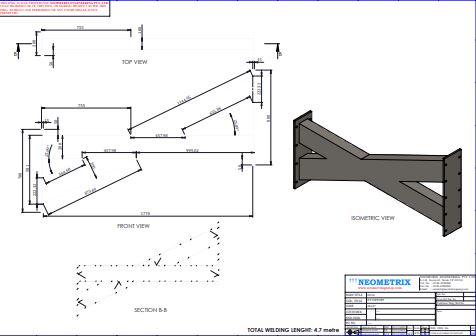

Inertial Loading Test Facility design drawing 2 thumbnail — reaction bracket detail

Drawing · Design 2

Reaction Bracket Drawing

Specifications

Full technical parameters.

Key system parameters for the standard Inertial Loading Test Facility configuration.

Reaction Force Capacity	±160 kN dynamic in horizontal & vertical axes
Structural Natural Frequency	≥ 100 Hz
Inertial Mass Blocks	500 kg increments up to 2,000 kg; CG on actuator axis
Travel Stroke	Horizontal ±150 mm; Vertical ±100 mm
Guide Performance	≤ 2 g acceleration; ≤ 2 m/s speed; 2 µm/1,000 mm accuracy; –20°C to +80°C; 80 kN dynamic rating
Hydraulic Supply	0–350 bar; up to 200 L/min flow
Actuator Ports & Hoses	SAE 100R11 (1¼″ horizontal, 1″ vertical); SAE 100R8 (⅜″ pilot/drain)
Servo Valves	2 × three-stage flow control; 60 L/min @ 210 bar
Pressure Transmitters	4 × ranges (0–400 bar, 0–700 bar); ±0.1% FS
Control & DAQ	PLC 1 kHz loop; EtherCAT; 12″ HMI; 16-ch, 24-bit DAQ @ 5 kS/s
Material & Weld Standards	IS-2062 mild steel; ASME Sec IX radiographed welds
Power & Utilities	400 VAC ±10%, 50 Hz, 3-phase + N + PE, 10 kVA; 6 bar dry air
Footprint & Weight	4 m × 2 m × 2.5 m; approx. 3,500 kg
Environment	–20°C to +60°C operating; 5%–95% RH non-condensing

FAQ

Common questions.

Q · 01 What is the Inertial Loading Test Facility?

A fully integrated servo-hydraulic system that subjects hydraulic actuators, manifolds and power packs to precisely controlled inertial loads emulating real-world dynamic conditions, using interchangeable mass blocks and high-response hydraulic control to reproduce acceleration, velocity and force profiles representative of actual service.

Q · 02 How much inertial mass and acceleration does the rig produce?

Modular mass blocks are added in 500 kg increments up to a total of 2,000 kg, with the center of gravity held on the actuator axis. The antifriction guide carries this mass over ±150 mm horizontal and ±100 mm vertical travel, reaching accelerations up to 2 g and speeds approaching 2 m/s with 2 µm/1,000 mm positional accuracy.

Q · 03 What reaction force does the frame withstand?

Dual reaction brackets — one horizontal, one vertical — fabricated from IS-2062 mild steel and bolted to the strong floor and shear wall withstand dynamic loads of ±160 kN at the actuator center line, with a structural natural frequency of 100 Hz or higher to eliminate spurious resonance.

Q · 04 What hydraulic and control system drives the facility?

Two three-stage servo valves (60 L/min at 210 bar) and four strain-gauge pressure transmitters (0–400 bar and 0–700 bar ranges, ±0.1% FS accuracy) form the closed-loop hydraulic interface. An industrial PLC runs a 1 kHz control loop over EtherCAT with a 12″ capacitive touchscreen HMI, while a 16-channel, 24-bit DAQ samples up to 5 kS/s per channel.

Q · 05 Which industries use the Inertial Loading Test Facility?

It serves aerospace and defence for flight-control actuator qualification, heavy machinery for crane, excavator and press cylinder durability, automotive for braking and steering hydraulics under rapid acceleration cycles, and energy and power generation for turbine and offshore hydraulic power unit fatigue testing.

Q · 06 What tests does the facility run?

Closed-loop position, velocity and acceleration tracking within 5% of commanded profiles under full inertial mass; sine-sweep tests from 0.1 Hz to 50 Hz verifying –3 dB bandwidth; end-of-stroke cushioning and lateral-load checks; and hydrostatic bearing leakage and high-pressure reciprocation tests for long-term sealing and guide performance.

Q · 07 What is included in the scope of supply?

Turnkey delivery covers 3D and fabrication drawings with QA/QC sign-off, procurement of servo valves, transducers and specialty components, CNC machining and radiographic weld inspection, factory acceptance testing, and on-site installation, flushing and site acceptance testing with prototype actuators and manifolds.

Q · 08 What standards does the facility comply with?

The structure is fabricated from IS-2062 mild steel with ASME Section IX radiographed welds, hydraulic hoses meet SAE 100R11 and SAE 100R8 standards, and the facility is engineered and tested to ASME, ISO, CE and ANSI standards with certified components.

Q · 09 What warranty and after-sales support is provided?

Neometrix provides a comprehensive spare-parts kit, as-built drawings, calibration certificates, FAT/SAT reports, and operating and maintenance manuals, backed by a 12-month warranty from dispatch including on-site support and remote diagnostics.

Q · 10 Who manufactures it, and can I get a quotation?

The Inertial Loading Test Facility is designed and manufactured by Neometrix Engineering Pvt Ltd, India, with reconfigurable inertial mass, stroke and test profiles for different actuator sizes. Request a quotation via https://neometrixgroup.com/products/inertia-test-facility or by email or phone; Neometrix exports the facility to global customers in aerospace, defence, heavy machinery, automotive and energy sectors.

Get a proposal

Tell us your inertial load
and test requirements.

We size the reaction frame, configure the mass-block and stroke envelope, and walk through the FAT/SAT plan with your engineering team before you commit.

Request proposal +91 7777 876 876

Inertial Loading Test Facility, rated to 2,000 kg mass, ±150 mm stroke and 2 g dynamic acceleration.

True dynamic validation, not just static pressure.
