NMX-BEJ-30 · ENGINEERED TO ORDER — BRIDGE EXPANSION JOINT TEST FACILITIES

A bridge is built not to move. Except here.

Name: Bridge Expansion Joint Test Facility
Brand: Neometrix

The expansion joint exists because the deck cannot stay still — a long span grows and shrinks well over a hundred millimetres between summer and winter, and something has to absorb that while traffic drives across the gap. That makes it the one component with a service life rather than a strength, and the one that fails first: it takes every wheel impact, it sits in the drainage path, it collects salt. So it is tested like a wear item, for millions of cycles. Two things make the facility hard. It has to apply two motions at once — the slow thermal stroke and the fast wheel loading, superimposed, because a joint loaded near the ends of its travel behaves nothing like one loaded in the middle. And water is part of the test: a joint that carries the load and leaks has still failed, because what it protects is the bearings underneath. Equipment of this class has been quoted against a bridge expansion joint test facility requirement for a road research institute; no delivered bridge expansion joint test facility is claimed — the class is engineered to order.

Enquire — joint test facility Capability sheet (PDF)

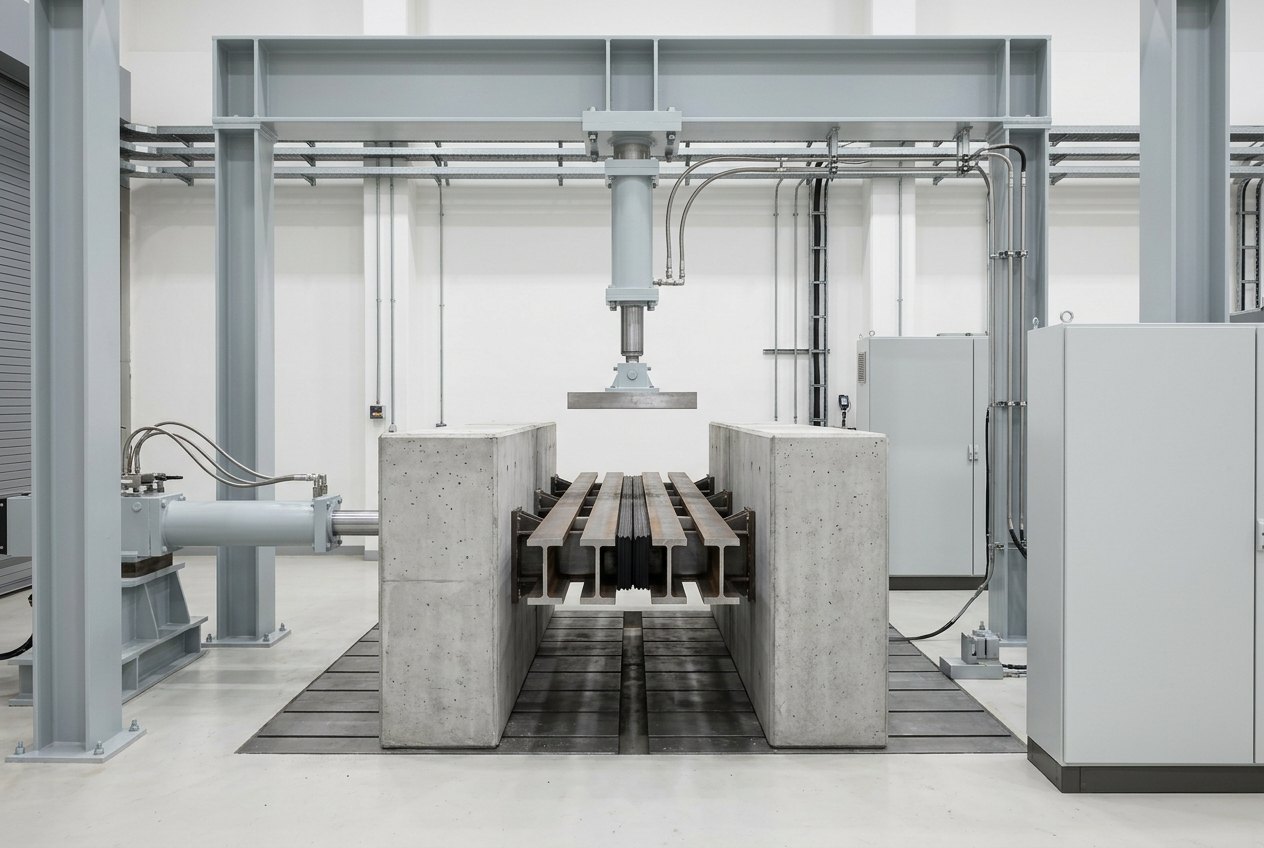

Illustrative of the class — a bridge expansion joint test facility in a laboratory: two large rectangular grey concrete test blocks on a machined steel strong floor with a narrow gap between them, spanned by a full-size steel modular expansion joint with parallel bare steel beams and dark rubber seals; a long horizontal hydraulic actuator pushes one block sideways to open and close the gap, a short vertical actuator hangs from a heavy light-grey painted portal frame pressing down through a flat machined steel loading pad, stainless hydraulic lines run to both and a plain control cabinet with blank panels stands to one side, no people, nothing running and no readable markings

Fig · 01 Two axes — one moving the gap, one striking it, and the whole difficulty is doing both together

Tests

the only moving partof a century-long structure

Applies

two motions at oncethermal + traffic

Judged also on

water tightnessunder movement and load

Specimen

full sizewith its foundation

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Structural test facilities Correlation & commissioning Noida · India

Overview

Everything else on a bridge is trying not to move.

Which is why the joint is the component with a maintenance interval, and why testing it is an endurance problem rather than a strength one.

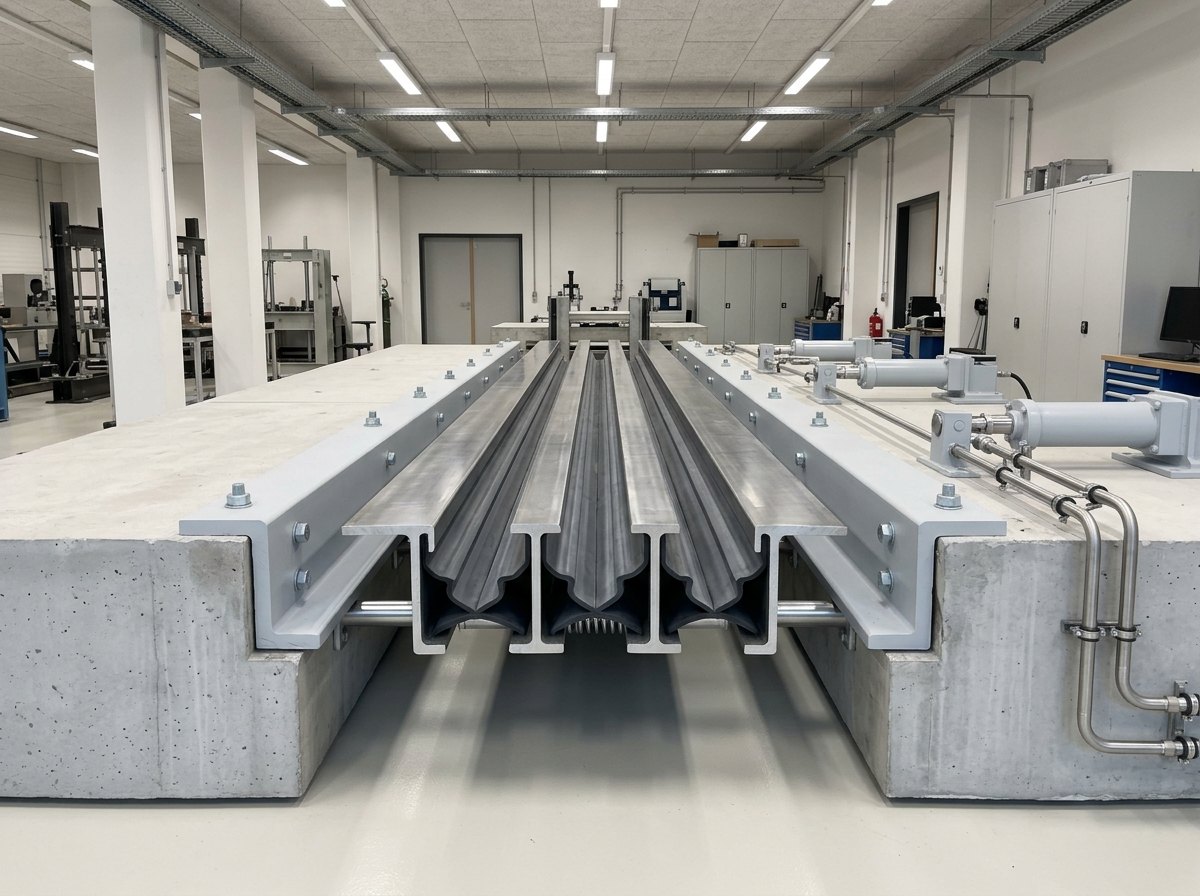

Illustrative of the class — close view looking along a full-size steel modular bridge expansion joint mounted between two grey concrete blocks in a laboratory: five parallel bare mill-finish steel centre beams running across the gap with dark grey rubber sealing elements folded between them, steel edge profiles cast into the concrete on both sides, bright machined support bars visible in the recess below the beams and clean unmarked steel surfaces catching the light, no people, nothing running and no readable markings

Fig · 02 The specimen — steel that carries the wheel, rubber that keeps the water out, and both have to last

The joint is a wear item bolted into a monument. A bridge deck is designed for a century; the joint in it will be replaced several times in that period, and replacing one means closing lanes, breaking out concrete and re-anchoring into a structure that is carrying traffic. That is why joints get tested so hard: the cost of finding out in service is enormous compared with the cost of finding out in a laboratory. And it is why the test is framed as how long does it last rather than what load does it take — strength is rarely what ends a joint's life. Wear in the bearings, fatigue in the welds, and rubber that has hardened, torn or been forced out of its groove are what end it.

And it lives two lives at once. Over months, the joint tracks the deck's thermal movement: a slow, large, reversing displacement that exercises every seal through its full fold and extension. Over milliseconds, it takes wheels — each one a sharp local load onto a beam, thousands of times a day, forever. Neither on its own is a fair test. A joint at mid-travel is comfortable; the same joint at full extension, with its seals stretched and its support bars at the end of their span, is a different mechanical object, and that is exactly when a heavy axle arrives on a cold February morning. So the facility's purpose is to put the joint in that state and hit it, over and over.

Then ask whether it still keeps water out. This is the part most easily under-specified and the part that most often decides a joint's real performance. Everything that falls on the deck runs to the joint, and in winter it is carrying de-icing salt. If the seal lets it through, that solution lands on the bearings and the pier tops — the expensive, buried, awkward-to-inspect parts of the structure — and quietly destroys them years ahead of schedule. A joint that passes every load requirement and leaks has failed at the job it was fitted to do.

Equipment of this class has been quoted against a bridge expansion joint test facility requirement for a road research institute. No delivered bridge expansion joint test facility is claimed: the class is engineered to order, and the record is stated as it stands.

Endurance

Millions of cycles

Tested as a wear item with a service life — not for one survivable load.

Superimposed

Both motions together

Struck while at the ends of its travel — the condition that actually breaks joints.

Sealed

Watertight while working

Leak measured under movement and load — because the bearings are below.

Architecture

Open it slowly, strike it quickly, and catch what gets through.

The schematic follows the duty rather than the hardware — the slow stroke, the fast strike, both at once, and the leak — then the four blocks behind it: movement axis, load axis, foundation, and water with measurement.

FIG · 03JOINT TEST FACILITY ARCHITECTURE · MOVEMENT AXIS / LOAD AXIS / SPECIMEN FOUNDATION + FIXTURING / WATER-TIGHTNESS, MEASUREMENT + CONTROL

Fig · 03 A joint cannot be scaled — so the specimen is full size, and it arrives with its foundation

Arc · 01

Movement Axis

Slow, long stroke, full range — both directions, at a rate that does not heat the elastomer and change what is being measured.

Arc · 02

Load Axis

Fast, high cycle, through a wheel patch — superimposed on the movement rather than applied after it.

Arc · 03

Foundation & Fixturing

Real concrete blocks, held rigidly — because any movement of the anchorage is credited to the joint.

Arc · 04

Water, Measurement & Control

Leak collected and measured while it works — with load, displacement, cycle counting and two-axis coordination.

Specifying a joint test facility, or extending one to run water-tightness? Send the joint types and movement ranges, the load and cycle requirements, the applicable standard and the floor available — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized on the specimen, judged on the coordination.

The parameters below describe the engineering approach. Stroke and rate on the movement axis, force and frequency on the load axis, foundation mass, water collection and the control architecture all follow from four givens: the joint types and movement ranges to be tested, the load and cycle requirements, the applicable standard, and the floor and headroom available.

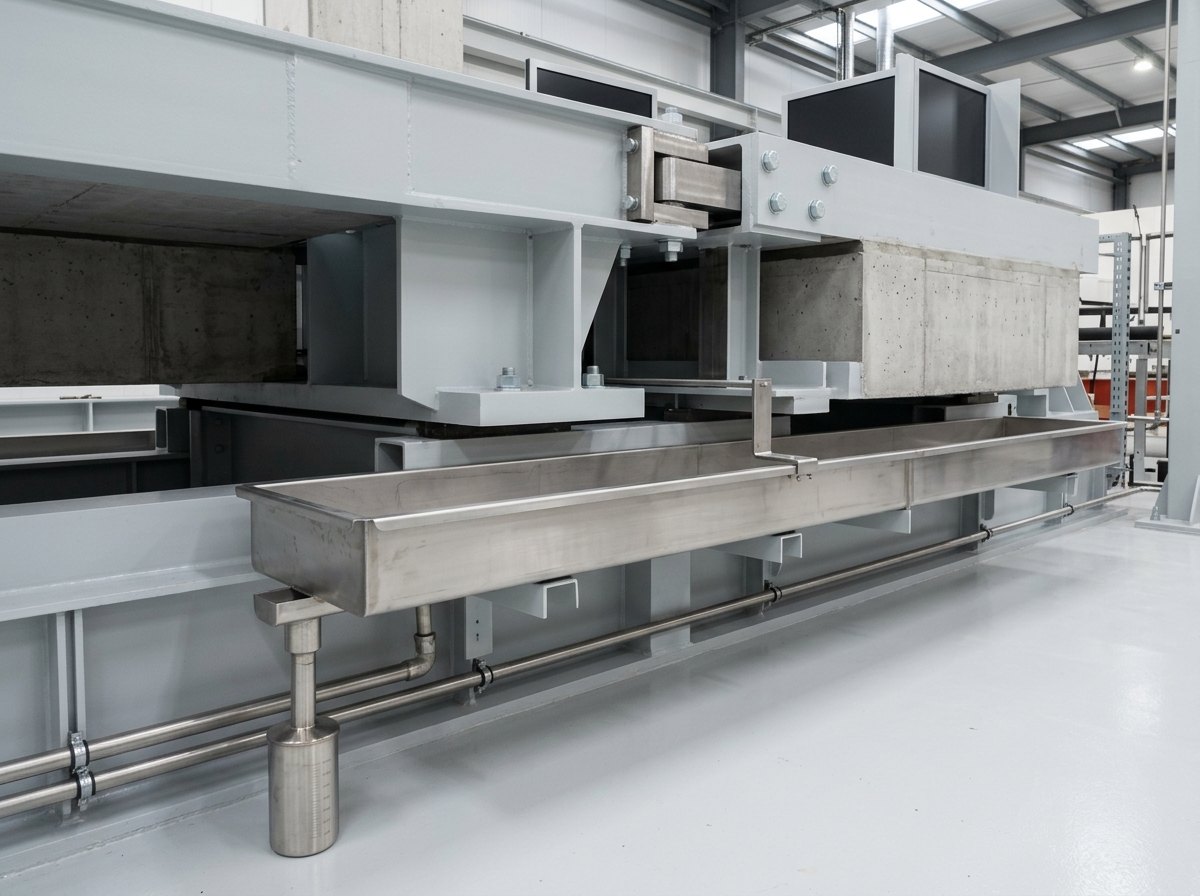

Illustrative of the class — close view underneath a bridge expansion joint test specimen in a laboratory: a long shallow stainless steel collection trough running the full width directly beneath the joint gap, completely dry and empty with a clean brushed finish, sloped to one end where a plain stainless drain fitting leads to a small graduated stainless collection vessel on the floor, the underside of the steel joint and grey concrete block faces visible above and a slim stainless sensor bracket on the trough edge, no people, nothing running and no readable markings

Fig · 04 The trough — the least impressive part of the facility, and the one that decides whether a joint is any good

Where these facilities go wrong

The two motions applied in sequence — stroke, stop, load — which tests a condition that never occurs on a bridge and misses the interaction that actually damages seals. The thermal stroke driven too fast, which puts heat into the elastomer and changes the very property being measured, so the joint looks softer and more forgiving than it is. Wheel-patch geometry that is convenient rather than representative, so load enters the beams by a path a tyre would never use. Water-tightness checked statically, which passes a joint that seals at rest and opens a path at full extension under a wheel — precisely the case that matters. A specimen foundation that is too compliant, so the anchorage moves and the joint is credited with movement it never made. And changeover treated as an afterthought, on a facility where specimens are heavy and programmes run for weeks.

So the discipline runs the other way. The two axes are designed as one control problem from the start, with the load axis referenced to the movement axis so that loading can be commanded at any specified opening. The movement rate is capped by thermal effect, not by actuator capability. The wheel patch is specified with the standard rather than for convenience. Water is introduced and collected while the joint is working, and the leak measured rather than observed. The foundation is designed as part of the instrument — mass, anchorage and stiffness chosen so its movement is negligible against the joint's, and verified at commissioning. And specimen handling and changeover are designed, because on an endurance facility the idle hours between programmes are the real cost.

Full specification — expand

System	Bridge expansion joint test facility — movement axis, load axis, specimen foundation & fixturing, water-tightness, measurement & control
Governing Idea	The only moving part in a structure meant to last a century — so the joint has a service life rather than a strength, and it is what fails first
How It Is Tested	As a wear item, for millions of cycles, to find where it stops working — not as a structure asked to survive one load
The Defining Difficulty	Two motions superimposed — a slow, long-stroke thermal axis and a fast, short-stroke traffic axis, applied simultaneously and referenced to one another
Why Sequential Fails	A joint at full extension, seals stretched and support bars at the end of their span, is a different mechanical object from the same joint at mid-travel — and that is when the heavy axle arrives
Movement Rate	Capped so the stroke does not heat the elastomer — otherwise the test changes the property it is measuring
Water Tightness	Introduced and collected while the joint is moving and loaded, with the leak measured rather than observed
Why A Leak Matters	The joint sits in the drainage path, so a leak puts salt-laden water onto the bearings and pier tops — and destroys them years ahead of schedule
Specimen	Full size, with its foundation. A joint cannot be scaled; its behaviour lives in the seals, the anchorage and the way load enters concrete
Foundation	Designed as part of the instrument — mass, anchorage and stiffness chosen so its movement is negligible against the joint's, and verified at commissioning
Throughput	Specimen handling and changeover designed rather than improvised — on an endurance facility the idle hours between programmes are the real cost
The Split	The servo-hydraulic fatigue testing machine cycles a specimen on one axis; here the specimen is a full assembly and two motions are superimposed on it. The ROPS test rig is the opposite duty — one slow monotonic push to an energy target, rather than millions of cycles to a service life. And the rolling-stock water leak testing system is the other place on this site where water-tightness is the acceptance criterion — there a stationary vehicle under spray, here a joint that has to seal while it moves
Scope Boundary	Ours: facility design & integration, movement & load actuation and their coordinated control, specimen foundation, anchorage & fixturing, water collection & leak measurement, instrumentation, cycle counting & data, installation, commissioning, correlation, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: hydraulic actuators and power pack, load cells and displacement transducers, control hardware. The customer's: the specimens, the applicable standard and the test programme
Status	Engineered to order — equipment of this class quoted against a bridge expansion joint test facility requirement for a road research institute; no delivered bridge expansion joint test facility is claimed

PDF · 1 page

Bridge Expansion Joint Test Facility — Capability Sheet

Tender Response

Send joint types, movement ranges & cycle requirements — compliance matrix in two working days

Variants

One principle, four facilities.

What changes is the joint type, whether water is in scope, and whether the laboratory also has to test what sits below the joint.

Var · 01

Modular / Finger Joint Facility

Large movement ranges — multiple centre beams, support bars and many seals, all of which have to be exercised together.

Var · 02

Elastomeric Joint Facility

Rubber doing the structural work — where movement rate and temperature matter most, and heating the specimen invalidates the result.

Var · 03

Combined Movement, Fatigue & Water Cell

All three duties in one bay — the full type-approval sequence without moving the specimen between rigs.

Var · 04

Bridge Bearing Test Addition

What sits below the joint — the same strong floor and hydraulics extended to test the bearings the joint is protecting.

Applications

Wherever a joint has to be believed before it is buried in a deck.

The laboratories and authorities that have to say yes before a joint is installed.

A · 01Road research & certification

A · 02Expansion joint manufacturers

A · 03Highway authorities

A · 04Metro & rail viaducts

A · 05Academic structures laboratories

A · 06Type-approval testing

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why must the two motions be applied at the same time?

Because the damaging condition is the combination, and neither motion alone produces it. On a real bridge the joint is always somewhere in its travel when a wheel arrives, and where it happens to be changes the mechanics substantially. At full extension — a cold winter night, deck contracted, gap at its widest — the seals are stretched to their limit, the support bars are at the end of their spans, and the centre beams are least supported. That is the moment a heavy axle does the most harm, and it is also the moment when a seal is most likely to be pulled from its groove or torn. At full compression, the opposite problem: seals folded and squeezed, with material being pinched rather than stretched. A test that strokes the joint to one end, stops, and then applies load has tested the joint statically at that position — but it has not reproduced the interaction, where the joint is being loaded while it is also moving, and where a seal that is sliding in its groove is simultaneously being pressed. That interaction is what produces wear rather than simply stress. So the facility is designed as a two-axis coordinated control problem: the load axis is referenced to the movement axis so loading can be commanded at any specified opening, and the two run together on a programme that represents a service life rather than a sequence of separate checks.

Q · 02 Why does the speed of the movement stroke matter?

Because rubber turns work into heat, and heat changes the rubber. On a bridge, the thermal stroke happens over hours and days — it is about as slow as a mechanical movement gets, and the elastomer stays at ambient temperature throughout. In a laboratory there is a strong temptation to speed it up, because a service life's worth of movement cycles at realistic rates would take longer than the equipment's own life. But an elastomer being worked quickly dissipates energy internally and warms up, and warm rubber is softer, more compliant and more forgiving than cold rubber. Run the stroke too fast and the specimen quietly becomes a different material from the one that will be installed: it accommodates movement more easily, seals better, and shows less damage. The test flatters it, and it does so silently, because nothing in the load or displacement data announces that the specimen is warm. So the movement rate is capped by thermal effect rather than by what the actuator could achieve, and on facilities where it matters most — elastomeric joints in particular — specimen temperature is monitored as a test parameter in its own right. It is one of the clearest examples in this class of a rig specification that has to come from the physics of the specimen rather than from the convenience of the schedule.

Q · 03 Why is water-tightness given equal weight to load?

Because a leaking joint damages the bridge faster than a weak one does. Consider where the joint sits: it spans the gap at the end of a deck, and every drop of water that lands on that deck — rain, melt, wash-off — runs along the surface and reaches it. In any climate that uses de-icing salt, that water is a chloride solution. If the joint seals, it is carried away by the deck drainage. If it does not, it falls directly onto what is immediately below: the bearings, the bearing shelf and the pier top. Those are structural components, they are expensive, they are difficult to inspect and extremely disruptive to replace — and chloride attack on them is exactly the mechanism that has taken decades off the life of a great many bridges. Meanwhile the joint above may be performing its load duty perfectly. That is why a joint which passes every structural requirement and leaks has failed at the job it was installed to do. And it is why the water test has to be done under movement and load, not statically: seals are compliant, and a seal that is watertight sitting still can open a path when it is stretched to full extension and simultaneously deflected by a wheel. Checking it at rest confirms the seal exists. Checking it while the joint works confirms it functions.

Q · 04 Why does the specimen have to be full size, with concrete?

Because almost everything that determines a joint's behaviour disappears when you scale it or simplify its mounting. The seals are proprietary extrusions of a particular section, and their fold, extension and retention behaviour is a property of that section at that size — halve it and it is a different component. The support bars and centre beams have spans and stiffnesses that set how load shares between them. Most importantly, a joint does not exist in isolation: it is anchored into concrete, and the way load passes from beam to anchorage to concrete is a large part of what fails in service, since anchorage zones crack and edge concrete spalls. A specimen mounted on a convenient steel frame with bolted feet would simply not contain that mechanism. So the article is a real joint, cast into real concrete blocks, exactly as it would be installed. The consequence for the rig is that the foundation becomes part of the instrument: the blocks must be held so rigidly that their movement is negligible compared with the joint's, because the instrumentation cannot tell the two apart — anything the anchorage does is credited to the joint, which makes the joint look more accommodating than it is. Mass, anchorage arrangement and stiffness are therefore designed deliberately and verified at commissioning, and the practical consequence is that specimens are heavy, so handling and changeover have to be designed rather than improvised.

Q · 05 How long does a programme run, and why does that shape the design?

Endurance programmes on this class of specimen run for weeks rather than hours, and that single fact changes what a good facility looks like. A joint has to demonstrate a service life measured in millions of load cycles alongside thousands of movement cycles, and even with the load axis running at a healthy frequency, accumulating those numbers takes a long time. Three design consequences follow. First, the facility must be capable of reliable unattended running, with monitoring, cycle counting, automatic limits and a defined behaviour on any fault — a rig that needs someone watching it cannot run the programme its own specification requires. Second, data has to be managed rather than merely collected: weeks of continuous load, displacement and leak measurement is a substantial volume, and it needs to be reducible to the summary the standard asks for and reviewable in detail when something interesting happens at three in the morning. Third, and most often overlooked commercially, changeover dominates utilisation. If a programme runs three weeks and changing the specimen takes one, a quarter of the facility's life is spent idle. Since the specimens are heavy concrete assemblies, the handling arrangement, the anchorage design and the access around the rig are worth as much attention as the actuators — they are what determine how many joints the laboratory can certify in a year.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the facility design and integration — deriving the rig from the joint types, movement ranges and cycle requirements rather than from a catalogue; the movement and load actuation and their coordinated control, which is the defining difficulty, with the load axis referenced to the movement axis so loading can be commanded at any opening; the specimen foundation, anchorage and fixturing, designed as part of the instrument so its own movement is negligible and verified at commissioning; the water collection and leak measurement arrangement, working under movement and load; the instrumentation, cycle counting and data, sized for programmes that run unattended for weeks; and installation, commissioning, correlation, documentation, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: the hydraulic actuators and power pack, the load cells and displacement transducers, and the control hardware — proprietary products of established makers, integrated rather than imitated. What is the customer's: the specimens, the applicable standard, and the test programme. And the record, stated plainly: equipment of this class has been quoted against a bridge expansion joint test facility requirement for a road research institute, and no delivered bridge expansion joint test facility is claimed. The class is engineered to order, around the joints it has to wear out.

↗

Cycles, one push, and keeping the water out.

Three test facilities, three different questions about how long something lasts.

↗ One axis

Servo-Hydraulic Fatigue Testing Machine

Cycles a specimen on one axis — here two motions are superimposed on an assembly.

↗ One push

ROPS Test Rig

One slow monotonic push to an energy target — the opposite duty to endurance.

↗ Water

Rolling Stock Water Leak Testing

The other place water-tightness is the acceptance criterion — there, standing still.

Browse all Neometrix product lines.

Get a quotation

Send the movement ranges
and the cycles required.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.
