NMX-ROP-30 · ENGINEERED TO ORDER — ROPS TEST RIGS

You prove it by bending it. The pass mark is the space that survives.

Name: ROPS Test Rig
Brand: Neometrix

A roll-over protective structure exists to keep a machine off its operator, so the test never asks how strong it is. It asks whether a notional volume around the seated operator stays clear. The structure may bend as far as it likes — permanently, dramatically — provided nothing enters that space. Which inverts the usual logic: a stiff structure that cracks and folds inward fails, while a softer one that deforms a long way and stops short passes. Two things follow. The test is run to an energy — the area under the load-deflection curve — not to a force, so the rig integrates as it goes and stops at the target. And the rig must be stiffer than the thing it is testing, because any flex in the frame is recorded as specimen deflection, and that error runs in the unsafe direction. Equipment of this class has been quoted against a roll-over protective structure test rig requirement for an automotive certification authority; no delivered roll-over protective structure test rig is claimed — the class is engineered to order.

Enquire — ROPS test rig Capability sheet (PDF)

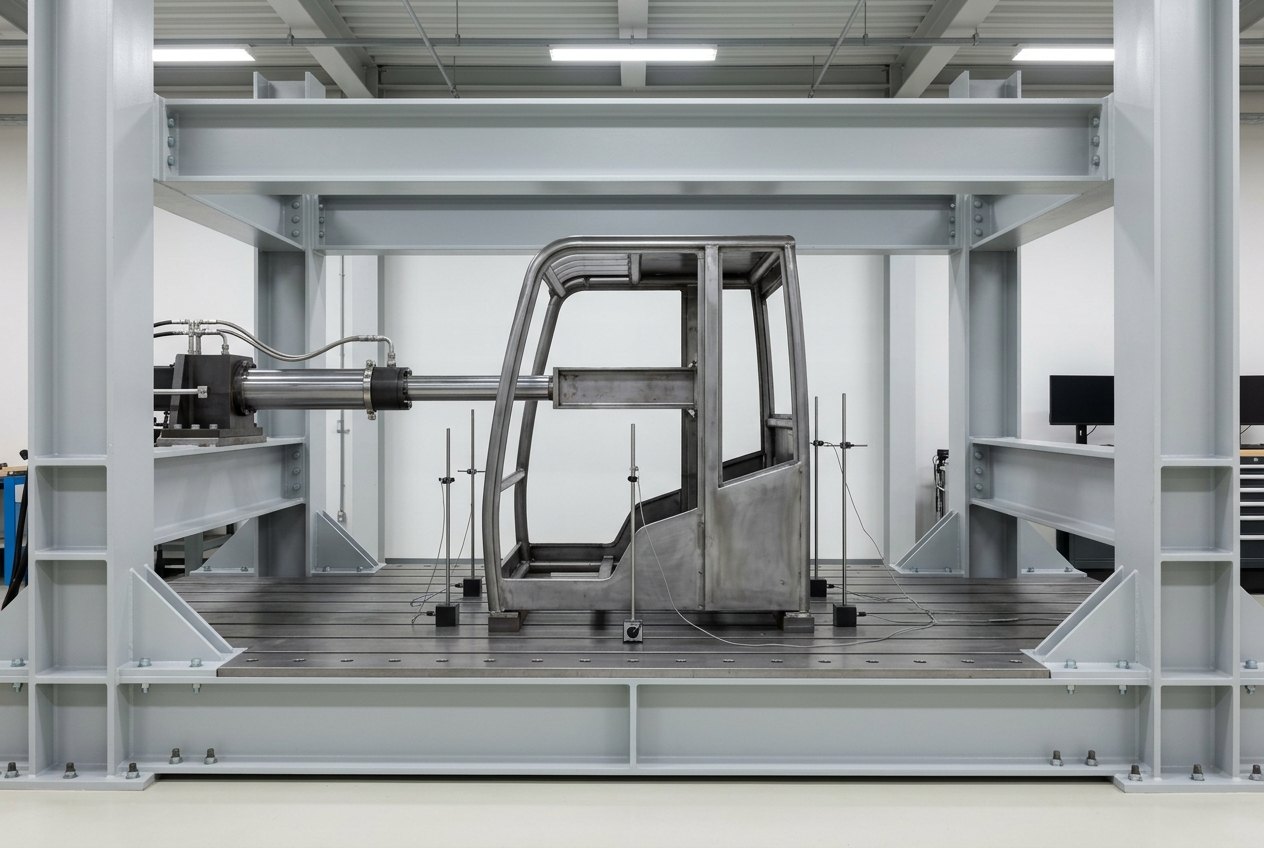

Illustrative of the class — a very heavy structural test reaction frame of thick light-grey painted steel box columns and deep cross beams bolted to a machined steel strong floor, holding a bare welded steel operator cab structure in unpainted mill-finish steel with no panels, no glazing and no badges, bolted to a base plate; a large horizontal hydraulic actuator presses through a bare machined steel spreader beam against one side of the cab structure, stainless hydraulic lines run to it and slim measurement rods stand on magnetic bases around the specimen, no people, nothing running and no readable markings

Fig · 01 The frame — and if it flexes, its flex is quietly added to the specimen's

Proves by

deforming itnot by strength

Pass mark

the surviving spacea clearance volume

Run to

an energyarea under the curve

Demands

a stiffer framethan the specimen

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Structural test rigs Correlation & commissioning Noida · India

Overview

Most test rigs measure a number. This one measures a shape.

The acceptance criterion is a volume of empty air, and everything about the machine follows from having to prove that volume was never entered.

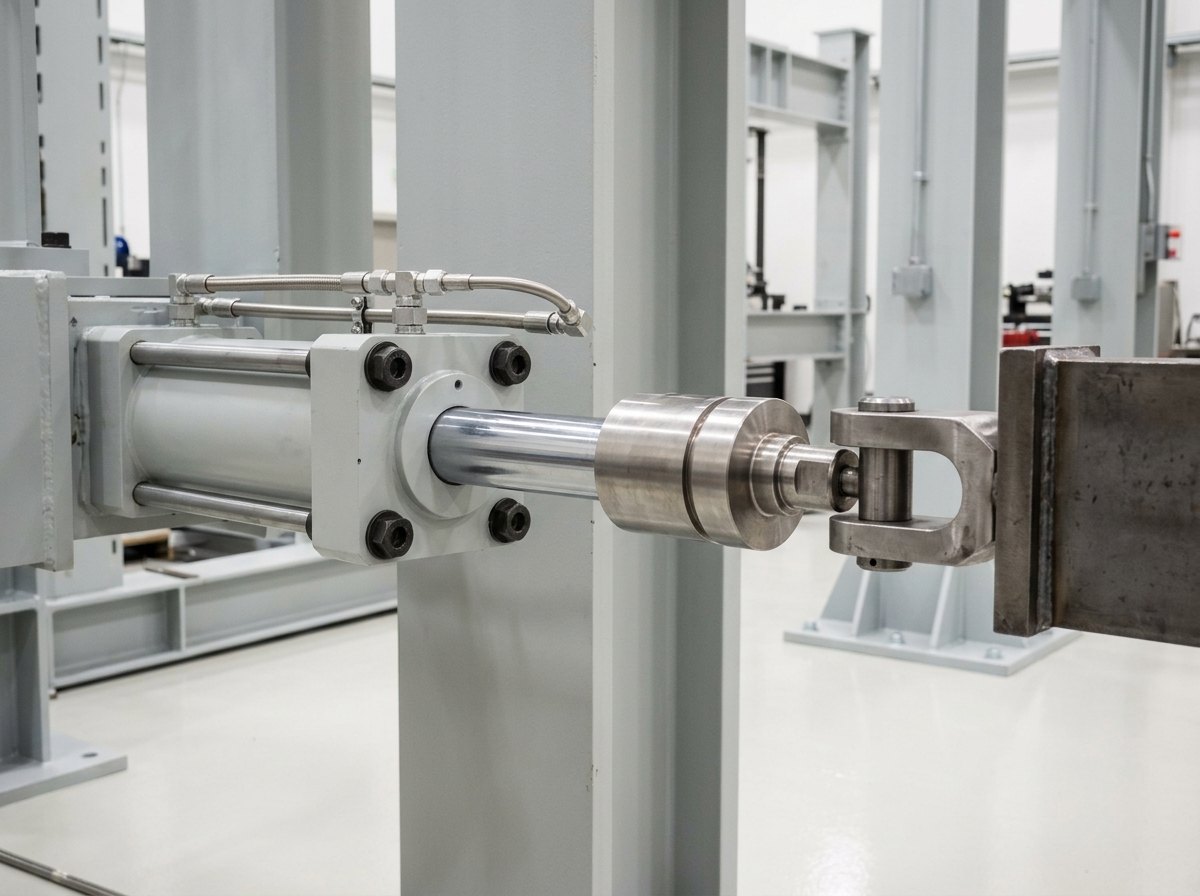

Illustrative of the class — close view of the load train on a structural test rig: a large hydraulic actuator in light-grey painted steel with a polished chrome rod extended, a cylindrical bare machined stainless load cell bolted in line at the rod end, a heavy machined steel clevis and pin joining it to a short spreader beam of thick steel plate, two stainless high-pressure hydraulic hoses with clean fittings running back along the actuator body, and high-tensile bolts through the mounting flange into a thick painted steel column, no people, nothing running and no readable markings

Fig · 02 The load train — the cylinder in the middle is measuring the number that gets integrated

The structure is supposed to bend. That takes some getting used to, because most structural testing treats permanent deformation as the failure. Here it is the mechanism: a protective structure works by absorbing the energy of a rolling machine, and absorbing energy means deforming. A structure stiff enough not to move would transmit the event straight through, and one that fractured would stop absorbing anything at all. So the test pushes the structure well past yield on purpose, and what is being watched is not whether it survives intact but where the steel ends up.

Which makes the acceptance criterion a geometry problem. There is a defined volume that represents where the operator's body is; the structure must never intrude into it, at any moment during the loading. Two consequences fall out immediately, and both are commonly missed. The first is that clearance has to be monitored throughout the test rather than inspected at the end — a structure can bow inward under load and spring back when the load is released, which looks acceptable afterwards and would have injured the operator at the time. The second is that the measurement is spatial, so instrumentation has to capture position rather than just force, and the fixturing must not obstruct the very volume being checked.

And the number being targeted is energy. Not load, not displacement — the integral of one against the other. The rig advances the actuator slowly, computes the accumulated area under the load-deflection curve as it goes, and stops when the required energy has been absorbed. That makes accuracy in both channels a first-order concern, because an error in either propagates directly into the integral rather than averaging out. It also means the test must stay quasi-static: any dynamic content puts energy into the specimen that the integral never sees, so the structure is credited with less absorption than it actually received.

Equipment of this class has been quoted against a roll-over protective structure test rig requirement for an automotive certification authority. No delivered roll-over protective structure test rig is claimed: the class is engineered to order, and the record is stated as it stands.

Geometric

A volume, not a stress

Clearance tracked throughout the loading — not inspected afterwards.

Integrated

Energy, not force

Area under the curve, computed live — so both channels must be accurate.

Stiff

The frame cannot flex

Its compliance reads as specimen deflection — and that error is unsafe.

Architecture

Push slowly, integrate as you go, and watch the space.

The schematic follows the test rather than the hardware — pushed, integrated, clearance watched, stopped at the target — then the four blocks behind it: reaction frame, load train, measurement, and control.

FIG · 03ROPS TEST RIG ARCHITECTURE · REACTION FRAME + ANCHORAGE / LOAD TRAIN + ACTUATION / MEASUREMENT + ENERGY INTEGRATION / CONTROL, SAFETY + REPORTING

Fig · 03 Rig compliance is added to the specimen's — and the error runs the unsafe way

Arc · 01

Reaction Frame & Anchorage

Stiffness first, strength second — anchored to a floor that will not lift, with adjustable load positions.

Arc · 02

Load Train & Actuation

High force, long stroke — load cells in line, spreader beams, and fixturing that will not slip or dig in.

Arc · 03

Measurement & Integration

Load and deflection, live integration — rig deflection measured and subtracted, clearance volume monitored.

Arc · 04

Control, Safety & Reporting

Displacement-controlled ramp and abort — guarding for a specimen being deliberately destroyed, and the test record.

Specifying a rig, or finding an existing frame is too compliant? Send the specimen envelope, the energies required, the applicable standard and the floor you have — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized on stiffness, proved on correlation.

The parameters below describe the engineering approach. Frame section and anchorage, actuator force and stroke, instrumentation and the control strategy all follow from four givens: the specimen envelope, the energies and forces the standard requires, the floor available to react against, and the reporting the laboratory has to produce.

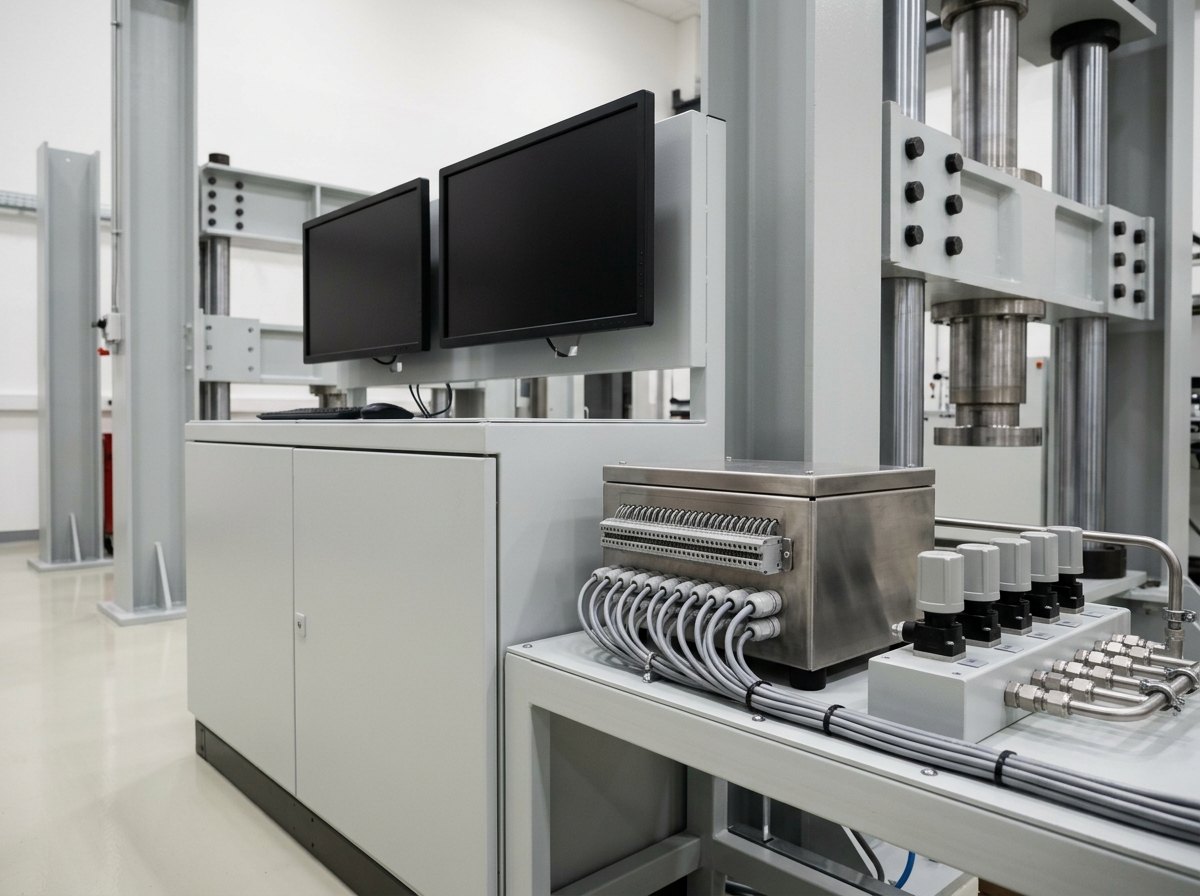

Illustrative of the class — the instrumentation and control station of a structural test laboratory: a plain light-grey painted steel instrument cabinet with completely blank unmarked front panels and two dark switched-off flat screens above it, a compact stainless signal conditioning enclosure with rows of plain unmarked terminal blocks and neat grey cabling entering through tidy glands, a slim light-grey hydraulic control manifold with plain unmarked valve actuators alongside, and the heavy grey columns of a structural test frame blurred behind, no people, nothing running and no readable markings

Fig · 04 Two channels, integrated live — an error in either goes straight into the answer

Where these rigs go wrong

A frame designed for strength rather than stiffness — it holds the load comfortably and flexes while doing it, and that flex is recorded as specimen movement. Rig deflection never measured, so the error is not merely present but invisible. Force control instead of energy control — the wrong quantity is targeted, and the test either stops short or runs past. Clearance checked only at the end, which misses a structure that bowed into the volume under load and sprang back. Load-point fixturing that slips or digs in, changing the load path partway through and invalidating everything after it. And no abort logic, on a rig where an overshoot does not spoil a reading — it destroys a specimen worth more than the day.

So the discipline runs the other way. The frame is sized by deflection, not by allowable stress, and the anchorage is designed on the assumption that the floor will try to lift. The rig's own compliance is characterised at commissioning and subtracted in software, so the reported deflection is the specimen's alone. Control is displacement-based with live energy integration, so the target is the quantity the standard actually specifies. Clearance is monitored continuously and recorded, so a transient intrusion is caught. Fixturing is designed for the load path rather than for convenience. And the whole rig is closed out by correlation — repeat loading of a known article to demonstrate the machine returns the same answer — because a rig whose numbers cannot be reproduced cannot certify anything.

Full specification — expand

System	ROPS test rig — reaction frame & anchorage, load train & actuation, measurement & energy integration, control, safety & reporting
Governing Idea	The pass mark is geometric, not structural — the structure may bend as far as it likes, but a notional volume around the seated operator must stay clear
The Inverted Logic	A stiff structure that cracks and folds into the volume fails; a softer one that deforms a long way and stops short of it passes
What Is Targeted	An energy — the area under the load-deflection curve — so the rig is displacement-controlled, integrates live, and stops at the target rather than at a load
Why Rate Matters	Loading is slow and quasi-static, because dynamic content puts energy into the specimen that the integral does not see
Stiffness Requirement	The rig must be stiffer than the specimen. Frame, anchorage and load-train compliance are all recorded as specimen deflection
Why That Error Is Unsafe	Rig compliance inflates the apparent energy absorbed and understates the intrusion — both in the direction that makes a marginal structure look compliant
Compensation	The rig's own deflection is characterised at commissioning and subtracted, so reported deflection is the specimen's alone
Clearance	Monitored throughout the loading and recorded — a structure that bows in under load and springs back has still intruded
The Specimen	Consumed. Loads come in a prescribed order, each stage inherits the last stage's damage, no stage can be re-run, and an overshoot destroys the article
Proving	Closed out by correlation — repeat loading of a known article to show the rig returns the same answer
The Split	The servo-hydraulic fatigue testing machine uses the same actuators for the opposite duty — millions of small cycles to find a life, against one slow monotonic push to destruction here. The head impact test rig tests occupant protection by impact, at high rate, on the occupant's side of the problem; this tests the structure around them, slowly. And the materials impact testing machine characterises material behaviour at high strain rate — here rate is deliberately kept out
Scope Boundary	Ours: rig design & integration, reaction frame & anchorage design, load train & actuation, load-point fixturing, measurement & rig-deflection compensation, energy integration & clearance monitoring, control, abort logic & guarding, installation, commissioning, correlation, documentation, operator training, spares & AMC — including build to the customer's specification. Bought-in certified: hydraulic actuators and power pack, load cells and displacement transducers, control hardware. The customer's: the specimens, the applicable standard and the test programme
Status	Engineered to order — equipment of this class quoted against a roll-over protective structure test rig requirement for an automotive certification authority; no delivered roll-over protective structure test rig is claimed

PDF · 1 page

ROPS Test Rig — Capability Sheet

Tender Response

Send specimen envelope, energies & the floor available — compliance matrix in two working days

Variants

One frame, four scopes.

What changes is whether the load is pushed or dropped, and how much of the laboratory already exists.

Var · 01

ROPS Static Test Rig

The reference build — slow monotonic loading in a prescribed sequence, to an energy target, with clearance tracked throughout.

Var · 02

Falling-Object Drop Test

The companion test — a mass released onto the roof structure, which is a dynamic problem and needs different instrumentation entirely.

Var · 03

Combined Cell

Both duties in one bay — shared frame and floor, with the drop tower and the static load train designed together rather than bolted together.

Var · 04

Retrofit to an Existing Frame

New actuation and instrumentation — beginning with a compliance survey, because an existing frame may not be stiff enough to certify with.

Applications

Wherever a machine can roll on its operator.

The vehicles whose cabs have to be certified before they can be sold or fielded.

A · 01Agricultural tractor certification

A · 02Construction & earthmoving machinery

A · 03Mining equipment

A · 04Defence & utility vehicle cabs

A · 05Certification authorities & test houses

A · 06Manufacturer in-house validation

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why is a structure that bends a lot better than one that barely moves?

Because the job is absorbing energy, and absorbing energy requires movement. When a machine rolls, it arrives with a quantity of kinetic energy that has to go somewhere. A protective structure takes it by deforming: the steel yields, and the work done bending it is energy that never reaches the operator. A structure so stiff that it barely moves absorbs very little, so the energy has to be dissipated elsewhere — through the machine, the ground, and the person inside. Worse, very stiff structures tend to fail suddenly when they do reach their limit, and a structure that fractures stops absorbing altogether, which is the outcome the whole exercise exists to prevent. So the desirable behaviour is ductile: bend, keep taking load while bending, and go on absorbing over a long deflection. What stops that being a licence for unlimited deformation is the clearance volume. The structure may travel a great distance, but it must not travel into the space where the operator is. The design problem is therefore a balance rather than a maximisation — enough compliance to absorb the energy, arranged so the deformation goes somewhere harmless, and enough remaining strength that it never folds inward. The test exists precisely to prove that balance was struck, on the actual fabricated article rather than in a model.

Q · 02 Why target an energy rather than a force?

Because energy is what the structure has to deal with in a real roll-over, and force alone does not describe it. A given force applied over a short distance and the same force applied over a long one represent very different amounts of work, and it is the work that matters. So the requirement is expressed as an energy the structure must absorb, and energy in this test is the area under the load-deflection curve — the running product of how hard you are pushing and how far the structure has moved. That has direct consequences for how the rig is built. It has to be displacement-controlled, advancing steadily rather than chasing a load setpoint, because as the structure yields the load may plateau or even fall while the energy continues to accumulate. It has to integrate live, so the operator knows when the target has been reached rather than discovering it in post-processing. And it makes accuracy in both measurement channels a first-order requirement: a systematic error in load or in deflection does not average away, it scales the integral directly. This is also why the loading has to stay slow. Any dynamic content — a jerk, a stick-slip, an impact as something seats — injects energy the integral cannot see, so the structure gets credited with less absorption than it actually experienced, and the test becomes unconservative.

Q · 03 How much does the rig’s own stiffness really matter?

Enough that it is the first thing we size, ahead of force capacity. The instrument measures the actuator's travel, and the actuator's travel is the sum of everything that moved: the specimen bending, plus the frame flexing, plus the anchorage taking up, plus the load train compressing. Nothing in the measurement distinguishes those. So every millimetre the rig gives is booked as a millimetre the specimen gave. The reason this matters more than a typical measurement error is the direction it runs. Extra apparent deflection means a larger apparent area under the curve, so the structure is credited with absorbing more energy than it did — and the test stops earlier than it should. At the same time, the structure has actually moved less than the data suggests, so an assessment of how close it came to the clearance volume is optimistic. Both errors flatter the specimen, and both push a marginal structure towards a pass. The remedies are ordinary engineering applied deliberately: size the frame members by deflection rather than allowable stress, make the anchorage stiff and preloaded, keep the load train short and direct, and then measure what remains — characterise the rig's compliance at commissioning and subtract it, so the reported deflection is the specimen's alone. For a retrofit onto an existing frame, that compliance survey is the first job, and occasionally it is the whole answer.

Q · 04 Why monitor clearance during the test rather than after it?

Because steel springs back, and a structure that intruded during loading is dangerous even if it looks acceptable afterwards. When the load comes off, the elastic part of the deformation recovers and only the plastic part remains. A pillar that bowed inward under load may therefore stand back up on unloading, leaving a final geometry that clears the volume comfortably while the transient position during the event did not. In a real roll-over there is no unloading step before the operator is struck — the worst position is the one that matters. So the clearance has to be assessed continuously through the loading, not by inspecting the specimen at the end. Practically that means instrumentation positioned to see the surfaces that could intrude, recording throughout, and a record that can be reviewed against the loading history afterwards; the volume itself is defined relative to a datum on the specimen, so the fixturing has to establish that datum reliably and not obstruct the region being watched. This is also one of the places where a rig can quietly be built wrong: it is straightforward to arrange a check that confirms the volume is clear at the end of the test, and much harder to arrange one that proves it was clear at every moment. The second is what the standard is asking for.

Q · 05 What does it mean that the specimen is consumed?

It means every run is one-shot, and the commercial and engineering consequences are larger than they first appear. The loading is applied in a prescribed sequence of directions, and the structure carries its damage forward: by the time the later stages are applied, it is already permanently bent from the earlier ones, and that accumulated state is part of what is being assessed. There is therefore no way to re-run a stage — if instrumentation drops out midway, or a load point slips, or the control overshoots, the article cannot be restored to its previous condition and the test is lost. Since a specimen is a fabricated cab structure, that is an expensive afternoon. Three parts of the design follow directly. Fixturing has to hold the load path without slipping or digging in, because a load point that moves invalidates everything after it. Instrumentation has to be redundant enough that losing one channel does not end the test. And the abort logic has to be genuinely protective: on a rig where overshoot destroys the article rather than spoiling a reading, the control system's limits are a commercial feature as much as a safety one. It is also why correlation runs at commissioning matter — you want the rig proven before it is trusted with a customer's only specimen.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the rig design and integration, beginning with the stiffness requirement rather than the force one; the reaction frame and its anchorage, sized by deflection and designed on the assumption that the floor will try to lift; the load train and actuation — actuators, load cells, spreader beams and the load-point fixturing that has to hold a path without slipping; the measurement and rig-deflection compensation, so reported deflection is the specimen's alone; the energy integration and clearance-volume monitoring, tracked throughout the loading and recorded; the control, abort logic and guarding, on a machine that is deliberately destroying an expensive article; and installation, commissioning, correlation runs, documentation, operator training, spares and AMC — including build to the customer's own specification. What is bought-in certified: the hydraulic actuators and power pack, the load cells and displacement transducers, and the control hardware — proprietary products of established makers, integrated rather than imitated. What is the customer's: the specimens, the applicable standard, and the test programme. And the record, stated plainly: equipment of this class has been quoted against a roll-over protective structure test rig requirement for an automotive certification authority, and no delivered roll-over protective structure test rig is claimed. The class is engineered to order, around the specimen and the standard it has to satisfy.

↗

Three ways to load something until it tells you something.

Cycles, impact, and one slow push — the same actuators, three different questions.

↗ Cycles

Servo-Hydraulic Fatigue Testing Machine

Millions of small cycles to find a life — this is one slow push to destruction.

↗ Impact

Head Impact Test Rig

Occupant protection at high rate — this protects them by way of the structure.

↗ Strain rate

Materials Impact Testing Machine

Material behaviour at high strain rate — here rate is deliberately kept out.

Browse all Neometrix product lines.

Get a quotation

Send the specimen envelope
and the energies required.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — ROPS test rig Capability sheet (PDF) +91 7777 876 876
