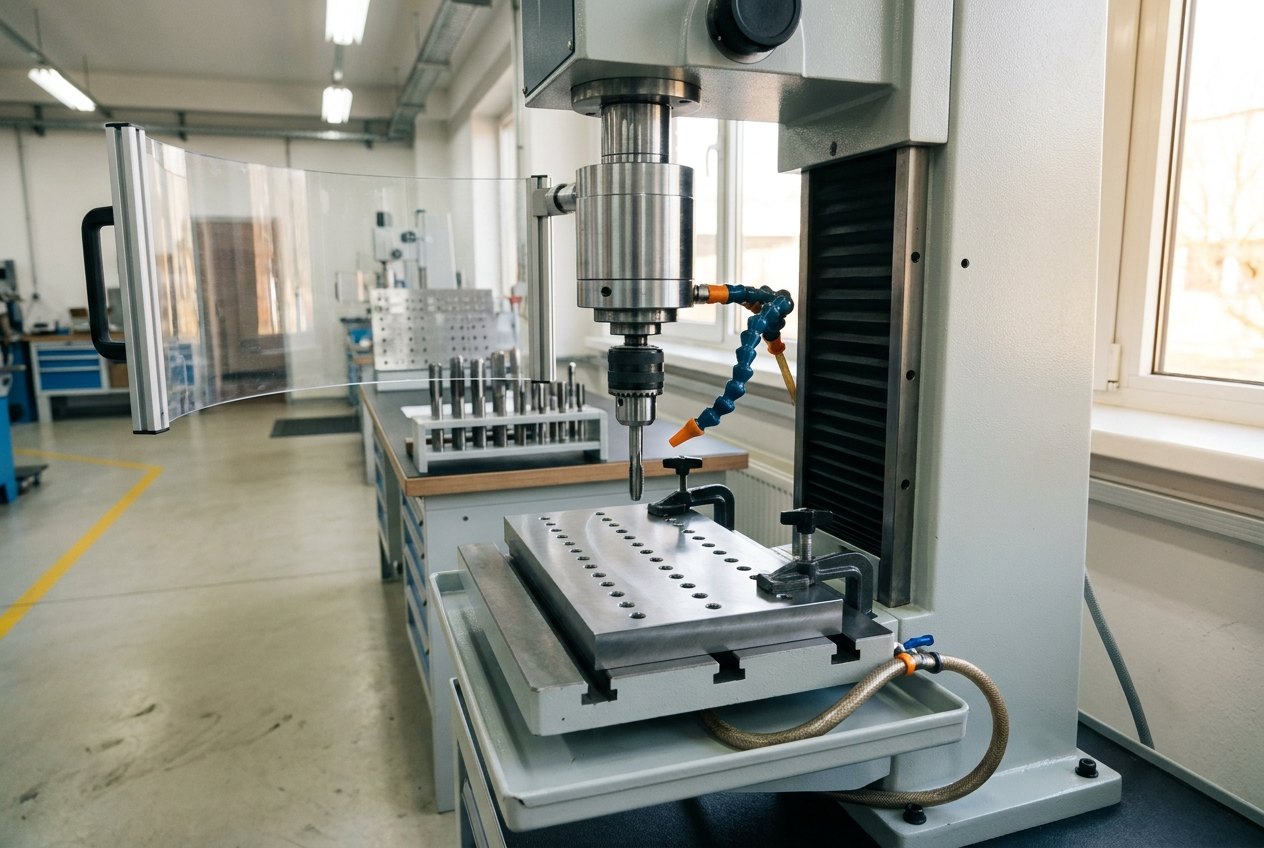

Illustrative of the delivered class — an instrumented tapping-torque test station in a clean laboratory workshop: a rigid column machine in fresh light-grey paint with a vertical spindle head, a cylindrical inline torque sensor above the tap chuck, a bright steel test plate drilled with neat rows of holes clamped to the table, a curved clear polycarbonate guard swung aside, a small articulated blue coolant nozzle at the tap, racks of taps and test plates on tidy benches behind, light floor with a yellow line, window daylight, no people and no readable markings

Fig · 01 The tapping station — a standard thread, a torque trace, and a plate whose rows of holes are the experiment's replicates

Ranked by

torque savedvs a reference fluid

Margin

a few percentstatistics, not one run

Concentration

verifiedrefractometer, every batch

Breakpoint

chip testIP 287 / ASTM D4627

Status

deliveredagainst a won order

ISO 9001 / 14001 Delivered class Fluid test-rig franchise ASTM / IP methods Noida · India

Overview

Judged at the tool, not in the bottle.

A metalworking fluid has four jobs at the point where a tool meets metal — cool, lubricate, flush, protect — and no bottle-side property predicts how well it does them. So the laboratory brings the tool to the fluid: a machining test standardised hard enough that the only variable left is the formulation.

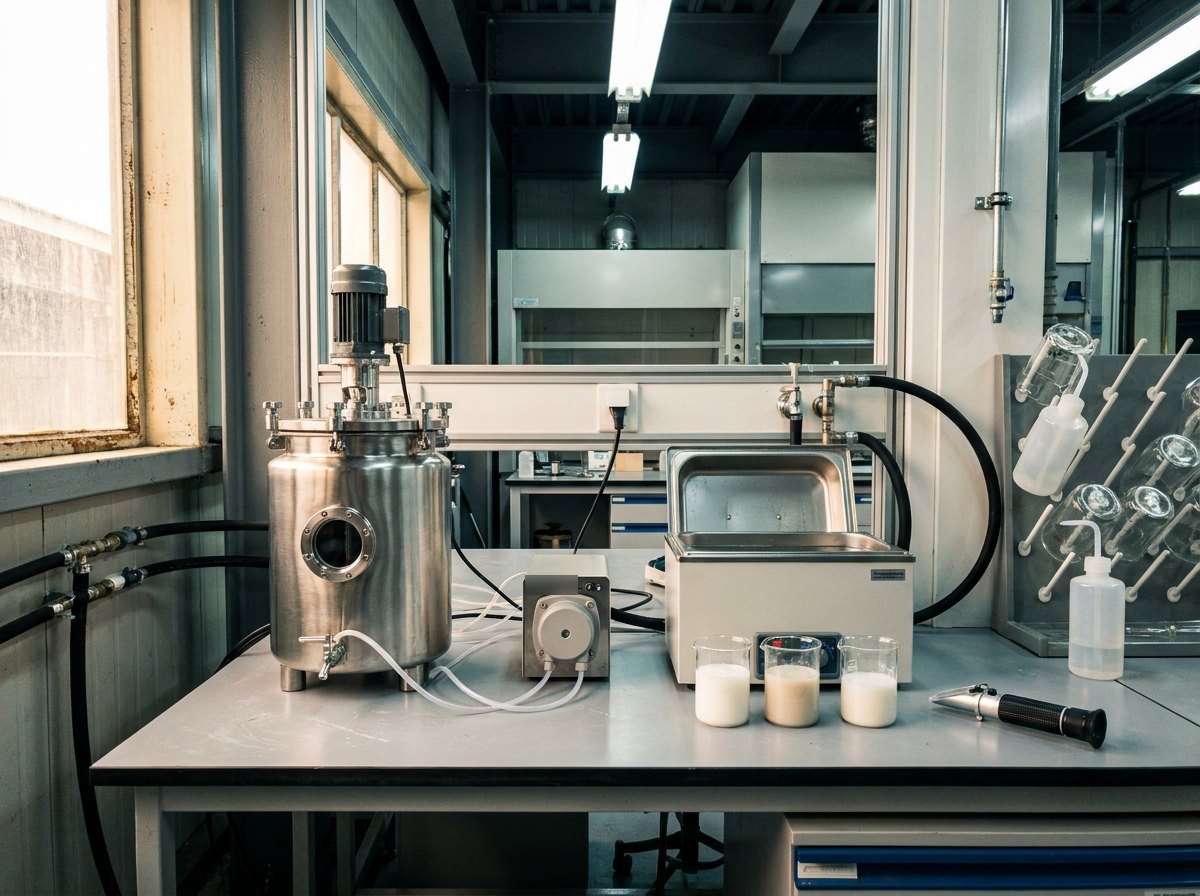

Illustrative of the delivered class — a fluid dosing and mixing station on a clean laboratory bench: a polished stainless mixing tank with a top stirrer motor and sight window, a compact dosing pump with fine tubing, a temperature-controlled water bath with its lid ajar, three glass beakers of milky emulsion at slightly different shades, a handheld optical refractometer lying angled away, clean glassware on a drying rack behind, window light from one side, no people and no readable markings

Fig · 02 Dosing and verification — three concentrations, three shades, and the refractometer that stops the rig arguing with itself

The tapping-torque test is the instrument. A standard tap cuts a standard thread in a standard workpiece with the fluid delivered at the tool, and an inline rotary transducer records torque through the whole cut. Run the reference fluid, run the candidate, and the ratio is the result: an efficiency percentage. It is direct, brutal and honest — the better fluid simply demands less torque for the same thread.

But the margins are small, so the consumables are the calibration. The differences that decide a formulation are a few percent, and three quiet variables can each eat that margin: taps wear from hole to hole, workpiece metallurgy drifts between plate batches, and the reference fluid itself ages. The rig's discipline is therefore statistical — tap and plate lots tracked like calibration assets, reference brackets run around every candidate so drift is caught rather than absorbed, hole order randomised, and replicate counts chosen for the uncertainty the decision needs.

And the emulsion lives on a knife-edge. Most cutting fluids run as water mixes, and concentration is the hidden variable behind almost every anomalous result ever argued over. Every batch is mixed to specification and verified by refractometer, temperature is held, and the make-up water's hardness is a stated grade — so when two fluids differ, it is the chemistry differing, not the mixing.

A rig of this class has been delivered against a won order for an oil-marketing major's lubricant laboratory. The stations, metrology, software and calibration regime are ours; the fluids and their chemistry are the customer's.

Direct

Torque is the verdict

The whole cut recorded, candidate against reference — an efficiency percentage, not an opinion.

Controlled

Lots, brackets, replicates

Taps, plates and reference fluid treated as calibration assets, with the statistics to match.

Verified

Concentration measured

Refractometer on every batch — the hidden variable, made visible.

Architecture

Mix, cut, read, rank.

The schematic follows the test — the batch mixed and verified, the standard thread cut, the torque read, the candidate ranked against the reference with its uncertainty — and the machine underneath: the tapping station, the dosing station, the corrosion and stability benches, and the record.

FIG · 03FLUID RIG ARCHITECTURE · TAPPING STATION + TORQUE / DOSING + TEMPERATURE / CORROSION, FOAM & STABILITY / DAQ, STATISTICS & RECORD

Fig · 03 A ranking tighter than the differences it reports

Arc · 01

Tapping Station & Torque

Rigid spindle, controlled feed, fixtures and an inline rotary transducer — the number is metrology, not noise.

Arc · 02

Dosing & Temperature

Every batch mixed, refractometer-verified and held at temperature, with water hardness a stated grade.

Arc · 03

Corrosion, Foam & Stability

The chip-test breakpoint, foam heads and emulsion stability — the service behaviour the machining numbers cannot see.

Arc · 04

DAQ, Statistics & Record

Every trace, lot, batch and concentration kept, and every ranking reported with its uncertainty.

Equipping or upgrading a fluids laboratory? Send the methods, the throughput and the fluids family — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference rig, built to the methods.

The parameters below describe a reference installation. Station count, tap sizes, plate materials, bath capacities and channel count all follow from three givens: the methods the laboratory runs, the fluid families it formulates, and the throughput its programme needs.

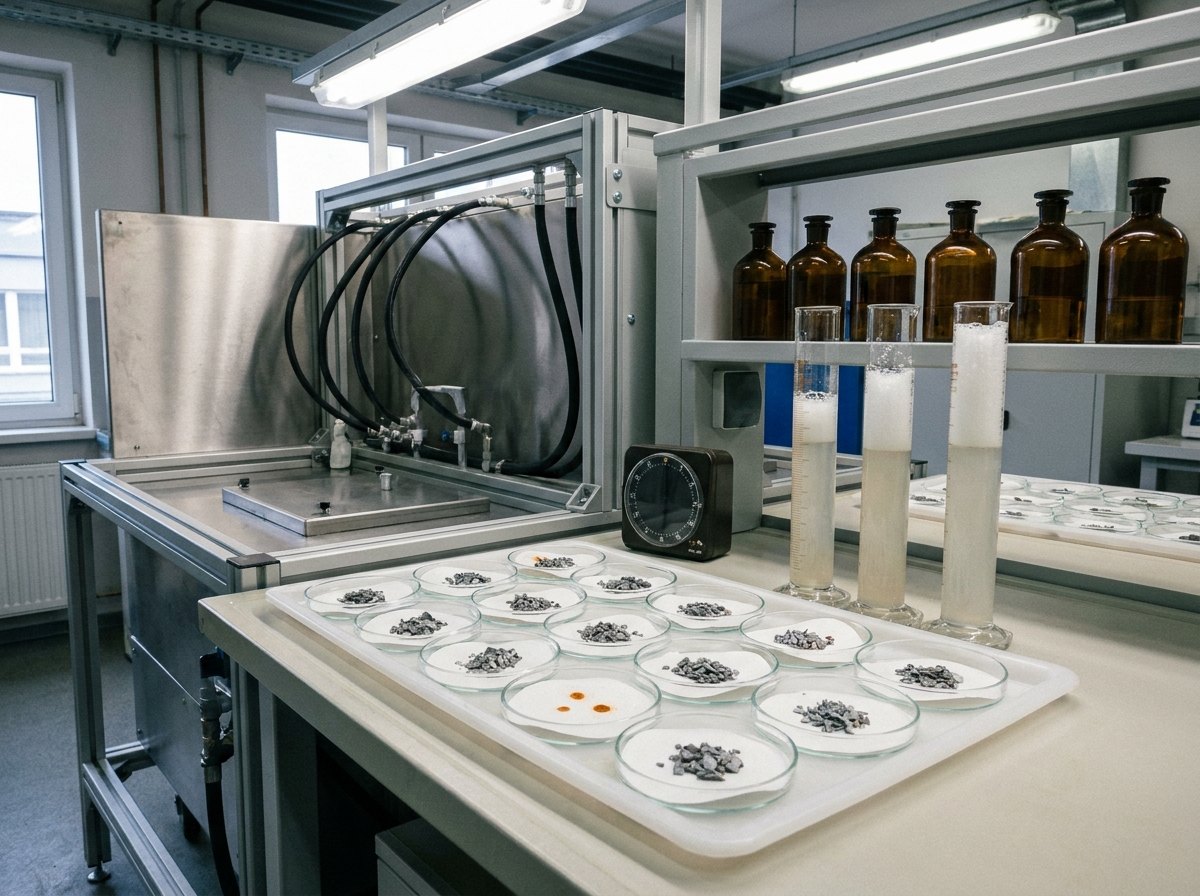

Illustrative of the delivered class — a corrosion and foam test bench in a clean laboratory: a neat grid of round glass petri dishes on a white tray, each holding a small pile of grey cast-iron chips on white filter paper, two papers showing small orange rust spots while the others stay clean, three tall graduated cylinders holding milky fluid with foam heads at different heights, a laboratory timer with its face turned away, plain amber glass bottles on a shelf behind, no people and no readable markings

Fig · 04 The chip test — two papers rusting, the rest clean: the breakpoint found, one concentration step at a time

Where fluid test rigs go wrong

Ranking the rig's own noise — tap wear and plate batches left uncontrolled, larger than the fluid differences being measured. No reference bracketing, so session-to-session drift masquerades as formulation effect. Concentration assumed from the mix and never verified — the commonest hidden variable in the field. Temperature left to the room, moving viscosity and film behaviour mid-series. Torque calibration on a schedule nobody keeps. Corrosion chips reused or surface preparation varied, so the breakpoint wanders and gets blamed on the fluid. Foam ignored because the machining numbers looked good. A single-run winner with no replicates and no uncertainty. And records that stop at the ranking, when the traces and lots are what make it defensible when the formulation decision is questioned years later.

So the discipline runs the other way. Consumables are treated as calibration assets — lots tracked, order randomised, references bracketed. Concentration is measured, not assumed; temperature is held; hardness is stated. Torque metrology is calibrated on a regime the software enforces. Chip tests run on controlled lots with standard preparation. Foam and stability stand as first-class stations. And every ranking leaves the rig with its uncertainty attached and its evidence kept — which is what lets a laboratory sign it.

Full specification — expand

System	Metalworking fluid performance test rig — tapping-torque station, dosing & verification, corrosion-breakpoint, foam & stability stations, DAQ & ranking software
Governing Idea	The fluid is judged at the tool, not in the bottle — machining performance ranks a fluid; laboratory properties do not
The Instrument	Tapping-torque test (ASTM D5619) — standard tap, thread and workpiece; candidate expressed as efficiency % against a reference fluid
Torque Metrology	Inline rotary transducer on a rigid spindle, recording the whole cut; calibration regime enforced by the software
The Calibration	The consumables — tap & plate lots tracked as assets, reference brackets around candidates, randomised hole order, replicate counts by required uncertainty
Dosing & Verification	Batches mixed to specification, refractometer-verified, temperature-held; make-up water hardness a stated grade
Corrosion Breakpoint	Cast-iron-chip test (IP 287 / ASTM D4627) at stepped concentrations — chip lots and surface preparation controlled
Foam & Stability	Foam-head and emulsion-stability stations to standard methods — the service behaviour machining numbers cannot see
Statistics	Replicates, brackets and uncertainty reported with every ranking — a ranking tighter than the differences it reports
Record	Every torque trace, batch, tap lot and concentration kept — formulation decisions are audited years later
The Split	This page is cutting & grinding fluids judged at the tool; the site's hydraulic-fluid bench (ASTM D6973 dual-pump wear & oxidation) answers a different fluid's question
Scope Boundary	Ours: stations, fixtures, torque metrology integration, dosing & verification, corrosion & stability benches, DAQ & ranking software, calibration regime, installation, commissioning, training, spares & AMC — including build to the laboratory's specification. Bought-in certified: spindle drives, rotary torque transducers, refractometers, balances, baths. The customer's: the fluids and their chemistry
The Family	Beside the site's hydraulic-fluid, fuel-injection and compressor test-rig line — the petro-sector fluid franchise
Status	Delivered against a won order for an oil-marketing major's laboratory · engineered to order for the class
