Fuel Injection Pump Test Bench, calibrated to ±0.5% accuracy.

Why fuel injection pump calibration matters

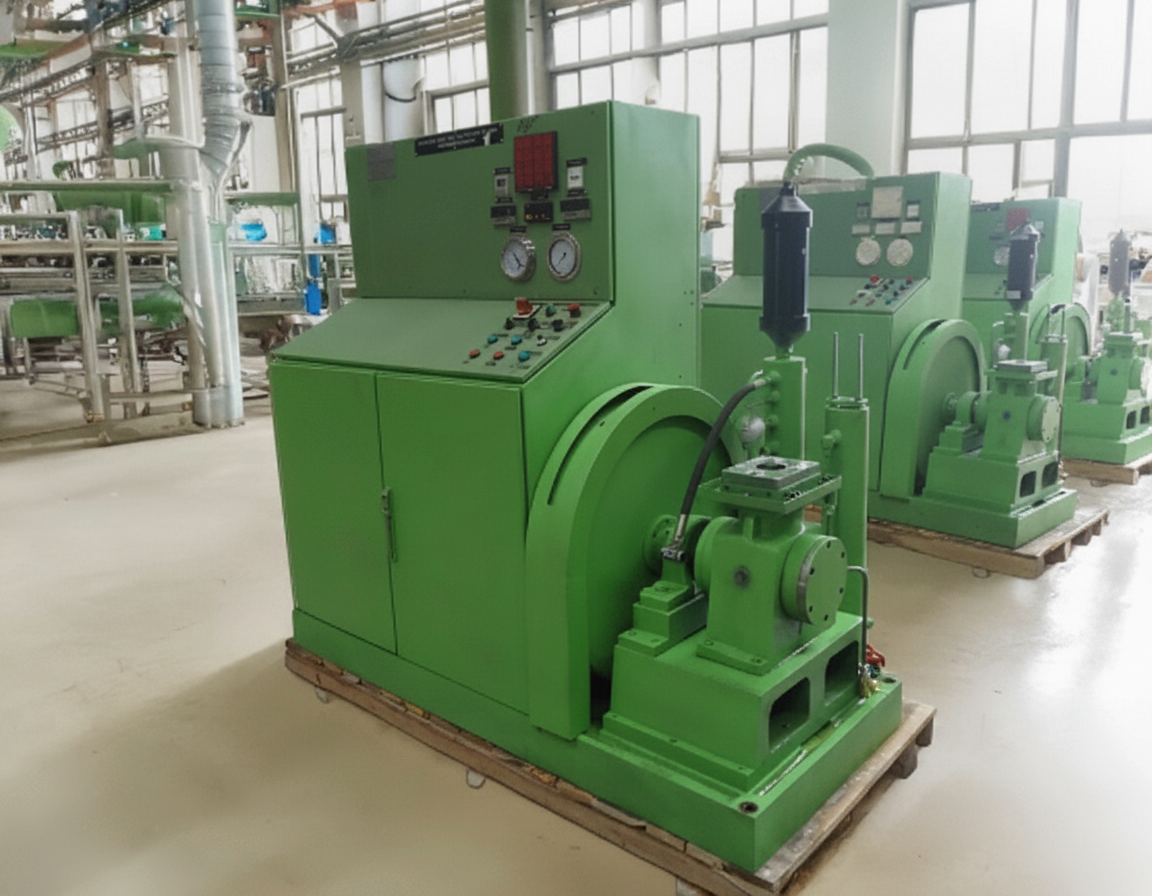

The Computerized Diesel Fuel Injection Pump Test Rig is a high-precision, fully automated testing and calibration system designed for fuel injection pumps used in diesel engines across railways, automotive, power generation, marine, and defence applications. Equipped with a computerized control system, real-time monitoring, and advanced safety interlocks, this test rig ensures accurate measurement of fuel delivery rates, injection pressure, and stroke performance.

It is an automated test bench designed to evaluate and calibrate diesel fuel injection pumps used in locomotive engines, heavy-duty commercial vehicles, industrial diesel engines, and specialized fuel systems. With a fully integrated computerized control system, the rig accurately measures fuel flow rates, injection pressure, and stroke performance — ensuring that each fuel injection pump meets OEM specifications. This advanced test rig is an essential tool for railway workshops, automotive manufacturers, defence maintenance depots, power generation industries, and research laboratories that require repeatable and precise fuel pump performance testing.

1. Why choose this test rig

Industry-leading accuracy

• ±0.5% flow measurement accuracy for high-precision calibration.
• Real-time monitoring of fuel delivery rate, stroke count, and system temperature.
• Programmable test sequences ensure standardized and repeatable results.

Computerized & automated operation

• Fully digital control panel with a simplified operator interface.
• Integrated data logging system for real-time performance tracking & reporting.
• Automated interlocks & safety shutdowns for equipment protection.

High-speed, multi-purpose testing

• Capable of testing fuel injection pumps at idle speed, full speed, and over-speed conditions.
• Suitable for railway diesel locomotives, military vehicles, construction equipment, marine engines, and power generators.

Rugged industrial design

• Heavy-duty steel frame and vibration-resistant construction for long-term durability.
• Anti-corrosion, oil-resistant coating on all exposed parts.
• Advanced lubrication system to ensure smooth operation of all moving components.

Meets international standards

• ISO 9001, ISO 14001, and ISO 45001 certified quality manufacturing.
• Compliant with OEM calibration standards for diesel fuel systems, API CF/FS, and IS:13656-2002.

2. Key features & capabilities

Precision calibration & measurement

Uses a high-accuracy flowmeter to measure fuel discharge volume per stroke, with multiple test speeds for different operating conditions and digital displays with automatic data recording.

Smart control & automation

Microprocessor-controlled testing cycles for repeatable accuracy, a Variable Frequency Drive (VFD) for speed adjustment, and automated test-result logging via an integrated software system.

Multi-stage safety systems

Overload protection and power interlocks prevent accidental operation, an emergency stop button gives immediate shutdown, and an automatic low-oil shutdown feature protects the lubrication system.

Robust, maintenance-free operation

An advanced self-lubrication system prevents wear and extends component life; an industrial-grade filtration system ensures clean, debris-free fuel supply; quick-connect fuel lines and a modular design allow for easy maintenance.

3. Technical specifications

Fuel discharge rate

• Maximum: 401+4/-11 cc per 300 strokes at a 28 mm rack position; 351+5/-10 cc per 300 strokes at a 30 mm rack position.
• Minimum: 45+1/-5 cc per 300 strokes at a 9 mm rack position; 34+1/-5 cc per 300 strokes at a 9 mm rack position.
• Flow measurement accuracy: ±0.5%.

Filtration system

• Primary filter: 10µm.
• Secondary filter: 3µm.

4. Major system components

4.1 Power pack & calibrating fluid supply system

• 45-litre stainless steel tank with low-level cut-off sensor.
• 2 kW heater with digital temperature controller.
• Dual-stage filtration system (3µm and 10µm filters).
• Diaphragm accumulator (2.5L capacity) to stabilize pressure fluctuations.

4.2 Drive motor & timing gear arrangement

• 10 HP high-efficiency motor with Variable Frequency Drive (VFD) for speed control.
• Multi-pulley V-belt transmission system for efficient power transfer.
• 750 mm flywheel for stable rotational energy.
• Timing gear chain drive for precise synchronization.

4.3 CamBox assembly

• Main drive shaft (70 mm diameter) for high load capacity.
• Fuel injection pump mounting plate with quick-release mechanism.
• Automated lubrication system for camshaft and follower mechanism.

5. Applications

Railway & locomotive maintenance

Used by railway operators worldwide for diesel locomotive fuel pump calibration, ensuring optimal fuel efficiency and engine longevity.

Heavy vehicle & industrial diesel engine testing

Ideal for trucks, buses, construction equipment, and agricultural machinery, meeting OEM calibration standards for precision fuel injection.

Marine, power generation & defence applications

Essential for marine engines, power plants, and military vehicles, ensuring consistent fuel delivery under extreme conditions.

Research & development

Used in automotive research labs for fuel system efficiency studies, supporting alternative fuel research and engine performance optimization.

6. Related fuel-injection test platforms

The efficiency and reliability of modern diesel engines depend on precise fuel delivery, making accurate calibration and testing critical. The Fuel Injection Pump Test Bench and Diesel Injection Pump Test Stand provide industry-standard platforms for evaluating injection systems under real-world conditions.

For advanced applications, the Common Rail Injector Test Bench and CRDI Pump Calibration Bench ensure precision tuning of electronic and high-pressure systems. Complementary solutions like the Diesel Fuel System Diagnostic Machine and High Pressure Fuel Test Rig enable fault detection, endurance validation, and system optimization.

Specialized tools such as the Electronic Diesel Control (EDC) Test Bench, Fuel Injector Testing Equipment, and Inline & Rotary Pump Test Machines support both mechanical and electronic pump technologies. In addition, the Diesel Calibration Test Stand, Automotive Injector Calibration Bench, and Bosch-Type Pump Testing Rig guarantee compliance with OEM and global standards.

For scalable operations, advanced platforms like the Programmable Fuel Pump Test Bench, Multi-Cylinder Fuel Injector Test Bench, and EFI Injector and Pump Testing Station offer automation, versatility, and data-driven diagnostics. Together, these solutions empower automotive workshops, OEMs, and research facilities to achieve optimal engine performance, reduced emissions, and extended system life.

Conclusion

The Computerized Diesel Fuel Injection Pump Test Rig sets a dependable standard for OEM-grade calibration accuracy. Its rugged construction, automated operation, and standards-compliant design make it an essential asset for railway workshops, defence maintenance depots, OEM production lines, and research institutions working with diesel fuel injection systems.
