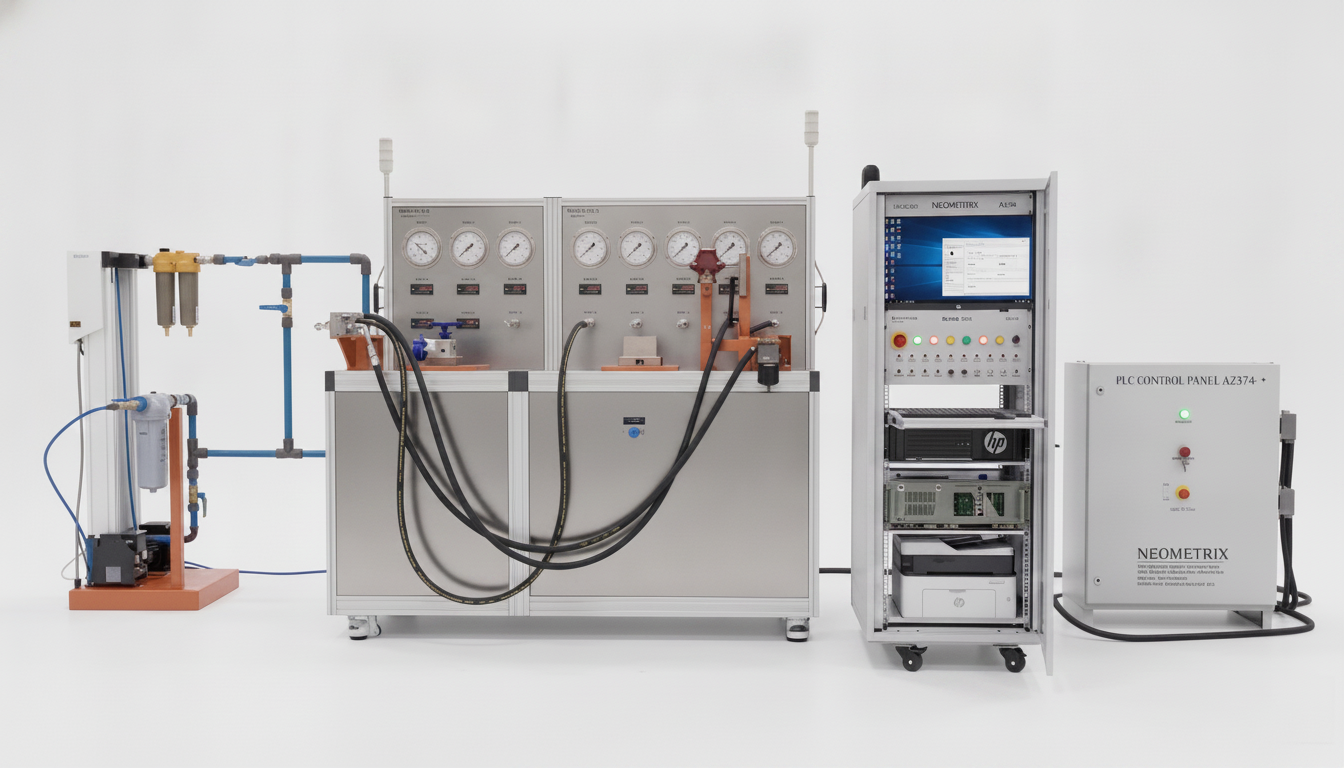

Computerized Control Universal Brake Test Bench

About

The Computerized Control Universal Brake Test Bench (CCUBTB) is a high-precision, automated testing system designed to ensure the functionality and safety of pneumatic brake components in metro rail and railway systems. Capable of testing 27 types of pneumatic valves, the CCUBTB features both automatic and manual operating modes, advanced PLC and DAQ-based control, and precision instrumentation for real-time monitoring. It includes integrated air treatment, digital pressure monitoring, and automated reporting capabilities. Built with durable materials and modular components, the system ensures efficient testing, maintenance, and performance analysis, making it an essential solution for railway workshops and maintenance depots.
No Image

Image Gallery

Technical Details

S.no. Name of Characteristic Value of Characteristic
1MediumCompressed Air.
2Pressure Rating10.5 Kg/cm2
3Air supply Pressure Range8-10 Kg/cm2
4Flow Rate)2400 LPM
5Temperature RangeAmbient up to 48°c
6Power Supply230V + 10% -20%, Single Phase, 50Hz
The system is designed to test the performance/Functional testing of the following 27 types of pneumatic valves of AC Brake system of AC Rake for Metro Rail. The system is consisting Brake Pipe, Auxiliary Reservoir, Brake Cylinder Reservoir and Control Reservoir.

Key Features

  • Pre- defined software base Automatic testing.
  • Regulated pressure control.
  • Noise Sensor.
  • Temperature sensor.
  • Humidity sensor.

Media Gallery

Video Gallery

PPT Gallery

Download Gallery

×

Enquire Now

and we will get back to you.

  • United States+1
  • United Kingdom+44
  • Afghanistan (‫افغانستان‬‎)+93
  • Albania (Shqipëri)+355
  • Algeria (‫الجزائر‬‎)+213
  • American Samoa+1
  • Andorra+376
  • Angola+244
  • Anguilla+1
  • Antigua and Barbuda+1
  • Argentina+54
  • Armenia (Հայաստան)+374
  • Aruba+297
  • Australia+61
  • Austria (Österreich)+43
  • Azerbaijan (Azərbaycan)+994
  • Bahamas+1
  • Bahrain (‫البحرين‬‎)+973
  • Bangladesh (বাংলাদেশ)+880
  • Barbados+1
  • Belarus (Беларусь)+375
  • Belgium (België)+32
  • Belize+501
  • Benin (Bénin)+229
  • Bermuda+1
  • Bhutan (འབྲུག)+975
  • Bolivia+591
  • Bosnia and Herzegovina (Босна и Херцеговина)+387
  • Botswana+267
  • Brazil (Brasil)+55
  • British Indian Ocean Territory+246
  • British Virgin Islands+1
  • Brunei+673
  • Bulgaria (България)+359
  • Burkina Faso+226
  • Burundi (Uburundi)+257
  • Cambodia (កម្ពុជា)+855
  • Cameroon (Cameroun)+237
  • Canada+1
  • Cape Verde (Kabu Verdi)+238
  • Caribbean Netherlands+599
  • Cayman Islands+1
  • Central African Republic (République centrafricaine)+236
  • Chad (Tchad)+235
  • Chile+56
  • China (中国)+86
  • Christmas Island+61
  • Cocos (Keeling) Islands+61
  • Colombia+57
  • Comoros (‫جزر القمر‬‎)+269
  • Congo (DRC) (Jamhuri ya Kidemokrasia ya Kongo)+243
  • Congo (Republic) (Congo-Brazzaville)+242
  • Cook Islands+682
  • Costa Rica+506
  • Côte d’Ivoire+225
  • Croatia (Hrvatska)+385
  • Cuba+53
  • Curaçao+599
  • Cyprus (Κύπρος)+357
  • Czech Republic (Česká republika)+420
  • Denmark (Danmark)+45
  • Djibouti+253
  • Dominica+1
  • Dominican Republic (República Dominicana)+1
  • Ecuador+593
  • Egypt (‫مصر‬‎)+20
  • El Salvador+503
  • Equatorial Guinea (Guinea Ecuatorial)+240
  • Eritrea+291
  • Estonia (Eesti)+372
  • Ethiopia+251
  • Falkland Islands (Islas Malvinas)+500
  • Faroe Islands (Føroyar)+298
  • Fiji+679
  • Finland (Suomi)+358
  • France+33
  • French Guiana (Guyane française)+594
  • French Polynesia (Polynésie française)+689
  • Gabon+241
  • Gambia+220
  • Georgia (საქართველო)+995
  • Germany (Deutschland)+49
  • Ghana (Gaana)+233
  • Gibraltar+350
  • Greece (Ελλάδα)+30
  • Greenland (Kalaallit Nunaat)+299
  • Grenada+1
  • Guadeloupe+590
  • Guam+1
  • Guatemala+502
  • Guernsey+44
  • Guinea (Guinée)+224
  • Guinea-Bissau (Guiné Bissau)+245
  • Guyana+592
  • Haiti+509
  • Honduras+504
  • Hong Kong (香港)+852
  • Hungary (Magyarország)+36
  • Iceland (Ísland)+354
  • India (भारत)+91
  • Indonesia+62
  • Iran (‫ایران‬‎)+98
  • Iraq (‫العراق‬‎)+964
  • Ireland+353
  • Isle of Man+44
  • Israel (‫ישראל‬‎)+972
  • Italy (Italia)+39
  • Jamaica+1
  • Japan (日本)+81
  • Jersey+44
  • Jordan (‫الأردن‬‎)+962
  • Kazakhstan (Казахстан)+7
  • Kenya+254
  • Kiribati+686
  • Kosovo+383
  • Kuwait (‫الكويت‬‎)+965
  • Kyrgyzstan (Кыргызстан)+996
  • Laos (ລາວ)+856
  • Latvia (Latvija)+371
  • Lebanon (‫لبنان‬‎)+961
  • Lesotho+266
  • Liberia+231
  • Libya (‫ليبيا‬‎)+218
  • Liechtenstein+423
  • Lithuania (Lietuva)+370
  • Luxembourg+352
  • Macau (澳門)+853
  • Macedonia (FYROM) (Македонија)+389
  • Madagascar (Madagasikara)+261
  • Malawi+265
  • Malaysia+60
  • Maldives+960
  • Mali+223
  • Malta+356
  • Marshall Islands+692
  • Martinique+596
  • Mauritania (‫موريتانيا‬‎)+222
  • Mauritius (Moris)+230
  • Mayotte+262
  • Mexico (México)+52
  • Micronesia+691
  • Moldova (Republica Moldova)+373
  • Monaco+377
  • Mongolia (Монгол)+976
  • Montenegro (Crna Gora)+382
  • Montserrat+1
  • Morocco (‫المغرب‬‎)+212
  • Mozambique (Moçambique)+258
  • Myanmar (Burma) (မြန်မာ)+95
  • Namibia (Namibië)+264
  • Nauru+674
  • Nepal (नेपाल)+977
  • Netherlands (Nederland)+31
  • New Caledonia (Nouvelle-Calédonie)+687
  • New Zealand+64
  • Nicaragua+505
  • Niger (Nijar)+227
  • Nigeria+234
  • Niue+683
  • Norfolk Island+672
  • North Korea (조선 민주주의 인민 공화국)+850
  • Northern Mariana Islands+1
  • Norway (Norge)+47
  • Oman (‫عُمان‬‎)+968
  • Pakistan (‫پاکستان‬‎)+92
  • Palau+680
  • Palestine (‫فلسطين‬‎)+970
  • Panama (Panamá)+507
  • Papua New Guinea+675
  • Paraguay+595
  • Peru (Perú)+51
  • Philippines+63
  • Poland (Polska)+48
  • Portugal+351
  • Puerto Rico+1
  • Qatar (‫قطر‬‎)+974
  • Réunion (La Réunion)+262
  • Romania (România)+40
  • Russia (Россия)+7
  • Rwanda+250
  • Saint Barthélemy+590
  • Saint Helena+290
  • Saint Kitts and Nevis+1
  • Saint Lucia+1
  • Saint Martin (Saint-Martin (partie française))+590
  • Saint Pierre and Miquelon (Saint-Pierre-et-Miquelon)+508
  • Saint Vincent and the Grenadines+1
  • Samoa+685
  • San Marino+378
  • São Tomé and Príncipe (São Tomé e Príncipe)+239
  • Saudi Arabia (‫المملكة العربية السعودية‬‎)+966
  • Senegal (Sénégal)+221
  • Serbia (Србија)+381
  • Seychelles+248
  • Sierra Leone+232
  • Singapore+65
  • Sint Maarten+1
  • Slovakia (Slovensko)+421
  • Slovenia (Slovenija)+386
  • Solomon Islands+677
  • Somalia (Soomaaliya)+252
  • South Africa+27
  • South Korea (대한민국)+82
  • South Sudan (‫جنوب السودان‬‎)+211
  • Spain (España)+34
  • Sri Lanka (ශ්‍රී ලංකාව)+94
  • Sudan (‫السودان‬‎)+249
  • Suriname+597
  • Svalbard and Jan Mayen+47
  • Swaziland+268
  • Sweden (Sverige)+46
  • Switzerland (Schweiz)+41
  • Syria (‫سوريا‬‎)+963
  • Taiwan (台灣)+886
  • Tajikistan+992
  • Tanzania+255
  • Thailand (ไทย)+66
  • Timor-Leste+670
  • Togo+228
  • Tokelau+690
  • Tonga+676
  • Trinidad and Tobago+1
  • Tunisia (‫تونس‬‎)+216
  • Turkey (Türkiye)+90
  • Turkmenistan+993
  • Turks and Caicos Islands+1
  • Tuvalu+688
  • U.S. Virgin Islands+1
  • Uganda+256
  • Ukraine (Україна)+380
  • United Arab Emirates (‫الإمارات العربية المتحدة‬‎)+971
  • United Kingdom+44
  • United States+1
  • Uruguay+598
  • Uzbekistan (Oʻzbekiston)+998
  • Vanuatu+678
  • Vatican City (Città del Vaticano)+39
  • Venezuela+58
  • Vietnam (Việt Nam)+84
  • Wallis and Futuna (Wallis-et-Futuna)+681
  • Western Sahara (‫الصحراء الغربية‬‎)+212
  • Yemen (‫اليمن‬‎)+967
  • Zambia+260
  • Zimbabwe+263
  • Åland Islands+358

Details

The Computerized Control Universal Brake Test Bench (CCUBTB) is a high-precision, fully automated testing system designed to support Indian Railways and Metro Rail networks. This test bench ensures the functionality and safety of pneumatic braking systems by conducting performance tests on critical pneumatic valves. This versatile and customizable test bench plays a vital role in optimizing maintenance and ensuring compliance with stringent safety standards for railway brake systems.

Key Functional Features

1. Multi-Valve Testing Capability
The CCUBTB is capable of testing 27 distinct types of pneumatic valves found in metro rail air brake systems. These include:
 - Air Dryer Unit: Ensures that compressed air is moisture-free to prevent corrosion or operational failures.
 - Anti-Skid Valve: Prevents wheel skidding by modulating brake pressure.
 - Distributor Valve: Manages airflow between brake cylinders and control reservoirs.
 - Emergency Brake Valve: Ensures rapid braking during emergency conditions.
 - Piston Valve, Magnet Valve, Pressure Reducer Valve, Check Valve, Safety Valve, and others.
Each valve undergoes individual or sequential testing based on pre-programmed parameters, ensuring reliability and performance under various load and pressure conditions.

2. Dual Operating Modes
The bench is designed to accommodate both novice and expert operators through dual-mode functionality:
 - Automatic Mode: Utilizes pre-programmed sequences to run diagnostic and functional tests automatically. The system offers flexibility to select specific valves or tests when required.
 - Manual Mode: Allows the operator to control each test manually using toggle switches and control panels for precise testing under varying conditions.

3. Comprehensive Computerized Control System
 - A PLC (Programmable Logic Controller) governs all automatic operations.
 - DAQ (Data Acquisition System) integrated with custom software enables real-time monitoring of test parameters.
 - Operators can configure test sequences, input parameters, and generate automated reports in PDF format for documentation.
 - The system includes graphical interface screens, facilitating ease of use, parameter modification, and result analysis.

4. High-Performance Pneumatic System
 - Air Pressure Capacity: Rated for 10.5 kg/cm2, with an operational supply range of 8 to 10 kg/cm2.
 - Flow Rate: Supports a maximum flow of 2400 LPM, enabling rapid testing cycles.
 - Equipped with multiple air reservoirs for Brake Pipe (BP), Brake Cylinder (BC), Auxiliary Reservoir (AR), and Control Reservoir (CR) systems.

5. Precision Instrumentation
 - Digital pressure gauges with high accuracy (±0.5 percent of full scale), least count of 0.1 kg/cm2.
 - Pressure transmitters with 4–20mA signal output.
 - Sound level sensors (30–130 dB range) to test and monitor horn functionality.
 - Dew point meters to ensure compressed air meets moisture-free requirements for optimal performance.

System Components
The CCUBTB consists of multiple integrated systems to ensure seamless testing and data acquisition:
1. Test Bench Structure
 - Built with SS-304 and aluminum profile framing for enhanced durability and corrosion resistance.
 - Modular design with detachable side and rear panels for easy access during maintenance.
 - The test stand includes integrated reservoirs and pneumatic piping, minimizing external connections and reducing the risk of leaks.

2. Air Treatment and Distribution
 - Twin Tower Air Dryer (flow capacity of 2000 LPM) ensures consistent delivery of clean and dry compressed air.
 - Inline pneumatic valves and pressure regulators rated for pressures up to 12 bar provide precise control of airflow during tests.
 - Fitted with 5-micron pre-filters, post-filters, and fine filters to maintain air quality.

3. Control Panels and Electrical Systems
 - Data Acquisition Panel: Houses hardware components to interface between sensors, control valves, and software.
 - PLC Control Panel: Automates test sequences and integrates with the computer system.
 - UPS: Guarantees uninterrupted power for critical operations.
 - Equipped with emergency stop functions and safety interlocks to prevent system damage during faults.

4. Measurement and Analysis Tools
 - Includes a Digital Readout (DRO) panel to display real-time pressure, flow, and system diagnostics.
 - Test data is recorded, saved, and automatically compiled into detailed reports for analysis and audit purposes.

Operating Conditions
 - Compressed Air Medium: The system uses high-purity compressed air as the testing medium.
 - Operating Pressure: Rated up to 10.5 kg/cm2.
 - Flow Rate: 2400 LPM, ensuring high throughput for large-scale operations.
 - Ambient Temperature Range: Suitable for temperatures up to 48°C.
 - Electrical Power Supply: 230V, single-phase, 50Hz, compatible with industrial standards.

Maintenance and Safety Features
The CCUBTB incorporates comprehensive maintenance protocols to ensure long-term reliability:

1. Scheduled Maintenance Prompts:
Integrated maintenance screens allow operators to monitor system status, including sensorcalibration, valve integrity, and reservoir pressures.

2. Maintenance Tasks:
 - Draining moisture from air filters.
 - Tightening fittings and seals to prevent leaks.
 - Regular calibration of pressure gauges and transmitters.
 - Checking air dryer performance.

3. Do's and Don'ts:
 Do's:
 - Read the user manual thoroughly before operating the system.
 - Understand pneumatic circuit diagrams for efficient troubleshooting.
 Don'ts:
 - Never touch sensors or internal circuitry during operation.
 - Avoid switching on the control panel without a proper air supply.

Applications
This Universal Brake Test Bench is a critical component for metro rail maintenance operations, ensuring that braking systems are safe, reliable, and fully operational. The system is tailored for use by metro corporations, railway workshops, and maintenance depots, particularly those involved in large-scale fleet management.
