Details

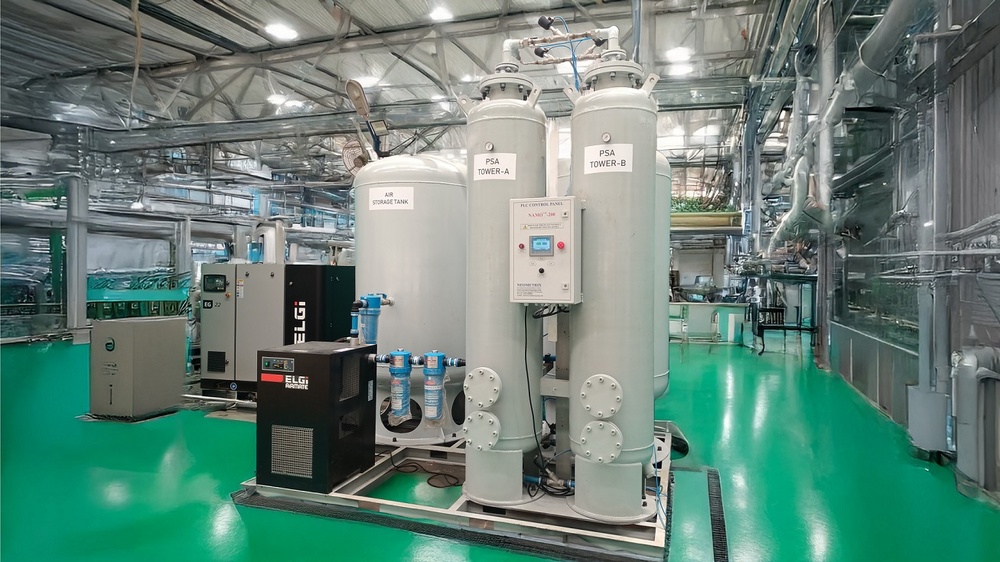

The 200 LPM PSA Oxygen Generation Plant is a fully automated, energy-efficient system that produces 93±3 percent pure medical oxygen onsite using Pressure Swing Adsorption (PSA) technology. It eliminates the need for oxygen cylinders, ensuring a continuous and cost-effective supply for hospitals, ICUs, and oxygen therapy units. Equipped with a screw-type air compressor, twin-tower PSA unit, multi-stage filtration, and PLC-based automation, it offers low maintenance, real-time monitoring, and quick installation. The system meets Global Medical Standards, ISO 8573 Class 4 norms, and global safety regulations.

Working Principle – PSA Technology
The 200 LPM PSA Oxygen Generation Plant functions using Pressure Swing Adsorption (PSA), a method that selectively separates oxygen from nitrogen using Zeolite Molecular Sieves. The plant operates through a continuous adsorption and regeneration cycle.
1. Compressed Air Supply – Ambient air is compressed, dried, and filtered to remove moisture, oil, and dust particles.
2. PSA Oxygen Separation – The clean compressed air is passed through Zeolite Molecular Sieves, which adsorb nitrogen, allowing oxygen to pass through.
3. Regeneration Cycle – When the first PSA tower reaches nitrogen saturation, the system automatically switches to the second tower, while the first tower releases nitrogen into the atmosphere and regenerates.
4. Continuous Oxygen Flow – The system operates in a cyclic manner, ensuring an uninterrupted supply of medical-grade oxygen at 200 LPM capacity.

Technical Specifications
 • Oxygen Production Capacity – 200 Liters Per Minute (LPM)
 • Oxygen Purity – 93±3% (as per medical standards)
 • Oxygen Output Pressure – 4-5 Bar
 • Dew Point – (-) 40°C to (-) 60°C
 • Technology – Pressure Swing Adsorption (PSA)
 • Adsorbent Material – High-quality Zeolite Molecular Sieves
 • Air Flow Requirement – Approximately 25-30 CFM
 • Power Supply – 415V, 50Hz, 3-Phase
 • Automation – PLC-based system with HMI touchscreen interface
 • Noise Level – Below 75 dB
 • Backup Power – 30-minute UPS backup for emergency situations

Key Features & Advantages
1. High-Purity Medical-Grade Oxygen Production
 • Generates 200 LPM of 93±3% pure oxygen, suitable for hospitals, clinics, and emergency healthcare units.
 • Provides a consistent and reliable oxygen supply without dependence on external vendors or supply chains.

2. Fully Automated System with Intelligent PLC Control
 • Advanced PLC (Programmable Logic Controller) with HMI touchscreen for real-time monitoring.
 • Smart automation system regulates oxygen purity, flow rate, and pressure levels.
 • Safety alerts and alarms notify operators in case of low oxygen purity, power fluctuations, or system malfunctions.

3. Compact & Energy-Efficient Design
 • Optimized power consumption for low operational costs.
 • Modular, space-saving design, making it ideal for small and mid-sized hospitals.
 • Self-cleaning filters and automatic drainage system minimize maintenance efforts.

4. Robust & Reliable Industrial-Grade Components
 • Screw-type Air Compressor ensures steady compressed air supply.
 • Medical-Grade Air Receiver Tank stores compressed air for stable airflow.
 • Multi-Stage Filtration System removes dust, oil, and moisture, ensuring clean oxygen production.
 • Twin-Tower PSA System enables uninterrupted oxygen generation with automatic adsorption-regeneration switching.

5. Safety & Compliance with Medical Standards
 • Built-in oxygen purity sensors, pressure regulators, and emergency stop functions.
 • Overpressure protection mechanisms prevent pipeline overloads and safety risks.
 • Power fluctuation protection via Servo Voltage Stabilizer ensures consistent operation.
 • Exhaust gas system safely vents out separated nitrogen, preventing contamination.

6. Quick Installation & Easy Integration
 • Pre-assembled and tested before delivery, reducing installation time.
 • Can be directly connected to hospital oxygen pipelines or cylinder filling stations.

System Components & Their Functions
A. Air Compression & Purification System
 • Screw-Type Air Compressor – Compresses ambient air to the required pressure.
 • Air Receiver Tank – Stores compressed air for consistent supply.
 • Pre-Filters & Micron Filters – Remove dust, oil mist, and moisture from compressed air.
 • Refrigerated Air Dryer – Reduces humidity, preventing moisture-related damage.
 • Activated Carbon Filter – Eliminates hydrocarbon traces, ensuring clean air quality.

B. PSA Oxygen Generation Unit
 • Twin-Tower PSA System – Alternates between oxygen separation and nitrogen release cycles.
 • Zeolite Molecular Sieves – Adsorbs nitrogen to allow oxygen enrichment.
 • Oxygen Buffer Tank – Stabilizes oxygen flow before supply.

C. Control & Monitoring System
 • PLC Control Panel with HMI Touchscreen – Enables real-time operation monitoring.
 • Oxygen Purity Sensor – Continuously checks oxygen quality and triggers alarms if purity drops.
 • Emergency Safety System – Prevents operational failures and system overloads.

Installation & Operational Guidelines
1. Installation Requirements
 • Requires a well-ventilated indoor space with temperature below 43°C.
 • Needs a 3-phase 415V AC power supply with Servo Voltage Stabilizer.
 • Oxygen pipeline must be securely connected, and nitrogen must be vented safely.

2. Operational Steps
 • Switch on Main Power & Servo Voltage Stabilizer.
 • Start Compressor & Air Dryer.
 • Activate PLC & HMI Control Panel.
 • Monitor oxygen purity and pressure.
 • The system enters auto-mode, continuously producing oxygen.

Routine Maintenance & Service Schedule
 • Daily – Check compressor oil levels and oxygen flow.
 • Weekly – Inspect oxygen purity and air dryer operation.
 • Monthly – Check all filters and drainage systems.
 • Semi-Annually – Replace filter elements and calibrate oxygen purity sensors.
 • Annually – Perform full system diagnostics and valve maintenance.
 • Every 5-6 Years – Replace Zeolite Molecular Sieves in PSA towers.

Applications
 • Hospitals, Clinics, and Emergency Medical Centers
 • Oxygen Therapy Units & ICU Ventilator Support
 • Small to Mid-Sized Industrial Applications
 • Disaster Relief & Field Hospitals
 • Ambulance Oxygen Supply Centers
