45° Left & Right Moment Durability Test Rig / 20 CPM · 45° Bidirectional / Siemens S7-1500 PLC / India
DLR-45 · BENDING MOMENT FATIGUE

45° Left & Right Moment Durability Test Rig, rated to 20 cycles/min.

A fully integrated, servo-hydraulic system engineered to apply precise, alternating bending moments at a fixed 45° angle for fatigue testing of steering columns, control linkages, and other load-bearing components. Dual actuators, a high-accuracy load cell, and a Siemens S7-1500 PLC/WinCC HMI deliver configurable test profiles with automated pass/fail reporting.

45 Degree Left and Right Moment Durability Test Rig - rotational fatigue and bending moment validation system by Neometrix
Fig · 01 Dual-actuator frame · 45° bending moment head · Siemens PLC/HMI control panel
Designed and manufactured to:
ISO 13849-1 IEC 60204-1 CE
Cycle Rate
20cpm
Load Cell
5kN
Vertical Travel
±150mm
Lateral Force
300–350N
Temp. Range
–40/+100°C
01
Overview

Bidirectional moment, single 45° head.

The Neometrix 45° Left & Right Moment Durability Test Rig is a fully integrated servo-hydraulic system built to validate the long-term reliability of load-bearing components under realistic, alternating bending-moment cycles.

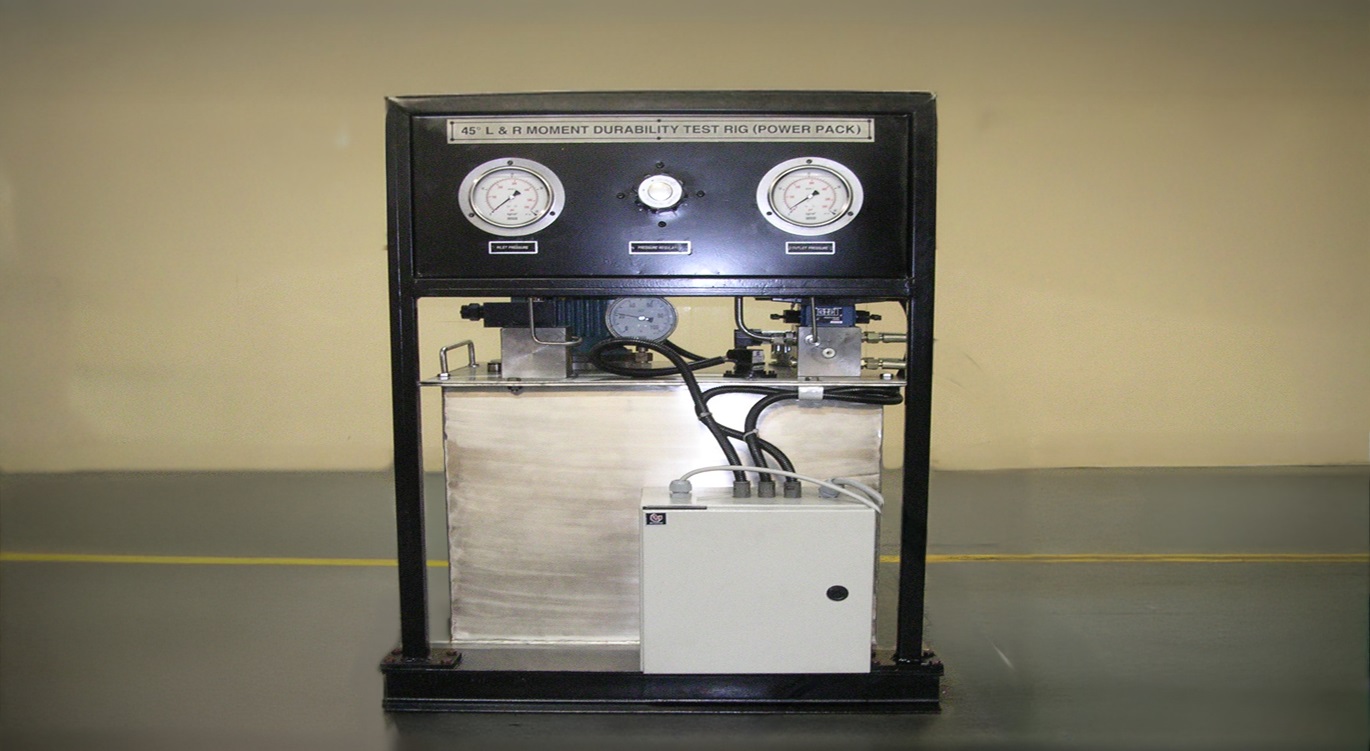

45 Degree Left and Right Moment Durability Test Rig product view - dual-axis rotational fatigue testing system with moment load application by Neometrix
Fig · 02 Dual actuators, load cell and UUT quick-change fixture on the four-column test frame

Featuring dual actuators for vertical alignment and lateral force application, high-accuracy load cells, and a modular hydraulic power unit with advanced filtration and cooling, the rig delivers configurable test profiles at up to 20 cycles per minute. A Siemens S7-1500 PLC and WinCC HMI allow drag-and-drop sequence building, real-time monitoring of torque and displacement, and automated pass/fail reporting, with data export in multiple formats for compliance and FEA correlation.

The robust four-column frame, quick-change fixturing, and comprehensive safety interlocks meet ISO 13849 and IEC 60204 standards, while optional environmental chambers enable testing from –40°C to +100°C.

One 45° head. Left and right moment, fully closed-loop.

Backed by turnkey installation, operator training, remote diagnostics, and multi-year service contracts, this rig ensures reliable, repeatable durability validation to global OEM specifications and industry benchmarks.

02
Architecture

Six subsystems, one test frame.

The complete test assembly integrates mechanical, hydraulic, control, and safety subsystems into a single rigid frame.

Sub · 01

Static Vertical Actuator

Provides vertical alignment capability with ±150 mm travel, ensuring the load application point stays perfectly aligned with the UUT axis.

Sub · 02

Dynamic Lateral Actuator

Applies a controlled force of 300–350 N at the 45° orientation to induce alternating moments, simulating shock pulses, constant, or variable amplitude loads.

Sub · 03

Rigid Test Frame

Precision alignment guides on a robust four-column welded-steel frame minimize structural vibration and ensure long-term geometric stability.

Sub · 04

Closed-Loop Servo Control

Parker servo valve with PID-tuned closed-loop control delivers bending-moment cycles at up to 20 CPM for continuous 24/7 endurance operation.

Sub · 05

Load Feedback & Sensing

5 kN load cell (±0.1%) and displacement sensors feed the PLC with real-time torque and position data throughout every cycle.

Sub · 06

PLC/HMI & Safety

Siemens S7-1500 PLC with WinCC HMI, dual E-stops, and ISO 13849-1 Category 3 PL d safety logic protect both operator and UUT.

03
Key Features

Built for high-cycle endurance.

The features that make this rig suitable for automotive, aerospace, and off-highway durability programmes.

F · 01

Dual Actuator Setup

±150 mm vertical alignment and 300–350 N lateral force at a fixed 45° angle on the UUT.

45° Fixed Angle
F · 02

PID Closed-Loop Control

Parker servo valve delivers bending-moment cycles at up to 20 CPM for 24/7 endurance testing.

20 CPM
F · 03

High-Accuracy Load Feedback

5 kN load cell (±0.1%) and displacement sensors feed real-time cycle data to the PLC.

±0.1% Accuracy
F · 04

WinCC HMI Sequencing

Drag-and-drop builder configures fixed-amplitude, ramp, peak-hold, and shock-pulse load test sequences.

Siemens S7-1500
F · 05

Automated Reporting

Pass/fail exports of cycle count, load, pressure, and displacement in Excel, PDF, or XML for compliance.

Excel · PDF · XML
F · 06

Safety-Rated Interlocks

Dual E-stops and ISO 13849-1 Cat 3 PL d safety logic protect operators and UUT during high-cycle fatigue.

ISO 13849-1 Cat 3
05
Video

See the rig in action.

A walkthrough of the 45° Left & Right Moment Durability Test Rig build and controls.

06
Downloads

Catalog & design drawings.

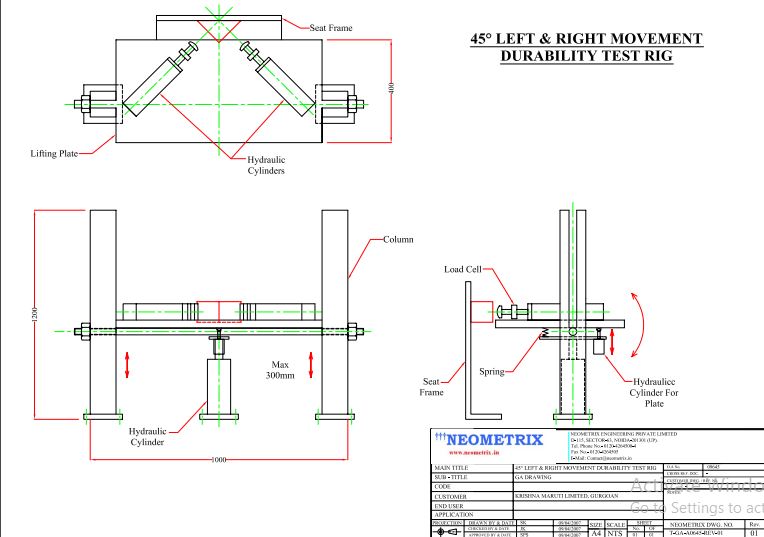

General catalog and GA design drawings for the 45° Left & Right Moment Durability Test Rig, available as PDF for procurement and technical review.

07
Specifications

Full technical parameters.

Key system parameters for the standard Neometrix 45° Left & Right Moment Durability Test Rig configuration.

Cycle RateUp to 20 CPM, continuous 24/7 operation
Vertical Actuator±150 mm travel (static alignment)
Lateral Actuator300–350 N controlled force at 45° orientation
Load Cell5 kN, accuracy ±0.1%
Control SystemSiemens S7-1500 PLC with WinCC HMI (Allen Bradley optional)
Control LoopParker servo valve, PID closed-loop tuning
Test ProfilesFixed-amplitude, ramp, peak-hold, shock-pulse cycling
Data ExportExcel, PDF, or XML for compliance and FEA correlation
Frame ConstructionRigid welded four-column steel frame, powder-coated
FixturingQuick-change UUT fixtures for reduced setup time
Environmental ChamberOptional, –40°C to +100°C
Safety RatingISO 13849-1 Cat 3 PL d; IEC 60204-1 and CE compliant; dual E-stops
08
Applications

Where it runs.

The rig finds wide application across industries where components are subjected to repeated cyclic loads.

A · 01Automotive: steering column joints, intermediate shafts, universal joints, and suspension arms.
A · 02Aerospace: rudder actuator links, elevator controls, and flight control surface mounts.
A · 03Off-highway equipment: construction boom linkages, crane arm couplers, and industrial robotic joints.
A · 04Product R&D & certification labs: materials testing, joint design evaluation, OEM supplier qualification.
09
In Depth

The complete technical read.

Engineering narrative for design engineers, procurement teams, and test lab managers who want the full picture before committing.

Introduction

The 45° Left & Right Moment Durability Test Rig is a specialized, servo-hydraulic-based test system designed to simulate long-term bending moment loads on mechanical components by applying alternating forces at a fixed 45-degree angle from the horizontal plane. This rig is specifically engineered for the fatigue testing of automotive steering assemblies, aerospace control linkages, heavy-equipment joints, and other critical load-bearing components that experience continuous and oscillatory angular moment stresses in real-world applications.

System Overview & Scope of Functionality

The core functionality of the test rig revolves around simulating alternating left-right bending moments on the Unit Under Test (UUT) through a dynamic hydraulic actuator positioned at 45 degrees. The system comprises two key actuators: a static vertical actuator, providing vertical alignment capability with ±150 mm travel so the load application point is perfectly aligned with the axis of the component, and a dynamic lateral actuator, applying a controlled force ranging from 300–350 N at the 45° orientation to induce alternating moments. The actuator can simulate real-world loading patterns such as shock pulses, constant amplitude cycles, or variable amplitude loads. The test system is designed for continuous 24/7 operation, ensuring high-throughput validation of components under endurance tests that span weeks or even months.

The complete test assembly includes:

  • Rigid mechanical test frame with precision alignment guides
  • Actuation system with dual high-pressure hydraulic cylinders
  • Closed-loop servo control with PID tuning
  • Safety enclosures and interlocks
  • High-resolution load cells and pressure transducers
  • Siemens/Allen Bradley PLC & HMI-based user interface

Key Features

  • Bidirectional Load Cycling at 45° — the unique setup simulates both clockwise and counterclockwise moment fatigue using a single actuator. Forces are applied precisely and symmetrically, imitating field-use behavior with high accuracy.
  • Configurable Test Profiles — the PLC and HMI interface allow operators to configure multiple test cycles including fixed amplitude cycling, ramp-up/down profiles, load dwell times, and peak-hold stress cycles.
  • Precision Load Feedback — high-sensitivity load cells (5 kN, accuracy ±0.1%) ensure real-time measurement of applied forces. Data from the sensor feeds directly into the PLC system for continuous monitoring and logging.
  • Dynamic System Response — the hydraulic system, powered by a Parker servo valve and motor-pump assembly, achieves near-instantaneous pressure delivery with fast frequency response, allowing load application rates up to 20 CPM or more.
  • Fully Automated Sequence — automatic test initiation, progress tracking, and termination based on pre-defined criteria (time, cycles, failure detection) are supported via the control system.
  • Data Logging and Report Generation — the system captures cycle count, load data, displacement, system pressure, and anomalies. Reports are generated in Excel, PDF, or XML formats for archival and compliance documentation.

Construction and Build Quality

The rig features a robust all-steel frame with high rigidity to minimize structural vibration and ensure long-term geometric stability. The UUT mounting is done using a quick-change modular fixture, allowing rapid replacement and alignment. All hydraulic fittings are from globally reputed brands such as Parker, Gates, and Swagelok. The system uses leak-proof stainless-steel piping, high-pressure flexible hoses, and vibration-dampened mounts for both the HPU and the actuator assemblies. The cabinet layout, valve positioning, and pipe routing are optimized for maintenance access and fluid dynamics. The entire rig is powder-coated and corrosion-protected, ensuring operational durability over years of heavy usage.

Safety & Compliance

Safety is a core design principle of this system:

  • Dual-channel emergency stops located at operator station and mainframe
  • Over-pressure relief valves for hydraulic and mechanical circuits
  • Control logic governed by ISO 13849-1 Category 3 PL d
  • All live and high-pressure components housed within guarded enclosures
  • Electrically compliant with IEC 60204-1 and CE marking requirements

Operation & Control Interface

The system is powered and controlled via an integrated PLC system with:

  • 10" touchscreen HMI
  • Custom test profile programming
  • Real-time load and displacement plots
  • Alarm history, maintenance prompts, and calibration wizards
  • Data export via USB, LAN, or cloud sync (optional)

Operators can start, pause, edit, or abort test sequences and instantly access test performance graphs. Password protection for different user roles (Operator / Supervisor / Admin) ensures audit trail control and security.

Maintenance, Service & Support

The rig is designed with predictive and preventive maintenance in mind:

  • In-built oil quality sensor and clog indicators
  • Easy access to hydraulic filter and pump unit
  • Auto alerts for pressure drops, temperature rise, or abnormal vibration

Neometrix offers:

  • On-site installation & commissioning
  • Operator training and maintenance manuals
  • Annual calibration contracts
  • Extended service contracts (1 to 5 years)
  • 24×7 remote diagnostics and technical support

Conclusion

The 45° Left & Right Moment Durability Test Rig represents a fusion of mechanical engineering precision, hydraulic control accuracy, and software intelligence. It provides test engineers with a powerful platform to simulate real-world conditions, accelerate product development, validate safety margins, and ensure compliance with global standards. With its comprehensive suite of features — from programmable loading profiles to advanced data acquisition — the rig serves as a dependable and indispensable tool for quality assurance, fatigue R&D, and production validation. It is ideally suited for manufacturers and test labs aiming to reduce product failure rates, improve durability, and shorten development timelines in today’s competitive global markets.

10
FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What is the 45° Left & Right Moment Durability Test Rig?
The 45° Left & Right Moment Durability Test Rig is a servo-hydraulic fatigue system designed and manufactured by Neometrix Engineering Pvt Ltd, India, that applies precise alternating bending moments at a fixed 45° angle to simulate long-term cyclic loading on steering columns, control linkages, and other load-bearing components.
Q · 02 Who manufactures the 45° Left & Right Moment Durability Test Rig?
The 45° Left & Right Moment Durability Test Rig is designed and manufactured by Neometrix Engineering Pvt Ltd, a leading test equipment manufacturer based in India.
Q · 03 What load and cycle rate does the rig achieve?
The rig applies a controlled lateral force of 300–350 N at the 45° orientation with ±150 mm vertical actuator travel, cycling at up to 20 cycles per minute for continuous 24/7 endurance testing.
Q · 04 What industries use the 45° Left & Right Moment Durability Test Rig?
The rig is used across automotive, aerospace, off-highway equipment, and product R&D/certification labs for fatigue testing of steering column joints, intermediate shafts, universal joints, suspension arms, rudder actuator links, and boom/crane linkages.
Q · 05 Is the 45° Left & Right Moment Durability Test Rig customizable?
Yes, Neometrix offers customized versions of the rig tailored to specific load ranges, fixturing, cycle profiles, and optional environmental chambers extending the test range to –40°C to +100°C.
Q · 06 Does the 45° Left & Right Moment Durability Test Rig comply with relevant standards?
Yes, the safety interlock and control logic are designed to ISO 13849-1 Category 3 PL d, and the electrical system is compliant with IEC 60204-1 and CE marking requirements.
Q · 07 What are the key features of the 45° Left & Right Moment Durability Test Rig?
Key features include dual actuators for vertical alignment and lateral force application, a 5 kN load cell (±0.1%), Siemens S7-1500 PLC with WinCC HMI drag-and-drop sequence building, real-time torque/displacement monitoring, and automated pass/fail reporting.
Q · 08 Can the rig be integrated with data acquisition systems?
Yes, the rig exports cycle count, load, pressure, and displacement data in Excel, PDF, or XML formats for compliance documentation and FEA correlation.
Q · 09 What after-sales support does Neometrix provide for the 45° Left & Right Moment Durability Test Rig?
Neometrix provides comprehensive after-sales support including installation, commissioning, operator training, annual calibration contracts, extended service contracts, and 24x7 remote diagnostics.
Q · 10 How can I get a quotation for the 45° Left & Right Moment Durability Test Rig?
You can request a quotation for the 45° Left & Right Moment Durability Test Rig by contacting Neometrix Engineering Pvt Ltd through https://neometrixgroup.com/products/45-degree-left-and-right-moment-durability-test-rig or by phone at +91-7777-876-876.
Get a proposal

Tell us your load and
cycle requirements.

We size the actuators, load cell range, control profiles, and fixturing, and walk through customization options with your test engineering team before you commit.

Request proposal +91 7777 876 876
