What is the cutting force and blade opening of the Cutter RS-2000?

The Cutter RS-2000 delivers 48 tons of cutting force with a blade opening of 240 mm, capable of cutting round bar stock up to 28 mm diameter.

What working pressure does the hydraulic cutter operate at?

The unit operates at a working pressure of 720 bar and is tested to 750 bar, ensuring a safety margin above rated operating conditions.

How much does the Hydraulic Cutter Machine weigh?

The Cutter RS-2000 weighs 17.5 kg, keeping it portable for single-operator handling during time-critical rescue operations.

Does the cutter hold its load if disconnected from the hydraulic supply?

Yes. The cutter and combi-tool range are designed with full load-holding function even when disconnected from the hydraulic power supply, which is essential for operator safety during extended rescue operations.

What industries and agencies use this hydraulic rescue cutter?

It is used by fire and rescue services, disaster response teams, railway safety units, highway patrol and road-accident response teams, and aircraft emergency rescue crews for extrication of trapped occupants.

Is the Hydraulic Cutter Machine customizable?

Yes, Neometrix offers customized blade geometry, hose length and power-pack configurations tailored to specific rescue-agency requirements.

How can I get a quotation for the Hydraulic Cutter Machine?

You can request a quotation for the Hydraulic Cutter Machine by contacting Neometrix Engineering Pvt Ltd through the website at https://neometrixgroup.com/products/hydraulic-cutter-machine or by phone at +91-7777-876-876.

Does Neometrix export the Hydraulic Cutter Machine internationally?

Yes, Neometrix Engineering Pvt Ltd supplies the Hydraulic Cutter Machine to rescue services and industrial customers across multiple countries.

Hydraulic Cutter Machine / Model Cutter RS-2000 / 48 Ton · 240mm Opening · 720 Bar / Noida · India

Cutter RS-2000 · Hydraulic Rescue Tool

Hydraulic Cutter Machine, rated for 48 tons of cutting force.

A hydraulically actuated rescue and extrication tool: two equal, opposite blade arms open and close symmetrically through mechanical joints to cut through obstructions. Purpose-built for road accident, railway accident, aircraft accident and building-collapse rescue operations — breaking doors, windows and roof beams, and dismantling vehicles to free trapped occupants.

Request proposal Specifications

Hydraulic Cutter Machine — Cutter RS-2000 hydraulic rescue cutter jaws with hand pump and power unit — Neometrix

Fig · 01Cutter RS-2000 — hydraulic rescue cutter units with hand pump and hydraulic power pack

Cutting Force

48Ton

Blade Opening

240mm

Round Bar Cutting

28mm dia

Working Pressure

720bar

Weight

17.5kg

About

Symmetric jaws. Full load-holding.

The equipment is designed such that, via a hydraulically activated piston, two equal, opposite blade arms are symmetrically opened and closed by mechanical joints, cutting objects cleanly and under control.

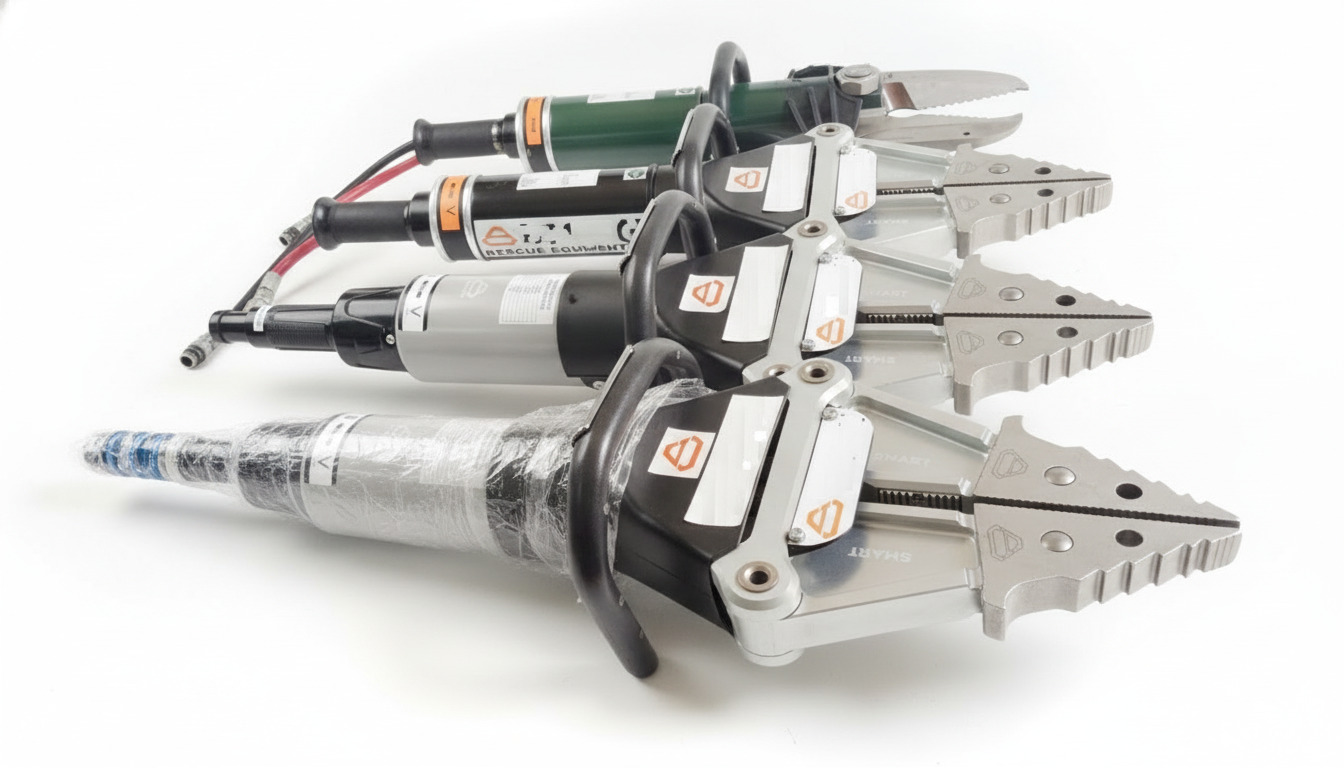

Hydraulic Cutter Machine — close-up of blade arms and cutting jaws, model plate visible

Fig · 02 Close-up — symmetrically opposed blade arms and serrated cutting jaws

Full load-holding function, even when disconnected from the hydraulic supply.

All cutters and combi tools in this range ensure full load-holding function when disconnected from the hydraulic supply — the jaws stay clamped on the load, which is critical when a rescue operation is interrupted mid-cut or the tool is handed off between operators.

The hydraulic tool is specially designed for rescue operations such as road accidents, railway accidents, aircraft accidents and building collapse. It can break doors, windows and roof beams through cutting or spreading, and can dismantle vehicles to free and save trapped occupants.

Key Features

Built for safe operation.

Feature · 01

Symmetric Blade-Arm Cutting

Two equal, opposite blade arms open and close symmetrically through mechanical joints for balanced, controlled cutting force across the full 240 mm jaw opening.

240mm Opening · 48 Ton · Symmetric

Feature · 02

Load-Holding Safety

Full load-holding function is maintained even when the tool is disconnected from the hydraulic supply, keeping the cut load secure during operator handoff or hose disconnection.

Fail-Safe Hold · Operator Safety

Feature · 03

Portable, One-Person Handling

At 17.5 kg, the Cutter RS-2000 is light enough for single-operator deployment in confined accident and collapse sites where speed of access is critical.

17.5kg · Single Operator

Feature · 04

Rated Working & Test Pressure

Rated for 720 bar working pressure and factory tested to 750 bar, giving a proven safety margin above normal operating conditions.

720 Bar Working · 750 Bar Test

Feature · 05

Controlled-Modification Policy

No modification, addition or conversion that might affect safety is permitted without approval — this applies equally to installation and adjustment of the safety device and relief valve.

Safety Interlocks · No Unapproved Changes

Feature · 06

Chemical-Exposure Guidance

Aggressive materials — acid, lye, solvent and vapor — can damage the tool. Where exceptional operation under such conditions is unavoidable, the whole tool must be thoroughly cleaned afterward.

Corrosion Awareness · Cleaning Protocol

Gallery

Product views.

Hydraulic Cutter Machine — view 1, cutter jaws with hand pump

Hydraulic Cutter Machine — view 2, cutter blade arms close-up

Hydraulic Cutter Machine — view 3, hydraulic power pack and pump unit

Fig · Gallery3-view photo documentation — Hydraulic Cutter Machine, Cutter RS-2000

Specifications

Technical parameters.

Model	Cutter RS-2000
Cutting Force	48 Ton
Blade Opening	240 mm
Round Bar Cutting Capacity	28 mm diameter
Working Pressure	720 Bar
Test Pressure	750 Bar
Weight	17.5 kg
Actuation	Hydraulically activated piston with symmetrically opposed blade-arm mechanism
Load-Holding	Full load-holding function maintained when disconnected from hydraulic supply

Applications

Where it applies.

01Road accident vehicle extrication and rescue

02Railway accident rescue operations

03Aircraft accident emergency rescue

04Building-collapse and disaster-response rescue

05Breaking doors, windows and roof beams to access victims

06Cutting and spreading to dismantle wrecked vehicles

In Depth

The complete technical read.

Hydraulic Cutter Machine — hydraulic power pack and pump unit with hose connections

Fig · 03 Hydraulic power pack — pump unit, hose reel and quick-connect couplings supplying the cutter

Operating Principle

A hydraulically activated piston drives two equal, opposite blade arms that open and close symmetrically through mechanical joints. This balanced-jaw geometry keeps the cutting load centered on the workpiece, so the tool bites cleanly through structural steel, vehicle frames, door and window members, and roof-beam sections without deflecting sideways under load.

Safe Handling and Care

Never make any modification, addition or conversion that might affect safety without approval — this also applies to installation and adjustment of the safety device and relief valve. Aggressive materials such as acid, lye, solvent and vapor can damage the tool; where exceptional operation under such conditions or contact with these materials is unavoidable, the whole tool must be thoroughly cleaned afterward to prevent seal and surface damage.

Rescue-Site Deployment

Built specifically for the rescue environment: road accidents, railway accidents, aircraft accidents and building collapses. The cutter can break doors, windows and roof beams and, working with cutting or spreading action, can dismantle vehicles to save trapped occupants. Full load-holding function even after disconnection from the hydraulic supply means rescue crews can pause mid-operation without the jaws releasing the load.

FAT / Field Verification Points

Visual and dimensional inspection of blade arms, pivot joints and jaw serrations
Cutting-force and blade-opening verification against 48-ton / 240 mm rating
Working-pressure and test-pressure hold check at 720 bar / 750 bar
Load-holding retention check with hydraulic supply disconnected
Hand-pump and power-pack hose, coupling and seal integrity check
Weight verification against 17.5 kg rated specification

Downloads

Product documentation.

PDF · Catalog

Hydraulic Cutter Machine — Product Catalog

Cutter RS-2000 · Datasheet

FAQ

Common questions.

Q01 What is the cutting force and blade opening?

The Cutter RS-2000 delivers 48 tons of cutting force with a 240 mm blade opening, and can cut round bar stock up to 28 mm in diameter.

Q02 What working pressure does it operate at?

Working pressure is 720 bar, with the unit factory tested to 750 bar for a proven safety margin.

Q03 Does the cutter hold its load if the hydraulic hose is disconnected?

Yes. The cutter and combi-tool range are designed with full load-holding function even when disconnected from the hydraulic supply, which keeps the jaws clamped on the load during interrupted rescue operations.

Q04 What rescue scenarios is it designed for?

Road accidents, railway accidents, aircraft accidents and building-collapse rescue operations — breaking doors, windows and roof beams, and cutting or spreading to dismantle vehicles and free trapped occupants.

Q05 How much does the unit weigh?

17.5 kg, which allows single-operator handling on confined accident and collapse sites.

Q06 Who manufactures the Hydraulic Cutter Machine?

Neometrix Engineering Pvt Ltd, Noida, India.
