NMX‑HTG‑30 / Rev 00 / hydro power / cabinet · accumulator · servo 2026 · Product Page
NMX-HTG-30 · ENGINEERED TO ORDER — HYDRO TURBINE GOVERNOR HYDRAULIC CABINET

Close it fast. Not too fast.

You cannot switch off the river. Throw the generator off the grid and the turbine still has full hydraulic power with nothing absorbing it — the unit runs away toward roughly 1.8× rated speed. So the gates must shut, quickly, and they must shut with no electrical supply at all. But shutting them stops a long column of water in the penstock, and that is water hammer — a pressure rise that can burst the conduit. Too slow wrecks the machine; too fast wrecks the waterway. Everything in this cabinet is the negotiated answer: a staged, cushioned closing law, an accumulator sized to finish the stroke with the pumps dead, servo-proportional control clean enough to move when asked, and feedback taken at the servomotor rather than at the valve. We build the hydro-mechanical half; the electronic governor and the turbine are not ours. No delivered cabinet is claimed.

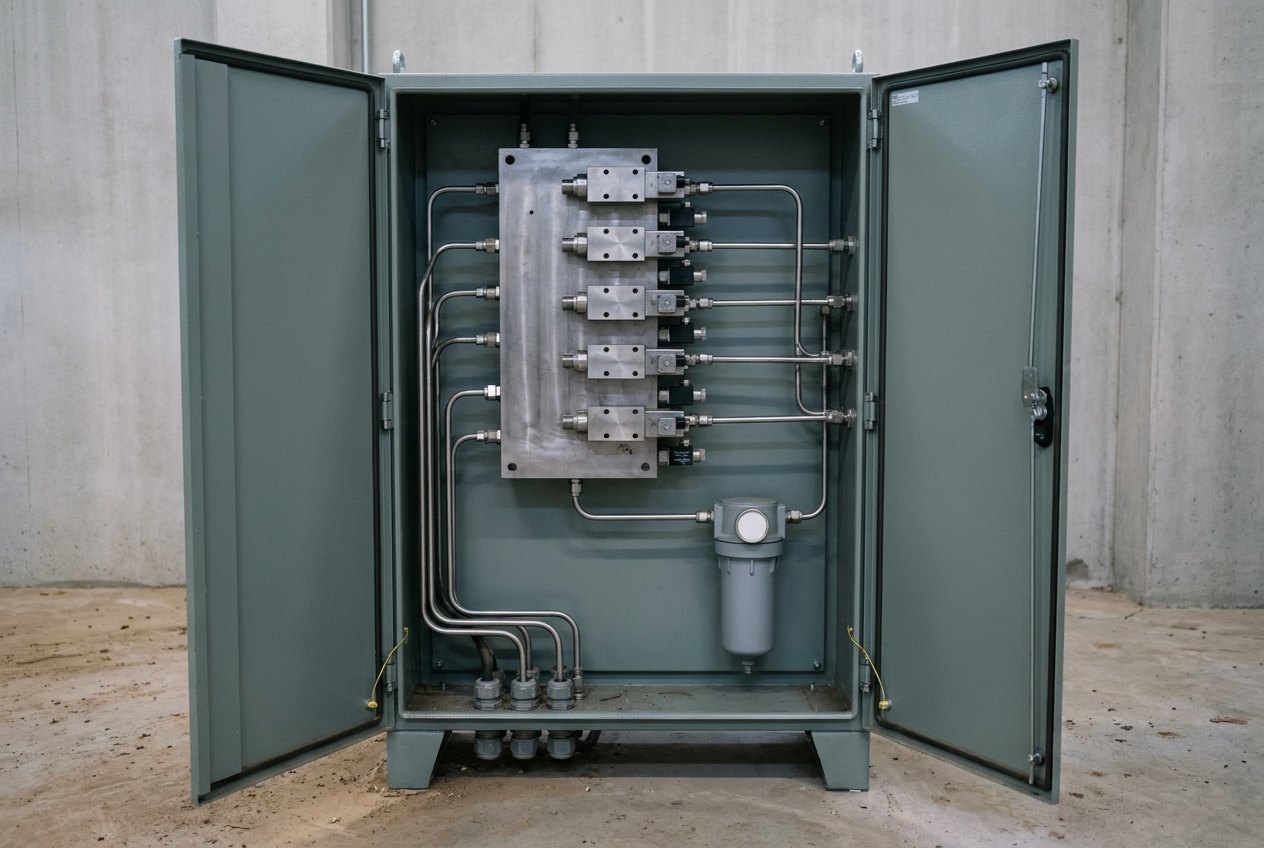

Illustrative image, not a delivered system — a tall painted steel hydraulic control cabinet standing with both front doors open in a concrete powerhouse: inside, a large machined steel manifold block carries a vertical stack of solenoid and proportional control valves, polished stainless tube runs sweep from the manifold to bulkhead fittings along the cabinet side, a cylindrical filter housing is mounted low on the back panel with a plain blank-faced indicator beside it, cable glands enter the base, bare concrete wall behind, no people and no markings
Fig · 01 The cabinet, open — manifold, control valves and the filter that decides whether any of it moves when asked — illustrative, not a delivered system
Controls
guide vanesor nozzle & deflector
The threat
runaway~1.8× rated speed
The limit
water hammerthe penstock's vote
Stored
one full closurewith the pumps dead
Valve
servo-proportionalmicron clearances
ISO 9001 / 14001 Engineered to order Hydraulics franchise Function-tested before dispatch Noida · India
01
Overview

Overspeed on one side. Water hammer on the other.

Almost every difficult decision in a governing system sits between those two failures, and they pull in opposite directions. That is why a governor cabinet is not simply a power pack with valves on it: the closing law, the stored energy, the valve technology and where the feedback is measured are all answers to the same question — how do you stop a machine you cannot turn off?

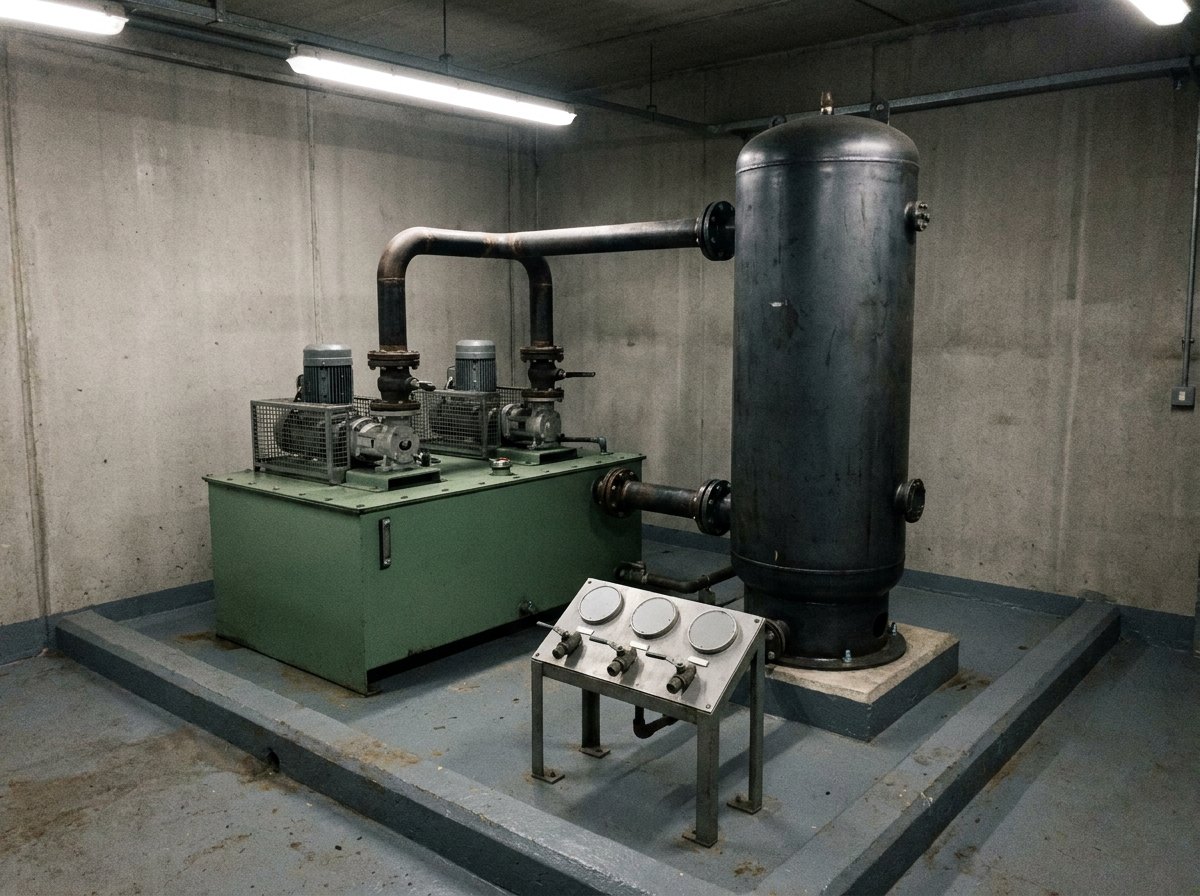

Illustrative image, not a delivered system — an oil pressure unit in an industrial plant room: a tall vertical cylindrical steel accumulator vessel about two metres high standing on a bolted plinth beside a low green rectangular oil reservoir carrying two motor and pump sets under mesh guards on its lid, thick suction and return pipework looping between tank and vessel, a small local valve stand with plain blank-faced indicators in front, bunded painted floor, plain concrete walls, no people and no markings
Fig · 02 The oil pressure unit — pumps keep it charged, but the accumulator is what actually closes the gates — illustrative, not a delivered system

What the cabinet actually moves. On a reaction turbine — Francis or Kaplan — the water is throttled by a ring of pivoting guide vanes, also called wicket gates, all turned together by a regulating ring driven by one or two large hydraulic servomotors. On an impulse turbine — Pelton — it is a needle in the nozzle, with a deflector that can swing across and knock the jet clear of the runner. The cabinet supplies and controls the oil that moves whichever of those the machine has.

The accumulator is the safety case, not a convenience. The closure that matters most is the one that happens when everything else has failed — no supply, no pumps, no controller. So the accumulator is sized to complete a full closing stroke with margin on stored energy alone, and its gas pre-charge, its pressure switches and its periodic drop test stop being maintenance items and become safety items. A governing system that cannot demonstrate that stroke has not been proved at all.

The impulse machine's answer is the elegant one. Rather than compromise a single closing rate between two failure modes, a Pelton set uses two devices on two timescales: the deflector moves in a fraction of a second and sheds the load almost immediately, while the needle closes slowly, so the penstock never sees a hammer at all. Same problem, decoupled — and a reason the nozzle-and-deflector cabinet is a genuinely different design rather than a variant.

We build the hydro-mechanical half — cabinet, oil pressure unit, accumulator station, valve blocks, control, feedback, filtration, testing — including to the turbine builder's specification and drawings. The electronic governor controller, and the turbine, runner and servomotors, are not ours.
Stored

A closure with the pumps dead

Accumulator capacity, pre-charge and drop test treated as the safety case they are.

Staged

Fast, then cushioned

A closing law that limits overspeed and penstock pressure, adjustable in the cabinet.

Honest

Feedback at the servomotor

The loop controls what the vanes did, not what the valve was told to do.

02
Architecture

Demand in. Water out.

The schematic follows the loop — the governor's demand, the valve that moves the oil, the servomotors that swing the regulating ring, and the water that then sets power, speed and frequency — then shows the machine underneath it: oil pressure unit, accumulator and safety, servo control, and the feedback that closes the loop honestly.

FIG · 03GOVERNING HYDRAULICS · OIL PRESSURE UNIT / ACCUMULATOR & SAFETY / SERVO CONTROL / FEEDBACK & RECORD
GOVERNOR DEMAND → THE VALVE MOVES OIL → SERVOMOTORS SWING THE RING → WATER SETS THE POWER YOU CANNOT SWITCH OFF THE RIVER - ON LOAD REJECTION THE TURBINE STILL HAS FULL POWER AND NOTHING ABSORBING IT, SO THE GATES MUST CLOSE WITH NO ELECTRICAL SUPPLY AT ALL. CONTROLS GUIDE VANES, OR NOZZLE + DEFLECTOR RULE FAST ENOUGH, AND SLOW ENOUGH GOVERNOR DEMAND THE CONTROLLER ASKS, THE CABINET DELIVERS THE VALVE MOVES OIL SERVO OR SERVO- PROPORTIONAL TYPE SERVOMOTORS SWING THE REGULATING RING TURNS EVERY VANE WATER SETS POWER AND SPEED, AND THE FREQUENCY OVERSPEED AGAINST WATER HAMMER - CLOSE TOO SLOWLY AND RUNAWAY WRECKS THE MACHINE, CLOSE TOO QUICKLY AND THE PENSTOCK TAKES THE PRESSURE OIL PRESSURE UNIT PUMP SETS, RESERVOIR, AND CLEAN OIL ACCUMULATOR A FULL CLOSURE WITH NO POWER AT ALL SERVO CONTROL MICRON CLEARANCES - FILTRATION IS SAFETY FEEDBACK + RECORD MEASURED AT THE SERVOMOTOR OUR ROLE: CABINET + OIL PRESSURE UNIT, ACCUMULATOR + SAFETY DEVICES, VALVE BLOCKS, SERVO CONTROL, FEEDBACK, EMERGENCY CLOSING, FILTRATION, PIPING, FUNCTIONAL TEST + AMC DETAIL · TWO TURBINES, TWO ANSWERS REACTION GUIDE VANES THROTTLE FLOW IMPULSE NEEDLE PLUS DEFLECTOR TWO TIMESCALES DEFLECTOR FAST, NEEDLE SLOW GOAL: NO RUNAWAY, NO HAMMER THE CLOSING LAW IS THE ANSWER HUNTING IS ALMOST ALWAYS HYDRAULIC - STICTION, DEAD BAND AND WATER IN THE OIL SHOW UP AS AN OSCILLATION THE CONTROLLER GETS BLAMED FOR. STORE ENERGY FOR A CLOSURE STAGE THE CLOSING LAW PROVE BEFORE IT EVER SHIPS
Fig · 03 No runaway, no hammer — the closing law is where those two meet
Arc · 01

Oil Pressure Unit

Pump sets, reservoir, coolers and filtration — keeping the system charged and, more importantly, keeping the oil clean enough to act.

Arc · 02

Accumulator & Safety

A full closing stroke with no power at all — pre-charge, pressure switches, relief and the drop test that proves it.

Arc · 03

Servo Control

Servo or servo-proportional valves on a machined manifold, with the staged closing and opening rates set here.

Arc · 04

Feedback & Record

Position sensed at the servomotor, plus pressures, temperatures and oil condition — logged, and tested before dispatch.

Specifying, retrofitting or re-instrumenting a governing system? Send the turbine type, the servomotor sizes and the required closing law — a clause-by-clause compliance matrix within two working days · [email protected]
Send tender spec
03
Specifications

Reference cabinet, built to the machine.

The parameters below describe a reference cabinet. Operating pressure, accumulator capacity, valve sizing, closing and opening rates and instrumentation all follow from three givens: the turbine type and its servomotor volumes, the closing law the waterway will tolerate, and whether the scope is a new unit, a retrofit, or supply to the turbine builder's drawings.

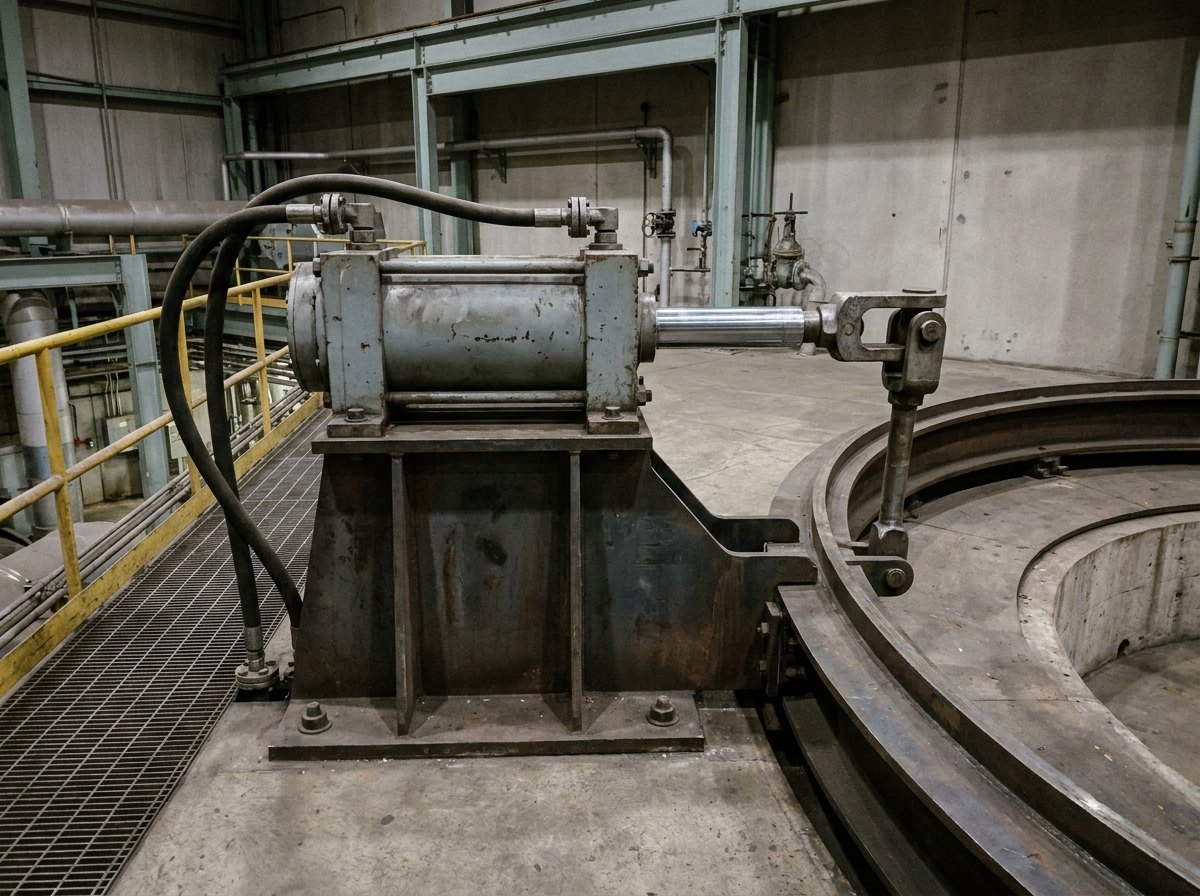

Illustrative image, not a delivered system — a large horizontal hydraulic servomotor cylinder mounted on a heavy fabricated steel pedestal at a turbine operating floor: the polished piston rod extends and connects through a forked clevis link to a lug on a segment of a broad curved steel regulating ring sweeping away around a circular pit, two thick hydraulic pipes run to the cylinder end caps, steel grating walkway and handrail beside it, painted industrial steelwork and plain concrete, no people and no markings
Fig · 04 Servomotor to regulating ring — the point where oil pressure becomes vane angle, and where position should be measured — illustrative, not a delivered system

Where governing hydraulics go wrong

A closing law set for overspeed alone, ignoring what the penstock will take — or the reverse, a law so gentle the unit overspeeds. An accumulator sized for convenience rather than for a full closure with no power, and then never drop-tested again. Filtration treated as maintenance, when it is the thing that decides whether the gates move at all. Water and air in the oil — a powerhouse is a wet place, and both soften the response and corrode from the inside. Dead band and stiction accepted, so the unit hunts and the controller takes the blame for a hydraulic fault. Position feedback taken at the valve, so the loop faithfully controls its own command rather than the vane angle. Cushioning omitted, so the gates arrive hard and the linkage absorbs it. No functional test before dispatch, so the closing law is first proved during a short, expensive commissioning window. And records that stop at handover, when a governing system is re-proved for its whole life.

So the discipline runs the other way. The closing law is staged and cushioned, set against both limits and made adjustable. The accumulator is sized for the dead-plant case and drop-tested to a schedule. Filtration is full-flow plus an offline loop, with cleanliness monitored rather than assumed, and the reservoir arranged to shed water and air. Valve null and hysteresis are measured, not trusted. Feedback is taken at the servomotor. Emergency closing is a separate, simple, de-energise-to-close path that does not depend on the controller being alive. And the cabinet is function-tested before it ships — closing and opening times, accumulator drop, valve response, leak and emergency proof — with the results travelling with it.

Full specification — expand
SystemHydro turbine governor hydraulic cabinet — oil pressure unit, accumulator station, valve blocks, servo control, feedback, testing & commissioning
Governing IdeaYou cannot switch off the river — so the closing energy is stored, and the closing law is negotiated between overspeed and water hammer
Reaction TurbinesFrancis & Kaplan — guide vanes (wicket gates) on a regulating ring driven by one or two hydraulic servomotors
Impulse TurbinesPelton — needle in the nozzle plus a deflector; two devices on two timescales so overspeed and penstock pressure are decoupled
The ThreatLoad rejection — full hydraulic power, nothing absorbing it, acceleration toward runaway (order 1.8× rated)
The LimitWater hammer — decelerating the penstock water column too quickly produces a pressure rise capable of bursting the conduit
Closing LawStaged and adjustable — brisk through the middle of the stroke, cushioned at the end; opening rate set independently
AccumulatorSized for a full closing stroke with no supply and no pumps, with margin; gas pre-charge, pressure switches, relief & periodic drop test
Control ValveServo or servo-proportional on a machined manifold; null, hysteresis and response measured at test
Emergency ClosingA separate, simple, de-energise-to-close path independent of the controller — the closure that must work when nothing else does
FiltrationA safety item, not housekeeping — full-flow plus offline loop, cleanliness class monitored; micron clearances mean contamination causes stiction or failure to close
Oil ConditionWater and air removal — a powerhouse is wet; water degrades additives, corrodes, and softens response
FeedbackPosition sensed at the servomotor, not at the valve, plus pressures, temperatures & oil condition on one logged time base
Governing BehaviourDroop, dead band & response time; hunting (slow continuous oscillation) is almost always hydraulic — stiction, dead band or water in the oil
Factory TestingClosing & opening times against the specified law, accumulator drop test, valve response & null, leak test, emergency-closing proof, set-point repeatability
RetrofitConverting ageing mechanical-hydraulic governors to servo-proportional control with modern filtration and instrumentation, keeping turbine and servomotors
Scope BoundaryOurs: cabinet, oil pressure unit, accumulator station, valve blocks, control, feedback, emergency closing, filtration, piping, assembly, testing, commissioning support, spares & AMC — including build to the turbine builder's specification and drawings. Bought-in certified: servo & proportional valves, pumps, motors, accumulators, transducers, filter elements. Not ours: the electronic governor controller and its algorithms, and the turbine, runner and servomotors
The FamilyThe site's hydraulic power-pack, actuator and control-valve testing franchises pointed at hydro power for the first time
StatusEngineered to order · quoted across hydro-mechanical cabinet, guide-vane control & nozzle-and-deflector requirements · no delivered cabinet is claimed on this page
04
Variants

One problem, four scopes.

What changes is the turbine type, whether the scope is the whole governing hydraulics or a station within it, and whether the unit is new or forty years old.

Var · 01

Guide-Vane Control Cabinets

For reaction turbines — wicket-gate servomotor control with staged closing, cushioning and position feedback at the ring.

Var · 02

Nozzle & Deflector Cabinets

For impulse turbines — the fast deflector circuit and the slow needle circuit, sequenced so the penstock never takes a hammer.

Var · 03

Oil Pressure Units & Valve Blocks

Accumulator stations, pump sets, manifolds and filtration skids supplied as a station within a larger governing scope.

Var · 04

Governor Retrofit, Testing & AMC

Converting mechanical-hydraulic governors to servo-proportional control, with modern filtration, instrumentation and proof testing.

05
Applications

Wherever water turns a machine.

New units, ageing units, and the builders who supply both.

A · 01Hydroelectric powerhouses — new units
A · 02Governor retrofit & life extension on ageing sets
A · 03Small & mini hydro installations
A · 04Pumped-storage schemes
A · 05Turbine builders — supply to specification & drawings
A · 06Plant overhaul, proof testing & AMC
06
FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What does the governing system actually do?
It decides how much water reaches the runner, and therefore how much power the unit makes and how fast it turns. Because a synchronous generator's speed is the grid frequency, that makes governing a frequency-control job rather than merely a flow-control job. On a reaction turbine — Francis or Kaplan — the flow is throttled by a ring of pivoting guide vanes, often called wicket gates, arranged around the runner. They do not move individually: they are all linked to a single regulating ring, and that ring is turned by one or two large hydraulic servomotors. On an impulse turbine — Pelton — there are no vanes; a needle moves in and out of each nozzle to change the jet, and a deflector can swing across to divert the jet away from the runner entirely. The governing system is conventionally split in two. The electronic governor measures speed and power, compares them with what the grid needs, and computes a demand. The hydro-mechanical cabinet — this page — turns that demand into oil flow at the right pressure, in the right direction, at the right rate, and holds the result. It is worth being clear about that split, because most governing complaints are attributed to the controller and most governing faults are in the hydraulics.
Q · 02 Why is closing quickly dangerous, if overspeed is the thing you are avoiding?
Because you are not only stopping a turbine, you are stopping a very long, very heavy column of moving water. This is the central tension of the whole design. If the generator is suddenly disconnected — a load rejection — the turbine keeps receiving full hydraulic power with nothing absorbing it, and it accelerates toward runaway speed, of the order of 1.8 times rated. Runaway is genuinely dangerous: rotating parts, bearings and the generator are not designed to sit there. So the instinct is to close as fast as possible. But the water in the penstock may be hundreds of metres long and weigh a great deal, and it is moving. Close the gates rapidly and you decelerate that column violently, which converts its momentum into pressure — water hammer. The pressure rise can be a large fraction of the static head again, and it is entirely capable of bursting the conduit or damaging the spiral case. So the two failure modes pull in opposite directions and the closing time is a negotiated compromise, computed for the specific waterway. The practical answer is a staged closing law: a brisk rate through the part of the stroke where most of the flow is cut, then a deliberately slower, cushioned final approach so the gates neither arrive hard nor slam the column to a stop. Those rates are set, and re-settable, in the cabinet.
Q · 03 Why does the accumulator matter so much?
Because the closure that matters most is the one that happens when everything else has already failed. Consider the worst realistic case: a fault takes out the station supply. The pumps stop. The controller may be dead. The generator has tripped off the grid. And the river is still flowing through the turbine at full power. In that moment the gates must still close, completely, on a controlled law — and the only energy available to do it is what was stored beforehand. That is the accumulator's job, and it is why it is sized not for convenience or for smoothing pump cycles but for a complete closing stroke with margin, commonly with capacity for more than one operation. Everything around it inherits that status: the gas pre-charge is a safety parameter, because a fallen pre-charge silently reduces usable energy long before any alarm; the pressure switches that start the pumps and raise alarms are protection devices; and the drop test — isolating the pumps and confirming the unit can still perform its closure on stored energy alone — is a proof test rather than a maintenance chore. A governing system that has never demonstrated that stroke has not been proved, whatever else has been tested.
Q · 04 Why is filtration described as a safety item rather than maintenance?
Because of what the control valve is. A modern governing cabinet positions the servomotors with a servo or servo-proportional valve, and those have spool-to-bore clearances measured in microns. A particle of that size lodged in the wrong place produces stiction — the spool sticks, then breaks free, then sticks again. The mild version of that is hunting: the unit oscillates slowly around its set point, the linkage and pins wear, and the grid operator sees a machine that will not settle. The severe version is a valve that does not move when it is asked to, and the one occasion that truly matters is an emergency closure. So filter condition is directly connected to whether the gates shut. Practically that means full-flow filtration plus an offline conditioning loop, cleanliness class monitored rather than assumed, filter differential-pressure indication that someone actually reads, and attention to water and air — a powerhouse is a damp environment, and water in oil corrodes surfaces, strips additives and softens the response, while entrained air makes the whole system spongy and slow. None of that is glamorous, and all of it decides whether the expensive parts do their job.
Q · 05 Why insist on position feedback at the servomotor?
Because otherwise the control loop is grading its own homework. If position is sensed at the valve spool, the loop knows how far it commanded oil to flow, not what the vanes actually did. Everything between the two — hose compliance, oil compressibility and entrained air, seal friction, linkage wear, pin clearance, and any mechanical binding in the regulating ring — sits outside the loop and is therefore invisible to it. A worn link or a stiff bearing then shows up not as a fault but as a slow drift in behaviour that nobody can attribute. Measuring at the servomotor — or better, at the regulating ring itself — puts all of that inside the loop: the controller sees the real vane position, compensates for it, and the deviation between demand and achieved position becomes a genuine diagnostic. It also makes the acceptance tests meaningful, because a closing-time measurement is only worth having if the position it references is the physical one. The same logic runs through the rest of the instrumentation: measure the thing you care about, as close as possible to where it happens, and treat the difference between command and achievement as information rather than noise.
Q · 06 What do you build, and what is not yours?
Divided honestly, because governing spans two disciplines and it matters which one a supplier is actually good at. What Neometrix provides: the cabinet and oil pressure unit — reservoir, pump sets, coolers; the accumulator station with pre-charge, pressure switches, relief and isolation; the valve blocks and manifolds and the servo or servo-proportional control on them; the staged closing and opening rate arrangement with cushioning; the emergency-closing circuit as a separate de-energise-to-close path; filtration and oil conditioning; position feedback and instrumentation; piping, assembly and wiring; functional testing before dispatch — closing and opening times, accumulator drop, valve response and null, leak and emergency proof; and commissioning support, spares, training and AMC. We also build to the turbine builder's specification and drawings where that is the scope, which is a legitimate and common way this equipment is bought. What is bought-in certified: servo and proportional valves, pumps and motors, accumulators, transducers and filter elements. What is not ours, and we will say so in a tender rather than imply otherwise: the electronic governor controller and its control algorithms, and the turbine, runner and servomotors themselves. Engineered to order; quoted across hydro-mechanical cabinet, guide-vane control and nozzle-and-deflector requirements; no delivered cabinet is claimed on this page.
Related

The hydraulics family from Neometrix.

The power units, the actuators and the benches that prove the valves — engineered at our Noida facility.

Browse all Neometrix product lines.

Get a quotation

Send the turbine type
and the closing law.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — governor hydraulic cabinet Capability sheet (PDF) +91 7777 876 876
ISO 9001 / 14001 ENGINEERED TO ORDER — HYDRO TURBINE GOVERNOR HYDRAULIC CABINET STORED CLOSING ENERGY · STAGED CLOSING LAW · SERVO-PROPORTIONAL CONTROL · FEEDBACK AT THE SERVOMOTOR ENGINEERED IN NOIDA · INDIA
HYDRO TURBINE GOVERNOR HYDRAULICS · GUIDE-VANE + NOZZLE-AND-DEFLECTOR CABINETS · OIL PRESSURE UNITS & ACCUMULATOR STATIONS · RETROFIT & AMC +91 7777 876 876 Enquire
