What is the Multi-Port Flow Divider Test Bench?

The Multi-Port Flow Divider Test Bench is a precision-engineered industrial system designed and manufactured by Neometrix Engineering Pvt Ltd, India. It is used for testing, validation, and quality assurance in defence, aerospace, and industrial applications.

Who manufactures the Multi-Port Flow Divider Test Bench?

The Multi-Port Flow Divider Test Bench is designed and manufactured by Neometrix Engineering Pvt Ltd, a leading test equipment manufacturer based in India.

What industries use the Multi-Port Flow Divider Test Bench?

The Multi-Port Flow Divider Test Bench is used across defence, aerospace, automotive, railways, and industrial sectors for precision testing and performance validation.

Is the Multi-Port Flow Divider Test Bench customizable?

Yes, Neometrix offers customized versions of the Multi-Port Flow Divider Test Bench tailored to specific client requirements, operational parameters, and industry standards.

Does the Multi-Port Flow Divider Test Bench comply with relevant standards?

Yes, the Multi-Port Flow Divider Test Bench is designed to comply with applicable national and international standards including MIL-STD, ISO, IS, and customer-specified requirements.

What are the key features of the Multi-Port Flow Divider Test Bench?

Key features include a recirculating fuel loop with temperature conditioning, dual-range flow measurement, automated 16-port switching, adjustable back-pressure loading, and HMI/SCADA-based control with pass/fail reporting.

Can the Multi-Port Flow Divider Test Bench be integrated with data acquisition systems?

Yes, the Multi-Port Flow Divider Test Bench can be integrated with advanced SCADA/DAQ systems for real-time monitoring, automated reporting, and traceability of test results.

What after-sales support does Neometrix provide for the Multi-Port Flow Divider Test Bench?

Neometrix provides comprehensive after-sales support including installation, commissioning, operator training, preventive maintenance, and on-site service for the Multi-Port Flow Divider Test Bench.

How can I get a quotation for the Multi-Port Flow Divider Test Bench?

You can request a quotation for the Multi-Port Flow Divider Test Bench by contacting Neometrix Engineering Pvt Ltd through the website at https://neometrixgroup.com/products/multi-port-flow-divider-test-bench or by reaching out via email or phone.

Does Neometrix export the Multi-Port Flow Divider Test Bench internationally?

Yes, Neometrix Engineering Pvt Ltd exports the Multi-Port Flow Divider Test Bench to global customers in defence, aerospace, and industrial sectors across multiple countries.

Flow Divider Qualification & Distribution Testing / Diesel & Fuel Circuit Test Systems / 16‑Port DUT Capacity / Noida · India 2026 · Product Page

MPFD · 16‑PORT DIESEL/FUEL CIRCUIT

Sixteen ports. One measured truth.

A purpose-built 16-port flow divider test bench for diesel and fuel circuits — a stable recirculating fuel loop, dual-range flow measurement, adjustable back-pressure loading, and automated port-by-port switching under SCADA/HMI control, for repeatable, traceable distribution data.

Request proposal System architecture

Multi-port flow divider test bench by Neometrix — control console, gauge manifold with 16 port pressure gauges, red gear-type flow divider under test, and plate heat exchanger on a mobile skid

Fig · 01 Complete test skid — operator console, port-pressure gauge manifold, DUT flow divider and heat exchanger

Qualification testing supported to:

DEF STAN STANAG MIL-SPEC

DUT Ports

Nominal Flow

250L/MIN

Back‑Pressure

300PSI

Drive Power

11kW

Tank Capacity

800L

Overview

Flow dividers are the quiet truth-tellers.

Wherever one supply line needs to be split into multiple outlets with predictable, repeatable distribution, a flow divider decides whether the downstream system runs smoothly or slowly drifts into trouble. If a divider does not distribute flow accurately, uneven fueling, localized heating, and component stress follow — and these failures are notoriously hard to diagnose because they often appear only at specific combinations of speed, pressure, viscosity, and temperature.

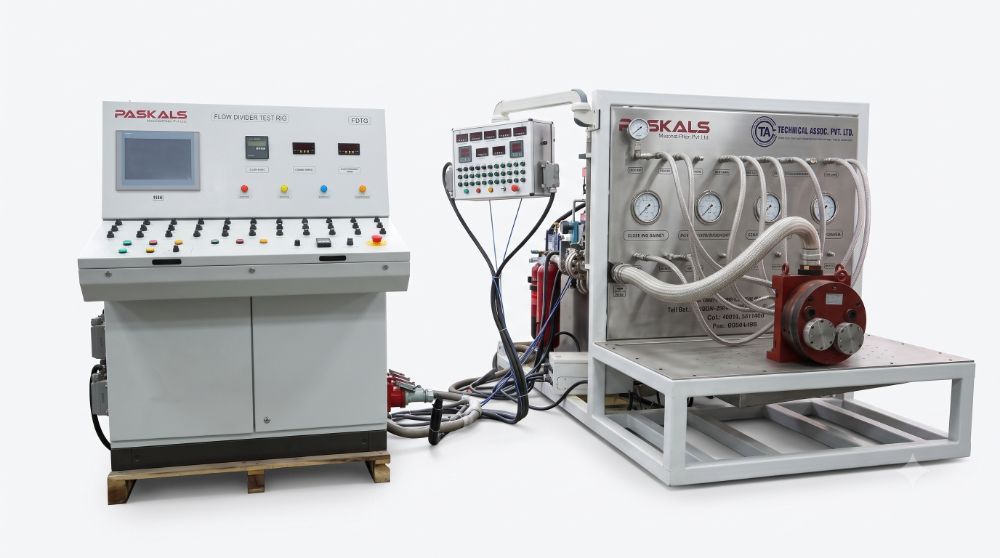

Multi-port flow divider test bench — operator control console cabinet and instrumented gauge skid with red flow divider under test

Fig · 02 Operator console and instrumented test skid — front elevation

This system is a purpose-built 16-port flow divider characterization test bench for diesel/fuel circuits. It combines a stable fuel supply loop, dual-range flow measurement, controlled back-pressure loading, sequential outlet switching, and SCADA/HMI-based automation to deliver high-confidence, repeatable distribution data — with a build philosophy suited to fuel-handling and hazardous-area type environments.

The bench measures flow at each outlet one port at a time: the selected port is routed to the Test Header for measurement while all non-selected ports are routed to the Return Header and recirculated back to the tank. The sequence repeats across all 16 ports, automatically or manually, producing a clean, comparable port map — flow per port at a given speed, pressure, and temperature; average flow across ports; deviation of each port from average; and repeatability across cycles and across different flow-divider units.

Port-by-port certainty: you don’t infer distribution — you measure it.

The bench is intended to evaluate performance across the regimes where flow dividers typically show their true behaviour — low-flow metering, where leakage, friction, and internal clearances dominate; rated-flow distribution, where hydraulic loading and back-pressure stability dominate; and, where applicable, start-up / breakaway transient response.

Architecture

Six subsystems, one test bench.

Fuel conditioning, pumping, port switching, back-pressure loading, metrology, and control are handled by six discrete subsystems working together from a single console.

Sub · 01

Fuel Supply & Conditioning Loop

Closed-loop diesel circuit with a stainless-steel reservoir (800 L class typical), suction protection, multi-stage 10 + 6 µm filtration, and a chiller/heat-exchanger loop for repeatable fluid temperature.

800 L Class · 10+6 µm Filtration

Sub · 02

Pumping & Drive

Positive-displacement gear-type pump delivering ~250 L/min class total flow, driven by a flameproof/fuel-handling-suitable motor (~11 kW) on a VFD for smooth ramping and stable RPM holding.

~250 L/min · VFD Controlled

Sub · 03

16-Port Switching & Headers

Each of the 16 outlet ports has a dedicated solenoid/actuated switching valve, routing one port to the Test Header while the remaining 15 recirculate to the Return Header — fast, repeatable testing without hose swapping.

16 Switching Points

Sub · 04

Back-Pressure Loading

Adjustable back-pressure control valve simulates realistic system loading up to ~300 psi class, with relief valves, trips, and safe shutdown logic protecting the circuit.

Up to ~300 PSI Class

Sub · 05

Dual-Range Flow Metrology

High-range meter covers ~1–250 L/min for rated-flow operation; low-range meter covers ~0.03–40 L/min for high-resolution low-flow checks — up to ~14 L/min (3.5 GPM) per port.

1–250 & 0.03–40 L/min

Sub · 06

Control, HMI & SCADA

Automatic mode runs port sequencing, dwell/stabilisation timing, logging, and pass/fail; manual mode gives direct operator control for engineering trials and troubleshooting.

Auto + Manual · SCADA Logging

Port Switching

One port measured, fifteen recirculating.

The switching and header logic is the key enabler of fast, repeatable 16-port characterisation without manual hose swapping.

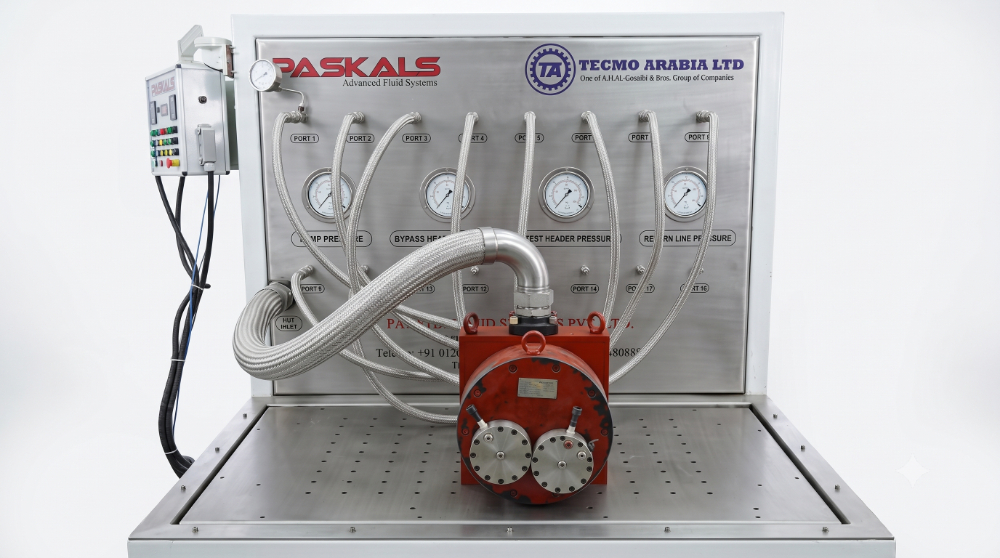

Multi-port flow divider test bench — front view of the port pressure gauge manifold showing Pump Pressure, Bypass Header, Test Header Pressure and Return Line Pressure gauges above the numbered port hoses

Fig · 03 Gauge manifold — pump, bypass-header, test-header and return-line pressure readouts above the numbered port hoses

Each outlet port connects through a dedicated switching element so the bench can route Port N to the Test Header for flow measurement while every other port routes to the Return Header and back to the tank. Continuous recirculation keeps fluid condition stable while ports are tested sequentially, and the same logic supports both automatic sequencing and direct manual port selection.

Manual testing suffers from timing differences, inconsistent valve handling, and unstable stabilisation time. Automated port sequencing, defined dwell/stabilisation intervals, and consistent measurement timing remove operator technique from the result — repeatability becomes a property of the bench, not the operator.

Typical workflow: stabilise tank level and temperature; set RPM and target back-pressure; run automatic port sequencing with a defined dwell per port; record port-wise flows, compute deviations, and repeat cycles to assess repeatability — first at low flow (where leakage and friction dominate), then at rated flow across low- and high-pressure conditions.

Instrumentation & Control

Every reading, logged and traceable.

A dedicated HMI panel puts pump, header, and return-line pressures, dual-range flowmeters, tank and line temperature, RPM, and per-port switching status in front of the operator in real time.

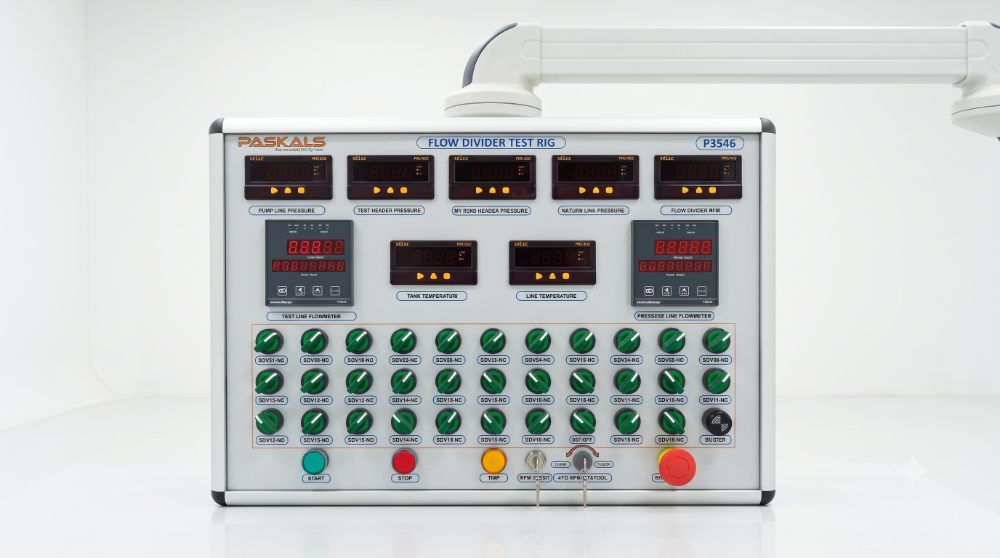

Multi-port flow divider test bench HMI panel — pump line pressure, test header pressure, tank and line temperature displays, dual flowmeters, 16 solenoid valve indicator switches, RPM select, start/stop and emergency stop controls

Fig · 04 Control panel — pressure/temperature readouts, dual flowmeters, per-port solenoid valve switches, start/stop and E-stop

The panel groups pump-line, test-header, bypass-header, and return-line pressure indicators above a dedicated test-line flowmeter and press/bypass-line flowmeter readout, with tank-temperature and line-temperature displays alongside a live flow-divider RPM indicator. Individual solenoid-valve status switches give the operator direct visibility and manual override of every one of the 16 ports, backed by green start / red stop push-buttons and a guarded emergency-stop.

Behind the panel, the SCADA layer turns these live readings into qualification-style traceable output: time-stamped logs, port-wise tables, acceptance verdicts against defined deviation and stability criteria, and an alarm/trip history useful during investigations and audits.

Operating modes cover both ends of the job — automatic for port sequencing, stabilisation, logging, and pass/fail reporting in production or qualification runs, and manual for direct operator control during engineering trials, troubleshooting, and calibration checks.

Gallery

The bench, from every angle.

All six production photos — control console, gauge manifold, port switching, HMI panel, and the pump/heat-exchanger skid on the reverse of the test frame. Navigate with the arrows or jump with the thumbnails.

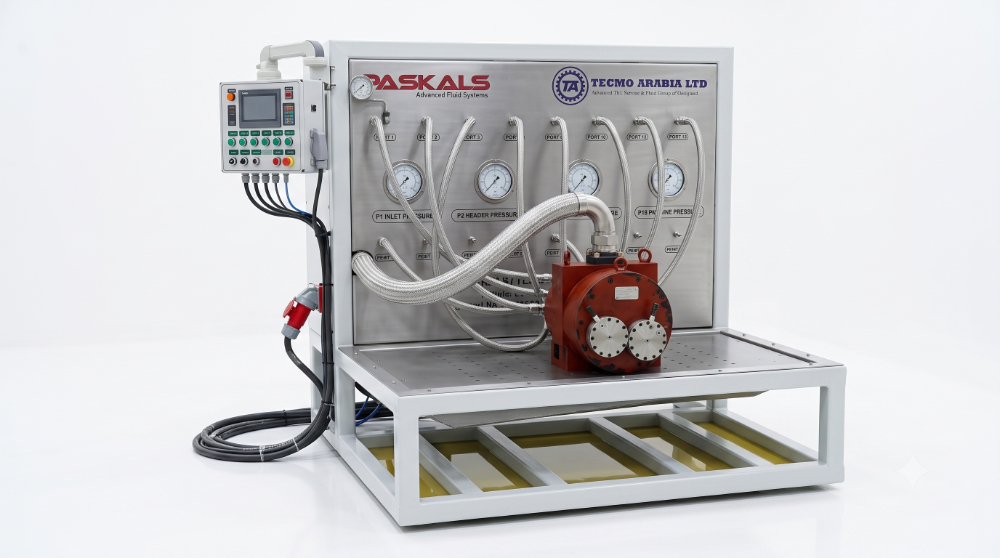

Multi-port flow divider test bench — close front view of stainless gauge manifold with P1 inlet, P2 header, test header and return line pressure gauges above the port hoses and red flow divider DUT

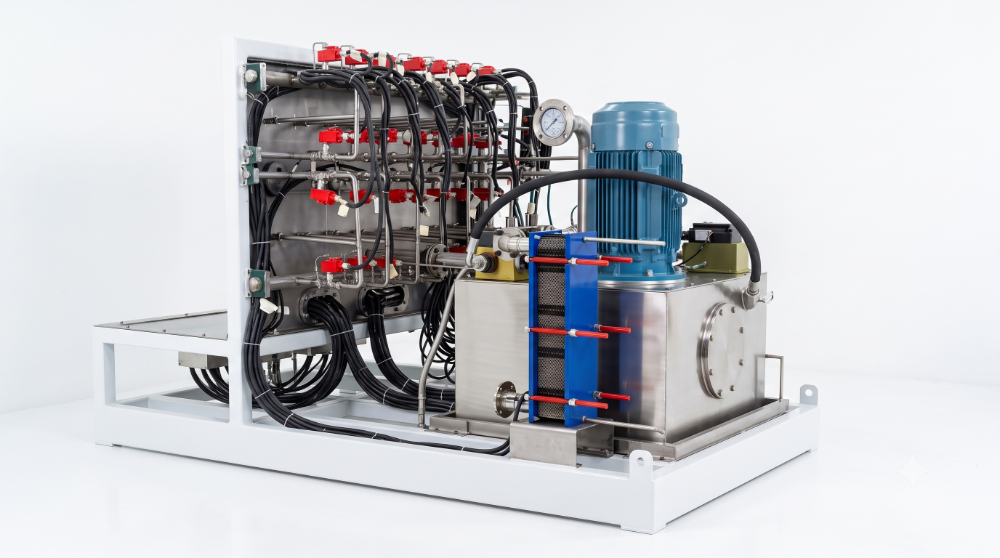

Multi-port flow divider test bench — rear pump skid view showing the drive motor, plate heat exchanger, and 16-port solenoid switching valve manifold with cabling

01 / 06

Downloads

Drawings & schematic.

General arrangement drawing and process/instrumentation schematic for the Multi-Port Flow Divider Test Bench, available as PDF.

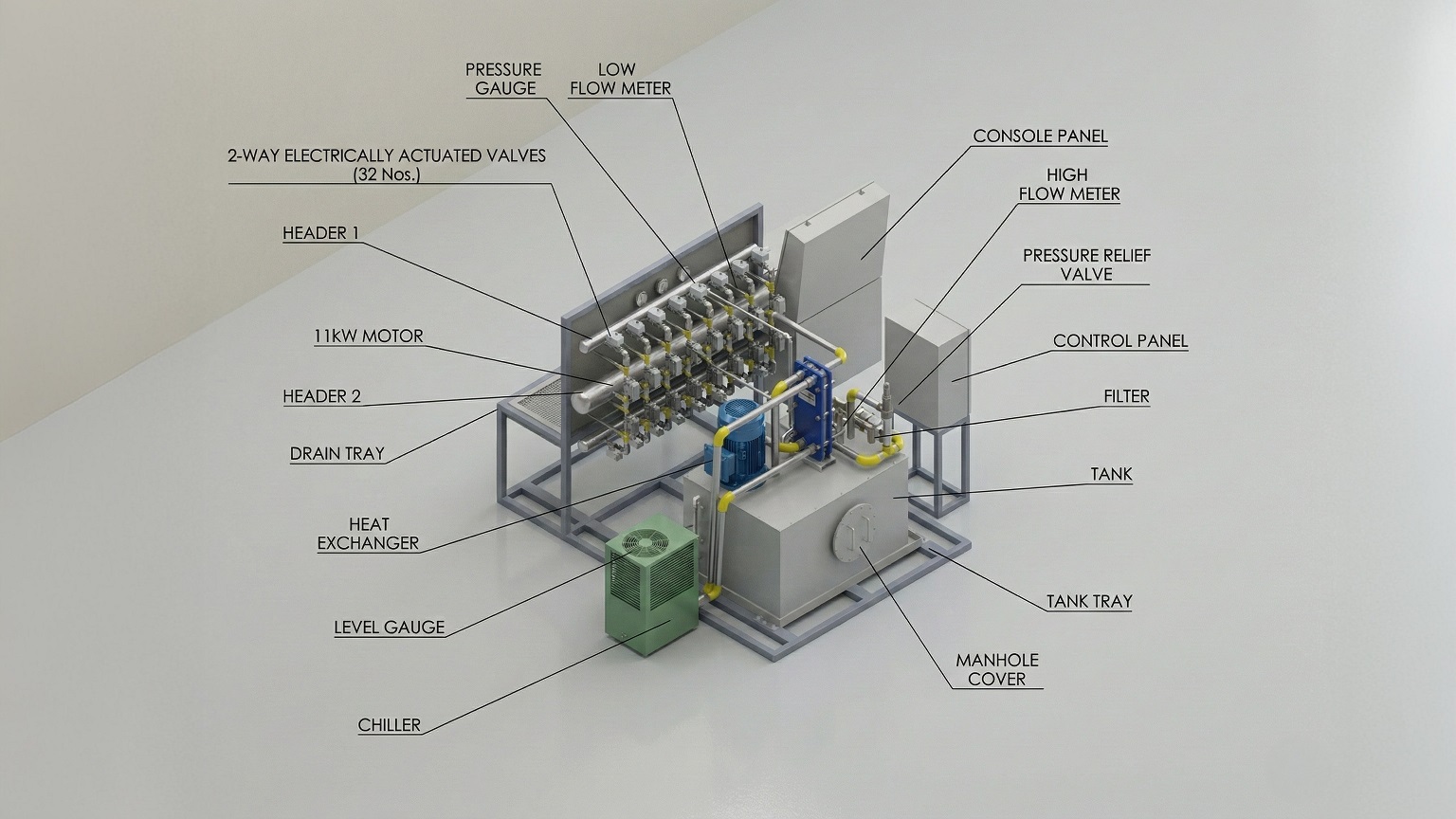

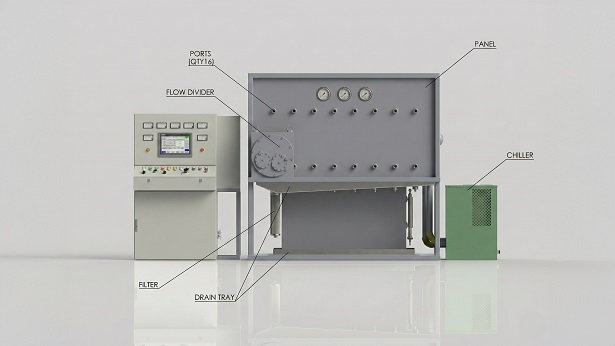

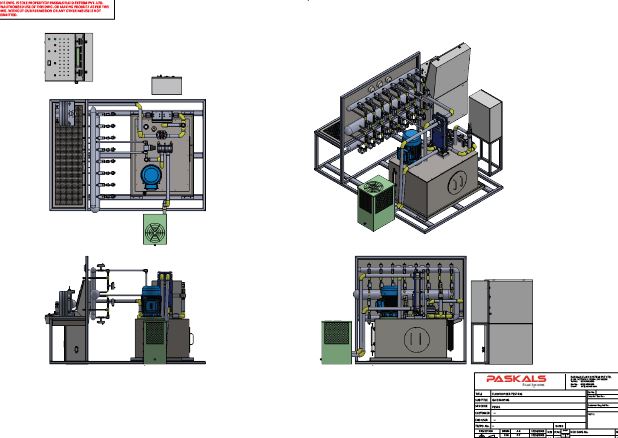

Multi-Port Flow Divider Test Bench general arrangement drawing thumbnail — multi-view and isometric render

GA Drawing 01

General Arrangement — Multi-View & Isometric

PDF

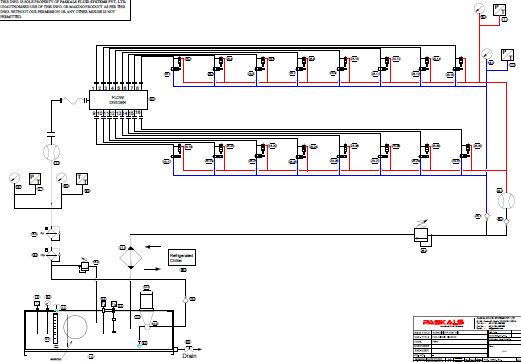

Multi-Port Flow Divider Test Bench process and instrumentation schematic thumbnail — 16-port flow divider circuit with chiller and drain

GA Drawing 02

Process & Instrumentation Schematic

PDF

Specifications

Full technical parameters.

Key system parameters for the standard configuration. Where parameters are application-dependent, the bench is configurable within its hardware capability.

System Type	Multi-port flow divider test bench (diesel/fuel circuit)
DUT Capacity	16 outlet ports
Measurement Method	Sequential port routing to Test Header; non-selected ports to Return Header
Operating Modes	Automatic sequencing + manual testing
Approx. Overall Footprint	~2600 mm (L) × ~1200 mm (W)
Approx. Overall Height	~1800 mm
Mounting / Frame	Industrial skid-mounted structure with service access for valves, filters, meters
Hose Assemblies (Typical)	~20 hoses (test + return + utility connections)
Working Fluid	Diesel / fuel media
Reservoir Construction	Stainless steel tank, drain-friendly geometry
Tank Capacity Class	800 L class (typical) / 500 L class (alternate configuration)
Temperature Conditioning	Chiller / heat exchanger loop for controlled fluid temperature
Level Monitoring	Level gauge + level switch (alarm/trip logic capable)
Pump Type	Positive displacement pump (gear type class)
Nominal System Flow	~250 L/min class
Motor Type	Industrial flameproof / fuel-handling suitable motor, ~11 kW typical build class
Speed Control	VFD with smooth ramping and stable RPM holding
High-Range Flow Meter	~1 to 250 L/min class · full system / rated-flow operation
Low-Range Flow Meter	~0.03 to 40 L/min class · low-flow, high-resolution distribution checks
Measurement Principle	Positive displacement / gear-type metering suitable for hydrocarbon fuels
Per-Port Flow Capability	Up to ~14 L/min (3.5 GPM) per port
Back-Pressure Control	Adjustable back-pressure control valve
Typical Test Pressure	Up to ~300 psi class
Circuit Protection	Relief valves, trips, safe shutdown logic
Filtration	Suction strainer + multi-stage filtration (typical 10 µm + 6 µm)
Port Switching	16 switching points · solenoid / actuated valves for fuel service · dedicated Test & Return headers
Automation Platform	HMI + SCADA-based control and monitoring
Data Logging	Time-stamped flow/pressure/temp/RPM data + per-port results, port-wise tables, deviation %, acceptance verdict, alarm/trip history
Safety Systems	E-stop, interlocks, trips, overload protection, controlled shutdown
Electrical Philosophy	Fuel-handling / hazardous-area oriented component selection, earthing/bonding provisioned
Reference Standards	MIL-STD · ISO · IS · customer-specified requirements

Applications

Where it runs.

Fuel distribution manifolds, engine and propulsion flow-divider qualification, and industrial dosing lines where several outlets must receive near-equal flow.

A · 01Fuel distribution manifolds for multi-outlet diesel and fuel systems

A · 02Engine and propulsion system flow divider qualification testing

A · 03Multi-injector and multi-nozzle fuel supply validation rigs

A · 04Hydraulic flow divider performance and balance testing

A · 05Lubrication system flow distribution verification

A · 06Industrial burner and dosing line flow uniformity testing

A · 07Production and batch testing of multi-port flow dividers

A · 08R&D and endurance evaluation of flow divider designs

In Depth

The complete technical read.

Engineering narrative for fuel-systems engineers, procurement teams, and QA managers who want the full picture before committing to a test programme.

Why flow-divider distribution testing matters

Flow dividers are commonly used in fuel distribution manifolds, engine and propulsion test rigs, multi-injector or multi-nozzle supply circuits, hydraulic and lubrication systems, industrial burners and dosing lines, and other applications where several consumers must receive near-equal flow under changing load and operating conditions. A divider might look acceptable at one steady condition and still misbehave in real operation — especially at low flow, where internal leakage and friction dominate, or at high load, where differential pressure drives error. A proper test bench creates a controlled environment where distribution can be measured port-by-port, under stable and repeatable conditions, with results logged and compared across units, batches, or life-cycle tests.

1. What the system is designed to achieve

Port-wise distribution mapping

The bench measures flow at each of the 16 outlets one port at a time using an automated switching strategy, producing a clean and comparable port map showing flow per port at a given RPM, pressure, and temperature; average flow across ports; deviation of each port from average; and repeatability across cycles and across different flow-divider units.

Coverage of real-world operating regimes

Low-flow metering: where leakage, friction, and internal clearances strongly influence distribution.
Rated-flow distribution: where hydraulic loading, back-pressure, and stability dominate.
Start-up / breakaway behaviour (where applicable): capturing transient response and the conditions required to initiate stable operation.

Repeatability that is not dependent on operator technique

Manual testing often suffers from timing differences, inconsistent valve handling, and unstable stabilisation time. This bench supports automatic port sequencing, defined dwell/stabilisation intervals, consistent measurement timing, and structured data logging and reporting.

Qualification-style traceable output

The control system delivers time-stamped logs, port-wise tables, acceptance verdicts based on defined criteria (deviation limits, stability thresholds, pressure window, etc.), and alarm/trip history and operator actions — useful during investigations and audits.

2. System architecture — how it works

A) Fuel supply and conditioning loop

At the core is a closed-loop diesel circuit engineered for stable test conditions: a stainless-construction reservoir sized for thermal mass and stable suction conditions, drain-friendly bottom geometry, suction protection, multi-stage filtration to protect the DUT and metering equipment, a chiller/heat-exchanger loop for repeatable temperature (because viscosity changes with temperature and affects flow distribution), and level monitoring to avoid dry running, aeration, and unsafe operation.

B) Pumping and flow stability

A high-capacity positive-displacement pumping package supplies the total flow needed for a 16-outlet DUT. The drive is VFD-controlled so speed — and therefore flow — can be ramped and stabilised smoothly; any pulsation or starvation can appear as distribution error and distort results.

C) 16-port switching and header logic

Each outlet port is connected through a dedicated switching element so the bench can route Port N to the Test Header for flow measurement while all other ports route to the Return Header and tank. This maintains continuous recirculation while ports are tested sequentially, faster and safer than manual hose swapping.

D) Back-pressure module

A controlled back-pressure valve provides adjustable loading so the divider can be tested at realistic system pressures — distribution can change under load, so back-pressure stability is what makes port-to-port comparisons valid.

E) Instrumentation and metrology

Dual-range flow measurement (high-flow and low-flow meters) maintains accuracy from very low flows up to full system flow, backed by pressure and temperature transmitters for SCADA logging and local gauges for quick operator sanity checks.

F) Control, automation, and operator interface

Automatic mode handles port sequencing, stabilisation, logging, and pass/fail; manual mode gives direct operator control for engineering trials, troubleshooting, and calibration checks. An HMI shows setpoints, port selection status, and live readings, with SCADA logging structured test results for traceability and comparison.

G) Safety and fuel-handling readiness

Fuel circuits demand a safety-oriented design approach: emergency stop and controlled shutdown, overload/overpressure protections, interlocks and alarm logic, appropriate component selection for fuel service and hazardous-area type environments, and good industrial practice — earthing/bonding provisions, protected routing, and robust enclosure selection.

3. Typical test workflows

Workflow	Steps	What It Catches / Proves
Low-flow distribution test	Stabilise tank level and temperature; set low RPM and target back-pressure; run automatic port sequencing with a defined dwell per port; record port-wise flows and assess repeatability across multiple cycles.	Leakage imbalance, internal friction issues, sensitivity to viscosity, early-life defects.
Rated-flow distribution test	Ramp to rated RPM under controlled conditions; run a complete port map at low pressure; increase back-pressure to high condition and repeat; compare deviation signatures across both conditions.	Performance under realistic load and stability across pressure conditions.
Start-up / breakaway behaviour	Start from a controlled initial condition; observe transient response and stabilisation behaviour; identify abnormal signatures indicating sticking, high friction, or internal wear.	Transient-response health, where applicable to the DUT design.

Key advantages

Port-by-port certainty: you don’t infer distribution — you measure it.
Fast testing: 16 ports mapped quickly through sequencing rather than manual replumbing.
Realistic operating conditions: back-pressure loading and temperature conditioning reveal real behaviour.
Wide measurement range: dual-range metering keeps accuracy intact at both low and rated flow.
Traceable results: SCADA logging and structured reporting support qualification, audits, and comparisons.
Reduced troubleshooting time: abnormal divider signatures become visible immediately in a port map.

Common options

Recipe-based testing (predefined RPM / pressure / temperature profiles)
Auto-stability detection (log only after values settle within tolerance)
Statistical reporting (mean, standard deviation, repeatability index per port)
Serial number / barcode tracking for batch testing
Additional temperature points (tank + inlet + outlet) for tighter viscosity control
Higher pressure variant or additional loading module for future DUTs
Remote monitoring and automatic report export

Conclusion

The Multi-Port Flow Divider Test Bench turns port-to-port distribution from an inference into a measurement. Its recirculating fuel loop, dual-range metrology, adjustable back-pressure loading, and SCADA-logged automatic sequencing give engineering, QA, and production teams a single system for R&D characterisation, qualification, and high-reliability batch testing of 16-port flow dividers.

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What is a flow divider test bench?

A flow divider test bench is a dedicated test rig used to measure and verify port-wise flow distribution accuracy of flow dividers under controlled pressure, temperature, and back-pressure conditions. It ensures uniform flow delivery in fuel and hydraulic circuits.

Q · 02 What is the purpose of a 16-port flow divider test bench?

A 16-port flow divider test bench enables sequential measurement of flow across all divider outlets, creating a detailed port flow distribution map to identify imbalance, leakage, or deviation under real operating conditions.

Q · 03 How does a multi-port flow divider tester measure flow distribution?

The multi-port flow divider tester routes one outlet at a time to a precision flow meter while recirculating all other ports, allowing accurate port-wise flow measurement without hose swapping or circuit disturbance.

Q · 04 What types of fluids can be tested on this fuel circuit test bench?

This fuel circuit test bench is designed for diesel and fuel media, using stainless steel reservoirs, fuel-compatible valves, filtration, and hazardous-area-ready components for safe and repeatable fuel testing.

Q · 05 Why is back-pressure control important in flow divider testing?

A back-pressure controlled test rig simulates real system loading, revealing flow divider behaviour that may only appear under pressure, such as port imbalance, instability, or metering error.

Q · 06 What is the role of dual-range flow meters in a flow uniformity test bench?

Dual-range flow meters allow accurate measurement at both very low flows and rated flows, ensuring high-resolution port flow distribution measurement across the entire operating range.

Q · 07 Is this flow divider calibration bench fully automated?

Yes, the system operates as a SCADA-based test bench with HMI control, supporting automated port sequencing, stabilisation timing, data logging, deviation analysis, and pass/fail reporting.

Q · 08 Where is a hydraulic flow divider testing machine typically used?

Hydraulic and fuel flow divider testing machines are used in engine test rigs, injector fuel circuits, propulsion systems, industrial burners, dosing systems, and aerospace or defence fuel qualification labs.

Q · 09 How does an automated port switching manifold improve test accuracy?

Automated port switching eliminates manual valve handling errors, ensures consistent dwell time per port, and maintains stable fluid conditions, improving repeatability and test confidence.

Q · 10 Is this industrial fuel test bench suitable for hazardous environments?

Yes, the industrial fuel test bench is engineered with fuel-handling safety logic, earthing and bonding provisions, interlocks, emergency shutdowns, and hazardous-area-ready component selection.

Get a proposal

Tell us your port count
and test conditions.

We size the pump and header layout, configure the switching sequence, and walk through the test programme with your engineering team before you commit.

Request proposal +91 7777 876 876

Sixteen ports. One measured truth.

Flow dividers are the quiet truth-tellers.
