What is the output pressure range of the Test PAC Digital?

The Test PAC Digital has an output pressure range of 0–179 bar with automatic cut-off at any desired pressure.

What components can be tested with the Test PAC Digital?

The Test PAC Digital is suitable for testing hose, pipelines, valves, pressure vessels, gas bottles, boilers, heat exchangers, accumulators, fire extinguishers, turbines, oil-well equipment, and many more items that require pressure testing.

Test PAC Digital / 0–179 Bar Output · 4–7 Bar Air Drive · 1.75 LPM / Automatic & Manual · Portable · Self-Contained / Oil & Gas · Defence · Aerospace · Industrial Noida · India

Test PAC Digital

Portable hydro testing,
automatic & manual.

Lightweight · self-contained · compressed air powered · output pressure 0–179 bar with automatic cut-off at any desired pressure. Designed for shop floor and onsite pressure testing.

Request proposal Specifications

Test PAC Digital — Portable Automatic Hydro Testing Equipment — Neometrix

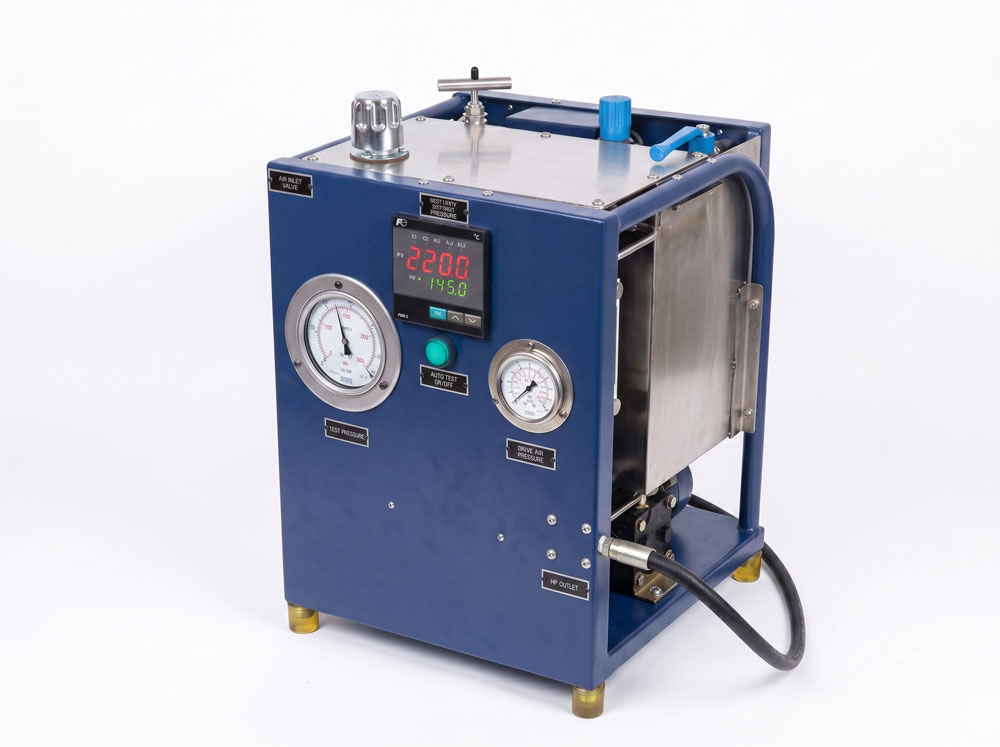

Fig · 01 Test PAC Digital — compressed air powered, automatic cut-off at desired pressure

Output Pressure

0–179Bar

Air Drive

4–7Bar

Flow Rate

1.75LPM

Outlet

¼"NPT Female

Overview

Automatic stall. Zero energy waste.

Shop floor or onsite — compressed air in, controlled hydraulic pressure out, automatic stall at the set point.

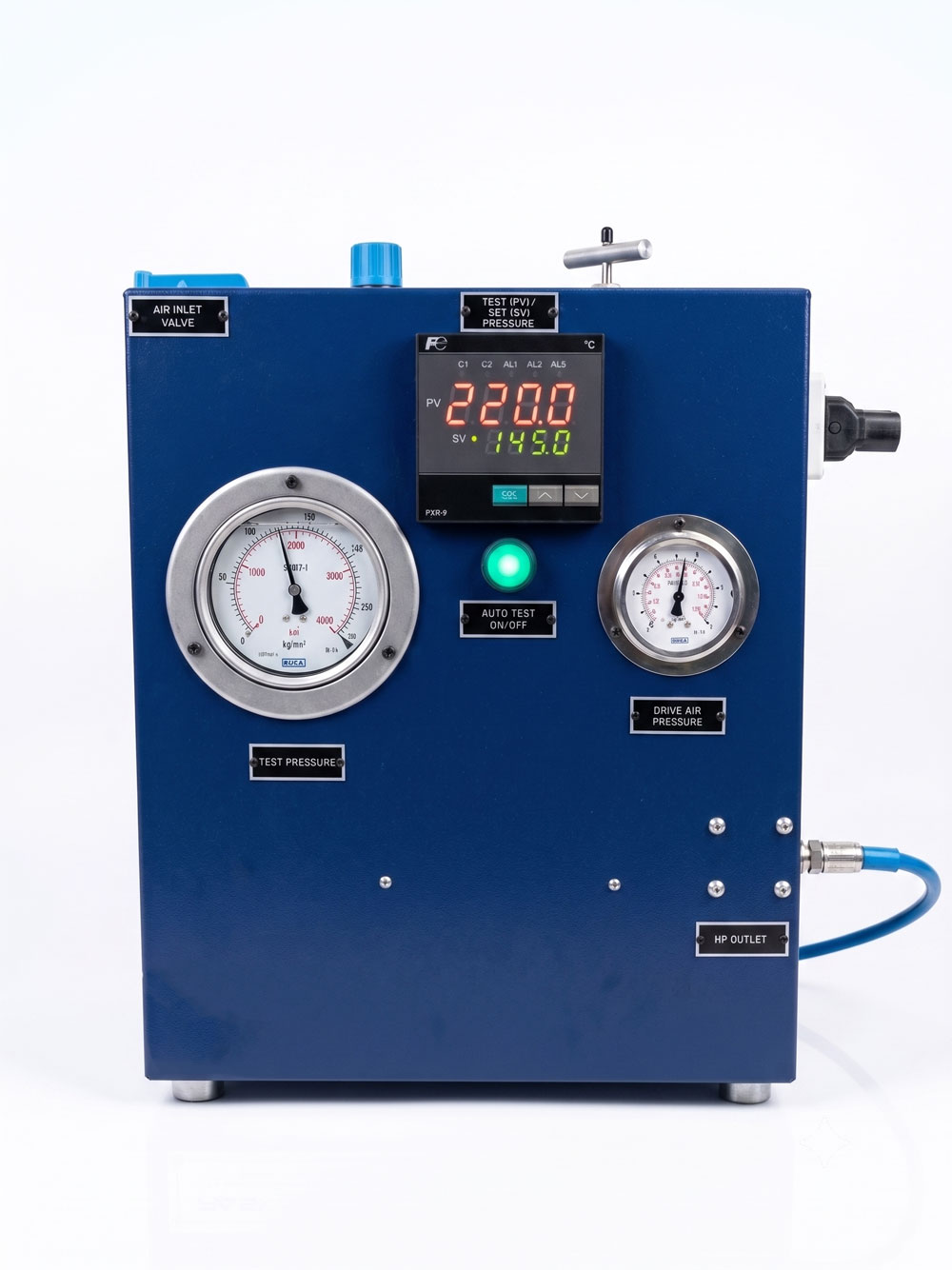

Fig · 02 Test PAC Digital — portable, lightweight configuration

Test PAC Digital is portable, automatic & manual, lightweight hydro testing equipment designed for shop floor and onsite pressure testing. The unit is self-contained and powered by compressed air. The system requires a supply of compressed shop air to power the liquid pump.

A simple adjustment of the air drive pressure regulator setting determines the final output pressure. The pump automatically stalls when the desired hydraulic pressure is attained. When the pump stalls it consumes no further energy and can remain in stall condition indefinitely.

Set the regulator. Pump stalls at target pressure. Holds indefinitely. No energy consumed.

Complete portability makes the Test PAC Digital ideal for work in situ — suited for pressure testing, power clamping, crimping, jacking, pre-stressing, power forming, and pressing.

Specifications

Technical parameters.

Air Drive Pressure Range	4–7 BAR
Output Pressure Range	0–179 BAR
Automatic Cut-Off	At any desired pressure up to 179 bar
Flow Rate	Up to 1.75 LPM
Hydraulic Outlet Connection	¼" NPT Female
Purity of Dry Air at Inlet	5 Micron
DPT of Air Required	−40°C · Customer scope

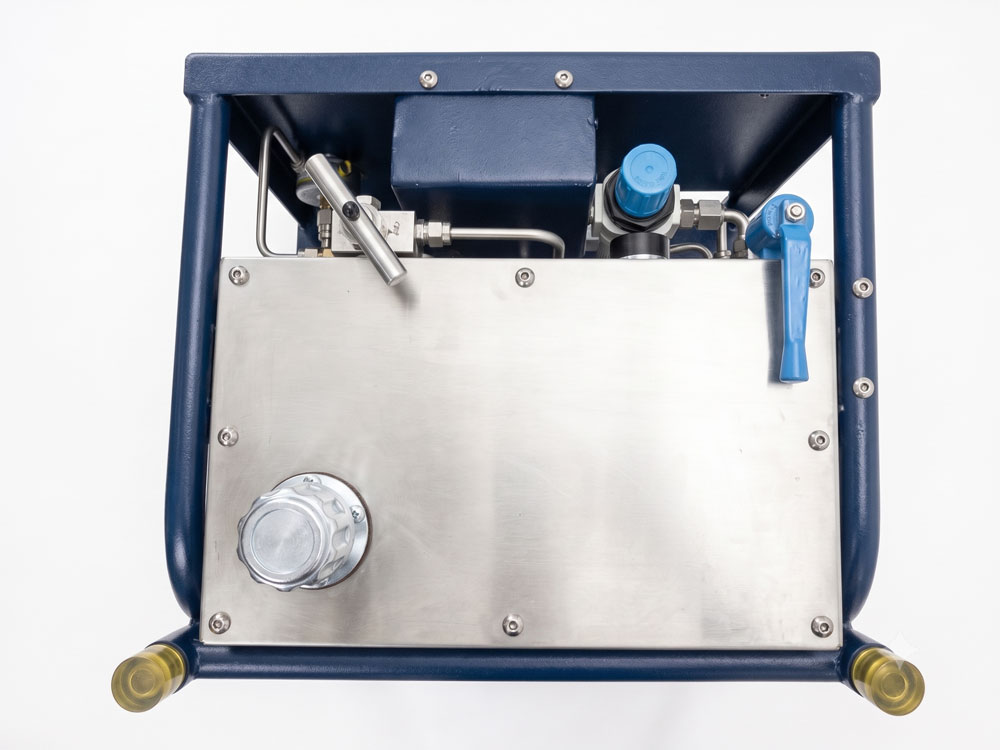

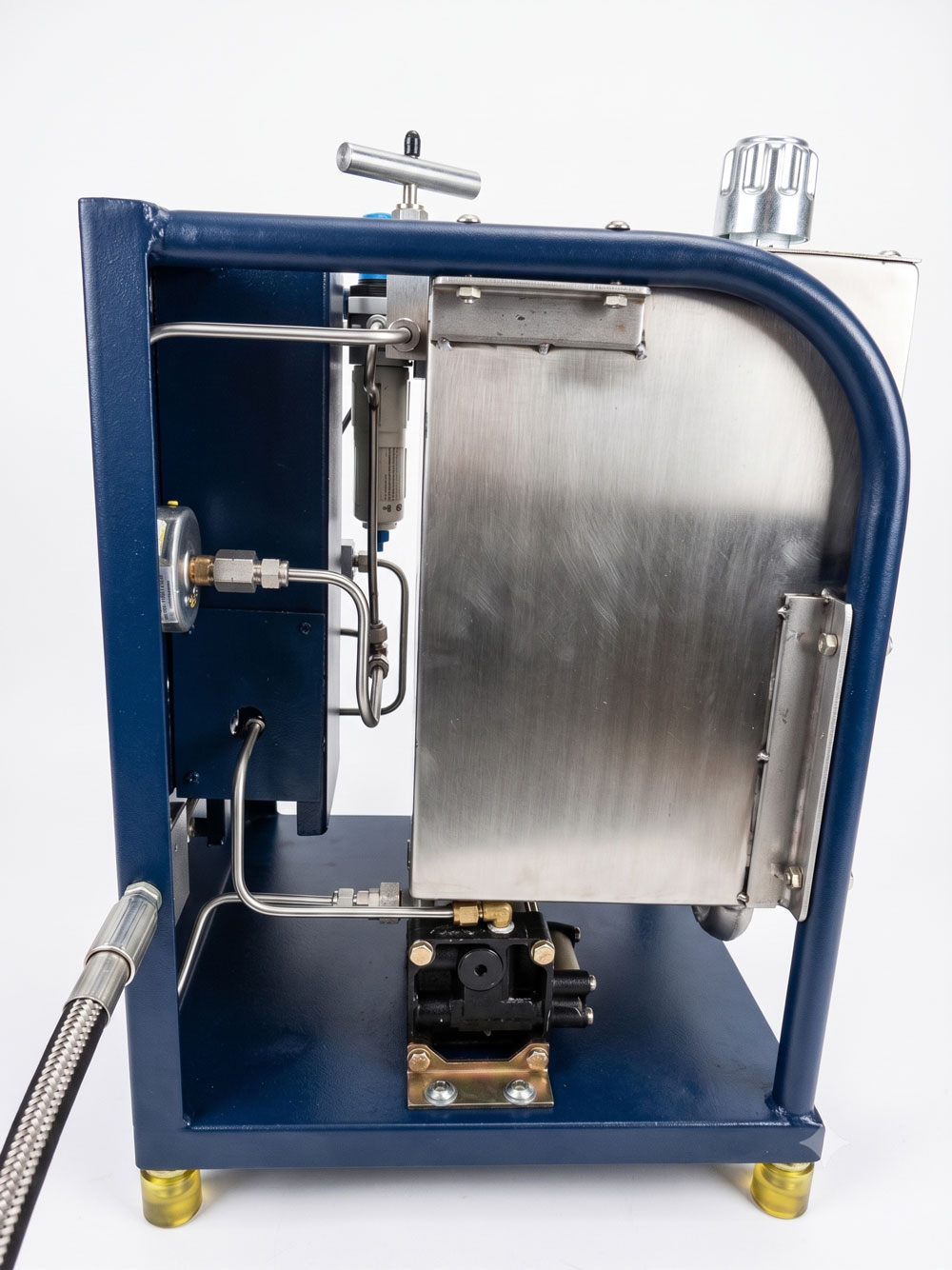

Image Gallery

The unit, multiple views.

Applications

What it tests.

Suitable for pressure testing, power clamping, crimping, jacking, pre-stressing, power forming, and pressing. A vast number of components require pressure testing.

A · 01Hose — hydrostatic proof and burst pressure testing of flexible and rigid hose assemblies

A · 02Pipelines — pressure testing of pipework, fittings, and pipeline assemblies

A · 03Valves — seat leakage, shell pressure, and hydrostatic testing of valve bodies

A · 04Pressure vessels — hydrostatic proof testing of pressure vessels and containers

A · 05Gas bottles — hydrostatic testing of compressed gas cylinders and bottles

A · 06Boilers & heat exchangers — pressure testing of boiler shells, tubes, and heat exchanger circuits

A · 07Accumulators — hydrostatic testing of hydraulic accumulators and pressure storage vessels

A · 08Fire extinguishers — proof pressure testing of fire extinguisher cylinders and assemblies

A · 09Turbines & oil-well equipment — high pressure testing of turbine components and wellhead assemblies

A · 10Defence, aerospace & shipbuilding — pressure testing of military and aerospace hydraulic and structural components

Suited for use in: Oil & Gas · Petrochemical · Power Generation · Automotive · Paper · Food Industry · Defence · Aerospace · Shipbuilding

FAQ

Common questions.

Q · 01What is the Test PAC Digital?

Test PAC Digital is portable, automatic & manual, lightweight hydro testing equipment designed for shop floor and onsite pressure testing. The unit is self-contained and powered by compressed air.

Q · 02What is the output pressure range?

The output pressure range is 0–179 bar, with automatic cut-off at any desired pressure within that range.

Q · 03How does the automatic pressure cut-off work?

A simple adjustment of the air drive pressure regulator setting determines the final output pressure. The pump automatically stalls when the desired hydraulic pressure is attained. When the pump stalls it consumes no further energy and can remain in stall condition indefinitely.

Q · 04What air supply is required?

The unit requires compressed shop air with an air drive pressure range of 4–7 bar and inlet air purity of 5 micron. DPT of air required is −40°C (customer scope).

Q · 05Is it suitable for onsite and field use?

Yes. Complete portability makes the Test PAC Digital ideal for work in situ. It is designed for both shop floor and onsite pressure testing.

Q · 06Which industries use the Test PAC Digital?

It is suited for use in oil & gas, petrochemical, power generation, automotive, paper, food industry, defence, aerospace, and shipbuilding industries.
