NMX-LOC-30 · ENGINEERED TO ORDER — LUBE OIL CONSOLES & LUBRICATION SYSTEMS

The turbine is the expensive part. This decides how long it lives.

Name: Lube Oil Console
Brand: Neometrix

A journal bearing runs on a film a few microns thick, and that film is the only thing holding the journal off the shell. So when oil stops, nothing degrades gently — it fails in seconds. Which is why a console is designed on the assumption that everything inside it will eventually fail, and why the real question is never whether a pump will fail but what is running three seconds after it does: a standby that starts by itself, an emergency pump on the battery — because the usual reason the main pump stopped is that the power did — and a head tank feeding by gravity through rundown. Two more things follow. It has to be serviceable without being stopped, so what wears is duplex and changes over under flow. And what actually sets bearing life is cleanliness and temperature; pressure is just what gets alarmed. Equipment of this class has been quoted against successive lube oil console requirements for a heavy-engineering power equipment manufacturer; no delivered lube oil console is claimed — the class is engineered to order.

Enquire — lube oil console Capability sheet (PDF)

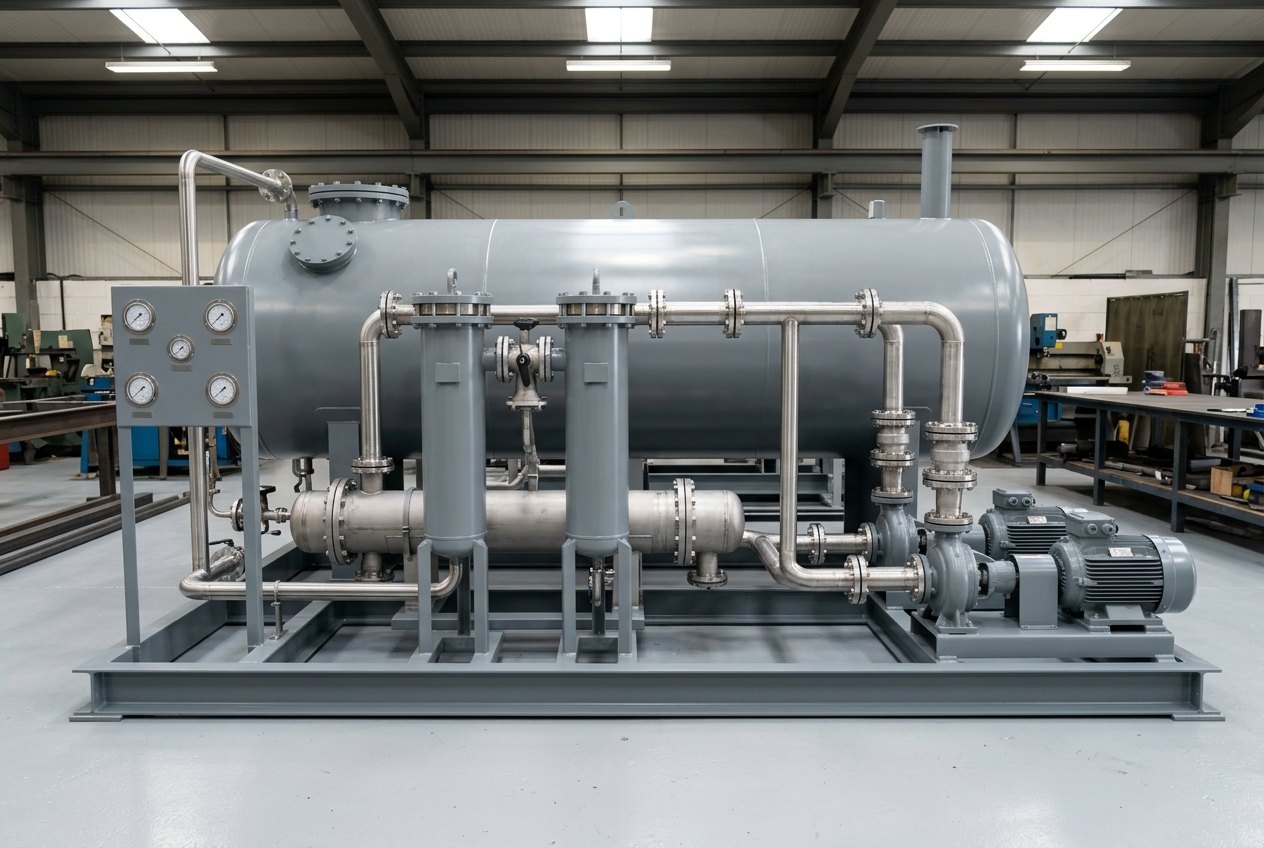

Illustrative of the class — a complete lube oil console on a single fabricated steel base frame in a clean assembly workshop: a large horizontal cylindrical carbon steel reservoir tank in mid-grey paint with bolted inspection covers and a vent stack along the back, two identical motor-driven pump sets side by side at one end, a pair of tall cylindrical duplex filter housings joined by a single changeover valve in the middle, a shell-and-tube heat exchanger alongside, bright steel flanged pipework running between them and a small instrument panel of plain blank-faced gauges at the near end, no people, nothing running and no readable markings

Fig · 01 Everything on the skid is either a pump, a way of cleaning oil, a way of cooling it — or a spare

Protects

a far costlier machinethan the console itself

Designed around

what fails nextnot what runs today

Serviced

without stoppingduplex, changed under flow

Really controls

cleanliness & temperaturepressure is the alarm

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Lubrication & fluid systems Flushing & commissioning Noida · India

Overview

Nobody buys a console. They buy the machine it protects.

Which is exactly why it is worth specifying properly — it is the cheapest component with the power to destroy the most expensive one.

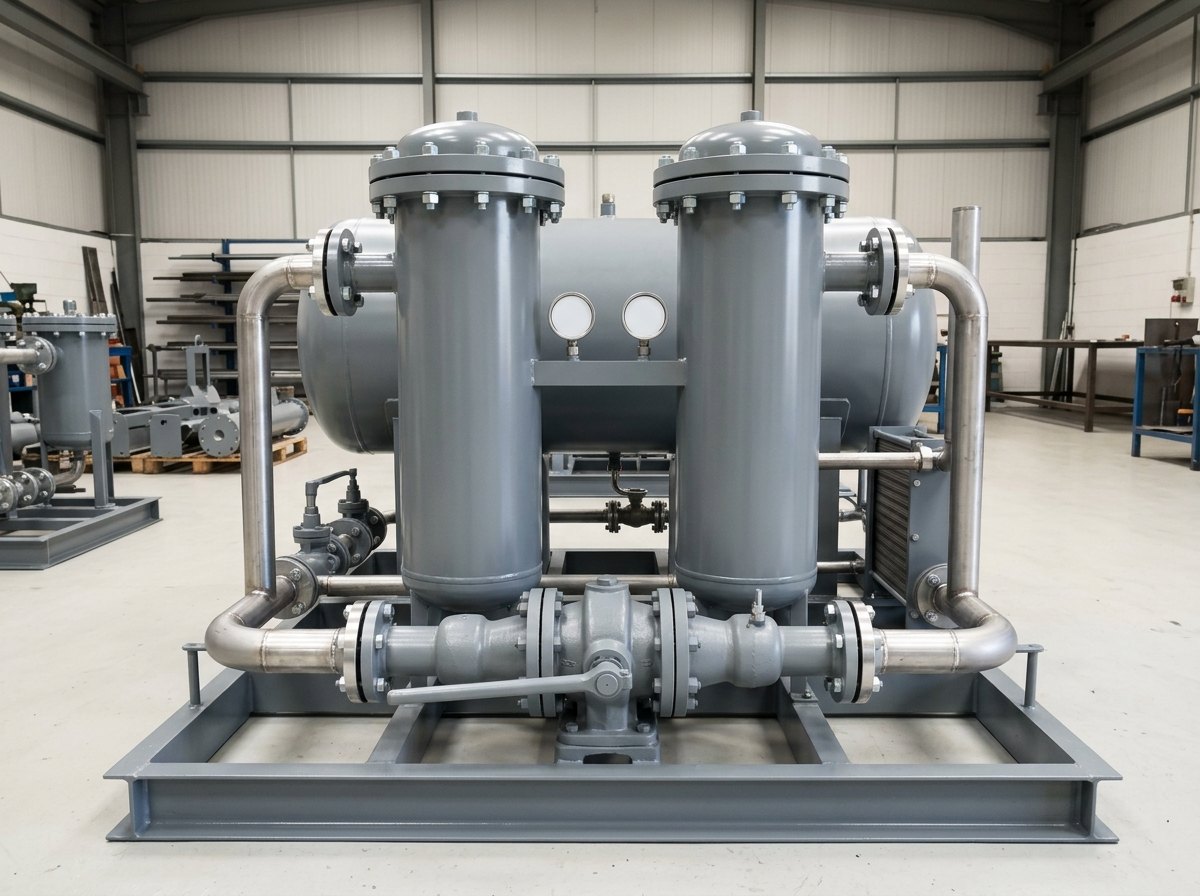

Illustrative of the class — close view of the duplex filter arrangement on a lube oil console skid: two identical tall cylindrical steel filter housings standing side by side in mid-grey paint with domed bolted top covers and rings of bright new bolts, joined at the bottom by a single cast changeover transfer valve with a long plain steel operating lever, bright steel flanged pipework entering and leaving and two small plain blank-faced gauges on a bracket between the housings, all mounted on the fabricated steel base frame, no people, nothing running and no readable markings

Fig · 02 Two filters and one lever — the fitting that decides whether the machine can be maintained while it runs

Start with how thin the film is. A hydrodynamic journal bearing does not run on a pool of oil; it runs on a wedge of it, a few microns deep, generated by the shaft's own rotation. That film carries the whole rotor. It is also the entire safety margin: there is no second mechanism underneath, no graceful degradation, nothing that holds while somebody investigates. Interrupt the supply and the film collapses in a time measured in seconds, after which the journal and the shell are in contact at full speed. That single fact explains almost every design decision on the skid — and it is why the console is specified as a continuity problem rather than a flow-and-pressure problem.

So it is built around its own failures. The useful question is never "will this pump fail" — it will — but "what is running three seconds later". A standby pump starts automatically on falling pressure. An emergency pump runs from the station battery, because the most likely reason the duty pump stopped is that the electrical supply stopped, and an emergency pump on the same supply is decoration. And on large machines an overhead tank sits above the bearings feeding them by gravity through rundown, when everything electrical has already given up. A heavy rotor takes a long time to stop, and it needs oil for the whole of it.

Then it has to survive being maintained. This console runs between outages — often a year or more — while its filters clog, its coolers foul and its instruments drift on a much shorter timescale. If servicing it requires stopping it, then the console has quietly become the item limiting the plant's availability, which is precisely the opposite of what it was bought for. Hence duplex everything, and a changeover done while oil is still flowing.

Equipment of this class has been quoted against successive lube oil console requirements for a heavy-engineering power equipment manufacturer. No delivered lube oil console is claimed: the class is engineered to order, and the record is stated as it stands.

Continuity

Four ways to keep flowing

Duty, standby, battery-fed emergency, then gravity through rundown.

Availability

Serviced while running

Duplex filters and coolers, changed over under flow, no dip.

Bearing life

Clean oil, held in band

Flushed to a class and sampled — temperature is a band, not a maximum.

Architecture

Keep the film, keep it clean, and never stop to do it.

The schematic follows the redundancy chain first — duty, standby, emergency, gravity — then the four blocks behind it: pumping, conditioning, reservoir, and the instrumentation that decides when to act.

FIG · 03LUBE OIL CONSOLE ARCHITECTURE · PUMPING + REDUNDANCY / FILTRATION + TEMPERATURE / RESERVOIR + RETURN / INSTRUMENTATION, CONTROL + PROTECTION

Fig · 03 The specification is a list of failure responses — read it as one

Arc · 01

Pumping & Redundancy

Duty, standby, emergency — automatic changeover on falling pressure, and a rundown provision that needs no power at all.

Arc · 02

Filtration & Temperature

Duplex, changed under flow — on continuous-flow transfer valves, with heaters as well as coolers so the band holds at both ends.

Arc · 03

Reservoir & Return

Sized for residence time — baffled, de-aerated and vented, because oil that comes back full of air is compressible.

Arc · 04

Instrumentation & Protection

Changeover logic and the trip — the pressure and temperature that start the standby, and the permissive the machine will not run without.

Specifying a lube oil console, or replacing one that limits your outage interval? Send the machine and bearing details, flow, pressure and temperature duty, the redundancy and cleanliness requirements and the applicable standard — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized on the bearings, judged on what happens when something stops.

The parameters below describe the engineering approach. Pump sizing and redundancy scheme, filter rating and duplex arrangement, cooler and heater duty, reservoir volume and residence time, and the protection logic all follow from four givens: the machine being protected and its bearing requirements, the flow, pressure and temperature duty, the redundancy and cleanliness class required, and the applicable standard.

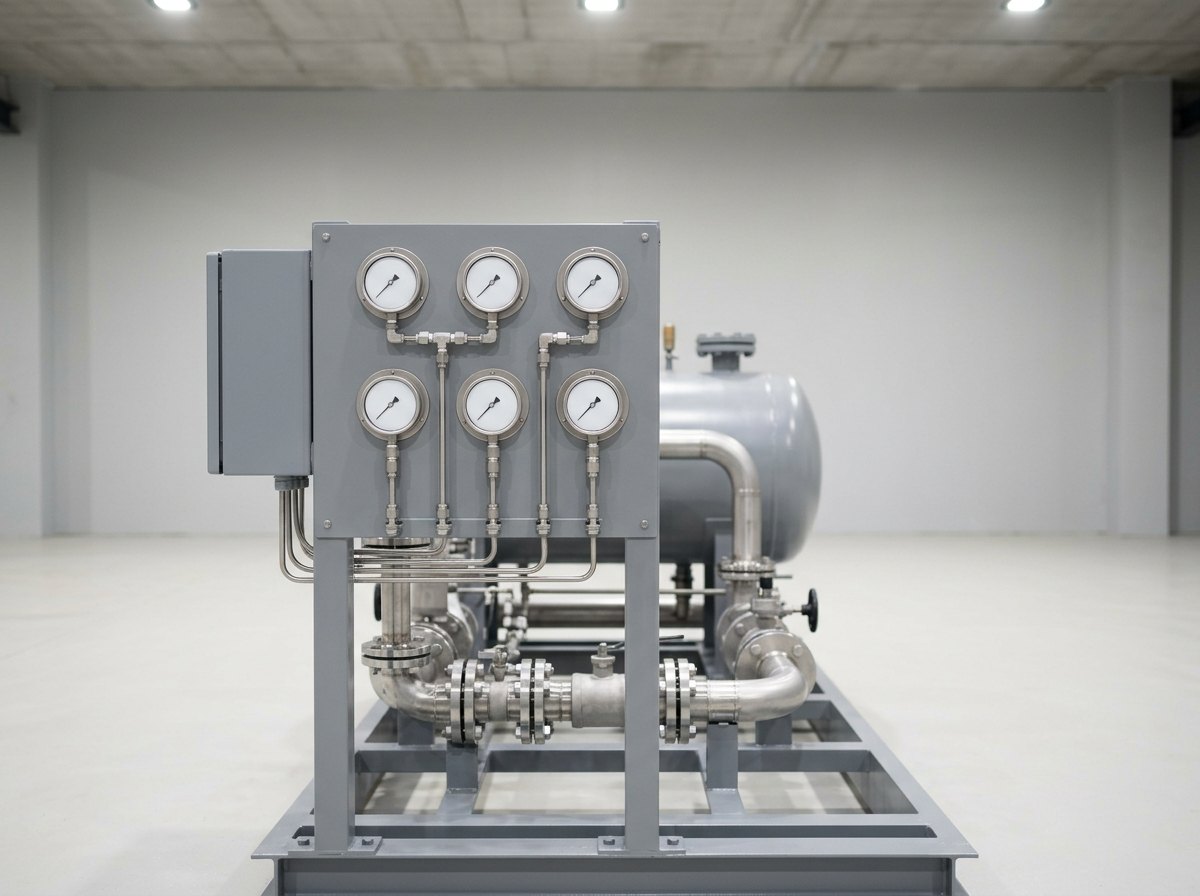

Illustrative of the class — close view of the instrument panel end of a lube oil console skid: a small vertical fabricated steel panel in mid-grey paint carrying six plain round pressure gauges with completely blank white dial faces in two rows, a neat array of small bright stainless impulse tubing runs and compression fittings feeding them from below, a plain grey junction box with a blank cover to one side, and the larger bright steel flanged pipework of the skid behind with the grey reservoir tank out of focus beyond, no people, nothing running and no readable markings

Fig · 04 Pressure is the easiest thing to measure and the least interesting thing to control

Where these consoles go wrong

Sized on flow alone, with no residence time in the reservoir, so oil that returns full of entrained air goes straight round again — and aerated oil is compressible, which means the film is not really a film. A changeover proved on paper but never on the skid: the pressure dip during transfer is only ever discovered by measuring it. A transfer valve that passes through a closed position, so a mis-operation interrupts flow to the bearings — the one event the console exists to prevent. Cooling designed for the hot case only, with no heaters, so a cold start cannot push oil through the restrictors and the machine is held up waiting for the oil to warm itself. Flushing under-planned, so the specified cleanliness class arrives late and delays first roll of the main machine rather than the console. And an emergency pump fed from the same supply as the duty pump, which makes the redundancy ornamental, since the usual reason the duty pump stopped is the supply.

So the discipline runs the other way. The reservoir is sized by residence time and baffled so return flow cannot short-circuit to the suction. Changeover is demonstrated under flow and measured, not asserted. Transfer valves are continuous-flow by selection. Heating is treated as a duty in its own right, and temperature is controlled to a band. Flushing is planned as a programme with its own duration, equipment and acceptance, because on every project it is the item that decides whether the main machine rolls on time. And the emergency pump is fed from a genuinely independent source — which in practice means the station battery, because that is the supply which survives the event you are protecting against.

Full specification — expand

System	Lube oil console — pumping & redundancy, filtration & temperature, reservoir & return, instrumentation, control & protection
Governing Idea	A film a few microns thick is all that holds the journal off the shell — so loss of oil is not degradation, it is failure in seconds
Design Basis	The assumption that everything inside the console will eventually fail — the question is never whether a pump fails, but what is running three seconds later
Redundancy Chain	Duty pump → standby on falling pressure → emergency pump on the station battery → overhead tank feeding by gravity through rundown
Why The Battery	The most likely reason the duty pump stopped is that the supply stopped — an emergency pump on the same supply is ornamental
Maintainability	Duplex filters and coolers changed over while oil is flowing. If servicing the console means stopping it, the console has become the limit on plant availability
Transfer Valve	The most safety-critical fitting on the skid — continuous-flow by design, both elements briefly in circuit, never a selector passing through closed
Cleanliness	A particle larger than the film is not filtered by the bearing — it is driven through it, and every pass scores the journal. Specified as a class, reached by flushing, verified by sampling
Flushing	Planned as a programme with its own duration and acceptance — commissioning a lubrication system is mostly flushing, and it is what decides whether the main machine rolls on time
Temperature	Controlled as a band, not a maximum — too hot thins the film toward contact, too cold will not pass the restrictors at start-up. Hence heaters as well as coolers
Reservoir	A settling and de-aeration device sized for residence time, baffled to keep return away from suction, vented so vapour leaves — because aerated oil is compressible
Fire	Hot oil under pressure near hot surfaces — so seamless pipe, welded rather than threaded joints, shrouded runs over hot zones, deliberate drainage, and fire-resistant fluid on some duties
The Split	The suction lubrication system for a cyclic spin test facility is lubrication built into a test facility, running for the length of a test; this is the continuous-duty console that keeps a production machine alive for a year between outages. The hydraulic power pack and actuator system shares the component family but has the opposite duty — a power pack delivers force on demand and may rest between movements; a console delivers an uninterrupted film and may not. And the hydraulic filter test bench qualifies the element; this console has to change one without stopping
Scope Boundary	Ours: console design & integration, pump & redundancy scheme, duplex filtration & temperature control, reservoir sizing for residence time & de-aeration, skid piping & layout, instrumentation, changeover & protection logic, the interface to the protected machine, flushing & cleanliness qualification, installation, commissioning, correlation, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: pumps and drive motors, filter elements and housings, heat exchangers, valves, instruments and control hardware. The customer's: the machine being protected, the oil, the applicable standard and the acceptance programme
Status	Engineered to order — equipment of this class quoted against successive lube oil console requirements for a heavy-engineering power equipment manufacturer; no delivered lube oil console is claimed

PDF · 1 page

Lube Oil Console — Capability Sheet

Tender Response

Send machine, duty, redundancy & cleanliness requirements — compliance matrix in two working days

Variants

One principle, four consoles.

What changes is the machine being protected, how catastrophic an interruption would be, and whether the bearings need help getting started.

Var · 01

Turbine Lube & Control Oil Console

The full redundancy chain — where rundown is long, the rotor is heavy and control oil is served alongside lubrication.

Var · 02

Mill & Gearbox Lubrication Console

Dirt and duty cycle — heavy industrial service where contamination ingress, not component failure, is the governing problem.

Var · 03

Compressor-Train Console

Continuous process duty — where an unplanned stop costs production rather than a machine, and availability is the specification.

Var · 04

Jacking / Lift-Oil Addition

Getting the film started — high-pressure oil injected under large journals at start-up, before rotation can generate a wedge of its own.

Applications

Wherever a large rotor must not be allowed to stop unexpectedly.

The machines whose availability depends on a skid in the corner of the hall.

A · 01Steam & gas turbine sets

A · 02Rolling mill drive trains

A · 03Compressor & blower trains

A · 04Hydro turbine sets

A · 05Large industrial gearboxes

A · 06Balance-of-plant retrofit & upgrade

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why so much redundancy for what is really just a pump and a tank?

Because of how quickly the consequence arrives, and how large it is. A hydrodynamic journal bearing does not sit in a bath of oil — it rides on a wedge only a few microns deep that the shaft's own rotation generates and continuously renews. Stop renewing it and the wedge is gone in seconds, at which point a heavy shaft is turning at speed against a bearing shell with nothing in between. The damage is not confined to the bearing: a wiped bearing can put a rotor out of line, damage seals and, on a large machine, turn a component replacement into a rebuild. Set that against the cost of the console, which is a rounding error by comparison, and the economics of redundancy stop being arguable. So the chain is built deliberately: a duty pump running; a standby that starts on its own when pressure falls, without waiting for anyone; an emergency pump on the station battery; and on large machines an overhead tank that feeds the bearings by gravity alone. Each step assumes the previous one has failed, and the last one assumes there is no power at all. That is not belt and braces — it is a sequence in which each layer covers a genuinely different failure.

Q · 02 Why must the emergency pump be on the battery rather than a second feeder?

Because of what actually causes the event. When you list the realistic reasons a duty lube pump stops, mechanical failure of the pump is only one of them and not the most common. Far more likely is that the electrical supply went away — a trip, a fault, a loss of the station board, or the very same event that just tripped the main machine. And that matters enormously, because a machine that has just tripped is exactly the machine that most needs oil: it is coasting down from full speed, still carrying its full rotor weight on the bearings, with no power anywhere. If the emergency pump is fed from the same board as the duty pump, then the single most probable initiating event takes out both at once, and the redundancy that looked convincing on the schematic evaporates in the only scenario that counts. Feeding it from the station battery — a DC supply that is deliberately independent, maintained charged, and designed to survive loss of AC — breaks that common cause. The same reasoning drives the overhead tank: it needs no supply at all, so it survives the loss of the battery too. Each layer must fail for a different reason than the one before it, otherwise it is not a layer.

Q · 03 Why is the filter transfer valve treated as a critical item?

Because it is the one fitting on the skid that a person deliberately operates while the machine is running, and it sits directly in the supply to the bearings. The reason duplex filters exist at all is that elements clog on a timescale far shorter than the interval between outages, so they must be changed with the machine in service. That means someone stands at the skid and moves a lever that redirects the entire lube oil flow from one housing to the other — and if that redirection interrupts flow even briefly, the operator has just caused the exact failure the console was built to prevent. Hence a continuous-flow design: the valve geometry ensures both elements are momentarily in circuit during the swing, so there is never a closed position between them. A simple two-way selector, which passes through closed, is not acceptable no matter how clearly it is labelled. There is a second, subtler requirement: the standby element must be pre-filled and vented before transfer, because swinging onto a dry housing pushes a slug of air into the system and briefly drops pressure. So the arrangement includes a fill-and-vent connection, and the commissioning procedure covers the changeover as a demonstrated, measured operation — not something first attempted in anger a year later.

Q · 04 Why does cleanliness matter more than pressure?

Because pressure is easy to achieve, easy to measure and easy to alarm — and it is not what wears the bearing out. What determines how long a bearing lasts is the cleanliness of the oil reaching it and the oil's viscosity at that point, which is a function of temperature. Consider what happens to a particle larger than the film thickness. It does not get politely stopped by the bearing; there is nowhere for it to go except through the clearance, so it is driven through, scoring the journal or embedding in the softer bearing material as it passes. One particle does nothing measurable. A population of them, recirculating a few thousand times an hour, produces exactly the slow, silent surface degradation that shortens bearing life without ever triggering an alarm — and each score becomes a site where the film is disturbed, so the process compounds. That is why cleanliness is specified as a class rather than a filter size, why it is verified by taking and analysing samples rather than by inspecting elements, and why the system is flushed until it demonstrably meets that class before the machine is ever rolled. Flushing is not a formality at the end of the job: on most projects it is the single largest consumer of commissioning time.

Q · 05 Why heaters? Surely the problem is always getting rid of heat.

In steady running, yes — the bearings put work into the oil and it has to be taken out, which is what the coolers do. But the console has to survive both ends of the range, and the cold end is the one that gets forgotten. Oil viscosity changes sharply with temperature, and cold oil is thick. A lubrication system distributes flow between bearings using restrictors and orifices sized for oil at running viscosity; feed it cold oil and those restrictors pass much less than intended, so the pump labours, relief valves lift, and the bearings furthest along the header are starved precisely when the machine is about to be started. On a cold site, or a machine that has stood idle, that is a genuine start-up hazard rather than an inconvenience. So the console is specified to hold a band: heaters (usually low-watt-density immersion elements, deliberately rated so they cannot locally cook the oil and degrade it) bring the reservoir up to the minimum start temperature, and the cooling circuit takes over once the machine is running and generating its own heat. Controlling to a maximum alone produces a console that runs beautifully in summer and cannot be started in winter — and the reason the band matters at the top end too is that oil which is too hot thins the film toward metal contact.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the console design and integration — deriving the skid from the machine being protected and its bearing requirements rather than from a catalogue; the pump and redundancy scheme, including which supply each layer is fed from, since that is what decides whether the redundancy is real; duplex filtration and temperature control, with continuous-flow transfer and heating treated as a duty in its own right; reservoir sizing for residence time and de-aeration; the skid piping and layout, including the fire-driven choices of seamless pipe, welded joints and deliberate drainage; the instrumentation, changeover and protection logic and the interface to the protected machine; and flushing and cleanliness qualification, plus installation, commissioning, correlation, documentation, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: the pumps and drive motors, filter elements and housings, heat exchangers, valves, instruments and control hardware — proprietary products of established makers, integrated rather than imitated. What is the customer's: the machine being protected, the oil, the applicable standard and the acceptance programme. And the record, stated plainly: equipment of this class has been quoted against successive lube oil console requirements for a heavy-engineering power equipment manufacturer, and no delivered lube oil console is claimed. The class is engineered to order, around the bearings it has to keep alive.

↗

Oil for a test, oil for a push, and the filter itself.

Three neighbours in the same component family, doing three different jobs.

↗ For a test

Suction Lubrication System — Cyclic Spin Test Facility

Lubrication built into a test facility — here, continuous duty between outages.

↗ Opposite duty

Hydraulic Power Pack & Actuator Systems

Force on demand, and it may rest — a console delivers a film, and may not.

↗ The element

Hydraulic Filter Test Bench

That bench qualifies the element; this console changes one without stopping.

Browse all Neometrix product lines.

Get a quotation

Send the machine
and the redundancy you need.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — lube oil console Capability sheet (PDF) +91 7777 876 876
