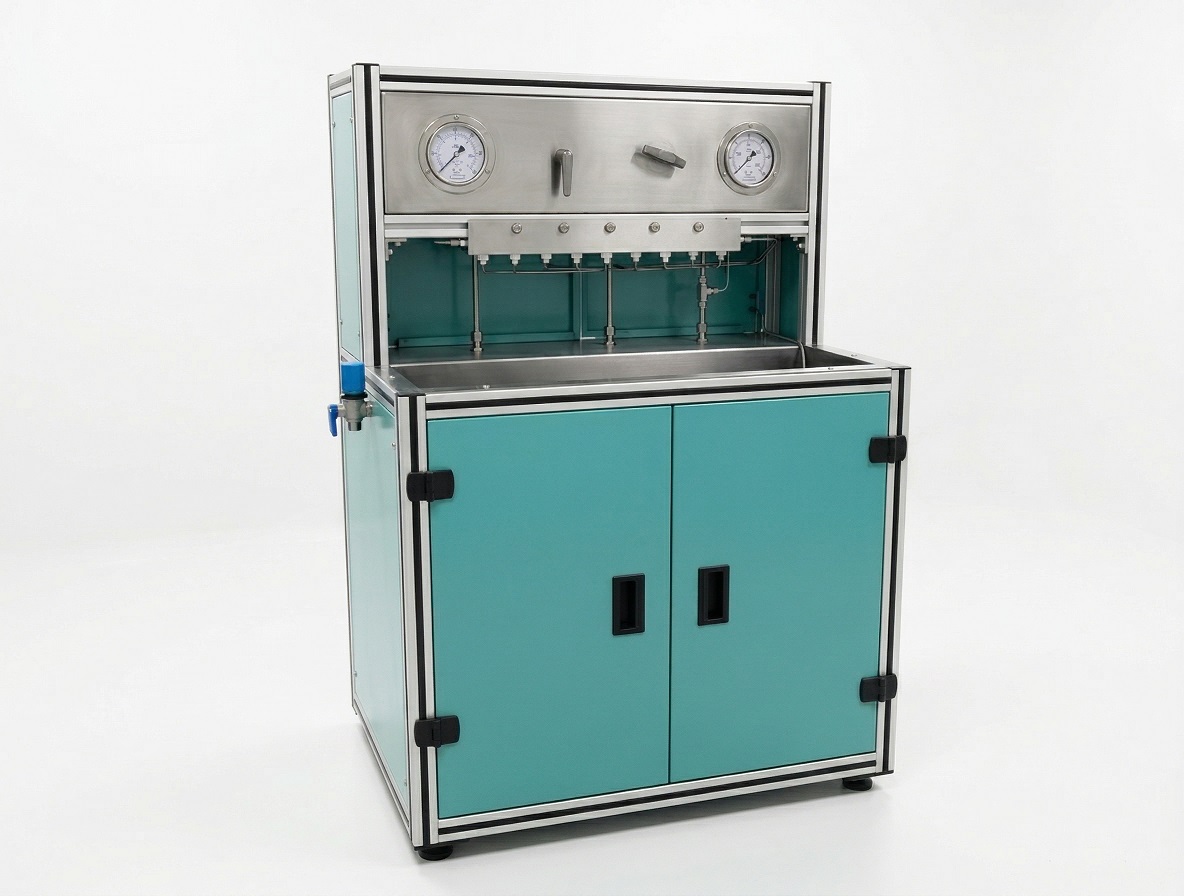

Spray Dryer Nozzle Test Bench

About

Paskals has developed Spray Dryer Nozzle Test Bench for boosting of Liquid pressure from low pressure up to 350 bar.

Whole system is divided into Three parts:-

A.  Air Drive Section: - Dry & Filter Compressed Air 5.2  Kg/cm2  is required for the Spray Dryer Nozzle Test Bench to create Test Pressure  up to 350 bar.

Drive air section consists of
I.  Drive air regulator: - We can control drive air pressure using below shown regulator by rotating it clock wise pressure will increase & we can decrease pressure by rotating it anticlockwise direction.

II. Drive air Open/Close Valve: - We can Open or close drive air supply by using below valve. Booster will run if drive air valve is in open condition.

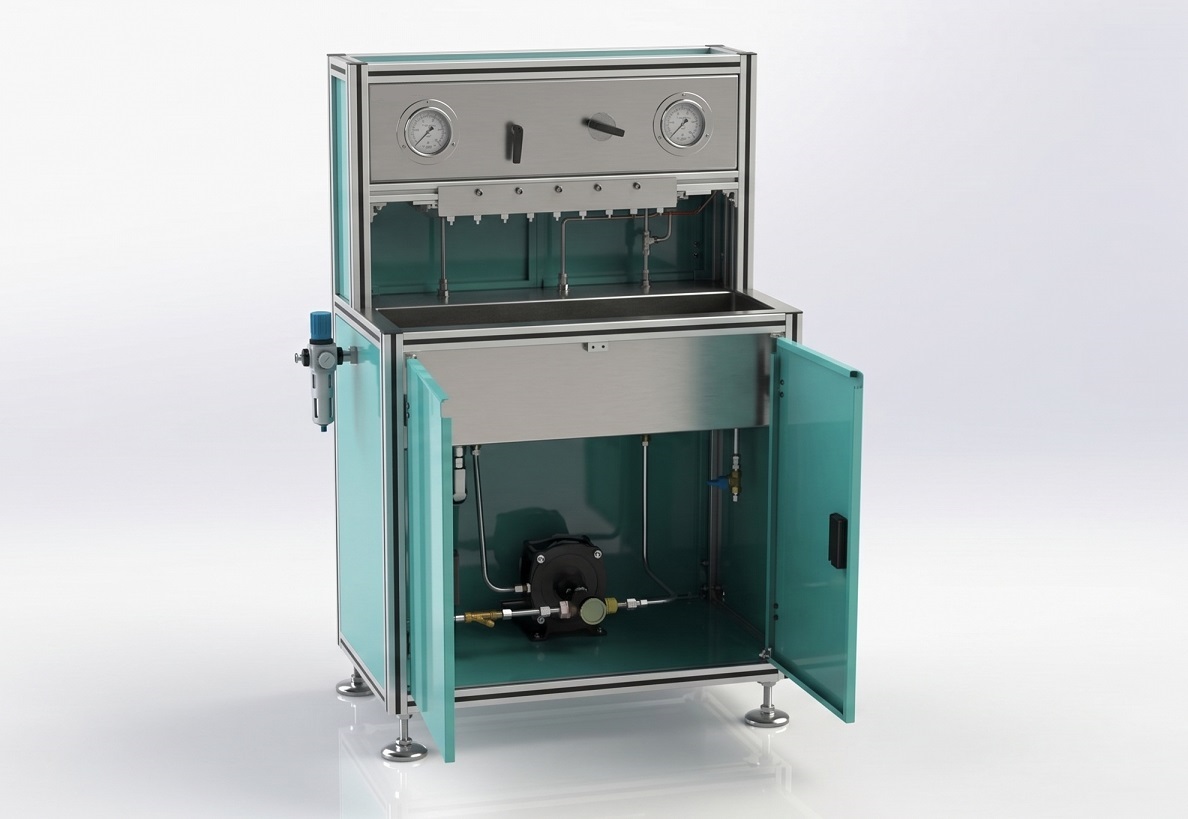

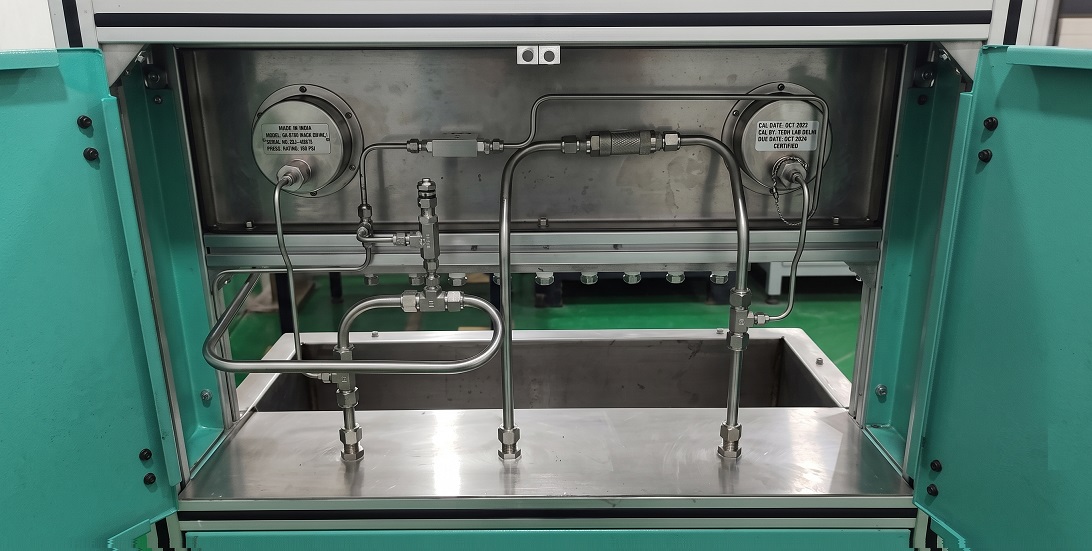

B.  Pressure of liquid Boosting Section: This section comprises of Haskel Air Driven Pump to boost the Low pressure of Water to 350 bar pressure, can be seen over High Pressure Gauge to monitor the outlet pressure. Working pressure of system as 350 bar.

Image Gallery

Technical Details

  • Drive Pressure (Air): 6 kg/cm2 Min.
  • Purity of Drive Air/Nitrogen : 40 Micron
  • Drive Flow Required (Air/Nitrogen): 60 SCFM
  • DPT of Air required (Customer Scope): -400C
  • Inlet Hydraulic Tank : As Required
  • Purity of Hydraulic Fluid
  • Output Pressure Range (for Pressure Testing): 10000 PSI
  • Working Media: Water
  • Machine Pressure Range : 0-10000 PSI
  • Outlet Gas flow rate: Variable (As per requirement)
  • Movement Control of Trolley: Portable on 4 wheel
It is used to test the proof, burst and leak test of the hydraulic hoses . Further it can be designed for Impulse Testing Machine for Hoses.

Key Features

  • Air Drive Section
  • Hydraulic Inlet Line.
  • Hydraulic Boosting Section.
  • Filling Section.
  • Air Flushing Section.
