Nitrogen Purging System, high-pressure leak testing to 200 Kg/cm².

Why a dedicated Pressure PAC for circuit leak testing

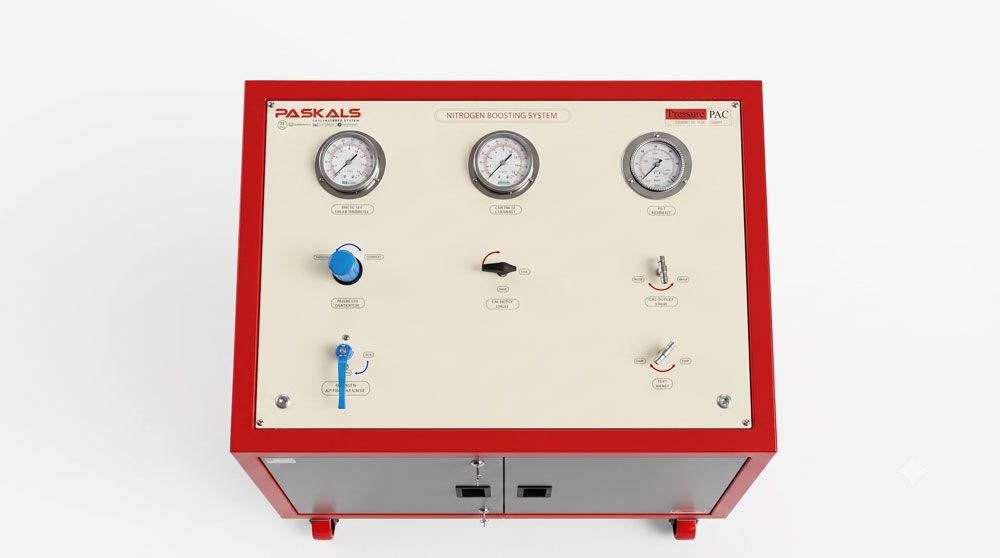

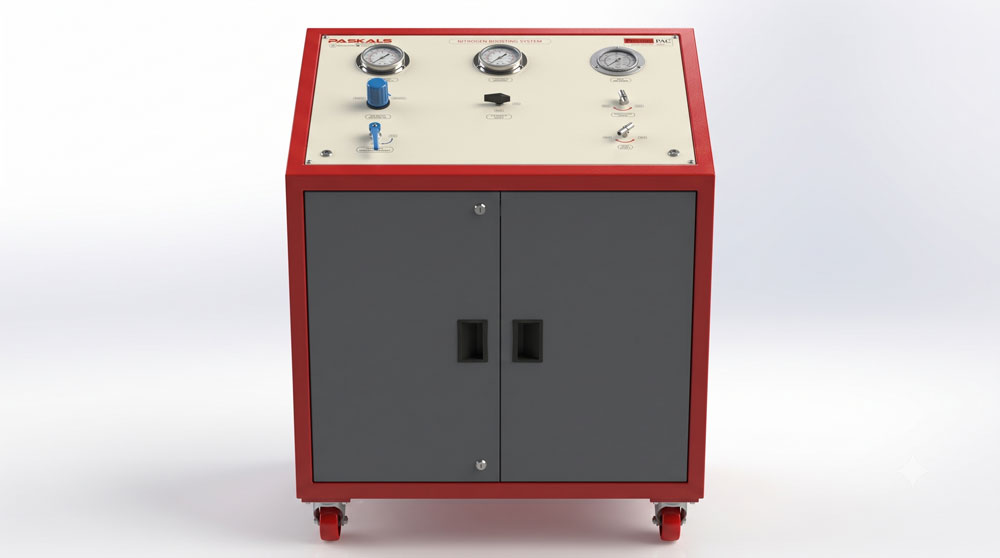

The Neometrix Nitrogen Purging System is a Pressure PAC engineered for high-pressure Nitrogen / Helium circuit leak testing. Instead of relying on ad-hoc cylinder connections and manual regulation, the Pressure PAC integrates drive-air control, gas filtration, Haskel-boosted pressurization, and outlet safety instrumentation into a single mobile enclosure, mounted on castors for easy movement around the shop floor.

Manufactured by Neometrix Engineering Pvt Ltd, India, the system is designed to give test engineers precise, repeatable control over the pressure applied to a gas circuit under test — from a gentle initial charge up through the full 200 Kg/cm² rated working pressure — so that leak sensitivity, graduated application, and overcharge behaviour can all be verified under controlled conditions.

The four functional sections

The whole system is divided into four parts, each responsible for one stage of the drive-air-to-outlet pressure chain:

• Air Drive Section: Dry and filtered air at a minimum of 4 Kg/cm² is required to drive the Pressure PAC, filtered to 40 micron and then 5 micron, with a customer-scope dew point of -40°C and a drive flow requirement of up to 60 SCFM as per the application.
• Nitrogen / Helium Inlet Section: Comprises a 5 micron high-pressure filter (component 12.0) to ensure inlet gas purity, a pressure gauge (component 17.0) to read the N₂ cylinder supply pressure, and a ball valve (component 11.1) to open and close N₂ supply to the gas booster inlet.
• Nitrogen / Helium Boosting Section: A Haskel Gas Booster (component 3.0) boosts the available industrial Nitrogen or Helium gas (17–150 bar) up to 750 Kg/cm², with a high-pressure gauge (component 10.2) monitoring outlet pressure. Working pressure of the system is 200 Kg/cm² (maximum).
• Nitrogen Outlet Section: Comprises all the safety and controlling components of the Pressure PAC along with measuring devices to read out the performance parameters of the Pressure PAC during a test.

Technical specifications

Key features, in detail

1. Air Drive Section

A dedicated drive-air circuit, independently filtered and regulated, powers the Pressure PAC without contaminating the process gas path.

2. Nitrogen / Helium inlet Section

5 micron filtration at inlet protects the Haskel Gas Booster from particulate contamination, with a pressure gauge and ball valve giving the operator direct control over supply admission.

3. Nitrogen outlet Section

All safety and controlling components, together with the measuring devices used to read performance parameters, are grouped in the outlet section for straightforward operation and monitoring during a test.

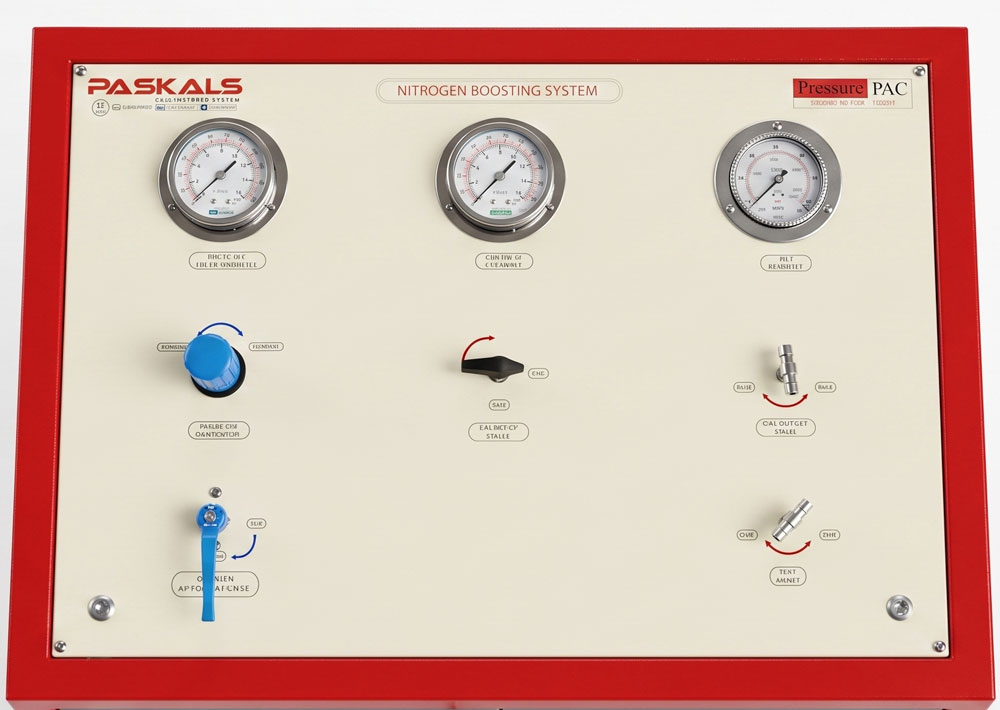

4. Pressure gauges

Dedicated gauges across the drive, inlet, boosting, and outlet stages give the operator full visibility of the circuit at every point in the pressure chain.

5. Air pilot switch & pressure relief valve

A pilot-actuated air switch gives reliable manual control over the drive circuit, backed by a pressure relief valve for overpressure protection during high-pressure testing.

6. Storage cylinder & vent valve

A buffered storage cylinder supports stable pressure delivery through a test sequence, while the vent valve allows safe, controlled depressurization of the circuit between cycles.

Applications across industries

The Nitrogen Purging System is used across multiple industries that depend on validated high-pressure Nitrogen or Helium circuits. Key applications include:

• CNG equipment manufacturing industry: Leak testing of CNG cylinders, valves, and regulators under high-pressure Nitrogen or Helium.
• Automobile industry: Circuit and component leak validation as part of production quality assurance.
• Regulator manufacturing industry: Pressure and leak-tightness testing of gas pressure regulators before dispatch.

Conclusion

The Neometrix Nitrogen Purging System delivers a compact, mobile Pressure PAC solution for high-pressure Nitrogen / Helium circuit leak testing, combining a Haskel Gas Booster, precision step pressurization, and integrated safety instrumentation in a single unit — designed and manufactured in India to MIL-STD, ISO, and IS-aligned standards on request.
