Nitrogen Distribution & Pressure Control / 360‑Cylinder Bank · 8 × 45 / IS 3224 · IS 7285 Pt II · PED 2014/68/EU / Noida · India
NCMC · 360‑CYLINDER BANK

Nitrogen Cylinder Manifold & Pressure Control System, self‑regulated to 3 kg/cm² g.

The Nitrogen Cylinder Manifold Cum Pressure Control System links a 360-cylinder bank into a single dual-stage, self-actuated distribution skid — delivering pure, dry nitrogen for corrosion-free equipment preservation with zero external power dependence, for months at a stretch.

Nitrogen cylinder manifold cum pressure control system - multi-bank nitrogen gas distribution and regulated pressure supply system by Neometrix

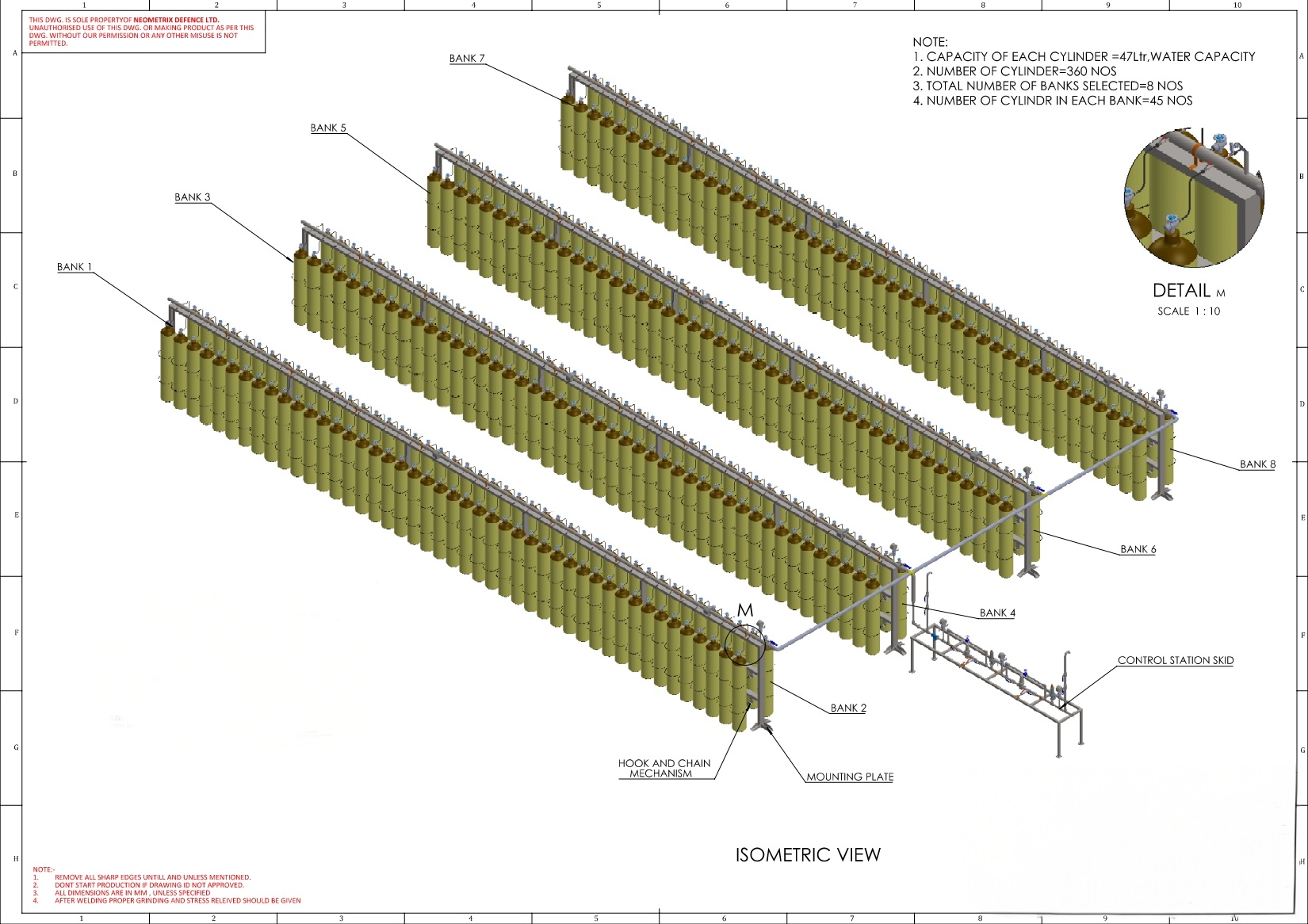

Fig · 01 Nitrogen Cylinder Manifold Cum Pressure Control System — 8-bank, 360-cylinder assembly
Qualification testing supported to:
DEF STAN STANAG MIL-SPEC
Cylinders
3608×45 banks
Design Pressure
160kg/cm² g
Working Pressure
150kg/cm² g
Stage II Outlet
3kg/cm² g
External Power
0self‑actuated
01
Overview

Corrosion doesn’t wait for the plant to restart.

During long shutdowns, moisture and oxygen entering idle heat exchangers, condensers, and steam lines can initiate oxidation and internal scaling within days — driving up maintenance cost and cutting equipment life. A stable nitrogen blanket is the standard countermeasure, but only if the supply itself never falters.

Nitrogen manifold pressure control system product view - high-pressure nitrogen cylinder bank with precision pressure regulation for defence applications by Neometrix
Fig · 02 Eight cylinder banks, carbon-steel manifold piping and Stage I/II regulation skid

Neometrix Defence Limited engineered the Nitrogen Cylinder Manifold Cum Pressure Control System (NCMC) as a high-precision assembly that maintains a stable flow of pure, dry nitrogen for equipment preservation. Nitrogen’s inert nature makes it ideal for creating a moisture-free atmosphere inside process circuits, effectively displacing oxygen and halting corrosion.

The manifold system integrates eight cylinder banks, each interlinked through high-pressure piping, control valves, and safety devices. Nitrogen from the cylinders is channelled through a two-stage regulation and distribution circuit that ensures consistent outlet pressure regardless of cylinder depletion rate.

More than a gas distribution skid — an intelligent fusion of multi-stage self-actuated regulation, robust mechanical design, and operational safety.

Every detail, from its carbon-steel manifolds and dual safety valves to its ergonomic frame layout, is optimized for reliability and serviceability in demanding field conditions. The result is a plug-and-operate nitrogen control unit capable of maintaining large-scale preservation networks for months or years without degradation or manual intervention.

02
System Architecture

Four subsystems, one manifold skid.

Cylinder manifolding, dual-stage regulation, instrumentation, and structural support are engineered as one integrated assembly — not four separate purchases bolted together on site.

SYS · 01

Cylinder Manifold Assembly

Accommodates 360 cylinders (47 L each) arranged in eight banks of 45. Manifolds built from seamless carbon-steel A106 Gr B (SCH 160) pipe with ANSI #1500 flanged ends. Flexible pigtails with bull-nose fittings to IS 3224 enable rapid installation and maintenance; chain-and-hook locking and an IS 2062 steel framework secure cylinders during pressurisation and replacement cycles.

360 Cylinders · 8 Banks of 45
SYS · 02

Two-Stage Pressure Regulation & Control

Stage I self-actuated regulator reduces incoming cylinder pressure (up to 160 kg/cm² g) to an intermediate ~15 kg/cm² g. Stage II further refines the outlet to ~3 kg/cm² g. Each stage carries an independent relief valve (set at 18 and 3 kg/cm² g), with Y-type strainers and ANSI 1500# flanged ball and globe valves for isolation and throttling.

Stage I 15 kg/cm² · Stage II 3 kg/cm²
SYS · 03

Instrumentation & Monitoring

Bourdon-type pressure gauges (0–210, 0–28 and 0–10 kg/cm² g ranges) in SS316 cases with 100 mm dials. Two-way manifold blocks permit dual isolation and calibration under live pressure. All instruments are tagged, earthed, and fitted with stainless-steel nameplates for QA traceability.

SS316 Gauges · Two-Way Manifold Blocks
SYS · 04

Structural Frame & Support

Frame fabricated from ISMC 100×50×6 mm channels and 100×50×3 mm rectangular MS tubes, sized to bear the combined static load of 360 charged cylinders. Integrated foot supports simplify foundation alignment; zinc-rich epoxy primer plus polyurethane topcoat resist weathering and industrial contaminants.

IS 2062 Steel · Epoxy + PU Coating
03
Key Engineering Features

No power. No compromise.

Every design choice traces back to two goals: hold outlet pressure steady without any electrical dependence, and keep running for months with minimal operator intervention.

  • Eight-bank manifold links 360 nitrogen cylinders (47 L each) for large-scale industrial preservation at 150 kg/cm².
  • Two-stage self-actuated regulators reduce 160 kg/cm² cylinder pressure to a stable 3 kg/cm² outlet for process use.
  • Independent relief valves at 18 and 3 kg/cm² and Y-type strainers at each stage protect instruments and regulators.
  • ANSI 1500# flanged ball and globe valves with seamless A106 Gr B SCH 160 manifold pipe ensure leak-free operation.
  • Bourdon-type SS316 gauges in 0–210, 0–28, and 0–10 kg/cm² ranges with two-way blocks allow live calibration access.
  • IS 2062 frame supports the full 360-cylinder static load; zinc-rich epoxy primer and PU topcoat resist all weathering.
  • No external power needed — fully self-actuated regulation sustains nitrogen preservation for months in the field.
  • PED- and BHEL-compliant; built under ISO 9001/14001/45001 for power plants, refineries, and aerospace depot use.
04
Downloads

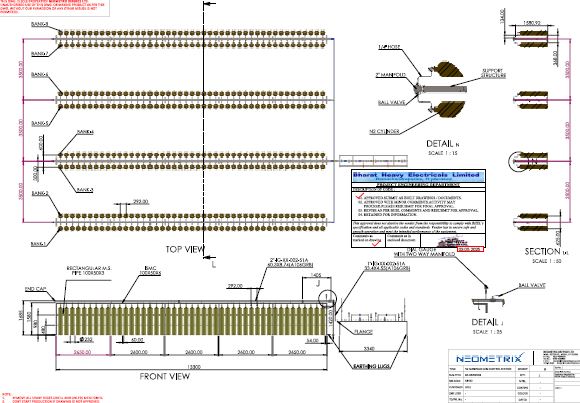

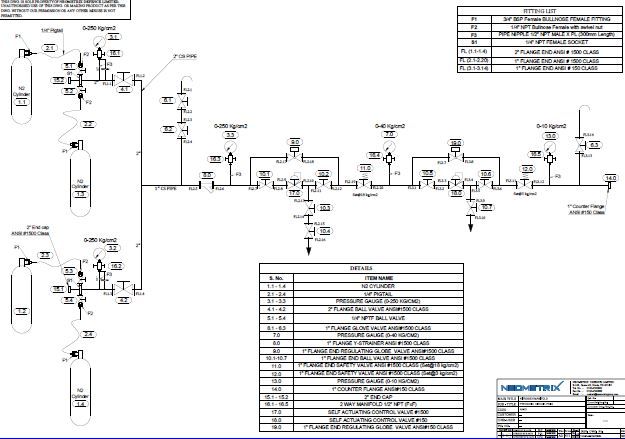

GA drawings, design 1 & 2.

General arrangement drawings for the Nitrogen Cylinder Manifold Cum Pressure Control System, available as PDF for procurement and technical pre-screening.

05
Specifications

Full technical parameters.

Key system parameters for the standard 360-cylinder Nitrogen Cylinder Manifold Cum Pressure Control System configuration.

Number of Cylinders360 (8 banks × 45 each)
Individual Cylinder Capacity47 L (water capacity)
Design Pressure160 kg/cm² g
Working Pressure150 kg/cm² g
Outlet Pressure — Stage I~15 kg/cm² g
Outlet Pressure — Stage II~3 kg/cm² g
Relief Valve Settings18 kg/cm² g (Stage I) · 3 kg/cm² g (Stage II)
Manifold MaterialSeamless carbon-steel pipe, A106 Gr B, SCH 160
Valve RatingsANSI 1500# / 150#, flanged ball & globe valves
Strainer TypeY-type flanged, ANSI #1500
Pressure Gauge Ranges0–210 / 0–28 / 0–10 kg/cm² g, SS316 case, 100 mm dial
Cylinder ConnectionsFlexible pigtails, bull-nose fittings to IS 3224
Frame MaterialIS 2062 structural steel — ISMC 100×50×6 mm & 100×50×3 mm MS tube
Surface CoatingZinc-rich epoxy primer + polyurethane top coat
Power RequirementNone — fully self-actuated, process-pressure-fed regulation
Design StandardsIS 3224 · IS 7285 Part II · ANSI B16.5 · BHEL PY-53040 SOW
Quality PlanNX/QAP/A8422, per PED & BHEL QA requirements
Regulatory CompliancePressure Equipment Directive 2014/68/EU · BHEL Specification PY-53040 Rev 00
Fabrication CertificationASME Section IX · EN ISO 9606-1 qualified welders, BHEL QA witnessed
WarrantyStandard 12-month warranty · Extended support available
06
Applications

Where nitrogen preservation runs.

Power generation, petrochemical, aerospace & defence, cryogenic, and general industrial preservation programmes — anywhere a stable, dry nitrogen supply protects idle plant.

A · 01Power generation — preservation of HP/LP heaters, deaerators, desuperheaters, drain coolers, and gland steam condensers during long outages
A · 02Petrochemical and refinery operations — blanketing, purging, and inerting during plant maintenance or process transitions
A · 03Aerospace and defence — inert charging of actuators, hydraulic accumulators, and gas bottles in hangars, test bays, and ammunition facilities
A · 04Cryogenic and research facilities — purging cryogenic transfer lines, instrument test loops, and vacuum chambers
A · 05General industrial preservation — chemical plants, fertilizer units, and heavy machinery shops
A · 06Long-duration plant shutdown preservation without manual re-pressurisation
A · 07Reactor and pipeline inerting where multiple lines are connected in parallel
A · 08Automated purge and vent manifold integration for unattended operation
A · 09Sensitive assembly storage requiring a clean, dry, oxygen-free atmosphere
07
In Depth

The complete technical read.

Engineering narrative for plant engineers, procurement teams, and QA managers evaluating the NCMC before committing to a preservation programme.

Why nitrogen preservation matters

In heavy-industrial and power-generation environments, one of the greatest challenges during equipment shutdowns is preventing corrosion and contamination of critical systems. Moisture and oxygen entering idle components — such as heat exchangers, condensers, or steam lines — can initiate oxidation and internal scaling within days. Over time, this leads to costly maintenance, reduced life expectancy, and unsafe operating conditions.

To counter this, Neometrix Defence Limited engineered the Nitrogen Cylinder Manifold Cum Pressure Control System, a high-precision assembly that maintains a stable flow of pure, dry nitrogen for equipment preservation. Nitrogen’s inert nature makes it ideal for creating a moisture-free atmosphere inside process circuits, effectively displacing oxygen and halting corrosion.

1. System description

The manifold system integrates eight cylinder banks, each interlinked through high-pressure piping, control valves, and safety devices. Nitrogen from the cylinders is channelled through a two-stage regulation and distribution circuit that ensures consistent outlet pressure regardless of cylinder depletion rate.

Cylinder Manifold Assembly

  • Accommodates 360 cylinders (47 L each) arranged in eight banks of 45.
  • Manifolds constructed from seamless carbon-steel A106 Gr B (SCH 160) pipes with ANSI #1500 flanged ends.
  • Each cylinder connects via flexible pigtails with bull-nose fittings conforming to IS 3224, enabling rapid installation and maintenance.
  • Cylinders are secured using chain-and-hook locking assemblies and supported by a heavy-duty IS 2062 steel framework, ensuring stability during pressurisation and replacement cycles.

Two-Stage Pressure Regulation and Control

  • Stage I regulator reduces incoming cylinder pressure (up to 160 kg/cm² g) to an intermediate level (~15 kg/cm² g) using a self-actuated control valve with integrated pressure relief protection.
  • Stage II regulator further refines the outlet to ~3 kg/cm² g for stable downstream supply.
  • Each stage is protected by independent safety relief valves (set at 18 kg/cm² g and 3 kg/cm² g respectively).
  • Y-type strainers remove particulates, safeguarding precision valves and instrumentation.
  • Isolation and throttling handled by flanged ball and globe valves (ANSI 1500#) for maximum durability and sealing integrity.

Instrumentation and Monitoring

  • Equipped with Bourdon-type pressure gauges (0–210, 0–28 and 0–10 kg/cm² g ranges) housed in SS316 cases with 100 mm dials.
  • Two-way manifold blocks permit dual isolation and calibration under live pressure.
  • All instruments are tagged, earthed, and provided with stainless-steel nameplates for traceability and compliance with QA documentation standards.

Structural Frame and Support

  • Frame fabricated from ISMC 100×50×6 mm channels and rectangular MS tubes 100×50×3 mm, designed to bear the combined static load of 360 charged cylinders.
  • Integrated foot supports and base plates simplify foundation alignment on site.
  • Surfaces finished with zinc-rich epoxy primer and polyurethane topcoat, providing exceptional resistance against weathering and industrial contaminants.

2. Quality and compliance

Fabrication and testing follow Neometrix’s ISO 9001/14001/45001-certified processes, with every stage documented under an approved Quality Assurance Plan (NX/QAP/A8422).

Key checks include

  • Material chemical and mechanical verification with traceable MTCs.
  • Hydrostatic and leak tests on each pressure line.
  • NDE inspection (LPI / MPI) on critical welds and fittings.
  • Dimensional and functional validation against approved GA and P&ID drawings.

All fabrication personnel are ASME Section IX / EN ISO 9606-1 qualified, and inspections are witnessed by BHEL QA representatives. The final data dossier includes calibration certificates, test reports, and inspection release notes, ensuring full transparency and regulatory compliance.

Manufactured in accordance with BHEL Specification PY-53040 Rev 00 and Pressure Equipment Directive 2014/68/EU, the system guarantees total conformity with international safety and performance standards. Approved components are sourced from qualified manufacturers — including Nirmal, Samson, Asian Industrial Valves, and A.N. Instruments — for long-term erosion and corrosion resistance in critical valves and instrumentation.

Conclusion

The Nitrogen Cylinder Manifold Cum Pressure Control System embodies Neometrix’s engineering precision and commitment to reliability. With dual-stage self-regulation, redundant safety architecture, and robust mechanical design, it ensures long-term corrosion protection and operational readiness for critical assets. Whether installed in a thermal power plant, refinery, or aerospace test facility, it delivers unwavering performance — keeping systems dry, safe, and ready for service.

08
FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What is a Nitrogen Cylinder Manifold Cum Pressure Control System?
It is an engineered nitrogen distribution and regulation skid that connects multiple high-pressure nitrogen cylinders into a unified supply network. Using dual-stage self-actuated regulation, it delivers dry, inert nitrogen at controlled pressures for preservation, purging, blanketing, and inerting of industrial systems.
Q · 02 Why is nitrogen blanketing important during equipment shutdown?
During shutdowns, oxygen and moisture can enter heaters, condensers, pipelines, and reactors, leading to corrosion, scaling, and microbial contamination. Nitrogen blanketing displaces oxygen, keeps humidity out, and maintains a stable, non-reactive internal environment, significantly extending equipment life.
Q · 03 How many cylinders can this nitrogen manifold system handle?
The system accommodates 360 cylinders arranged in 8 banks of 45, interconnected through seamless carbon-steel manifolds. This large-volume configuration enables long-duration nitrogen supply without frequent cylinder changeovers.
Q · 04 What is the role of the two-stage pressure regulation system?
The two-stage regulation ensures stable nitrogen output regardless of cylinder depletion. Stage I reduces cylinder pressure from up to 160 kg/cm² g to ~15 kg/cm² g, while Stage II further refines it to ~3 kg/cm² g for downstream use. Both stages incorporate relief valves for safety and compliance.
Q · 05 Is external power required for the pressure control system?
No. The system uses self-actuated control valves that operate purely based on process pressure feedback. This makes the skid intrinsically safe, power-independent, and suitable for remote or hazardous environments.
Q · 06 What industries commonly use this nitrogen manifold system?
It is widely used in power plants, refineries, petrochemical units, aerospace facilities, cryogenic labs, and defence depots for nitrogen blanketing, inerting, accumulator charging, process purging, and long-term preservation of critical equipment.
Q · 07 How does the system ensure operator and equipment safety?
Safety is achieved through calibrated relief valves, ANSI-class flanged valves, SS316 instrumentation, Y-type strainers, earthed instrument panels, and full compliance with PED, BHEL QA requirements, IS 3224, and ANSI B16.5 standards. All fabrication is performed under ISO-certified processes.
Q · 08 What maintenance is required for the nitrogen manifold skid?
Minimal maintenance is required. Routine checks involve verifying gauge readings, cleaning Y-strainers, testing relief valves, checking for leaks, and confirming cylinder bank pressures. The ergonomic layout ensures easy access to all service points.
Q · 09 Can this nitrogen system run continuously for long preservation cycles?
Yes. With 360 cylinders and a stable dual-stage pressure control mechanism, the system can maintain nitrogen flow for months or even years without manual intervention, making it ideal for long-duration plant shutdowns.
Q · 10 Is the skid customizable for different pressure or cylinder capacities?
Absolutely. Neometrix can engineer custom manifold sizes, cylinder bank capacities, outlet pressure ranges, instrumentation packages, and additional safety features depending on plant requirements and industry standards.
