    Fuel & Hydraulic Component Fatigue Testing / Dual‑Pressure Cyclic Loading · 0–2000 psi / 0–500 psi / ISO 9001 · AS9100 · MIL‑STD · ASTM · SAE / Noida · India 2026 · Product Page
    PCTS · UP TO 100,000 CYCLES

    Cyclic pressure, proven to 100,000 cycles.

    The Neometrix Pressure Cycle Test System — also known as a Pressure Cycling Test Rig or pressure cycle test stand — is a fully automated bench of hydraulic pressure cycling equipment that subjects fuel lines, valves, pumps, and hydraulic components to simultaneous dual‑pressure cyclic loading, replicating real service life in the lab before a part ever reaches an aircraft, vehicle, or vessel.

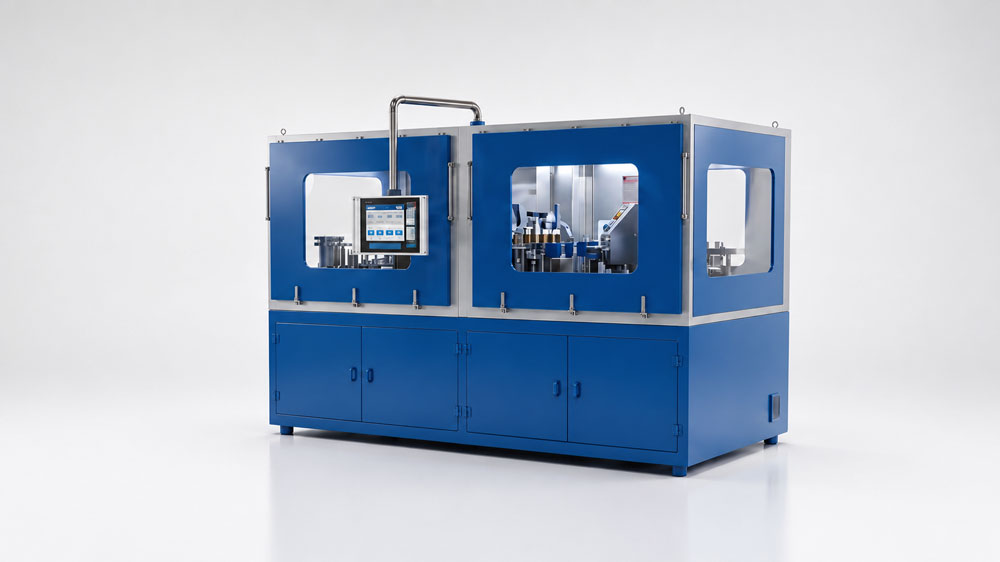

    Neometrix Pressure Cycle Test System — twin-chamber Pressure Cycling Test Rig with touchscreen HMI control panel and dual test enclosures on a blue steel cabinet
    Fig · 01 Pressure Cycle Test System · twin test-chamber cabinet · touchscreen HMI & keypad control
    Qualification testing supported to:
    DEF STAN STANAG MIL-SPEC
    High Pressure
    2000PSI
    Low Pressure
    500PSI
    Cycle Rate
    1–10CPM
    Total Cycles
    100K CYCLES
    Reservoir
    200LITRES
    01
    Overview

    Fatigue life is not a paper exercise.

    Fuel lines, valves, pumps, and hydraulic actuators experience thousands of pressure fluctuations across their service life. The only way to know they will survive is to cycle them — on real hardware, under real dual‑pressure loading, until failure or completion of the programme.

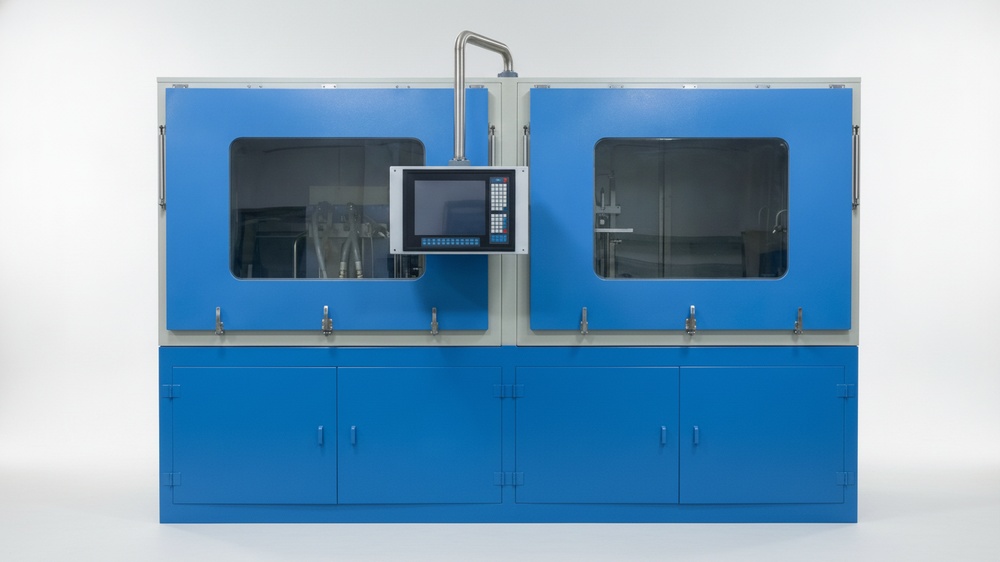

    Pressure Cycling Test Rig front view — twin test chambers with toughened-glass viewing windows, overhead stainless steel fill line, and touchscreen HMI panel
    Fig · 02 Test enclosure detail · toughened-glass viewing windows · overhead SS fill line

    The Pressure Cycle Test System is a high-precision, fully automated Pressure Cycling Test Rig designed to simulate cyclic pressure variations in fuel and hydraulic systems. It ensures that critical components — fuel lines, valves, pumps, and other pressure-carrying parts — can endure varying pressure conditions without failure, before they are certified for service.

    Built for aerospace, defence, automotive, rail, marine, oil & gas, and general industrial applications, the rig generates dual pressure outputs — 0–2000 psi (138 bar) high pressure and 0–500 psi (34 bar) low pressure — simultaneously, at an adjustable cycle rate of 1 to 10 cycles per minute, up to a total capacity of 100,000 cycles.

    Real-world pressure history, compressed into a repeatable lab test — proving fatigue life before a component ever sees service.

    As a Hydraulic Pressure Cycling Test Rig or Pneumatic Pressure Cycle Testing Bench, the system pairs real-time data acquisition with graphical visualisation and logging, giving research & development labs, component manufacturers, and quality control departments a single automated platform for pressure fatigue and endurance test stand work.

    02
    Architecture

    Four subsystems, one test bench.

    The Pressure Cycle Test System is built around a hydraulic power pack, filtration train, measurement & control system, and safety interlocks — all commanded from a single touchscreen control panel.

    Sub · 01

    Hydraulic Power Pack

    200-litre SS-304 reservoir with fluid-level indicator and temperature controller. Explosion-proof gear pump rated 2000 PSI / 300 GPH, driven by a 7.5 kW motor, with a bladder accumulator absorbing pressure fluctuation.

    Sub · 02

    Filtration System

    Suction strainer plus 6-micron absolute pressure-line filter and 10-micron nominal return-line filter. Non-bypass, explosion-proof filters with clogging indicators keep test fluid contamination-free across every cycle.

    Sub · 03

    Measurement & Control

    Digital pressure indicator (0–3000 PSI, ±0.25% accuracy), RTD-based temperature monitoring, solenoid-operated DC valves, and Omron digital counters for adjustable cycle-rate control.

    Sub · 04

    Safety Interlocks

    Automatic shutoff on motor overload, overheating, overpressure, or phase failure. Emergency stop button plus quick-disconnect couplings (QCDC) with non-return valves prevent fluid spillage and contamination.

    03
    Test Capabilities

    Six capabilities. One automated rig.

    From dual-pressure cyclic loading through automated safety shutdown — every test runs with full data logging for compliance reporting.

    T · 01

    Dual-Pressure Cyclic Loading

    Simultaneous high (0–2000 psi / 138 bar) and low (0–500 psi / 34 bar) pressure outputs simulate real dual-circuit operating conditions on a single test rig.

    0–2000 PSI · 0–500 PSI
    T · 02

    Programmable Cycle Control

    Cycle rate adjustable from 1 to 10 cycles per minute, with Omron digital counters tracking progress toward a total capacity of 100,000 cycles per test run.

    1–10 CPM · 100,000 Cycles
    T · 03

    Real-Time DAQ & Reporting

    Continuous data acquisition with graphical visualisation and logging supports detailed performance analysis and compliance-ready reporting for every test.

    Graphical Logging
    T · 04

    Precision Temperature Control

    Fluid temperature held between 15°C and 35°C via heat exchanger and chilled-water support, keeping test conditions stable across long-duration cycle runs.

    15°C–35°C
    T · 05

    Contamination-Free Fluid Handling

    6-micron absolute pressure-line and 10-micron return-line filtration, with explosion-proof non-bypass filters and clogging indicators, protects components under test.

    6μm / 10μm Filtration
    T · 06

    Automated Safety Shutdown

    Emergency shutdown activates automatically on overpressure, overheating, or low fluid level, with phase-failure protection and an operator emergency stop button.

    Overpressure · Overheat · E-Stop
    05
    Downloads

    Engineering design drawings.

    Engineering design drawings for the Pressure Cycle Test System, available as PDF.

    06
    Specifications

    Full technical parameters.

    Key system parameters for the standard Neometrix Pressure Cycle Test System / Pressure Cycling Test Rig configuration.

    System TypePressure Cycle Test System (Pressure Cycling Test Rig) — dual-pressure fatigue and endurance test stand
    High-Pressure Output0–2000 psi (138 bar)
    Low-Pressure Output0–500 psi (34 bar)  ·  Both outputs generated simultaneously
    Cycle RateAdjustable 1 to 10 cycles per minute · Omron digital counters
    Total Cycle CapacityUp to 100,000 cycles per test programme
    Fluid Reservoir200-litre SS-304 stainless steel tank · fluid-level indicator & temperature controller
    Pump & MotorExplosion-proof gear pump — 2000 PSI, 300 GPH · 7.5 kW drive motor
    Pressure DampingBladder accumulator — absorbs excess pressure fluctuation
    Filtration6-micron absolute pressure-line filter · 10-micron nominal return-line filter · non-bypass, explosion-proof, with clogging indicators
    Temperature Control15°C to 35°C via heat exchanger & chilled-water system
    Heating Oven (option)2.5 m × 1.5 m × 1.5 m · max. 150°C · 6-point thermostat PID control
    Testing Chamber1.5 m × 1.2 m × 1.1 m · front door with toughened-glass window, 0.7 m × 0.7 m
    InsulationCeramic paper, 1 m × 0.5 m, 6 mm thick
    Flexible HosesSS corrugated 1/4" × 1.2 m, 150°C, WP 6 bar · 1/4" × 1.2 m, 150°C, WP 100 bar · 1/4" BSP hose fitting plugs
    Air Pressure RegulationElectronic regulator — input 4–20 mA, output 0–8 bar · air filter unit 0–8 bar, 1/4" end fittings
    Pressure IndicationDigital pressure indicator, 0–3000 PSI, ±0.25% accuracy
    Temperature MonitoringRTD-based sensors
    Valve ControlSolenoid-operated DC valves for precise fluid control
    DAQ Panel600 (W) × 350 (H) × 310 (D) mm enclosure
    Safety InterlocksAuto shutoff on motor overload/overheat, overpressure, phase failure · emergency stop button · QCDC quick-disconnects with NRVs
    Control InterfaceTouchscreen control panel · automated operation & remote monitoring
    ConstructionSS-304 stainless steel frame & reservoir · wheel-mounted for relocation
    Reference StandardsISO 9001 · AS9100 · MIL-STD · ASTM · SAE
    Warranty & Support12-month standard warranty · installation, training & after-sales support · lifetime servicing options available
    07
    Applications

    Where it runs.

    Fuel and hydraulic system fatigue testing across aerospace, defence, automotive, energy, marine, and research sectors.

    A · 01Aerospace & Aviation — fuel valves, pumps, regulators, fuel injection systems, and hydraulic actuators for OEMs, MROs and R&D labs
    A · 02Defense & Military — fighter jets, helicopters, UAVs, military vehicles, naval vessels, submarines, and hydraulic weapon systems
    A · 03Automotive & Transportation — passenger cars, heavy-duty trucks, EVs, railway locomotives, metro trains and hydraulic braking systems
    A · 04Oil & Gas Industry — pipeline valves, pumps, actuators and offshore drilling equipment under cyclic pressure stress
    A · 05Energy & Power Generation — gas & steam turbines and renewable energy hydraulic components (wind, hydro, solar)
    A · 06Medical Equipment & Life Sciences — infusion pumps, hydraulic medical devices, and life-support / critical-care systems
    A · 07Marine & Shipbuilding — fuel supply systems in ships & submarines and naval defence hydraulic mechanisms
    A · 08Research & Development — prototype testing and new material evaluation in defence, aerospace, and academic laboratories
    08
    In Depth

    The complete technical read.

    Engineering narrative for test engineers, procurement teams, and QA managers evaluating a Pressure Cycle Test System before committing to a test programme.

    Why cyclic pressure testing matters

    The Pressure Cycle Test System is a critical solution for validating the durability and reliability of components exposed to fluctuating pressures. Designed to simulate real-world operating conditions, this Pressure Cycling Test Rig performs pressure cycling testing that ensures safe component performance across industries such as aerospace, automotive, hydraulics, and energy.

    As a Hydraulic Pressure Cycling Test Rig or Pneumatic Pressure Cycle Testing Bench, the system subjects components to repeated loading, helping engineers assess fatigue strength and service life. Precisely monitoring pressure-versus-time profiles — the same data a Pressure-Versus-Time Test Bench or Pressure Fatigue Test Stand records — gives accurate, repeatable data for endurance evaluation.

    For demanding environments, the rig behaves as a High-Pressure Cycling Test Rig or Pressure Pulse Testing System, replicating extreme pressure variations to uncover potential weaknesses. Applications range from a Component Endurance Test Stand for mechanical parts to a pressure test system for tubes and hoses, or a Valve Pressure Cycle Test Bench for individual valve qualification.

    1. Dual-pressure output & test capacity

    The system generates two independent, simultaneous pressure outputs:

    • High pressure: 0–2000 psi (138 bar)
    • Low pressure: 0–500 psi (34 bar)
    • Cycle rate: Adjustable from 1 to 10 cycles per minute, tracked on Omron digital counters
    • Total capacity: Up to 100,000 cycles per test programme

    As an Automated Pressure Cycle Test Machine and Programmable Pressure Cycling System, cycle parameters are set once and the rig runs unattended — functioning as a Burst and Fatigue Life Testing Rig or Pressure Repetition Testing Unit through to completion or failure detection.

    2. Hydraulic power pack & filtration

    Hydraulic power pack

    A 200-litre SS-304 stainless steel reservoir with fluid-level indicator and temperature controller feeds an explosion-proof gear pump rated 2000 PSI at 300 GPH, driven by a 7.5 kW motor. A bladder accumulator absorbs excess pressure to minimise fluctuations, while a heat exchanger maintains operating temperature between 15°C and 35°C.

    Contamination-free filtration

    A suction strainer and pressure-line filter combine 6-micron absolute filtration on the pressure line with 10-micron nominal filtration on the return line. Non-bypass, explosion-proof filters with clogging indicators ensure test fluid remains contamination-free throughout every cycle.

    3. Measurement, control & data acquisition

    The system employs advanced instrumentation for real-time monitoring and analysis:

    • Digital pressure indicator: 0–3000 PSI gauge with ±0.25% accuracy.
    • RTD-based temperature monitoring: continuous fluid temperature tracking.
    • Solenoid-operated DC valves: precise, repeatable fluid control.
    • Real-time data acquisition: graphical visualisation and logging for detailed performance analysis and compliance reporting.
    • Touchscreen control panel: user-friendly interface for automated operation and remote monitoring.

    4. Safety mechanisms & interlocks

    Automatic shutoff conditions include:

    • Motor overload or high temperature
    • Overpressure detection
    • Low fuel/fluid level
    • Phase failure protection

    An emergency stop button gives operators instant system shutdown, while quick-disconnect couplings (QCDC) with non-return valves (NRVs) prevent fluid spillage and contamination during hose changeovers between test articles.

    5. Construction, mobility & durability

    Built from SS-304 stainless steel for corrosion resistance, the rig uses globally recognised brands for pumps, motors, and sensors, and is wheel-mounted for easy relocation between test setups. Each unit undergoes 100% quality testing and performance validation for cycle accuracy and emergency shutdown response before dispatch.

    Applications across industries

    The Pressure Cycle Test System supports fatigue and endurance testing across:

    • Aerospace & Aviation: fuel valves, pumps, regulators, fuel injection systems, and hydraulic actuators/pipelines for OEMs, MROs and R&D labs.
    • Defense & Military: fighter jets, helicopters, UAVs, military vehicles, naval vessels, submarines, and weapon systems with hydraulic actuators.
    • Automotive & Transportation: passenger cars, heavy-duty trucks, EVs, railway locomotives, metro trains, fuel injection and hydraulic braking systems.
    • Oil & Gas Industry: pipeline valves, pumps, actuators, and offshore drilling equipment.
    • Energy & Power Generation: gas & steam turbines and renewable energy applications (wind, hydro, solar).
    • Medical Equipment & Life Sciences: infusion pumps, hydraulic medical devices, life-support and critical-care systems.
    • Marine & Shipbuilding: fuel supply systems in ships & submarines, naval defence hydraulic mechanisms.
    • Research & Development: prototype testing and new material evaluation in defence, aerospace, and academic laboratories.

    Technical specifications summary

    High-Pressure Output0–2000 psi (138 bar)
    Low-Pressure Output0–500 psi (34 bar)
    Cycle Rate1–10 cycles/minute
    Total Cycle CapacityUp to 100,000 cycles
    Filtration6-micron pressure line / 10-micron return line
    Temperature Range15°C to 35°C (heat exchanger + chilled water)
    Reservoir200 litres, SS-304
    ComplianceISO 9001, AS9100, MIL-STD, ASTM, SAE

    Delivery and support

    • Design and documentation: comprehensive design reports, operating manuals, and schematics.
    • Training: operator training on system usage, safety protocols, and data analysis.
    • Warranty and maintenance: 12-month standard warranty, with lifetime servicing options available.
    • Commissioning: installation, training and after-sales service at the customer’s premises, with up to 10 years of client support available.

    Why choose Neometrix’s Pressure Cycle Test System?

    By investing in a high-quality Pressure-Versus-Time Test Bench such as the Neometrix Pressure Cycle Test System, manufacturers achieve faster qualification, improved safety, and compliance with international standards — whether it is called a Cyclic Pressure Test Equipment set, a Pressure Fatigue Test Stand, or simply a Pressure Cycling Test Rig, every unit is engineered to ensure that every component is fit for long-term operation.

    Neometrix Engineering Pvt Ltd is a leading manufacturer, supplier, and exporter of pressure cycle test systems from India, supporting aerospace, defence, and industrial customers with installation, training, and long-term after-sales service.

    09
    FAQ

    Common questions.

    Plain-language answers from the engineering team.

    Q · 01 What is the Pressure Cycle Test System?
    The Pressure Cycle Test System, also known as a Pressure Cycling Test Rig, is a fully automated system designed and manufactured by Neometrix Engineering Pvt Ltd, India, to simulate cyclic pressure variations in fuel and hydraulic systems. It subjects fuel lines, valves, pumps, and other pressure-carrying components to repeated dual-pressure loading so engineers can validate fatigue strength before a part enters service.
    Q · 02 What pressure ranges and cycle rates does the system support?
    The system generates two simultaneous pressure outputs — 0 to 2000 psi (138 bar) high pressure and 0 to 500 psi (34 bar) low pressure. Cycle rate is adjustable from 1 to 10 cycles per minute, with a total test capacity of up to 100,000 cycles, controlled via Omron digital counters.
    Q · 03 Who manufactures the Pressure Cycle Test System?
    The Pressure Cycle Test System is designed and manufactured by Neometrix Engineering Pvt Ltd, a leading test equipment manufacturer and supplier based in India, exporting to aerospace, defence, and industrial customers worldwide.
    Q · 04 What industries use the Pressure Cycle Test System?
    The Pressure Cycling Test Rig is used across aerospace & aviation, defence & military, automotive & transportation, oil & gas, energy & power generation, medical equipment, marine & shipbuilding, and research & development sectors for fuel and hydraulic component fatigue testing.
    Q · 05 How is fluid contamination controlled during testing?
    The system uses 6-micron absolute pressure-line filtration and 10-micron nominal return-line filtration, with explosion-proof non-bypass filters and clogging indicators, to ensure contamination-free fluid handling through every test cycle.
    Q · 06 What temperature range can the system operate in?
    Fluid temperature is precisely controlled between 15°C and 35°C using a heat exchanger with chilled-water support. A separate heating oven option is available up to 150°C with 6-point thermostat PID control for thermal cycling test variants.
    Q · 07 Is the Pressure Cycle Test System customizable?
    Yes, Neometrix offers customized versions of the Pressure Cycle Test System — including pressure range, cycle rate, reservoir capacity, and filtration grade — tailored to specific client component specifications and test standards.
    Q · 08 Does the system comply with relevant standards?
    Yes, the Pressure Cycle Test System is designed to comply with ISO 9001, AS9100, MIL-STD, ASTM, and SAE requirements, and can be configured to customer-specified acceptance standards.
    Q · 09 What safety features are built into the test rig?
    Automatic emergency shutdown is triggered by overpressure, overheating, low fluid level, or phase failure. The system also includes an emergency stop button, pressure relief valves, and quick-disconnect couplings with non-return valves to prevent fluid spillage.
    Q · 10 How can I get a quotation for the Pressure Cycle Test System?
    You can request a quotation for the Pressure Cycle Test System by contacting Neometrix Engineering Pvt Ltd through the website, or by reaching out via email or phone. Neometrix exports the system to global customers in defence, aerospace, and industrial sectors across multiple countries.
    Get a proposal

    Tell us your pressure ranges
    and cycle counts.

    We size the pump and reservoir, configure the pressure and cycle-rate profile, and walk through the qualification programme with your engineering team before you commit.

    Request proposal +91 7777 876 876
