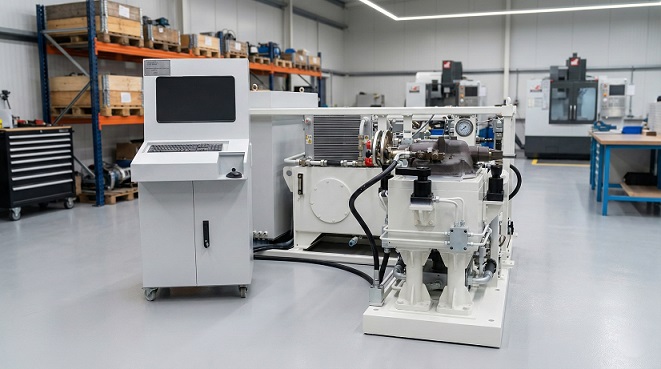

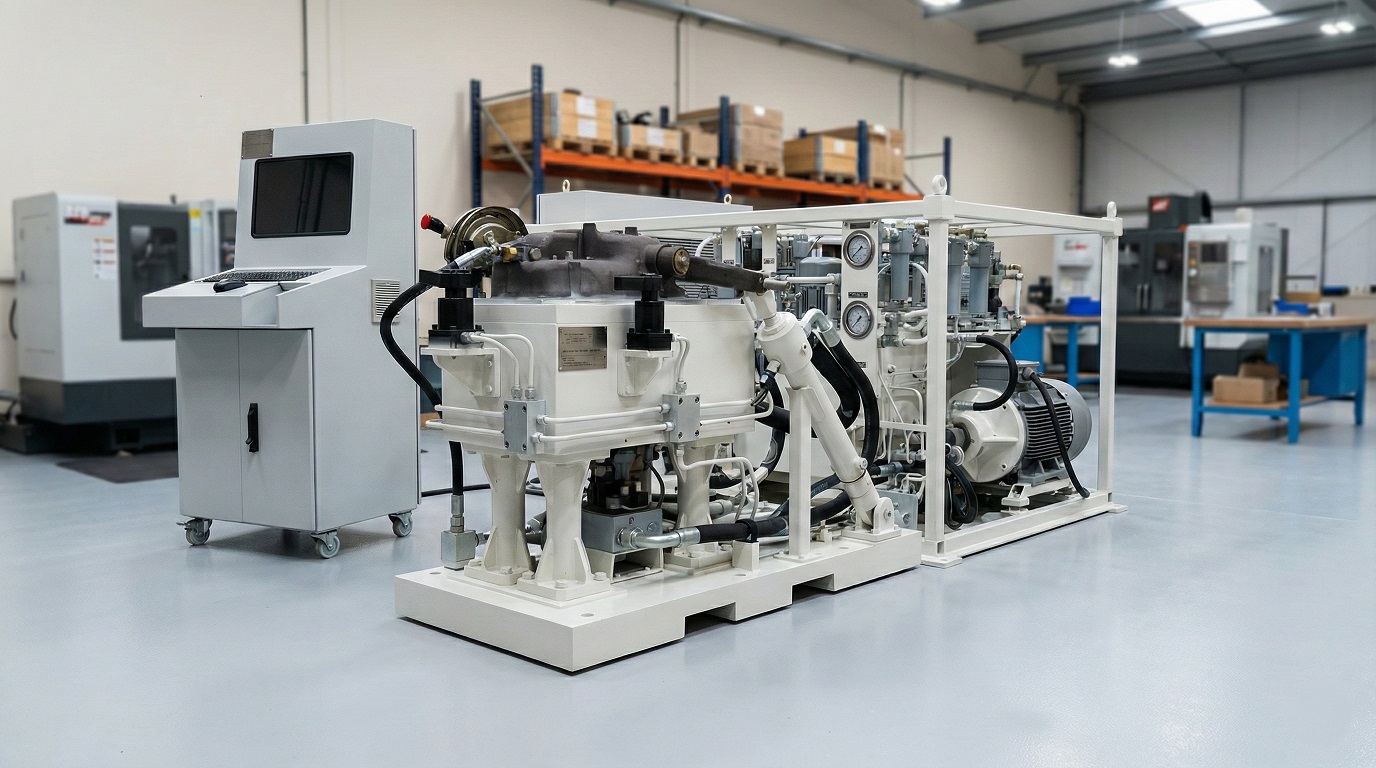

Rear Cover Hydraulic Test Rig — Electro-Hydraulic Functional Test Bench, rated to 250 bar / 46 LPM.

Introduction

In any hydraulic assembly where the rear cover also governs valve behaviour, tiny deviations don't stay "tiny" for long. A few bar of pressure error, a sluggish response valve, an unnoticed free play band, or inconsistent drop/hunting behaviour can turn into real field failures: unstable motion, slow or non-repeatable actuation, overheating, seal damage, premature wear, nuisance trips, or in the worst case — unsafe machine behaviour under load. This Rear Cover Test Rig is a controlled, repeatable verification environment that forces the unit under test to demonstrate correct functional behaviour across low-flow and high-flow conditions, pressure thresholds, timing windows, and stability checks — while recording the evidence digitally.

Rear cover: what it is and where it is used

A rear cover is the end-cap / end-plate assembly bolted to the rear side of a hydraulic unit (typically a pump, motor, or a hydrostatic drive/transmission module). In many modern designs, it is not just a protective cover — it is a functional hydraulic sub-assembly that contains precision oil passages and, often, integrated valve functions.

• Seals and closes the hydraulic housing, maintaining pressure integrity and preventing leakage.
• Forms internal oil galleries/passages that route pressure, return, charge, and drain flows correctly.
• Provides external interfaces (ports, test points, manifold connections, mounting features).
• Supports internal components (bearing seats, alignment features, thrust/end surfaces).
• Integrates control functions, such as relief/pressure limiting, response/modulation valves, isolator/shut-off functions, check/anti-cavitation functions, and hunting-damping features.

Rear covers are widely used in hydraulic pumps (gear, vane, axial piston), hydraulic motors, and hydrostatic transmissions (HST) / drive modules used in tractors and harvesters, skid steer loaders, excavators and compact construction equipment, and industrial hydrostatic drives. This is why rear cover testing is treated as functional validation, not just dimensional inspection — the test rig verifies how the rear cover behaves hydraulically under defined operating conditions.

What the machine does

The rig validates functional performance of rear cover models across defined flow conditions, pressure checks, timing checks, drop behaviour (with response valve open/closed), and stability checks (hunting), using computerized measurement and control so dynamic pressure/flow/temperature/time can be displayed, recorded, and reported. The rig is set up to test four different models, and the operator must choose the correct model because each model has different parameters. Examples of model-wise functional coverage include lift movement at 5 LPM and 16 LPM, response valve pressure, free play, drop (response valve open/close), hunting, lifting time, and lowering time, with isolator valve checks on selected models.

Measurement, control, and automation

Multiple pressure transmitters in ranges including 0–160 bar and 0–250 bar provide dynamic indication and recording into the DAQ/control system. Filtration cleanliness is treated as a controlled condition: multiple filters with clogging indication are monitored, with status shown on the test screen. The control panel and DAQ backbone include an emergency shutdown switch, PLC display of process parameters, keyboard/mouse, and UPS for controlled shutdown, built on a Siemens PLC / DAQ platform (IM151-8 PN DP CPU with I/O modules), WinCC flexible runtime (128 tags), a customized software application, and a touch monitor. Wires are routed through cable trays, with power and control wiring separated and junction boxes used for distribution.

Operator software experience

The main screen provides five operator paths: Test VTU (start test and select model), Maintenance mode (sensor calibration / edits, engineer-only use), Backup report (view test reports in Excel format), VTU test program edit (adjust parameters per model), and Exit. On the model test screen, each step changes colour: after completion the step turns blue when in range; if out of range it stays red, giving immediate visibility to failure points. A system status screen shows the health of I/O: healthy signals remain green, unhealthy signals turn red. The computer/DAQ system supports test process display, online values, real-time charts/graphs, test result storage/retrieval, manual keyboard entry for test item details, and OK / NOT OK result generation.

Test execution workflow

The operating procedure is designed around a guided "acknowledge" flow and defined lever positions: start the program, enter details, select model, start system, clamp, and start cycle; perform flow tests by moving the PC lever to defined positions and pressing acknowledge at each step; run the relief valve pressure test with the lever ahead of the stopper, then acknowledge; sequence drop tests (response valve open/close) with acknowledge prompts, motor stops, and timer start actions; run the free play test by moving the lever just before the stopper and further ahead with acknowledge at both points; and trigger the isolator valve check by moving the lever up and acknowledging. If acknowledge is not pressed at the defined positions, the test will not proceed further — tests are interlocked by design.

Safety design

The system is high pressure and intended for trained personnel, with risk of injury if mishandled. The motor-pump unit will not start or will shut off if any of these occur: low oil level, motor overload, input power supply phase disorder, any filter clogged condition, or emergency stop activation. Installation cautions include matching motor rotation direction to the pump, ensuring good coupling with anti-vibration pads, filling clean hydraulic oil, keeping the suction valve open, increasing pressure slowly, and keeping the tank covered. Operational discipline requires not running the motor with the suction valve closed, with low or contaminated oil, in the anticlockwise direction, or interrupting the motor while running.

Maintainability and serviceability

• Before/after each use: visual check, watch for leaks, and release pressure so indicators read zero after operation.
• Monthly: check tubing/piping/fittings for leakage; clean system to keep dust/dirt free.
• Every 3 months: pump performance/leaks; clean filter and filter elements; re-torque fittings as needed.
• Every 6–12 months: full-pressure leak inspection; test/calibrate gauges/sensors/transmitters; replace hydraulic elements; verify valve/relief performance in-situ.
• Every 5 years: change major items like flow meter, relief valve, pressure control valve, motor, pump, etc.

If pump runs but no pressure is indicated, checks include reviewing return flow near the tank, switching flow selection / DC valve via the flow meter, partially closing the needle valve before the pressure line filter, and slowly tightening the pump relief.

Utilities and site requirements

• Hydraulic oil: VG-46 or equivalent.
• Power: 3-phase 415±5 V and 1-phase 220±5 V.
• Earthing: proper protective earthing required.

Conclusion

The Rear Cover Hydraulic Test Rig closes the gap between "it seems to work" and "it is proven to work, every time, on every unit," combining a high-pressure hydraulic supply, regulated flow control, calibrated measurement, model-wise test recipes, operator interlocks, and automated pass/fail reporting into a single production-ready bench. Model coverage, fixtures, and test recipes can be adapted to customer rear cover variants and acceptance limits.
