Practice Head Torpedo

Location:
E-148 Sector-63,
Noida, Delhi-NCR, UP, India 201301

Sales & Service
+91-7777-876-876 / 0120-4500-800
For Hiring Related Queries
+91-8800021605 / 7290012361

Request A Quote

About

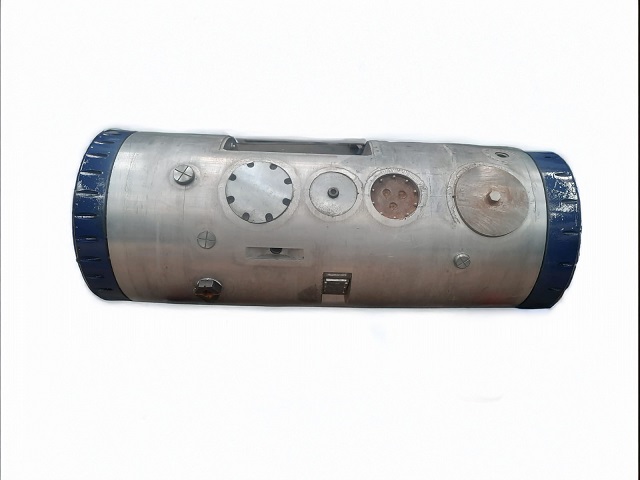

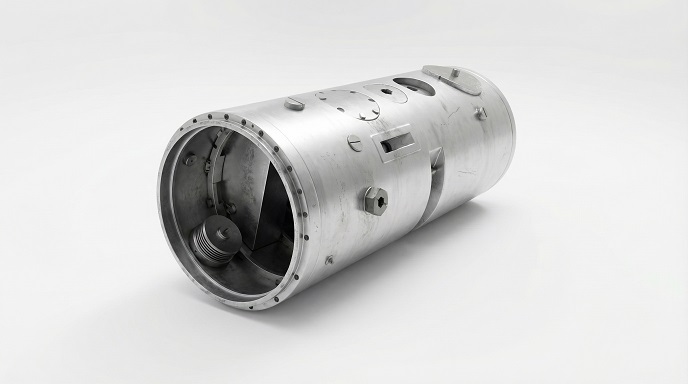

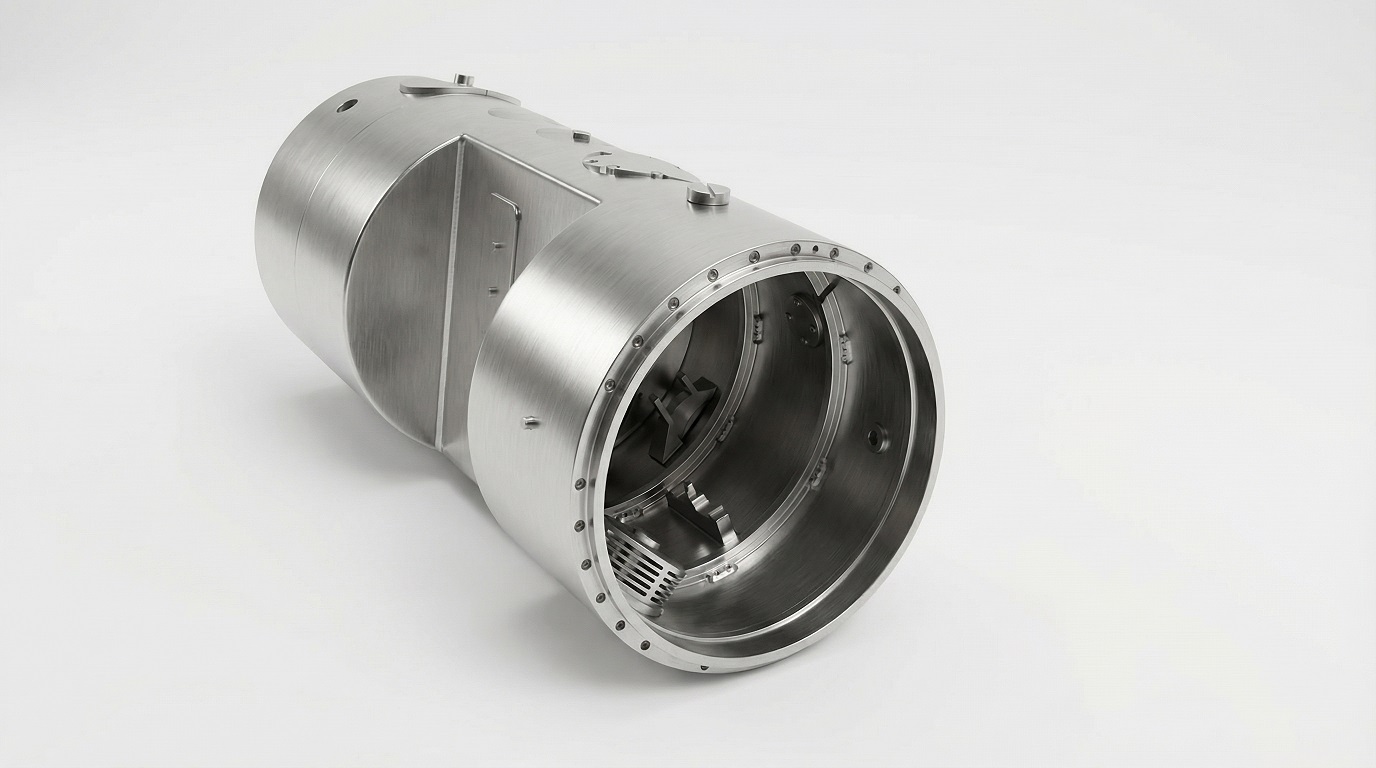

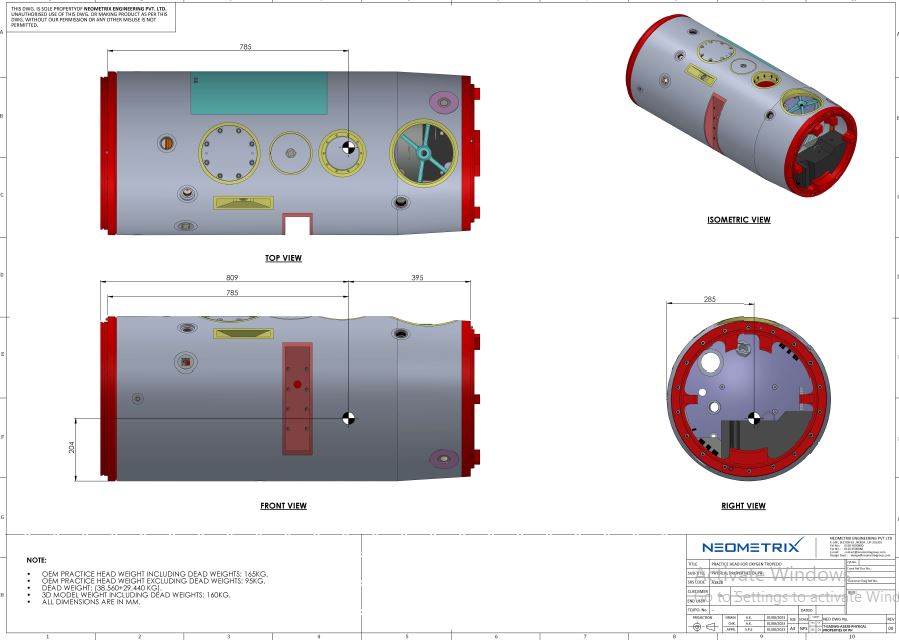

Practice Head is assembled with Practice Torpedo intended for carrying out exercise firings. It is assembled with Homing Head in the forward section and oxygen flask in the rear section. Practice Head imparts positive buoyancy to the Torpedo at the end of run. The Practice Head is divided into two compartments viz. Ballast Compartment (Houses Light Device, Depth & Roll Recorder, Signal Flare Ejector, Discharge Valve, Stop Cock, Water discharge Valve, Bellow reducing Valve, Release Mechanism, Recess, Bypass Valve, Pressure Equalizer, Float, Sinking Plug etc.) which provides positive buoyancy at the end of run by discharging water (140 ltrs.) filled in the compartment and Instrument compartment (dry), houses (safety & recovery unit and its battery, combined homing and influence exploder equipment, noise maker, bollards & safety valve etc.) The recess in Ballast compartment houses the float which gets inflated at the end of run to provide floatation to the surfaced Torpedo. Several hand holes/recesses are provided on the casing/shell of Practice Head for assembly of the following components:-

Signal Flare Ejector Assembly.

Depth and Roll Recorder Assembly

Light Device

Pressure equalizer

Drain/Discharge Valve assembly

Bollard Assembly

Holding for Floater/Balloon Assembly

Sinking Valve

Safety Valve

Inspection hand hole

Image Gallery

Technical Details

Specifications

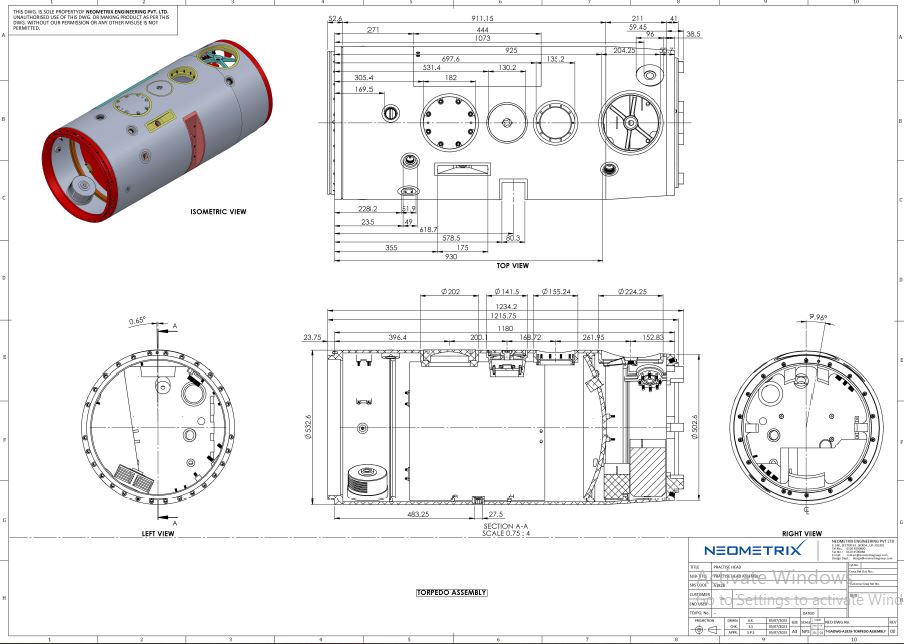

Aluminum Alloy (AlMg5) Casing Body: Material: AlMg5,
Larger Outer Diameter of the Casing: 532.4 MM
Smaller Outer Diameter of the Casing: 503.05 MM
Total Length: 1204.20 MM
Thickness: 6-8 mm
Slope of the Tapered Portion: 1/8

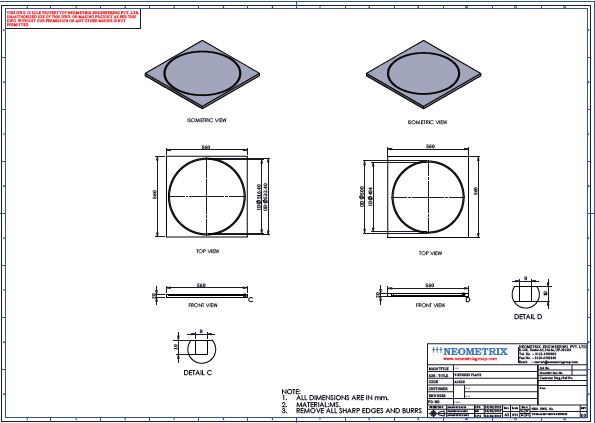

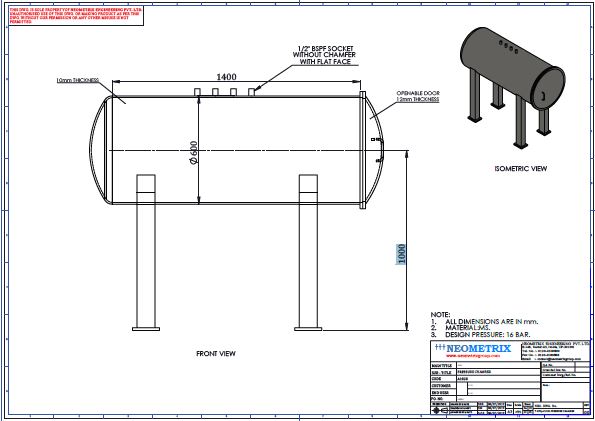

Maximum External Test Pressure: 12 kgf/cm2
Front Side Collar: Material: AlMg5
Maximum Outer Diameter: 500 MM
Pitch Circle Diameter: 468 MM

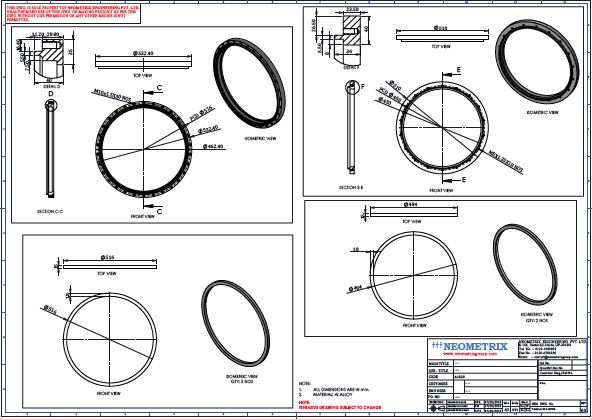

All Dimensions as per drawing T-DAP-A1828-MDWG-C&R-REV-00
Back Side Collar:
Material: AlMg5
Maximum Outer Diameter: 532.40 MM
Pitch Circle Diameter: 516 MM
All Dimensions as per drawing T-DAP-A1828-MDWG-C&R-REV-00
Ribs:
Material: AlMg5
Max Outer Diameter: 516. 4 MM
Thickness: 15 MM
Inner Diameter: 480.4 MM

Applications

In a torpedo, the ballast components and instrument compartment play crucial roles in maintaining stability, control, and overall operational effectiveness. The ballast system primarily manages buoyancy and trim, ensuring that the torpedo maintains a stable trajectory underwater. This includes ballast tanks that adjust buoyancy for depth control, weight distribution mechanisms to prevent unintended pitch or roll, and trim systems that help keep the torpedo level. In some advanced torpedoes, compressed air or pumps may be used to dynamically adjust the ballast, allowing for precise manoeuvring. The instrument compartment houses essential electronics and control systems that govern the torpedo's functionality. This includes navigation and guidance systems such as gyroscopes, accelerometers, and sonar, which help maintain the intended course. Additionally, it contains control electronics responsible for managing propulsion, steering, and detonation mechanisms. Communication systems may also be present, allowing the torpedo to receive updates or commands if needed. Furthermore, power sources like batteries or fuel cells supply the necessary energy to operate all these systems. Together, the ballast components and instrument compartment ensure that the torpedo remains stable, follows its intended path, and effectively reaches its target.

Enquire Now

Key Features

Buoyancy Control: Adjusts ballast to regulate depth
Trim Stability: Ensures proper weight distribution to prevent pitch or roll.

Dynamic Adjustment: Use compressed air for real-time buoyancy control.
Hydrodynamic Efficiency: Helps maintain a streamlined motion through water.
Automatic Depth Regulation: Works with on-board sensors to maintain the desired depth.
