NMX‑HWR‑1000 / Rev 01 / SAE · CE · ISI · BIS / Noida · India 2026 · Product Page

NMX-HWR-1000 · DELIVERED

Helicopter washing rig. Towable. Self-contained.

Name: Helicopter Washing Rig — Trailer Mounted
Brand: Neometrix

A twin-axle flightline trailer that carries everything an airframe wash crew needs — 1,000 litres of water in food-grade stainless, a 200 bar triplex plunger pump with an independent standby, a foam system, compressed air, 30 m hose reels, and its own 10 kVA silent generator. Delivered to the Indian Air Force; built to your tender specification.

Enquire — washing rig Capability sheet (PDF)

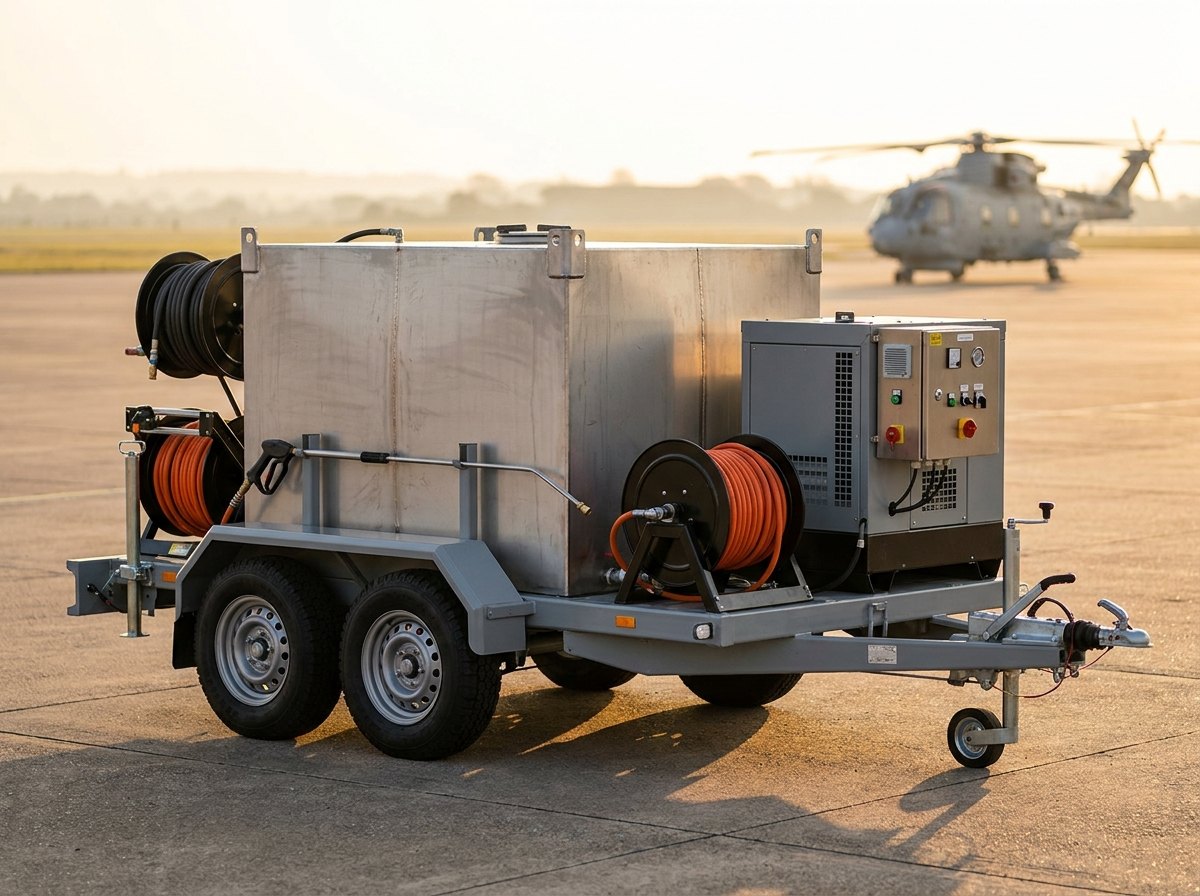

Trailer-mounted helicopter washing rig with stainless steel water tank, hose reels, spray lance and silent diesel generator on an airfield apron

Fig · 01 Trailer-mounted washing rig — representative configuration of the delivered system

Max Pressure

200bar

Water Tank

1000L · SS

Power Pack

10kVA DG

Trailer

3ton · twin axle

Hose Reels

30m each

ISO 9001 / 14001 / 45001 Delivered — Indian Air Force GeM · MII Class-1 supplier Noida · India

Overview

Airframes corrode faster than they fly out of hours.

Salt air, exhaust soot, hydraulic film, and dust shorten airframe life and hide cracks from inspection — which is why every air arm mandates scheduled washing, and why coastal and naval operators tender washing rigs on repeat. The problem is infrastructure: most flightlines have no water point, no power point, and no time. This rig solves all three at once.

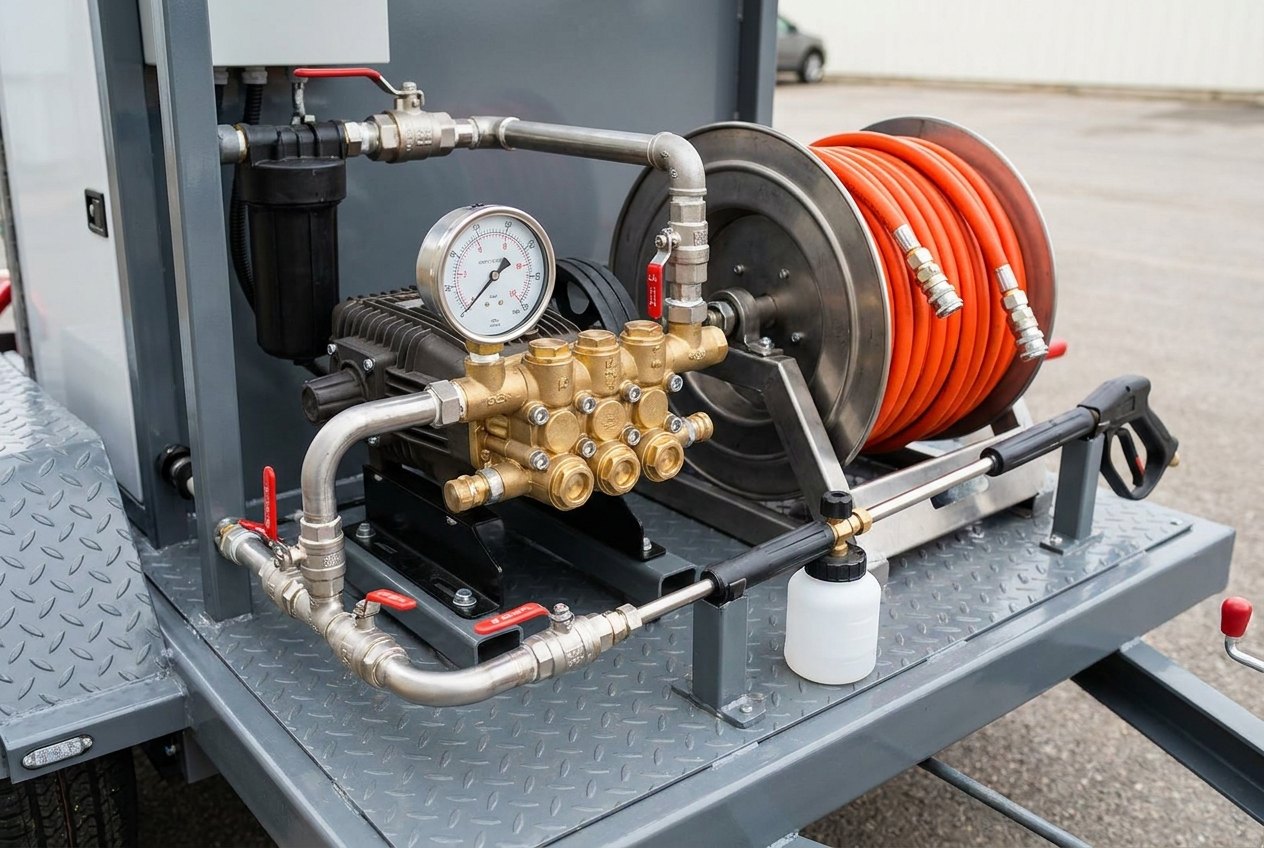

Pump bay of the washing rig: triplex plunger pump with brass head, stainless plumbing, hose reel and foam lance

Fig · 02 Pump bay — triplex plunger pump, stainless plumbing, quick-disconnect reels

Everything is on the trailer: water, detergent, pressure, air, and power. Tow it to the aircraft with any standard tow tractor — the 12/24 V seven-pin lighting harness and overhead aviation lights keep it legal on the flightline at night — drop the parking jack, and the crew is washing within minutes. No bowser, no cable run, no waiting for the wash bay slot.

The pumping group is engineered for airframe care, not car-park brute force: an adjustable-pressure triplex plunger pump with ceramic pistons delivers anything from a gentle rinse to a 200 bar cut, a dedicated foam pump lays cleaning compound from its own 30 L tank, and a standby plunger pump keeps the wash schedule alive if the main ever drops out.

One trailer, one tow tractor, one crew — a complete washing detachment for a helicopter squadron.

Delivered · In Service

Supplied to the Indian Air Force

Designed, built, and delivered against an IAF requirement through the Government e-Marketplace (2022) as a Make-in-India Class-1 local supplier — from tender specification to flightline.

Self-Contained · By Design

No site services required

Own water, own foam, own compressed air, own silent 10 kVA diesel power with electric start — plus a changeover switch to run from shore supply where the flightline has it.

Documented · Supportable

Manuals and two-year spares

Operator and technical manuals, safety instructions, parts list, and a manufacturer-recommended list of spares covering two years of operation — filters, seals, valves, guns, and switchgear.

Architecture

Four systems on one deck.

Water, foam, air, and power — plumbed in shock-proof steel with manual isolation valves for maintenance, controlled from a customised panel with PLC / logic-relay sequencing, emergency stop, and full RCCB / MCCB protection.

FIG · 03SYSTEM SCHEMATIC · WATER · FOAM · AIR · POWER

Fig · 03 Tank to lance in four stages — with a redundant pump path and independent foam line

Sys · 01

Pumping Group

Main triplex plunger pump — forged brass head, ceramic pistons, double-gasket sealing, 10–100 µm intake filtration, integral gauge, pressure-adjustment knob, and auto-shutoff microswitch — backed by an independent standby plunger pump.

Sys · 02

Water & Foam

Food-grade stainless tank of 1,000 L and above with overhead refill, electric (non-conducting) quantity meter, and maintenance drain — plus a separate 30 L compound tank with its own foam pump for pre-soak and lather passes.

Sys · 03

Air System

Up to 2.5 hp, 50 L receiver at 120 psi with its own 30 m hose reel, integral gauge, safety and relief valves — for blow-drying crevices, driving air tools, and clearing lines after the wash.

Sys · 04

Power & Control

Silent 10 kVA (15 kVA max) BS-compliant diesel generator, 230 V with 12 V DC systems, electric start, 50 L fuel tank, class-H insulation — with commercial-supply changeover, 75 ft earthing reel, and E-stop.

Walkaround

An aviation trailer, not a garden cart.

The platform under the wash gear is engineered to flightline rules: an aviation-grade steel deck of 11 × 6 feet on twin fixed centre axles, 3-ton capacity, low bed height, parking brakes, a non-steerable towing bracket for tractor trains, 16-inch wheels with a mounted spare, and the lighting harness the tarmac demands.

FIG · 04GENERAL ARRANGEMENT · SIDE ELEVATION

Fig · 04 4.15 m overall · twin centre axles · simplified from the manufacturing GA drawing

Holding a washing-rig tender specification? Send it across — we reply with a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference configuration, as delivered.

The parameters below reflect the configuration supplied to the Indian Air Force. Every subsystem is re-scoped against your tender — tank capacity, pressures, mounting, and power are all configurable.

Full specification — expand

System	Trailer-mounted, self-contained helicopter / aircraft washing rig
Trailer	Aviation-grade steel platform 11 ft × 6 ft · twin fixed centre axles · 3-ton capacity · low bed height · parking brakes and manual jack · 16″ wheels + spare · 12/24 V 7-pin harness with overhead aviation lights
Main Pump	Triplex plunger · 3.5–8.0 GPM rated · 200 bar max · forged brass head, ceramic pistons, double-gasket sealing · 10–100 µm intake filter · adjustable pressure · auto-shutoff microswitch
Standby Pump	Independent triplex plunger · 2.0–4.0 GPM · separate gravity sediment intake filter and dedicated hose reel
Hose & Couplings	30 m high-pressure hose per pump on separate reels · quick-disconnect couplings for guns, lances, and accessories
Water Storage	≥1,000 L food-grade stainless steel tank · overhead refill · electric (non-conducting) quantity meter · drain valve
Foam System	Separate 30 L cleaning-compound tank · dedicated foam pump up to 4 GPM
Air System	Up to 2.5 hp, 50 L, 120 psi compressor · 120 L/min at 1 bar · 30 m air hose reel · gauge, safety and relief valves
Power Pack	Silent diesel generator · 10 kVA rated / 15 kVA max · 230 V ±10 V, 50 Hz · electric start, 12 V battery · 50 L fuel tank · class-H insulation · BS-compliant multi-cylinder engine
Electrical	220 V AC + 12 V DC systems · commercial-supply changeover with contactor relay · RCCB / MCCB / overload protection · PLC / logic-relay control · customised panel · emergency stop · 75 ft earthing reel
Plumbing	Shock-proof steel plumbing with manual isolation valves for maintenance
Documentation	User, operator, and technical manuals · safety instructions · parts list · two-year manufacturer-recommended spares list (MRLS)
Compliance	SAE · CE · ISI · BIS as applicable
Status	Delivered to the Indian Air Force through GeM (2022) · configurable to customer tender specification

PDF · 1 page

Helicopter Washing Rig — Capability Sheet

Tender Response

Send your specification — clause-by-clause compliance matrix

Variants

One platform, many tender names.

Procurement documents call this equipment many things — aircraft washing rig, helicopter wash system, aircraft exterior cleaning system, washing trolley, wash cart, or a total aircraft wash system. Whatever the nomenclature, the engineering underneath is the one described on this page, configured to the clauses of your specification.

Var · 01

Skid & Truck Mounted

The same water / foam / air / power architecture packaged on a static skid for wash bays, or on a truck bed for base-wide mobile detachments.

Var · 02

Larger Capacity

Tank capacities beyond 1,000 L, higher-output pump groups, and dual-lance simultaneous operation for fixed-wing and heavy-rotorcraft washing.

Var · 03

Hot Wash & De-Icing

Water-heating modules for degreasing and cold-climate operation, engineered into the same deck and power budget on request.

Var · 04

Engine Wash Adaptation

Compressor-wash (rinse ring) supply configurations for gas-turbine compressor cleaning, built to the engine OEM's flow and purity requirements.

Applications

Who washes with it.

Any operator whose airframes live outdoors — and every maintenance organisation with a wash schedule to keep.

A · 01Helicopter squadrons — scheduled airframe washing on the flightline

A · 02Naval and coastal aviation — salt-removal / de-salination wash-downs after over-water sorties

A · 03Air force stations and army aviation bases without fixed wash-bay infrastructure

A · 04MRO facilities — pre-inspection cleaning before NDT and survey

A · 05VIP and government fleets — appearance and corrosion-control washing

A · 06Airport GSE fleets — ground equipment and vehicle washing from the same rig

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Is 200 bar safe on an airframe?

200 bar is the pump's maximum, not the working prescription. Output pressure is operator-adjustable by knob from a gentle rinse upward, and the wash technique — nozzle choice, stand-off distance, spray angle — follows the aircraft maintenance manual. The headroom exists for wheels, undercarriage bays, and GSE, where a hard cut is wanted; radomes, seals, and sensors are washed at a fraction of it.

Q · 02 Does it really need no site services?

None. The trailer carries its own water (≥1,000 L), cleaning compound, compressed air, and a silent 10 kVA diesel generator with electric start. Where the apron has power, a changeover switch runs the rig from shore supply instead — saving fuel and noise. A 75 ft earthing reel grounds the rig beside the aircraft.

Q · 03 What happens if the main pump fails mid-schedule?

The rig carries an independent standby triplex plunger pump with its own intake filtration and its own hose reel. The wash programme continues at reduced flow while the main pump is serviced — and the two-year MRLS spares package includes the seals, valves, and gaskets that plunger pumps consume.

Q · 04 Can you build to our tender specification exactly?

That is the standard engagement. Send the specification — in any language, any format — and we return a clause-by-clause compliance matrix identifying full compliance, proposed equivalents, and any clarifications needed. The delivered IAF rig was itself built to a minimum-specification tender, clause by clause.

Q · 05 What towing and lighting standards does the trailer meet?

The trailer is built for flightline tractor trains: non-steerable towing bracket, low bed height, twin fixed centre axles with parking brakes on at least one axle, 16-inch wheels with a mounted spare, and a 12/24 V seven-pin lighting harness with overhead aviation lights compatible with standard tow tractors. SAE, CE, ISI, and BIS standards are applied as applicable to the configuration.

Q · 06 Do you export this equipment?

Yes — washing rigs are ground support equipment not typically subject to export control, and we supply to government operators and MROs internationally. Export formalities, documentation, and inspection arrangements are handled as part of the programme; the response starts with the same compliance matrix against your specification.

↗
