In industries where hydraulic systems operate under extreme pressure conditions, component integrity is not optional — it is essential. From aerospace assemblies to oil & gas manifolds and heavy-duty hydraulic cylinders, the ability to withstand ultra-high static pressure defines safety, compliance, and operational reliability.
One of the most reliable validation methods for such applications is proof pressure testing at 1000 bar.
What Is Proof Pressure Testing?
Proof pressure testing is a controlled static pressure test where a hydraulic component is subjected to a pressure higher than its normal working pressure for a defined duration. The objective is to verify structural integrity without causing permanent deformation or failure.
Unlike burst testing, proof testing confirms strength and sealing performance while keeping the component operational after testing.
Why 1000 Bar Testing Is Critical
Testing at pressures up to 1000 bar is especially important in:
-
Aerospace hydraulic circuits
-
Oil & gas high-pressure systems
-
Defense hydraulic actuators
-
Industrial hydraulic power packs
-
Heavy machinery and mining equipment
High-pressure components must resist:
-
Seal extrusion
-
Micro-leakage
-
Weld weakness
-
Material fatigue
-
Structural distortion
Even minor defects can lead to catastrophic field failures. Proof pressure testing acts as a preventive safeguard.

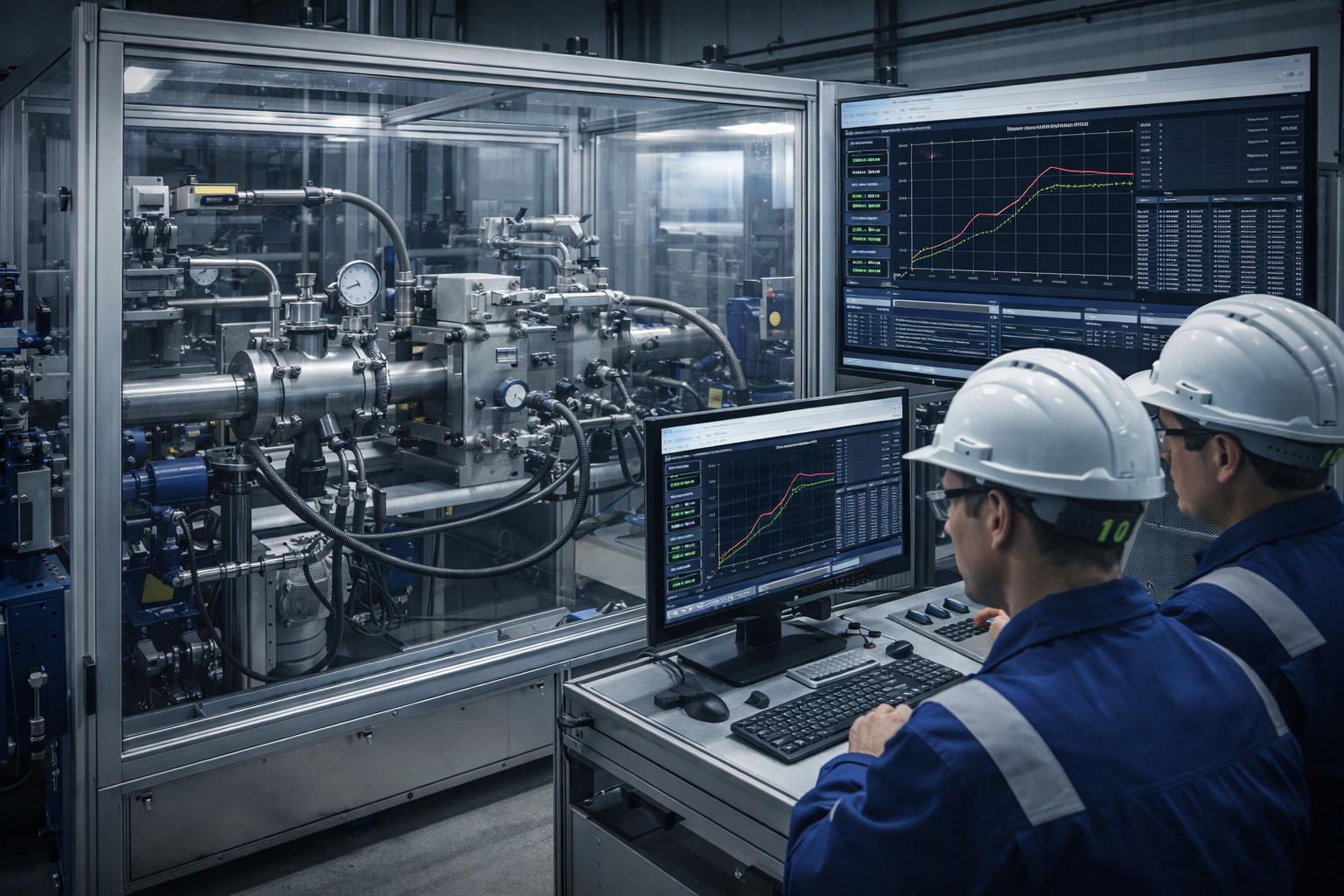

Key Features of a Modern 1000 Bar Proof Pressure Test System
A high-performance proof pressure test bench typically includes:
1️⃣ Precision Pressure Control
Controlled ramp-up and pressure holding cycles ensure stable testing conditions.
2️⃣ High-Accuracy Sensors
Digital pressure transducers provide real-time monitoring and repeatable measurements.
3️⃣ Data Logging & Reporting
Automated recording of pressure curves, hold time, and leak results improves traceability.
4️⃣ Safety Interlocks
Shielded enclosures and emergency cutoffs protect operators from high-pressure hazards.
5️⃣ Automated Test Sequences
PLC-based systems reduce human error and ensure consistent validation cycles.
Benefits for Manufacturers
✔ Reduced product recalls
✔ Compliance with global standards
✔ Improved brand reliability
✔ Lower warranty failures
✔ Increased customer confidence
Proof pressure validation is not merely a quality check — it is a risk management strategy.
Industrial Use Case Example
Imagine a hydraulic manifold designed for offshore drilling operations. If a weld joint fails under extreme pressure, the result could be severe downtime or environmental risk. By validating the component at 1000 bar before deployment, manufacturers eliminate uncertainty and confirm operational readiness.
