NMX‑MGB‑30 / Rev 00 / rotorcraft testing / torque loop · mast loads · run-dry 2026 · Product Page
NMX-MGB-30 · ENGINEERED TO ORDER — HELICOPTER MAIN GEARBOX LOAD TEST RIG

The whole helicopter hangs from it. Prove it on the ground.

A main gearbox takes two turbine inputs at ~20,000 rpm down to a rotor's few hundred — near 80:1 — while the aircraft's entire lift and hub moments pass through its case. Engines are duplicated; the gearbox is one, and even autorotation needs it turning. The rig that proves it is built around three ideas. Circulate the power: article against slave gearbox in a closed torque loop, so megawatts go round and the motor pays only the losses. Load every path at once: lift and moments hung on a dummy mast while the loop runs, because case distortion is what moves tooth contact. And the certification case is losing the oil — drain it on command, keep recording, stay turning on the order of thirty minutes. The rig does deliberately what the aircraft must survive. No delivered helicopter gearbox rig is claimed.

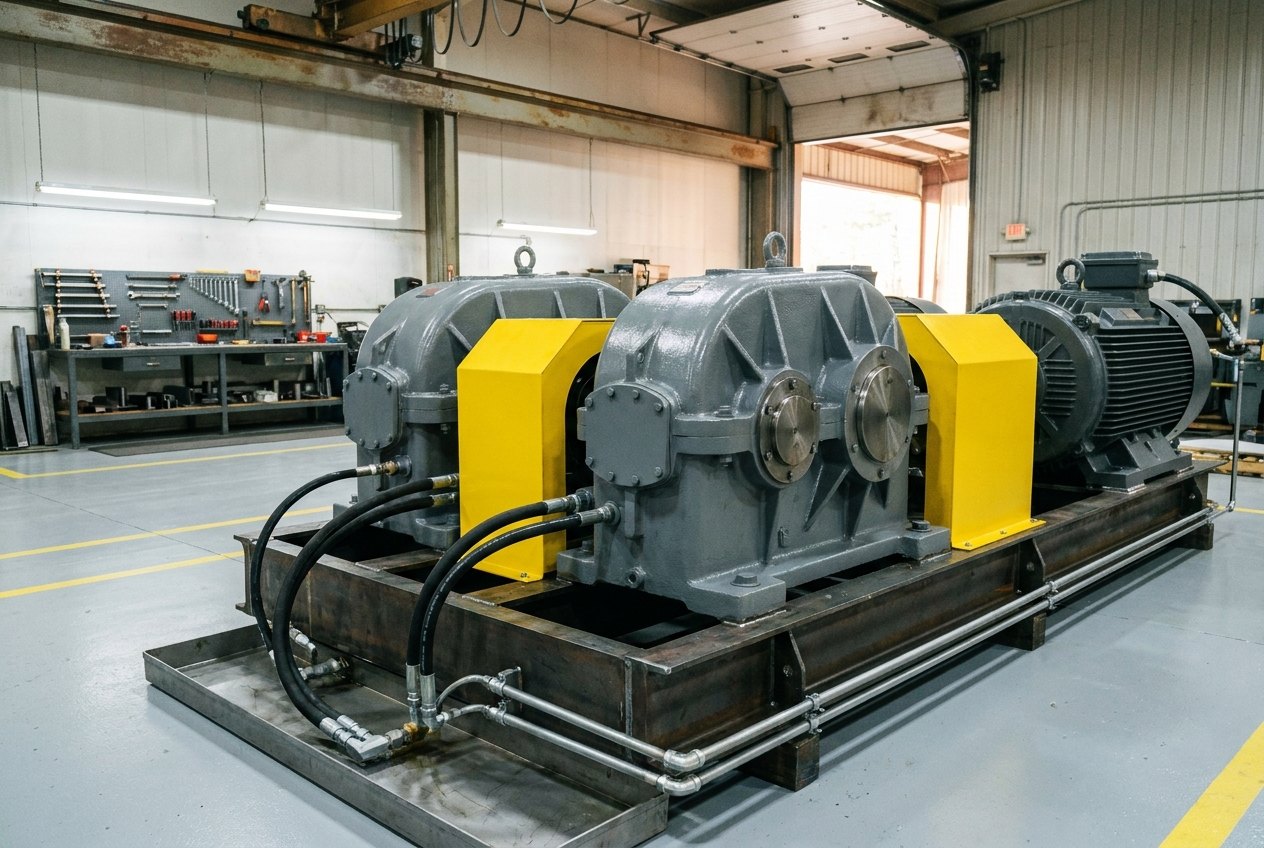

Illustrative image, not a delivered system — a newly built back-to-back gear test rig in a clean test hall: two freshly painted grey ribbed gear cases with bright machined flange faces on a fabricated grey bedplate, their connecting shafts enclosed in solid safety-yellow coupling guards, a dark finned drive motor at one end, neat black lubrication hoses and bright steel pipes dropping into a clean shallow drip tray, an orderly tool-board workbench along the far wall, light-grey floor with crisp yellow walkway lines, daylight through the hall door, no people and no readable markings
Fig · 01 Back-to-back — two gearboxes locked in a torque loop, megawatts circulating, the motor paying only the losses — illustrative, not a delivered system
Reduction
~80:1turbine in, rotor out
Power
circulatedthe motor pays losses
Loads
all at oncetorque + mast + tail
The case
run-dryoil gone, still turning
Record
decadessubstantiation is the point
ISO 9001 / 14001 Engineered to order Delivered transmission-rig franchise Turnkey commissioning Noida · India
01
Overview

One gearbox. No second chances.

Rotorcraft carry two engines precisely so one can fail. There is no such arithmetic for the main gearbox: one case, one train of gears, every newton of lift and every horsepower of drive passing through it, with overhaul lives measured in thousands of hours that someone has to substantiate. That someone works on this rig.

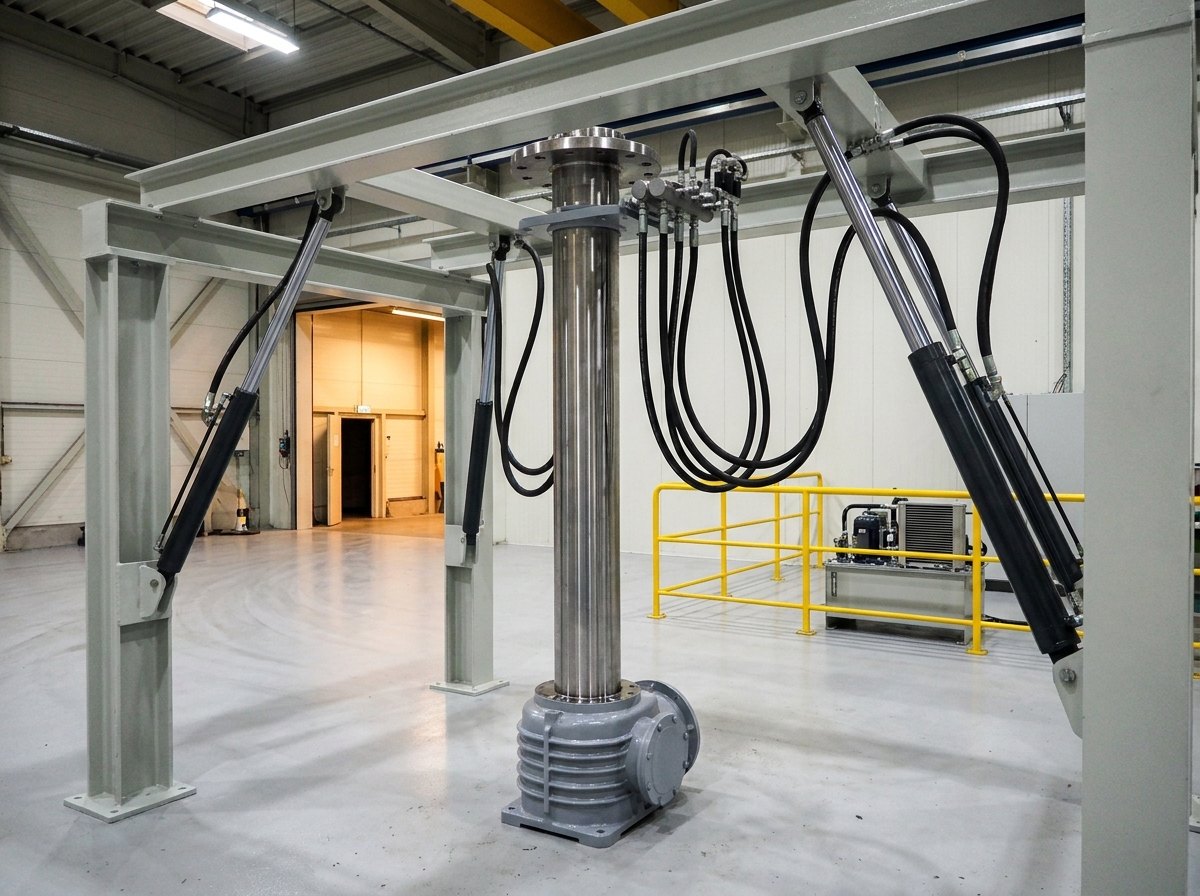

Illustrative image, not a delivered system — a polished vertical test mast rising from a compact ribbed grey gear housing on a clean grouted baseplate, loaded by a rigid overhead frame of light-grey box-section columns: new hydraulic cylinders at different working angles pull on a bright machined hub flange through clevis-ended tie rods, their black hoses looping in natural unequal curves to a tidy manifold, a fresh yellow safety railing behind and a clean hydraulic power pack with cooler beyond it, swept floor with faint scuff arcs, no people and no readable markings
Fig · 02 The mast frame — lift, bending and side loads hung on a dummy hub while the torque loop runs underneath — illustrative, not a delivered system

Circulate the power; pay only the losses. Absorbing megawatts in a brake means buying megawatts, then cooling them away all day. The back-to-back answer locks the article against a slave gearbox in a closed loop and winds torque in with a twist unit; the megawatts then circulate around the loop and the drive motor supplies only the few percent that friction takes. The price of the elegance is that the loop is a torsional system in its own right — analyse its dynamics or it resonates at exactly the mesh orders you are trying to measure.

Torque alone is a flattering test. In flight the mast carries the aircraft — tonnes of lift, hub bending, side loads — and that load path distorts the case, which moves tooth contact and bearing alignment. So the rig hangs those loads on a dummy mast and hub through an overhead hydraulic frame while the torque loop runs, and loads the tail take-off and accessory pads besides. Combined loading is not a refinement; it is the difference between testing the gearbox and testing a gearbox-shaped object.

And the famous case is failure. Certification demands the gearbox keep turning, under power, for on the order of thirty minutes after the oil is gone — the crew's time to put it down. A rig must therefore do something rigs are normally built to prevent: create the failure on purpose, drain on command, keep every channel alive while temperatures climb, and contain whatever the ending is.

We engineer the rig — bedplate, torque loop, loading frames, lube and run-dry systems, drives, acquisition, protection, containment — including to your specification and drawings, beside our delivered vehicle-transmission test rigs. The gearbox under test and its design are yours.
Circulated

Megawatts in a loop

Back-to-back architecture — full power on the gears, a fraction at the wall.

Combined

Every path at once

Torque, lift, moments, tail and accessories together — the case shape flight actually sees.

Survivable

Run-dry, on record

The oil drained deliberately, every channel recording, the outcome contained.

02
Architecture

Spin, wind, hang, run.

The schematic follows the test — the article at speed, torque wound into the loop, the aircraft's loads hung on the mast, the spectrum run to a certificate — and the machine underneath: torque loop and drives, loading frames, lubrication and run-dry, acquisition and protection.

FIG · 03GEARBOX RIG ARCHITECTURE · TORQUE LOOP + DRIVES / MAST + TAIL LOADING / LUBE + RUN-DRY / DAQ, PROTECTION & RECORD
SPIN IT AT SPEED → WIND IN THE TORQUE → HANG THE AIRCRAFT ON THE MAST → RUN THE SPECTRUM CIRCULATE THE POWER, PAY ONLY THE LOSSES - THE ARTICLE LOCKS AGAINST A SLAVE GEARBOX IN A CLOSED TORQUE LOOP, SO MEGAWATTS CIRCULATE AND THE MOTOR SUPPLIES ONLY THE FEW PERCENT LOST. MEASURES TORQUE, TEMPS, LOSSES, MESH HEALTH, LIFE RULE EVERY LOAD PATH, LOADED AT ONCE SPIN IT AT SPEED TURBINE RPM IN, ROTOR RPM OUT WIND IN THE TORQUE A TWIST UNIT LOADS THE CLOSED LOOP HANG THE AIRCRAFT LIFT + MOMENTS ON A DUMMY MAST AND HUB RUN THE SPECTRUM MISSION CYCLES, TO A CERTIFICATE TORQUE WITHOUT MAST LOAD TESTS TOOTH CONTACT IN A CASE SHAPE FLIGHT NEVER SEES - COMBINED LOADING IS THE POINT, NOT AN OPTION TORQUE LOOP + DRIVES ANALYSED TORSIONALLY, ALIGNED THROUGH HEAT MAST + TAIL LOADING HYDRAULIC FRAMES ON EVERY LOAD PATH LUBE + RUN-DRY A TEST ARTICLE, NOT A SERVICE DAQ + PROTECT FAST ENOUGH FOR MESH, KEPT FOR DECADES OUR ROLE: RIG ARCHITECTURE + BEDPLATE, TORQUE-LOOP MECHANICALS, LOADING FRAMES, LUBE + RUN-DRY SYSTEMS, DRIVES INTEGRATION, DAQ + PROTECTION, CONTAINMENT, COMMISSIONING + AMC DETAIL · THE CERTIFICATION CASE IS LOSING THE OIL DRAIN ON COMMAND THE FAILURE, MADE ON PURPOSE KEEP TURNING ORDER OF THIRTY MINUTES, LOADED RECORD EVERYTHING TEMPS CLIMB, CHANNELS STAY ON GOAL: DO DELIBERATELY, SAFELY, WHAT THE AIRCRAFT MUST SURVIVE EFFICIENCY ARRIVES AS HEAT - A FEW PERCENT OF MEGAWATTS IS TENS OF KILOWATTS INTO THE OIL, SO CALORIMETRY ON THE LUBE CIRCUIT IS THE HONEST MEASUREMENT. CIRCULATE MEGAWATTS IN A LOOP COMBINE TORQUE, LIFT AND MOMENTS SURVIVE THE RUN-DRY, ON RECORD
Fig · 03 Do deliberately, safely, what the aircraft must survive
Arc · 01

Torque Loop & Drives

Article, slave gearbox and twist unit on a bedplate stiff enough to stay aligned through thermal growth — with the loop's torsional dynamics analysed first.

Arc · 02

Mast & Tail Loading

Overhead hydraulic frames on a dummy mast and hub — lift, bending and side loads applied while the loop runs, tail and accessory pads loaded too.

Arc · 03

Lubrication & Run-Dry

Supply, conditioning and per-jet instrumentation — and the drain-on-command system for the one test that must not be improvised.

Arc · 04

DAQ, Protection & Record

Sampling fast enough for gear mesh, trips for overspeed, chip and temperature, containment — and records kept for decades.

Establishing a gearbox test facility, or re-instrumenting one? Send the power class, the gearbox envelope and the test programme — a clause-by-clause compliance matrix within two working days · [email protected]
Send tender spec
03
Specifications

Reference rig, built to the gearbox.

The parameters below describe a reference rig. Power class, loop architecture, loading capacities, lubrication envelope and channel count all follow from three givens: the gearbox's power and speeds, the load spectrum it must be proven against, and whether the programme is development, production acceptance or overhaul substantiation.

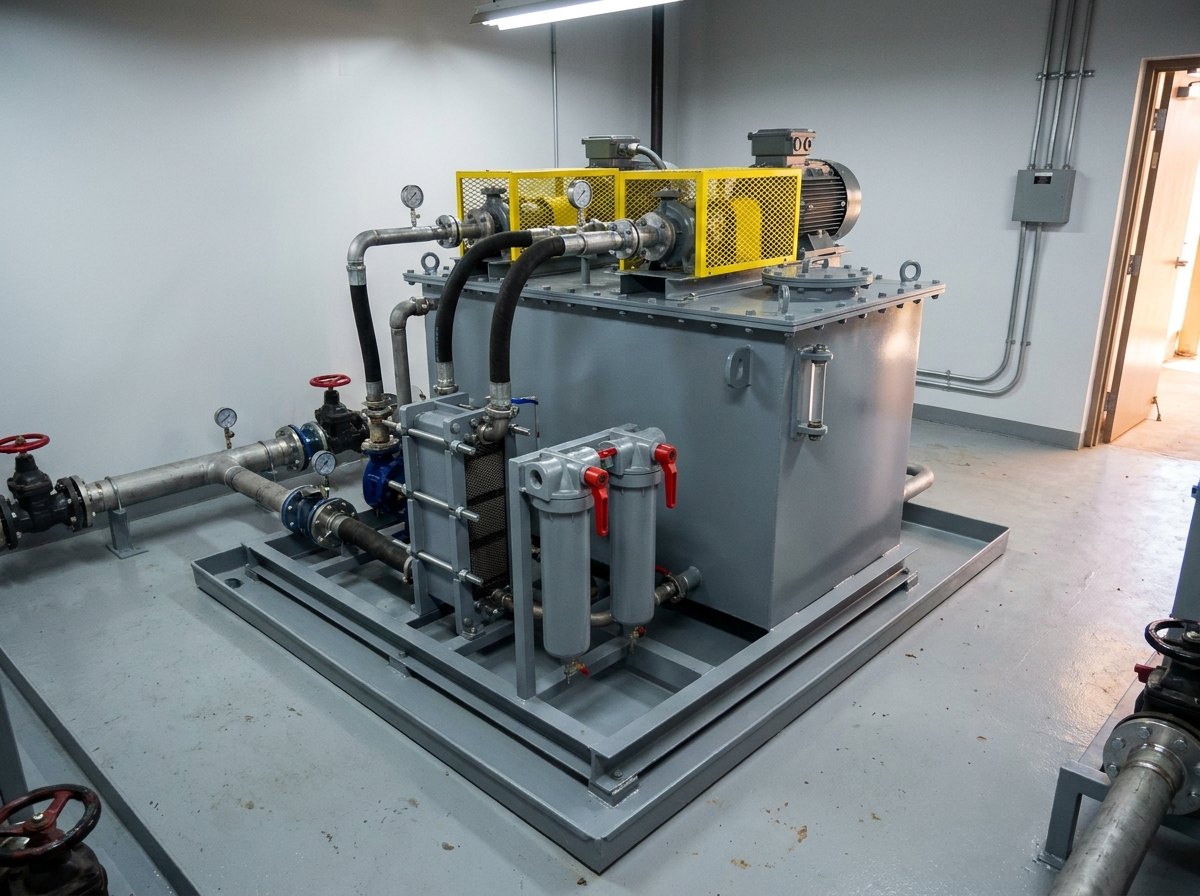

Illustrative image, not a delivered system — a newly assembled lubrication oil conditioning skid in a clean plant room: a freshly painted grey reservoir with a bolted lid and clear side sight glass, guarded pump-and-motor sets under yellow mesh guards on top, a plate heat exchanger and twin vertical filter housings with new red changeover levers, small pressure gauges angled away along bright pipework, red and black valve handwheels, new black flexible hoses joining steel pipe runs on a spotless bund tray, clean light walls and a doorway down the aisle, no people and no readable markings
Fig · 04 The lube skid — supply, conditioning, filtration and the instrumentation that turns oil into data — illustrative, not a delivered system

Where gearbox rigs go wrong

Absorbing the power instead of circulating it — megawatts bought, then boiled away, forever. A torque loop with no torsional analysis, resonating at the mesh orders it was built to measure. Torque without mast load, testing tooth contact in a case shape flight never produces. Run-dry improvised on the day, on a machine not designed to survive it. Lubrication treated as a service rather than instrumented as a measurement, so the losses map and the health signals never exist. Alignment set cold and never tracked as megawatt shafting grows with temperature. Acquisition too slow for mesh frequencies, so gear health hides between samples. Containment as an afterthought on a rig whose defining test is a deliberately failing gearbox. And records that stop at handover, when overhaul substantiation — decades of it — is the entire point.

So the discipline runs the other way. The loop is torsionally modelled before it is built, and the bedplate is sized for alignment under heat, not just weight. Mast, tail and accessory loads are applied together with torque, against the spectrum. The run-dry system is engineered as a first-class function — drain on command, protected sensors, containment proven. The lube circuit carries per-jet instrumentation and calorimetry. Acquisition resolves mesh; protection trips are tested; and every run enters a record structured to still make sense to an overhaul engineer twenty years on.

Full specification — expand
SystemHelicopter main gearbox load test rig — torque loop, mast & tail loading, lubrication & run-dry, drives, DAQ, protection & containment
Governing IdeaThe whole helicopter hangs from it — engines are duplicated, the main gearbox is one, and the rig proves it on the ground
Reduction ContextTurbine inputs ~20,000 rpm to rotor speeds of a few hundred — a reduction near 80:1, in two or three stages, at megawatt powers
ArchitectureBack-to-back power circulation — article locked against a slave gearbox in a closed torque loop; the drive supplies only the losses
Torque ApplicationHydraulic or phase-shifting twist unit; loop torsional dynamics analysed before build so the rig cannot resonate at mesh orders
Combined LoadingLift, hub bending & side loads on a dummy mast/hub via overhead hydraulic frames, applied while the loop runs; tail take-off and accessory pads loaded
Run-DryThe certification case — oil drained on command, gearbox kept turning under power on the order of 30 minutes, every channel recording, outcome contained
LubricationA test article, not a service — flow & jet pressure per bearing and mesh, temperature-rise losses map, chip detection, filtration condition
EfficiencyMeasured as heat — calorimetry on oil and cooling circuits; a few percent of megawatts is tens of kilowatts
EnduranceMission-spectrum cycling, overhaul substantiation, vibration baselines correlated to on-aircraft health monitoring
StructureBedplate stiff enough that megawatt shafting stays aligned through thermal growth; guarding & containment sized for the deliberate failure
DAQ & ProtectionSampling that resolves gear mesh; trips for overspeed, chip, temperature and pressure; tested aborts; records kept for decades
SiblingsIntermediate & tail gearbox functional rigs · lubrication-pump check facilities · DAQ retrofit & refurbishment of existing rigs
Scope BoundaryOurs: rig architecture, bedplate, torque-loop mechanicals, loading frames, lube & run-dry systems, drives integration, DAQ, protection, containment, installation, commissioning, documentation, training, spares & AMC — including build to your specification and drawings. Bought-in certified: drive motors & VFDs, torquemeters, couplings, slave gearboxes where sourced, chip detectors, DAQ hardware. The customer's: the gearbox under test and its design
The FamilyBeside the delivered vehicle-transmission test rigs on this site, and the rotor-test and servo-hydraulic franchises
StatusEngineered to order · quoted across main-gearbox, intermediate and tail-gearbox rig, gearbox test-stand and transmission-rig requirements · no delivered helicopter gearbox rig is claimed on this page
