NMX-TEB-30 · ENGINEERED TO ORDER — TRANSIENT ENGINE TEST BENCHES

Steady state is the one condition an engine never runs in.

Name: Transient Engine Test Bench
Brand: Neometrix

A steady-state bench holds speed and load until everything settles, then records — and settling is exactly what an engine in service never does. It accelerates, sheds load, starts cold. The fuel is wasted and the emissions are made in those moments, and the mechanisms behind them — turbocharger lag, fuel film on cold port walls, thermal inertia in the aftertreatment — have all vanished by the time a steady point has stabilised. So this bench does not measure points. It follows a cycle. Which forces two things most benches cannot do: the dynamometer must motor the engine, not just absorb from it, because a real cycle contains overrun; and every input — air, fuel, coolant, oil — must be held, because a transient result that does not repeat is not evidence. Equipment of this class has been quoted against successive transient engine test bench requirements for a national fuels and lubricants laboratory; no delivered transient engine test bench is claimed — the class is engineered to order.

Enquire — transient bench Capability sheet (PDF)

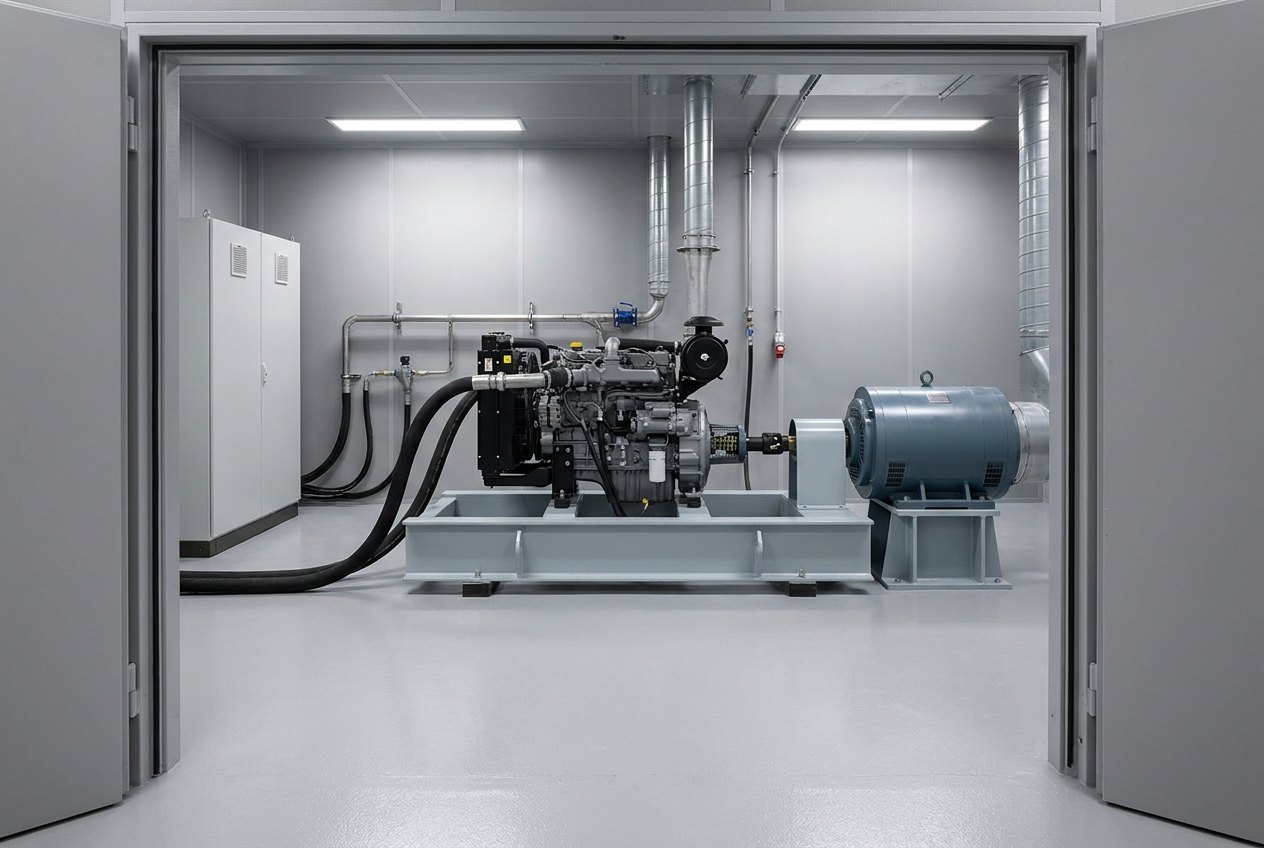

Illustrative of the class — an engine test cell seen from the open doorway: a generic unbadged grey and black four-cylinder diesel engine mounted on a heavy light-grey painted steel bedplate, coupled through a short guarded driveshaft to a large cylindrical blue-grey electric dynamometer on its own pedestal to the right, thick black flexible hoses and stainless pipework running neatly to wall connections, a plain light-grey instrument cabinet with completely blank panels against the left wall, exhaust ducting rising to the ceiling, clean epoxy-coated floor, no people and no readable markings

Fig · 01 The cell — and the machine on the right decides whether the cycle can be followed or only approximated

Follows

a cyclenot a set point

Dyno

four quadrantmotors and absorbs

Judged on

repeatabilityevery input held

Range

light duty – 250 kWreference builds

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Powertrain test cells Correlation & commissioning Noida · India

Overview

An engine spends its life between the points you measured.

Every number on a steady-state map is real. The problem is that the engine passes through those conditions on its way to somewhere else, and what it does on the way is where the fuel goes.

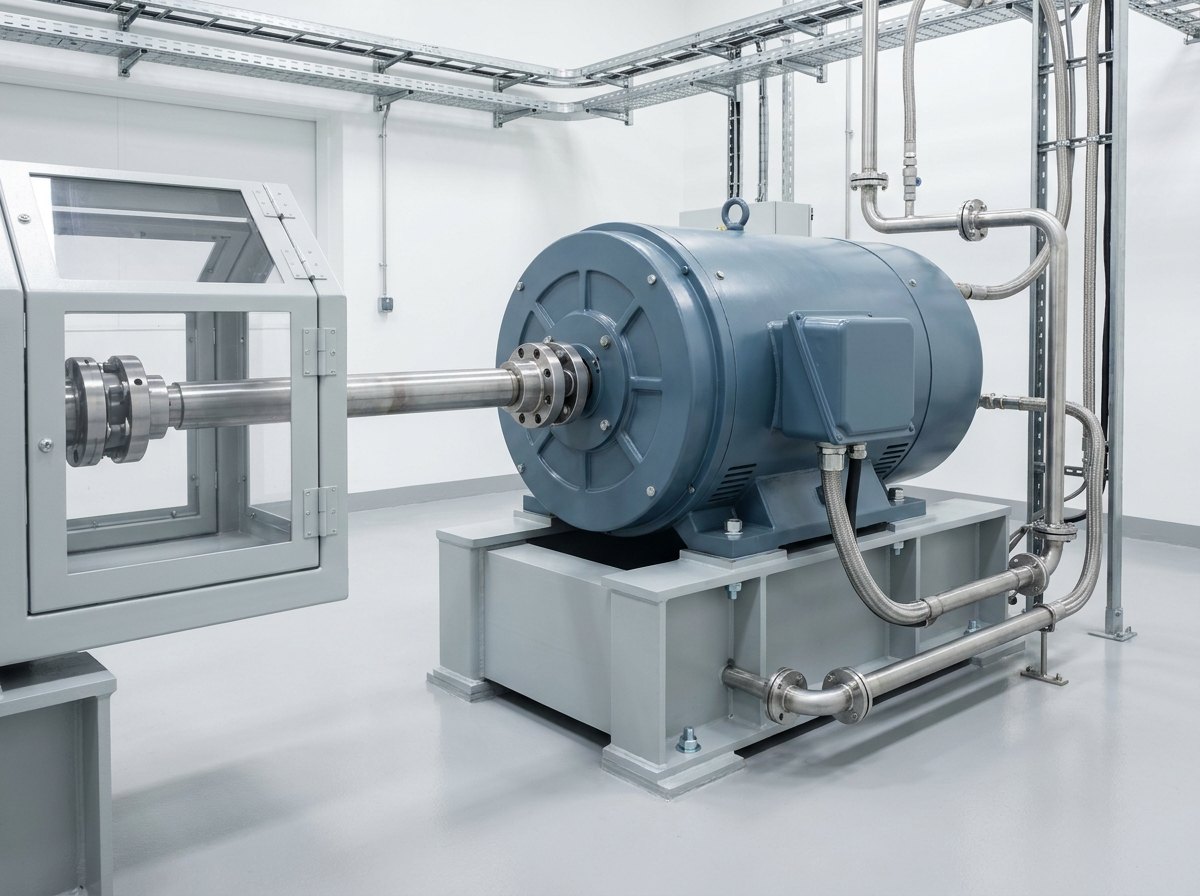

Illustrative of the class — close view of the dynamometer end of an engine test bench: a large cylindrical blue-grey electric dynamometer mounted on a heavy light-grey painted steel pedestal bolted to the floor, a short polished steel driveshaft with a bright machined flexible coupling running from the machine into a hinged clear-panelled light-grey shaft guard on the left, an armoured power cable entering through a clean gland box, stainless cooling pipework with flanged joints and braided flexible hoses, cable tray overhead, clean epoxy floor, no people and no readable markings

Fig · 02 Four quadrants — the machine that can drive the engine, not only hold it back

A steady-state test waits for the engine to stop changing. Speed and load are set, and nothing is recorded until temperatures, pressures and flows have stabilised — because only then is the measurement clean. That discipline is right, and for mapping and for comparing steady operating points it remains the correct method. But it defines away the interesting part. Turbocharger lag exists only while boost is still building. Fuel film on a cold port wall exists only until the wall warms up. Exhaust aftertreatment behaves quite differently before it reaches temperature than after. Every one of those is a transient phenomenon, and every one of them has finished by the time a steady point is ready to be recorded.

So the test has to become a cycle. Rather than a list of conditions, the bench is given a sequence — speed and torque against time — and made to reproduce it. That changes the specification completely. It is no longer “can the bench reach this power?” but “can it get there in the time the cycle allows, and how far does it deviate on the way?” Tracking error becomes the headline number, and it has to be small compared with whatever is being investigated. If a fuel change is worth two percent and the bench wanders by three, the experiment has measured the bench.

And repeatability stops being a nicety. A steady-state point can be re-run tomorrow and compared, because by definition everything had settled. A transient cannot — it is a path, not a place, and it is sensitive to the state everything was in when it began. Intake air temperature, fuel temperature, how warm the coolant and oil were, even the humidity, all move the result. Which is why conditioning is part of the machine rather than an accessory bolted on at the end.

Equipment of this class has been quoted against successive transient engine test bench requirements for a national fuels and lubricants laboratory. No delivered transient engine test bench is claimed: the class is engineered to order, and the record is stated as it stands.

Dynamic

Follows a cycle

Specified on tracking error and torque response — not on peak power.

Four-quadrant

Motors as well as absorbs

Overrun reproduced rather than skipped — a brake cannot do it at all.

Repeatable

Every input held

Air, fuel, coolant and oil conditioned — because a result that cannot repeat is not evidence.

Architecture

Demand a cycle, then earn the right to believe it.

The schematic runs the argument first — why a steady point misses the effect — then the four blocks that answer it: the dynamometer and its coupling, the conditioning, the measurement and sampling, and the cell with its safety and automation.

FIG · 03TRANSIENT BENCH ARCHITECTURE · DYNAMOMETER + COUPLING / CONDITIONING / MEASUREMENT + SAMPLING / CELL, SAFETY + AUTOMATION

Fig · 03 Follow the cycle, hold the inputs, and see the event rather than its average

Arc · 01

Dynamometer & Coupling

Four-quadrant machine, guarded shaft — torque measurement, and the missing driveline inertia simulated in software.

Arc · 02

Conditioning

Intake air, fuel, coolant and oil — each held where the test needs it, before the cycle begins and throughout it.

Arc · 03

Measurement & Sampling

Metering that stays true while flow changes — and data rates fast enough to see an event, not average it away.

Arc · 04

Cell, Safety & Automation

Ventilation, extraction, detection, interlocks — plus cycle automation and the correlation that proves the bench.

Have a cycle the present cell cannot follow? Send the engine envelope, the cycle you must run, the tracking tolerance and what the cell can already provide — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference builds, sized to the cycle.

The parameters below describe reference installations. Dynamometer rating and response, conditioning capacity, data rates, fuel handling and cell services all follow from three givens: the engine envelope, the cycle that has to be run, and the tracking tolerance the work demands.

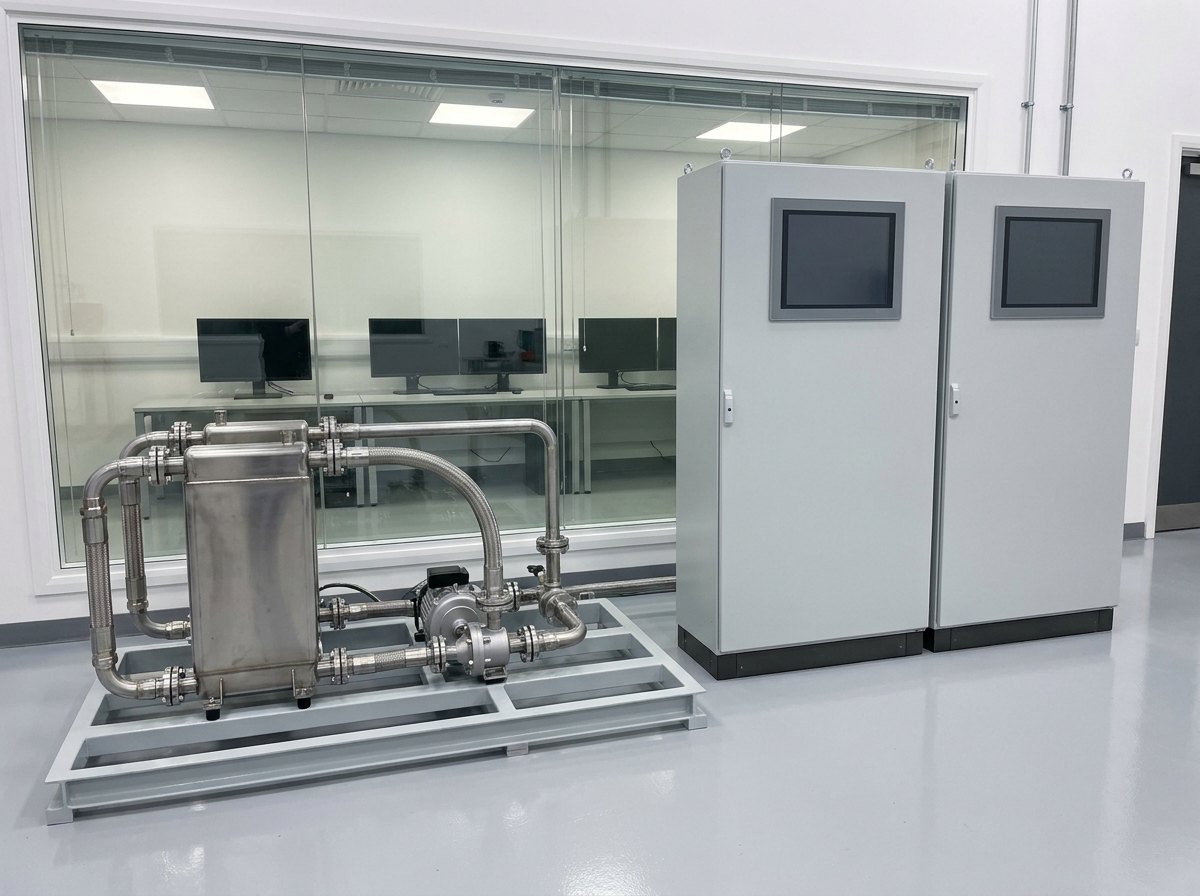

Illustrative of the class — the conditioning and control end of an engine test laboratory: a compact light-grey painted intake-air and fuel conditioning skid on a welded frame in the foreground with a stainless heat exchanger, a small pump, stainless pipework with flanged joints and braided flexible hoses, plain unmarked control cabinets alongside with blank panels and dark switched-off screens, and behind a large clean glass observation window the empty control room with plain desks and blank dark monitors, clean epoxy floor, no people and no readable markings

Fig · 04 Conditioning — the unglamorous half that decides whether a result can be repeated

Where transient benches go wrong

Specified on peak power — when what decides the bench is torque response, so a nominally larger machine follows the cycle worse than a smaller, faster one. A steady-state dyno bought and a cycle demanded of it — it lags, and that lag is silently written into every result the cell ever produces. No motoring capability — so the overrun sections are faked, skipped or driven open-loop, and precisely the conditions that produce cold aftertreatment go untested. Conditioning treated as an accessory — and the results then move with the weather. Data rate too low to see the event — a transient can be over before a slow logger notices it happened. And cell services sized for the engine rather than the cell — ventilation and heat rejection undersized, so the cell drifts while the engine is being measured.

So the discipline runs the other way. The bench is specified on tracking error against the cycle and on torque response, with peak power treated as a boundary rather than the objective. The dynamometer is four-quadrant by requirement, because motoring is not an option that can be added later. Conditioning is scoped first — air, fuel, coolant, oil — and a soak-and-start state is defined so every run begins from the same place. Data rates are set by the fastest event of interest, not by convention. Cell services are sized for the cell. And the installation is closed out with correlation — repeat runs that demonstrate the bench returns the same answer, which is the only real proof it works.

Full specification — expand

System	Transient engine test bench — dynamometer & coupling, conditioning, measurement & sampling, cell, safety & automation
Governing Idea	The numbers that matter live in the transients — fuel and emissions are produced while accelerating, shedding load and starting cold, and are gone by the time a steady point has settled
What It Follows	A duty cycle, not a set point — and the tracking error must be smaller than the effect being studied, or the bench becomes the experiment
Dynamometer	Four-quadrant alternating-current machine — drives the engine as readily as it loads it; torque response in milliseconds rather than seconds; driveline inertia simulated in software
Why Not A Brake	A water brake or eddy-current unit can only absorb. A real cycle contains overrun — engine driven, torque negative, fuel cut — and that cannot be retrofitted into a machine never built to motor
Conditioning	Intake air at set temperature, pressure and humidity; fuel at set temperature and pressure; coolant and oil brought to a defined soak-and-start state before each run
Measurement	Metering that stays accurate while flow is changing, in-cycle sampling, and data rates set by the fastest event of interest rather than by convention
Repeatability	The acceptance criterion. A transient result that does not repeat is not evidence — closed out by correlation runs at commissioning
Why A Fuels Laboratory	The fuel is the variable under test, so the engine, the air, the coolant and the cell itself must be held as the constant
Cell Services	Ventilation, heat rejection, exhaust extraction, fire and gas detection, fuel storage and safe routing — sized for the cell, not for the engine
Range	Reference builds from light duty to approximately 250 kW; rating, response and conditioning capacity set by the engine envelope and the cycle
The Split	The site's dynamometer engine test rig is the steady-state sibling — it holds a point and records it; this one follows a cycle. Same cell, opposite question. The chassis dynamometer works at vehicle level, through driveline and tyres; this is at the flywheel, engine alone. And the test cell data acquisition system is the data layer any cell needs — here the data rate is the design
Scope Boundary	Ours: bench design & integration, dynamometer mounting, coupling & shaft guarding, conditioning systems, fuel handling, cell services, automation & cycle control, safety & interlocks, installation, commissioning, correlation, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: the dynamometer and its drive, gas analysers, precision transducers. The customer's: the engine, the cycle and the test programme
Status	Engineered to order — equipment of this class quoted against successive transient engine test bench requirements for a national fuels and lubricants laboratory; no delivered transient engine test bench is claimed

PDF · 1 page

Transient Engine Test Bench — Capability Sheet

Tender Response

Send engine envelope, cycle & tracking tolerance — compliance matrix in two working days

Variants

One principle, four builds.

What changes is the engine envelope, what the laboratory is actually trying to learn, and how much of the cell already exists.

Var · 01

Light-Duty Transient Bench

Smaller engines, faster cycles — where response matters more than rating, and the dyno is chosen for how quickly it turns.

Var · 02

200–250 kW Transient Dyno Bench

The heavier reference build — more power to absorb and to motor, and cell services sized accordingly.

Var · 03

Fuels & Lubricants Evaluation Cell

The fuel is the variable — so conditioning, fuel handling and changeover are the design, and the engine is held constant.

Var · 04

Retrofit of a Steady-State Cell

Into a cell that already works — usually a new machine and conditioning, because motoring cannot be added to a brake.

Applications

Wherever the question is what happens next.

The laboratories that need a path measured rather than a point.

A · 01Fuels & lubricants research

A · 02Engine development & calibration

A · 03Emissions & aftertreatment development

A · 04Component & subsystem evaluation

A · 05Durability & cycle endurance

A · 06Institutional powertrain research

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 What actually makes a bench “transient” rather than just fast?

The difference is what the bench is asked to reproduce. A steady-state bench is given a condition — this speed, this torque — and its job is to hold it until everything stops changing, at which point the measurement is taken. A transient bench is given a trajectory: speed and torque as functions of time, running for minutes, including accelerations, load steps, idle periods and often a cold start. Its job is to make the engine actually experience that trajectory. That reframes every requirement. Peak power stops being the headline and becomes a boundary condition. The number that matters is how closely the bench follows the demand — the tracking error — and how quickly it can change torque, which is measured in milliseconds rather than seconds. It also means the control problem is different in kind: a steady-state controller settles to a target and holds, while a transient controller is continuously chasing a moving one, and has to do so without overshoot or oscillation that would itself perturb the engine. The practical test of whether a bench is genuinely transient is simple: give it a demanding cycle, run it several times, and look at the deviation. If the deviation is comparable to the effect you are trying to study, the bench is not measuring the engine — it is measuring itself.

Q · 02 Why must the dynamometer motor the engine as well as absorb?

Because a realistic cycle spends a meaningful part of its time with the engine being driven rather than driving. In a vehicle, whenever the driver lifts off while still moving, the wheels turn the engine through the driveline, torque at the flywheel goes negative, and the fuel is usually cut entirely. That overrun condition is not a curiosity — it is where the exhaust and its aftertreatment cool down, and how cool they get determines how the system behaves for the next several seconds of the cycle. A conventional water brake or eddy-current dynamometer is, by construction, an absorber: it can resist rotation and turn the energy into heat, but it has no way to put energy in. Faced with an overrun section, a brake-based cell can only fake it, skip it, or run it open-loop — and all three change the thermal history the engine actually sees. A four-quadrant alternating-current machine solves this by being a motor and a generator in one, able to drive the shaft or load it and to swap between the two smoothly and quickly. The important consequence for a buyer is that this is not an upgrade path. Motoring capability is a property of the machine and its drive, so a cell built around a brake cannot be made transient by improving its controls or its software — the machine itself has to change, which is why the retrofit variant on this page is usually a new dynamometer.

Q · 03 Why is conditioning treated as part of the machine?

Because a transient is a path, and a path depends on where it started. A steady-state point is comparatively forgiving: whatever state the engine was in ten minutes ago, once everything has settled the measurement reflects the condition you set. A transient carries its history with it. If the coolant is five degrees warmer than last time, the cylinder walls warm faster and less fuel condenses on them. If the intake air is colder or drier, the charge is denser and the turbocharger responds differently. If the fuel is warmer, its density and injected mass shift slightly. None of these individually looks serious, and together they are quite capable of producing a difference of a few percent — which is the same order as the effect most experiments are trying to resolve. So conditioning is specified as part of the bench: intake air at a controlled temperature, pressure and humidity, fuel at controlled temperature and pressure, and coolant and oil brought to a defined state before the run begins. Alongside that goes a soak-and-start procedure so that every run starts from the same place rather than from wherever the previous test left things. When people describe a cell as having “good repeatability”, this is almost always what they are describing.

Q · 04 How fast does the data acquisition actually need to be?

Fast enough to resolve the fastest event you care about, which is a stricter requirement than it first sounds. If a load step and the turbocharger's response to it take under a second, then logging once a second does not record a slow version of that event — it records a single averaged value that makes it look as though nothing happened. The transient is not attenuated, it is erased, and worse, it is erased silently: the data looks perfectly reasonable and simply does not contain the phenomenon. So the rate is set from the physics rather than from convention or from whatever the existing hardware happens to offer. Shaft speed and torque are typically the fastest channels, followed by pressures, with temperatures much slower because the sensors themselves have thermal lag. Emissions sampling has its own problem: gas takes time to travel from the tailpipe to the analyser and the analyser takes time to respond, so raw traces must be time-aligned before they can be compared with anything else — without that alignment, an emissions peak appears to happen after the event that caused it. And because high rates across many channels produce a great deal of data, storage, indexing and the ability to actually retrieve a given run months later all become part of the design rather than afterthoughts.

Q · 05 Can an existing steady-state cell be converted?

Partly, and it is worth being straightforward about which parts. What usually can be reused is the civil work and the shell — the cell structure, foundations, the control room, often the ventilation ducting and the exhaust routing, and sometimes the fuel storage. That is a substantial fraction of the cost of a new cell, so a conversion is frequently worth doing. What usually cannot be reused is the dynamometer, for the reason given above: if it is a brake, it cannot motor, and no amount of new control hardware will change that. Conditioning is normally absent or minimal in a steady-state cell, because it was not needed, so it generally has to be added. Data acquisition often needs replacing on rate grounds. And the cell services deserve a careful look rather than an assumption: a transient cell puts a different, more variable heat load into the room than a steady-state one, and ventilation and heat rejection sized for the old duty may not hold the cell steady under the new one — which matters, because if the cell temperature drifts during a run, so does the intake air, and the repeatability you just paid for is lost. So a conversion begins with a survey and an honest assessment of what genuinely carries over.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the bench design and integration — deciding what the cell has to do and making the parts work as one machine; the dynamometer mounting, coupling and shaft guarding, including alignment and the torsional behaviour of the driveline, which is where a badly matched coupling will happily destroy an expensive machine; the conditioning systems for intake air, fuel, coolant and oil; fuel handling and safe routing; the cell services — ventilation, heat rejection, exhaust extraction, fire and gas detection — sized for the cell rather than the engine; the automation and cycle control; the safety system and interlocks; and installation, commissioning, correlation runs, documentation, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: the dynamometer and its drive, the gas analysers, and the precision transducers — proprietary products of established makers, integrated rather than imitated. What is the customer's: the engine, the cycle, and the test programme. And the record, stated plainly: equipment of this class has been quoted against successive transient engine test bench requirements for a national fuels and lubricants laboratory. No delivered transient engine test bench is claimed; the class is engineered to order, around the cycle it has to follow.

↗

The engine test family from Neometrix.

A point, a path, and the data layer underneath both.

↗ Steady state

Dynamometer Engine Test Rig

Holds a point and records it. Same cell, opposite question.

↗ Vehicle level

Chassis Dynamometer

Through the wheels, driveline included — this one is at the flywheel.

↗ Data

Test Cell Data Acquisition

The layer every cell needs — here the data rate is the design.

Browse all Neometrix product lines.

Get a quotation

Send the engine envelope
and the cycle you have to run.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — transient bench Capability sheet (PDF) +91 7777 876 876
